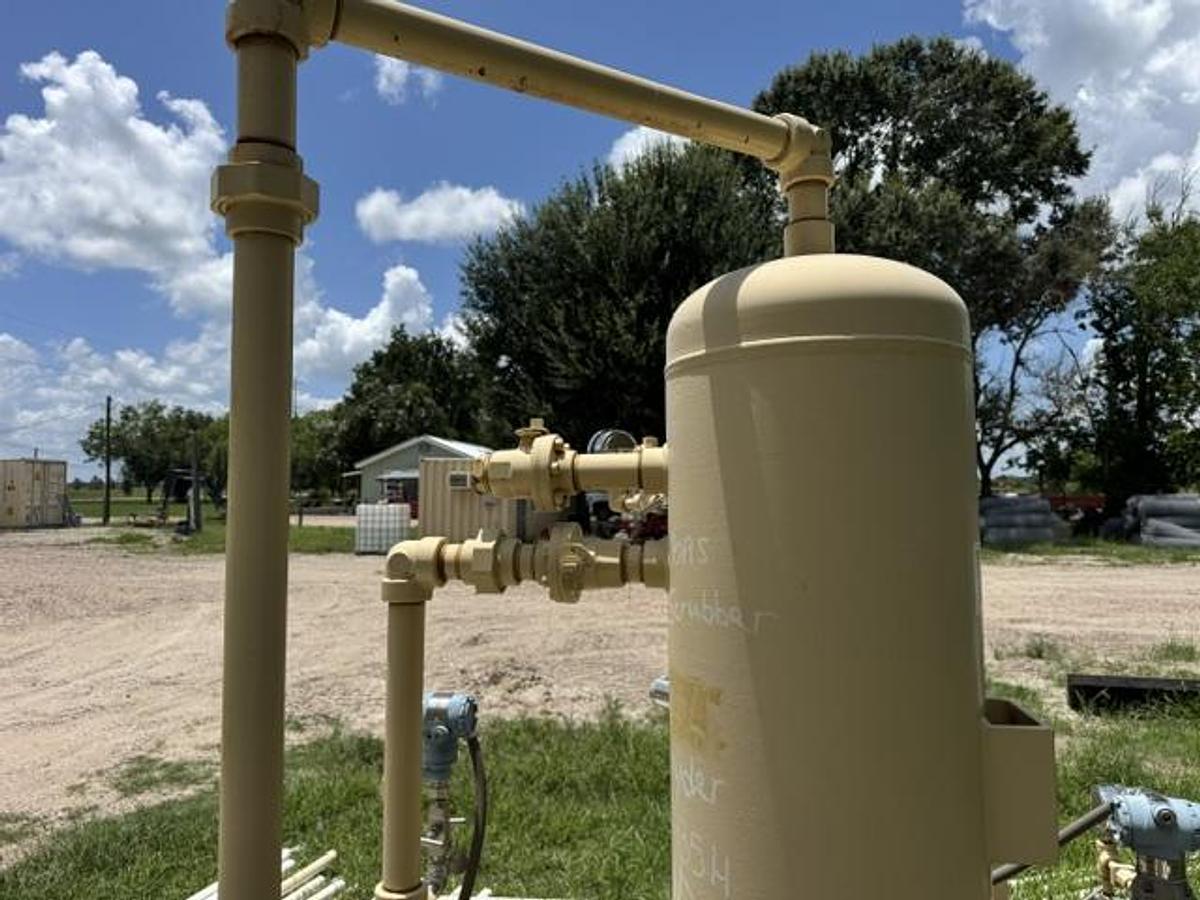

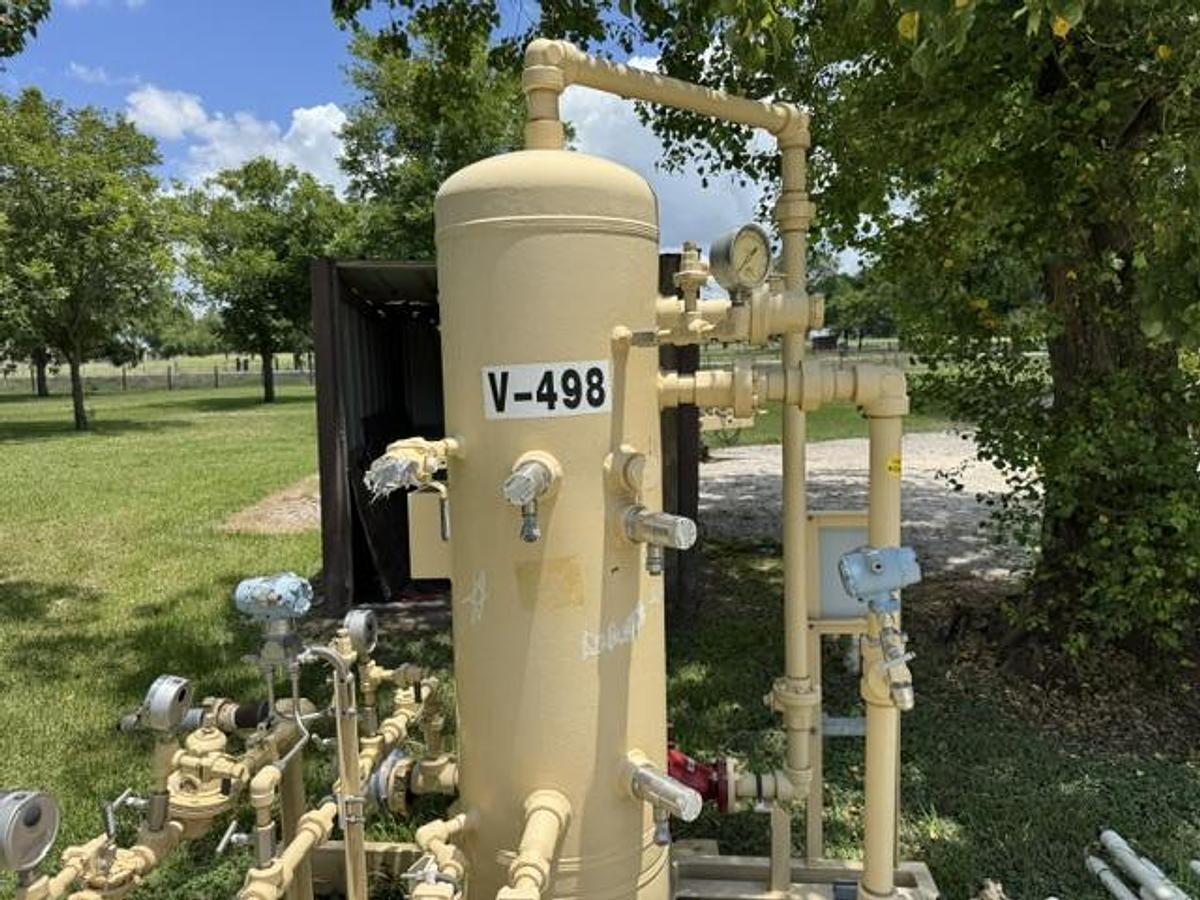

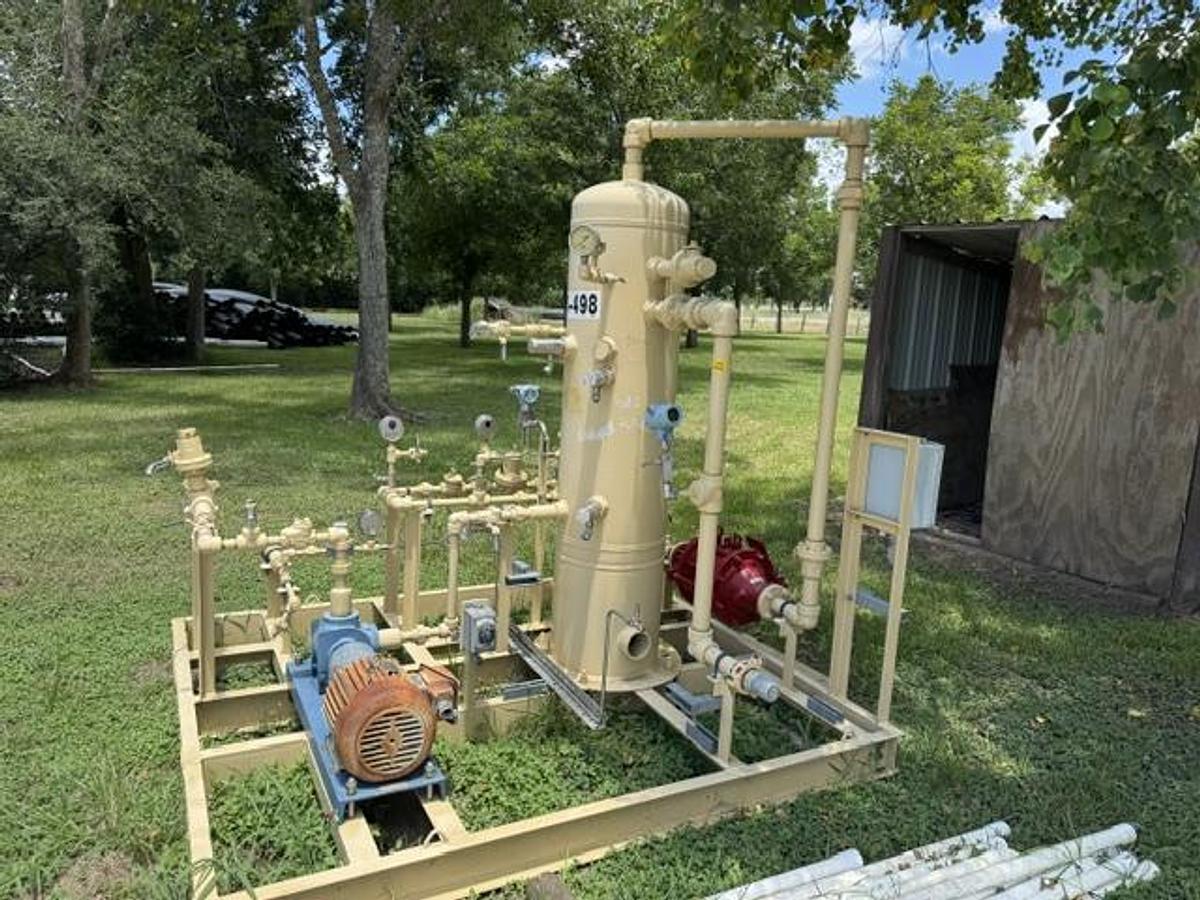

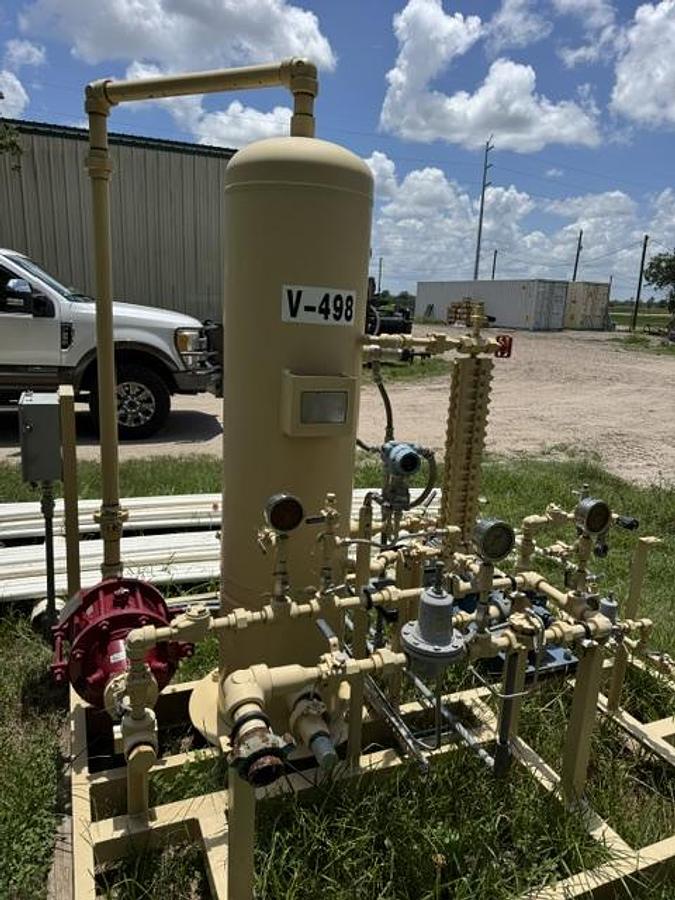

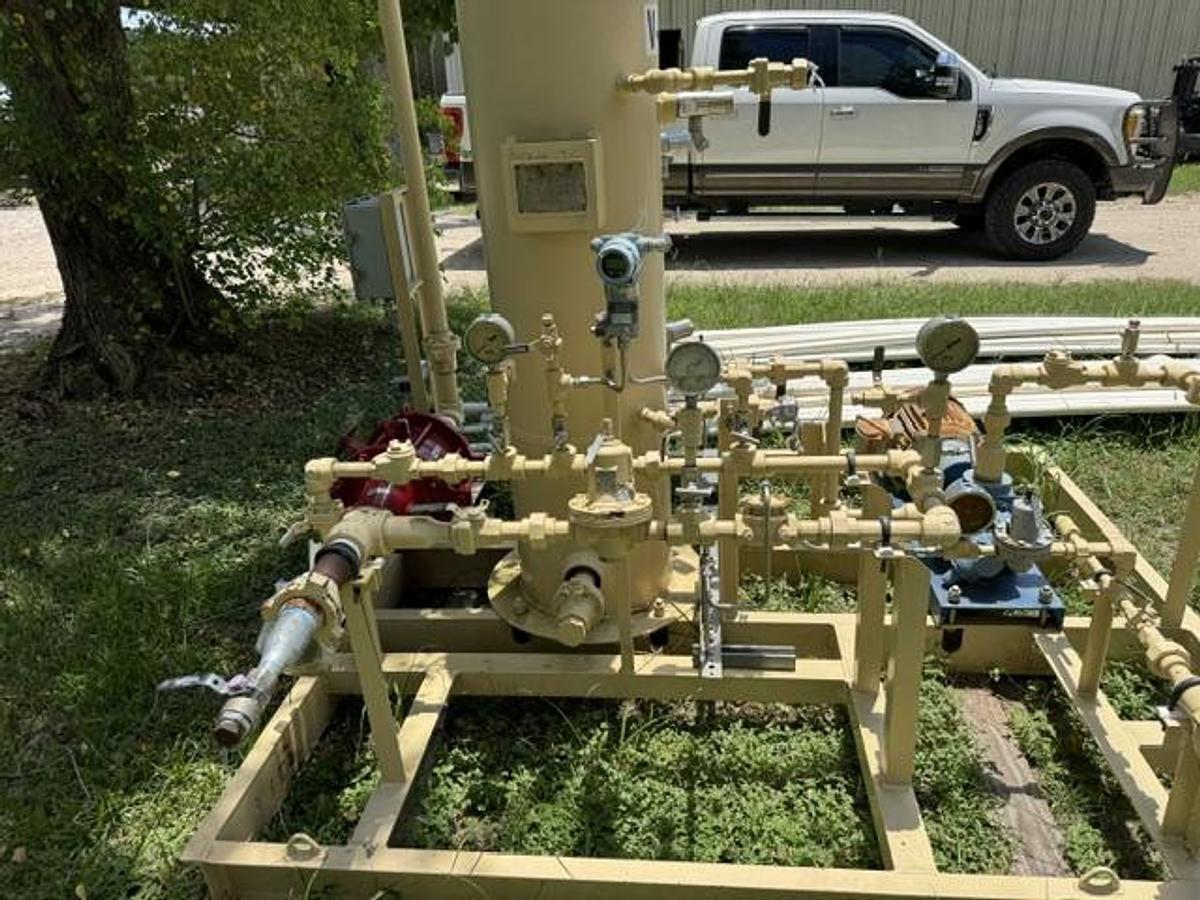

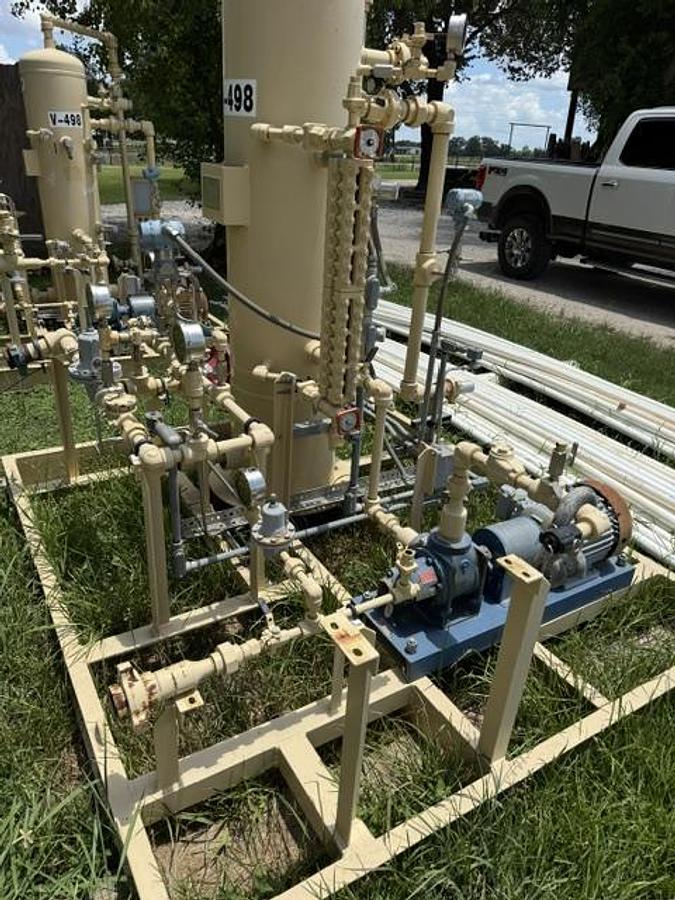

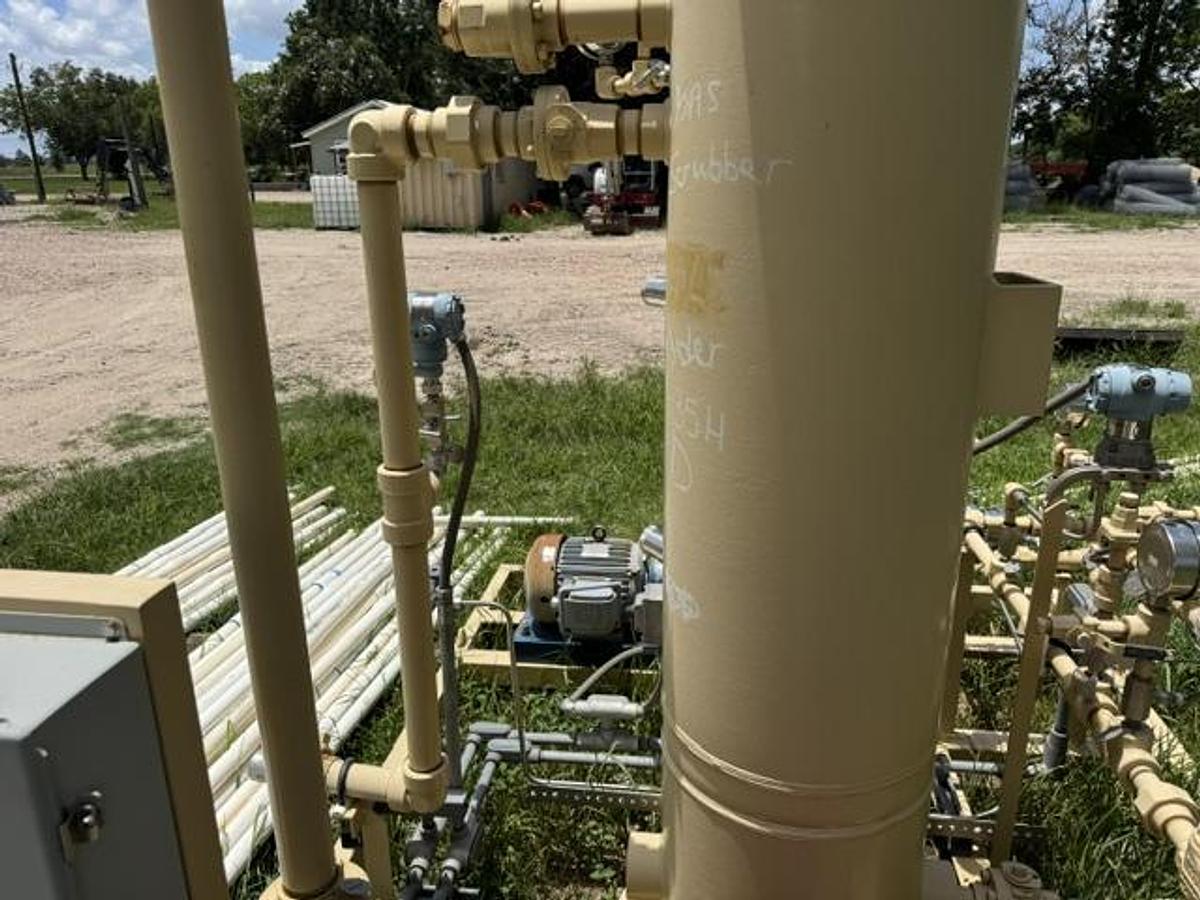

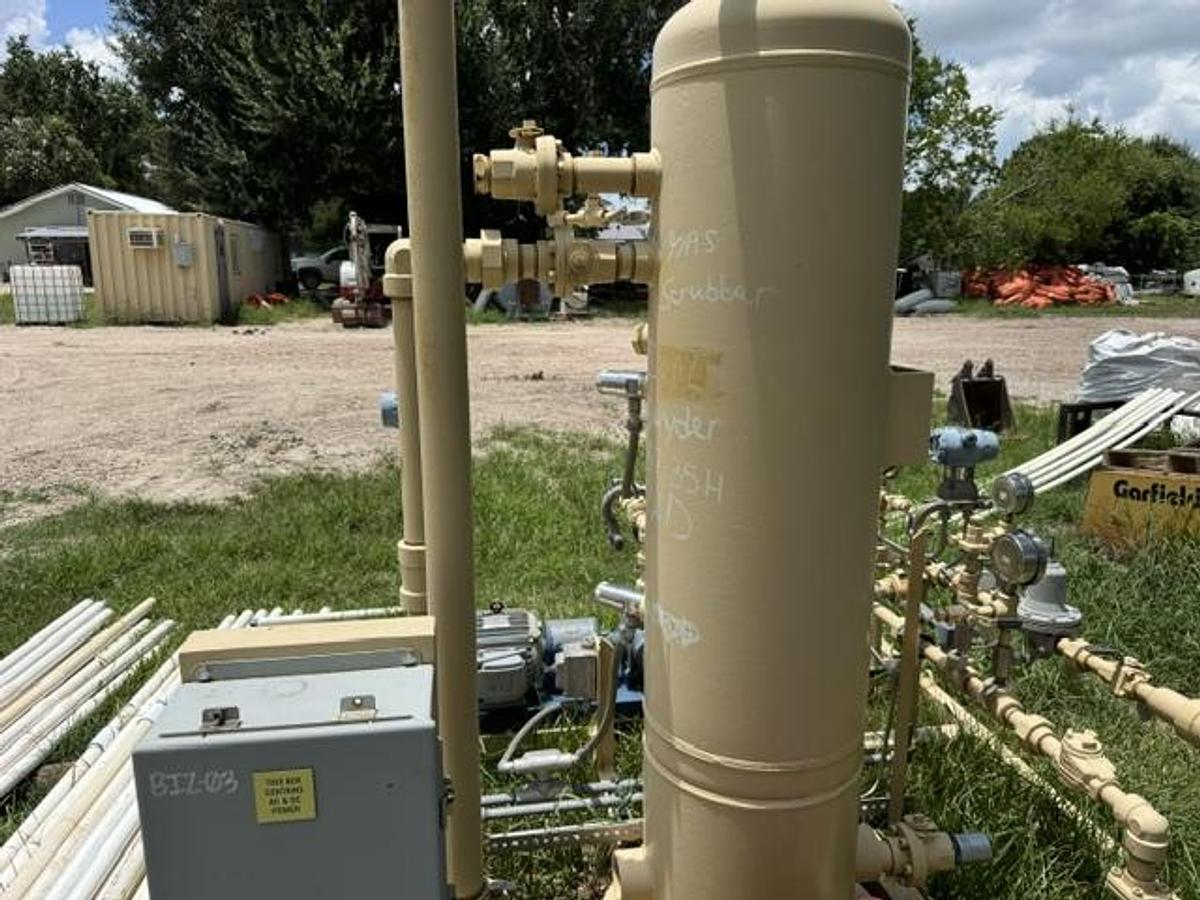

2018 Production Facilities Vent Gas Scrubber

www.VIDAEQ.com

Vent Gas Scrubbers For Sale

These were originally used to capture vent gas from trucks loading/unloading.

👉 Viewing this on Machinio? Then follow this link to view the full Equipment Listing https://www.vidaeq.com/listings/9498833-used-2018-production-facilities-vent-gas-scrubber

Contact Us Today to setup your inspection.

There are several of these units available.

They were originally used for capturing vent gas coming off trucks when they were loading. The vent gas is captured from the truck by the scrubber, then sent to flare. The drop out from the vent gas liquid/condensate accumulates in the scrubber, then tripping the level switch that turns the pump on, which then pumped the condensate back to the oil tank or wherever else designated to go.

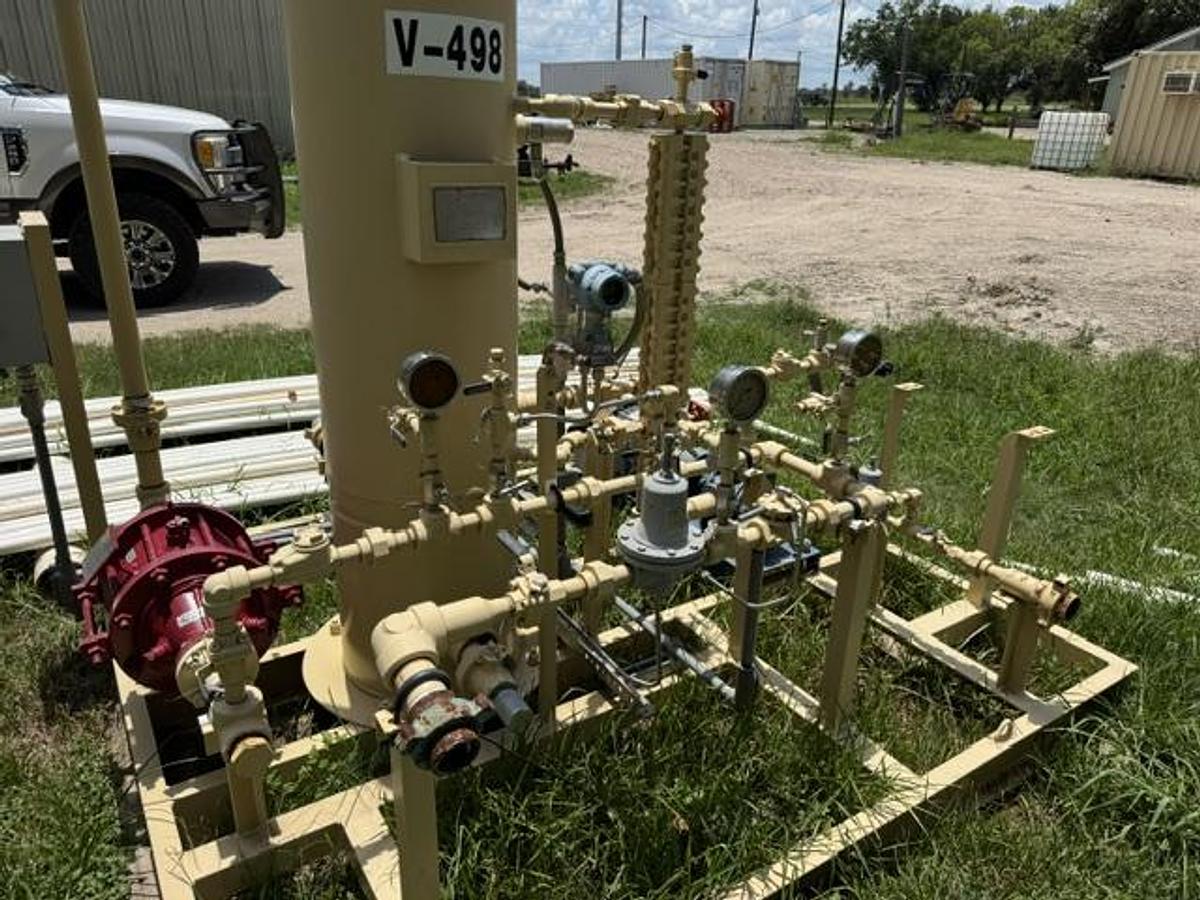

Specifications:

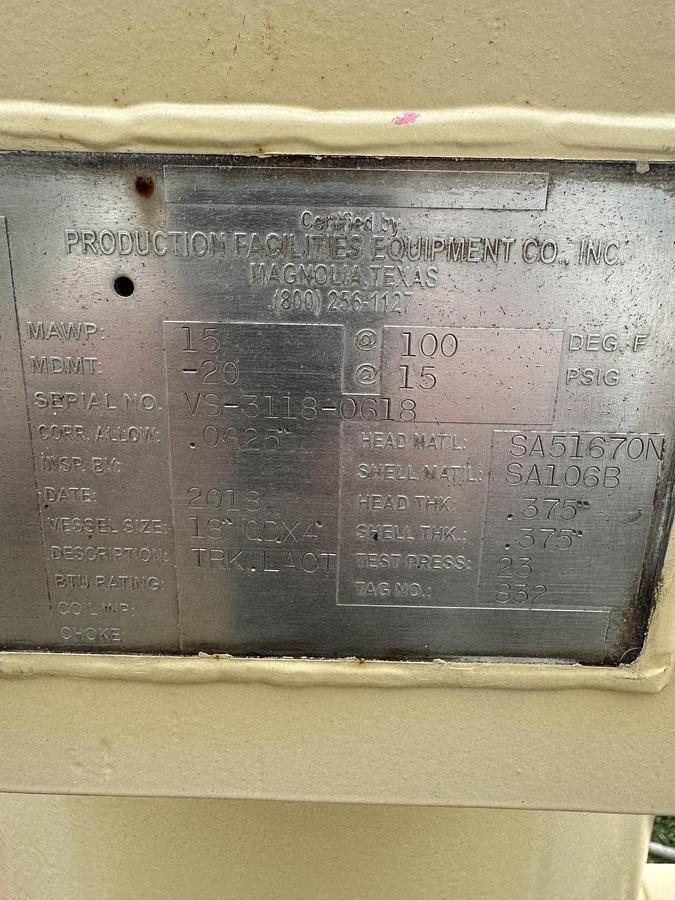

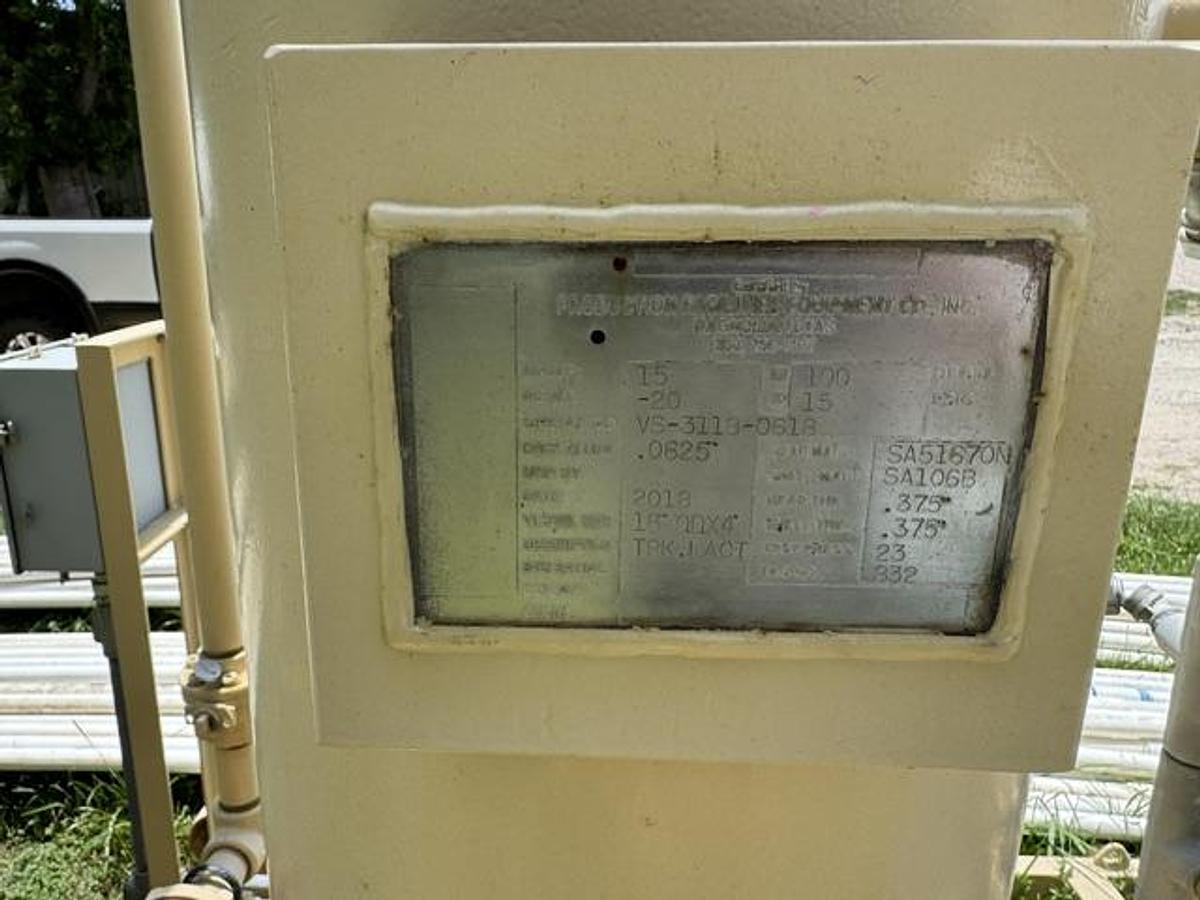

• 18" OD vessel
• Approx 4 ft x 15 ft separator body
• Skid-mounted package
• Designed for LACT (Lease Automatic Custody Transfer) service

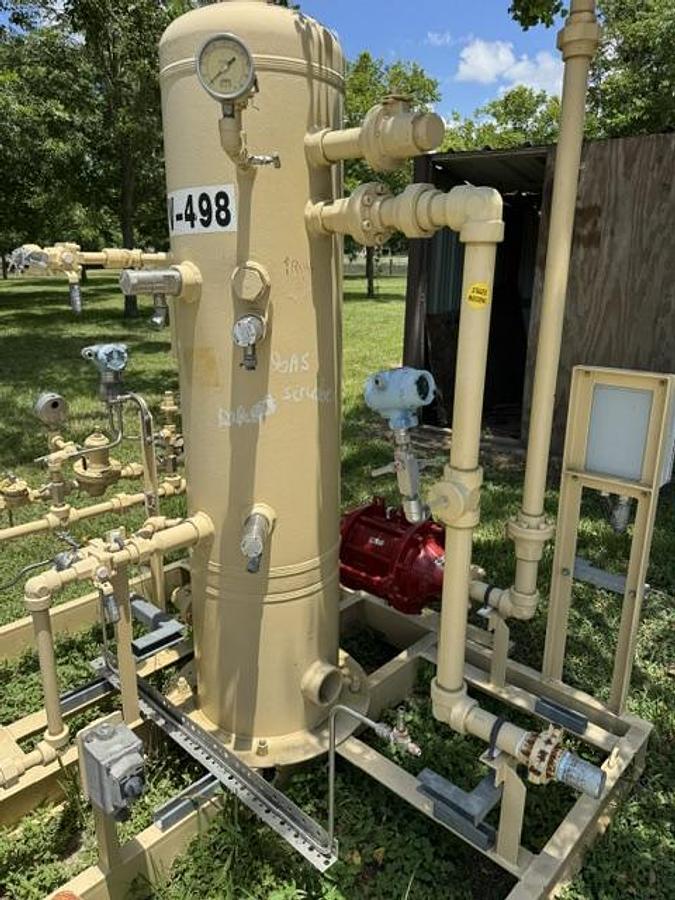

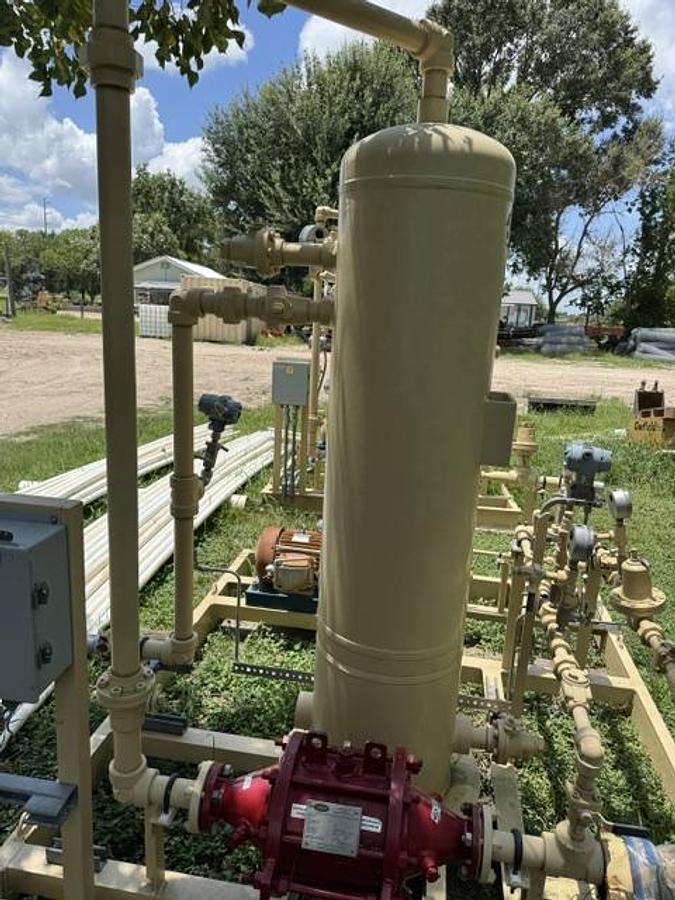

Separator Vessel

• Oil/water separation before measurement
• Non-code vessel (common for field units)

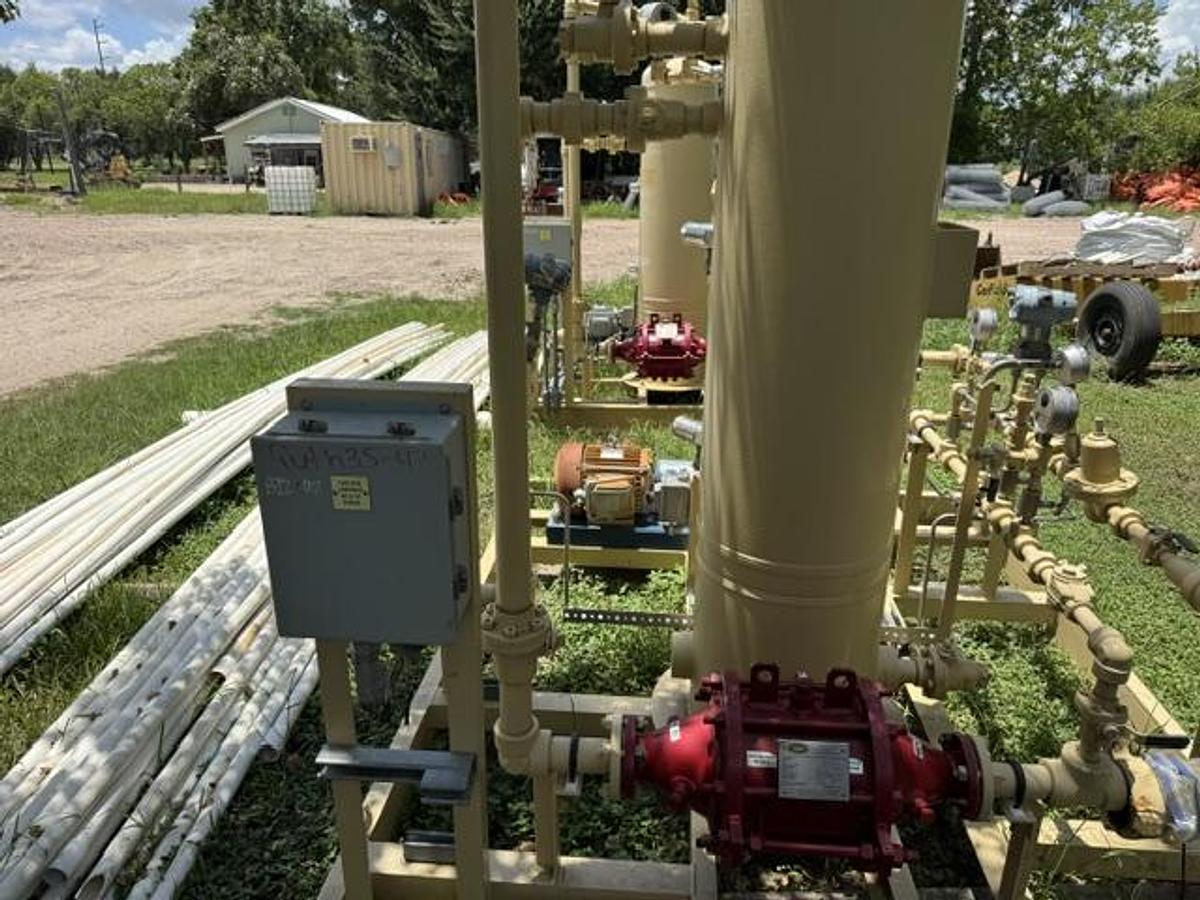

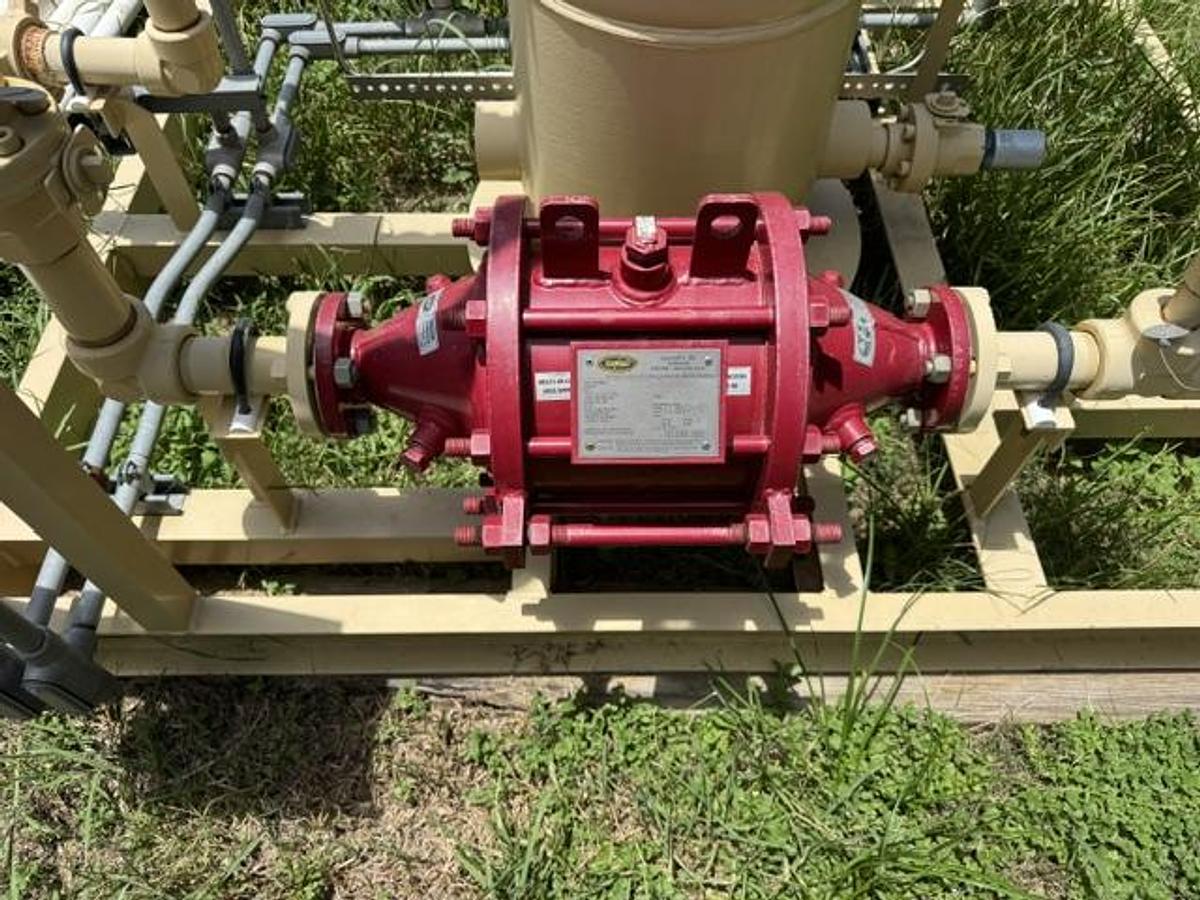

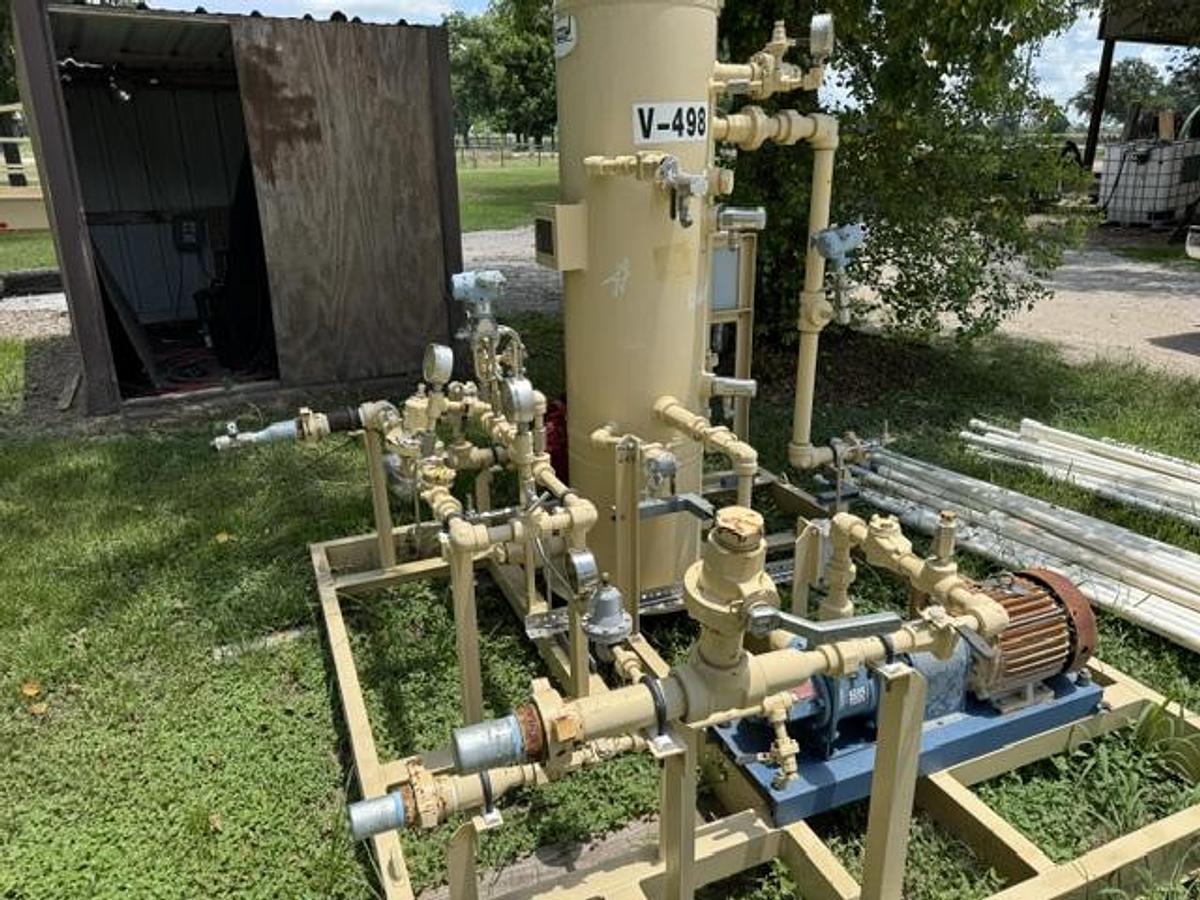

Pump System

• Gorman-Rupp gear pump
• ~3 HP motor (Class I Div 2 rated)
• 2.5" NPT connections
• Built-in relief (30–95 PSI range)

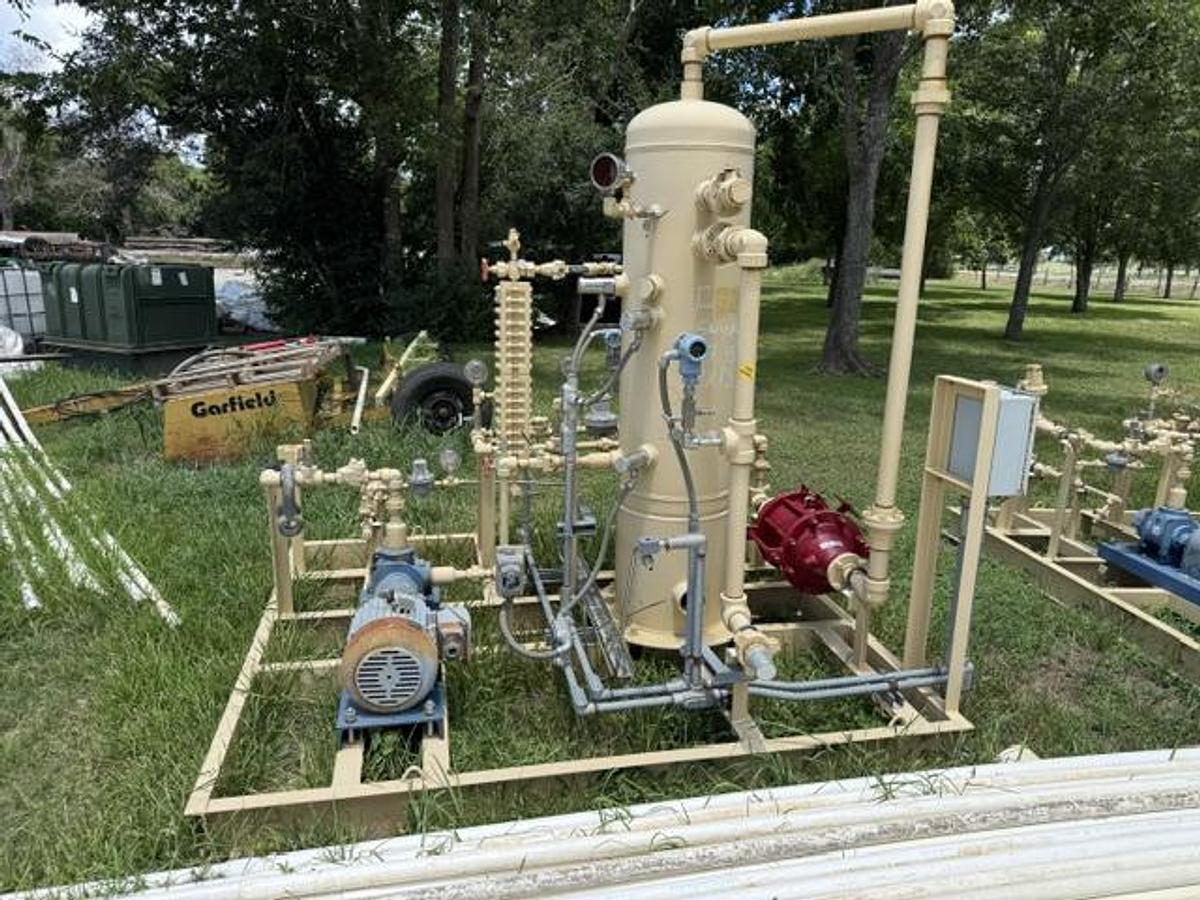

Skid

• Open oilfield skid
• Roughly 7.5' x 6.5' footprint

 What It’s Used For

This is standard in:

• Tank batteries
• Truck loading/unloading
• Oilfield production sites

Basically:

Scrubs VOC's in vented gas → Fuel condensate drops out → Pumps collected condensate to designated area

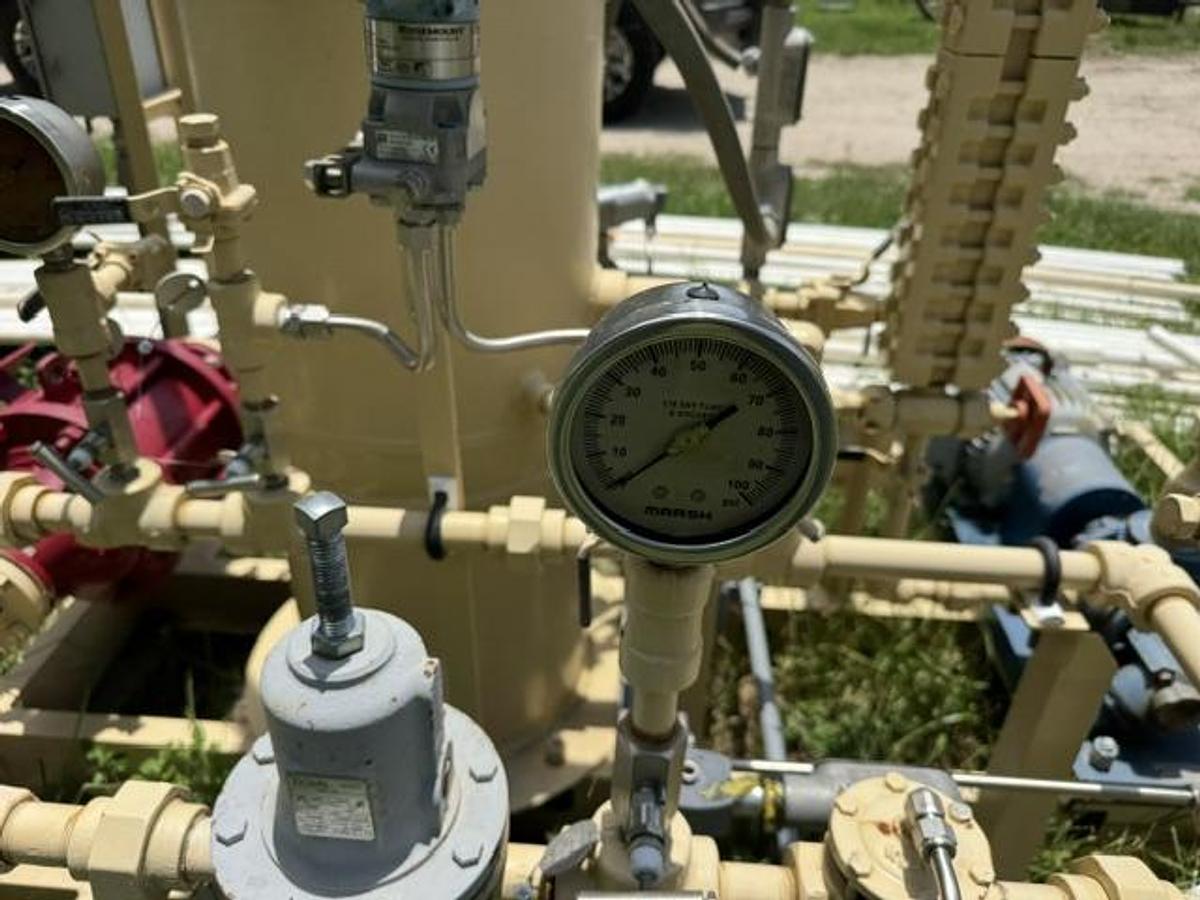

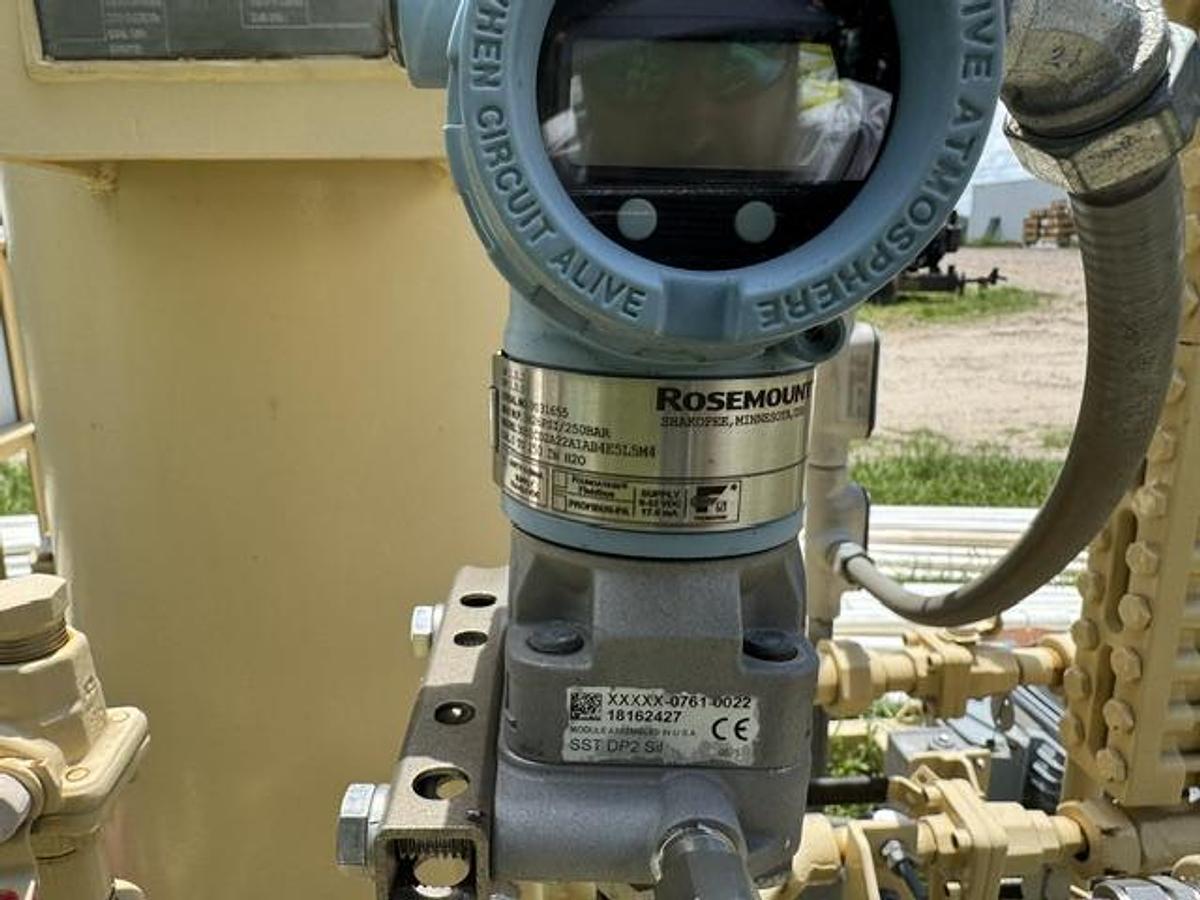

Rosemount 3051CD Differential Pressure Transmitter

3051CD = Coplanar Differential Pressure Transmitter

 Accuracy: up to ±0.075% of span

Output: 4–20 mA + HART

Pressure capability: varies by range (often up to 2,000+ psi line pressure)

Long-term stability: designed for 15+ years service

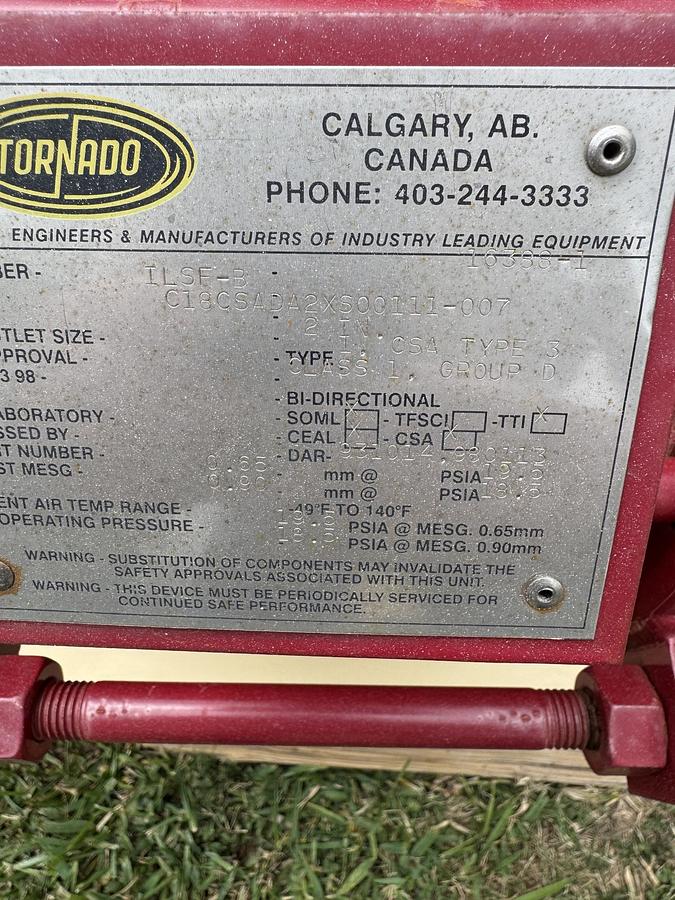

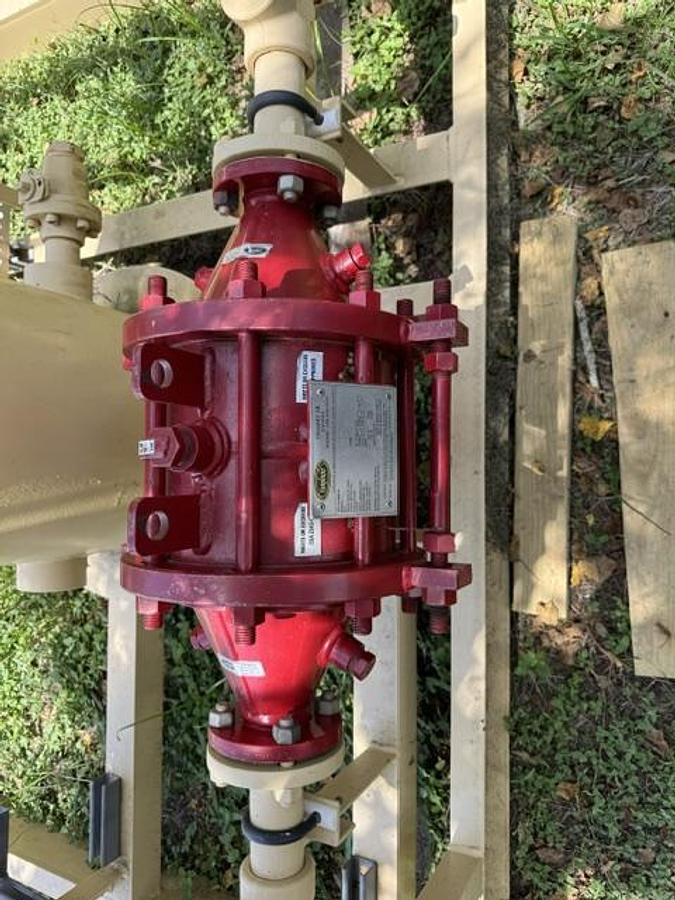

Tornado Meter (Calgary, Alberta, Canada)

• Positive displacement / inline flow meter or flow element
• Used in LACT measurement systems

Measures fluid volume very accurately before custody transfer

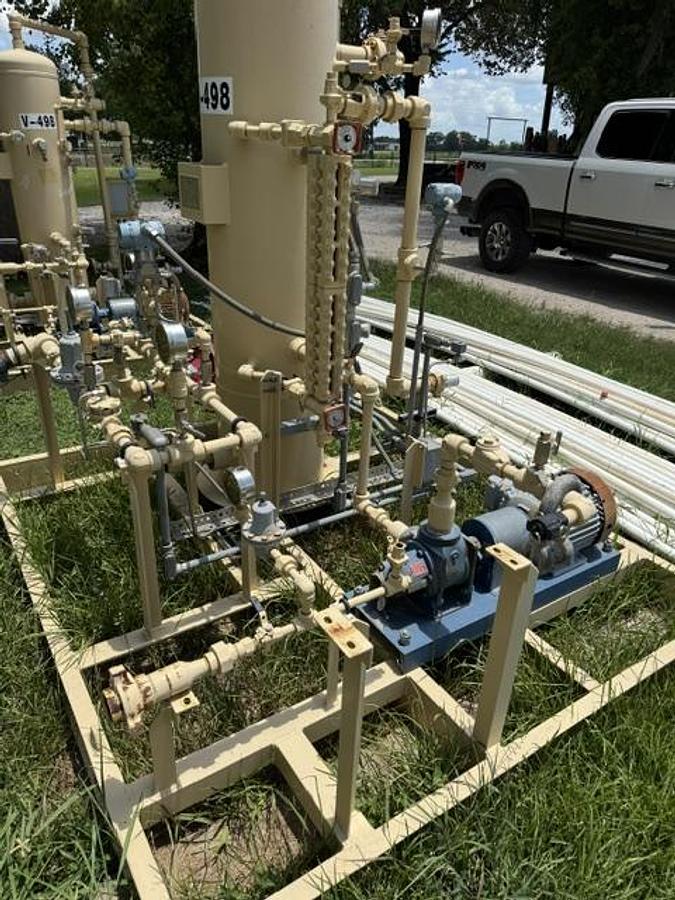

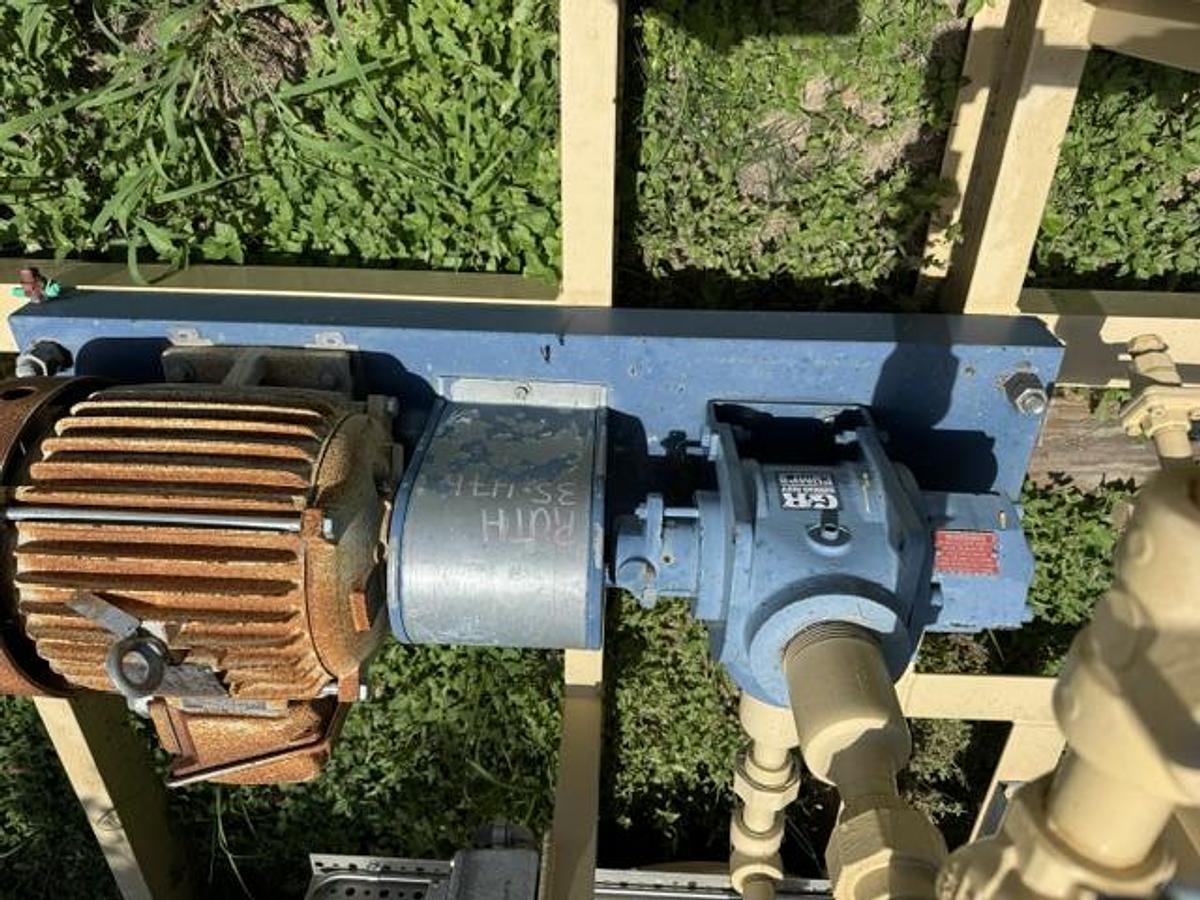

Pump Package

• Gorman-Rupp gear pump
• Electric motor driven ( ~3 HP)
• Moves product through the meter

Please contact us to setup an inspection.

Thank you
