2020 TAKEUCHI TL12V2-CR

www.VIDAEQ.com

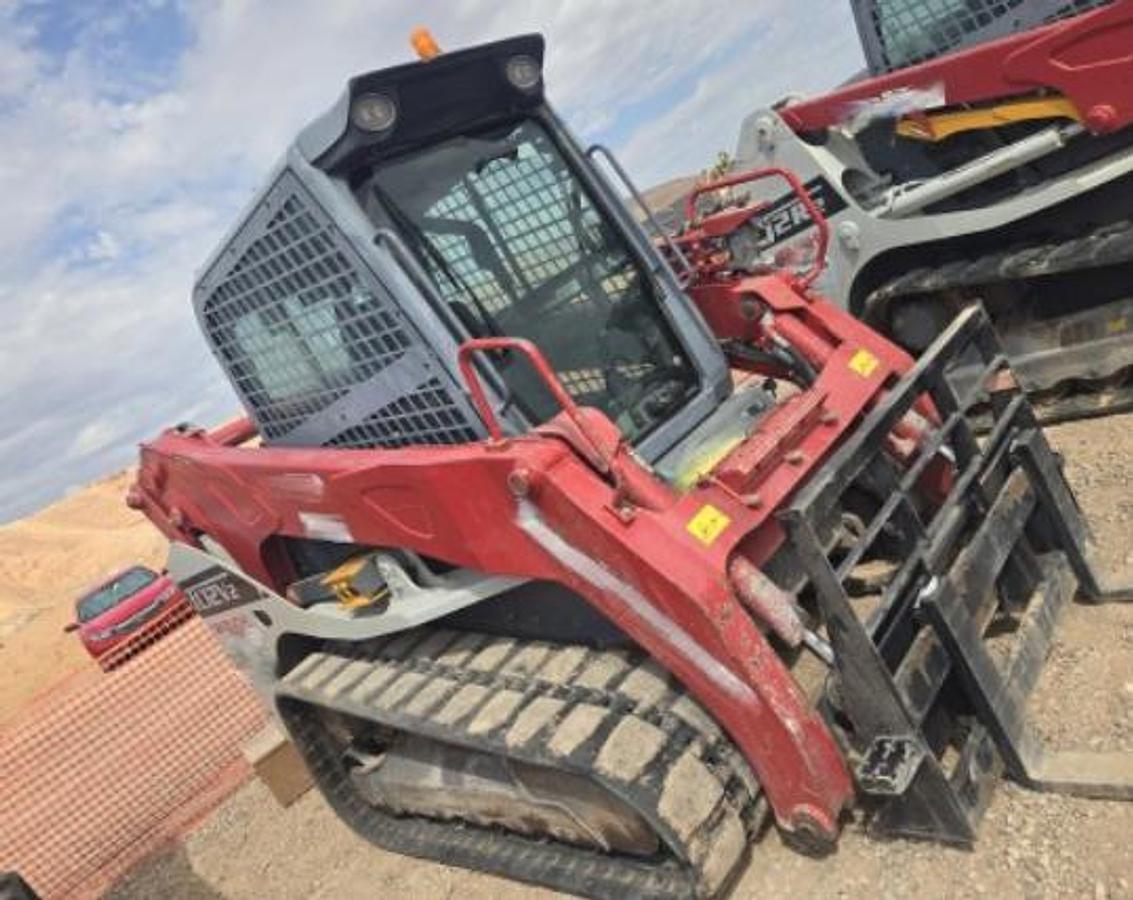

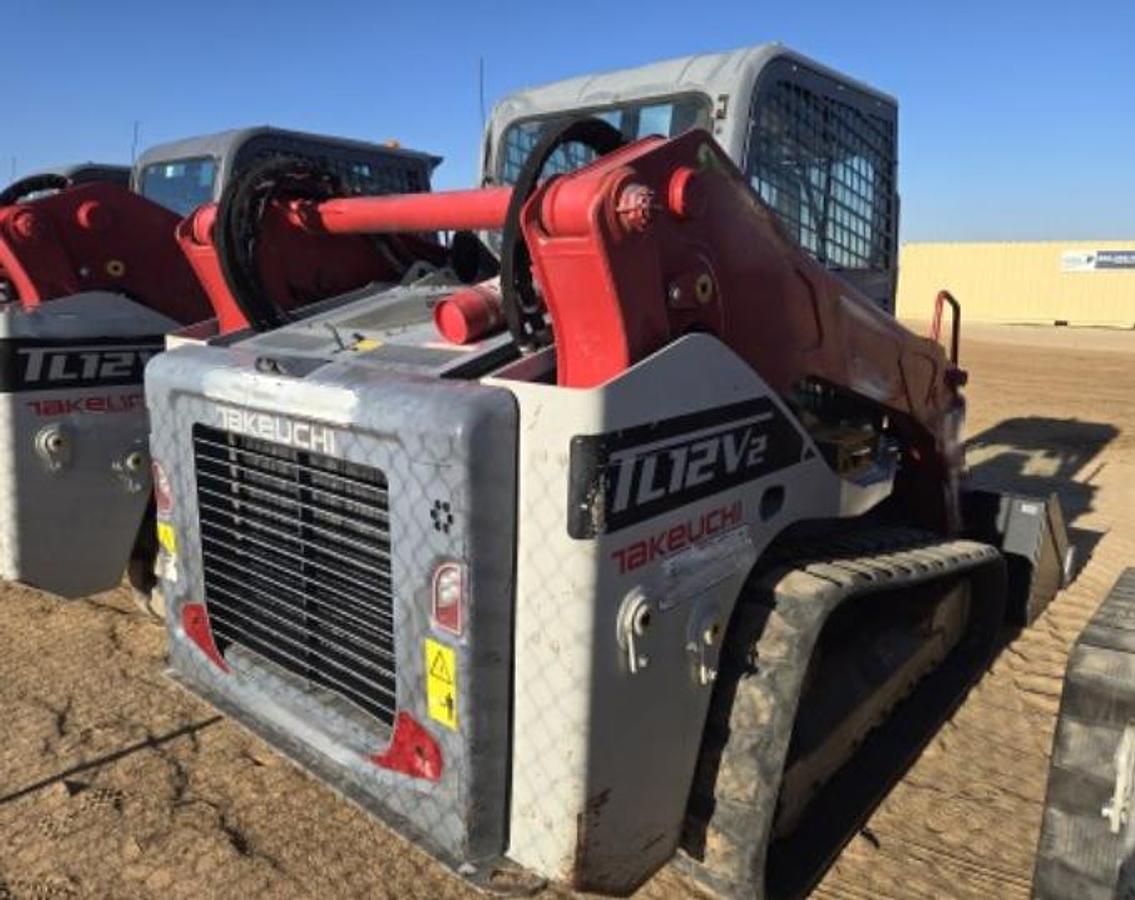

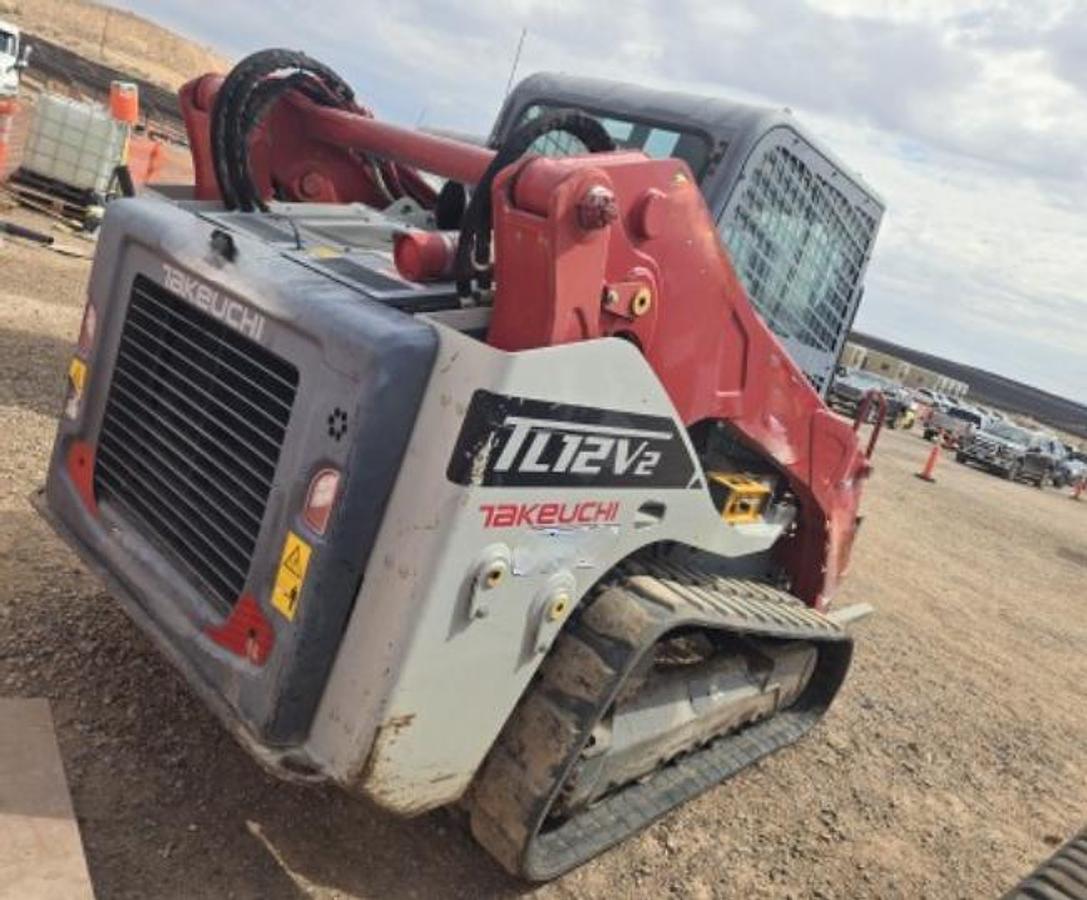

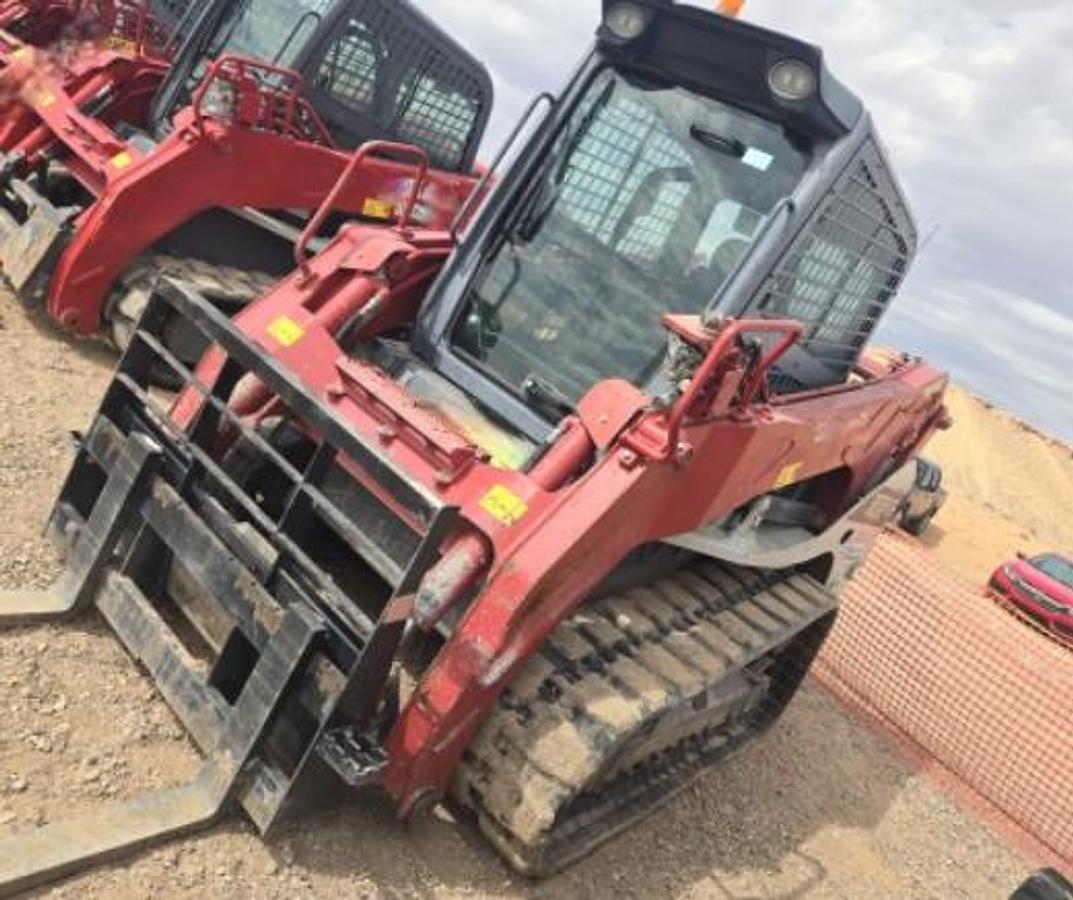

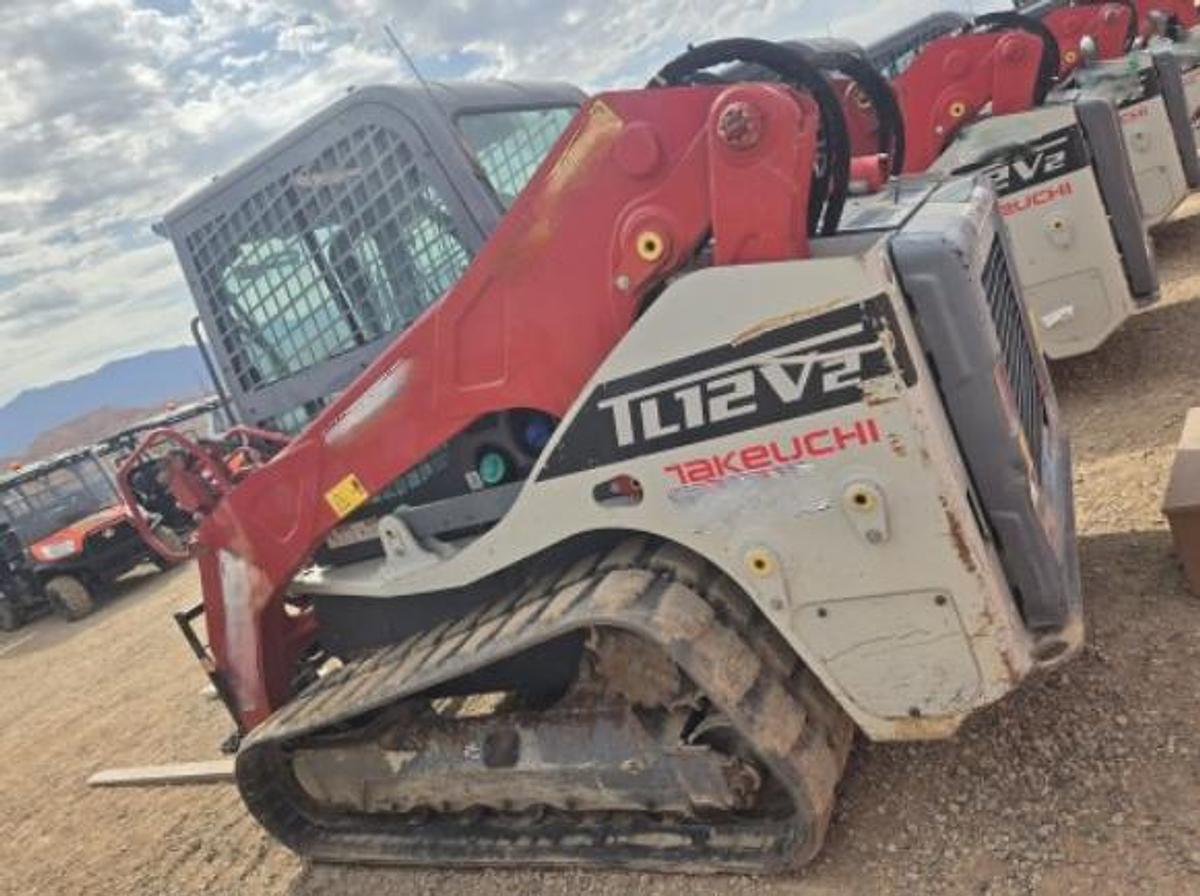

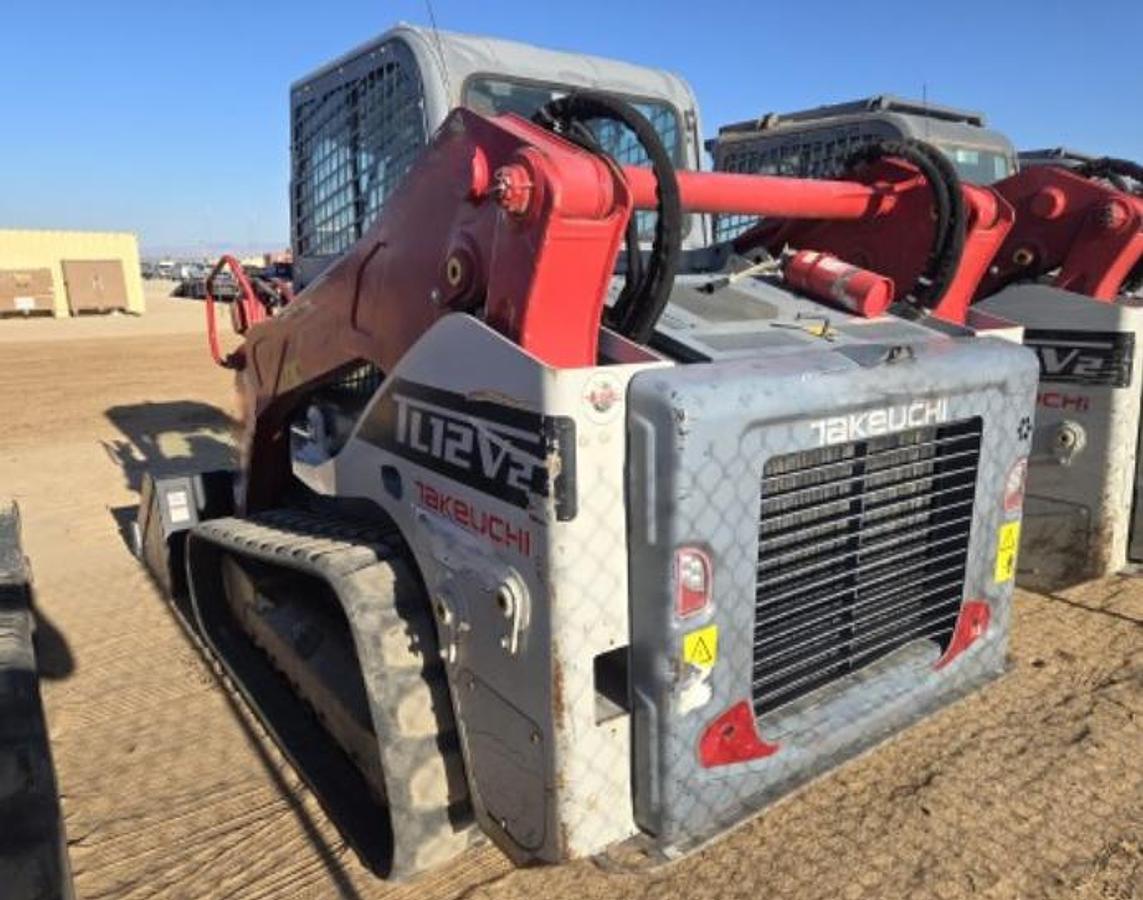

2020 Takeuchi TL12V2-CR Skid Steer Track Loader

This track skid steer is field ready!

• In-house financing, lease to own options available
• For registered businesses
• 3, 6, 12 month warranty available
• Delivery available nationwide

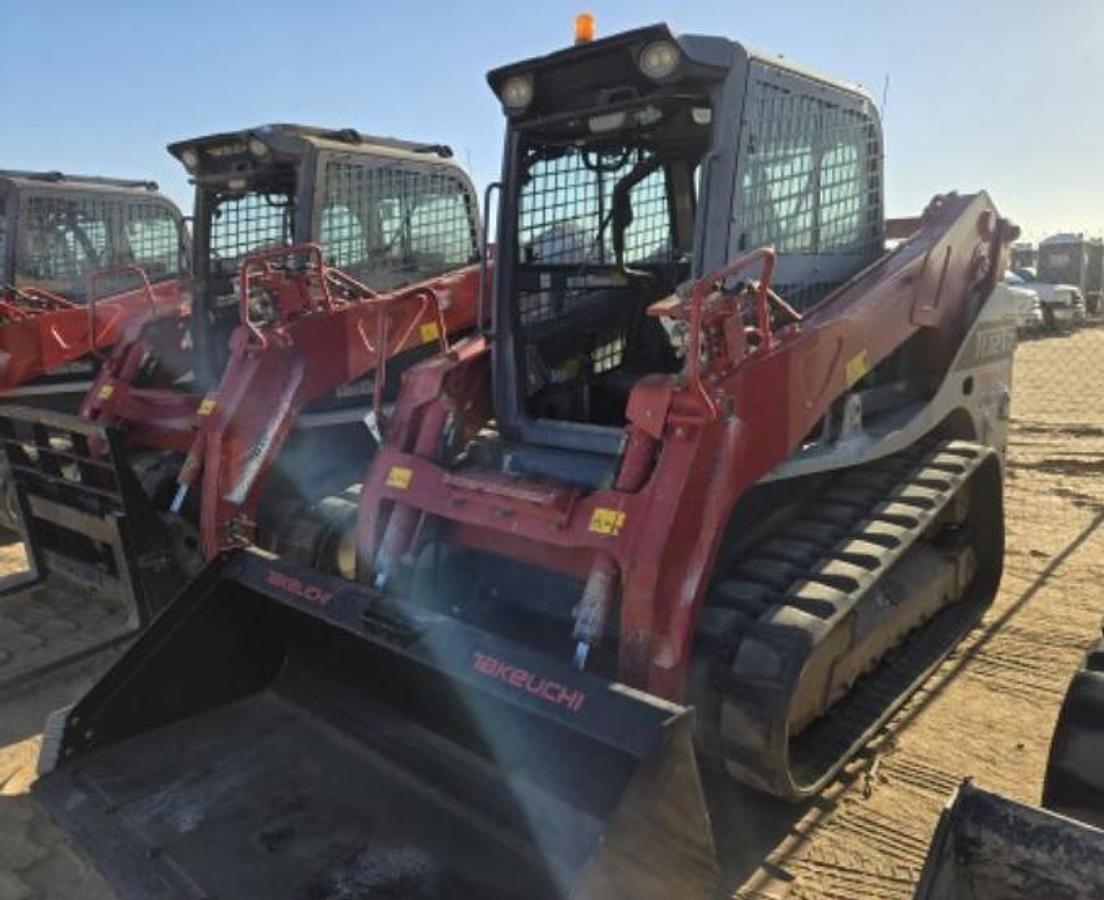

• Unit comes with smooth general purpose bucket
• Price: $47,943

Equipment Details

• Year: 2020

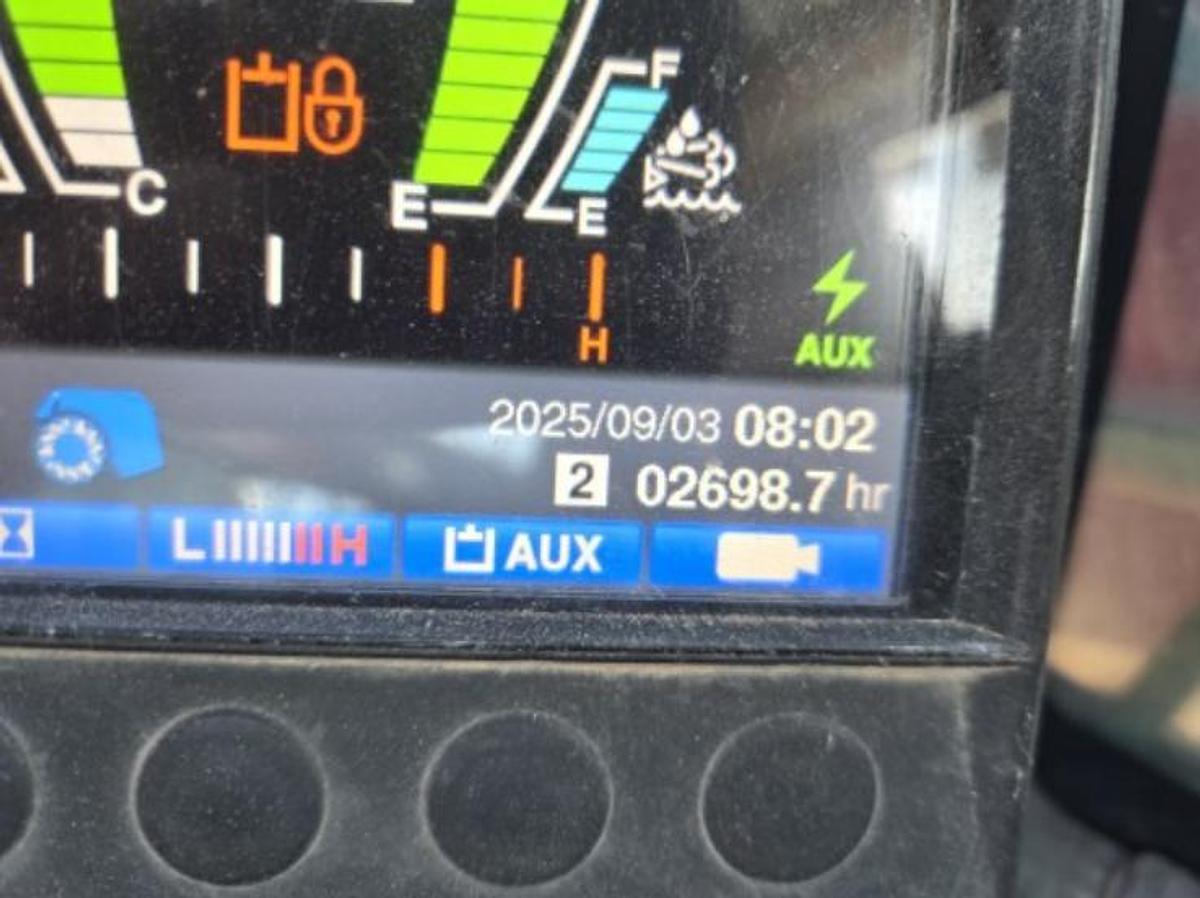

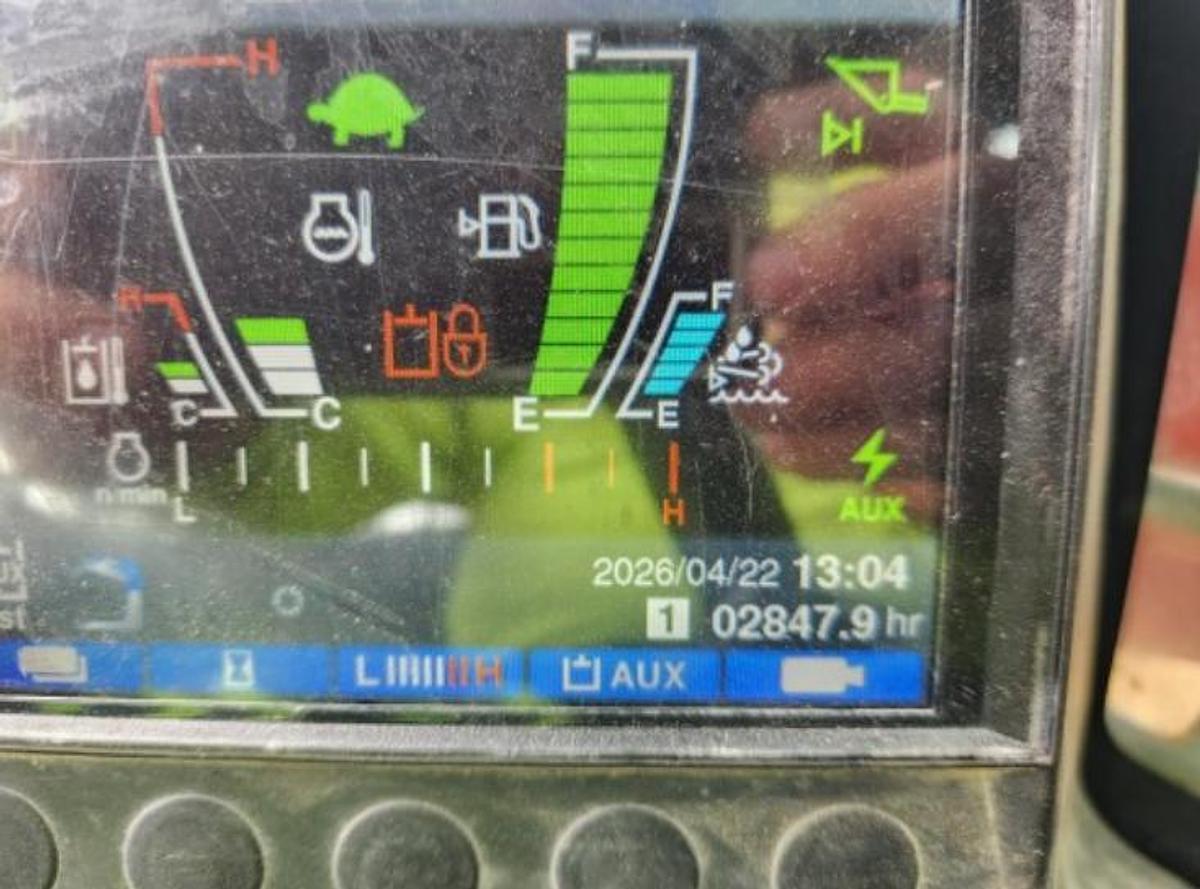

• Hours: 2,697
• Location: Lancaster, CA

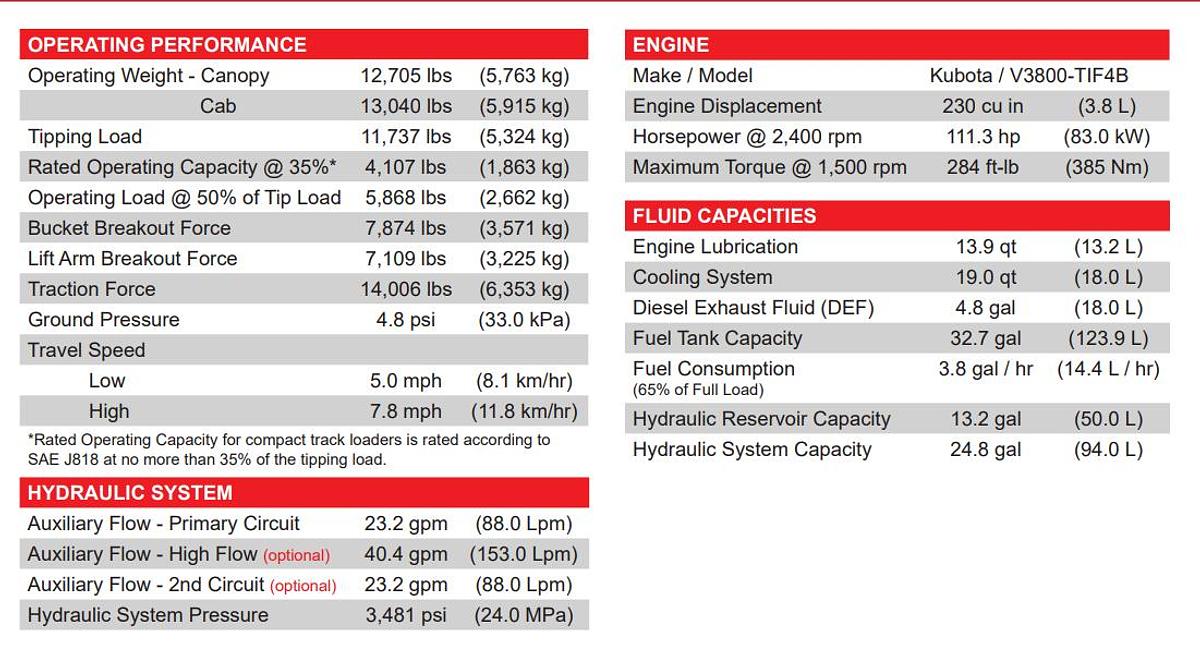

Specifications

Engine

• Make/Model: Kubota V3800-TIF4B - Turbo Intercooled
• Displacement: 230 cu in (3.8L)
• Horsepower: 81.8 HP
• Fuel Type: Diesel
• Tier Level: Tier 4 Final

Operating Performance

• Operating Weight (Cab): 13,040 lb (5,915 kg)
• Rated Operating Capacity @ 35%: 4,107 lb (1,863 kg)
• Operating Load @ 50% of Tip Load: 5,868 lb (2,662 kg)
• Tipping Load: 11,737 lb (5,324 kg)
• Bucket Breakout Force: 7,874 lb (3,571 kg)
• Lift Arm Breakout Force: 7,109 lb (3,225 kg)
• Traction Force: 14,006 lb (6,353 kg)
• Ground Pressure: 4.8 psi (33.0 kPa)

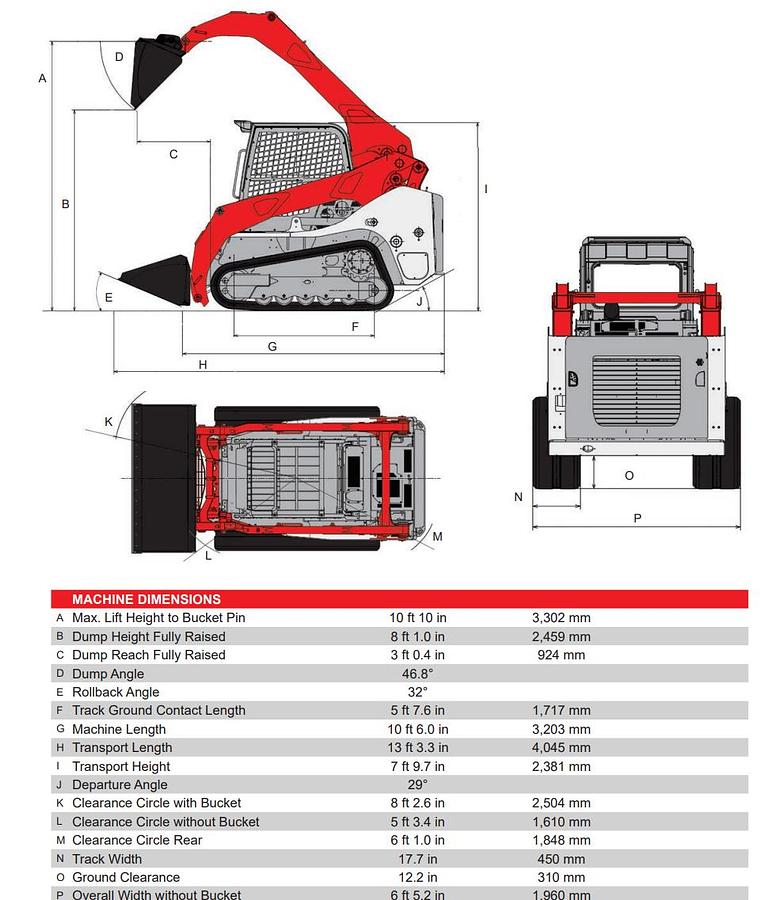

Dimensions

• Max. Lift Height to Bucket Pin: 10 ft 10 in (3,302 mm)
• Dump Height Fully Raised: 8 ft 1.0 in (2,459 mm)
• Dump Reach Fully Raised: 3 ft 0.4 in (924 mm)
• Machine Length: 10 ft 6.0 in (3,203 mm)
• Transport Length: 13 ft 3.3 in (4,045 mm)
• Transport Height: 7 ft 9.7 in (2,381 mm)
• Track Width: 17.7 in (450 mm)
• Overall Width without Bucket: 6 ft 5.2 in (1,960 mm)
• Ground Clearance: 12.2 in (310 mm)
• Track Ground Contact Length: 5 ft 7.6 in (1,717 mm)
• Dump Angle: 46.8°
• Rollback Angle: 32°
• Departure Angle: 29°
• Clearance Circle with Bucket: 8 ft 2.6 in (2,504 mm)
• Clearance Circle without Bucket: 5 ft 3.4 in (1,610 mm)
• Clearance Circle Rear: 6 ft 1.0 in (1,848 mm)

Hydraulic System

• Hydraulic System Pressure: 3,481 psi (24.0 MPa)
• Auxiliary Flow - Primary Circuit: 23.2 gpm (88.0 Lpm)

Fluid Capacities

• Fuel Tank: 32.7 gal (123.8 L)
• Engine Lubrication: 13.9 qt (13.2 L)
• Cooling System: 19.0 qt (18.0 L)
• Diesel Exhaust Fluid (DEF): 4.8 gal (18.0 L)
• Hydraulic Reservoir: 13.2 gal (50.0 L)
• Hydraulic System: 24.8 gal (94.0 L)
• Fuel Consumption (65% of Full Load): 3.8 gal/hr (14.4 L/hr)

Performance

• Travel Speed - Low: 5.0 mph (8.1 km/hr)
• Travel Speed - High: 7.8 mph (11.8 km/hr)

Standard Features:

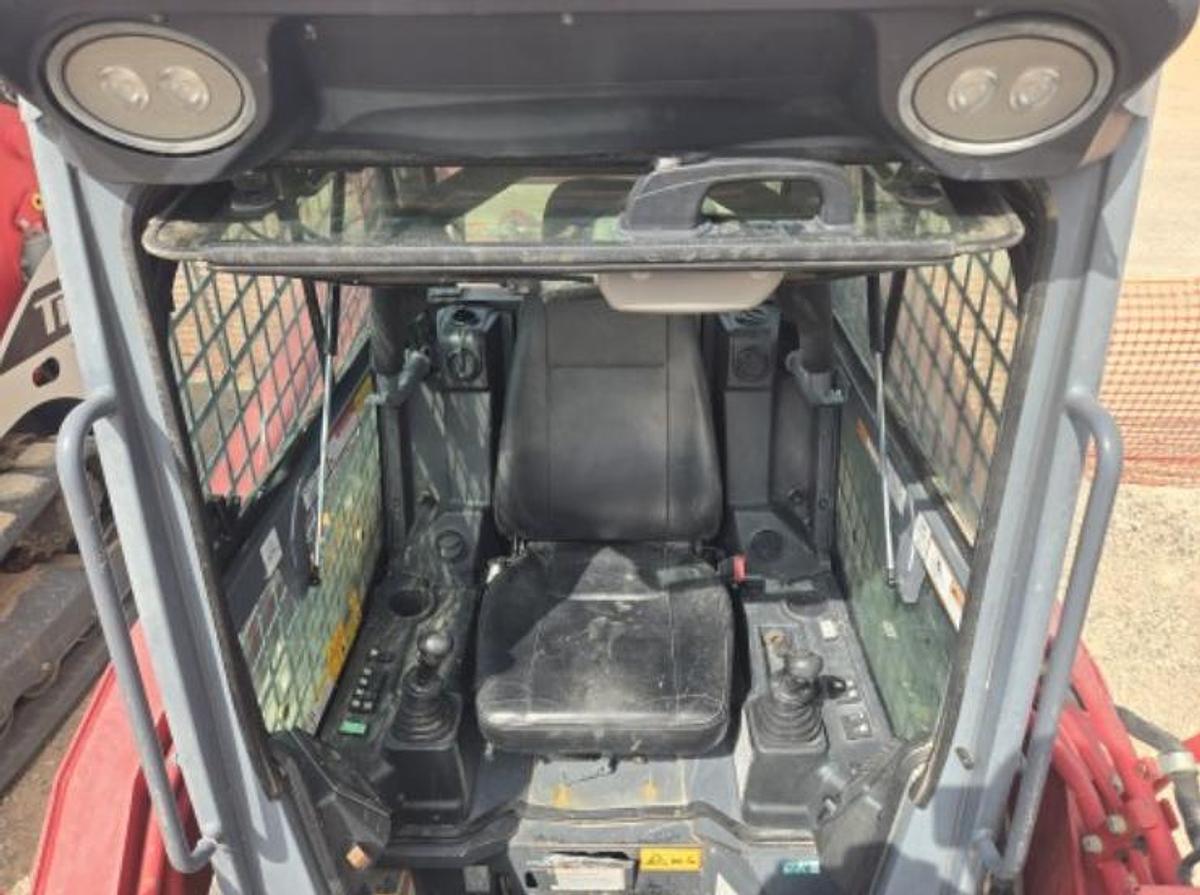

• Enclosed cab with air conditioning
• Vertical lift design
• Hand and foot controls
• Counterweight
• Bolt-on cutting edge
• Work lights
• Rubber tracks

*Note: Rated Operating Capacity for compact track loaders is rated according to SAE J818 at no more than 35% of the tipping load.

Condition

This 2020 Takeuchi TL12V2-CR is in excellent working condition with 2,697 hours. Currently on rental status, this unit has been well-maintained and is ready for immediate deployment.

Pricing

SALE PRICE: $47,943

About Takeuchi

• Takeuchi is a globally recognized manufacturer of compact construction equipment, known for producing reliable, high-performance track loaders. The TL12V2-CR represents their commitment to power, versatility, and operator comfort in a compact package.

Location & Viewing

Available for inspection in Lancaster, California

Contact us to:

• Schedule a demonstration
• Request additional photos or videos
• Discuss financing options
• Arrange transportation/delivery
• Get answers to your questions

Terms

• Price: $47,943 USD
• Financing available to qualified buyers
• Trade-ins accepted
• Delivery can be arranged
• Warranties available
•


🌎 INTERNATIONAL BUYERS WELCOME

EXPORT-READY:

✓ Complete export documentation provided

✓ Bill of Sale prepared for customs clearance

✓ Freight forwarder recommendations (Port of LA/Long Beach - 90 min away)

✓ FOB Lancaster, CA or FOB Port of Los Angeles/Long Beach

✓ Professional video inspection via WhatsApp available

✓ Payment via international wire transfer accepted

✓ Successfully exported to Mexico, Asia, Middle East, Europe

SHIPPING OPTIONS:

• FOB Lancaster, California USA
• FOB Port of Los Angeles/Long Beach
• Delivered to your freight forwarder

Don't miss this opportunity to own a premium compact track loader at an excellent price!

👉 Viewing this on Machinio? Then follow this link to view the full Equipment Listing

https://www.vidaeq.com/listings/8056050-used-2020-takeuchi-tl12v2-cr

Please contact us for Pricing and more Information!

All pricing is in USD and subject to applicable sales tax. Prices and availability may change without notice. Title remains with the seller until full payment is received. All equipment is sold as is, where is, unless otherwise specified. Use hours are estimate hours as of the date of this posting and are not guaranteed. Equipment pictured may contain attachments and/or accessories not priced in this offer. Sale subject to terms and conditions on final bill of sale. Specs shown are for guidance only. Buyer must verify details before purchase. Seller not responsible for errors or omissions. Runs and operates as it should; hours will rise while on rent.
