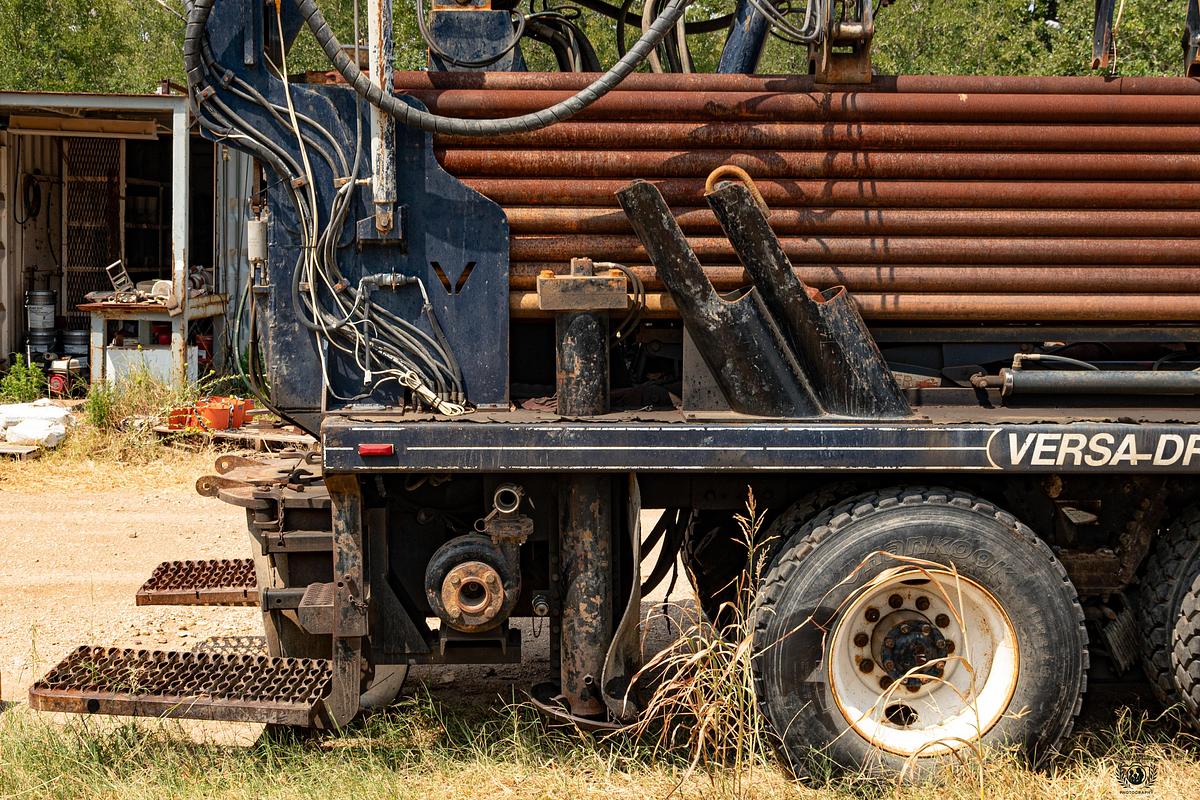

2009 Versa-Drill V100NG Drilling Rig

www.VIDAEQ.com

VersaDrill V-100NG Drill Rig For Sale

The owner said this rig is ready to work!

👉 Viewing this on Machinio? Then follow this link to view the full Equipment Listing https://www.vidaeq.com/listings/7776380-used-2009-versa-drill-v100ng-drilling-rig

Contact Us Today to setup your inspection.

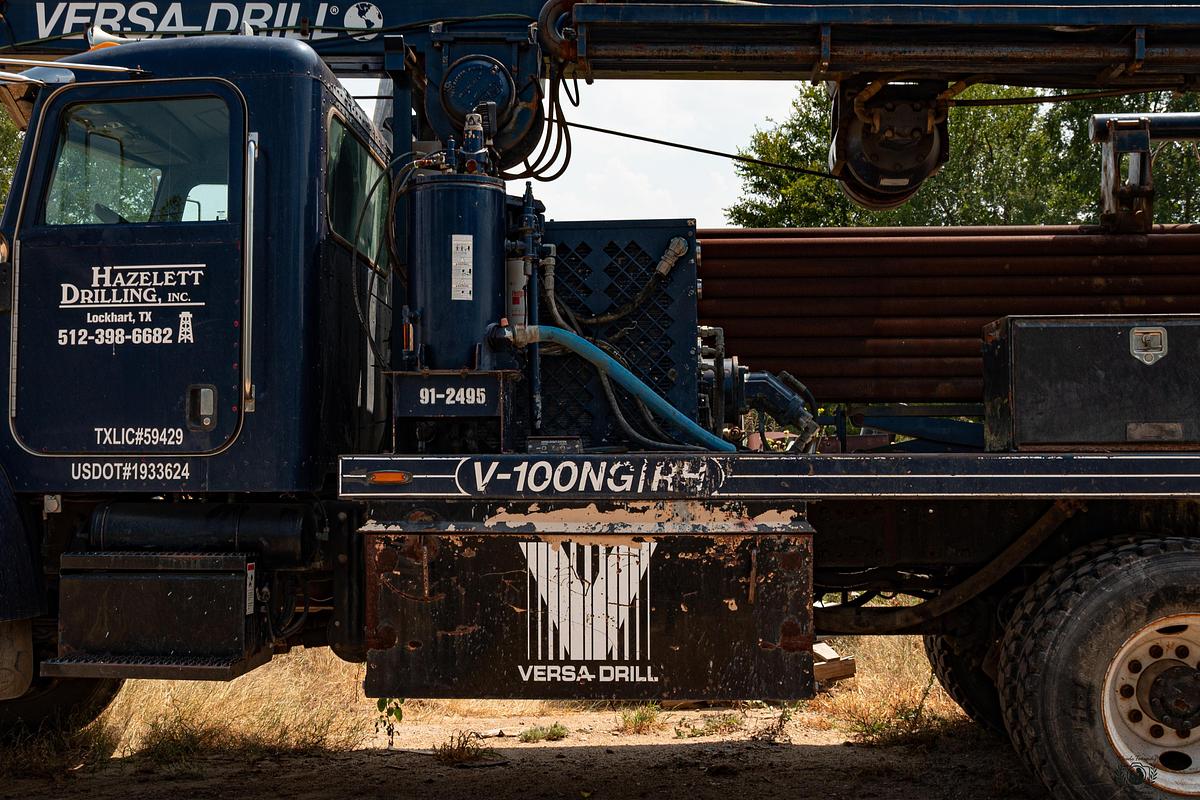

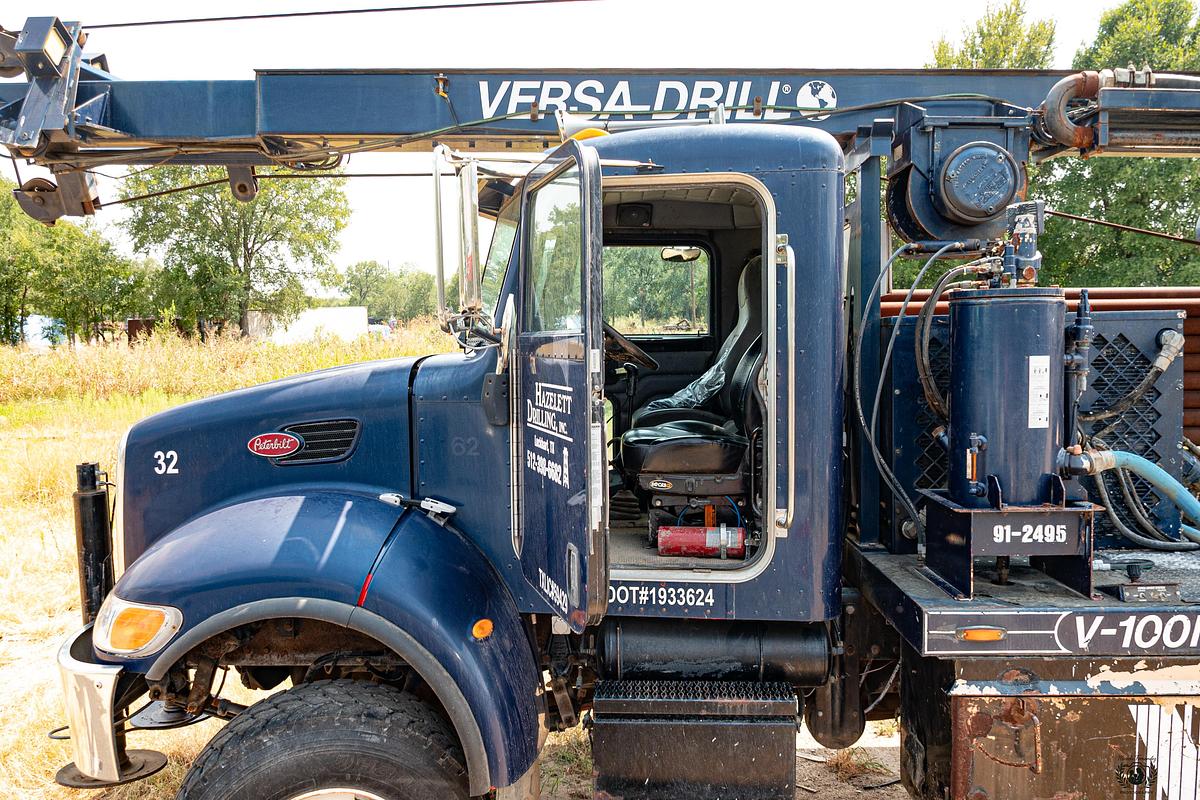

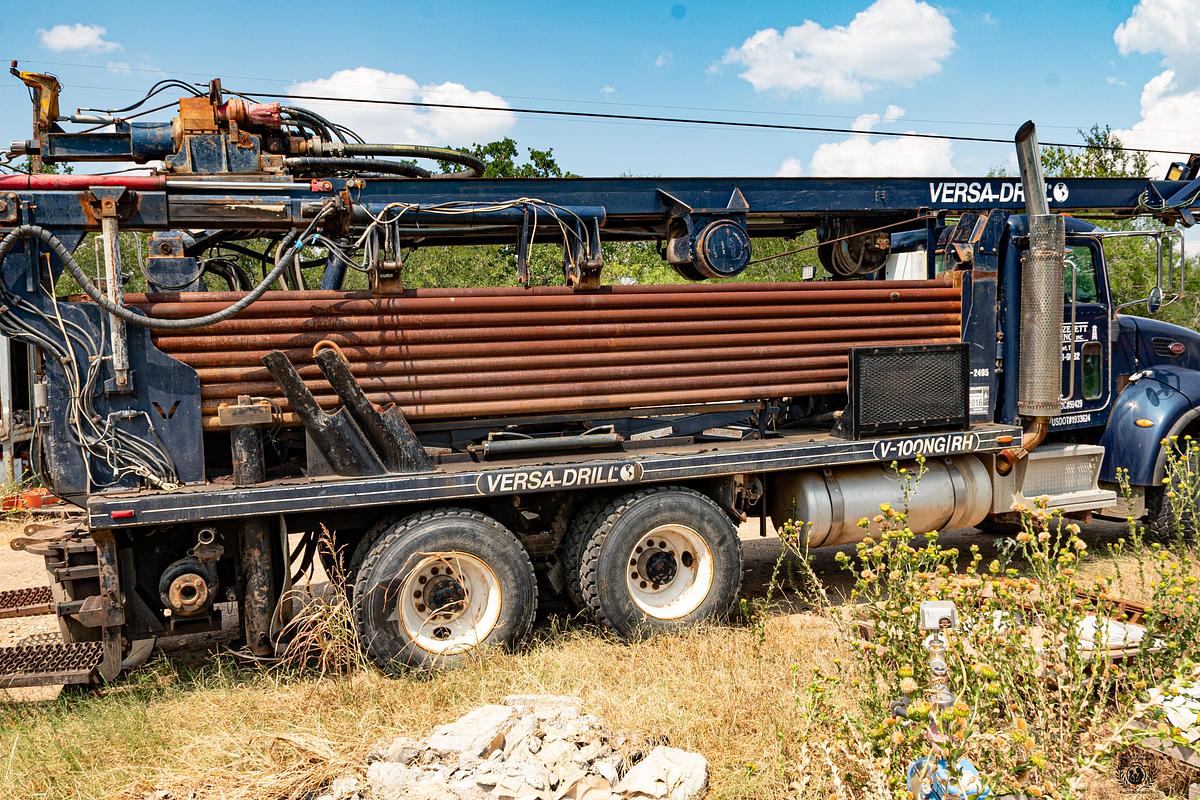

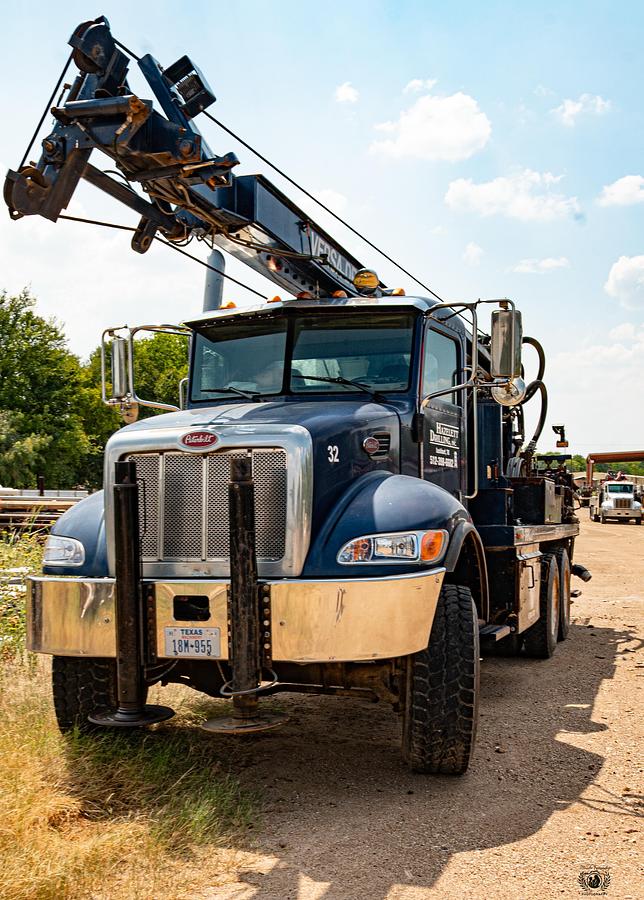

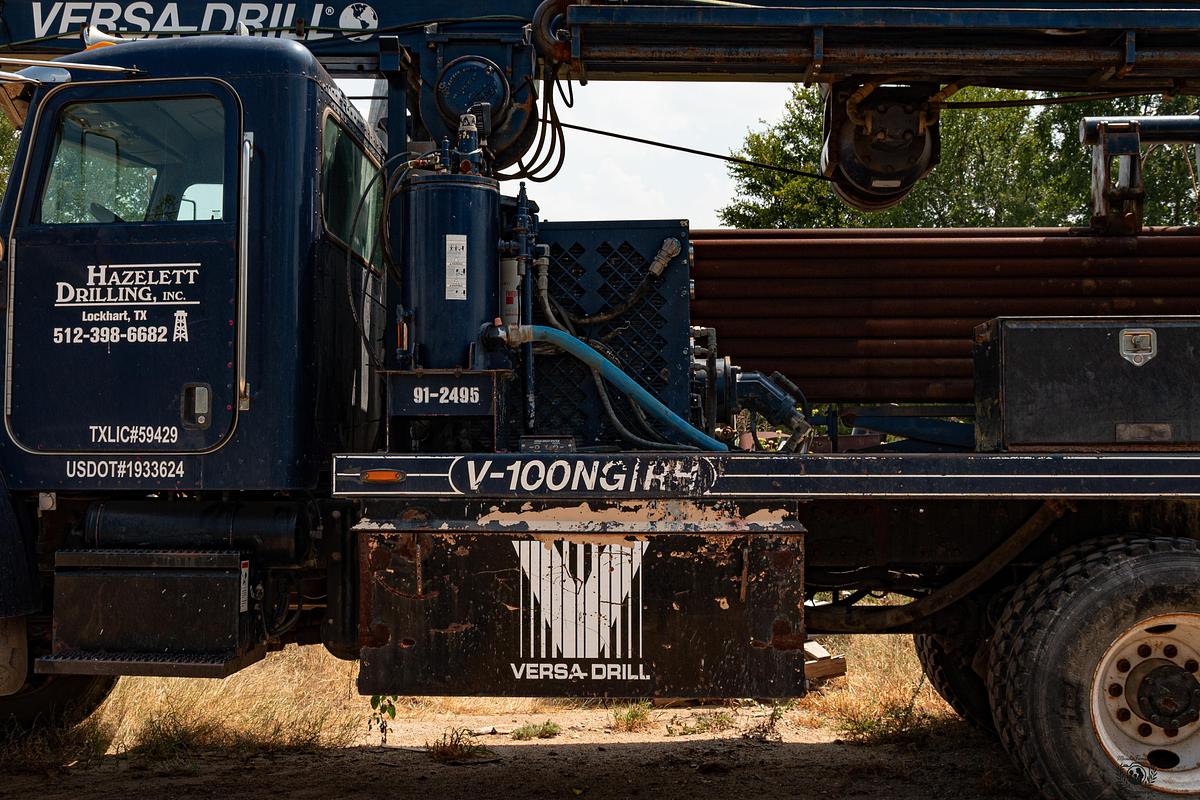

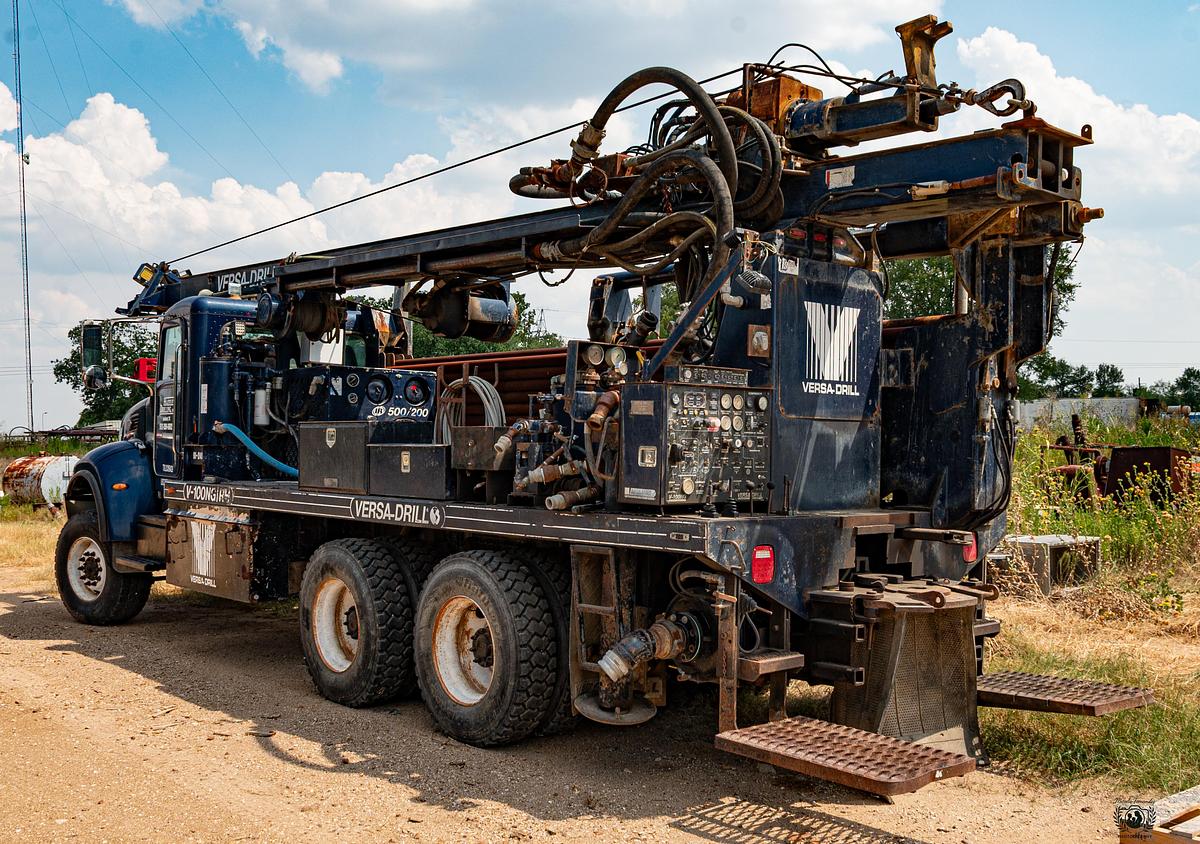

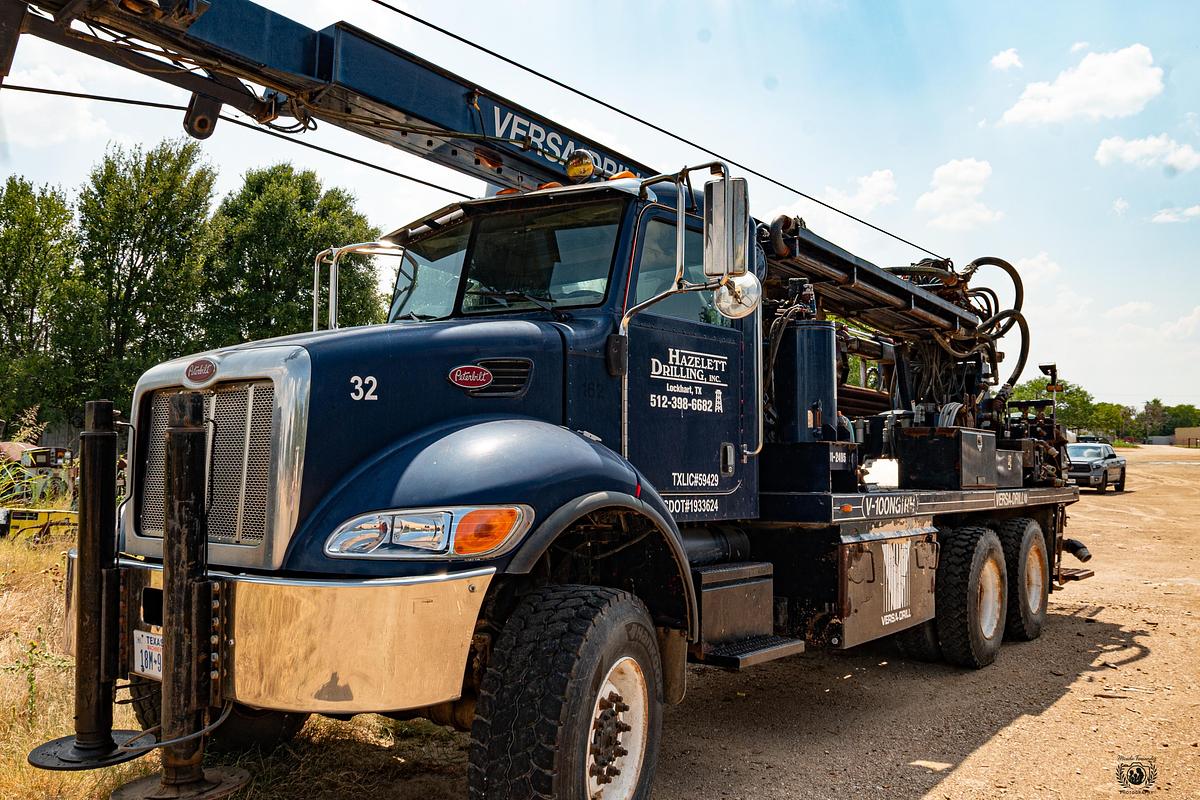

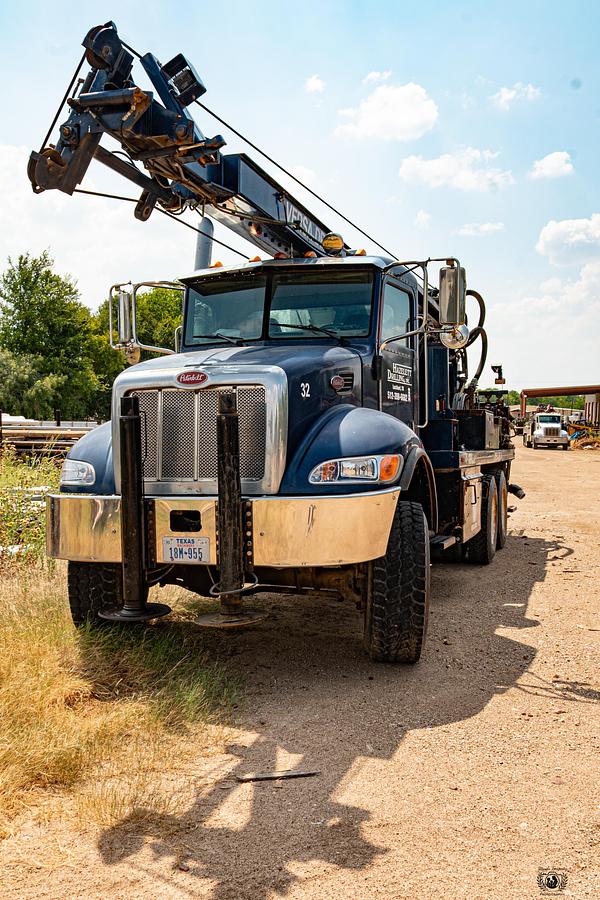

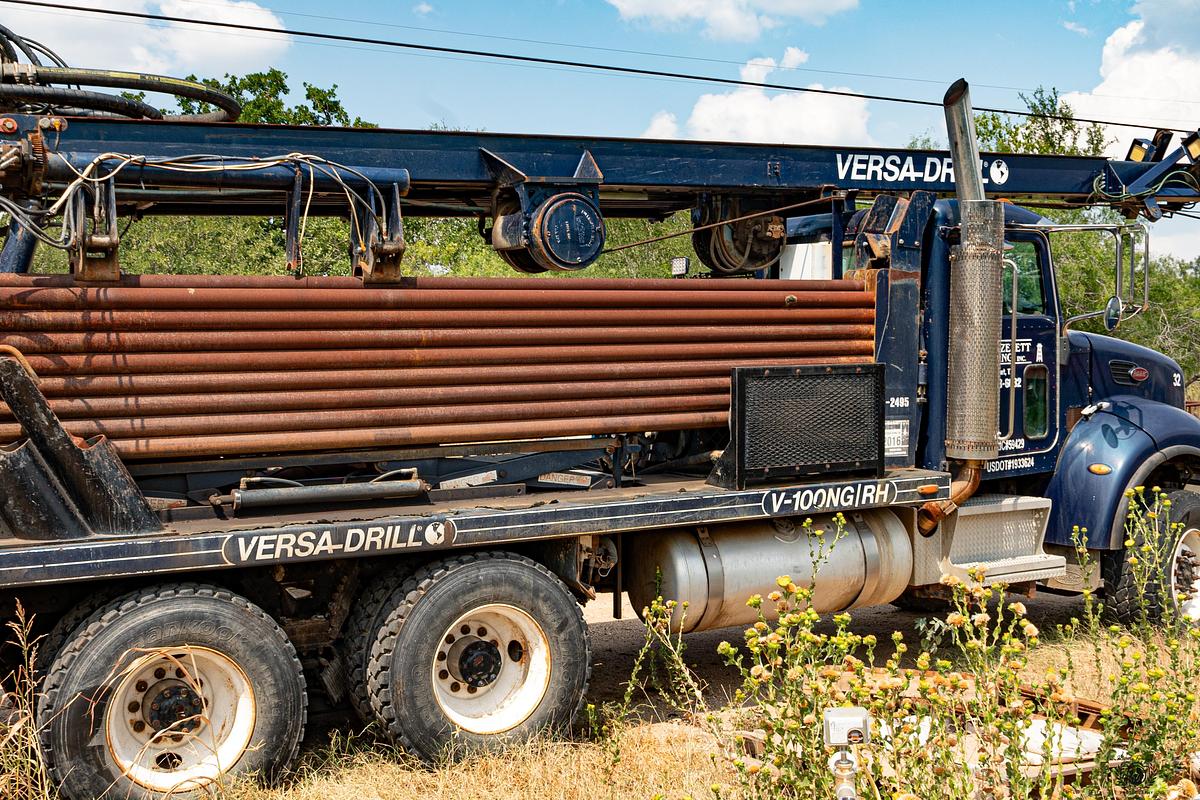

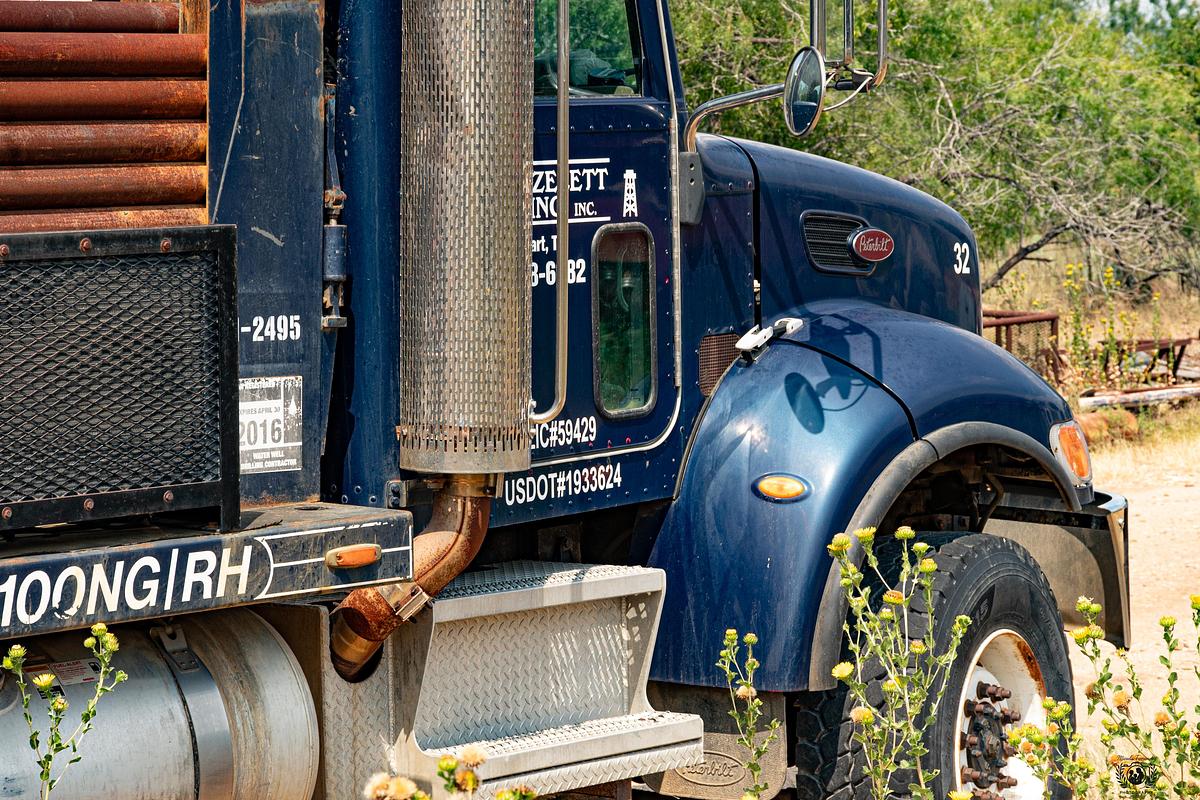

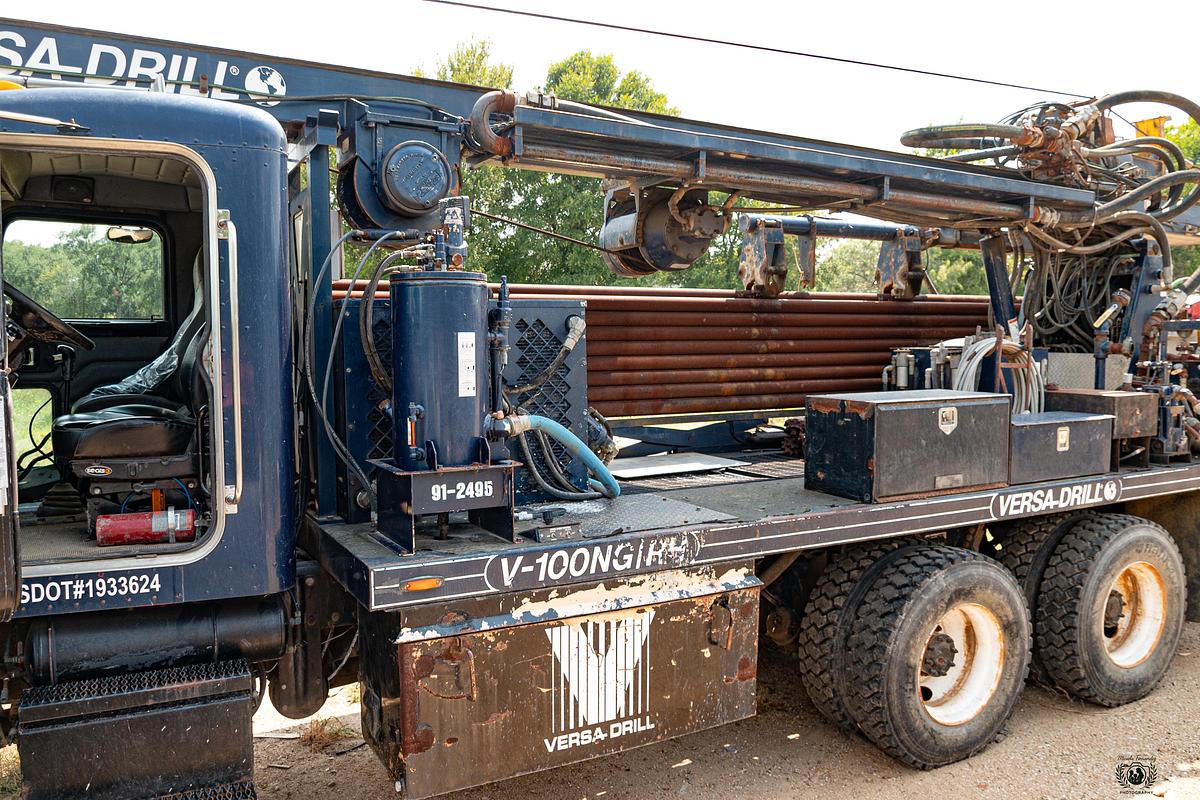

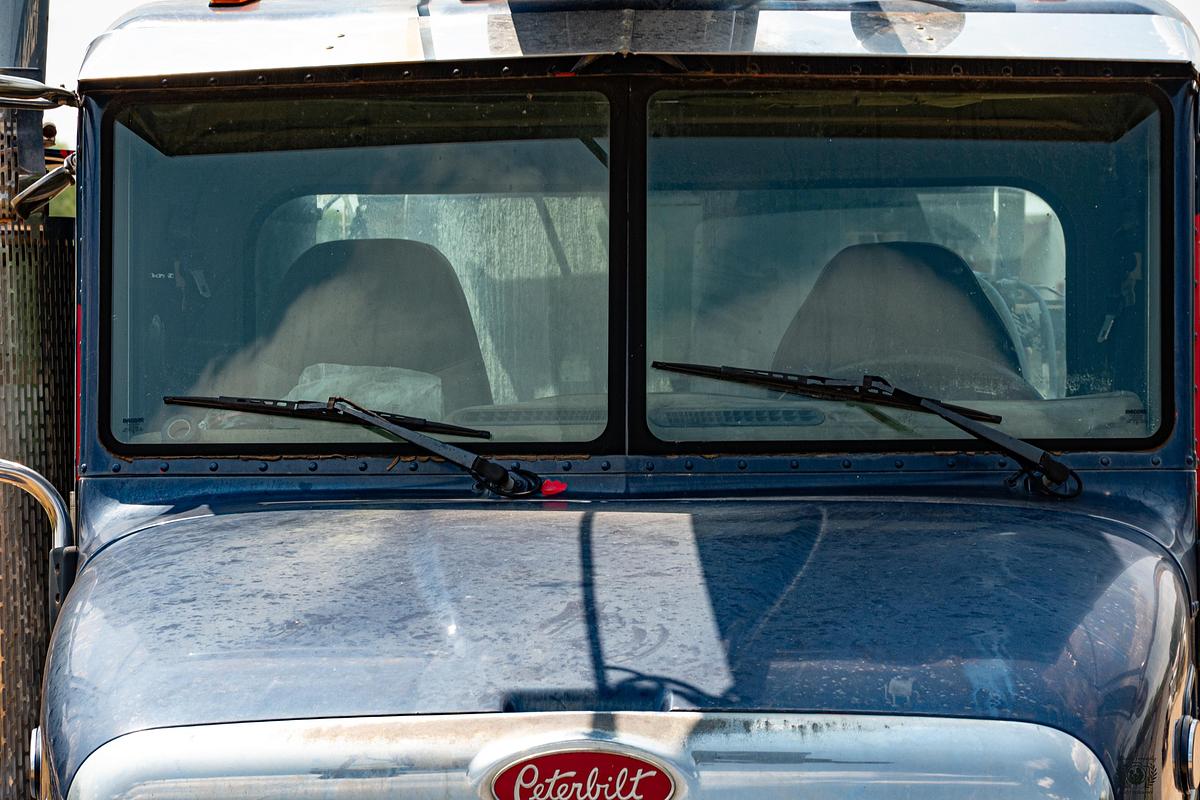

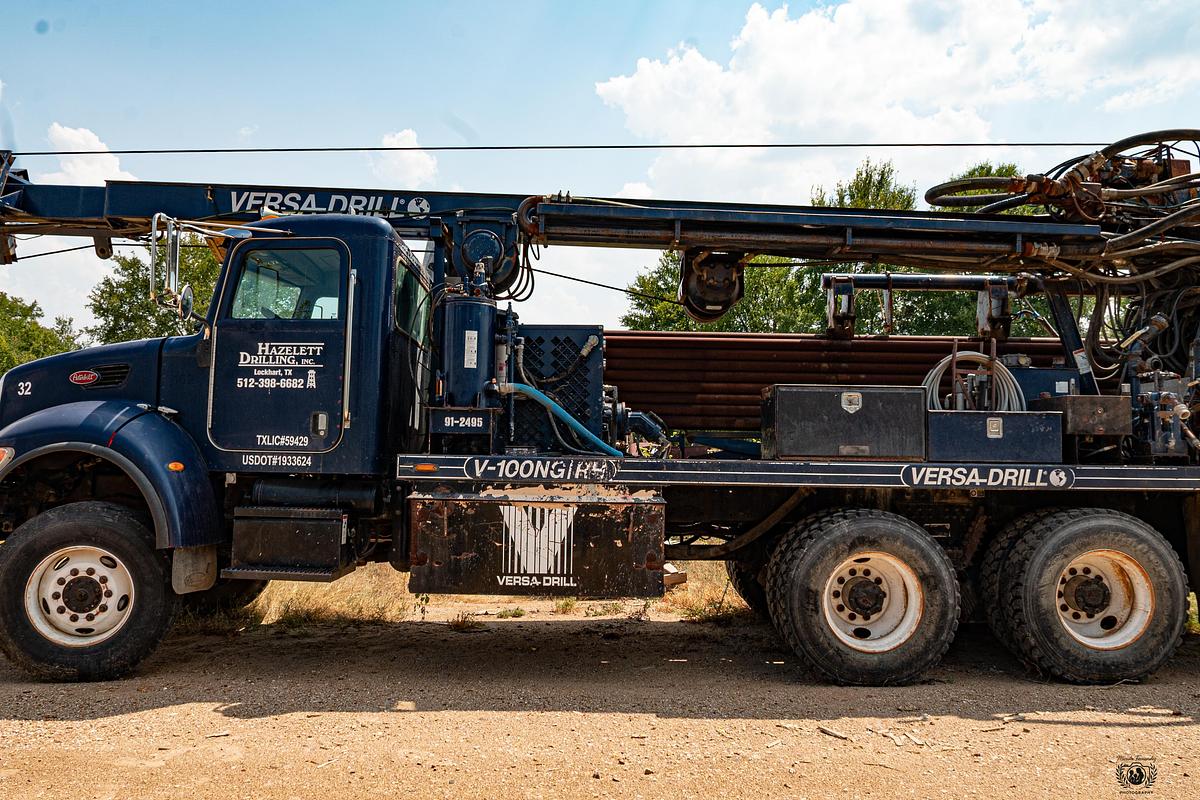

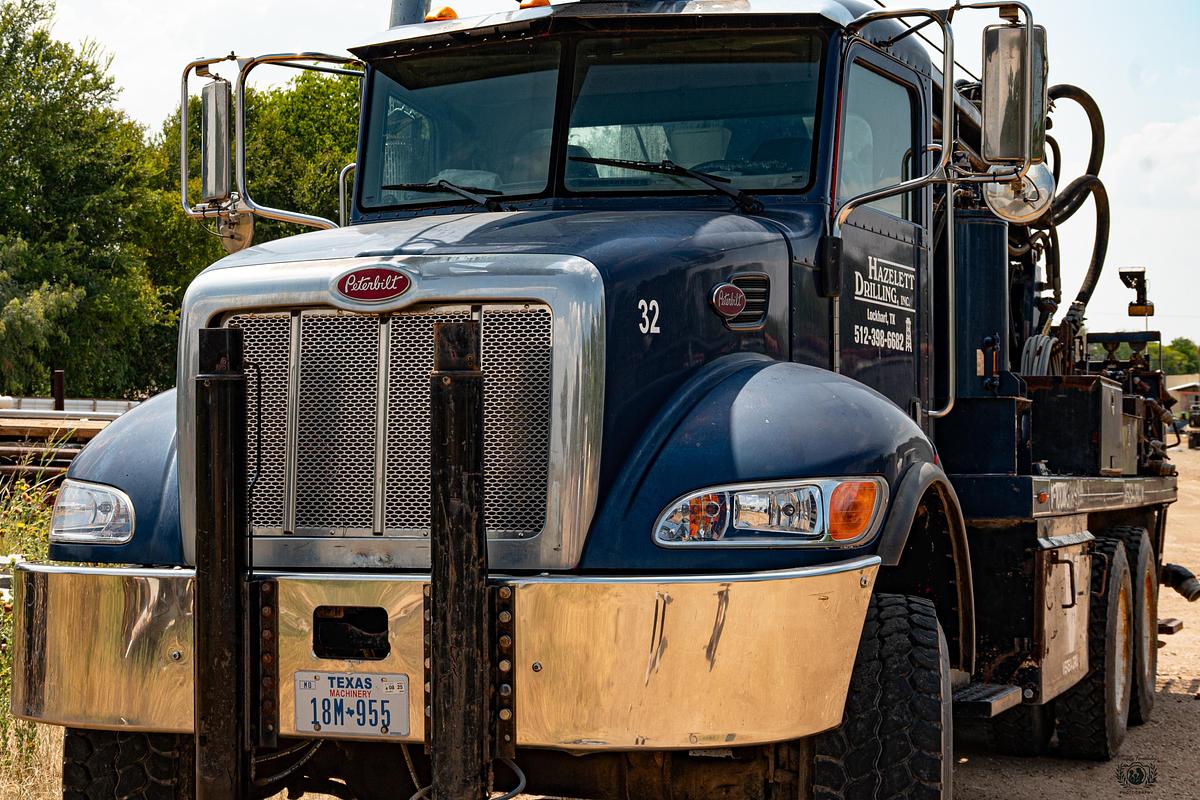

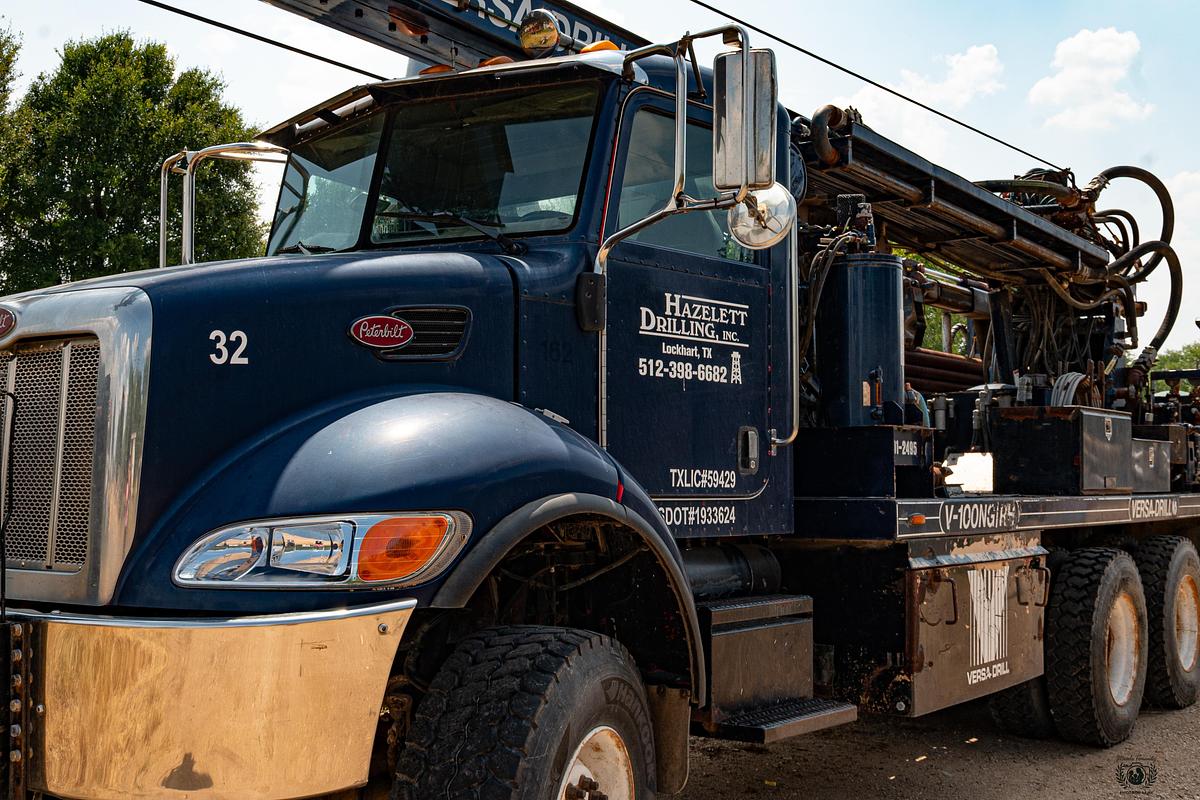

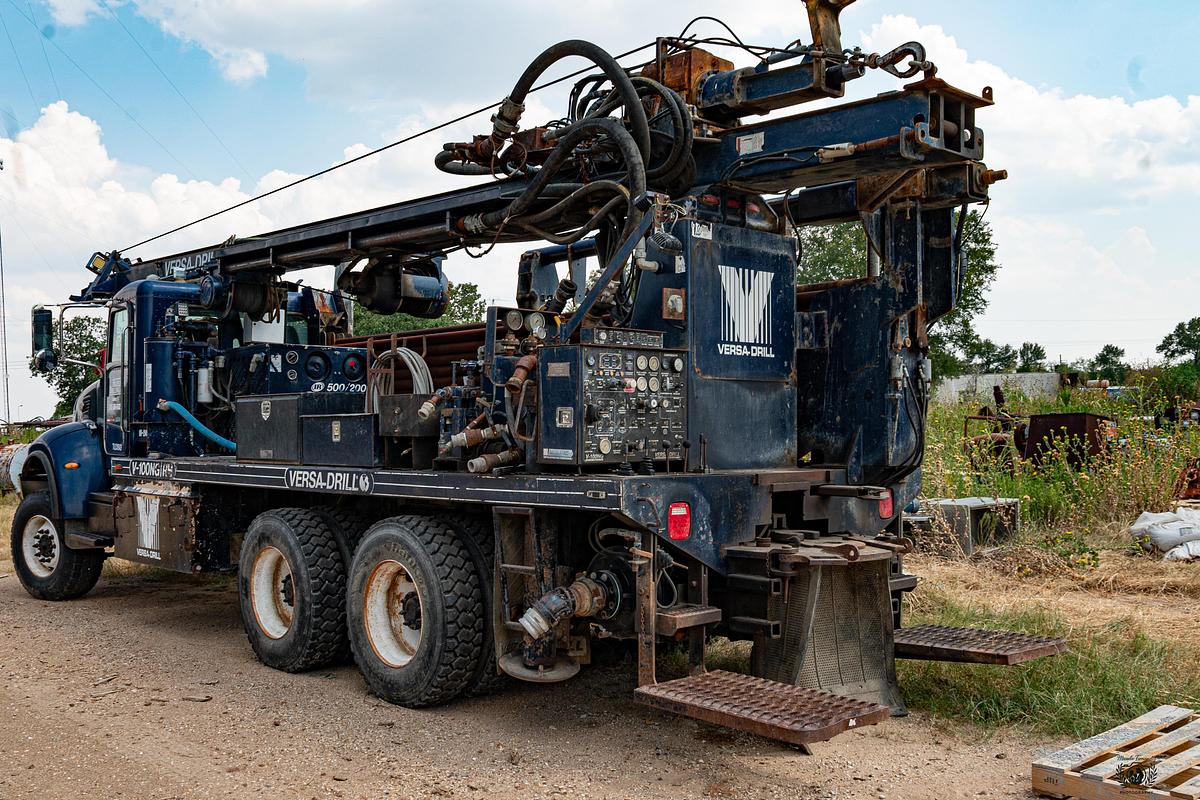

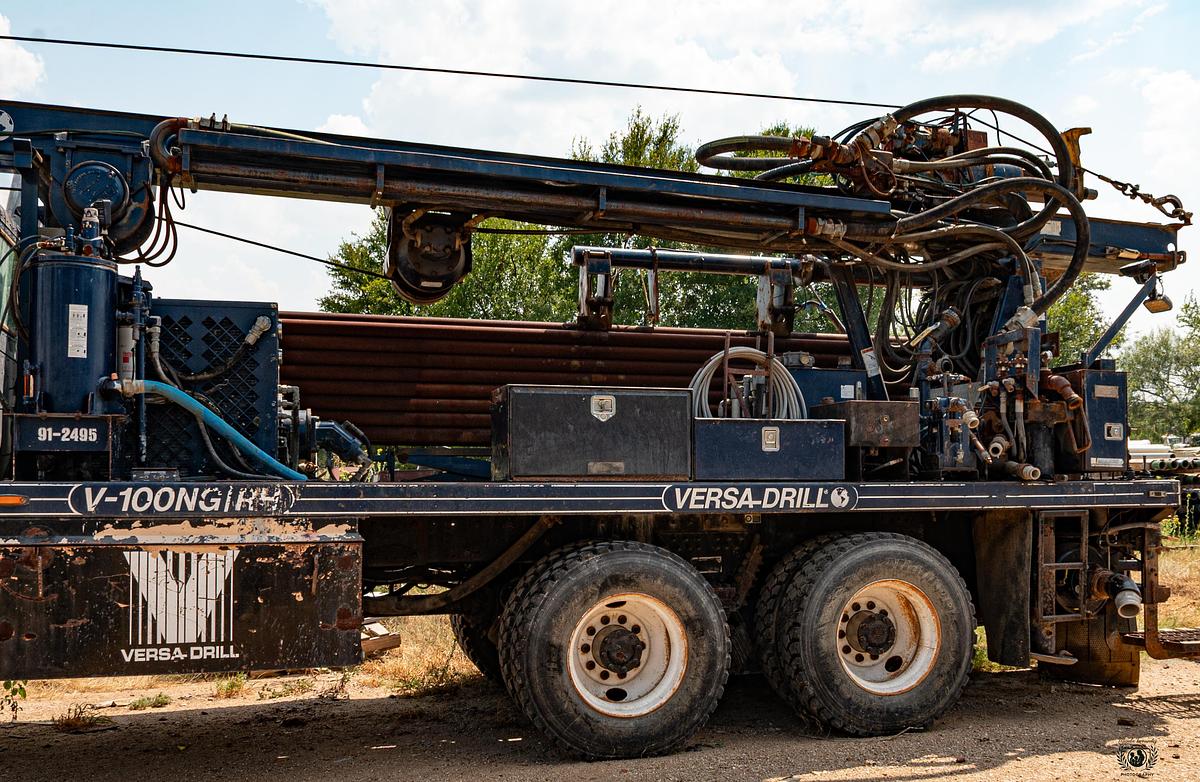

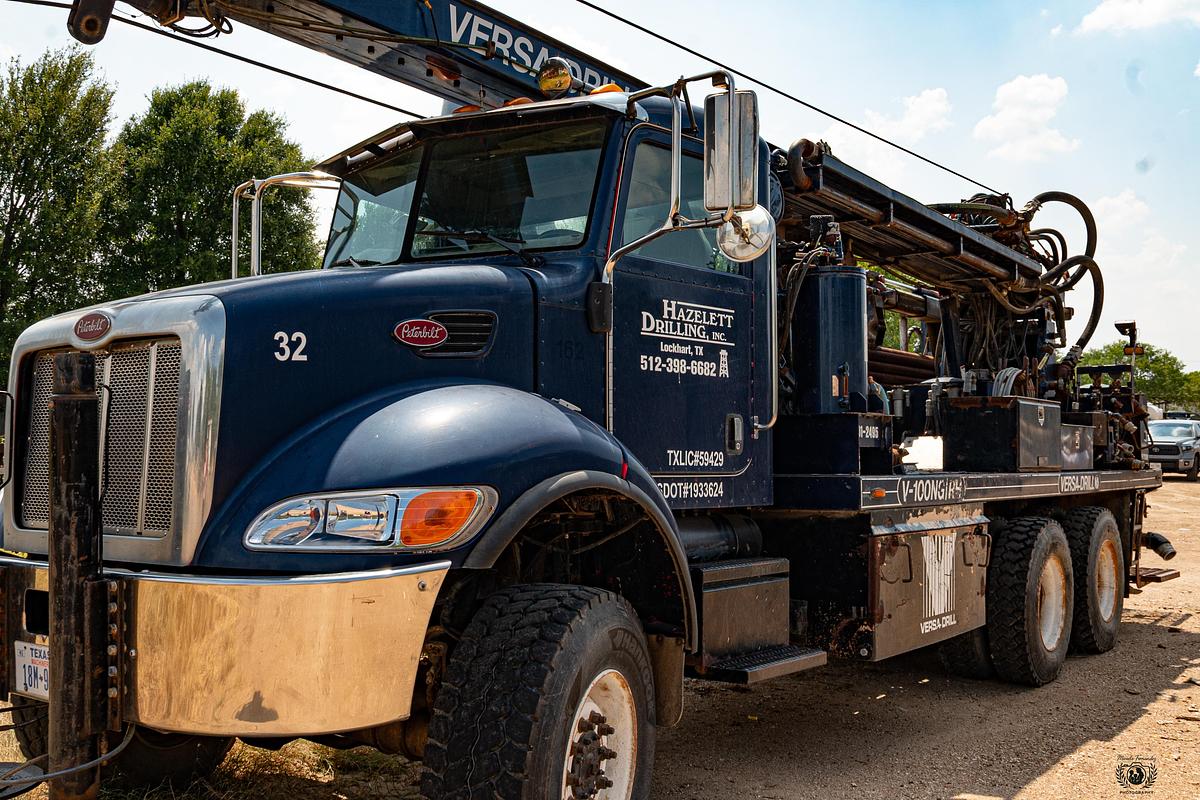

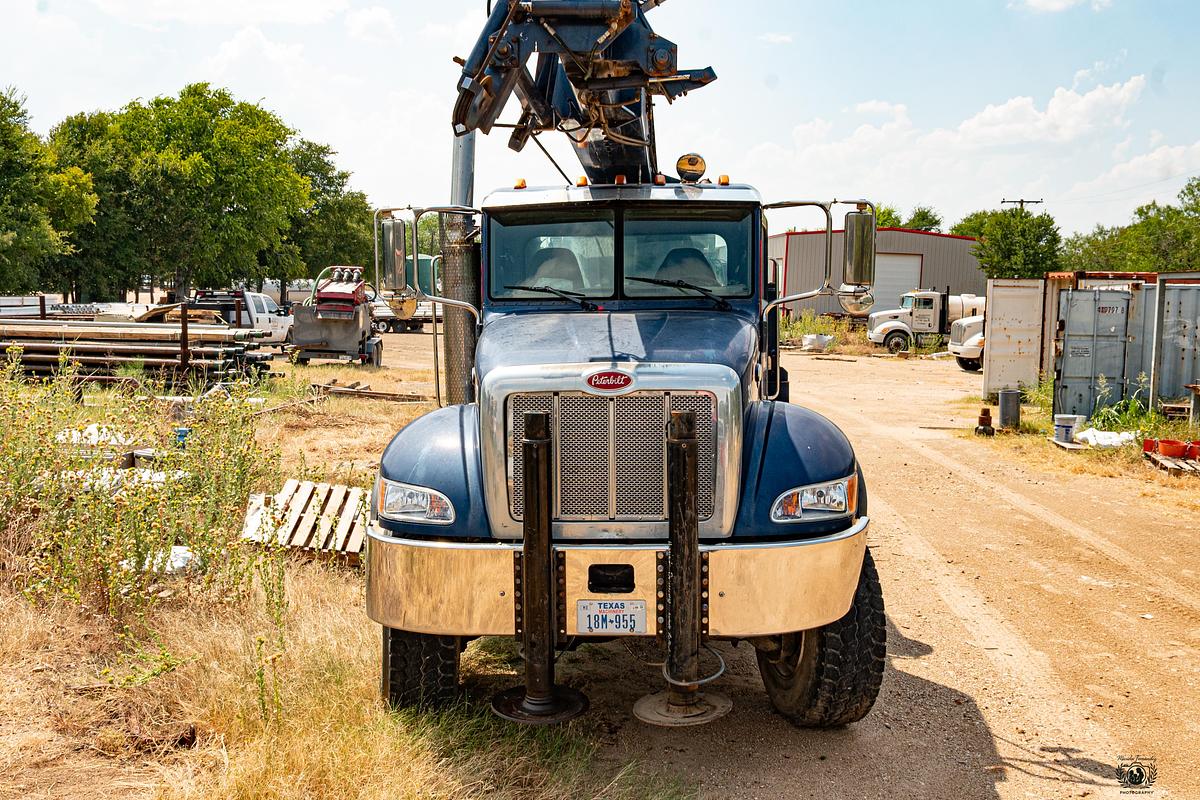

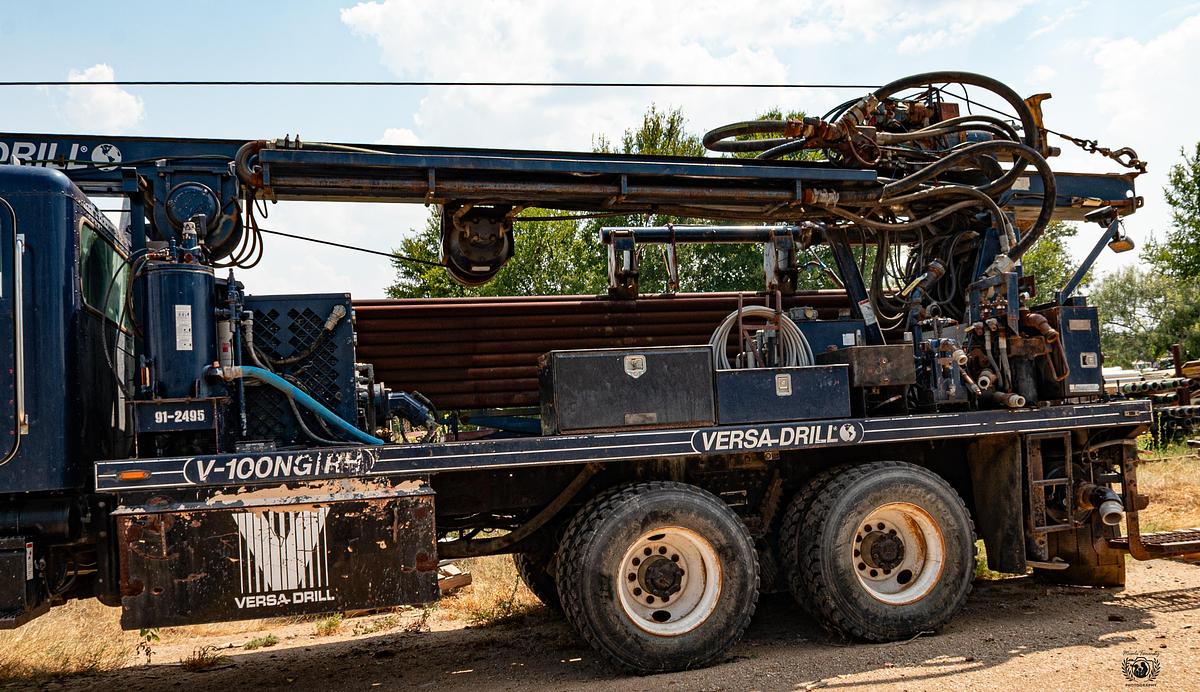

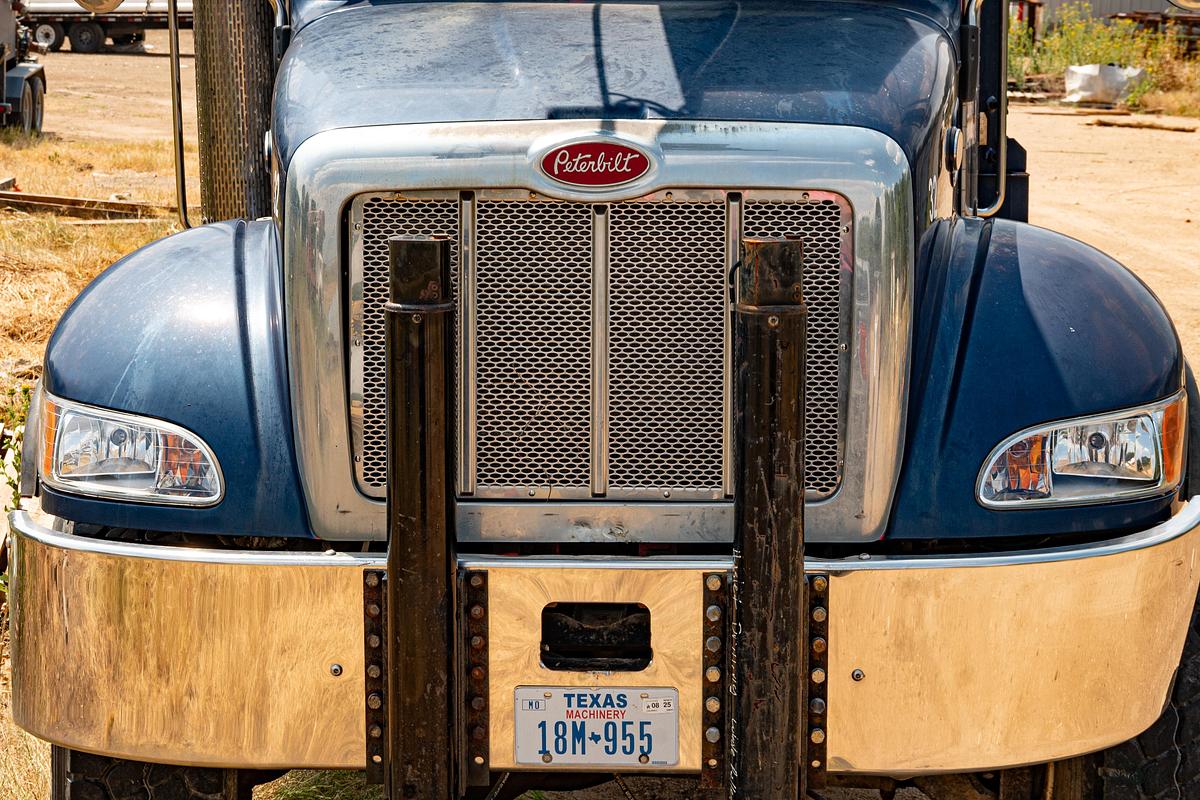

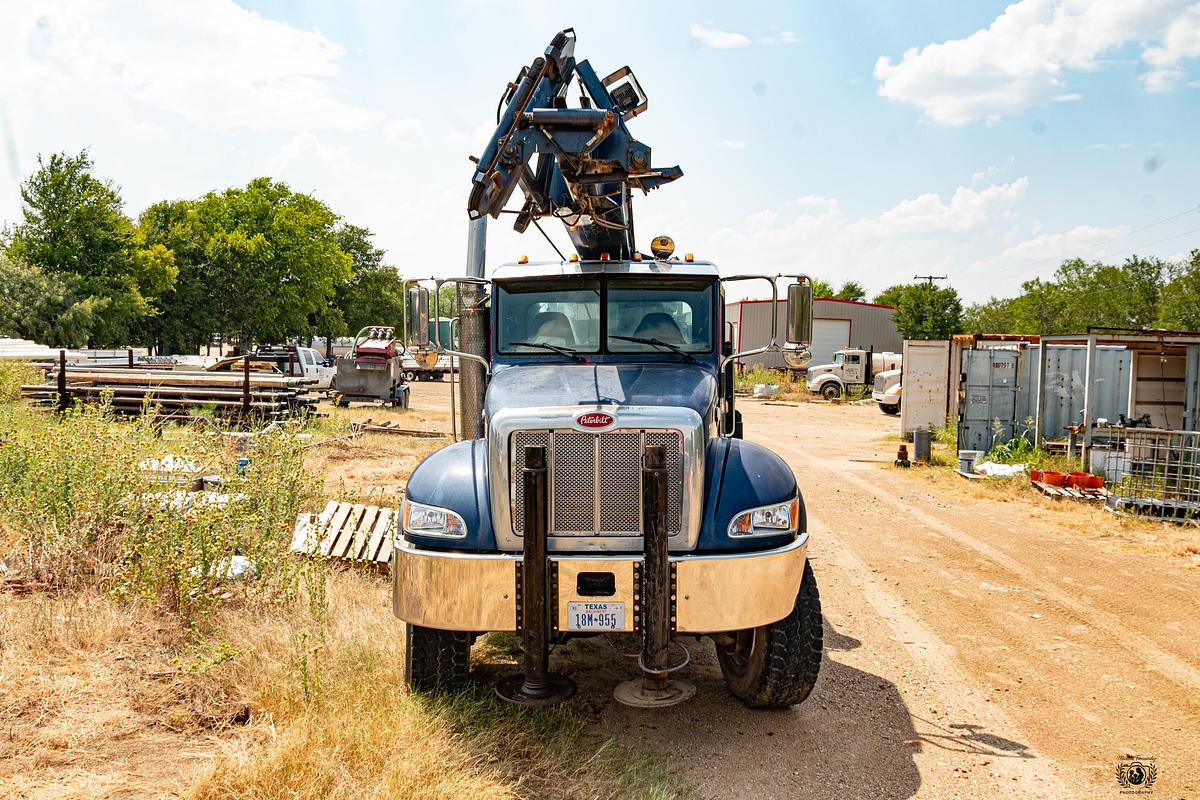

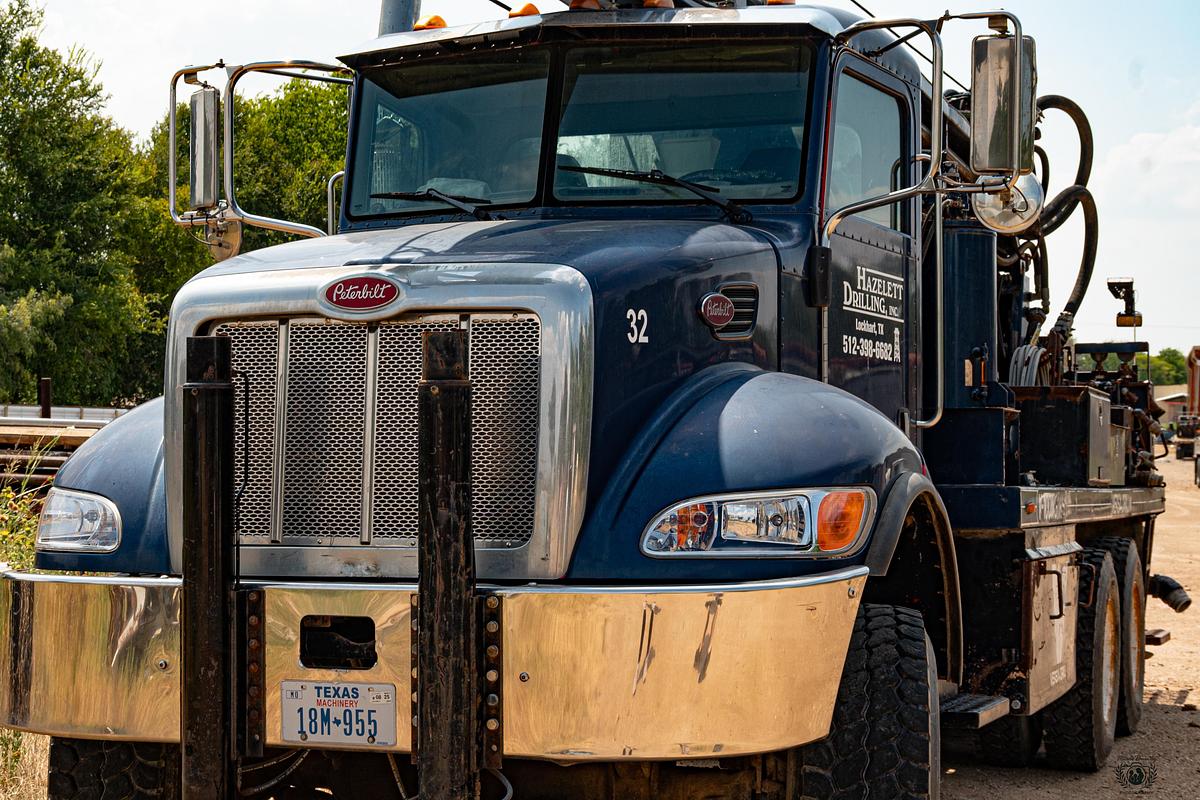

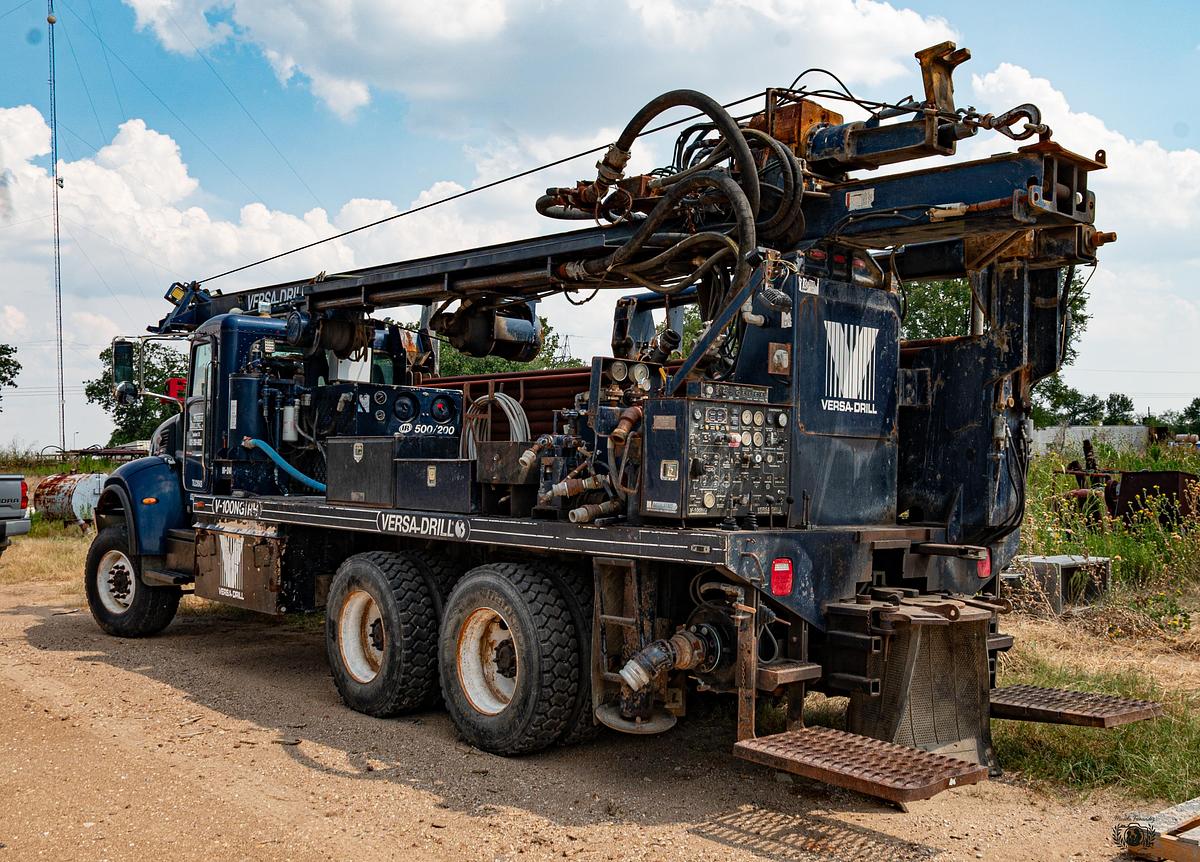

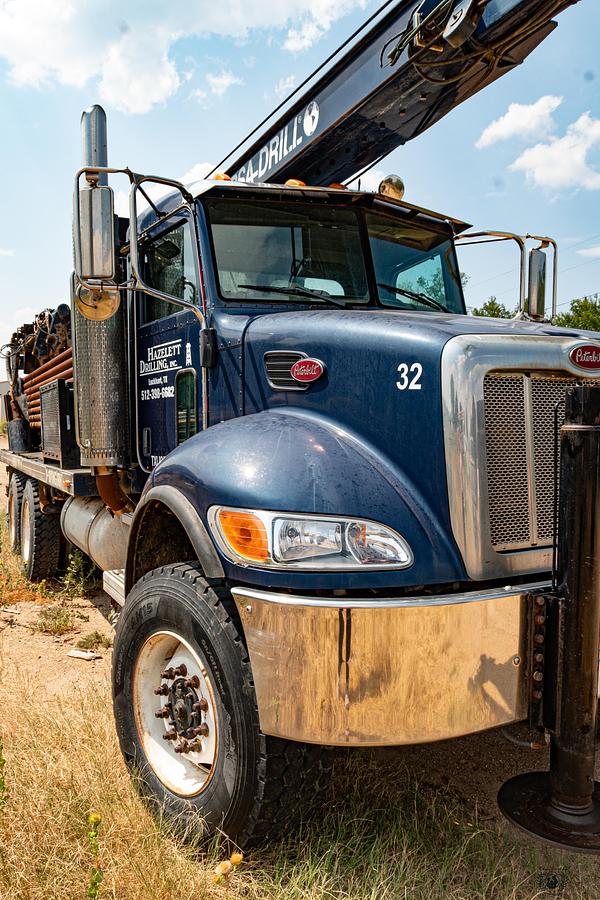

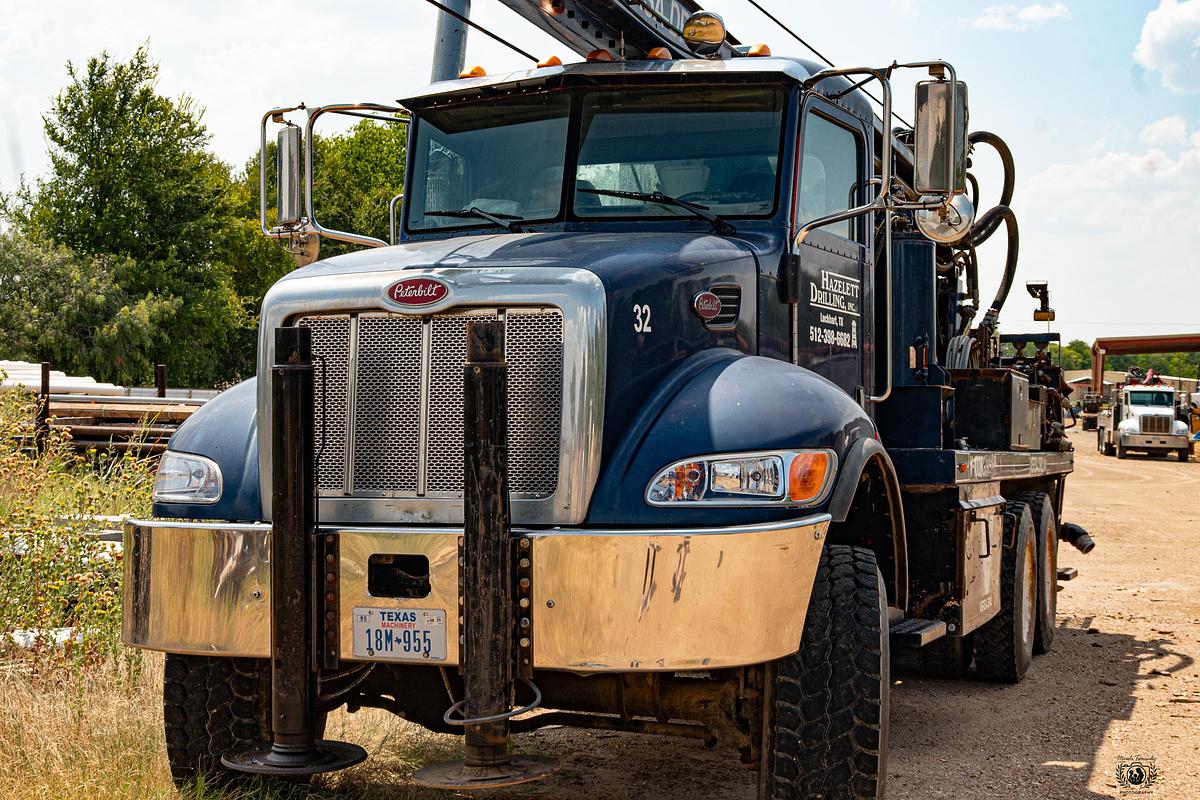

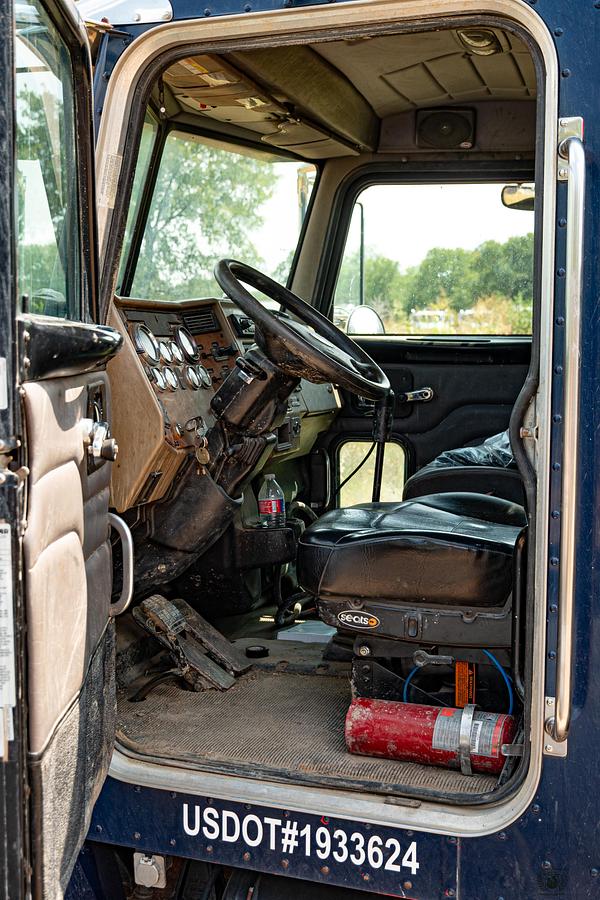

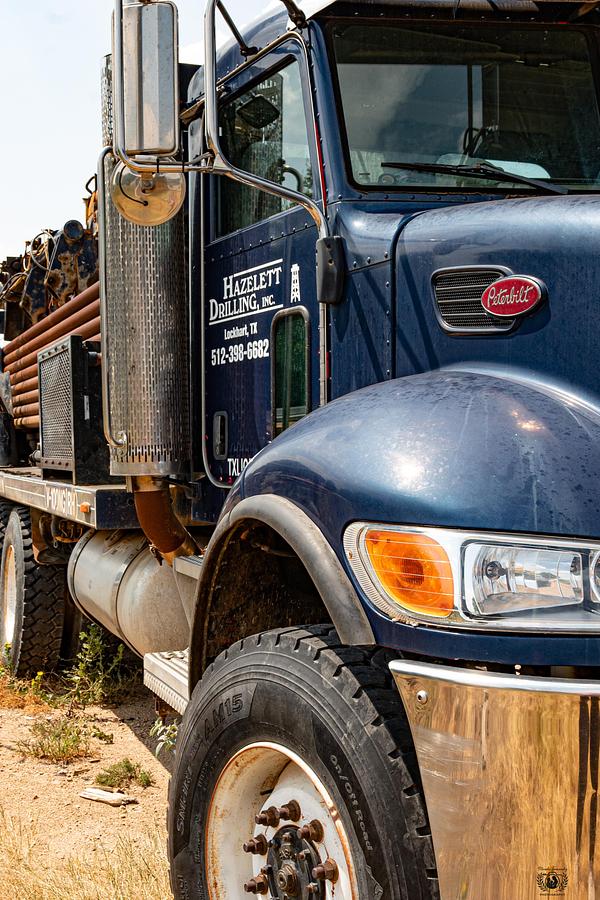

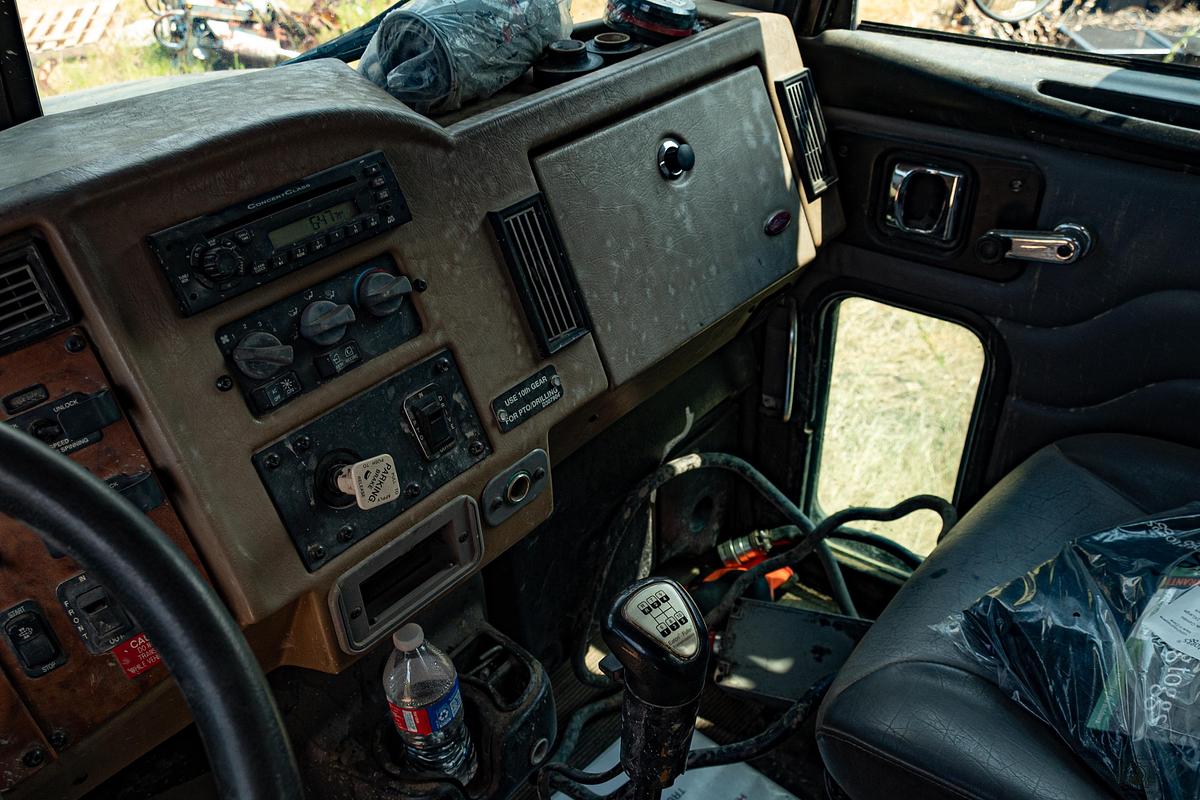

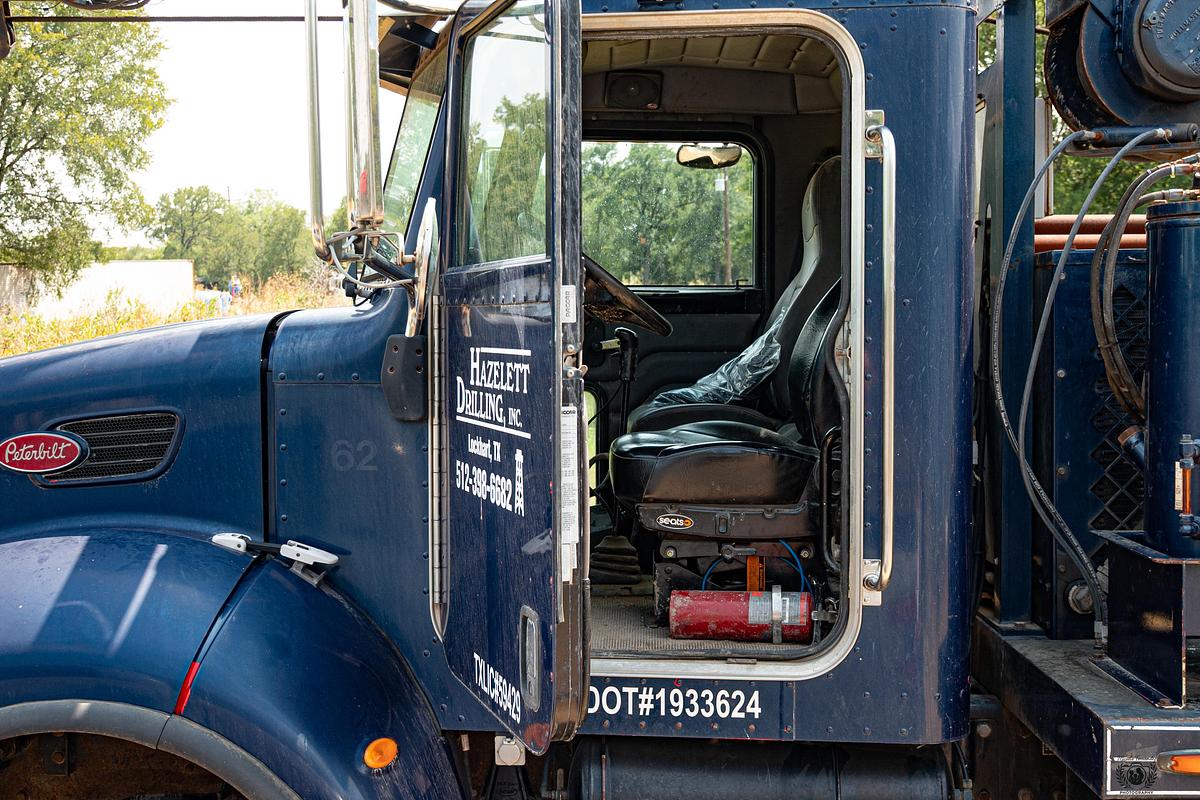

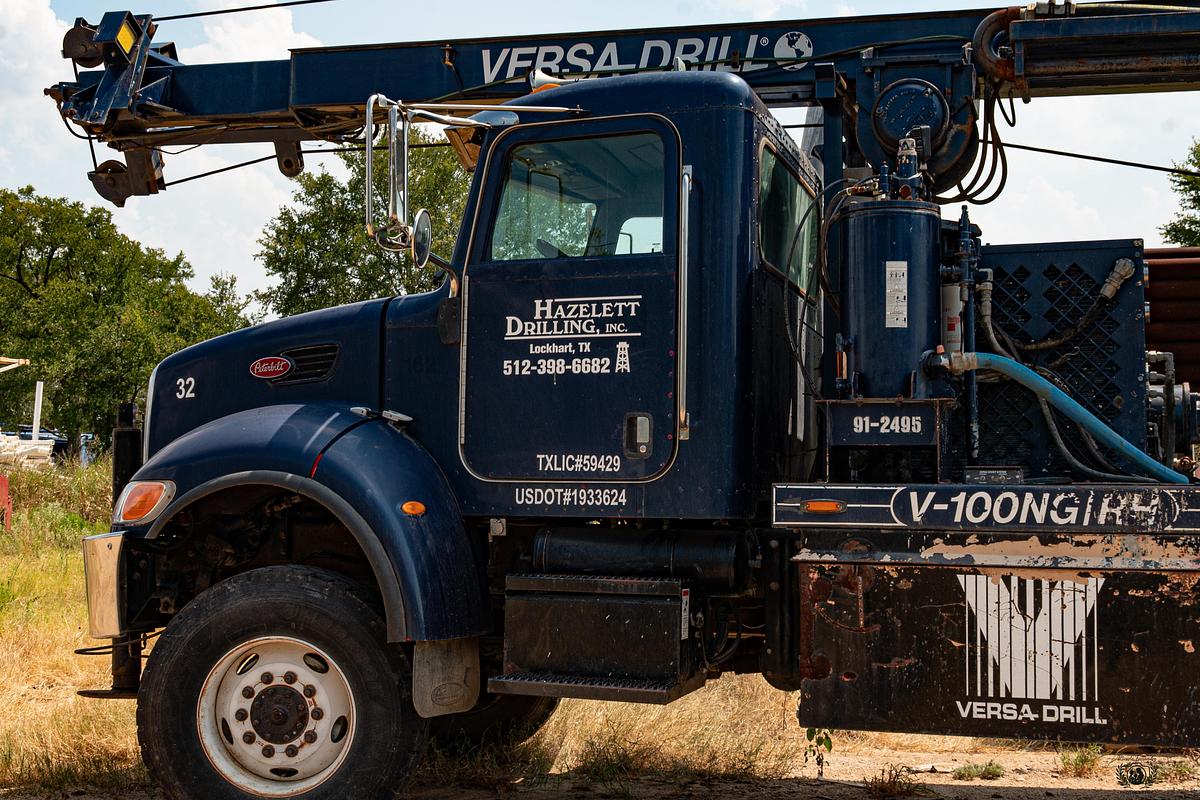

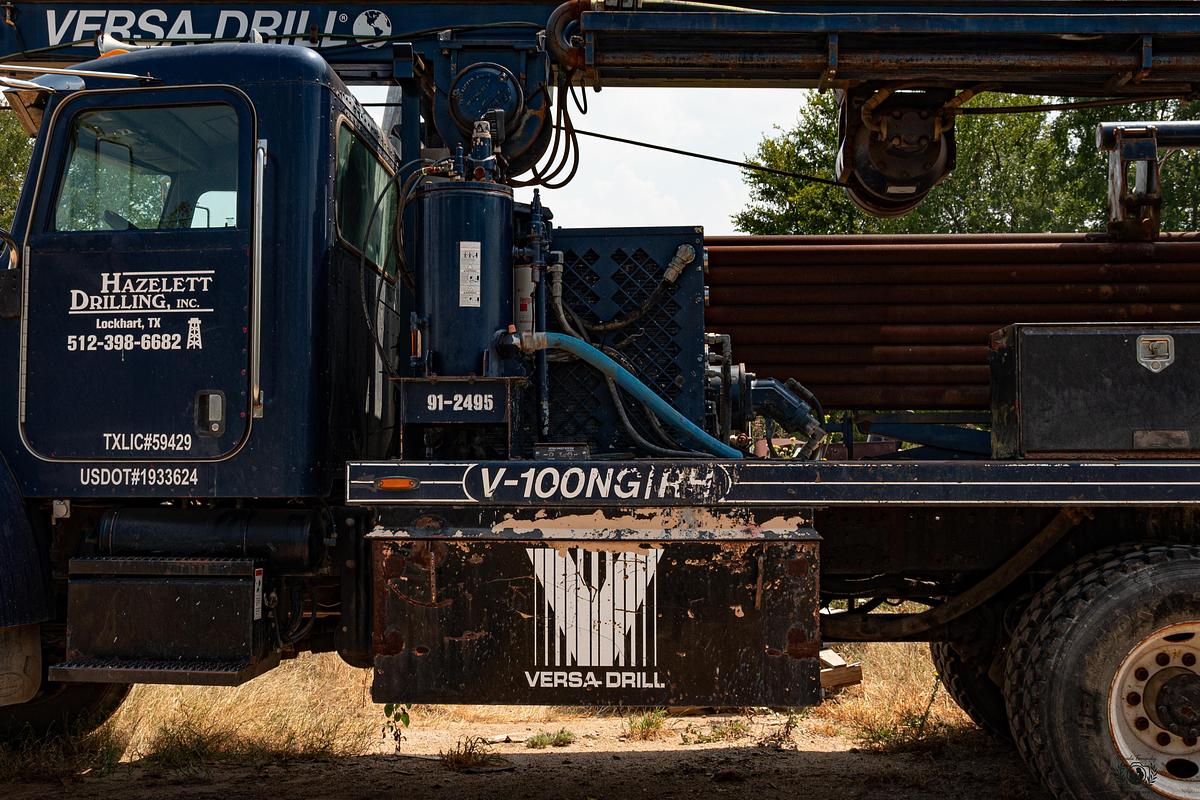

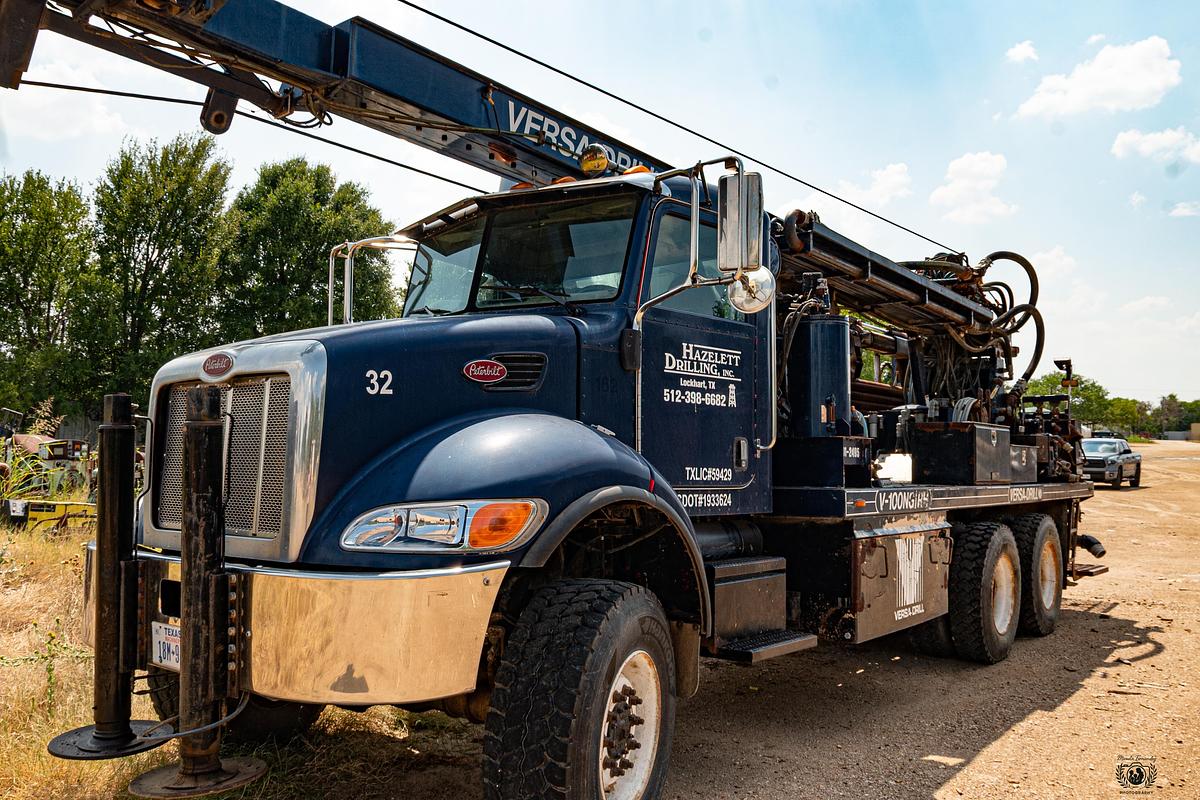

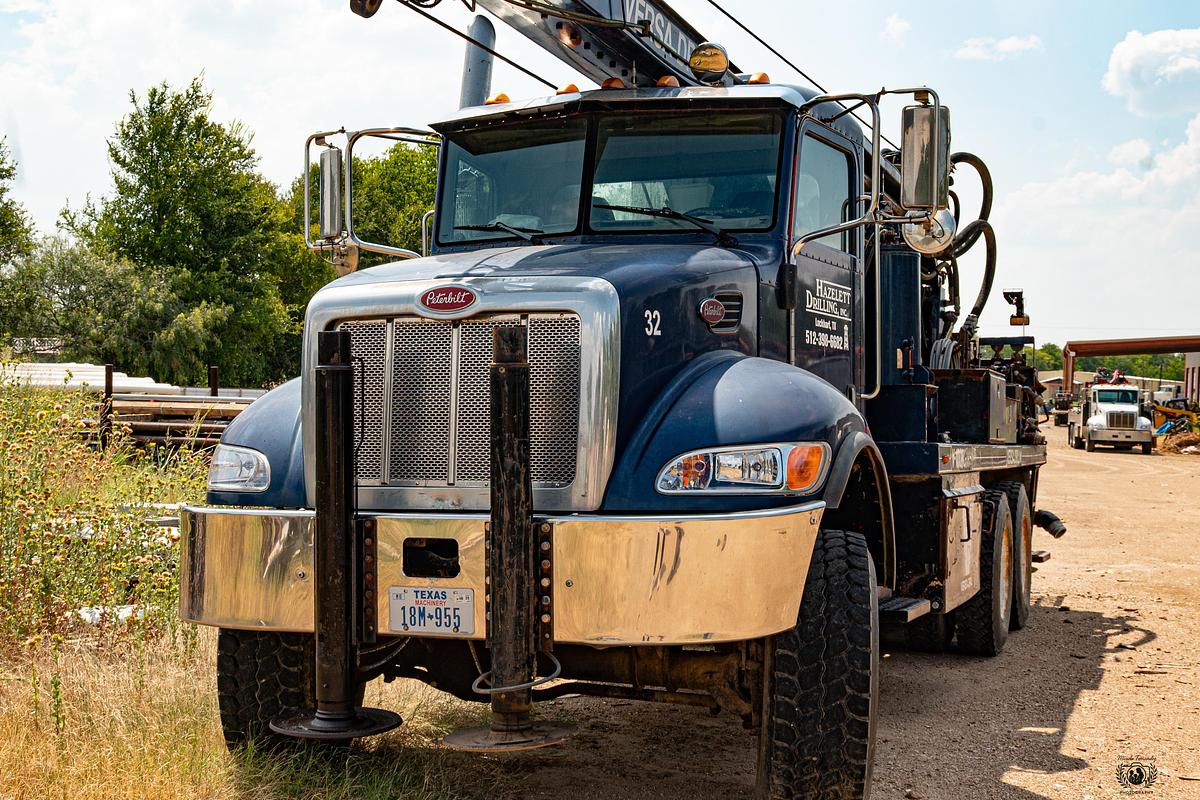

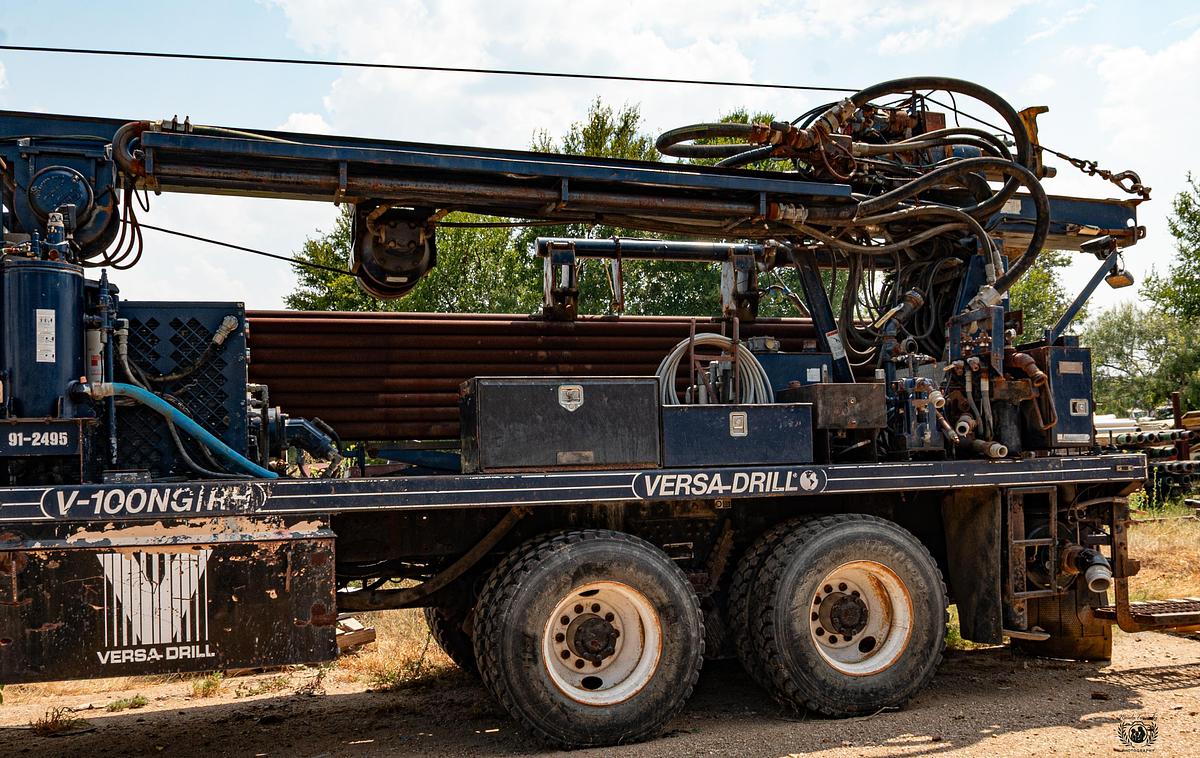

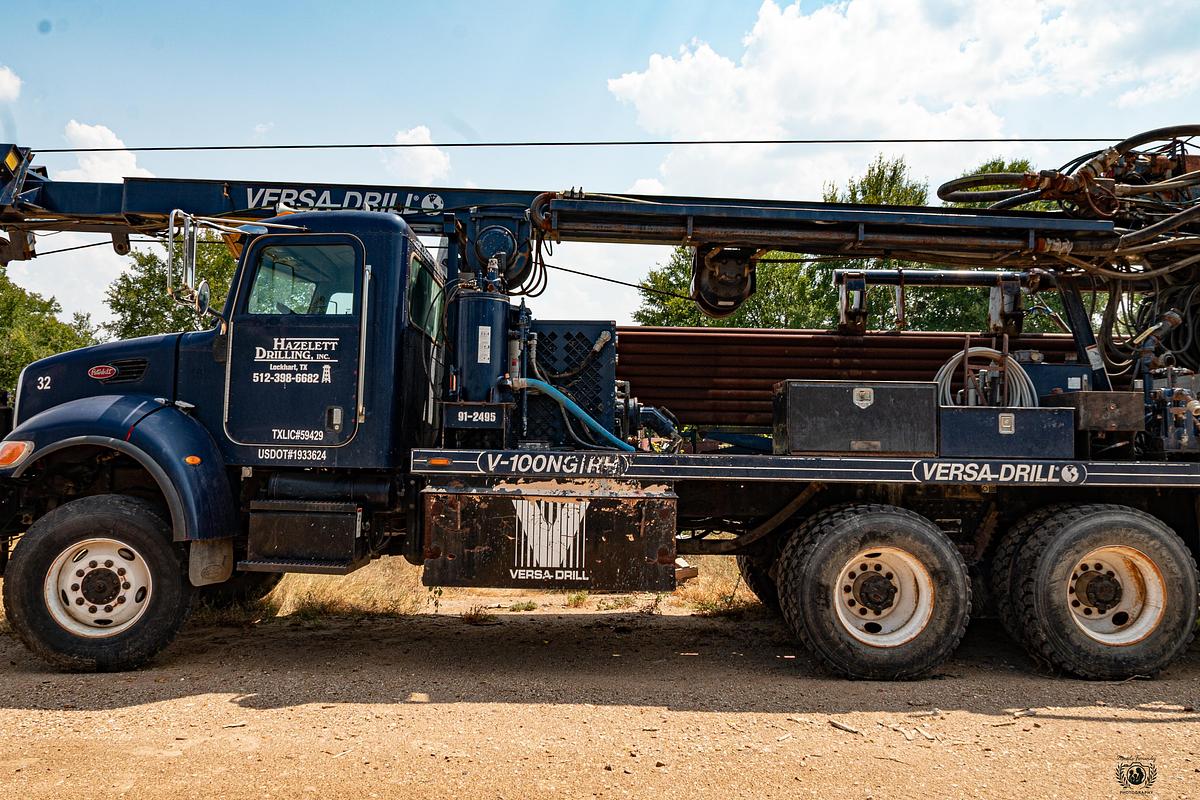

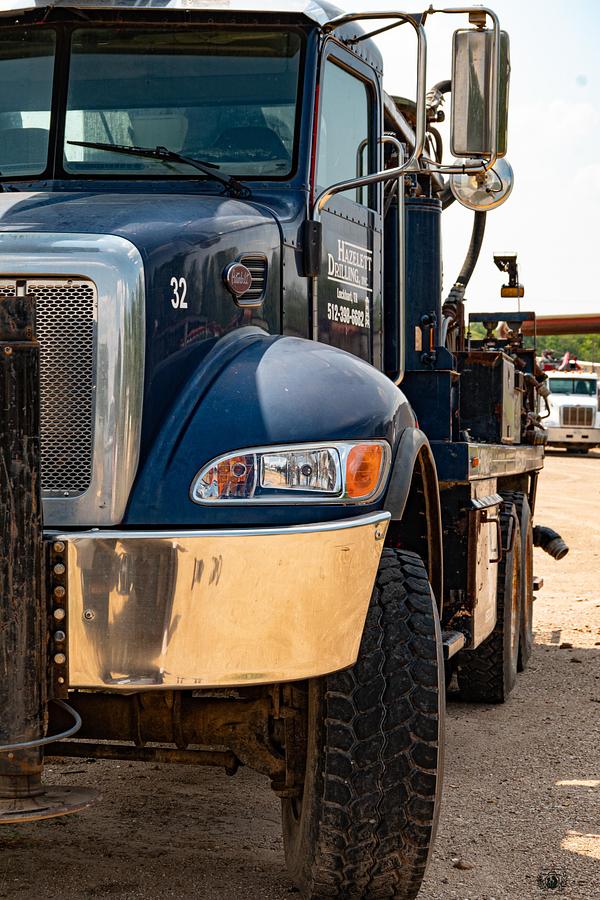

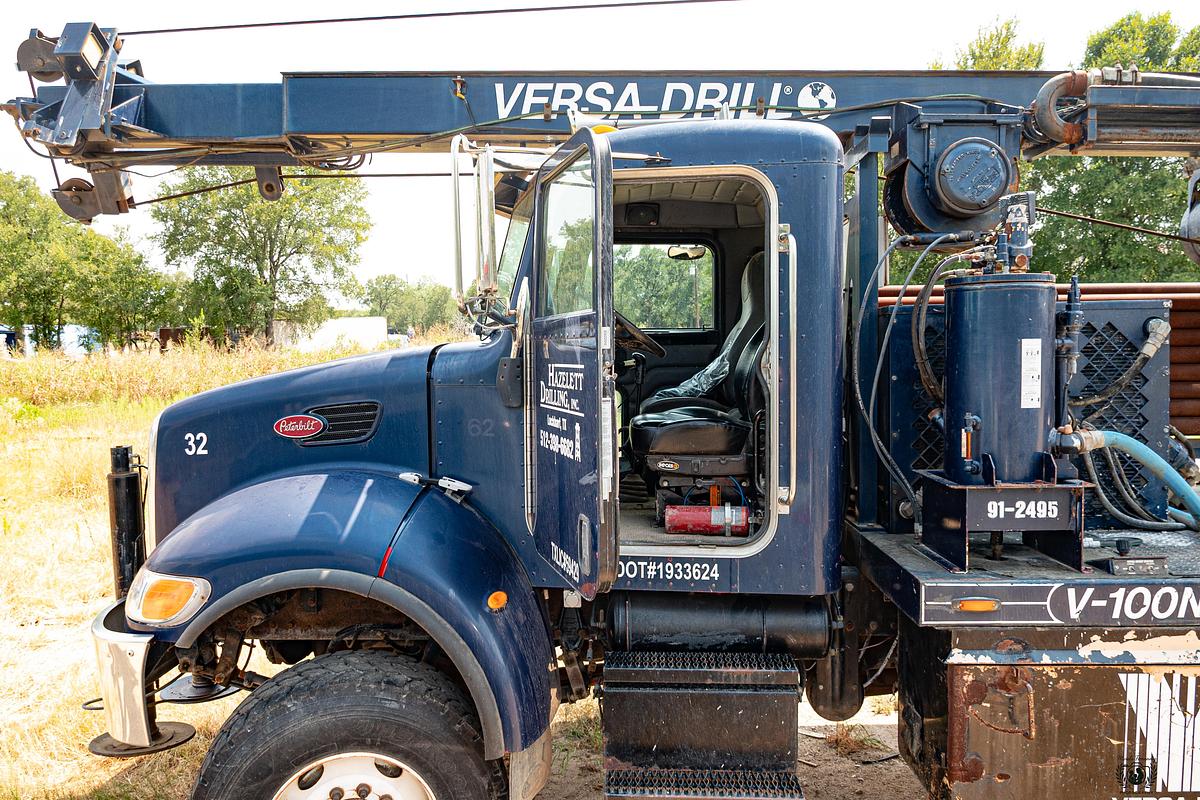

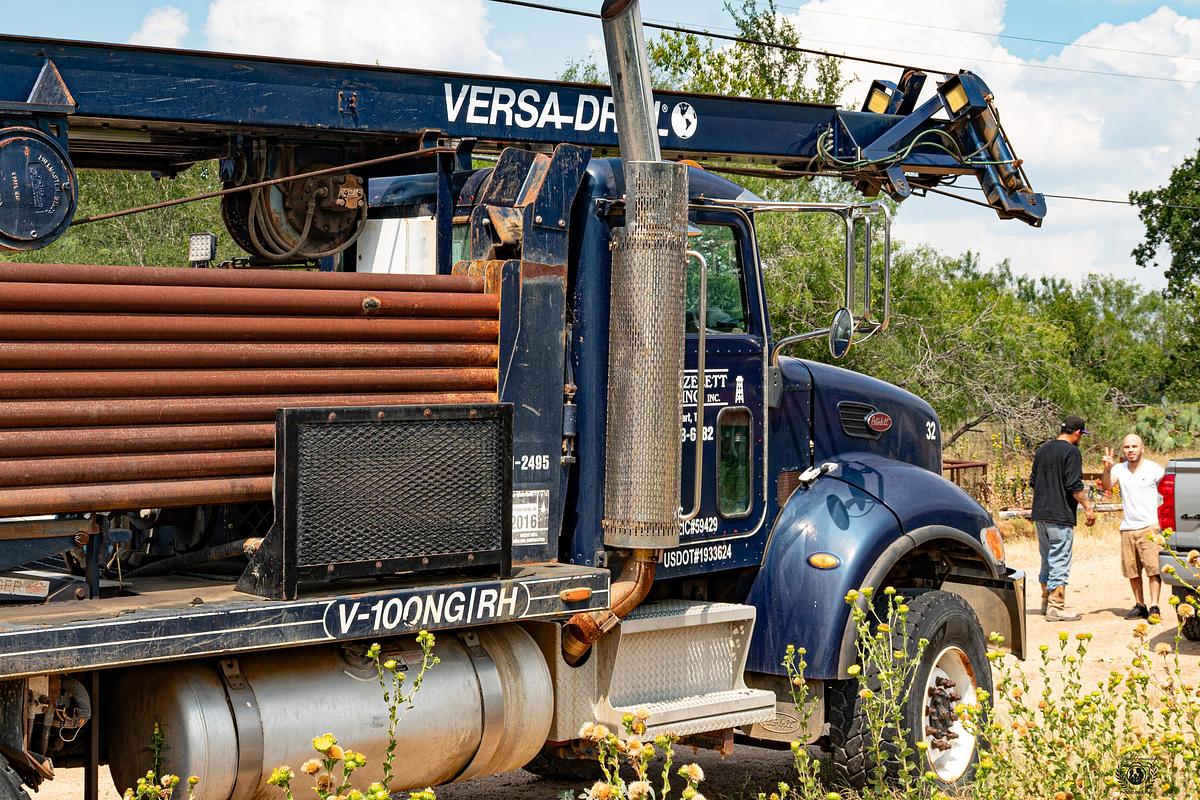

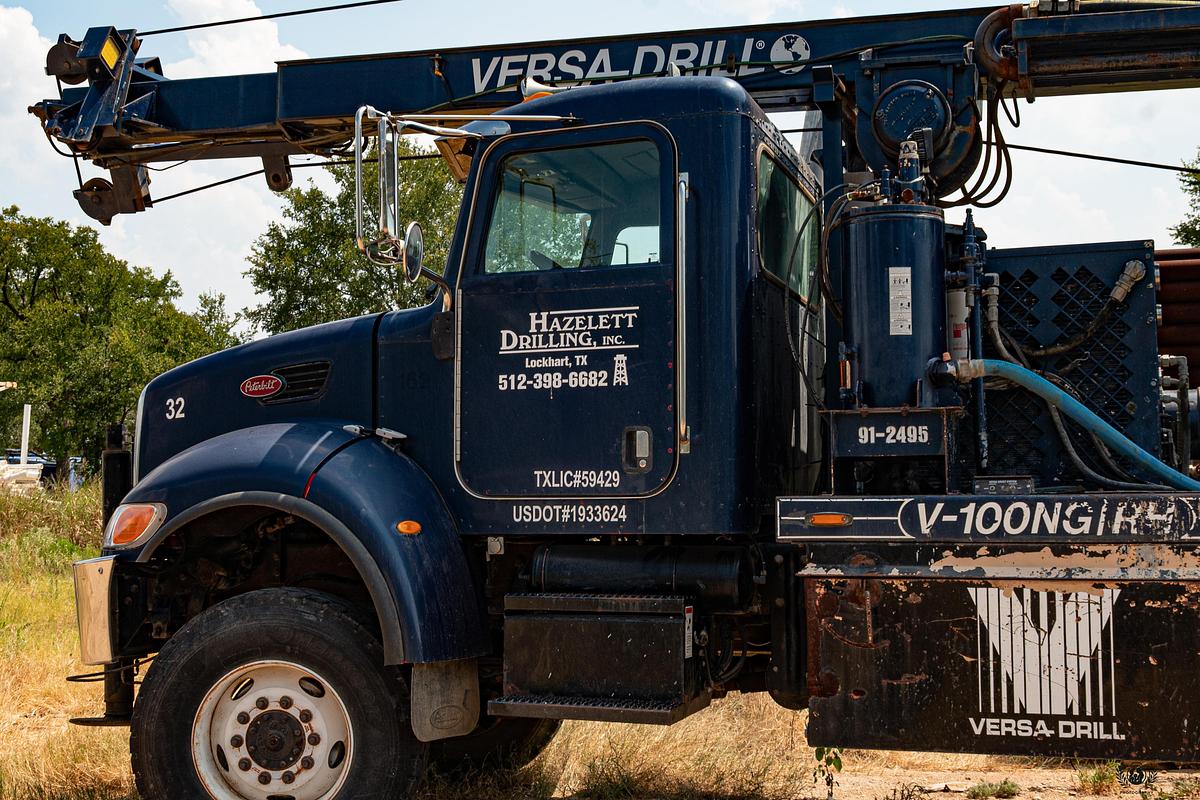

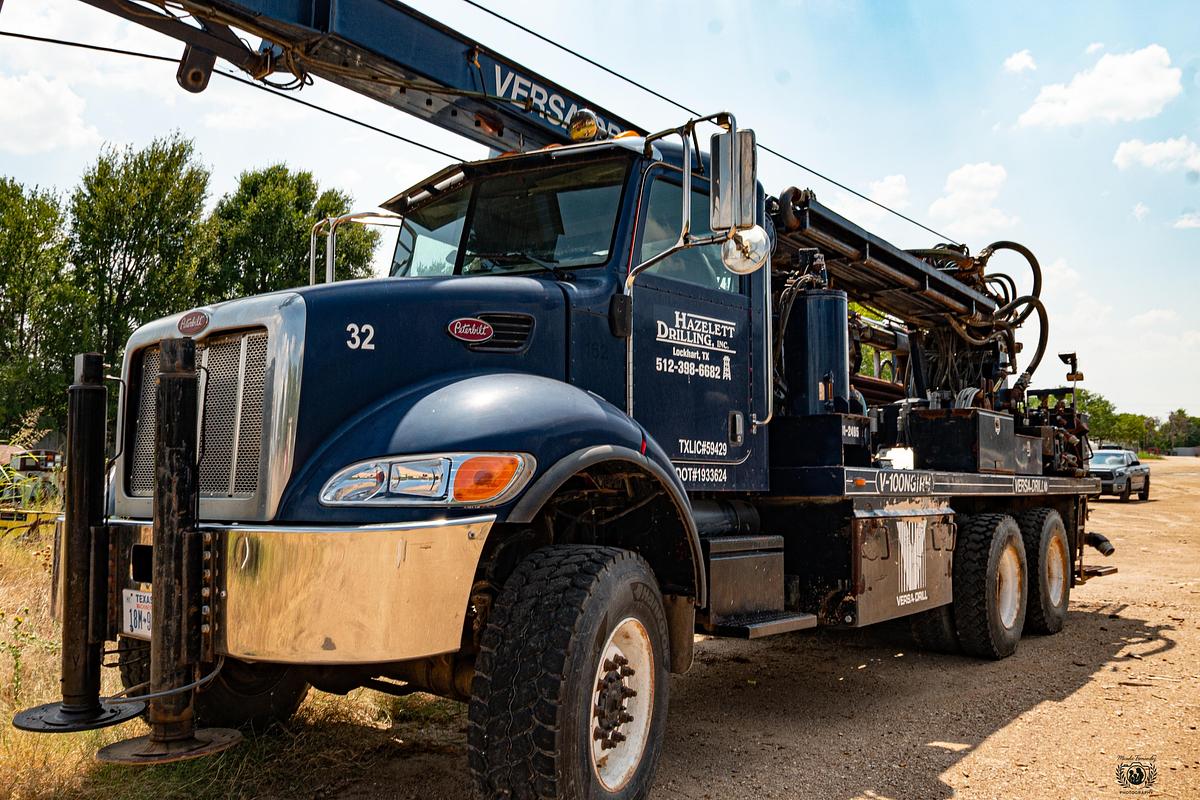

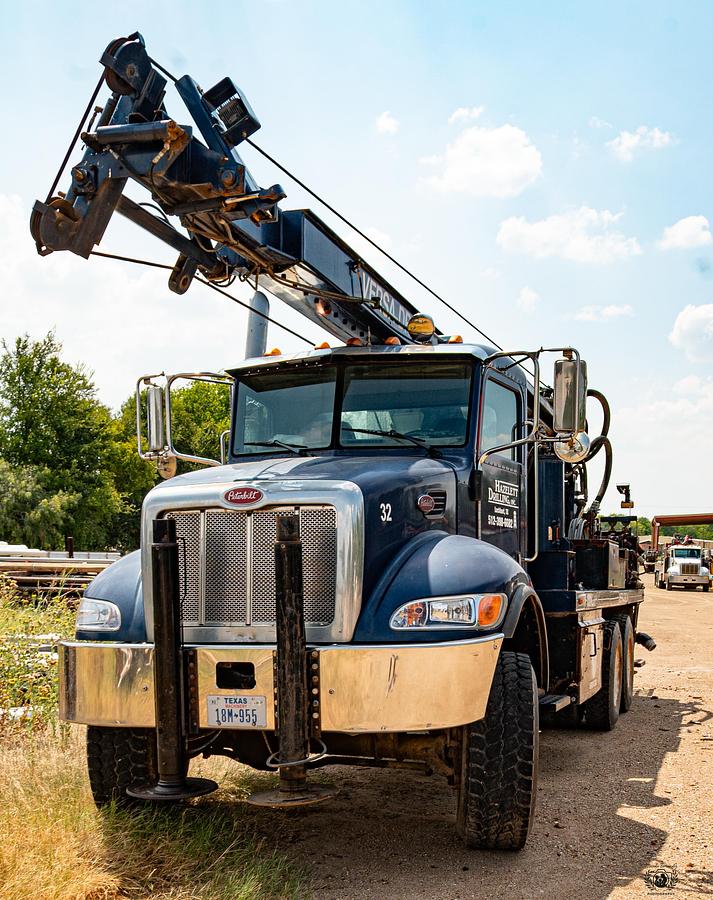

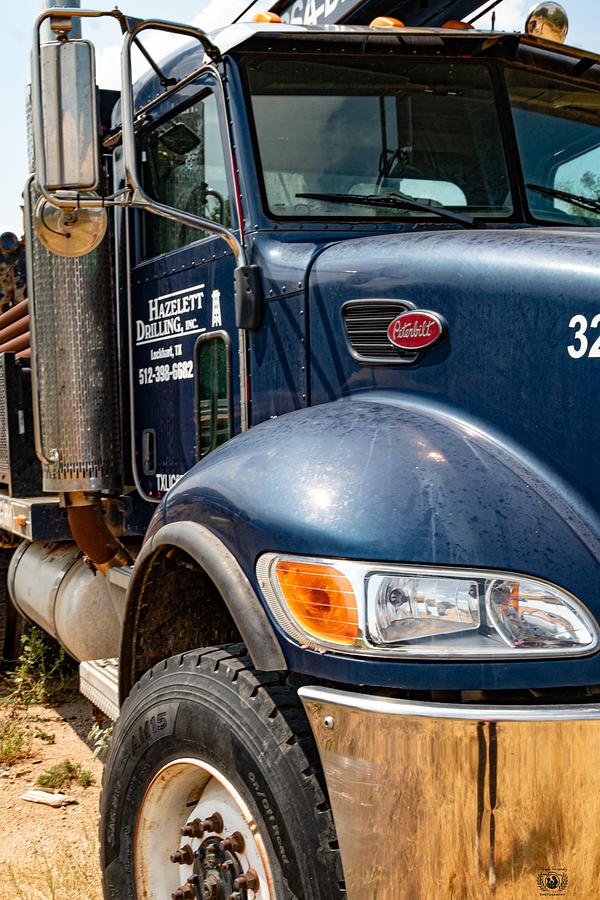

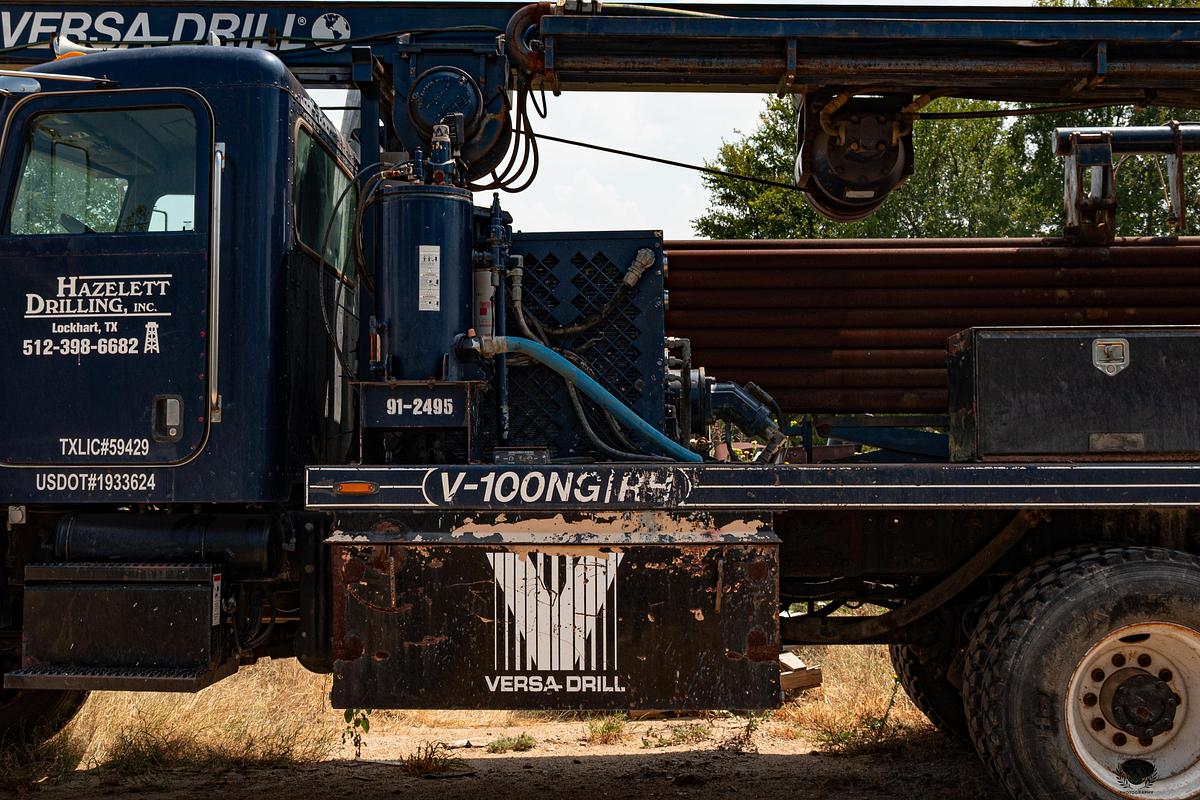

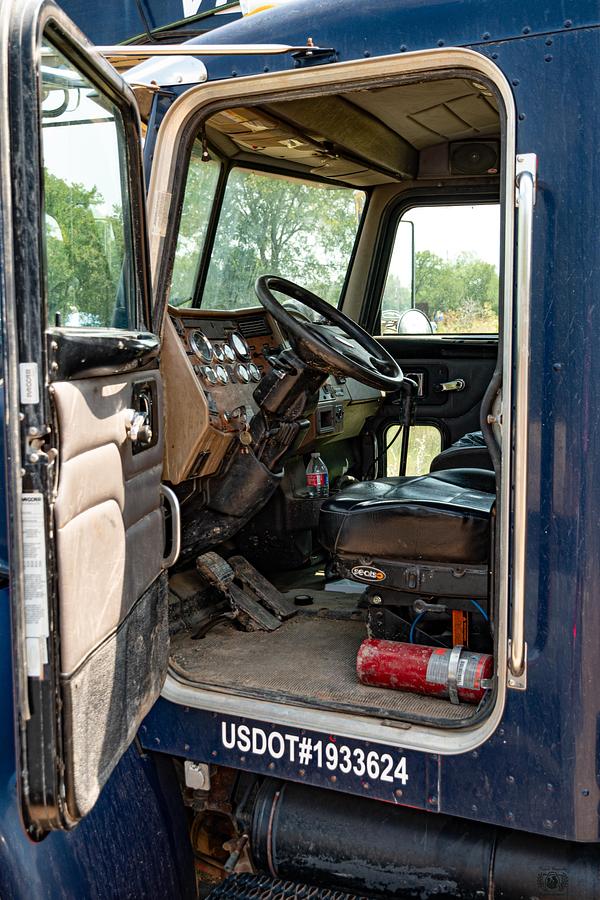

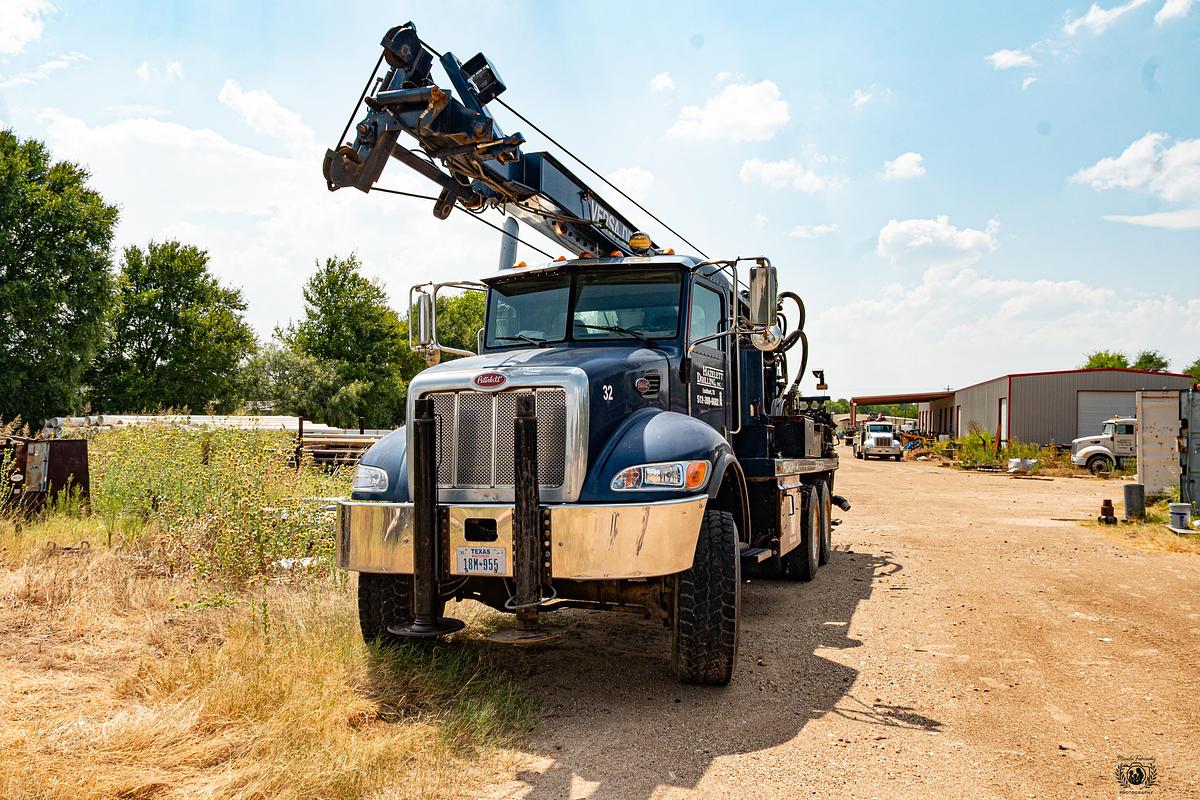

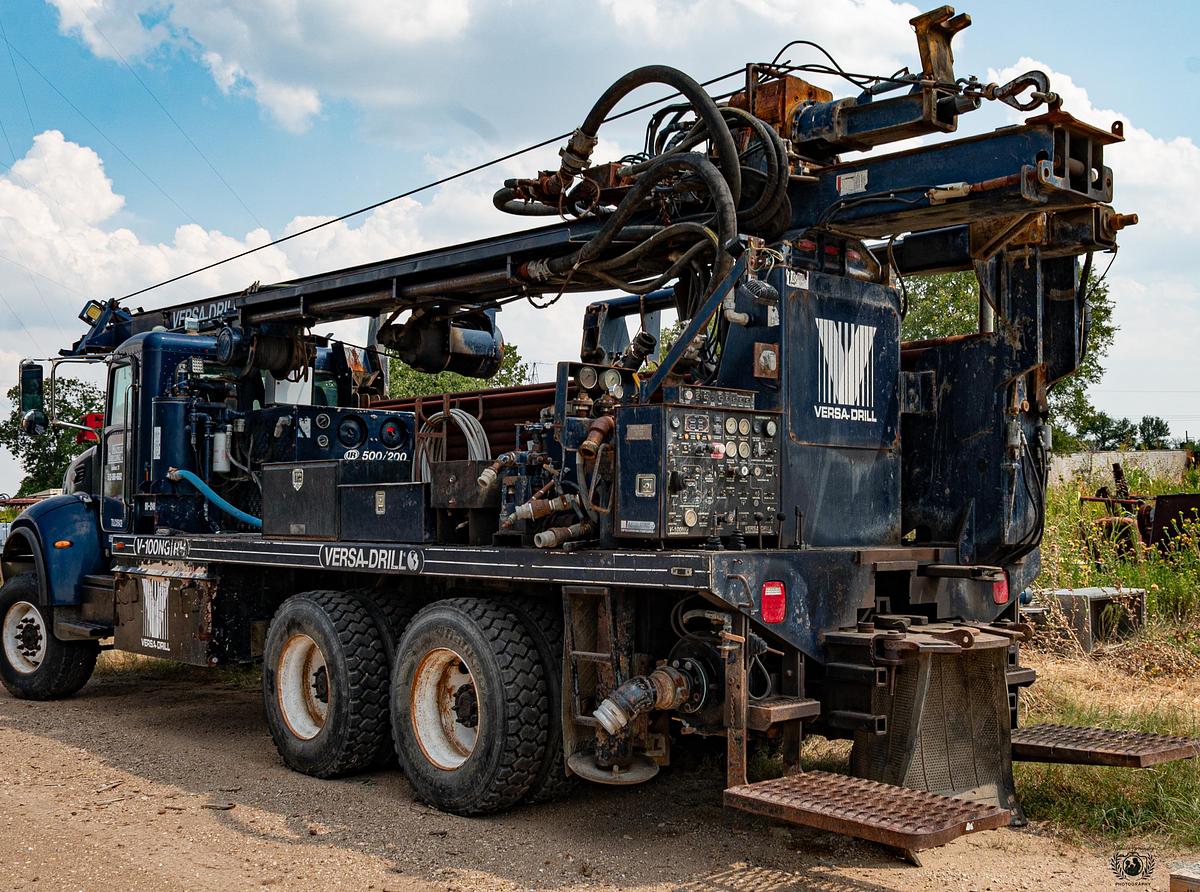

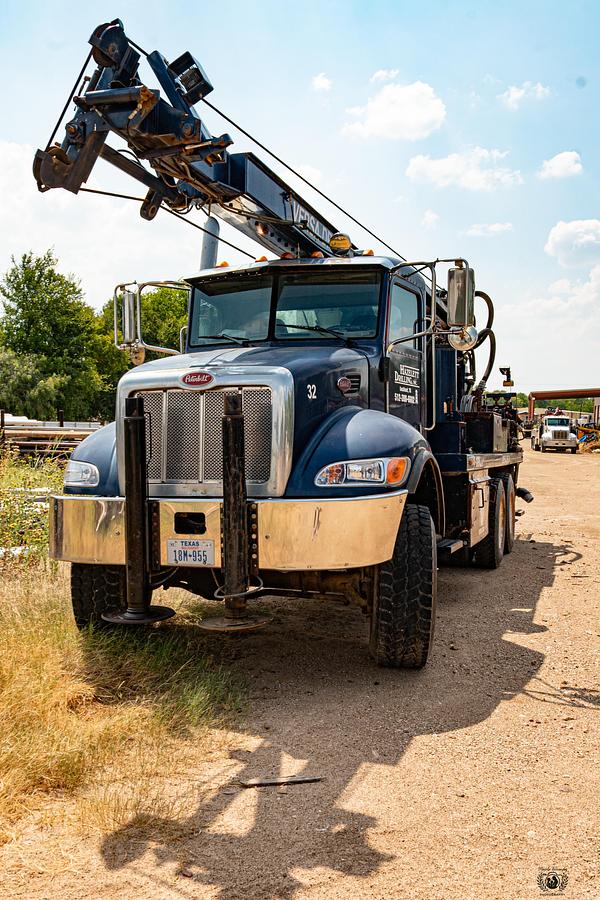

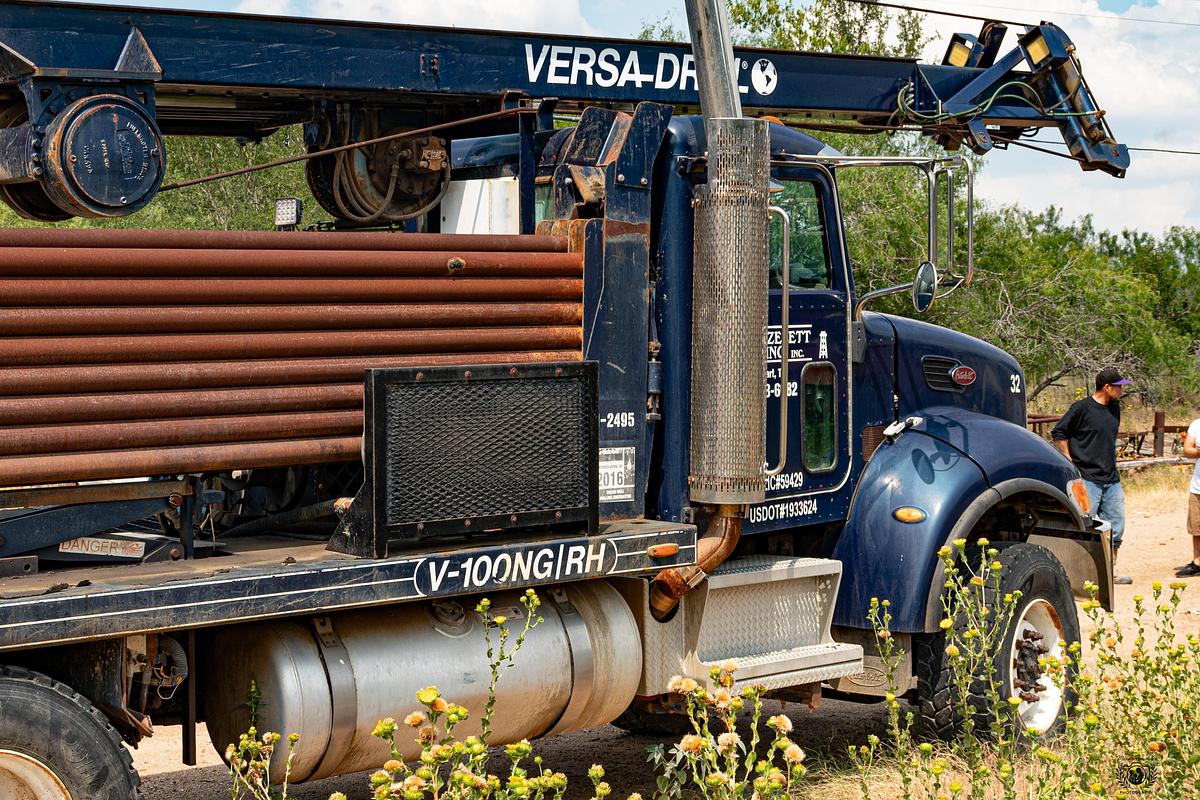

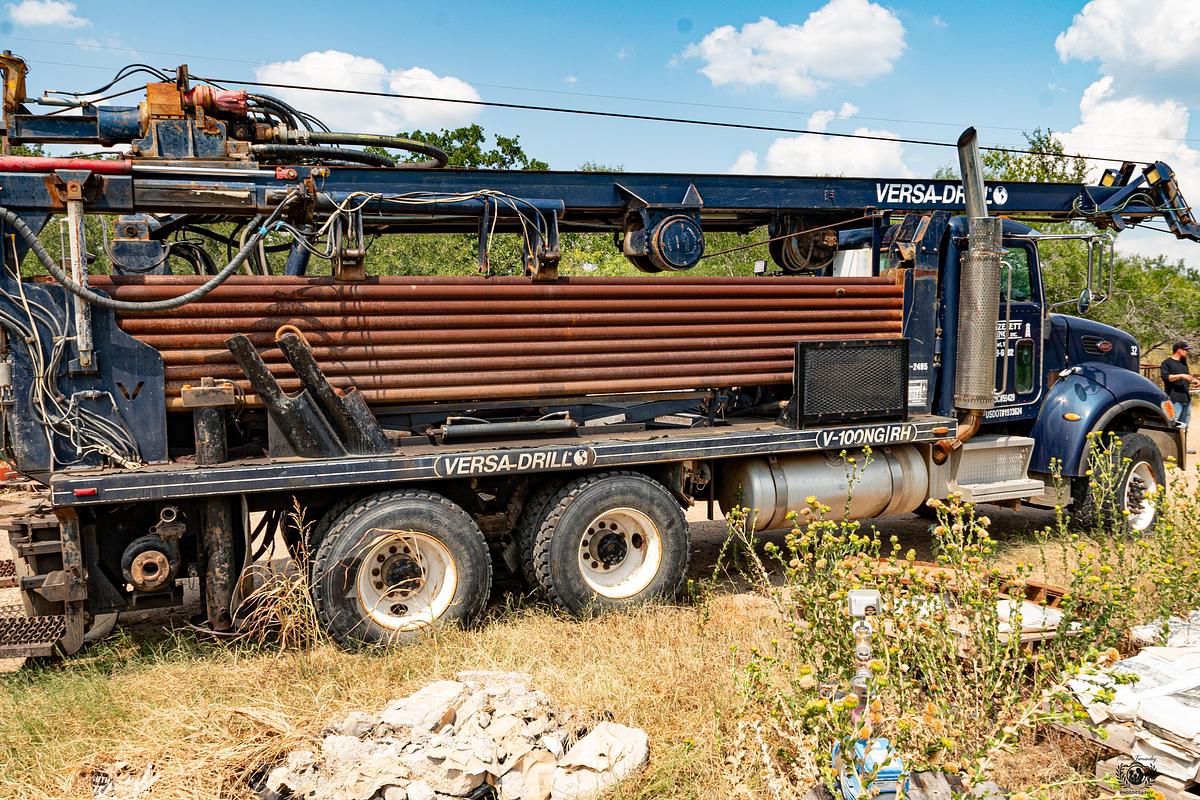

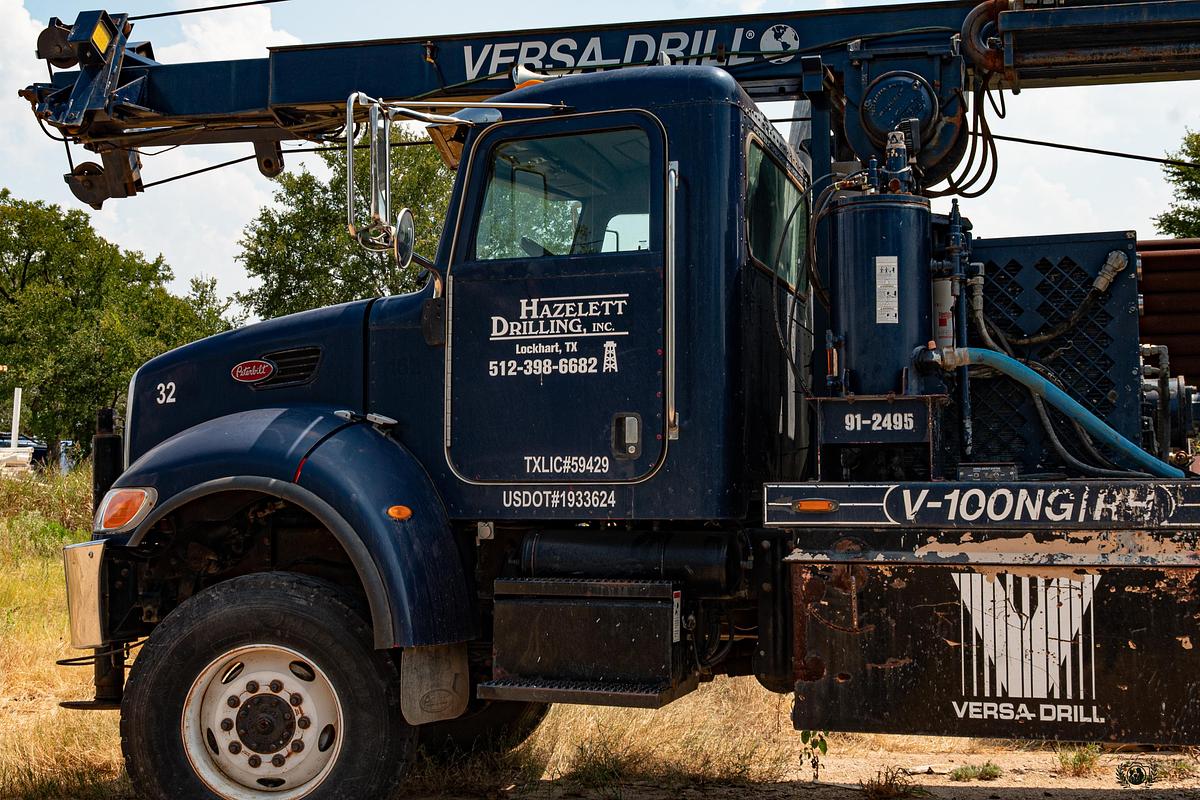

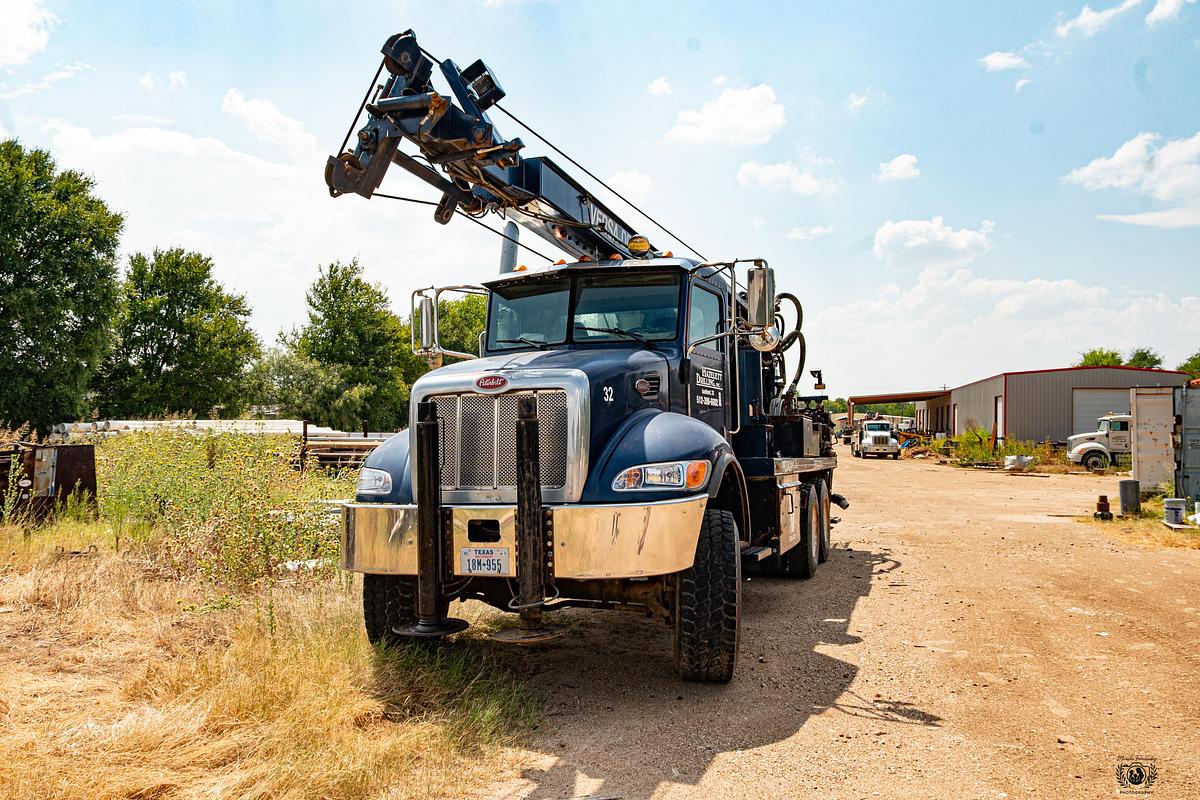

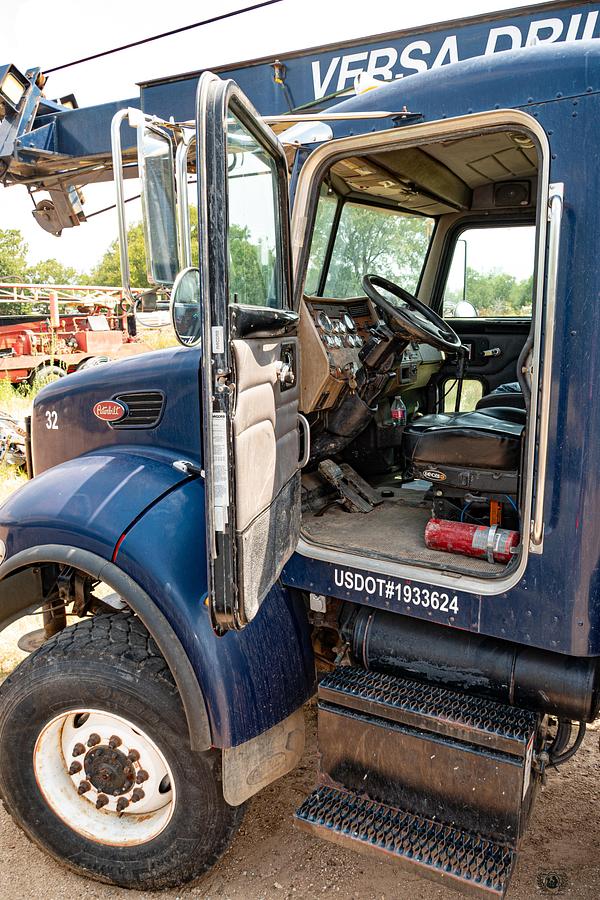

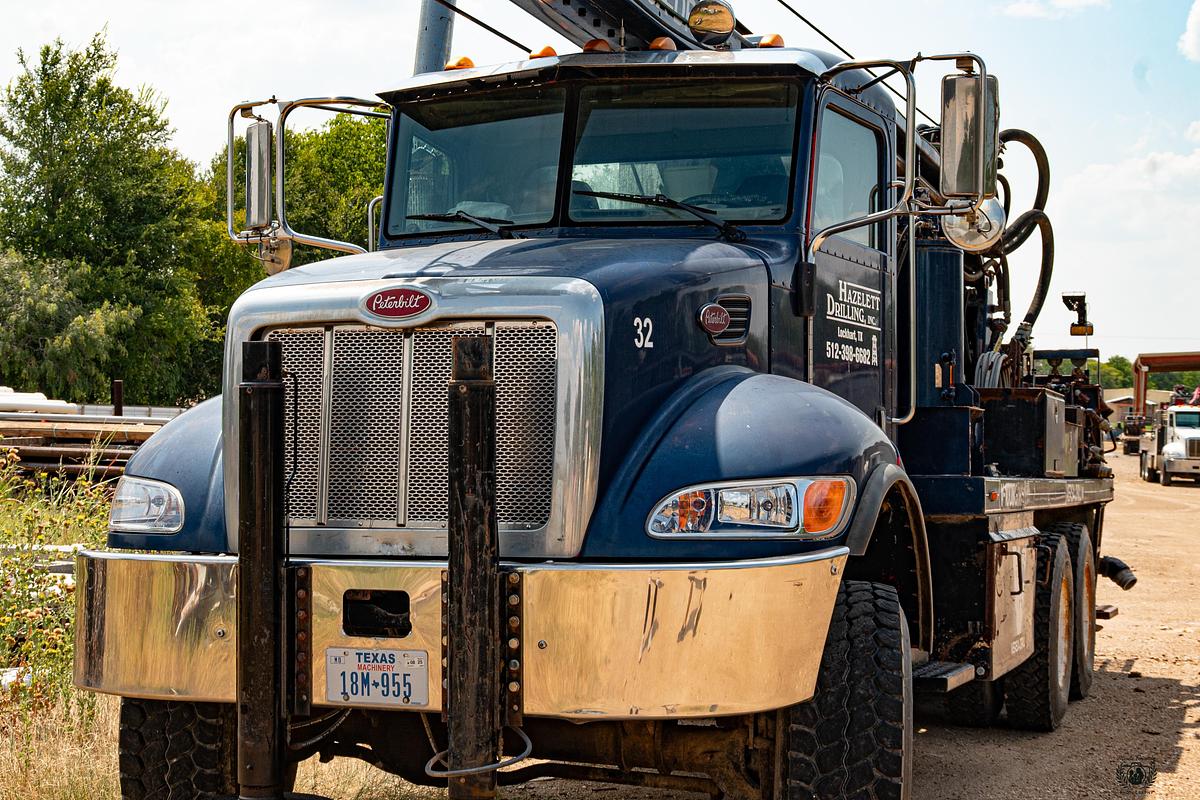

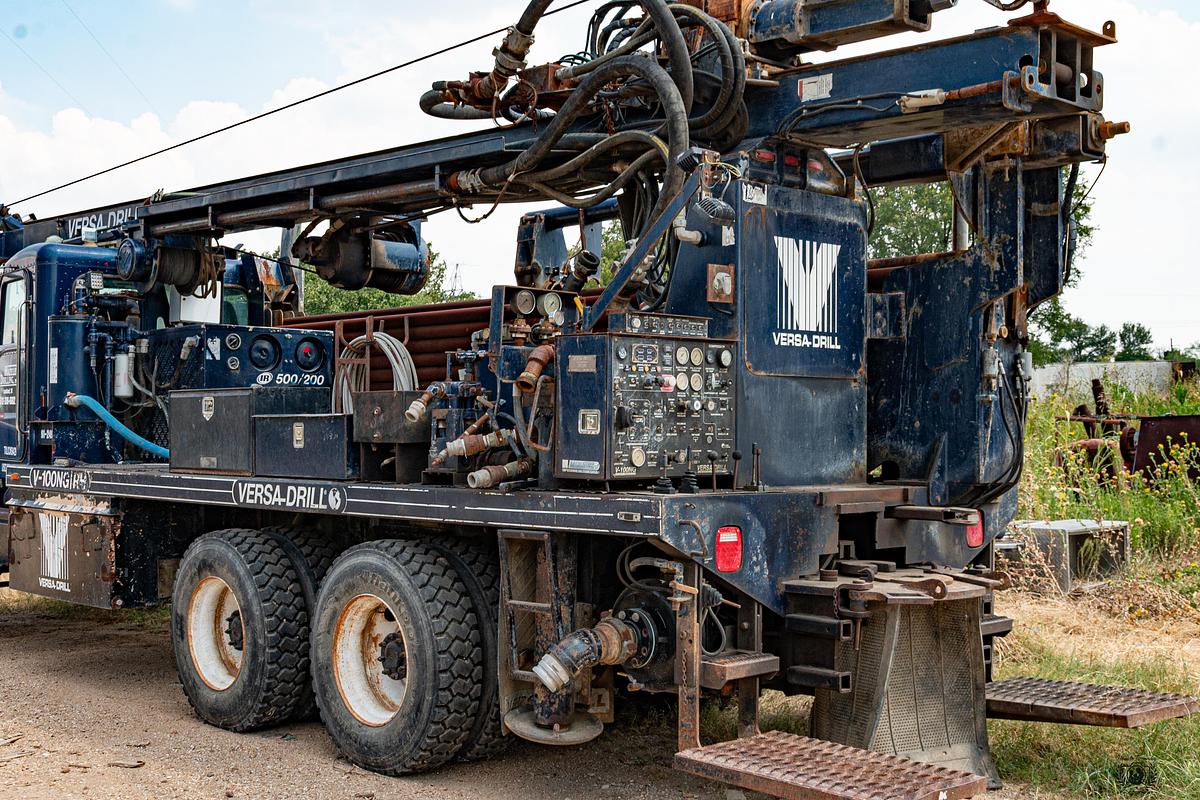

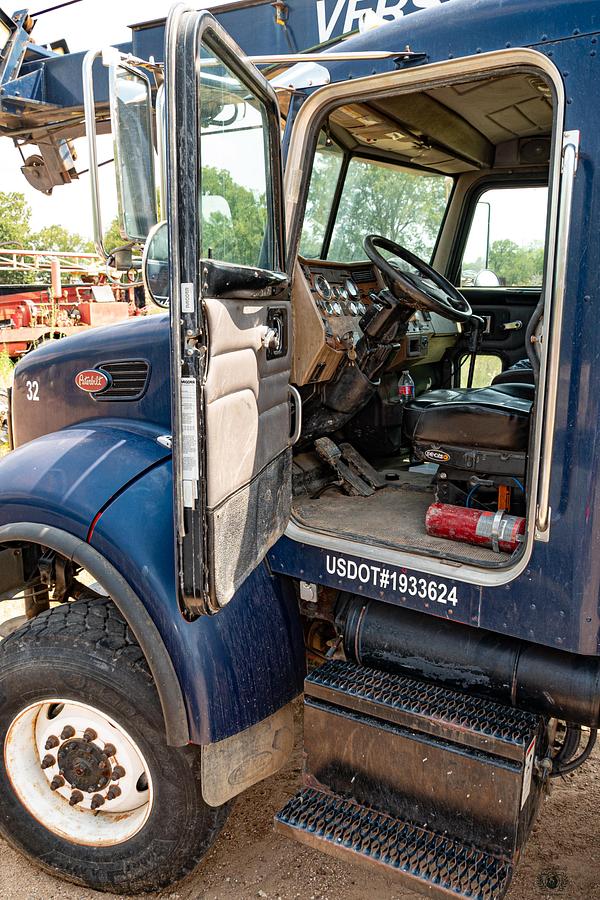

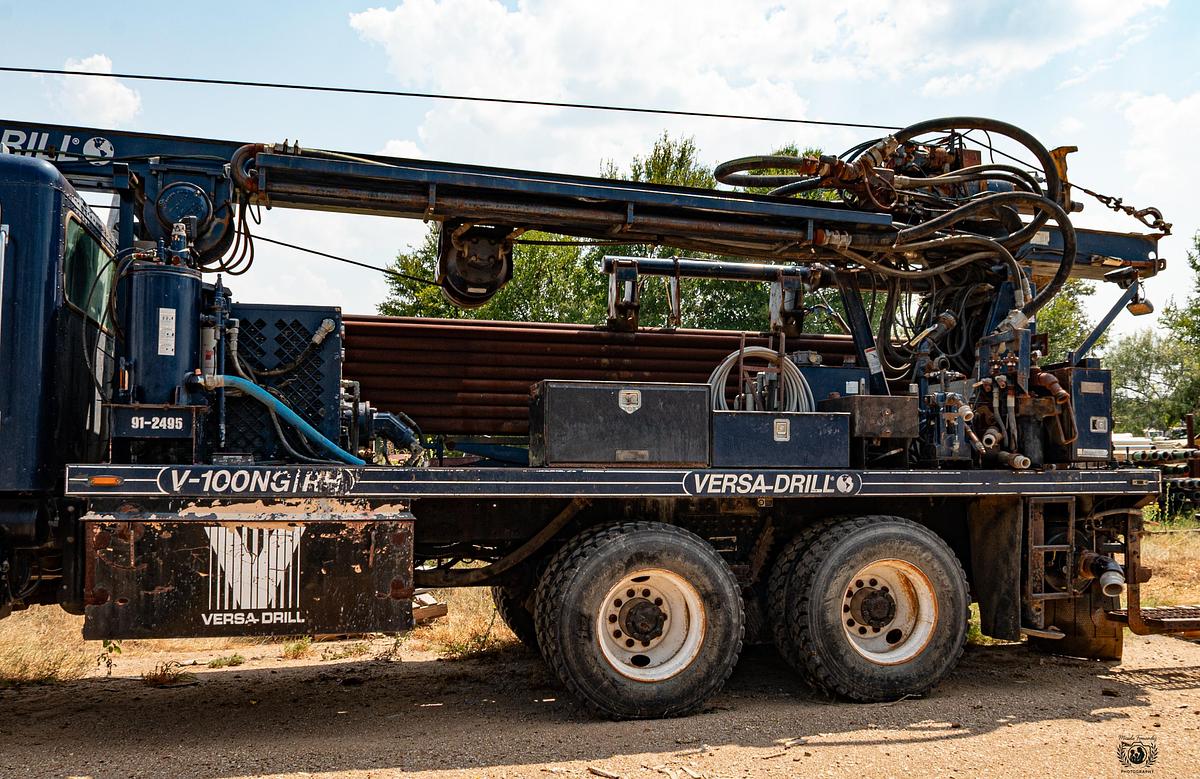

This water drilling rig is in good condition. It's mounted on a 2009 Peterbilt 348 6x6 AWD tractor powered by a 350 HP Cummins diesel engine. This beast of a rig has a pullback capacity of 40,000 lbs.

Specifications:

• GVWR = 54,600 lbs

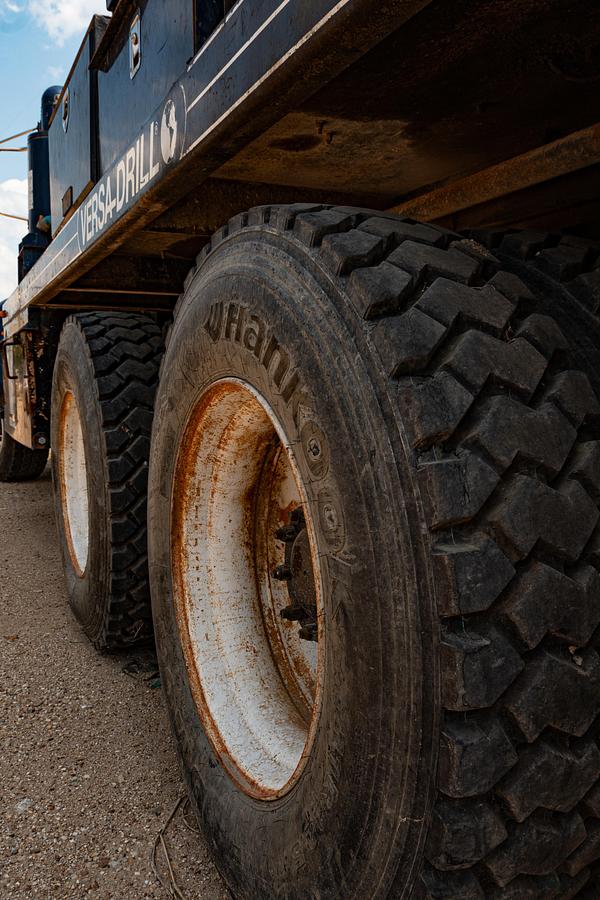

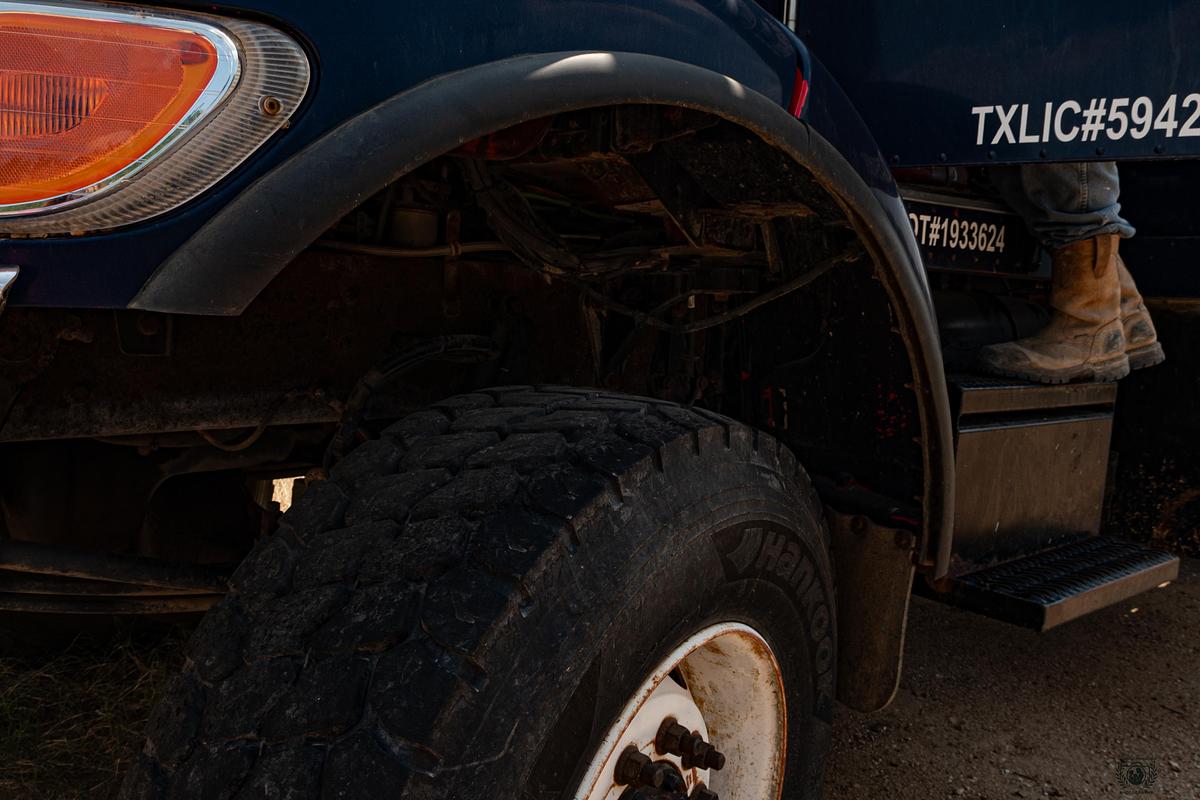

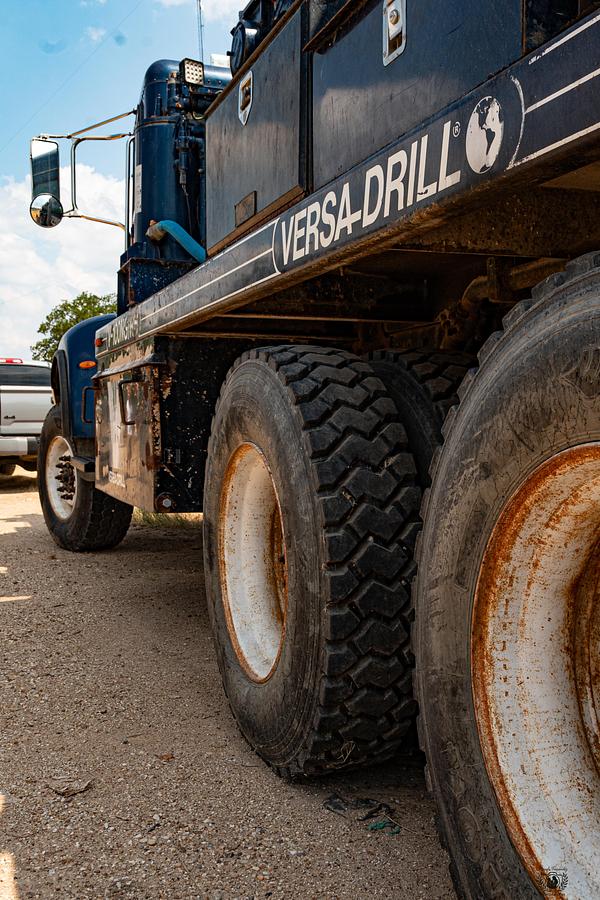

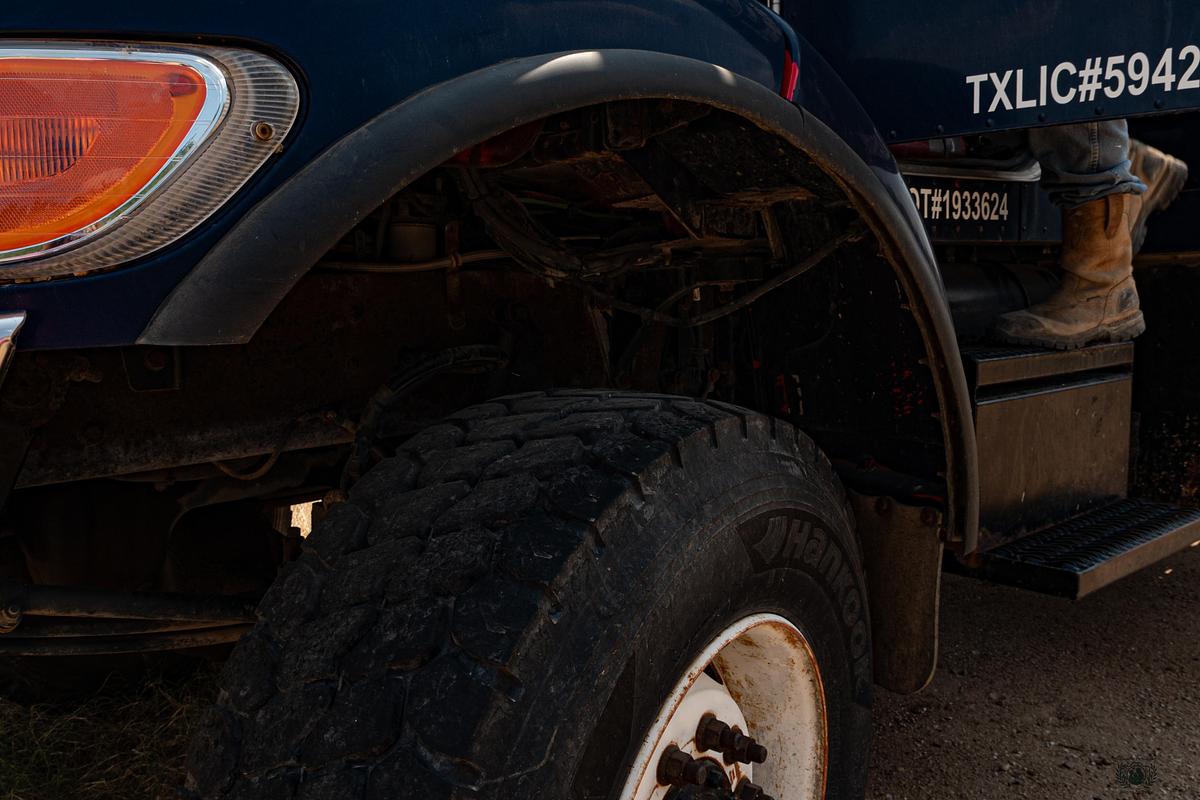

• 9-ft 4-in (2,850mm) with high flotation, low ground pressure tires
• Overall length = 40-ft (12.19m)
• Overall “derrick up” height = 45-ft (13.72m)
• Overall width = 8-ft (2,440mm) with standard wheels

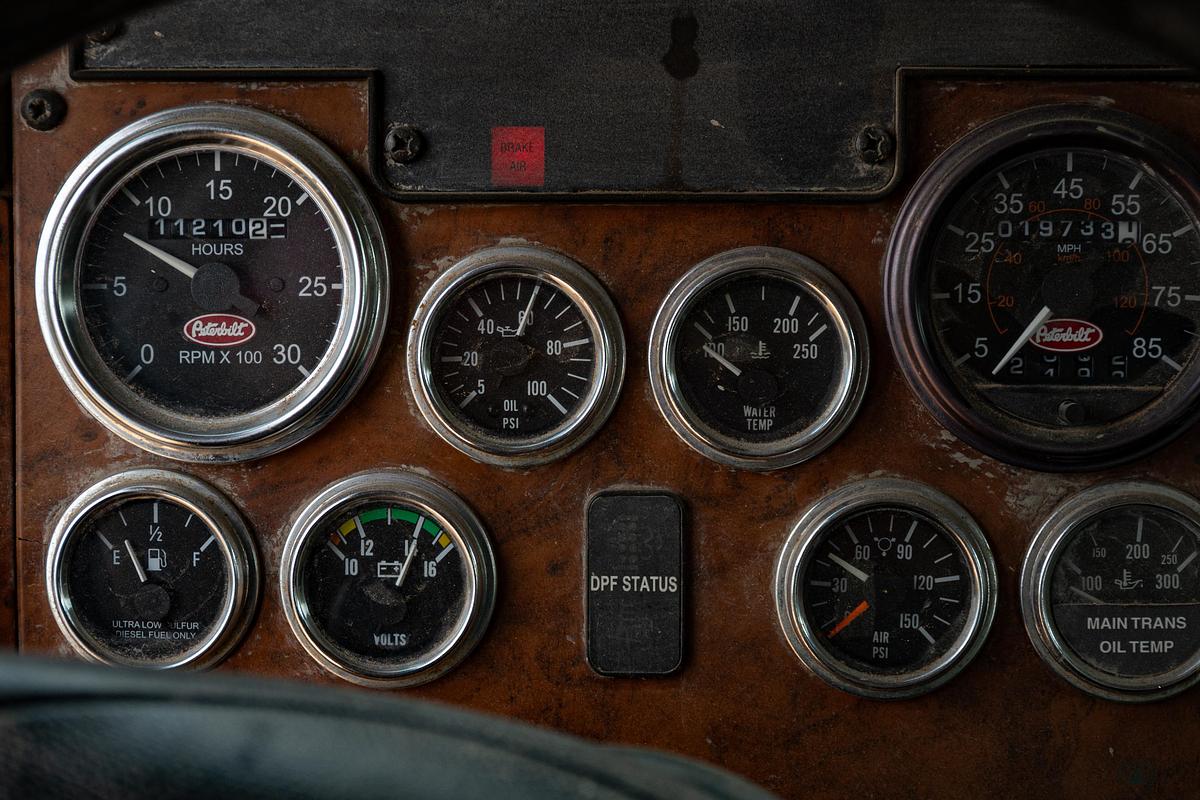

• 11,200 hours
• 19,732 miles
• Low tare weight 40,000 lbs
• Suited for large diameter “wash” drill holes and deep wire line cored “exploration” holes
• Main winch 18,000 lbs single line pull configured to be “two lined” (36,000lb hook load).
• Wire-line / sand-line winch 4,000lbs single line pull 2,500′ capacity

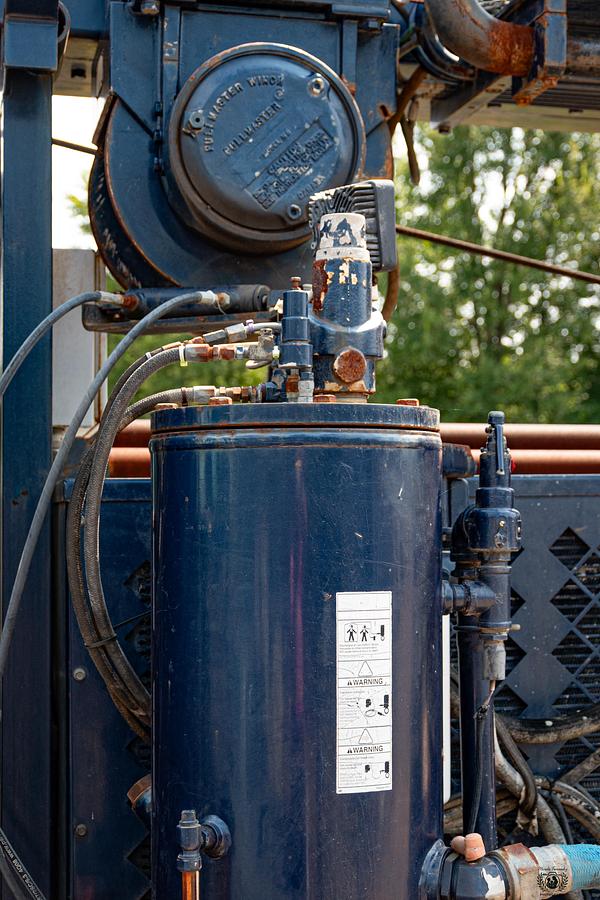

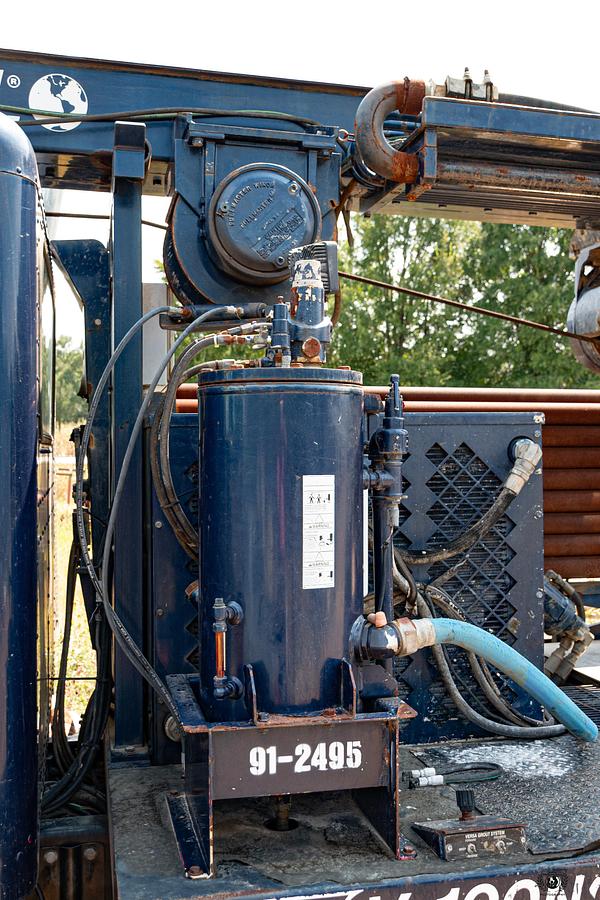

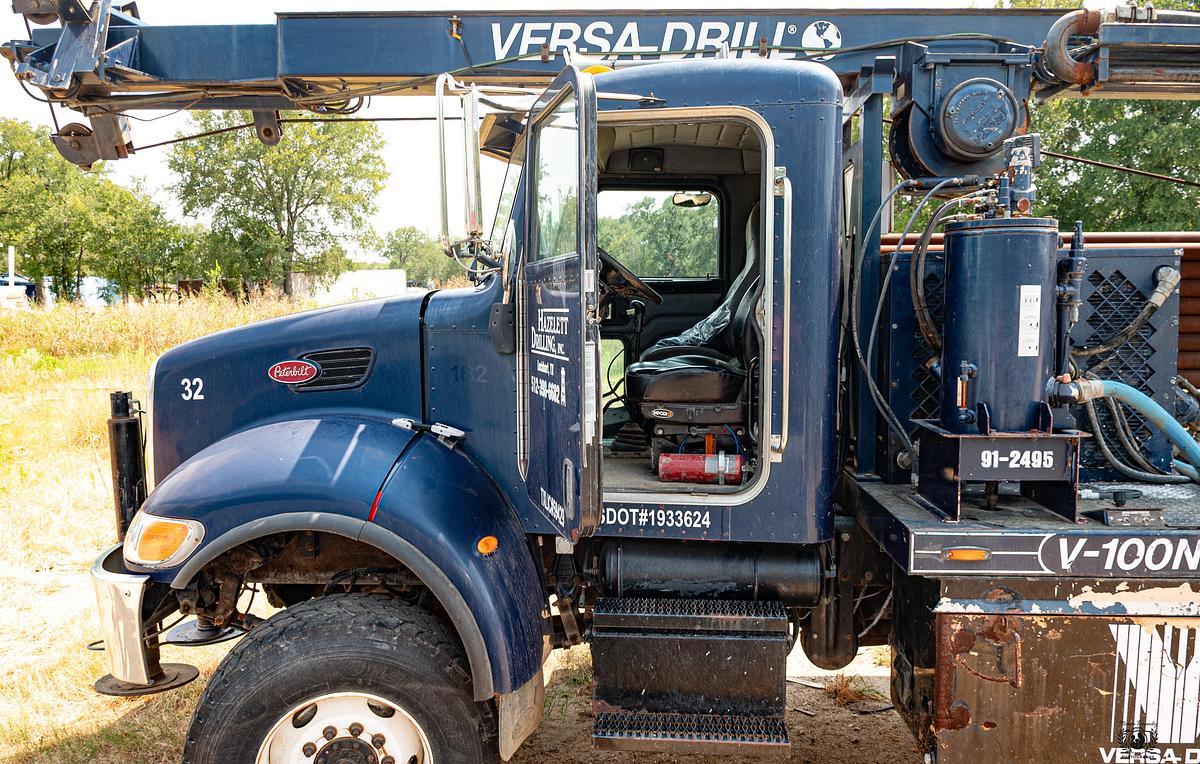

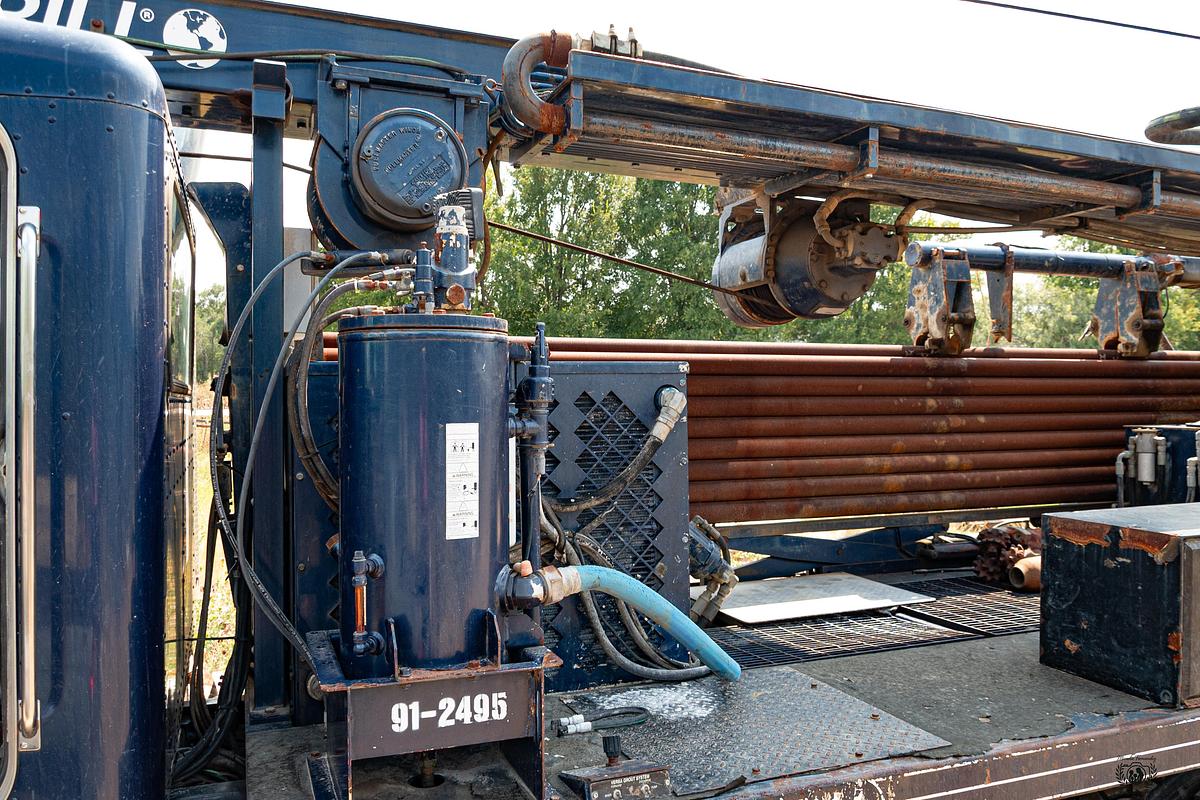

• DHD lubricator 7-gallon capacity (removable)

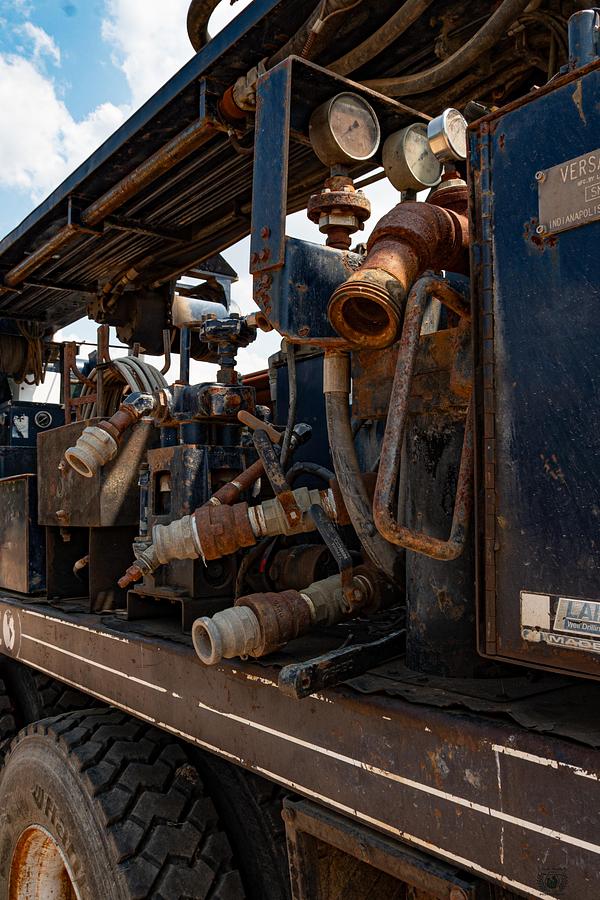

• Mud pump Gardner Denver 5-1/2 x 8 duplex piston type hydraulic driven
• Water injection / coring pump FMC bean pump 25 GPM capacity

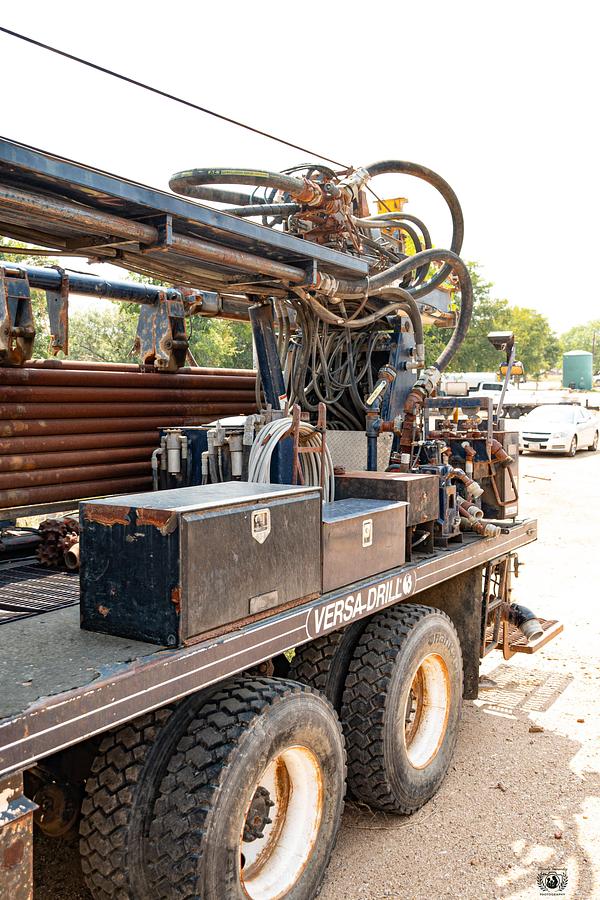

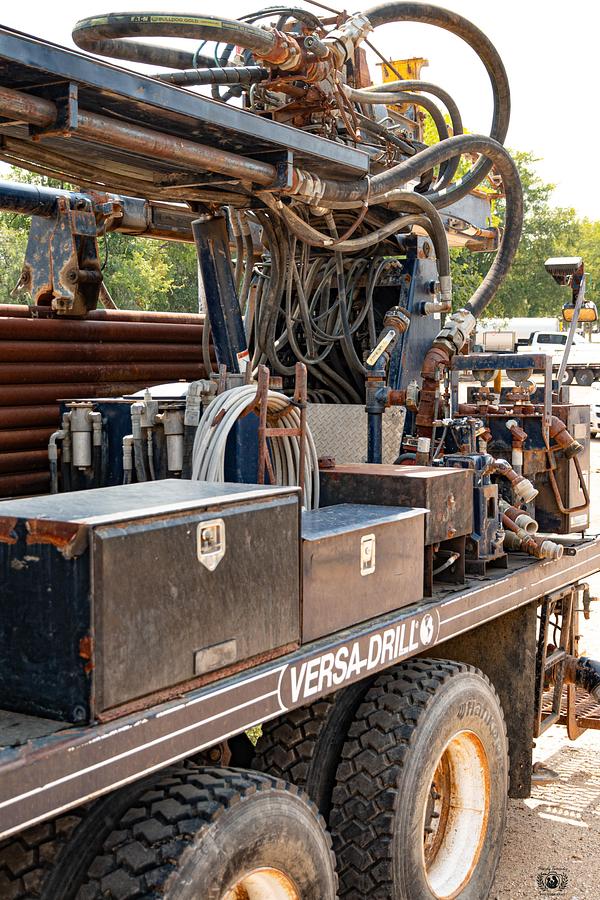

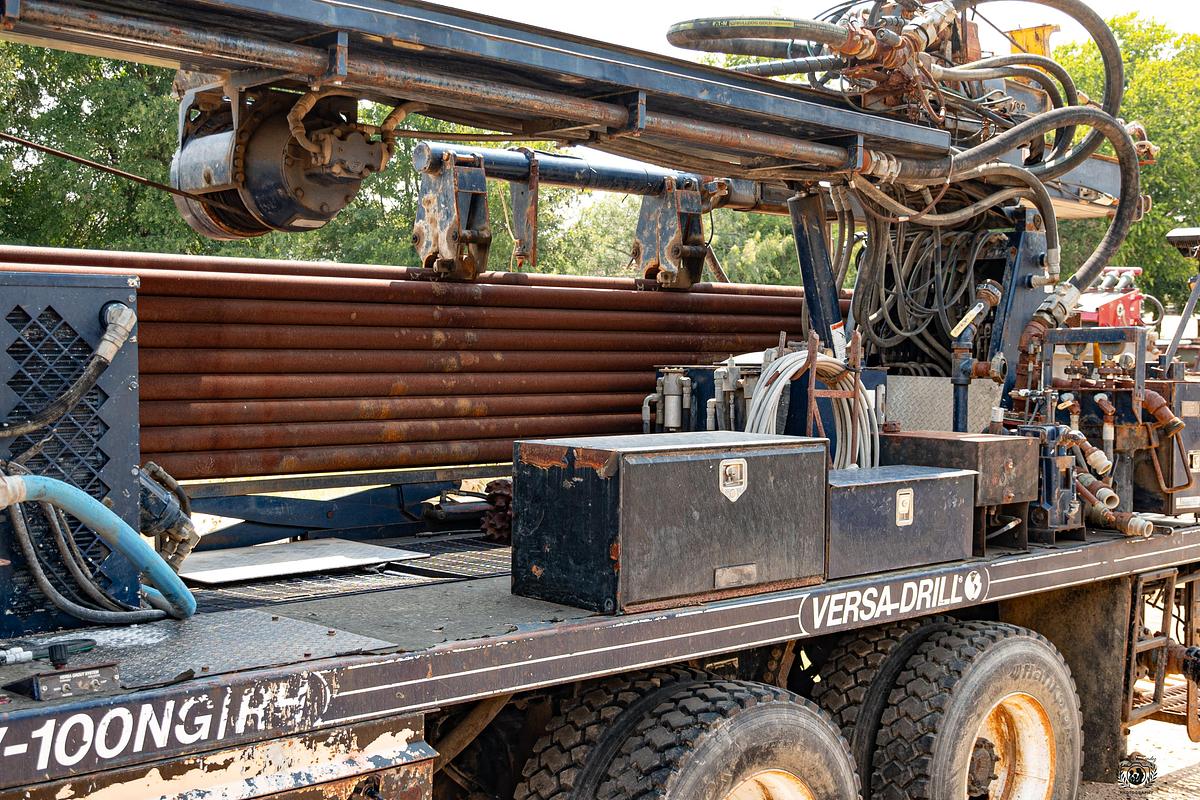

• Tool boxes – large tool box under deck, tool box mounted on deck behind right side of cab
• Feed system (patented) cylinder feed through gear track design. Pullback 40,000lbs. Pull-down 18,000lbs. Travel speed up 0 to 300’/min. Down 0 to 261’/min. Drill feed 29’/min.

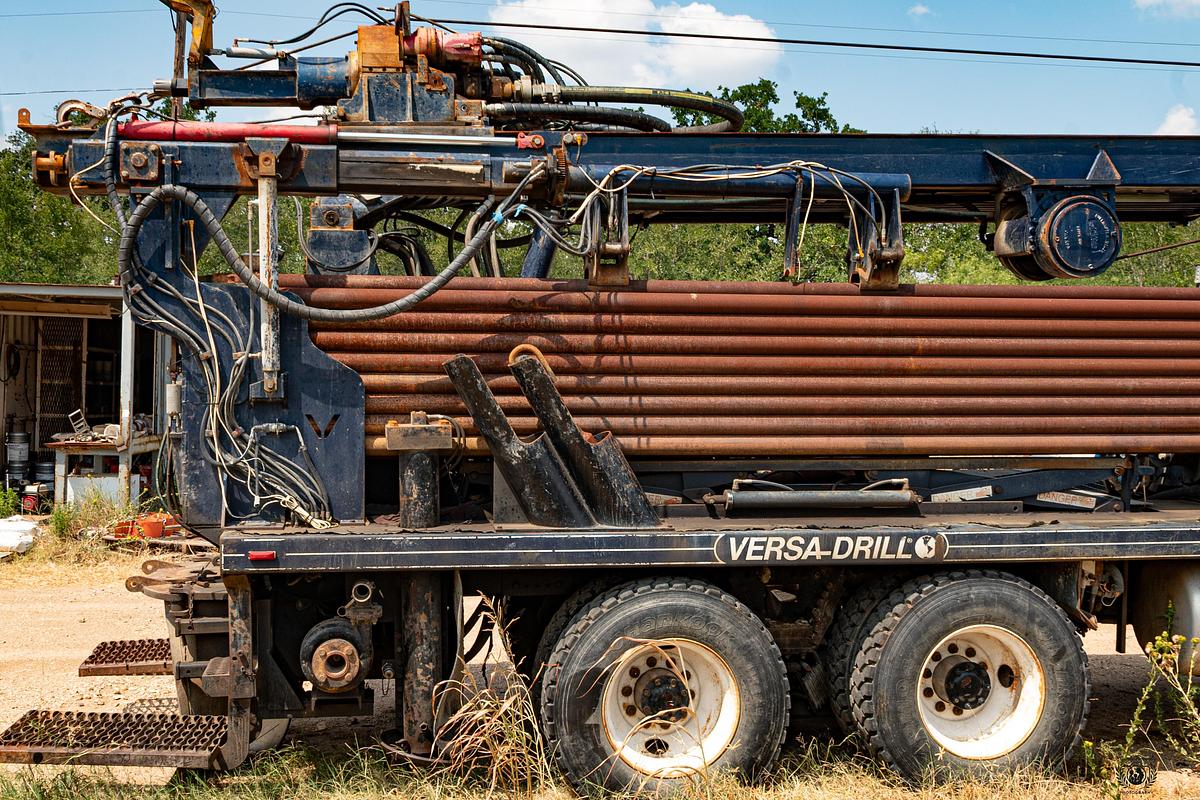

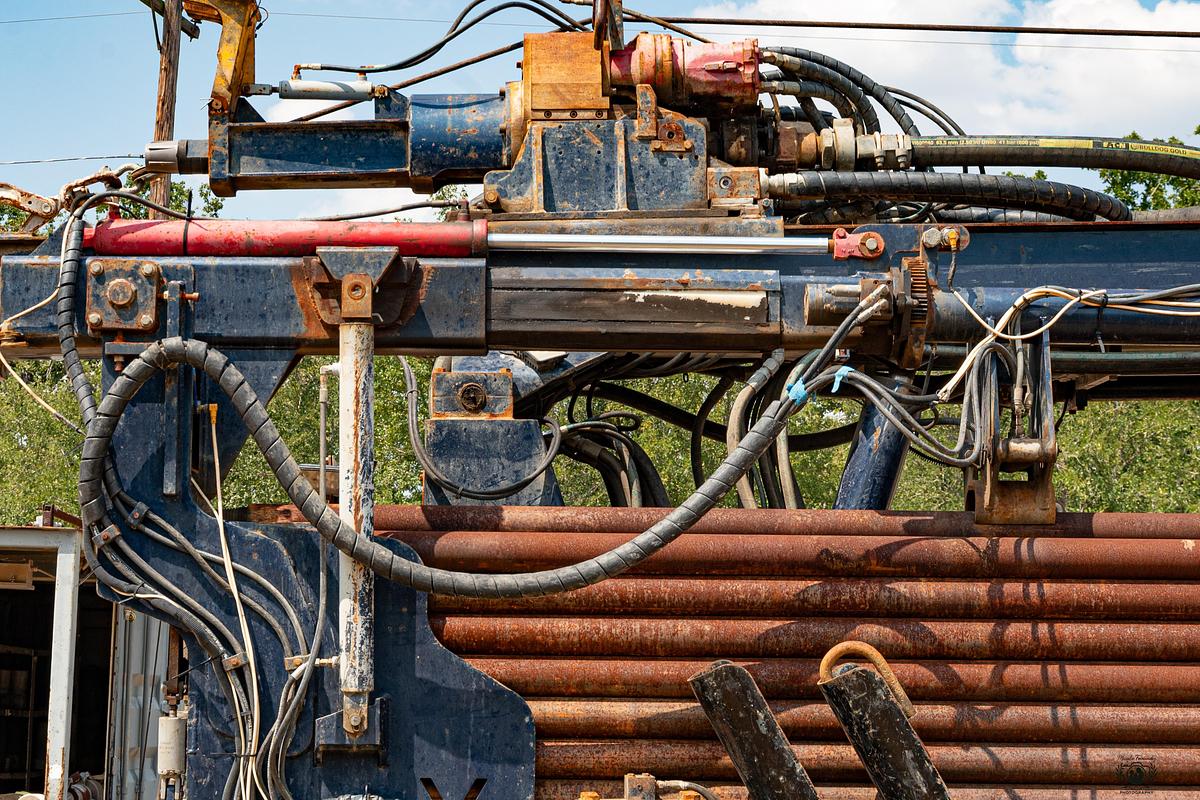

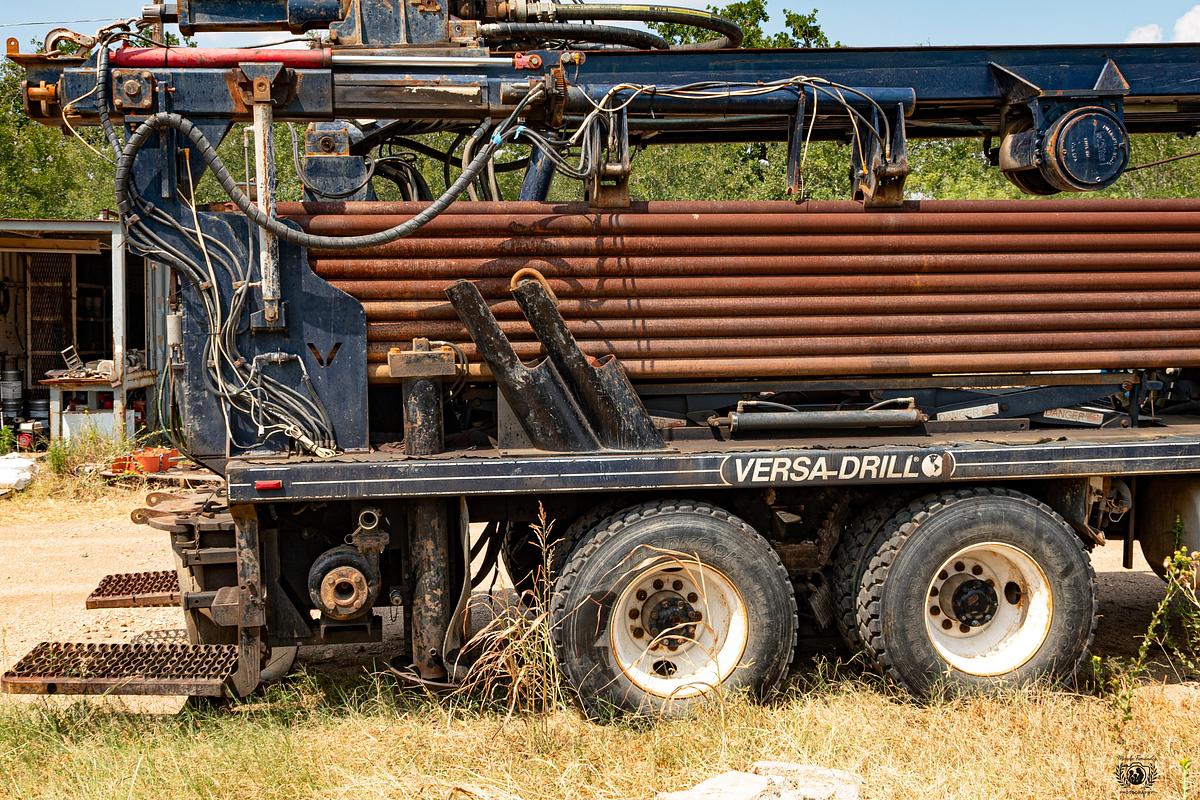

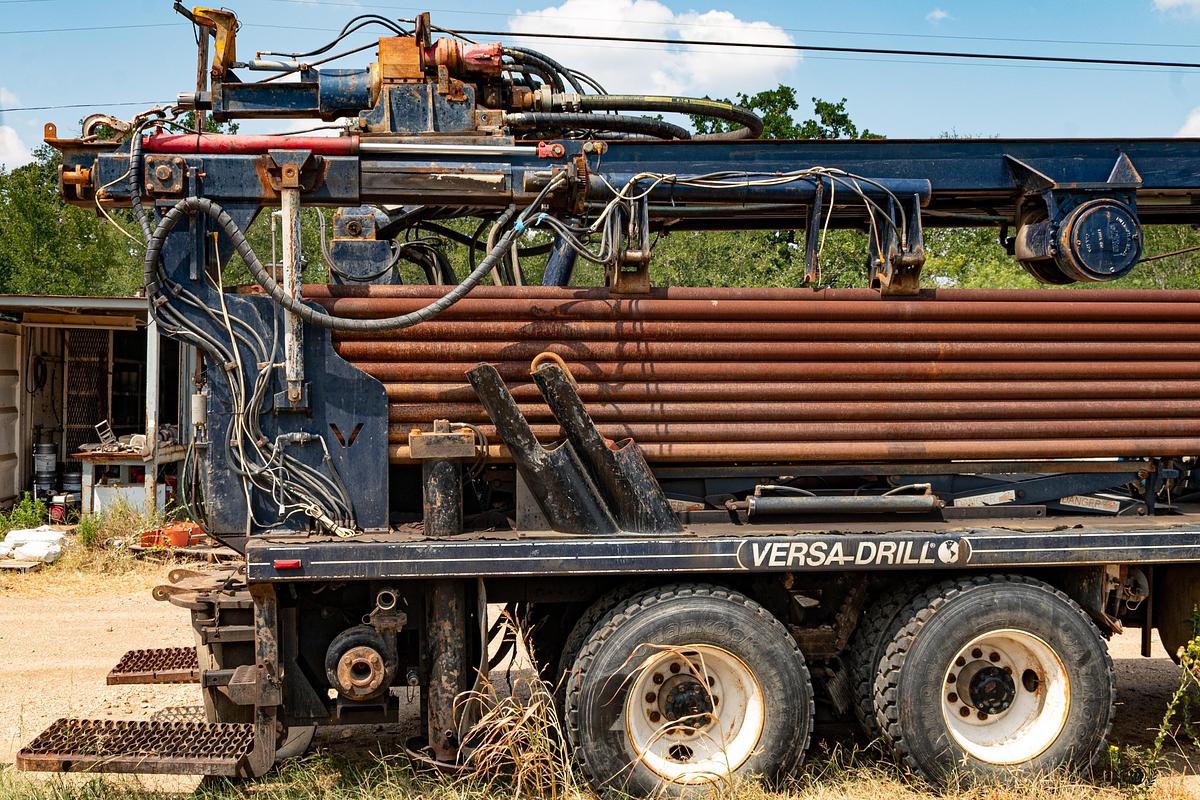

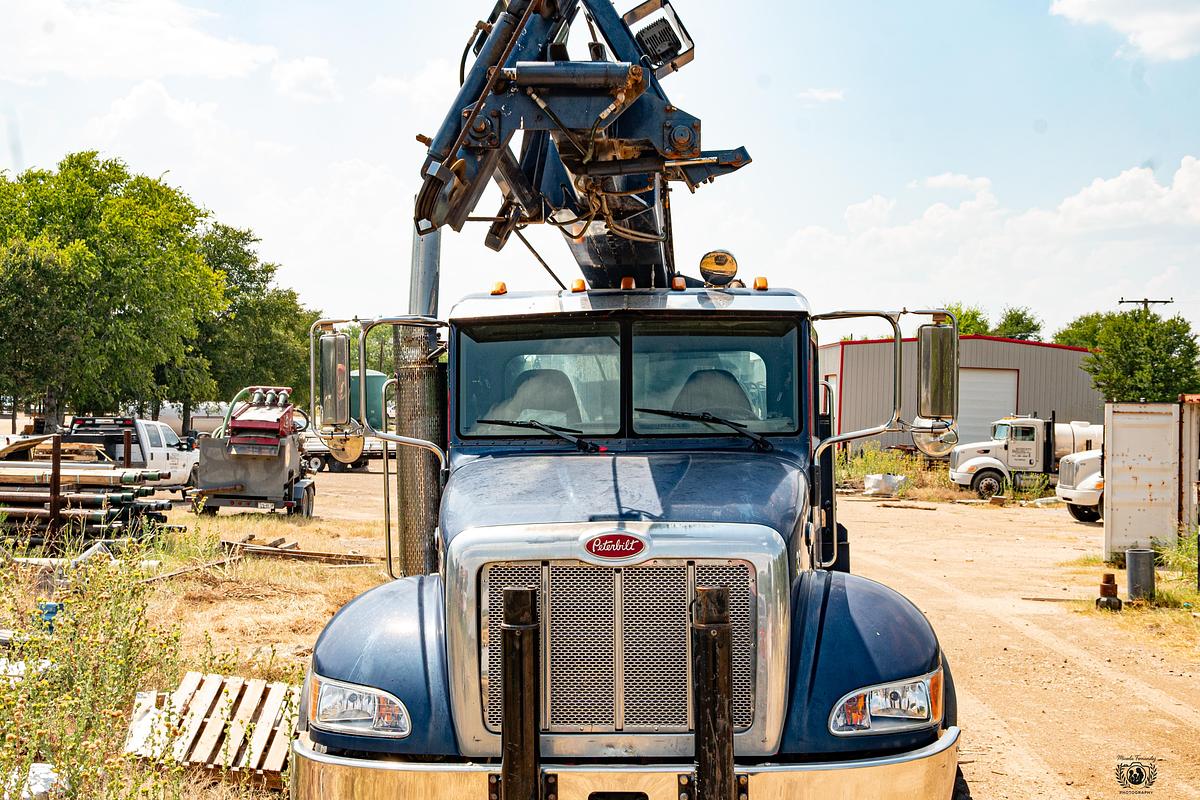

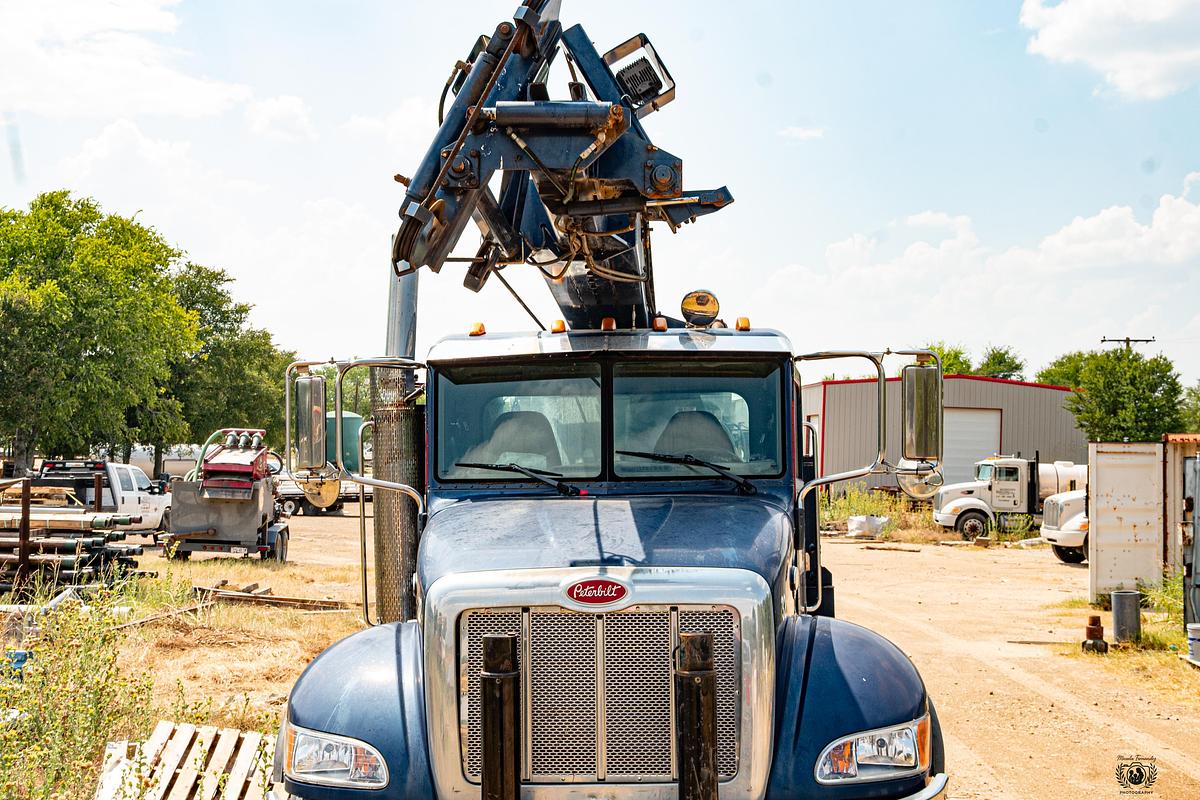

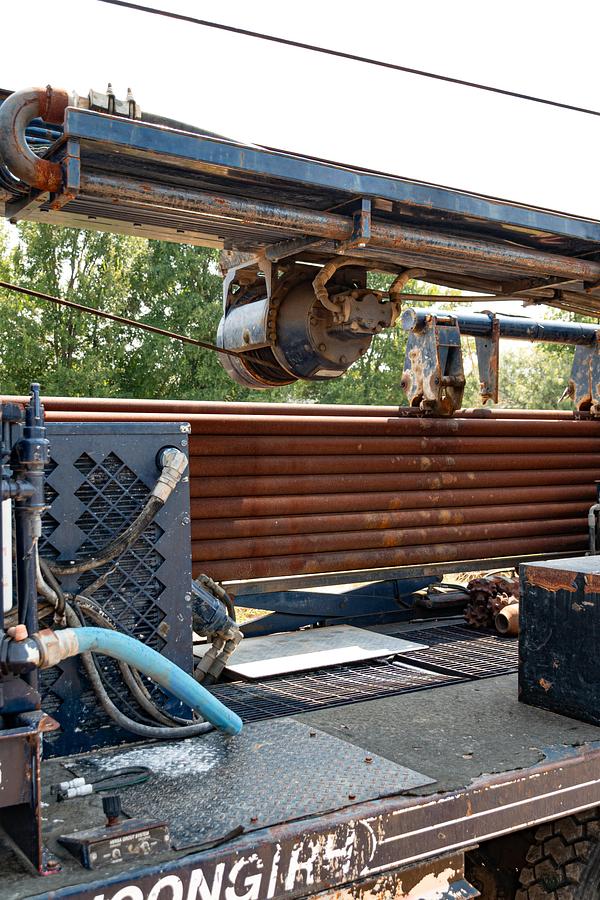

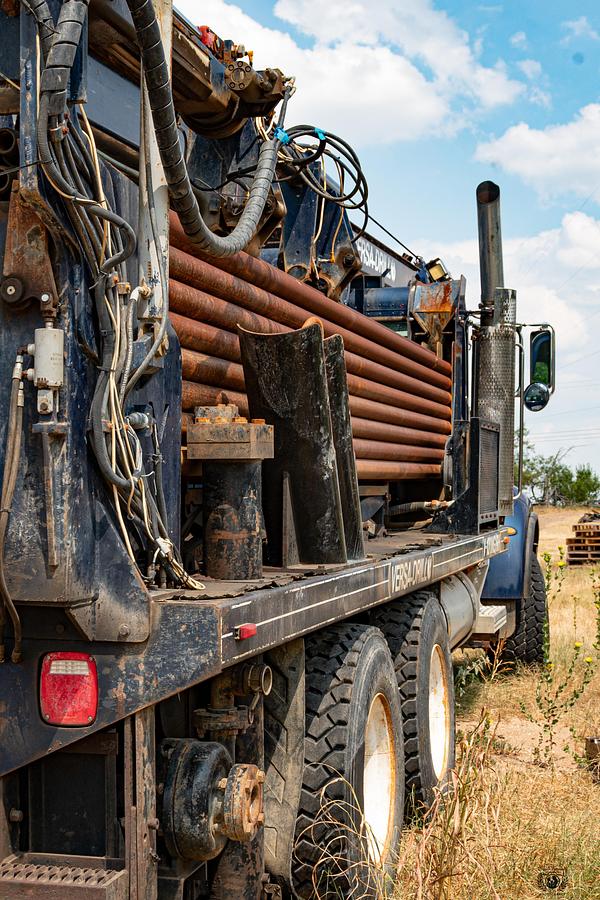

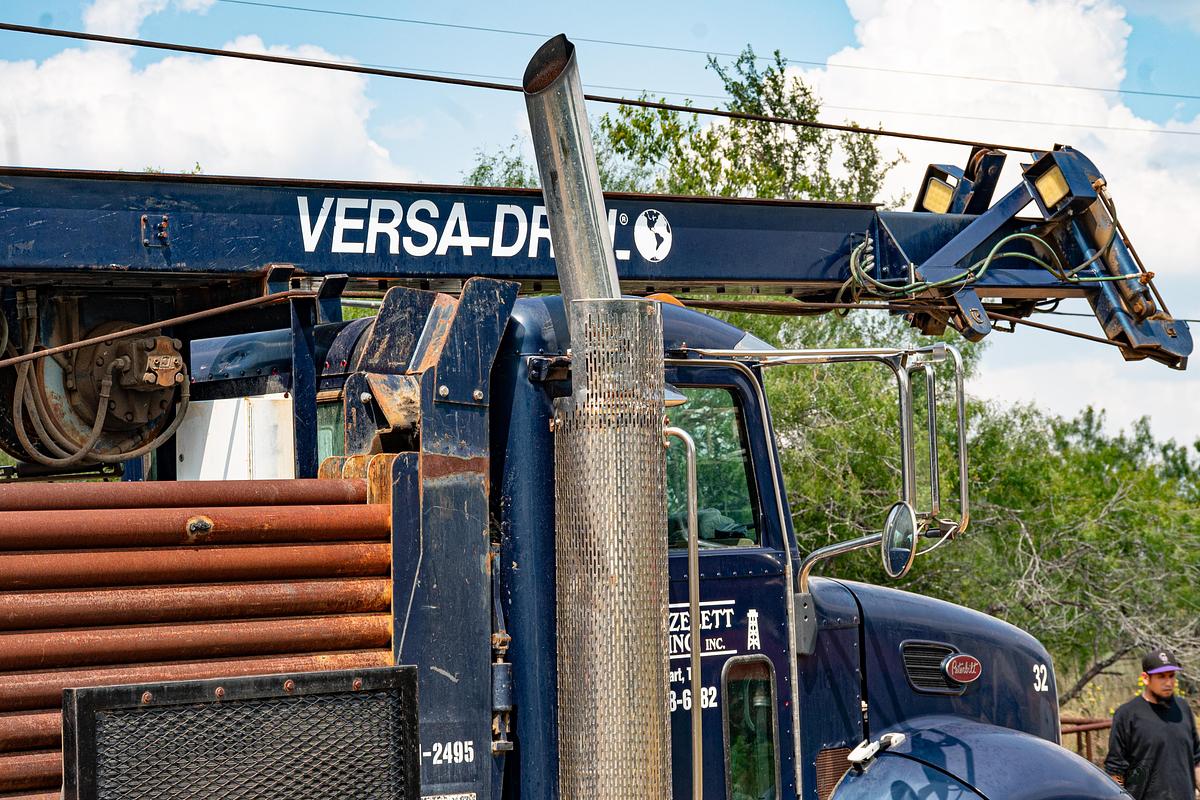

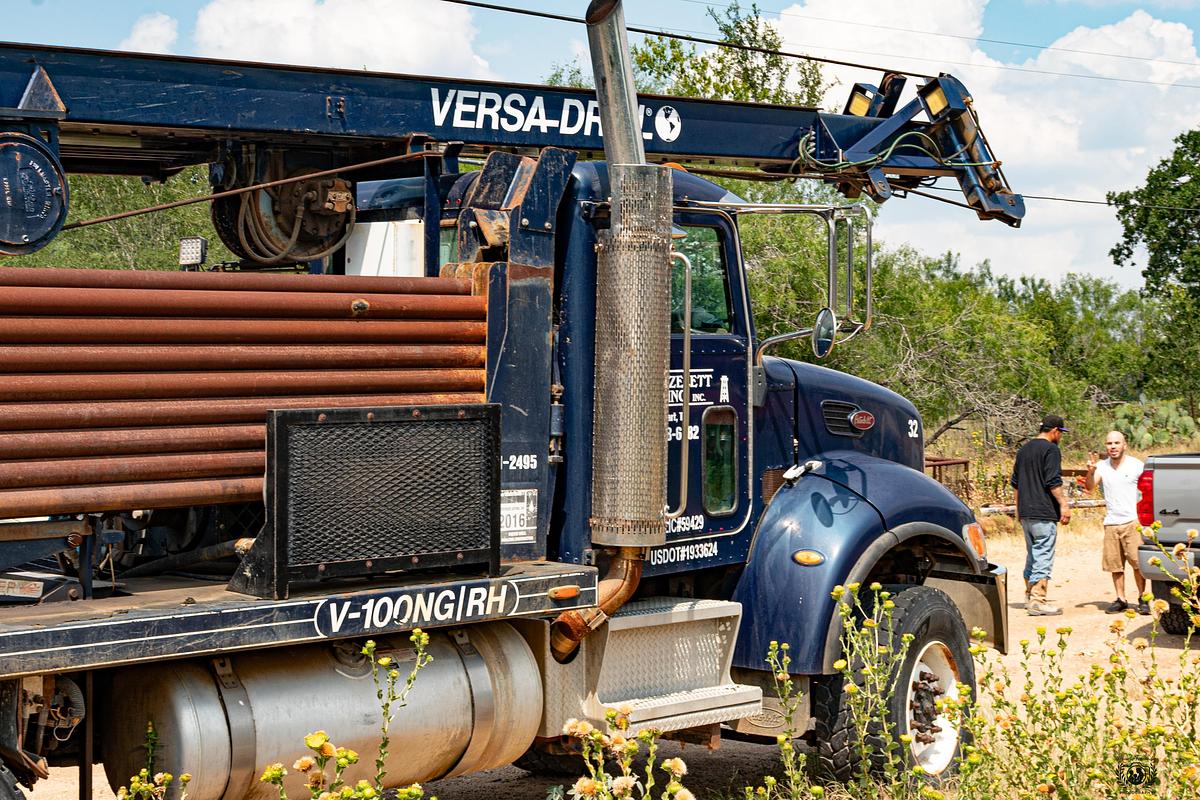

• Derrick, 10″x16″ tubular Derrick construction with 40′ overall length, 26′ top head travel 55,000lbs rating (no Derrick crown load).
• Transfer case single output, full power transfer case road / PTO shift from truck cab.

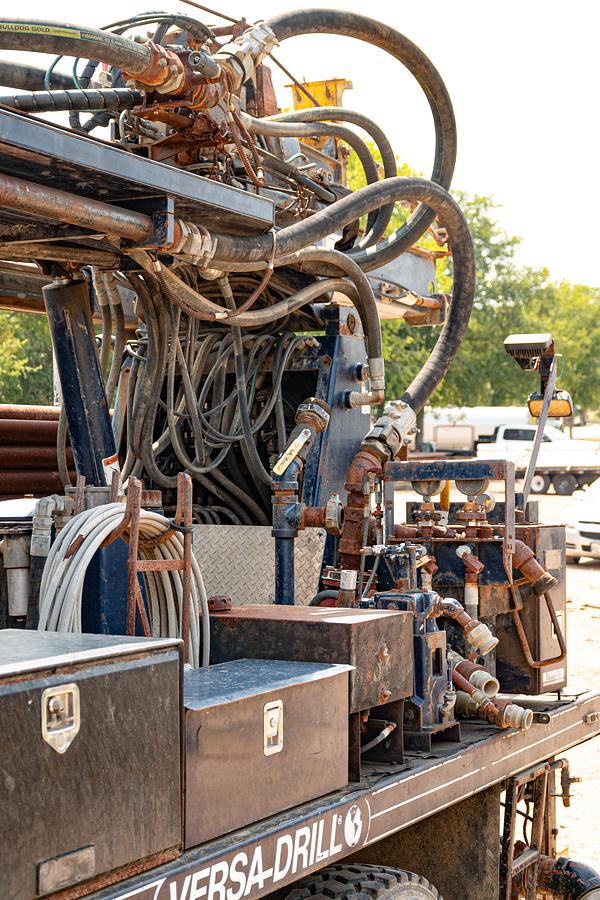

• Hydraulics mounted on 2 hole gear box, truck engine / transfer case powered feed, winch, auxiliary and set-up functions are powered by 2 axial piston load sense pumps.
• Rotation is a closed loop circuit powered by a variable displacement piston pump.
• Cooling hydraulic oil cooler mounted on deck.
• Feed system (patented) hydraulic cylinder / sliding gear track design, provides tremendous power (40klbs pullback), requiring less maintenance than conventional system with chains and sprockets or cables and sheaves.

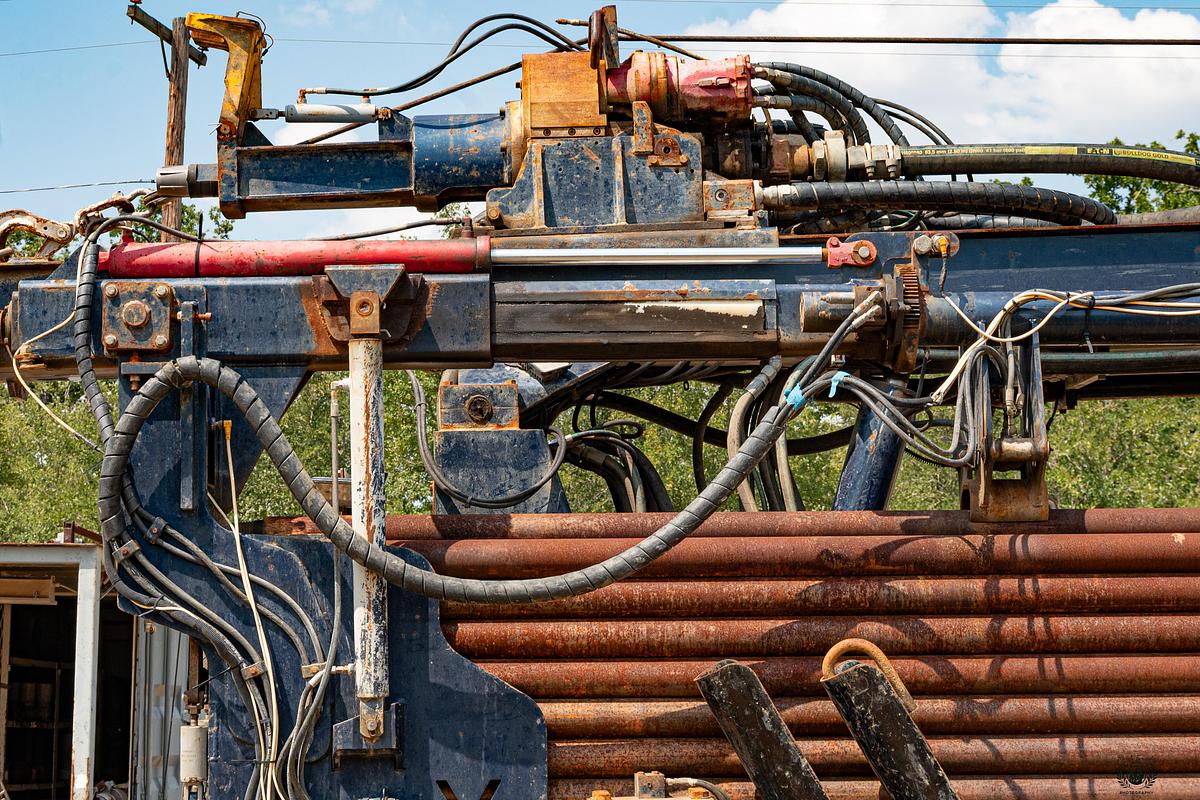

• Top head drive A variable 2-speed / torque, floating head provides smooth operation and helps the operator recognize specific formations while drilling. Top head hydraulically slides to the side, (off hole) for convenience of setting casing up to Range 2 length (34′, 10.36m).
• Top head rotation 2 motor combination (2 option) planetary / spur gear
• 4 speeds / torques
• 0 to 172 rpm, 52,000 ft lbs torque
• 0 to 230 rpm, 39,000 ft lbs. torque
• 0 to 221 rpm, 4,379 ft lbs. torque
• 0 to 500 rpm, 1,938 ft lbs torque

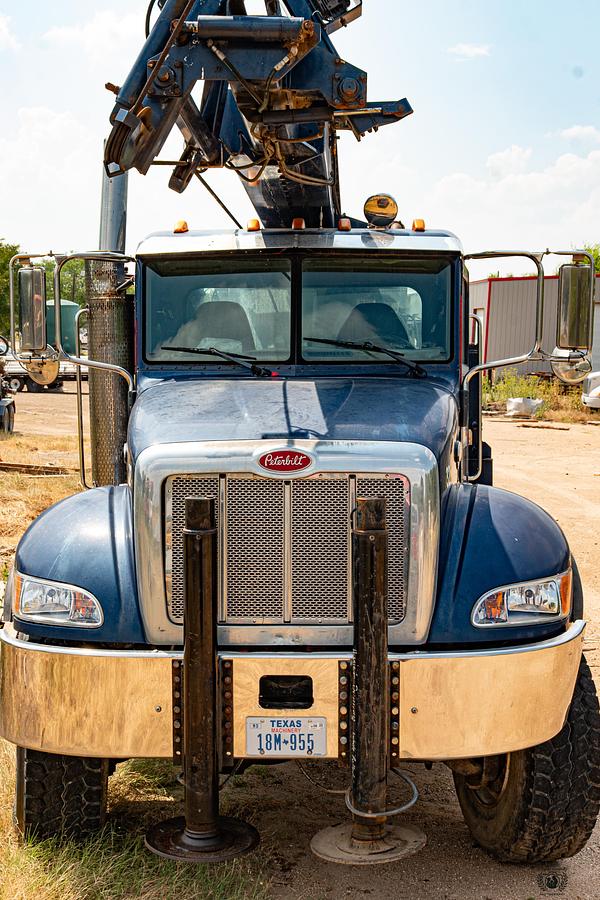

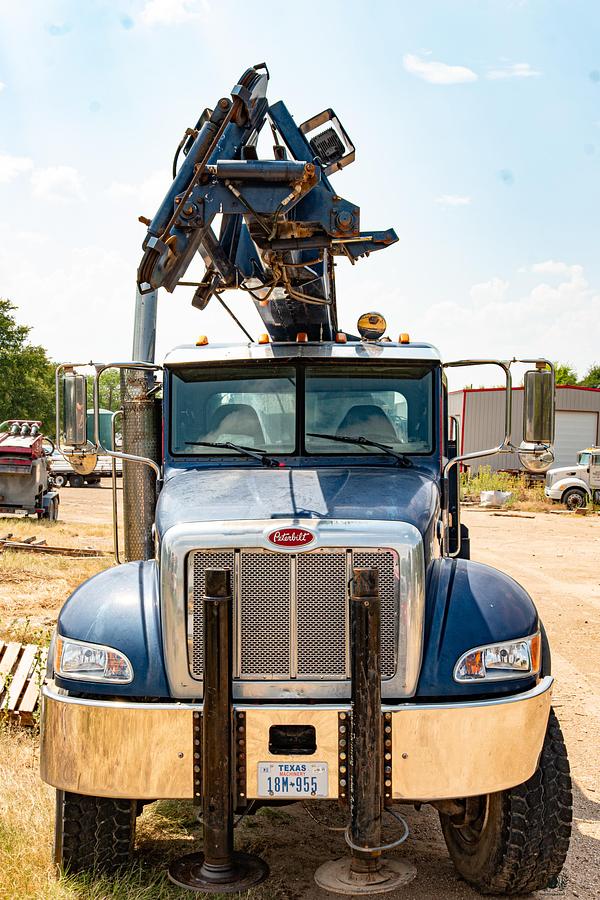

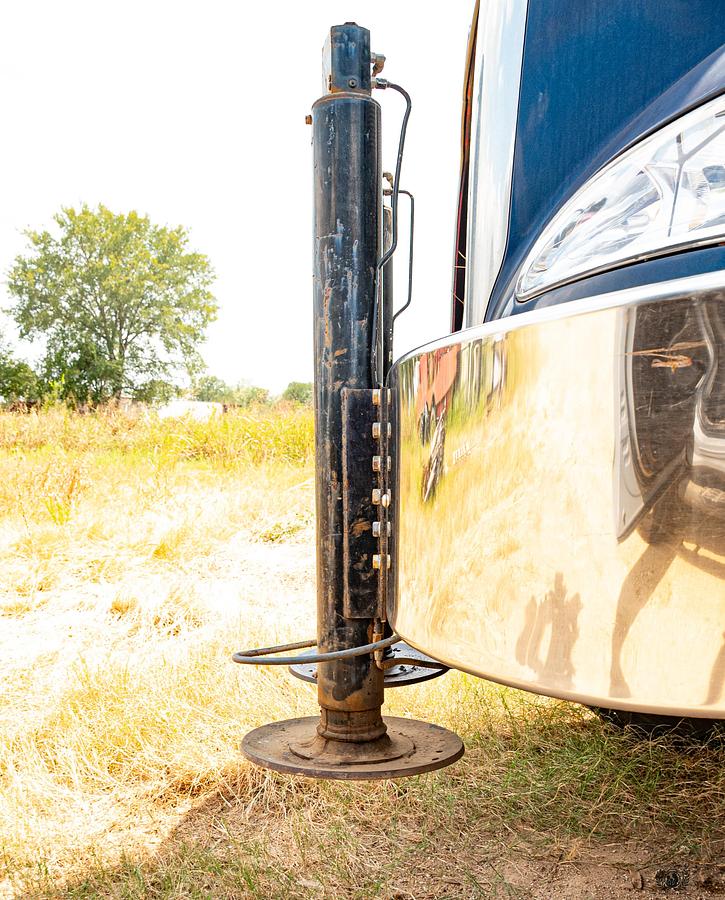

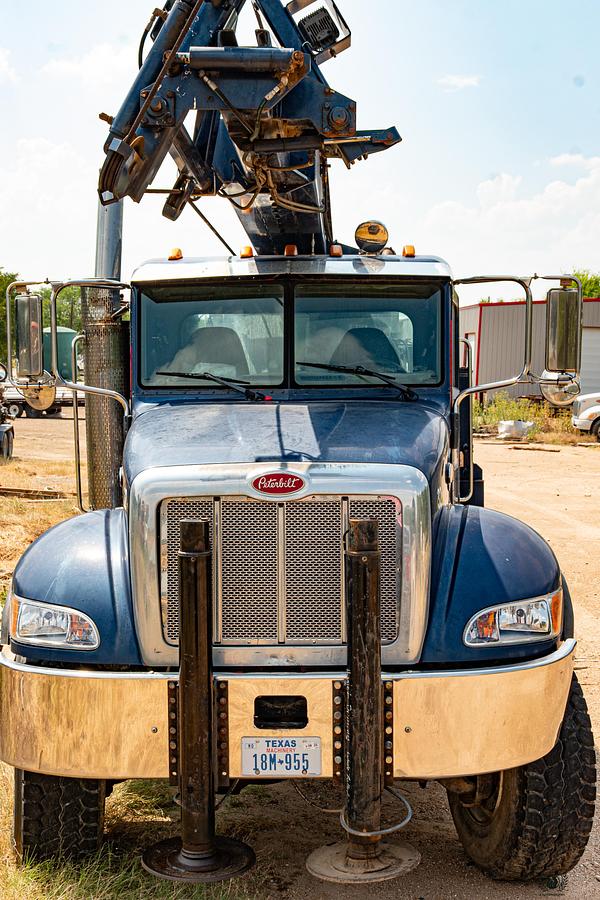

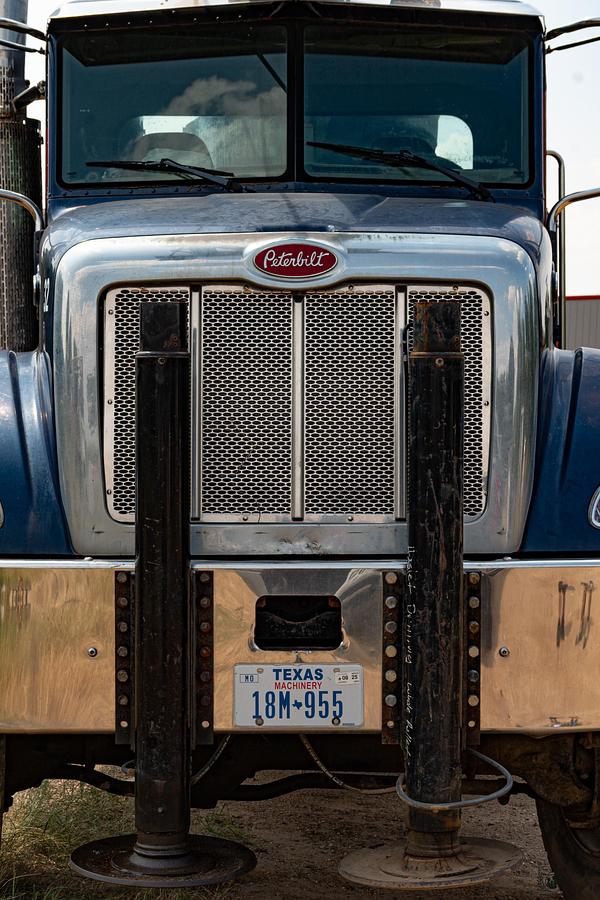

• Leveling Jacks

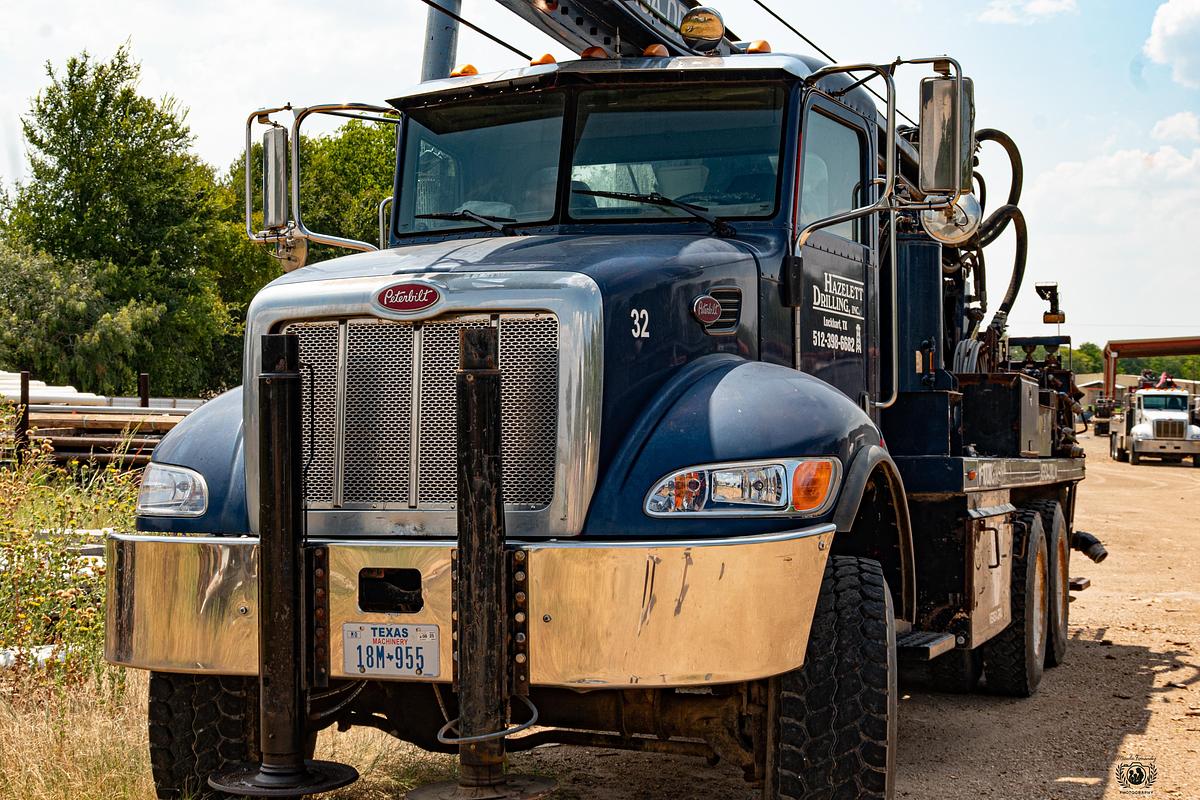

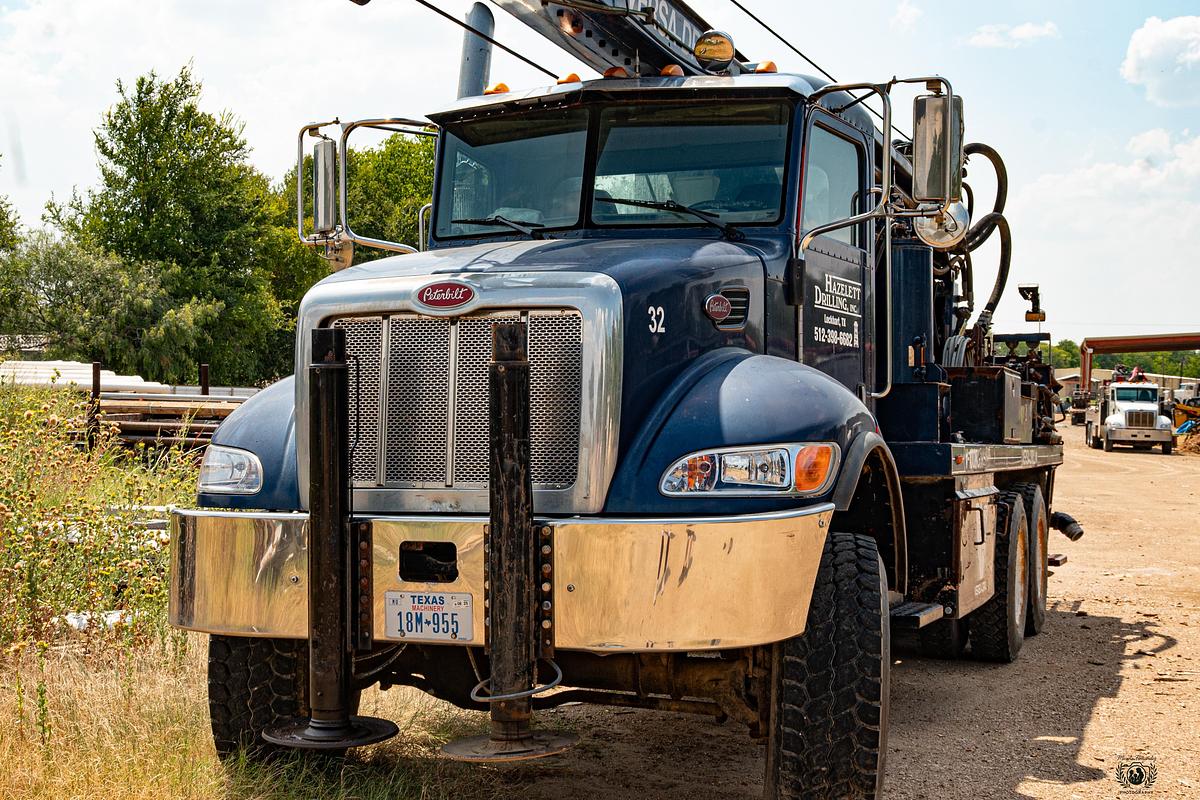

• 2 front-mounted 36″ stroke leveling jacks and.
• 2 rear-mounted 36″ stoke leveling jacks with independent controls

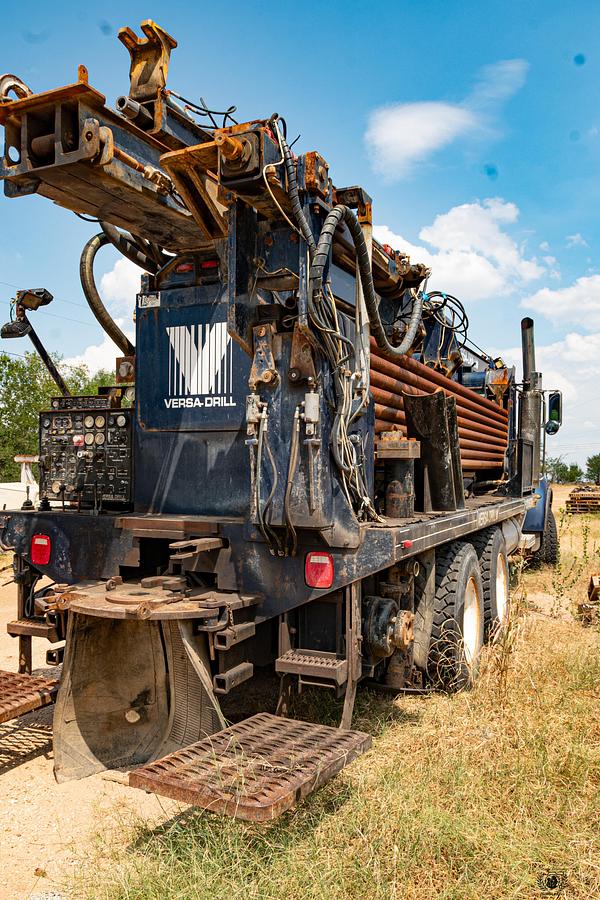

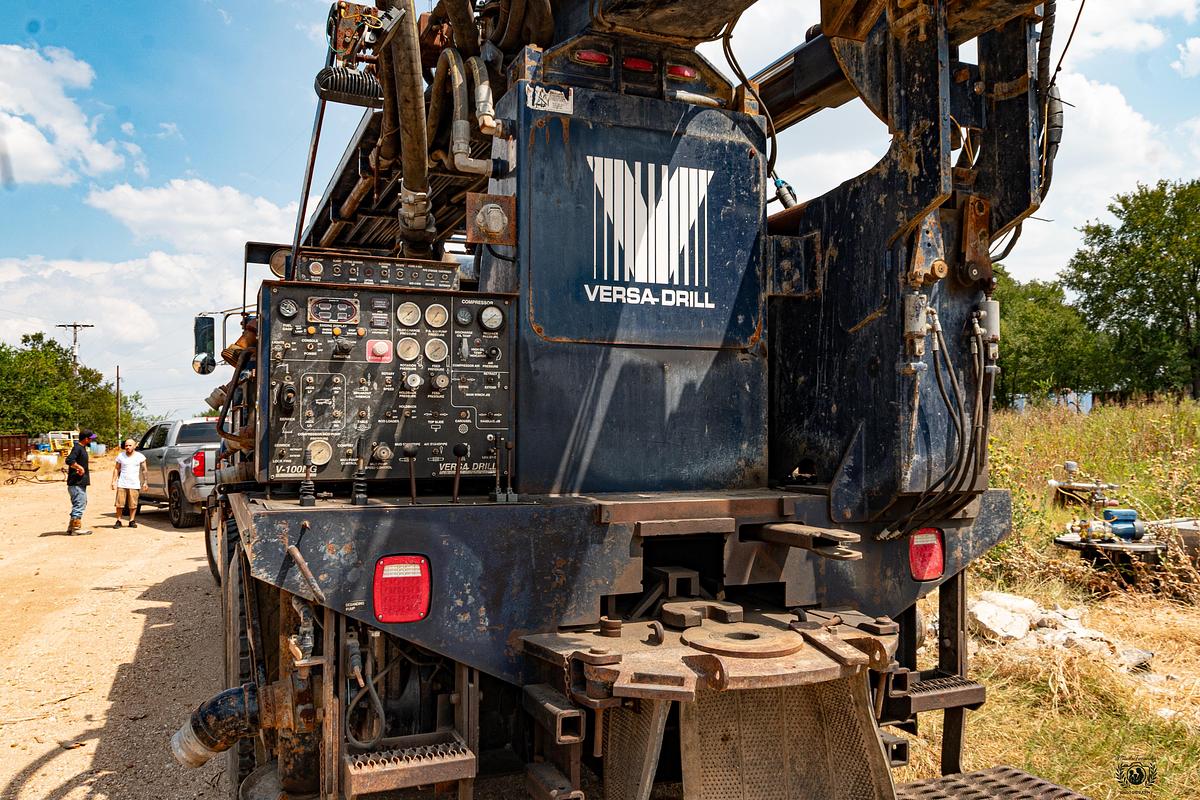

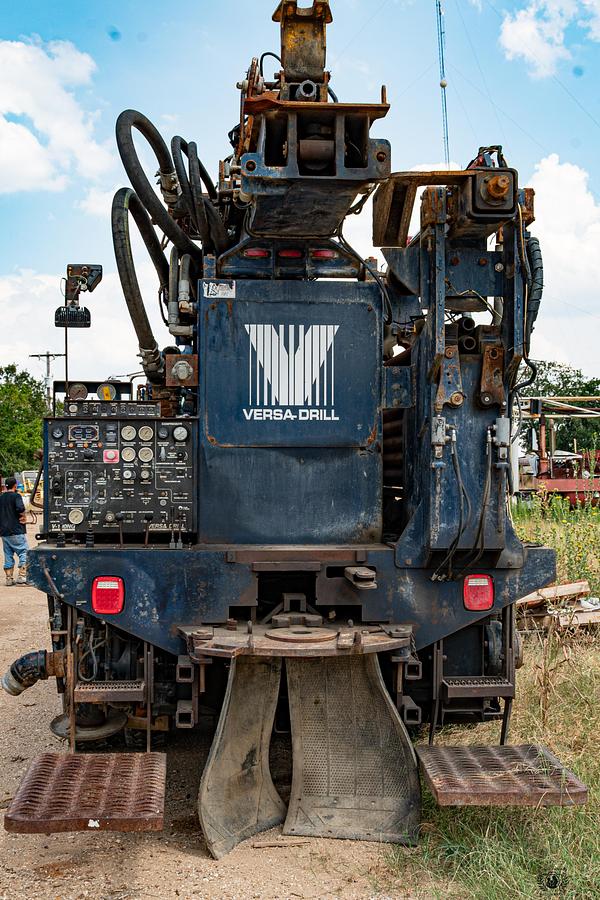

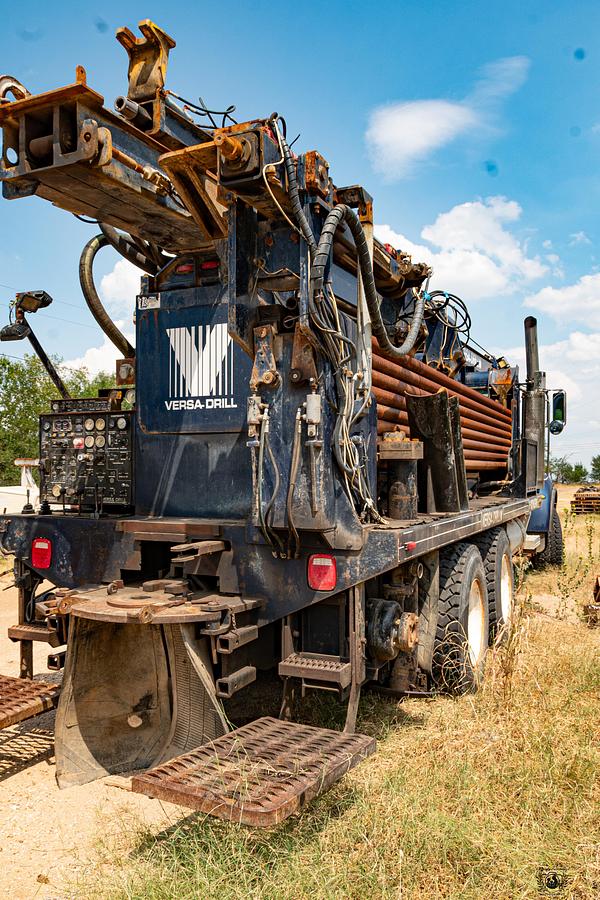

• Split centralizer table centralizer base plate is split in half, rear half retracts hydraulically, and the front half swings out to accommodate casing and tools. Also includes an air-operated drill pipe holding wrench and hydraulic breakout wrench.

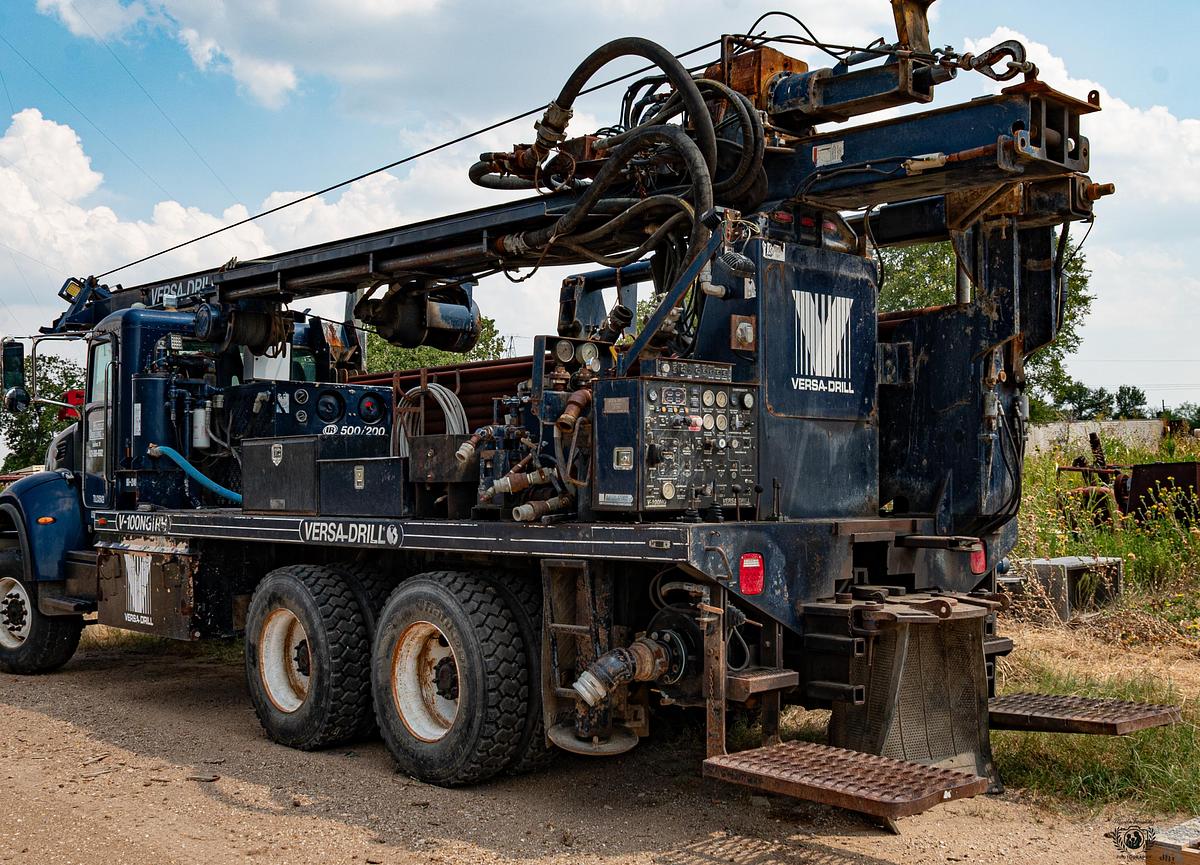

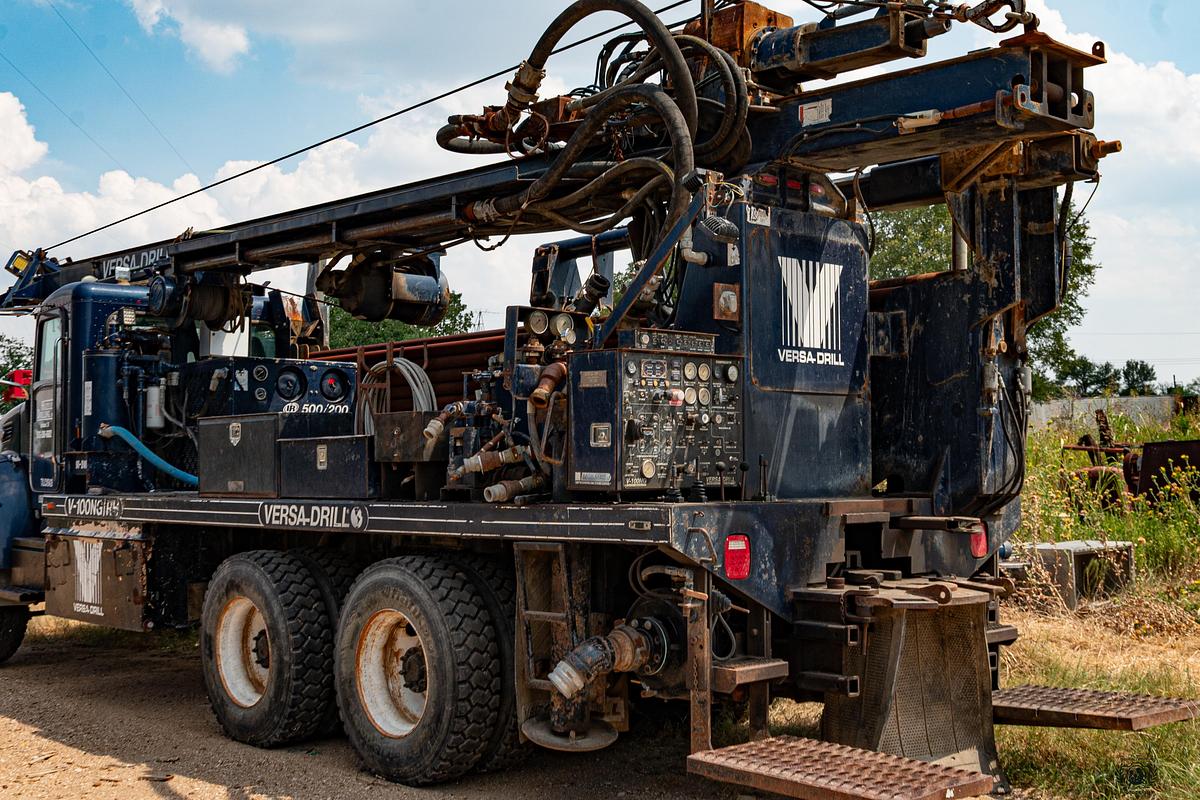

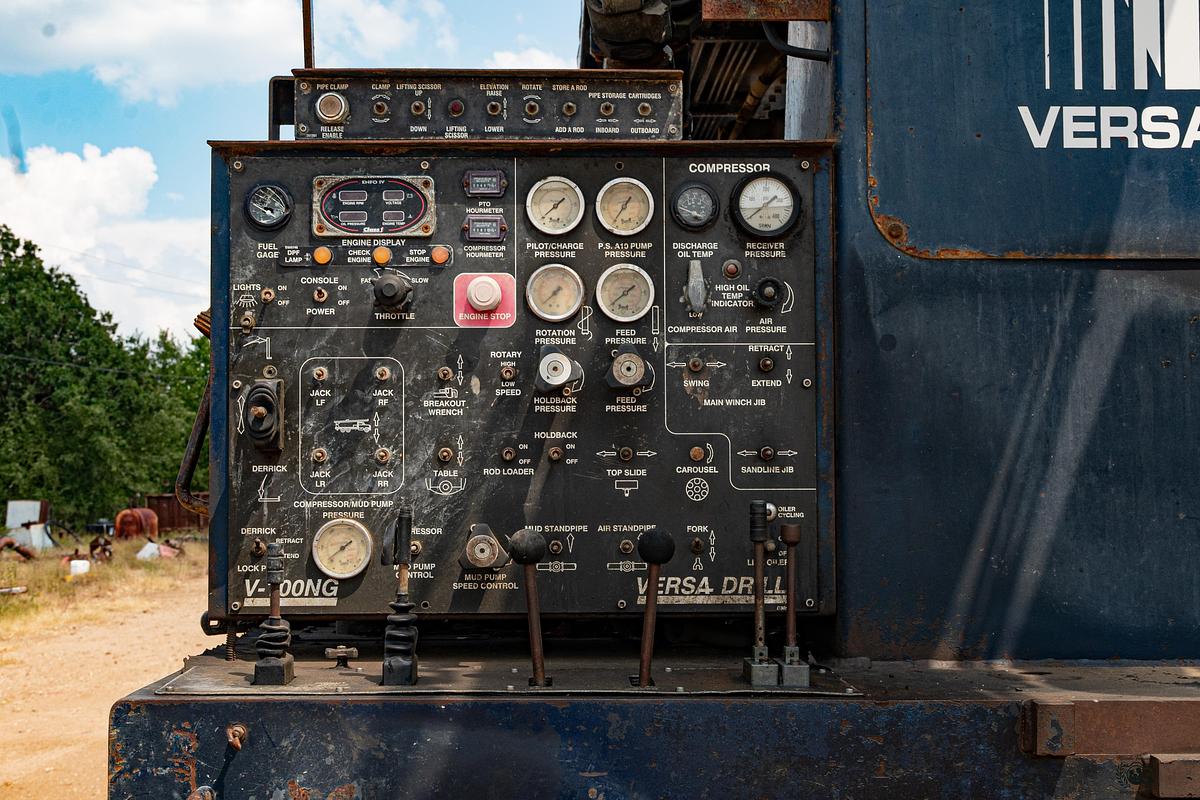

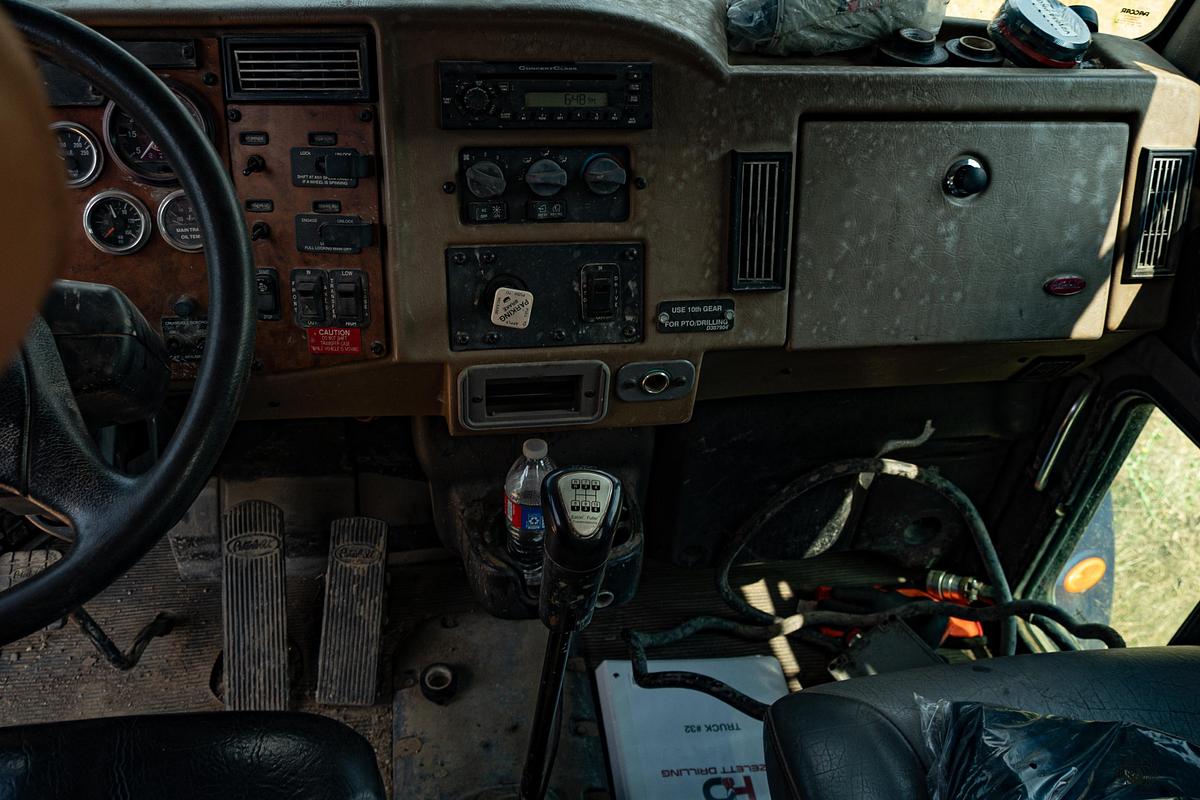

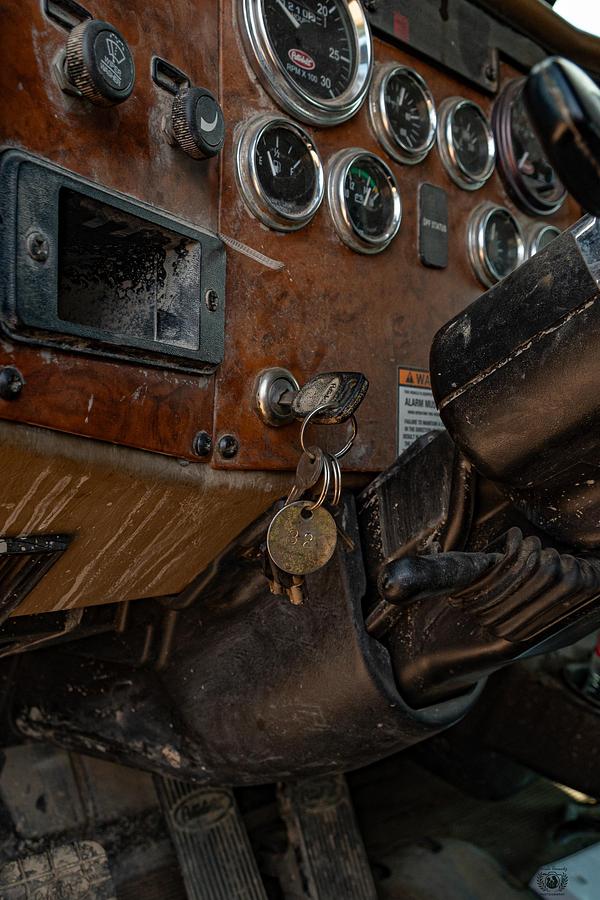

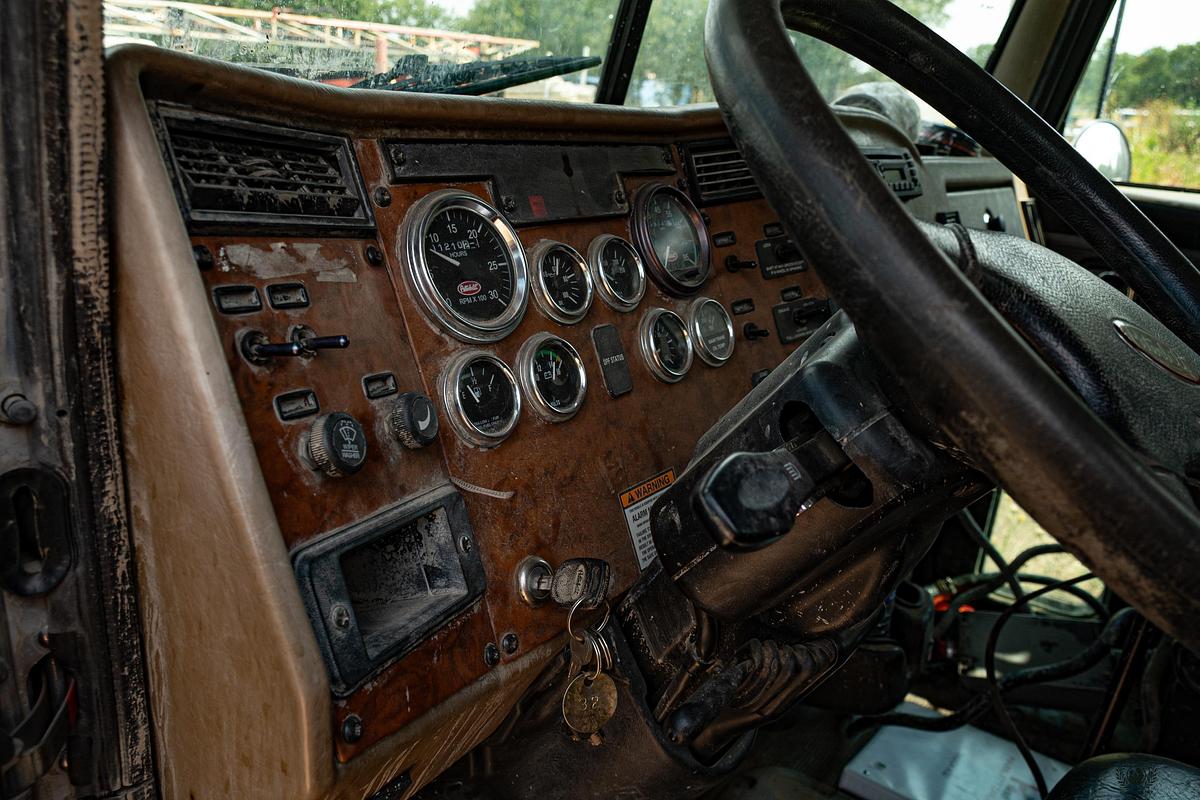

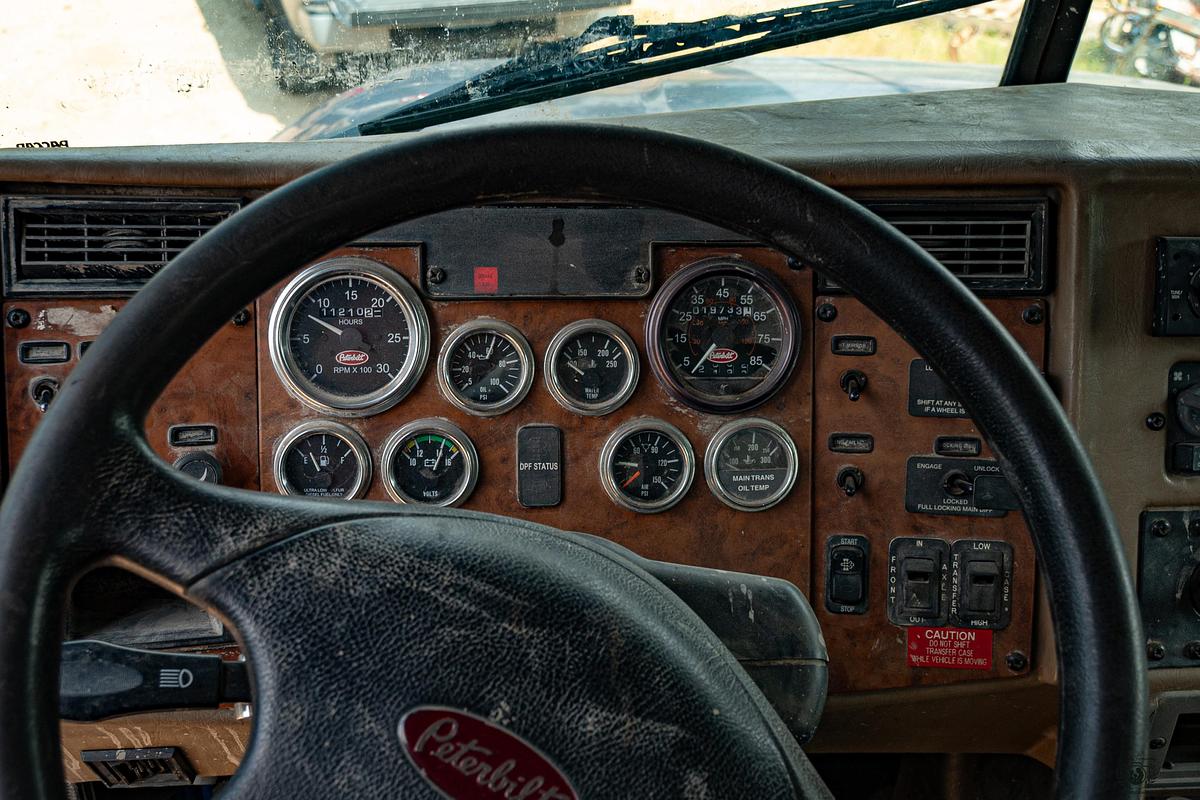

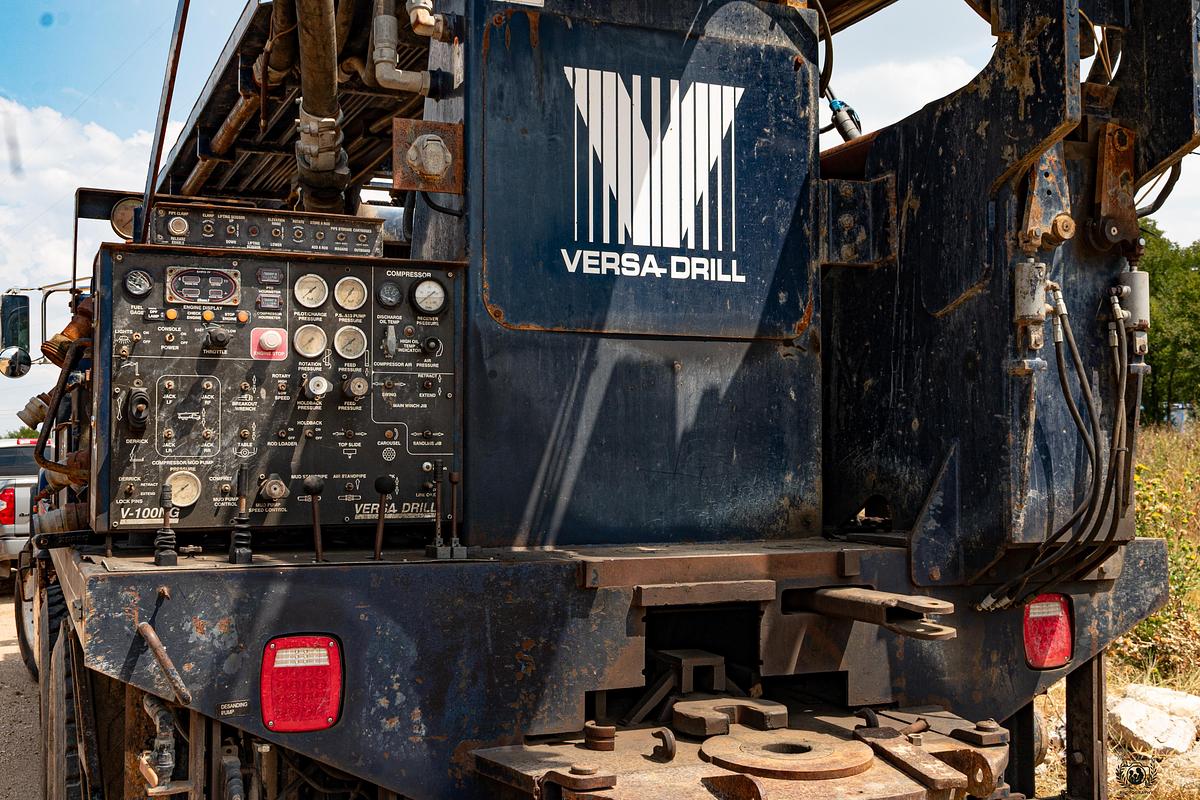

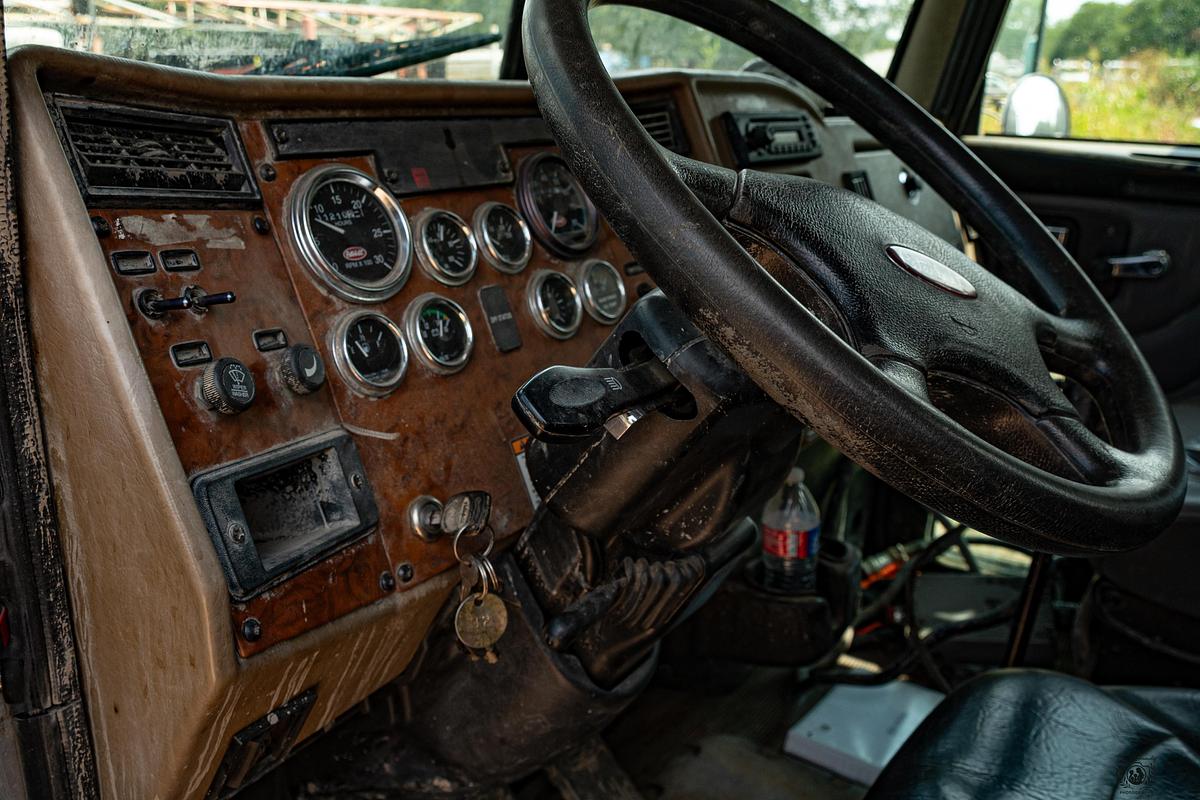

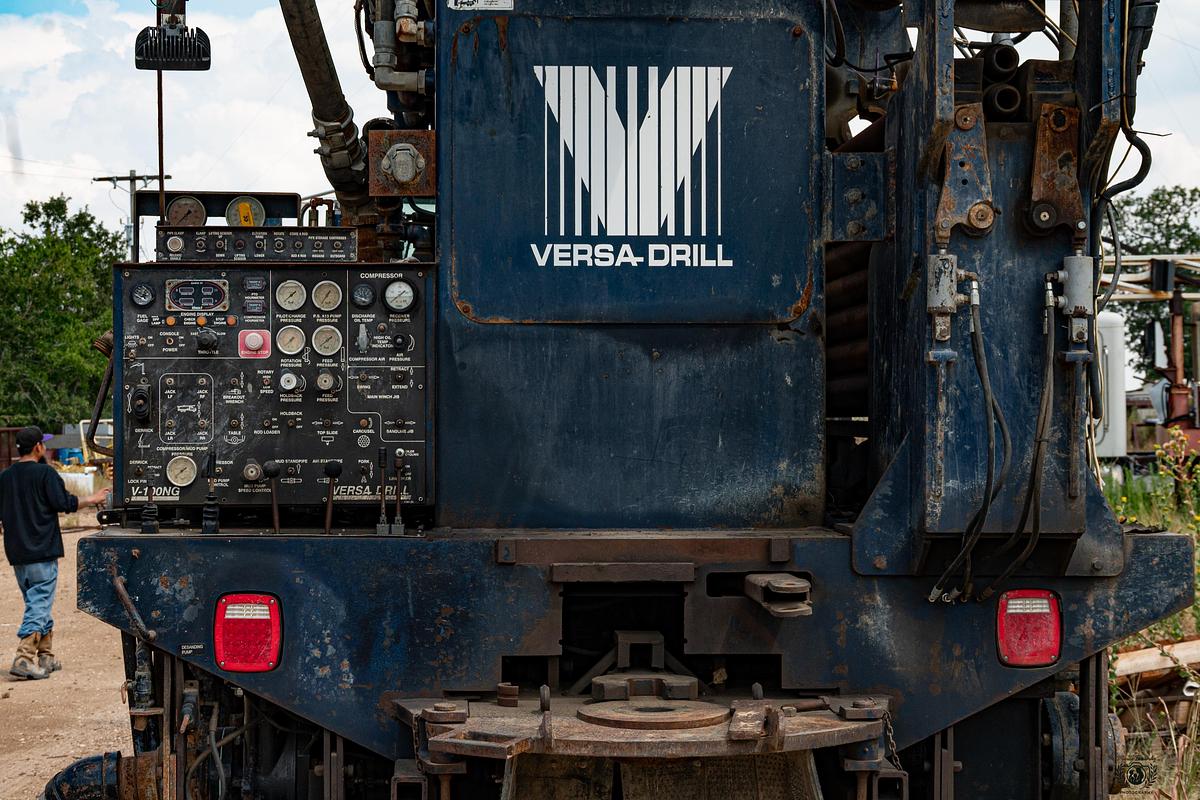

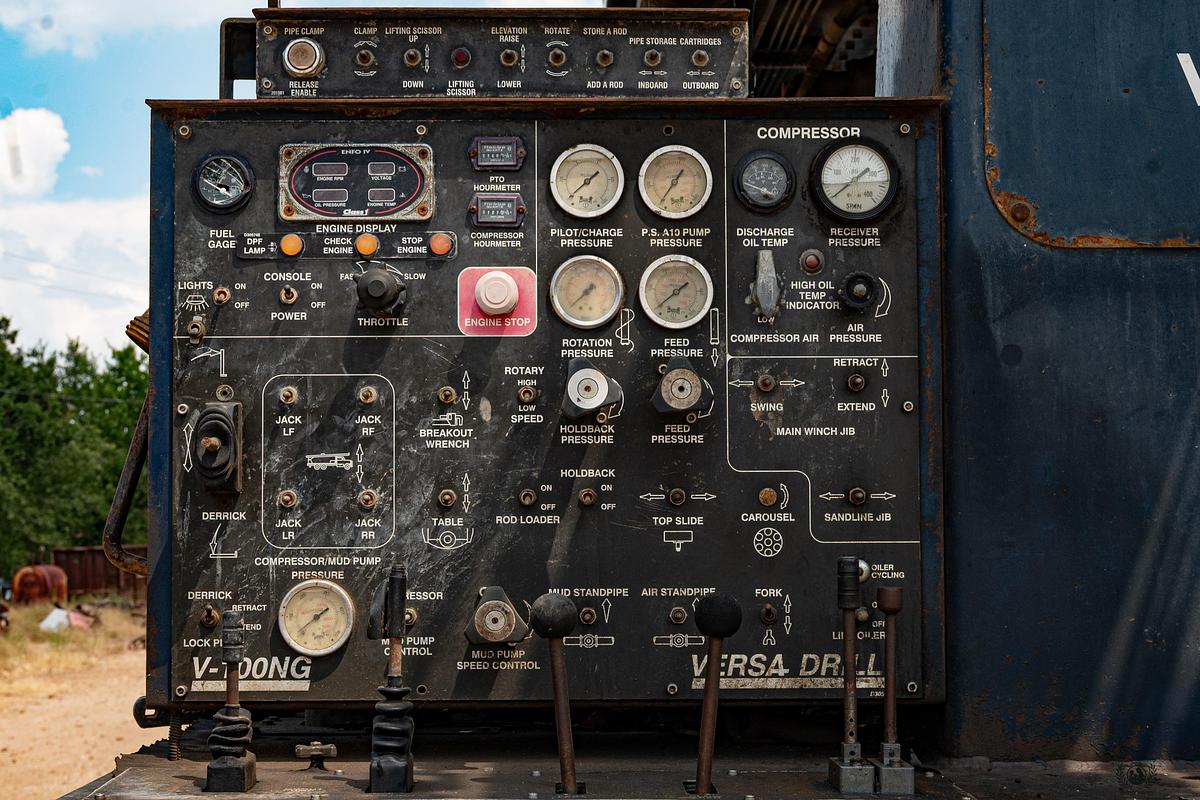

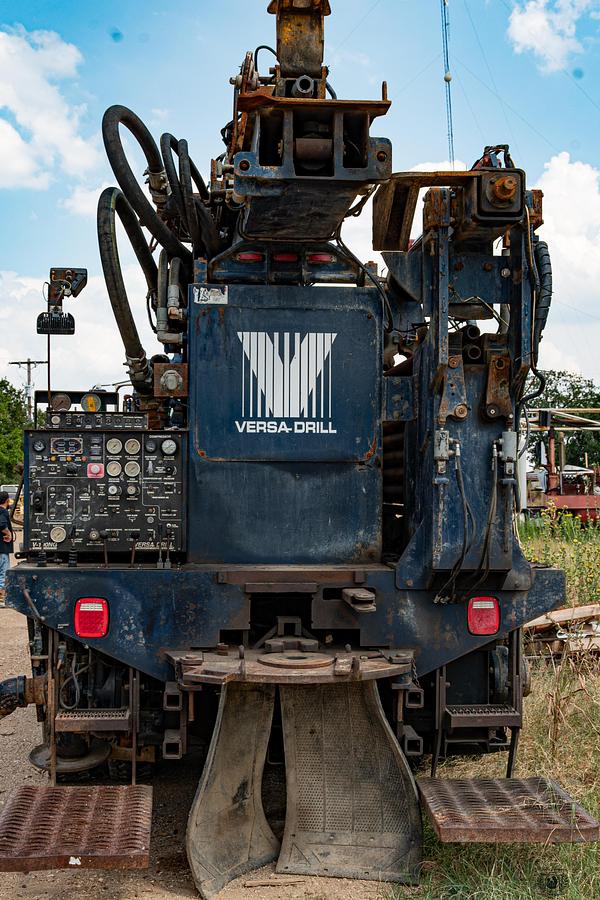

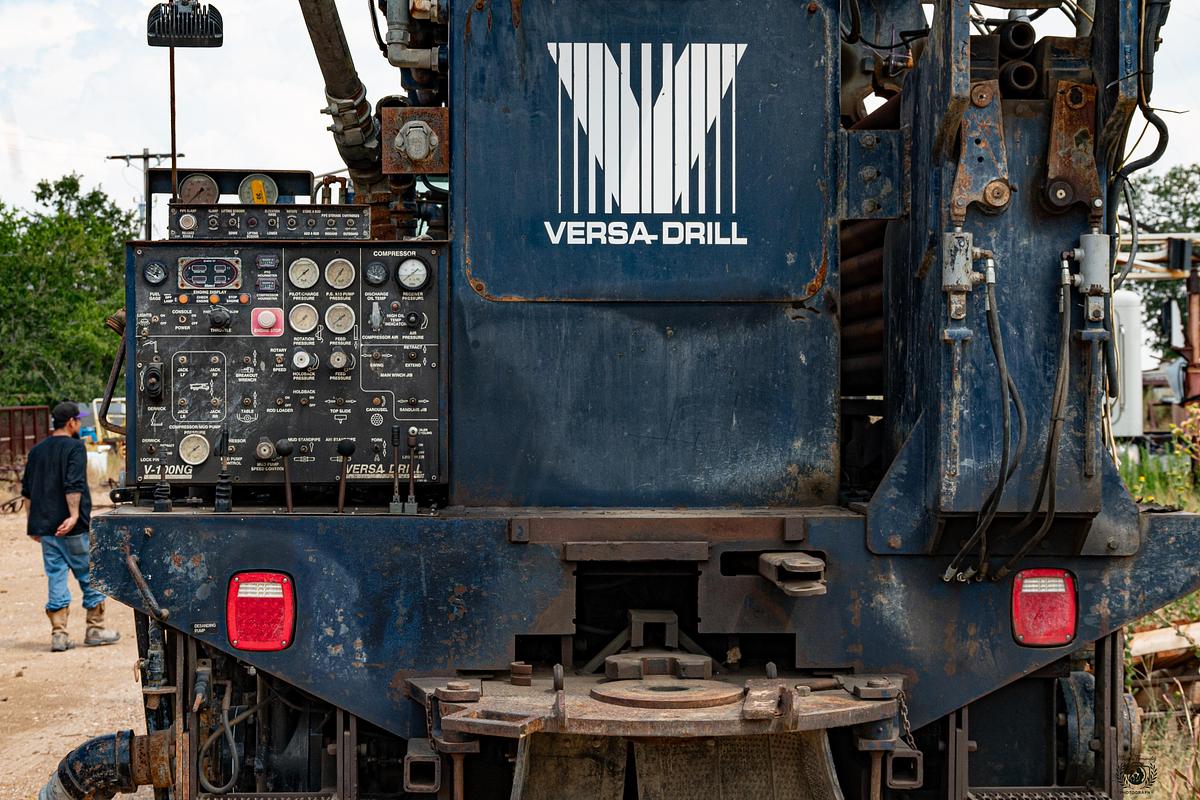

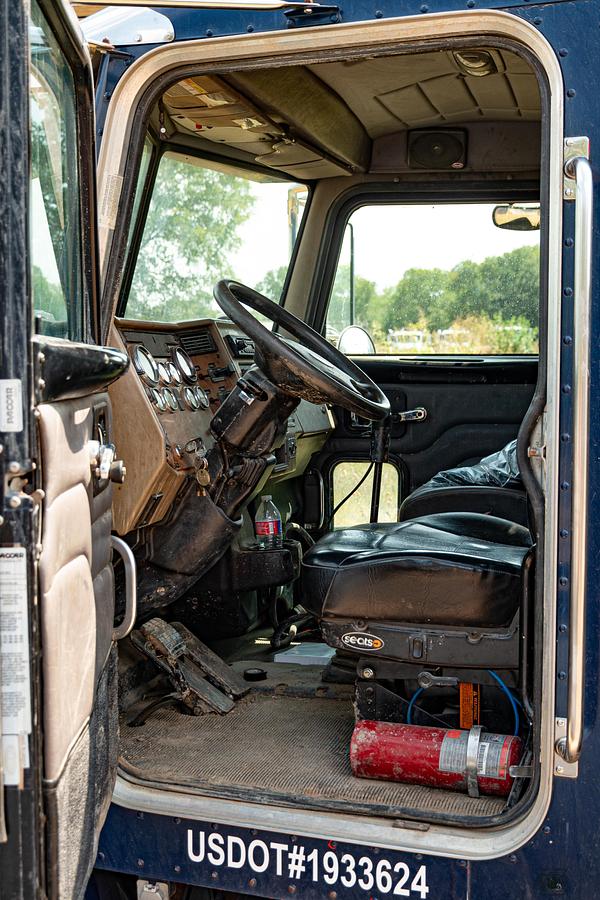

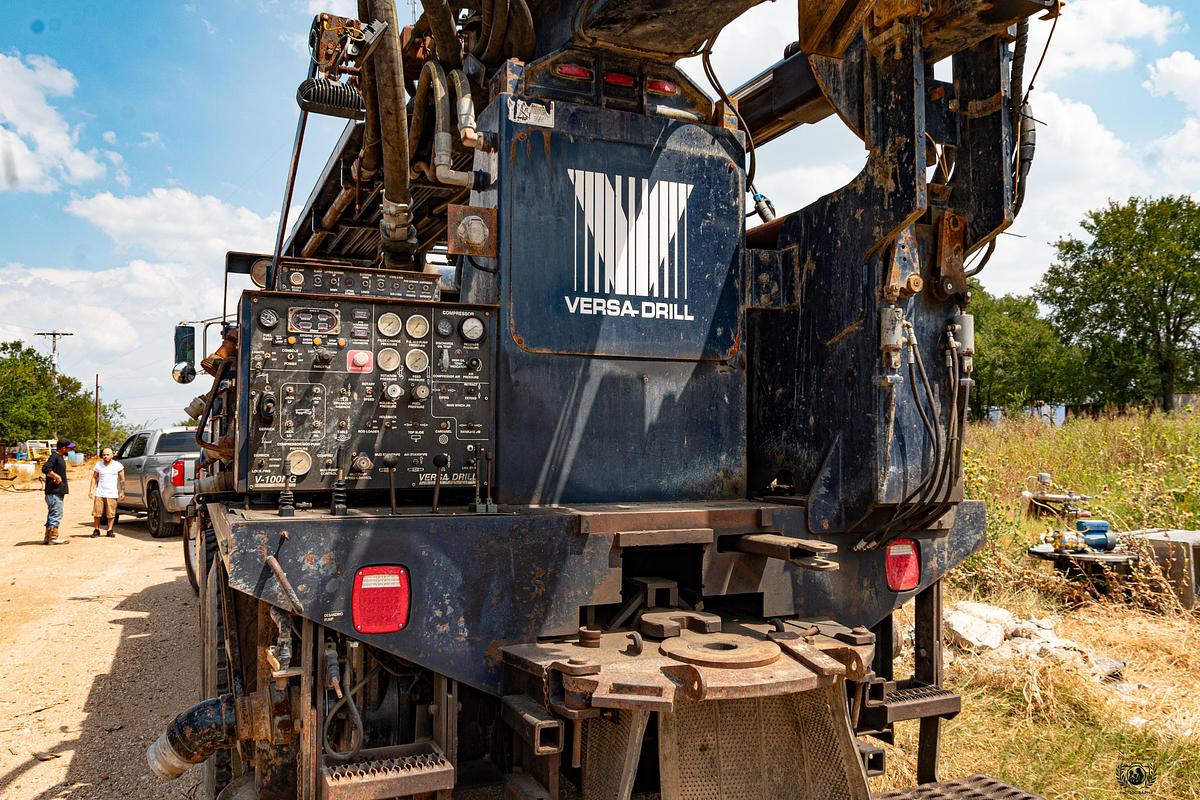

• Controls left hand mounted, functionally grouped gauges and controls with twin fold-up platforms

Please contact us for further detail.
