2014 Triplex PZ7 MUD PUMP w/ CAT C-15

www.vidaeq.com

PZ7 MUD PUMP w/ CAT C-15

💥2014 NEW and NEVER USED💥

Note: This Pump Package has never worked; the only hours on the engine or pump would have been when commissioning was complete.

For complete details and drawings see the SPECIFICATION SHEET in the DOCUMENTS SECTION below.

💥PZ7 MUD PUMP BUILD SPECIFICATIONS

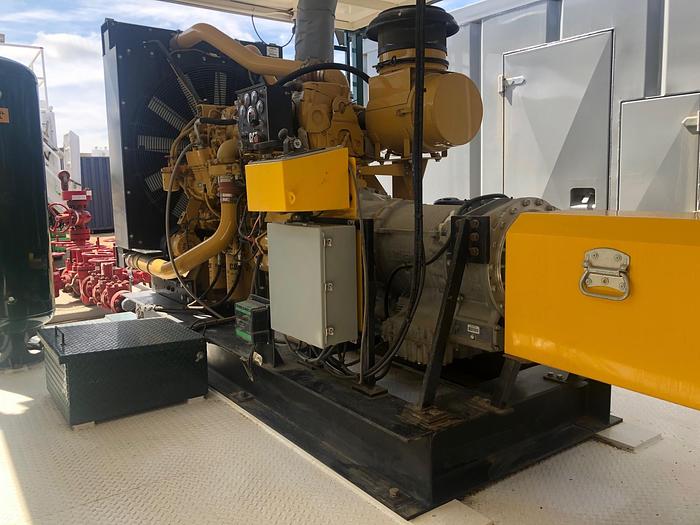

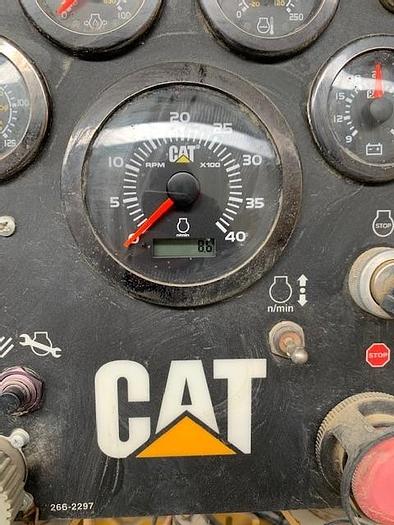

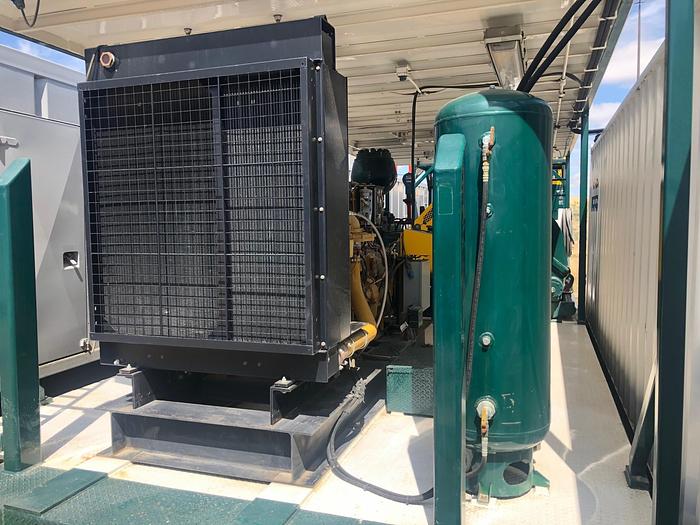

4.1 DIESEL ENGINE (Only 8.6 Hours)

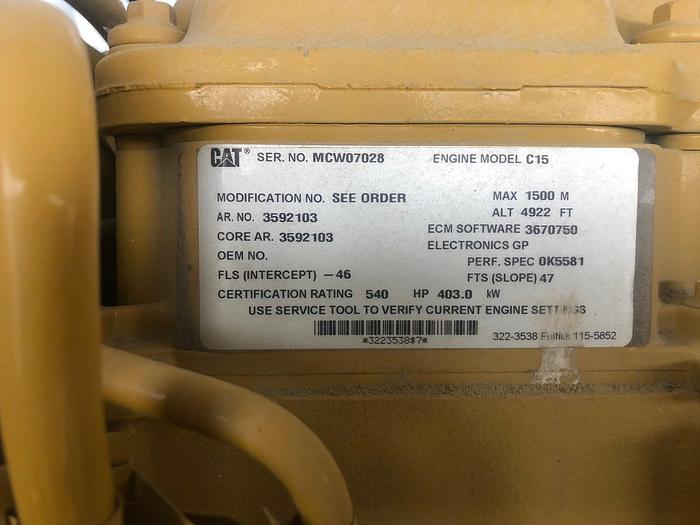

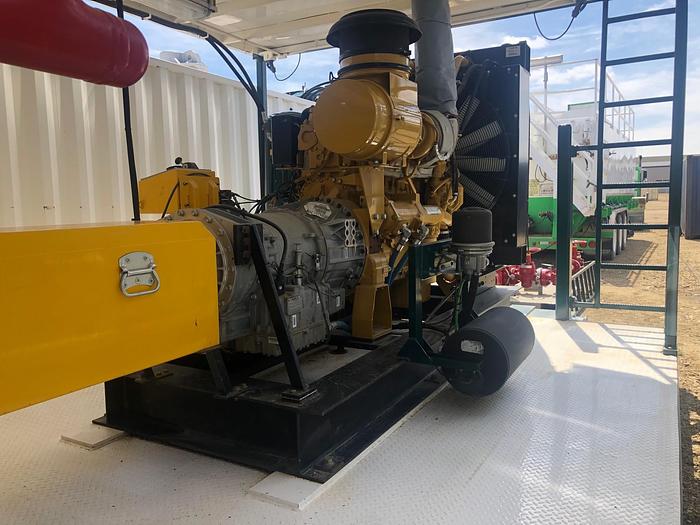

·        Supply (1) one Caterpillar C-15 series engines rated at 540 HP.

4.2 PUMP DRIVE

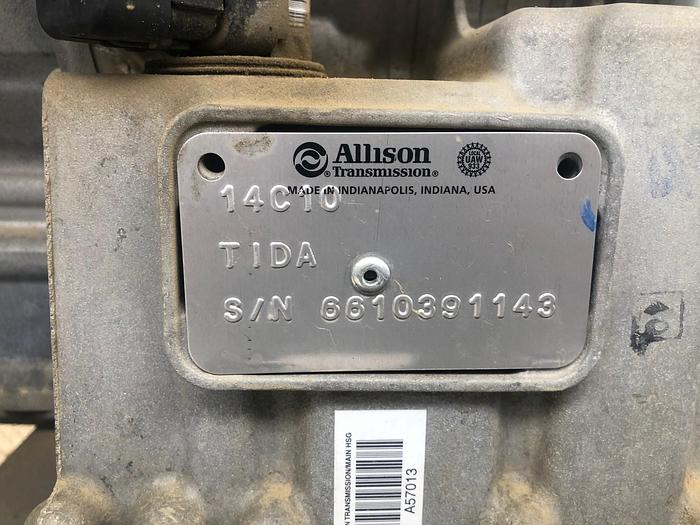

·        Supply and install one Allison OFS 4700 Transmission.

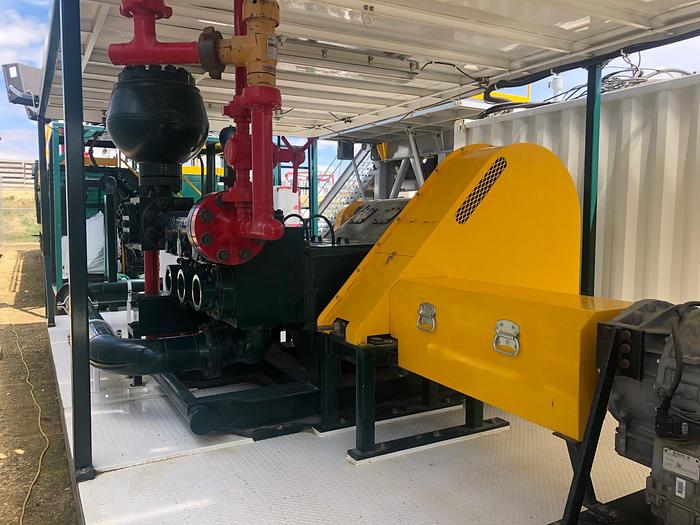

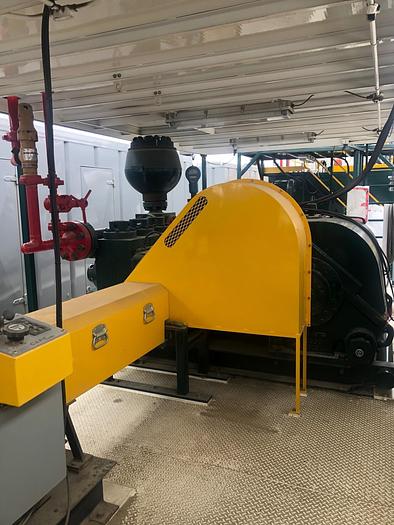

4.3 PUMP #1

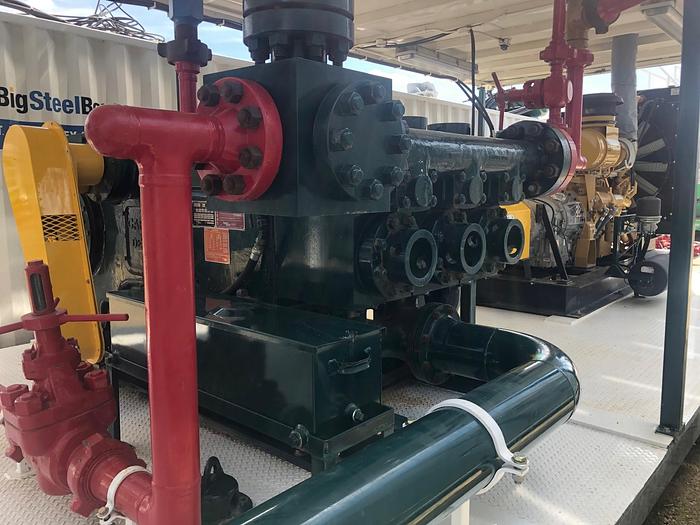

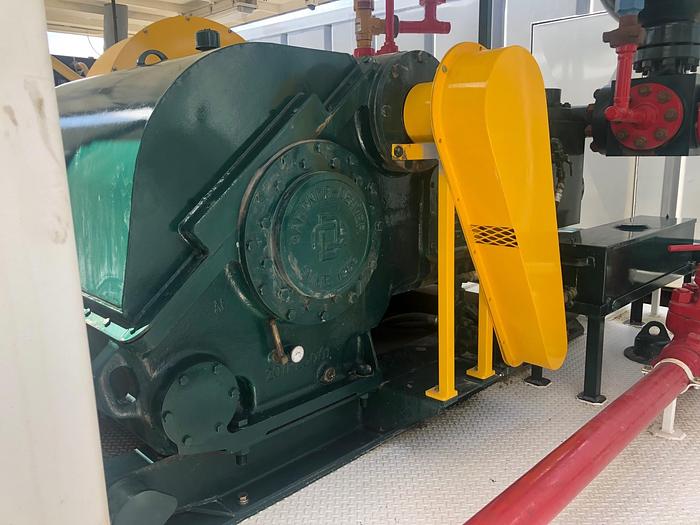

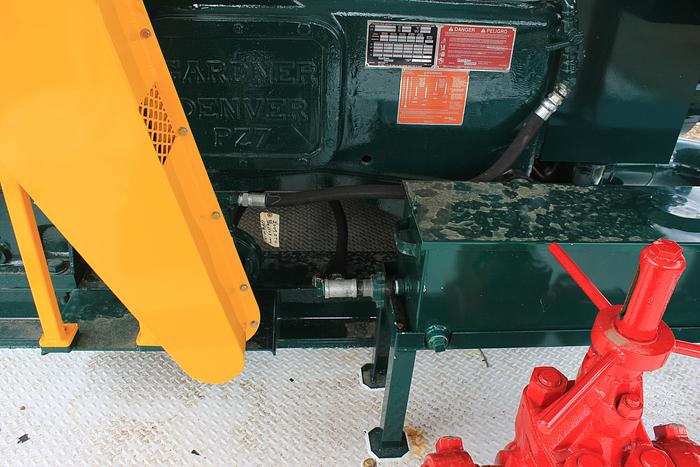

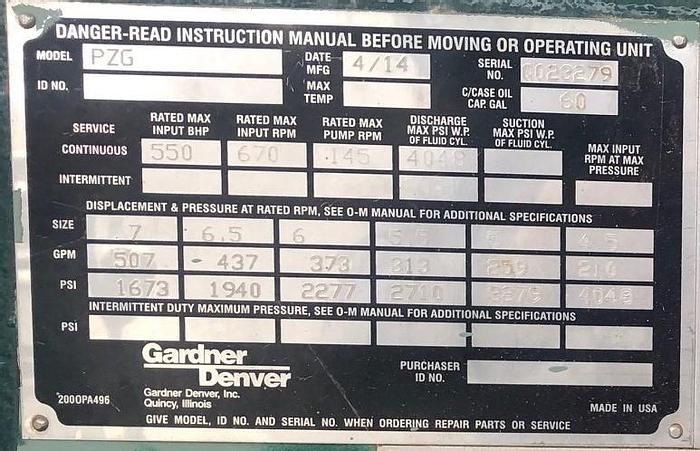

·        Supply one new Gardner Denver PZ-7 mud pump.

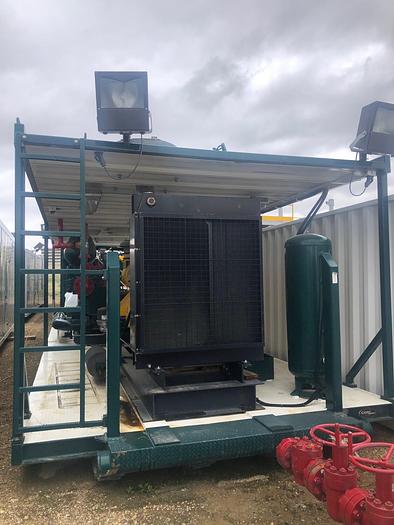

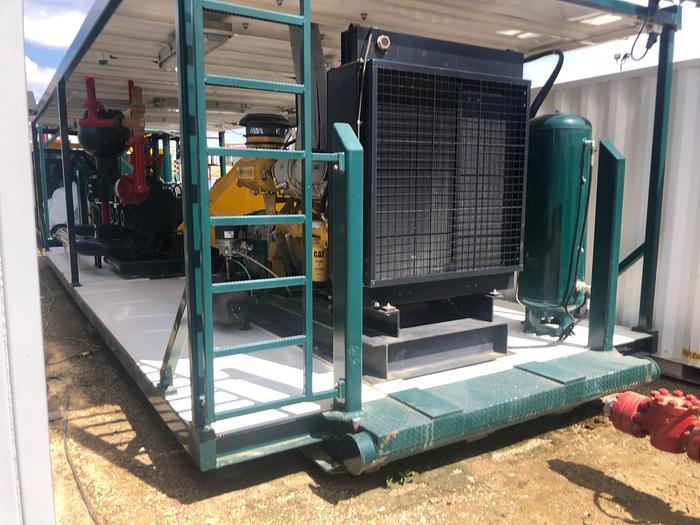

4.4 MUD PUMP SKID & ACCESSORIES

·        Supply one oilfield skid with roof -  35’ Long X 12’ Wide X 10’ High.

·        Skid runners manufactured from 4 beam 12”@50 lb.

·        Install ¾”X 7” strapping on bottom of skid runners.

·        Cross members 10” @ 33 LB flooring to be 3/16” checker plate.

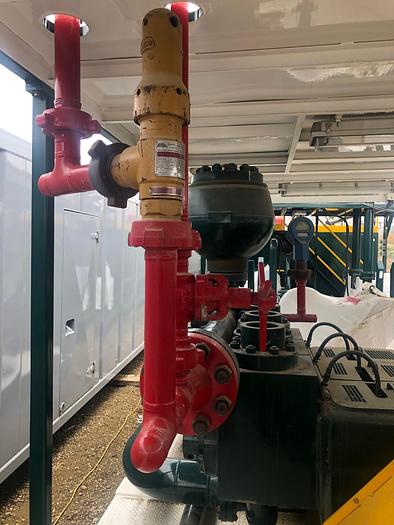

·        Supply and install pump with 4” valve, 2” pop valve, 2” bleeder valve and type D mud gauge.

·        Supply one pre-charge pumps 60 hp 6 X 5 X 11 with suction screens.

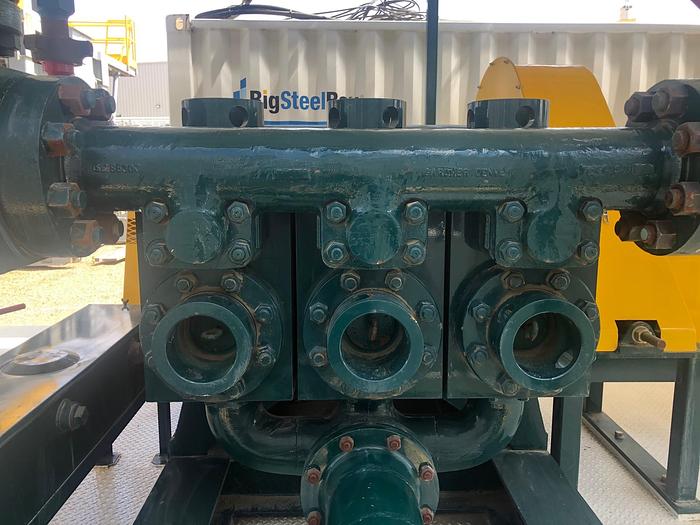

·        Fabricate all pre-charge and suction lines from mud tank.

·        Fabricate all high pressure lines on skids. Pressure test chart and x-ray done on all high pressure lines.

·        Supply one liner wash pump and liner wash tank with plumbing.

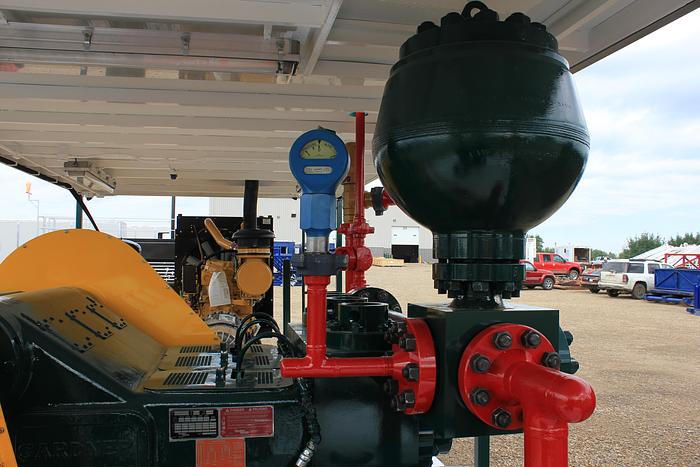

·        Supply one K20 dampener and cross.

·        Supply and install one 100 gallons diesel day tank with hosing for circulating system.

4.5 ELECTRICAL (50hz)

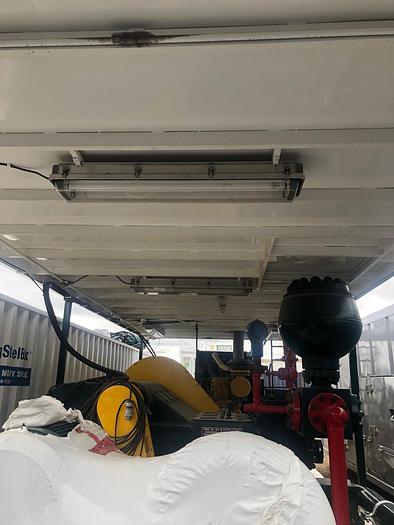

·        Supply and install (4) four foot fluorescents in each building.

·        Supply and install one distribution panel.

4.6 PAINT

·        Mud Pump skid has been painted white and avocado green.

4.7 Dimensions and Weights

Length: 420.00"

Width: 144.00"

Height: 120.00"

Weight: 61,000 lbs

May be inspected upon request.

Subject to prior sale and or other disposition.
