2019 35-70 2000 HP AC/VFD LAnd Drilling Rig

www.VIDAEQ.com

This 2019 Complete Rig Package can be refurbished and made field ready in 90-120 days.

Please see the DOCUMENTS section for the complete drilling rig package specification.

GENERAL SPECIFICATION

Rating: 2,000 HP

Hook load: 1,000,000 lbs @ 12 lines

Drilling Depth: 21,500 ft

Year of Manufacture: 2019

Last CAT IV at factory: 2019

CROWN

Model: TC 450

Max. Hook Load: 1,000,000 lbs

Main Sheave DIA: 60"

Number of Sheaves: 6

Drilling Line Diameter: 1-1/2”

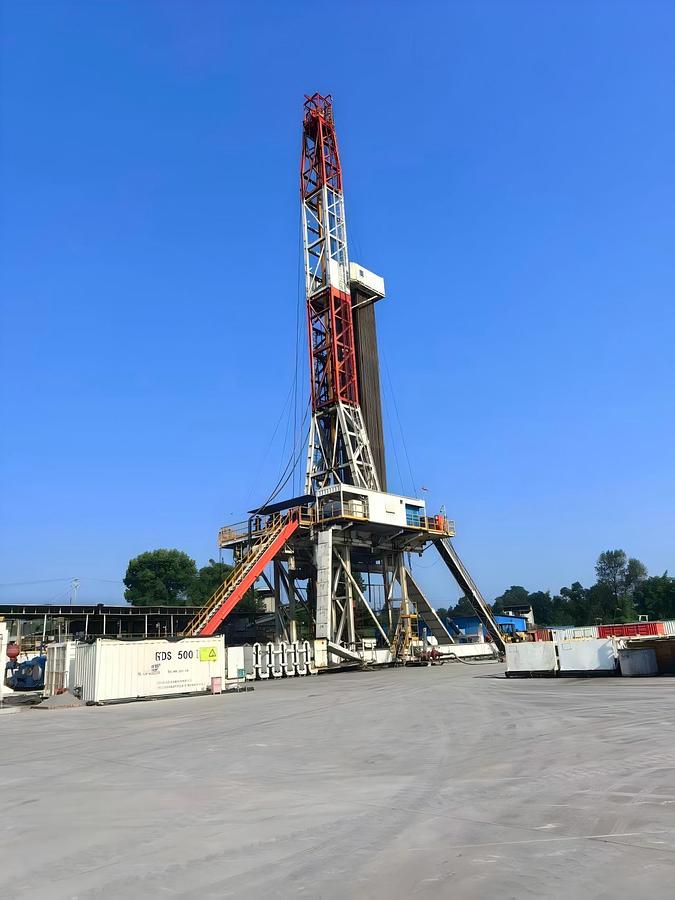

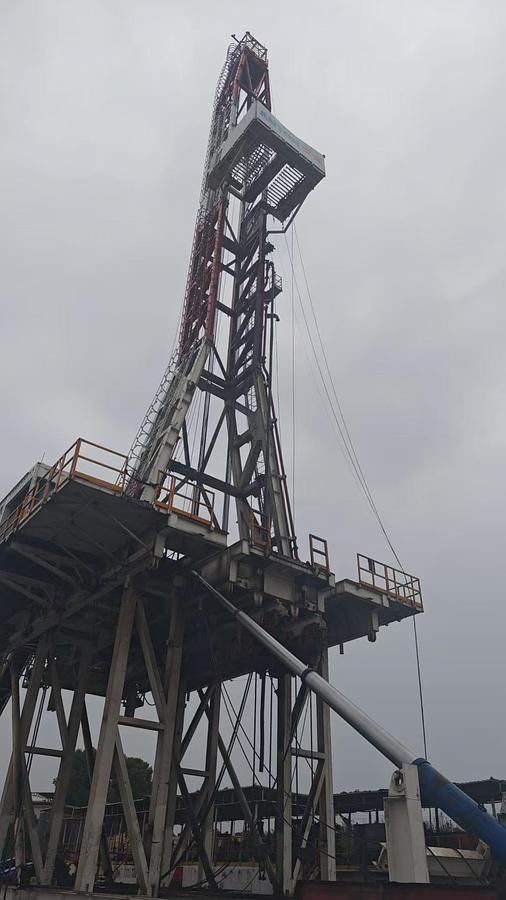

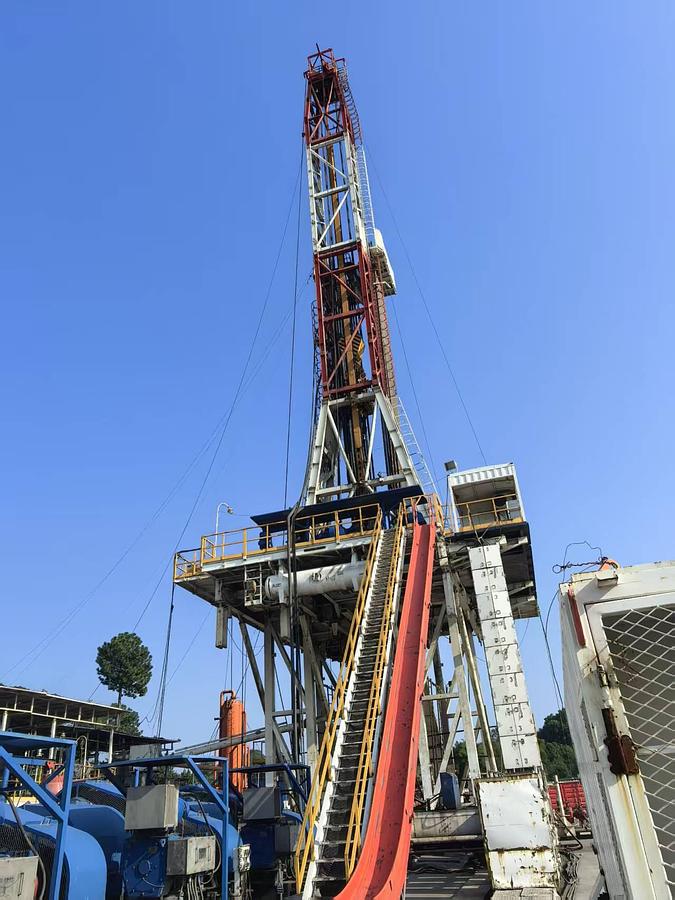

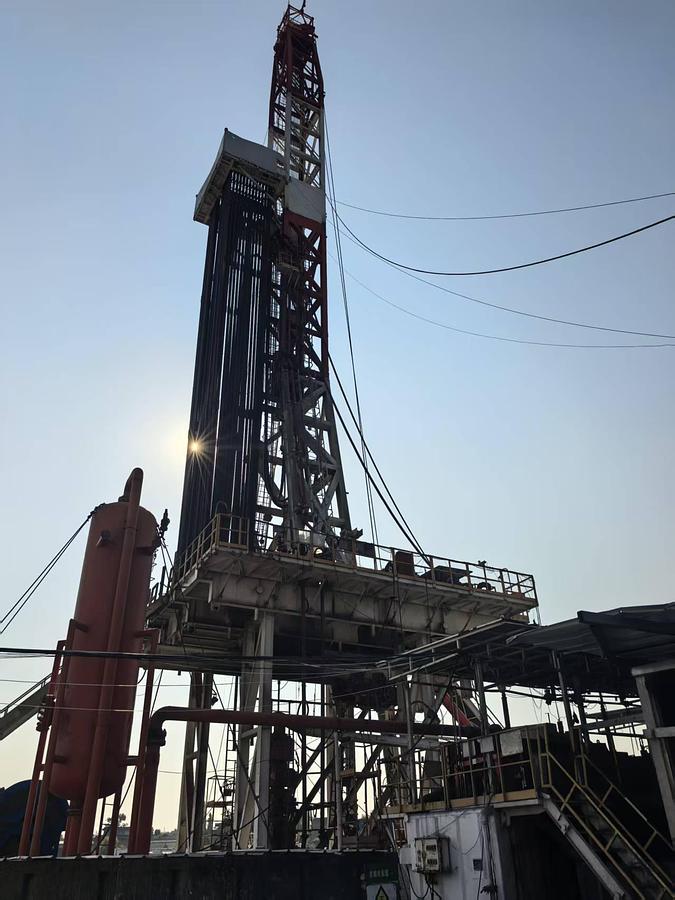

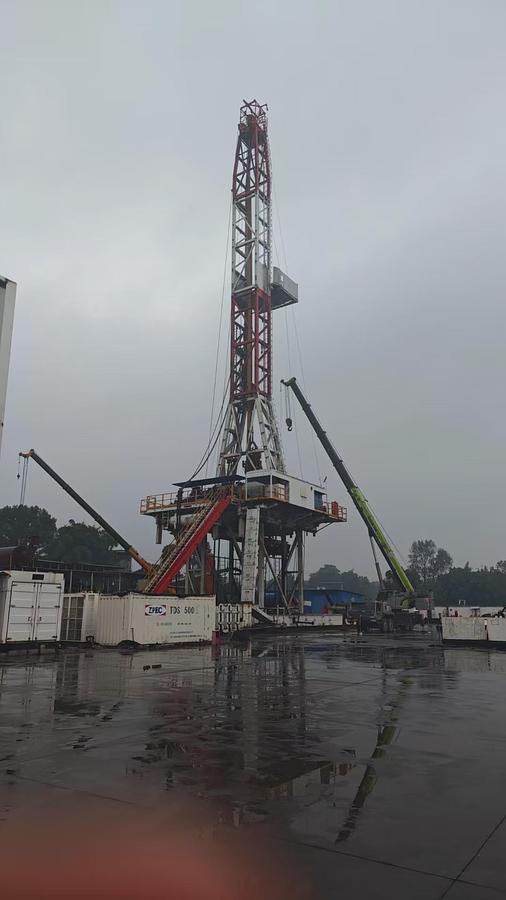

MAST

Model: JJ450/46.5-Y

Type: Type-K Hydraulic Raising

Height: 152 ft

Racking Board Capacity: 92' Stands, 21,500 ft

Max Hook Load: 1,000,000 lbs.

TRAVELING BLOCK

Traveling Block: YC450

Capacity: 1,000,000 lbs.

Main Sheave DIA: 60"

Number of Sheaves: 6

Drilling Line Diameter: 1-1/2”

SUBSTRUCTURE

Type:

Height of Drilling Floor: 34.4 ft

Casing load: 1,000,000 lbs.

Setback: 5" D.P. X 28 Stands, 21,600 ft

DRAWWORKS

Type: JC70DB

Horsepower rating: 2,000 HP

Max line pull: 109,000 lbs.

Drilling Line Diameter: 1-1/2”

Main Brake: Dynamic Brake

Auxiliary Brake: 2 X EATON 438DBBS PNEUMATIC NORMALLY CLOSED DISC BRAKE, TWO PARALLEL USE

TOP DRIVE

Type: To Be Determined

ROTARY TABLE

DIA. OF OPENING HOLE:37-1/2"

RATED LOAD: 1,300,000 LBS

MAX. ROTARY SPEED: 300 RPM

GEAR RATIO: 3.56 MAX.

TORQUE: 3300N.M

RIG POWER

Engine type: Caterpillar 3512B

Horsepower rating: 4 x 1,260 HP each

Generator type: KATO 1030 (or equivalent)

AUX GENERATORS

Engine Type: C 15

Generator Rating:400 kw

VFD HOUSE

CONTROL FOUR MAIN GENERATORS, WITH THE FOLLOWING FUNCTIONS:

DIESEL ENGINE SPEED CONTROL, GENERATOR VOLTAGE CONTROL, GENERATOR MONITORING AND PROTECTION, MEET THE SIMULTANEOUS INDEPENDENT CONTROL OF DRAWWORKS AND ROTARY TABLE, MUD PUMP.

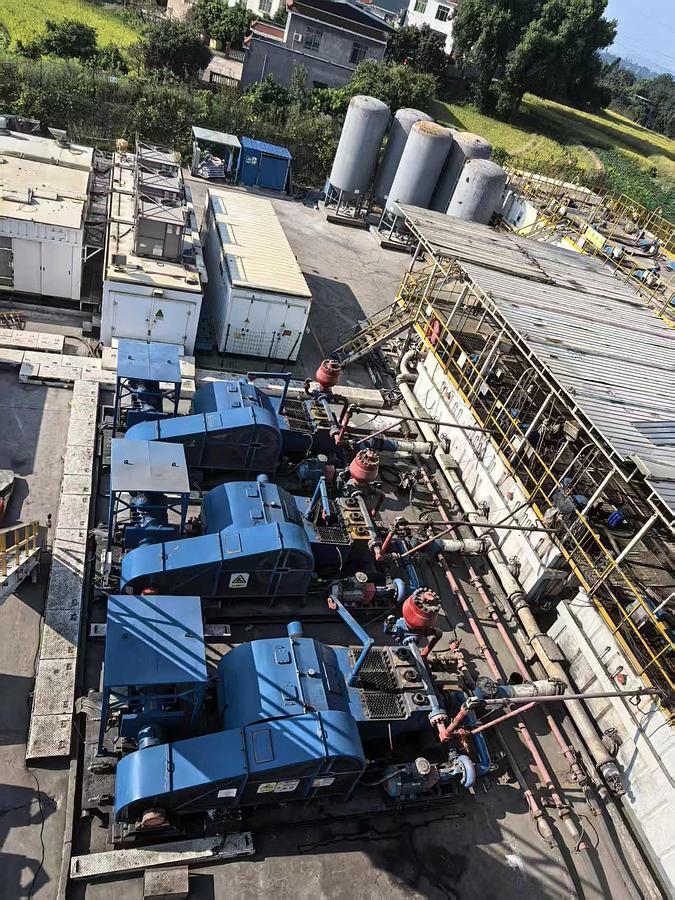

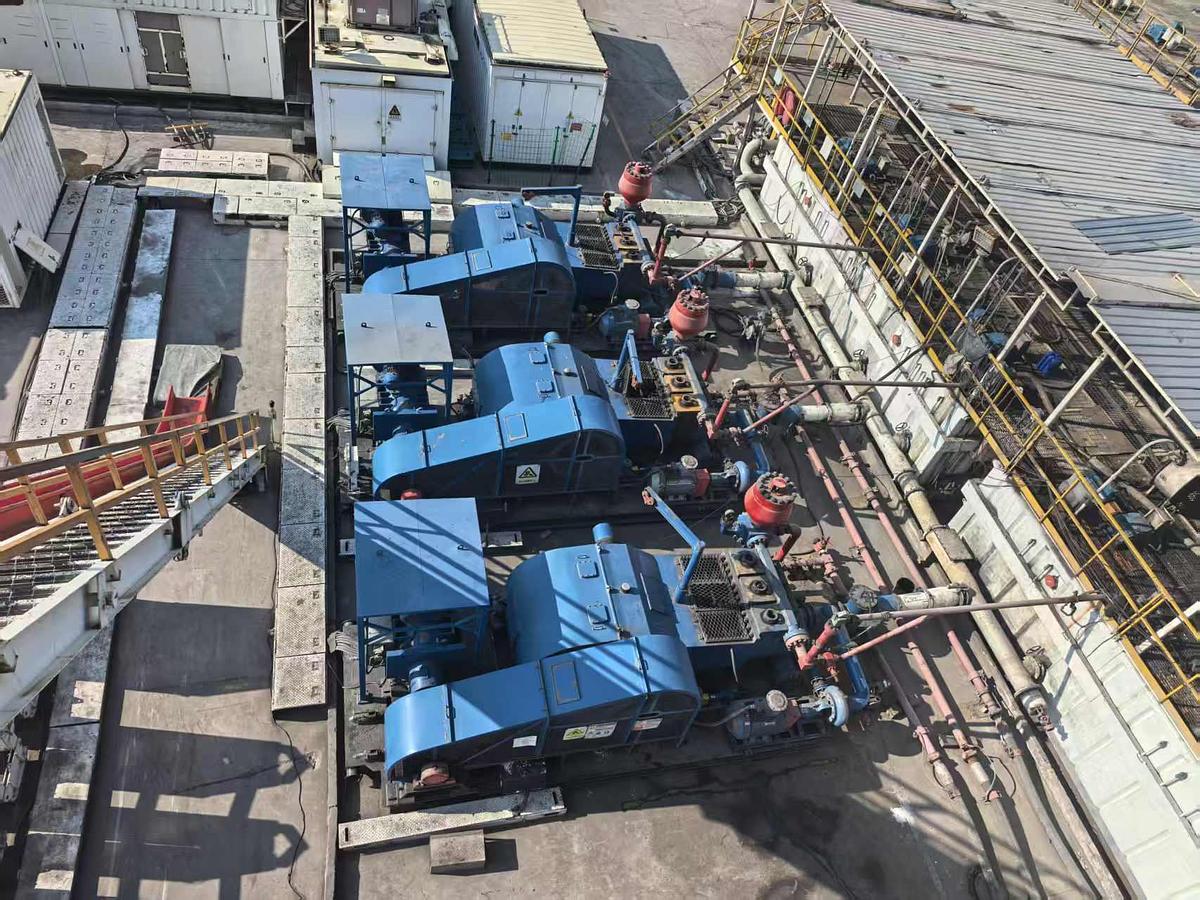

MUD SYSTEM

Qty: 3 Each

Pump Type: F-1600 HL

Mud Pump Type: Triplex Single Action

Max. Liner Diameter: 7/1/2"

Rated Power: 1600 HP

Max. Pressure: 7,500 PSI

Max Flow: 820 gpm (7-1/2" Liner)

Please see the DOCUMENTS section for the complete drilling rig package specification.
