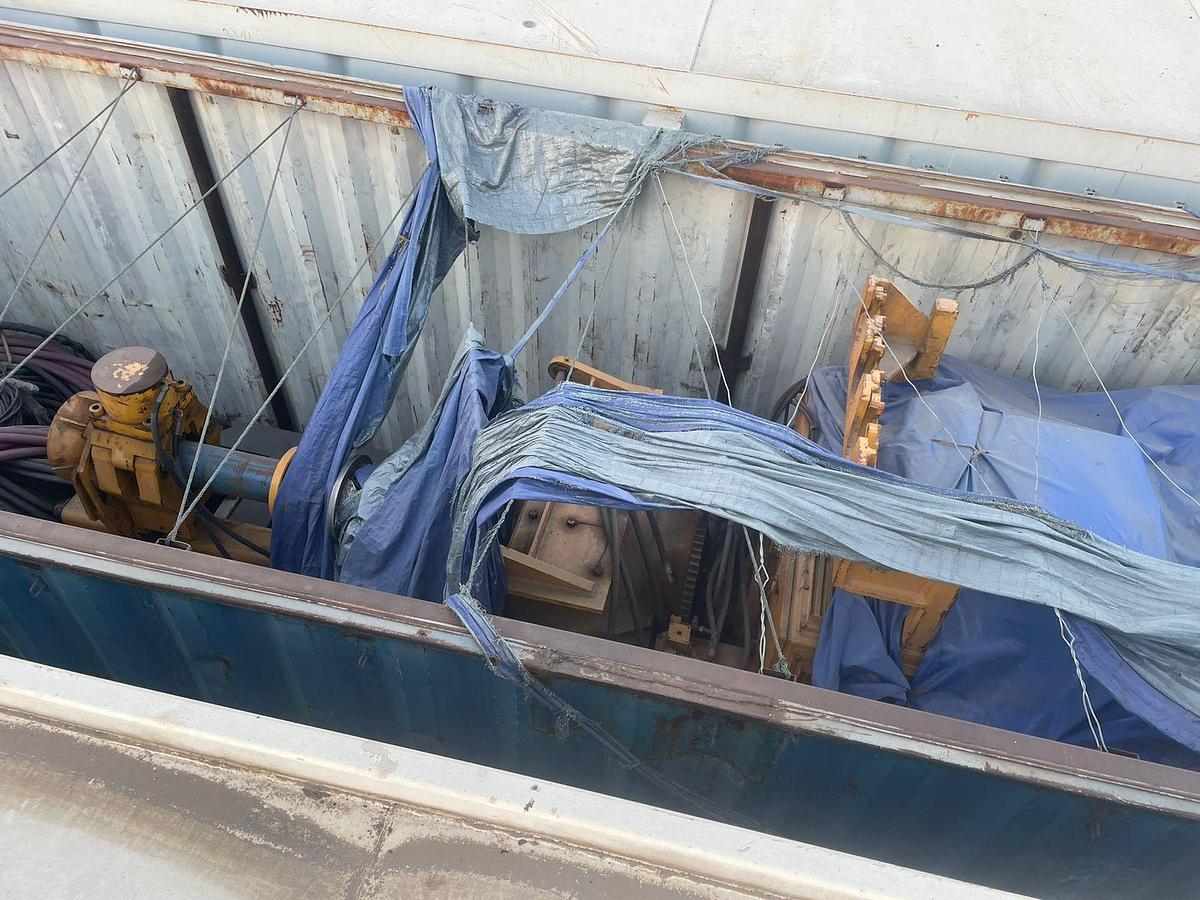

2008 Letourneau Technologies LEWCO 370

www.VIDAEQ.com

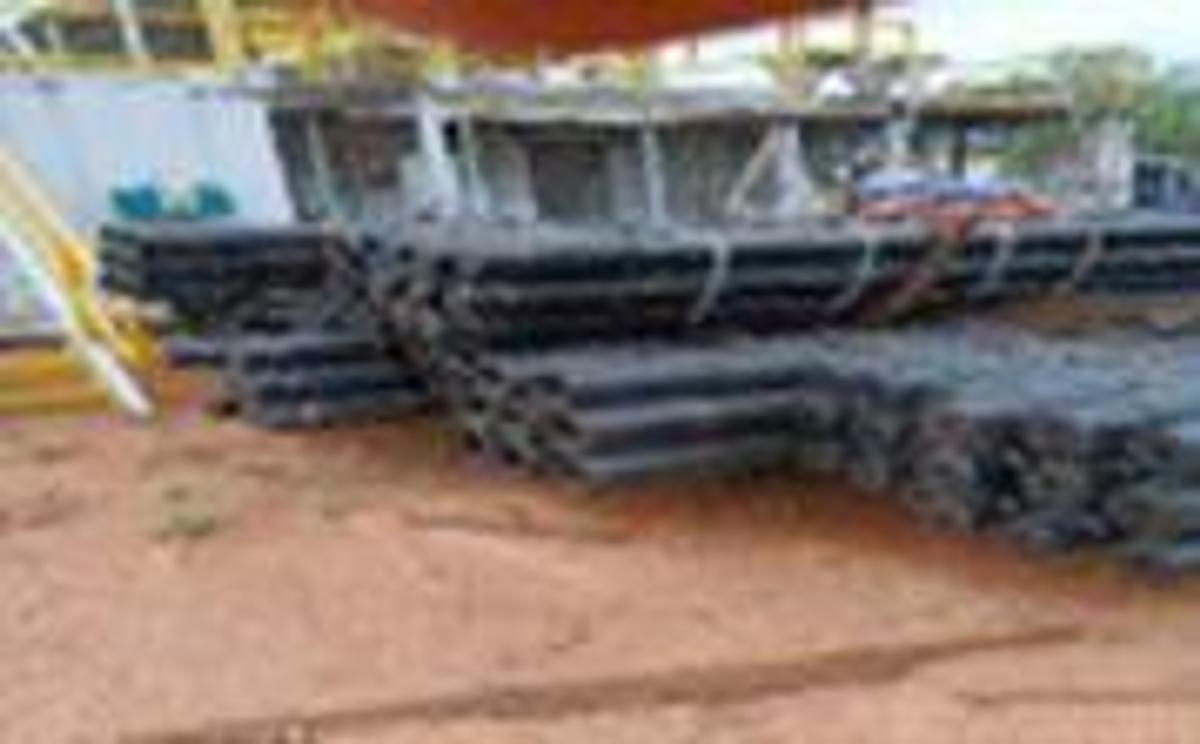

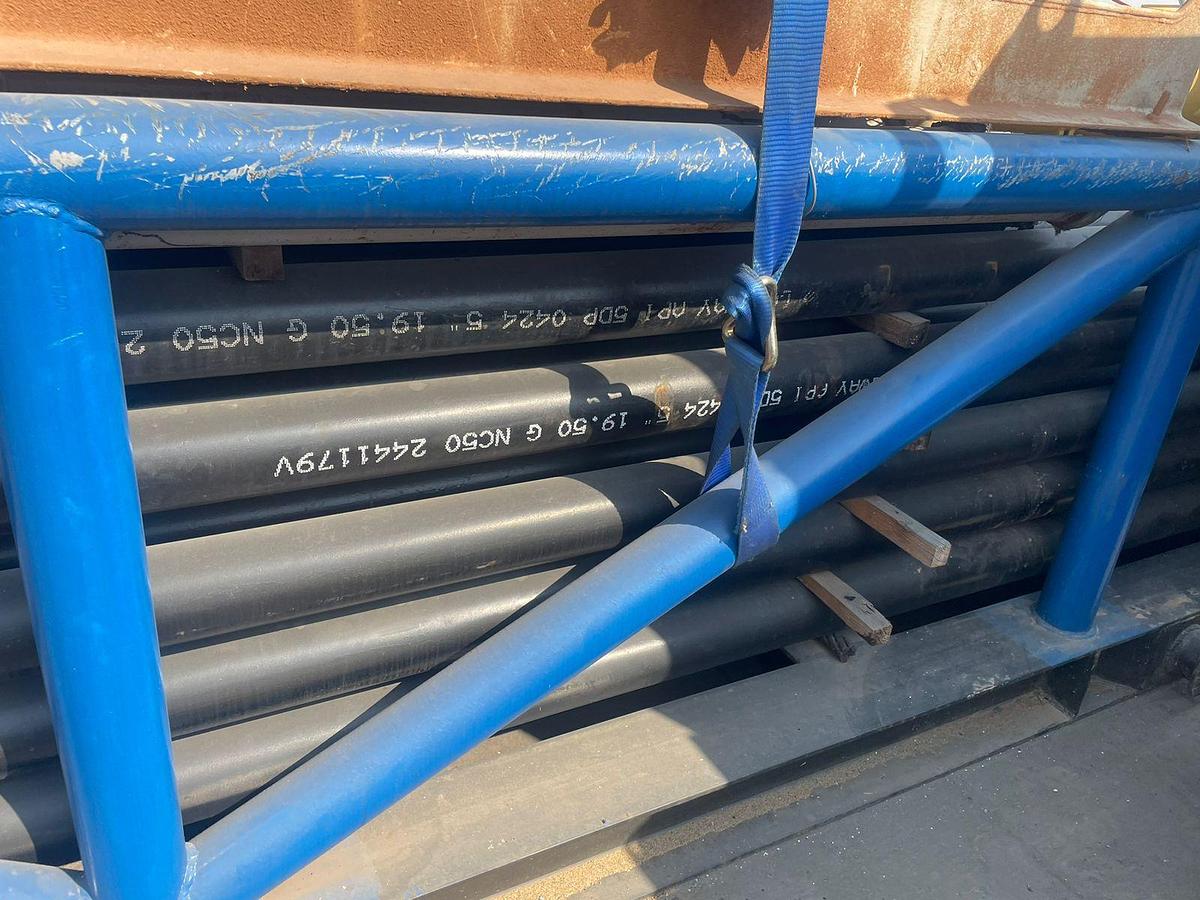

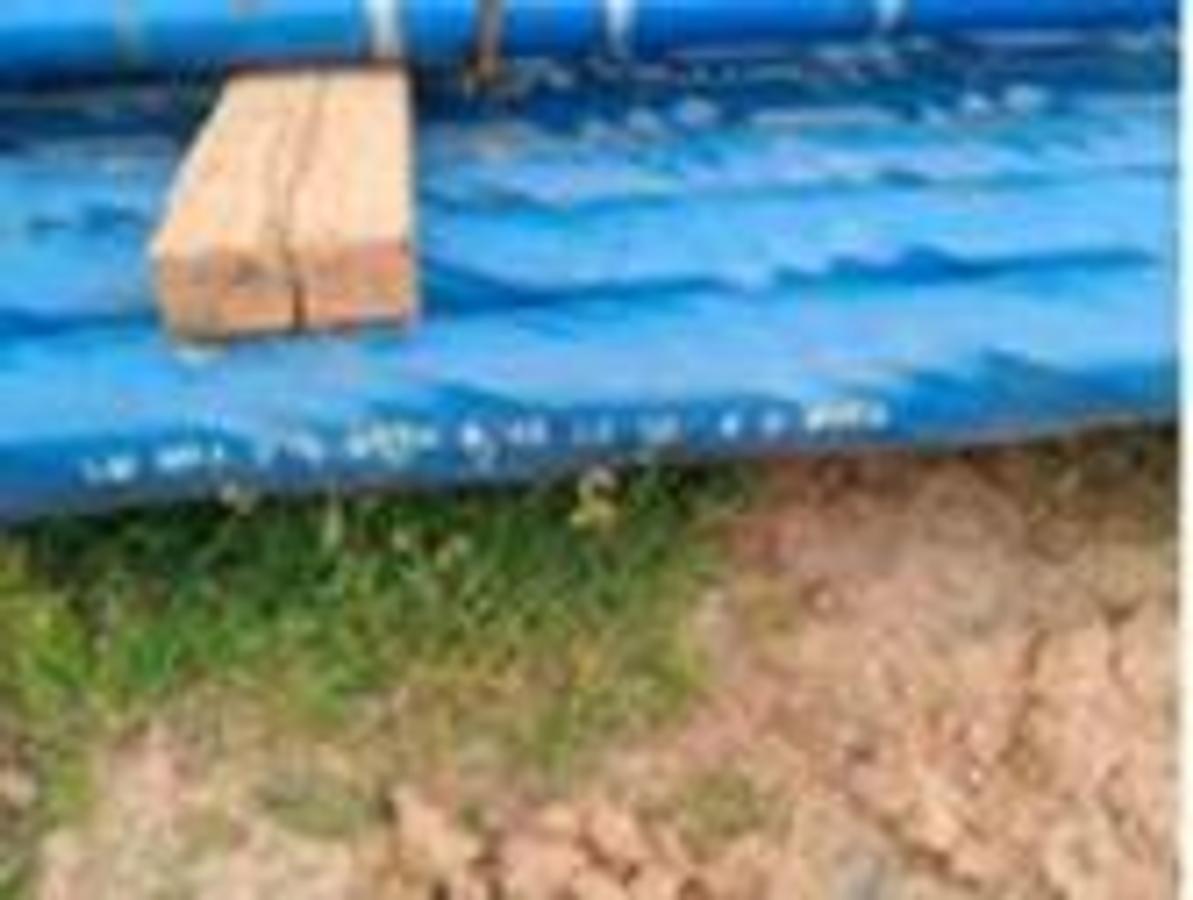

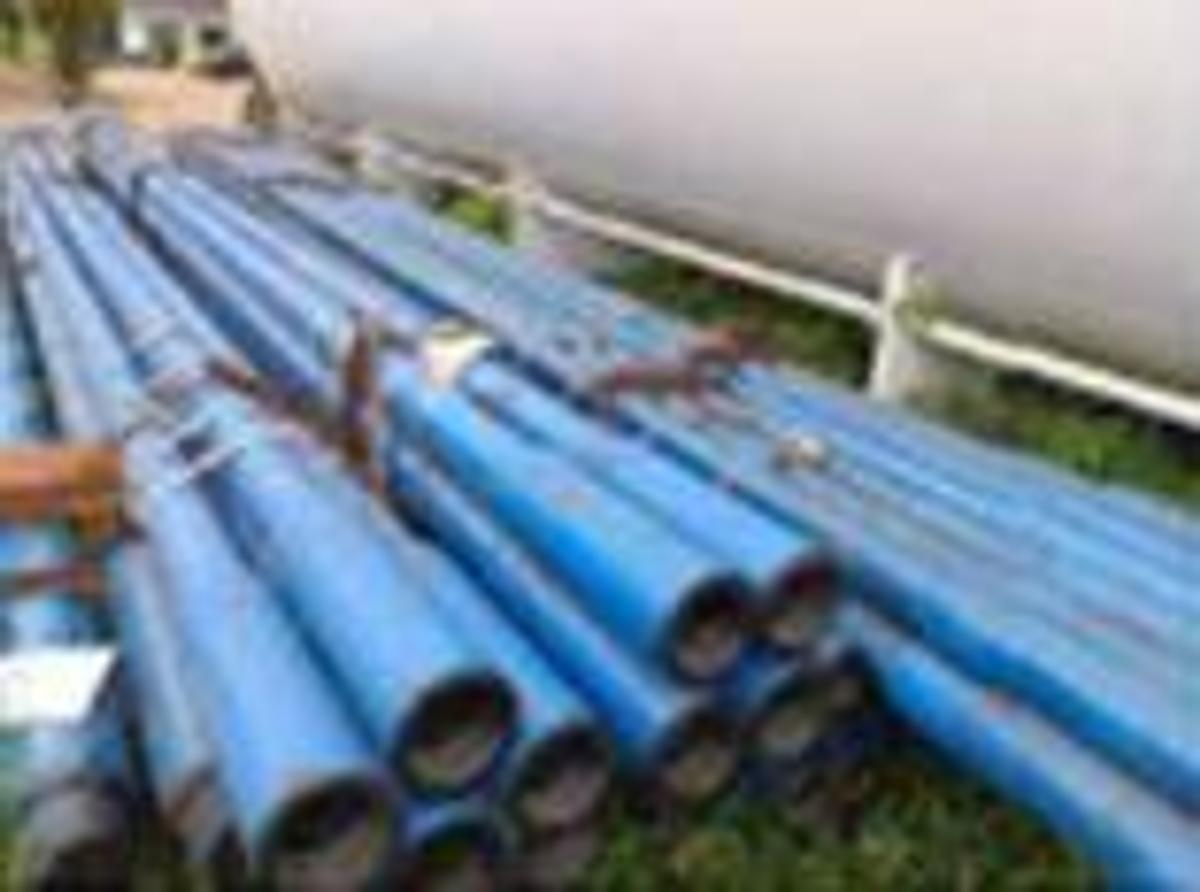

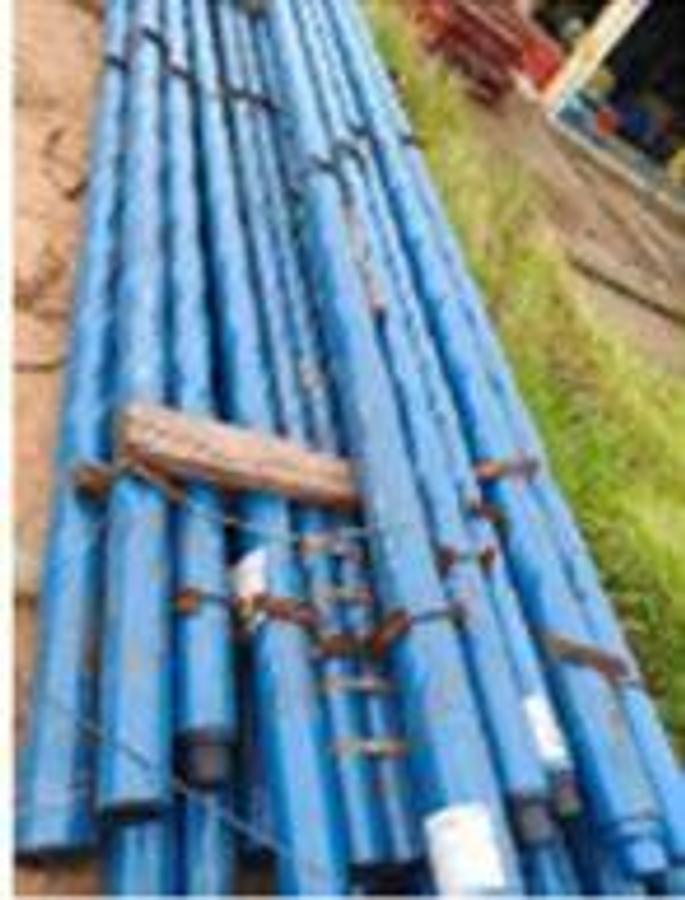

This Complete 2,000 HP VFD Rig Package has been well cared for and is currently available. Includes Tubulars.

Please see the DOCUMENTS section for the complete drilling rig package specification.

Manufacturer: Letourneau Technologies, USA

Year of Manufacture: 2008

Current Condition: Cold Stacked

CAT IV CERTIFICATIONS: Expired

Notes: Rig can be Recertified at an additional cost.

LEWCO 370 Letourneau Technologies

Rating: 2,000 HP

Hook load: 1,000,000 lbs @ 12 lines

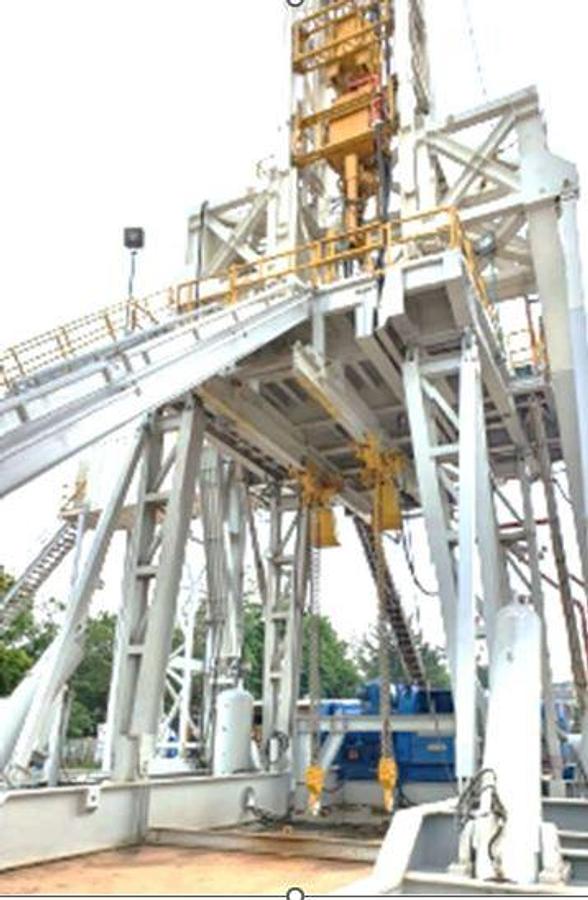

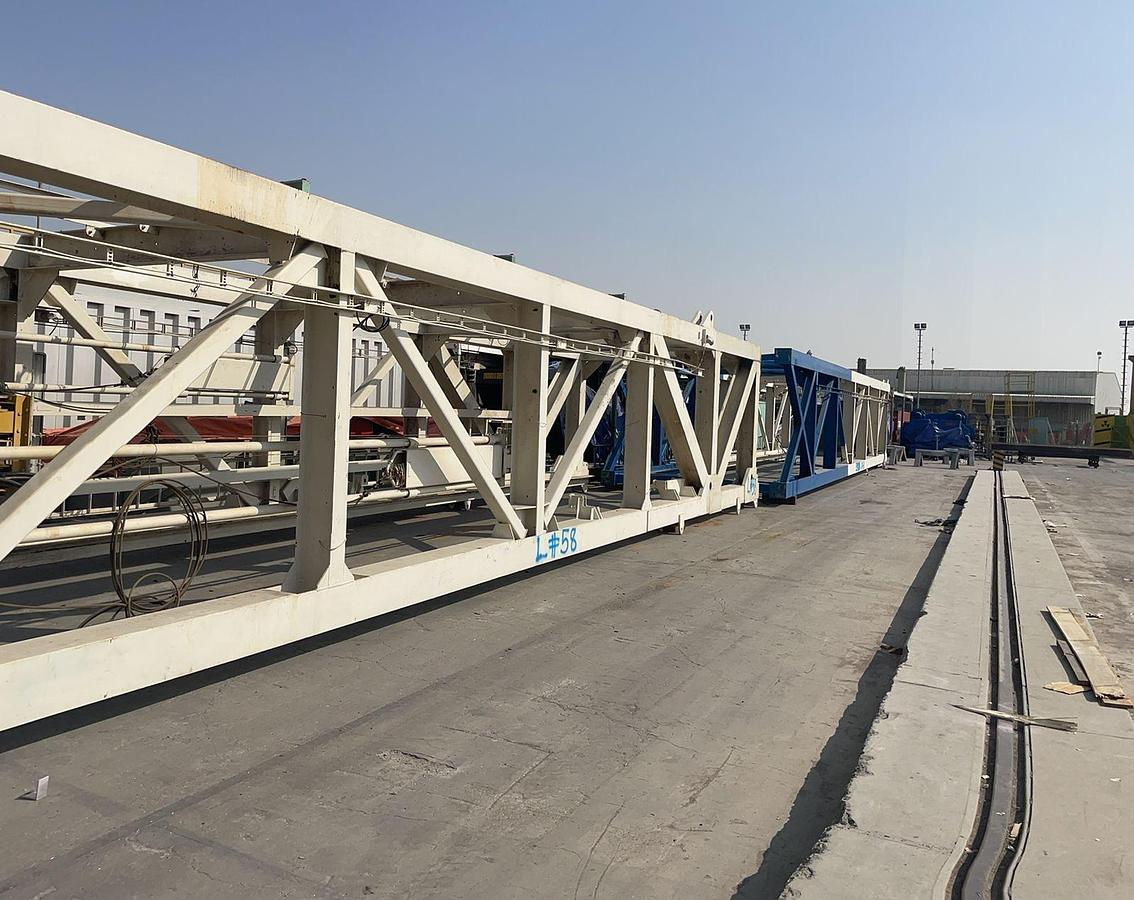

MAST

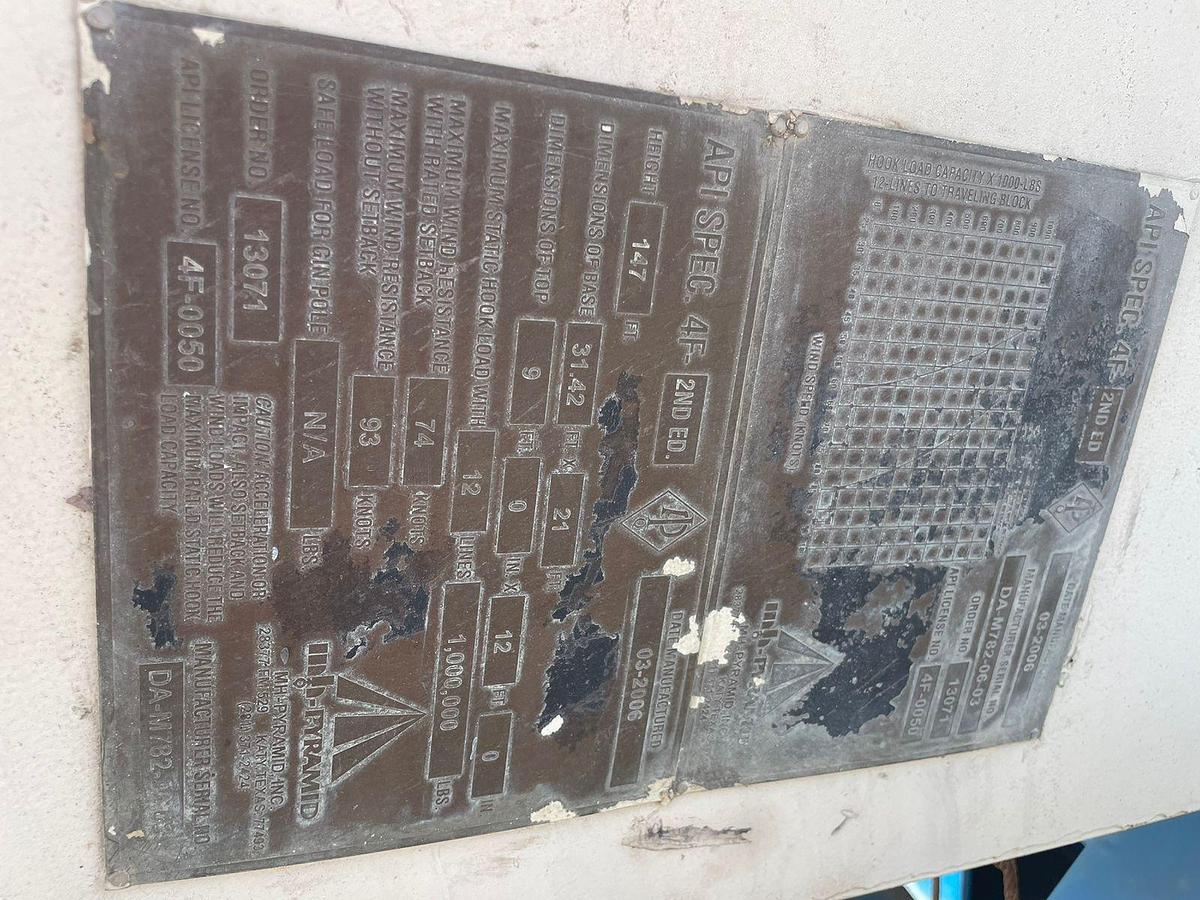

Type: Pyramid DA-M785-05-01

Height: 147 ft

Base: 30 ft

G.N.C: 1,000,000 lbs.

API Static Hook Load: 1,000,000 lbs. / 12 Lines

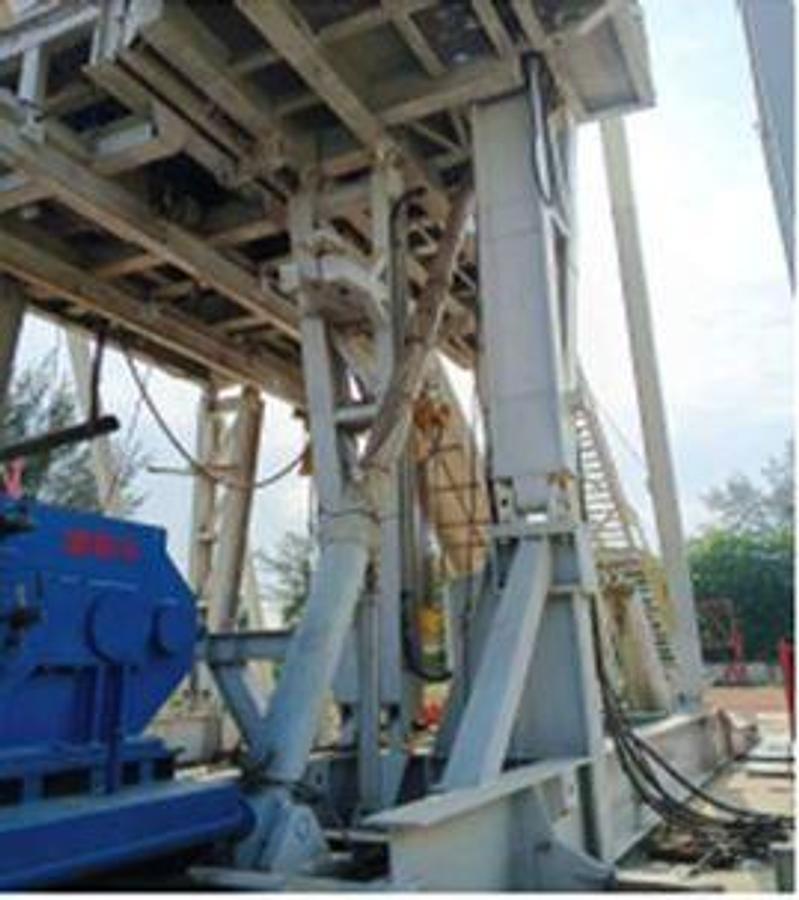

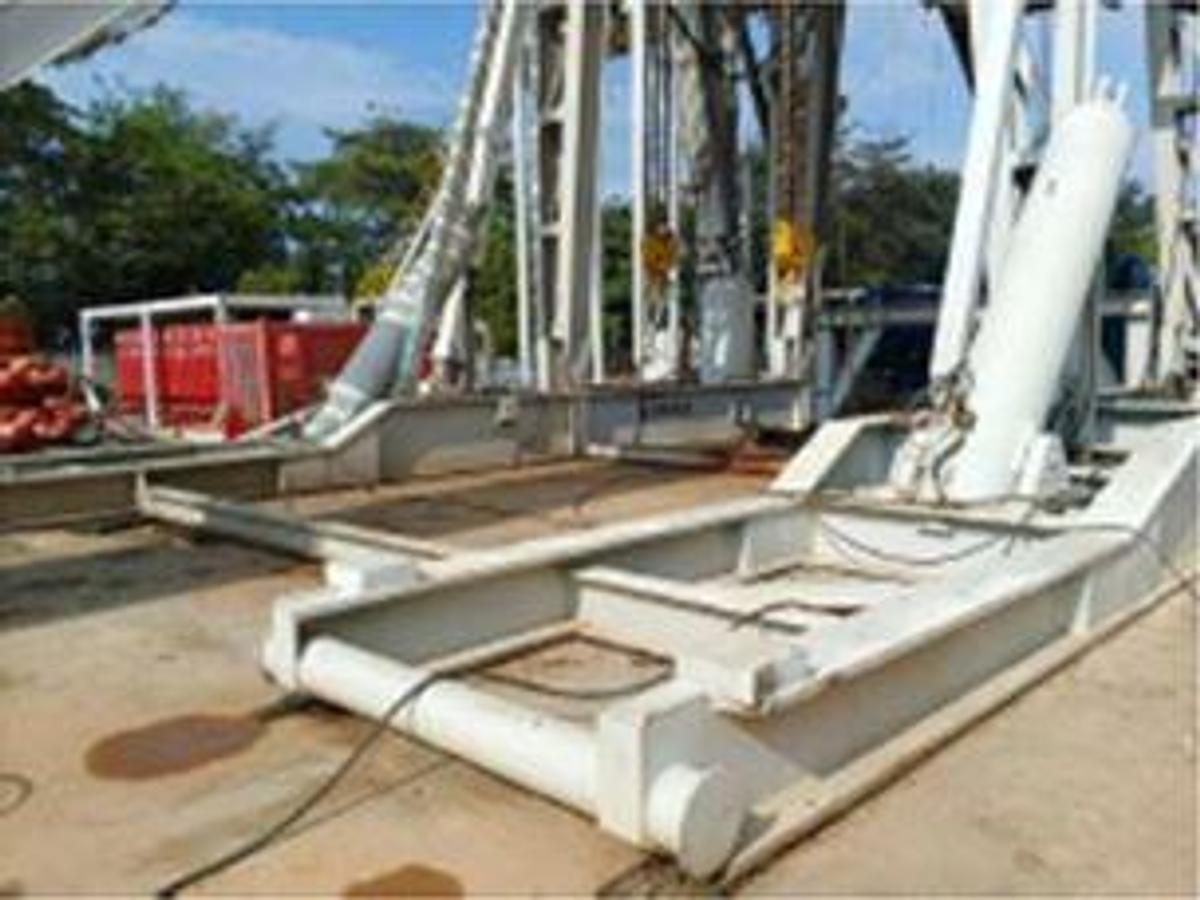

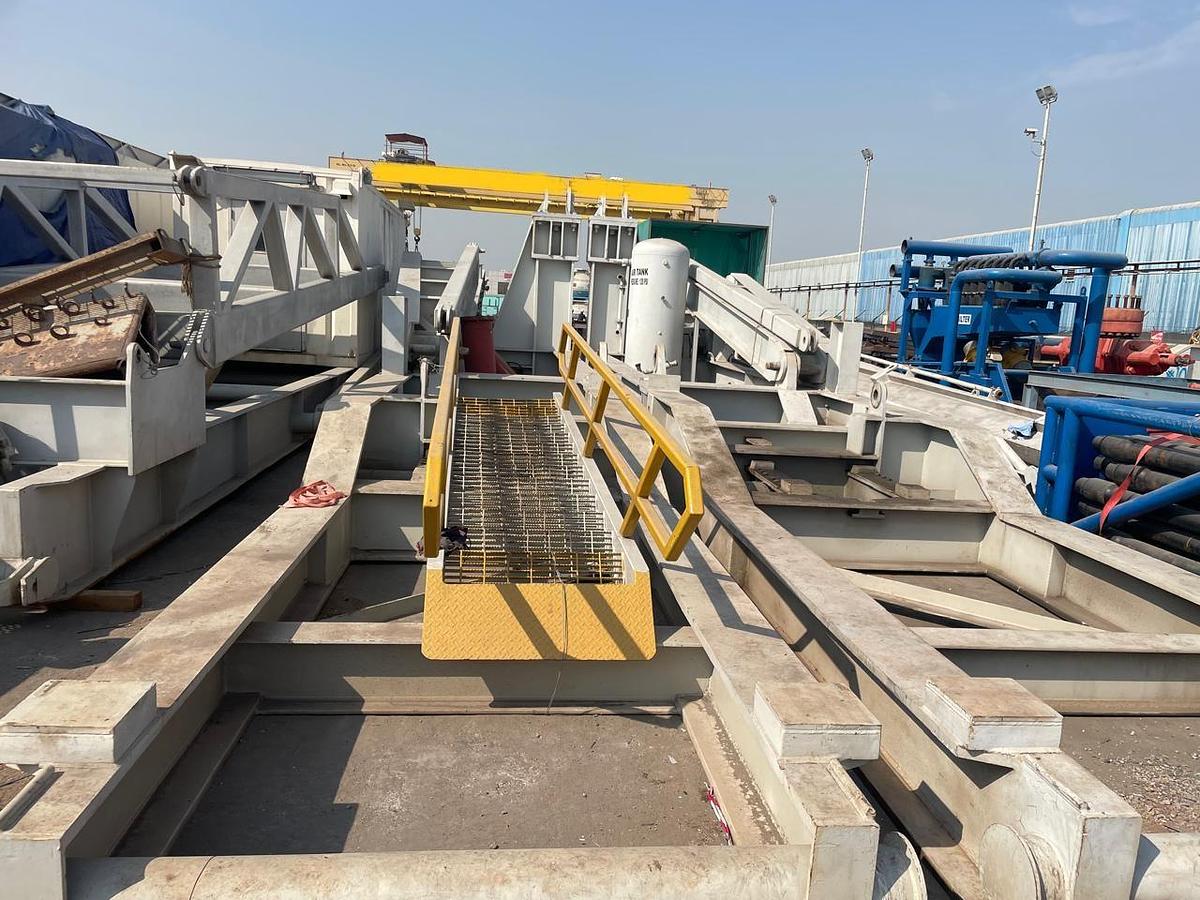

SUBSTRUCTURE

Type: Self Elevating

Height: 30 ft

Clear Height: 25 ft

Setback: 600,000 lbs.

Rotary Capacity: 1,000,000 lbs

Max. Combined Load: 1,000,000 lbs

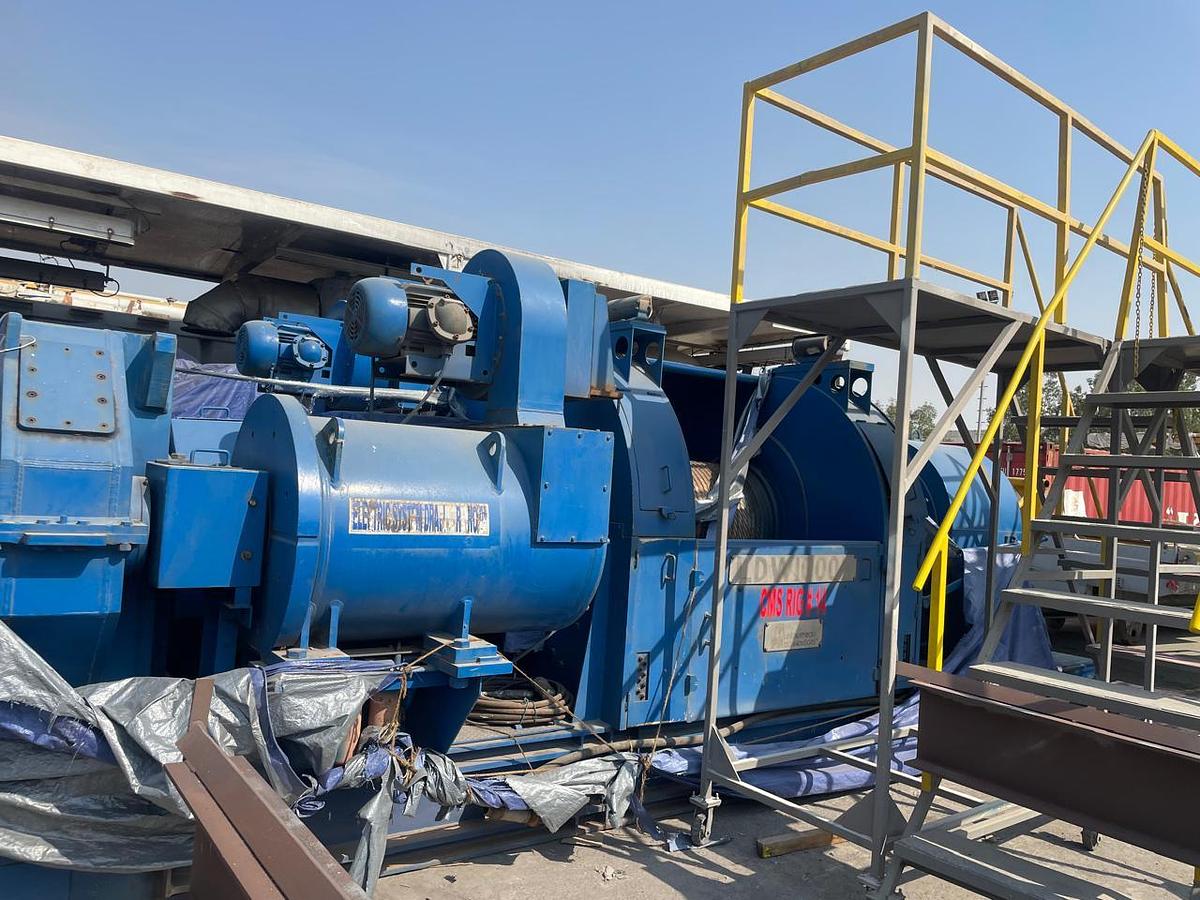

DRAWWORKS

Type: LWD 100K 124

Horsepower rating: 2 X 1,500 HP

Drilling Line Diameter: 1-3-8”

Auxiliary Brake: Disc Mechanical Brake

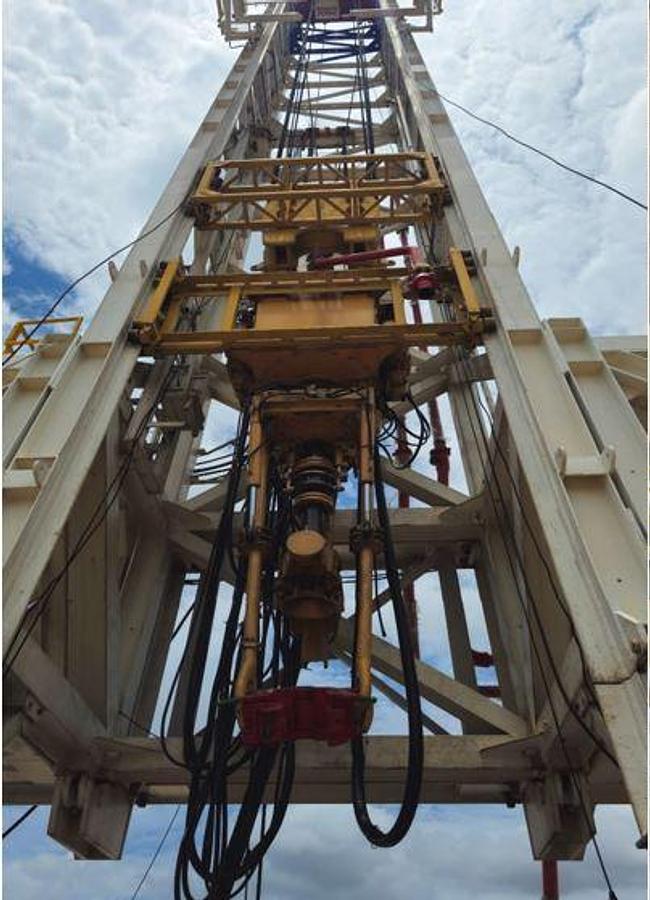

TOP DRIVE

Letourneau Technologies

Type: DDTD500-112

Capacity: 1,000,000 lbs.

Make-Up Torque: 75,000 ft-lb

Breakout Torque: 75,000 ft-lb

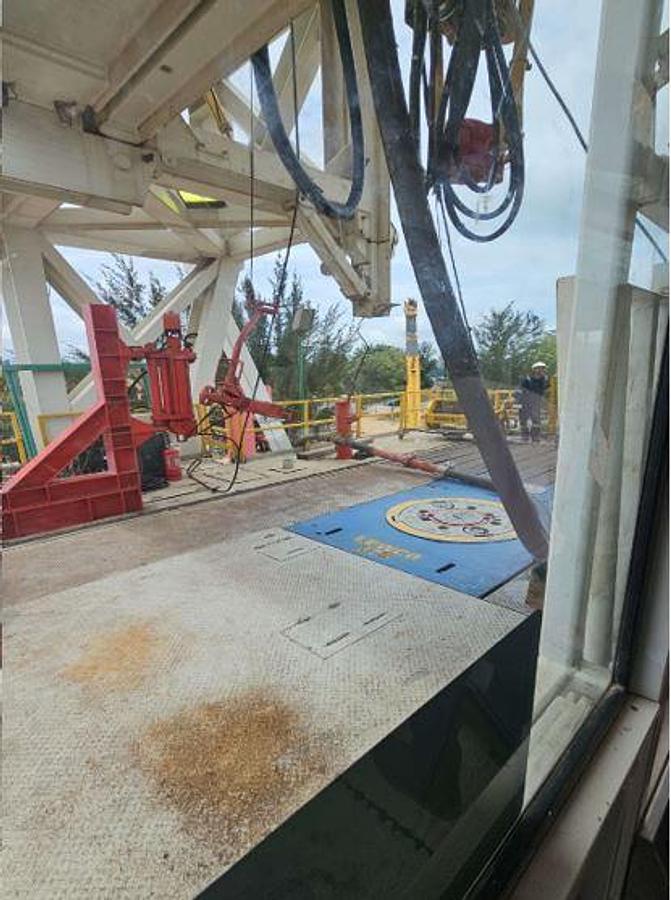

ROTARY TABLE

Letourneau Technologies

Type: L375-125

Table opening: 37-1/2”

TRAVELING EQUIPMENT

Traveling Block:

Capacity: 1,000,000 lbs.

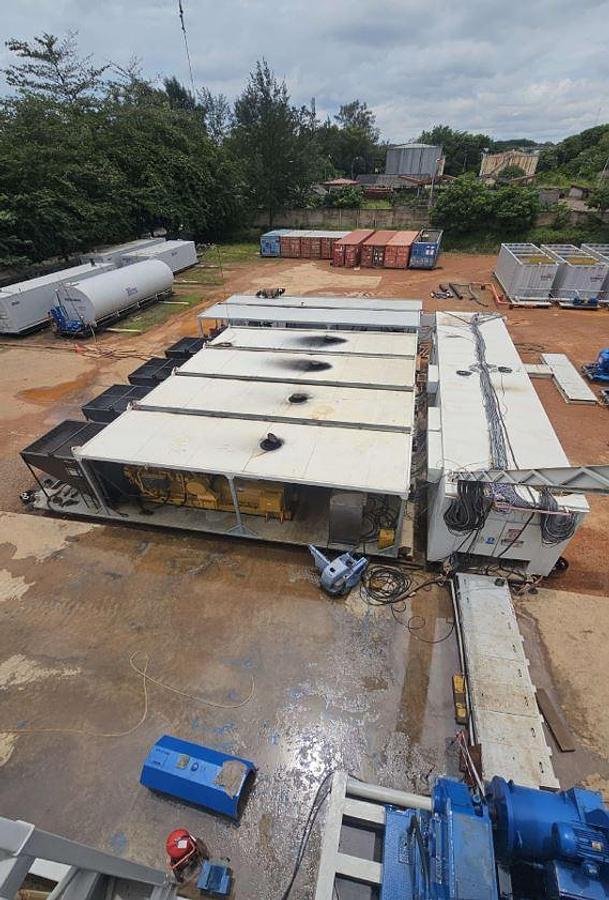

RIG POWER

Engine type: Caterpillar 3512

Horsepower rating: 4 x 1,365 HP each

Generator Rating: 4 x 1,950 kVA

Voltage: 346/600, 50 Hz

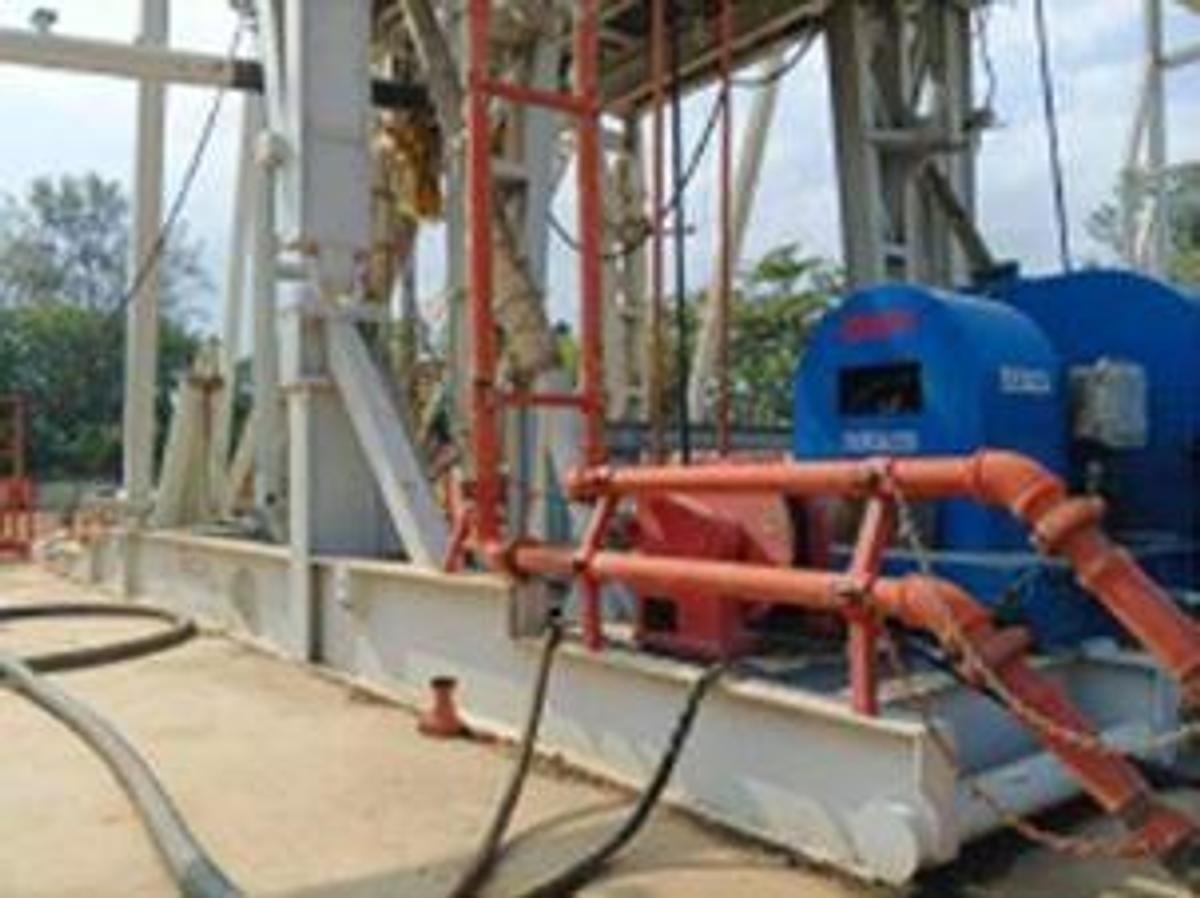

MUD SYSTEM

Pump Type: LEWCO/WH1612

Horsepower rating: 2 x 1,600 HP

Max Pressure Rating: 5,000 PSI

Pump type: BSOM/BSF-1600

Horsepower rating: 1 x 1,600 HP

Max Pressure Rating: 5,000 PSI

Please see the DOCUMENTS section for the complete drilling rig package specification.
