Hopper 102' X 260,000 #

www.VIDA EQ.com

Complete water well drilling rig package. Inspection report available with proof of funds.

Includes:

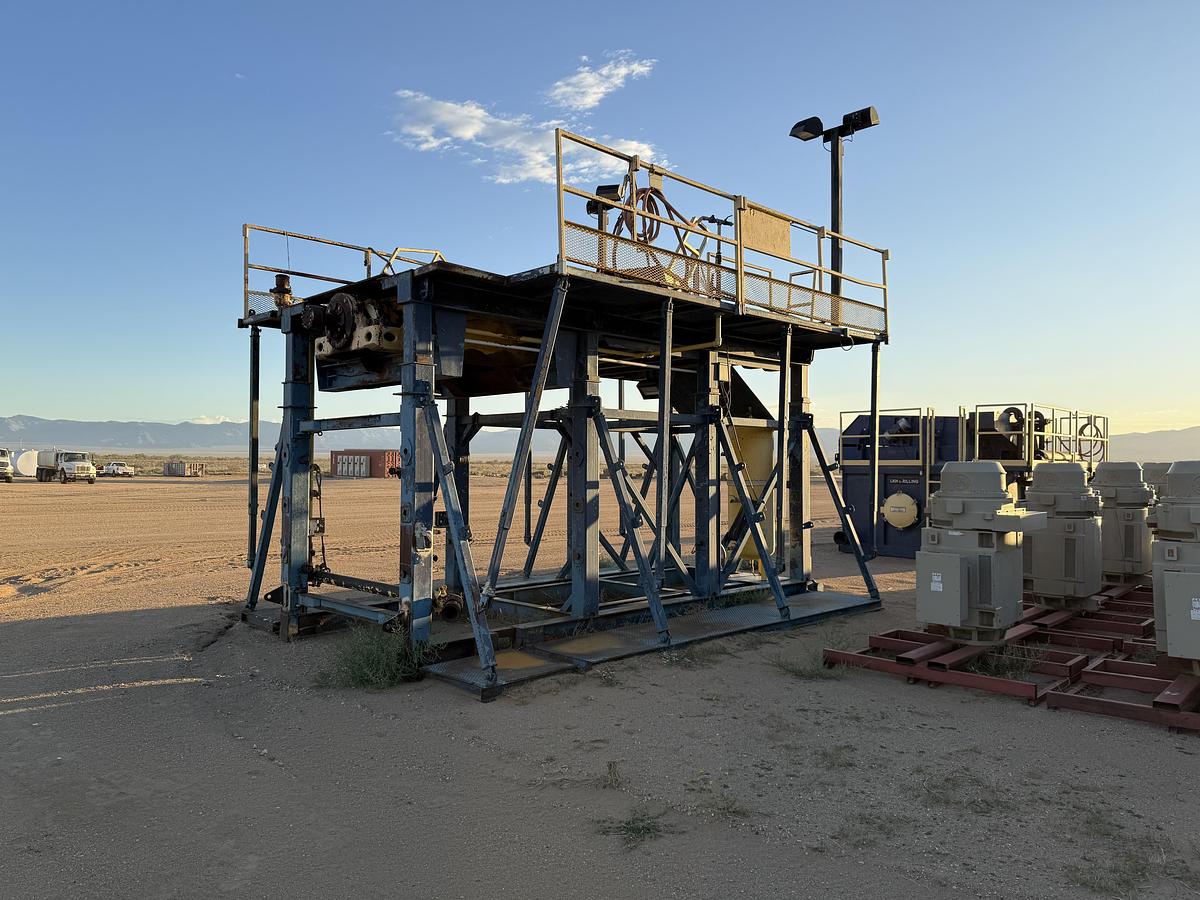

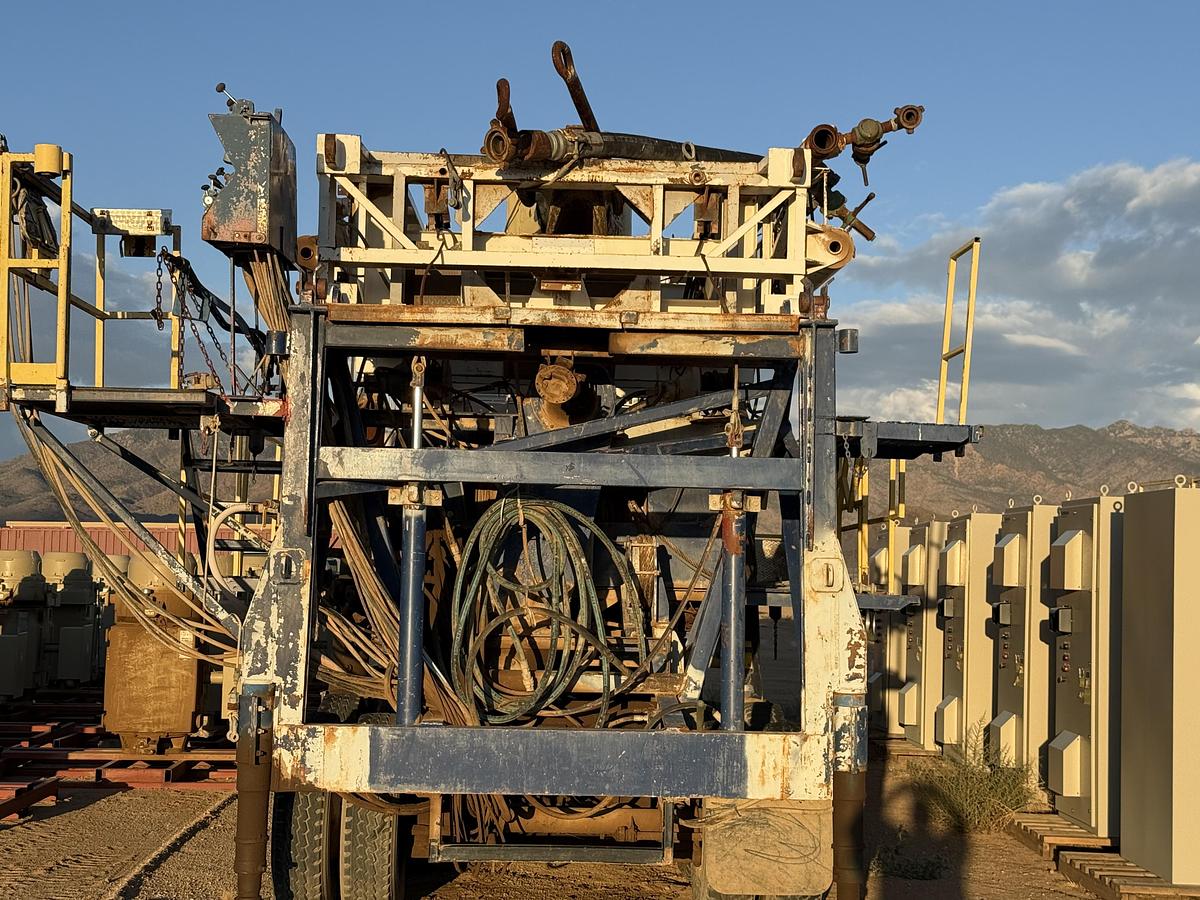

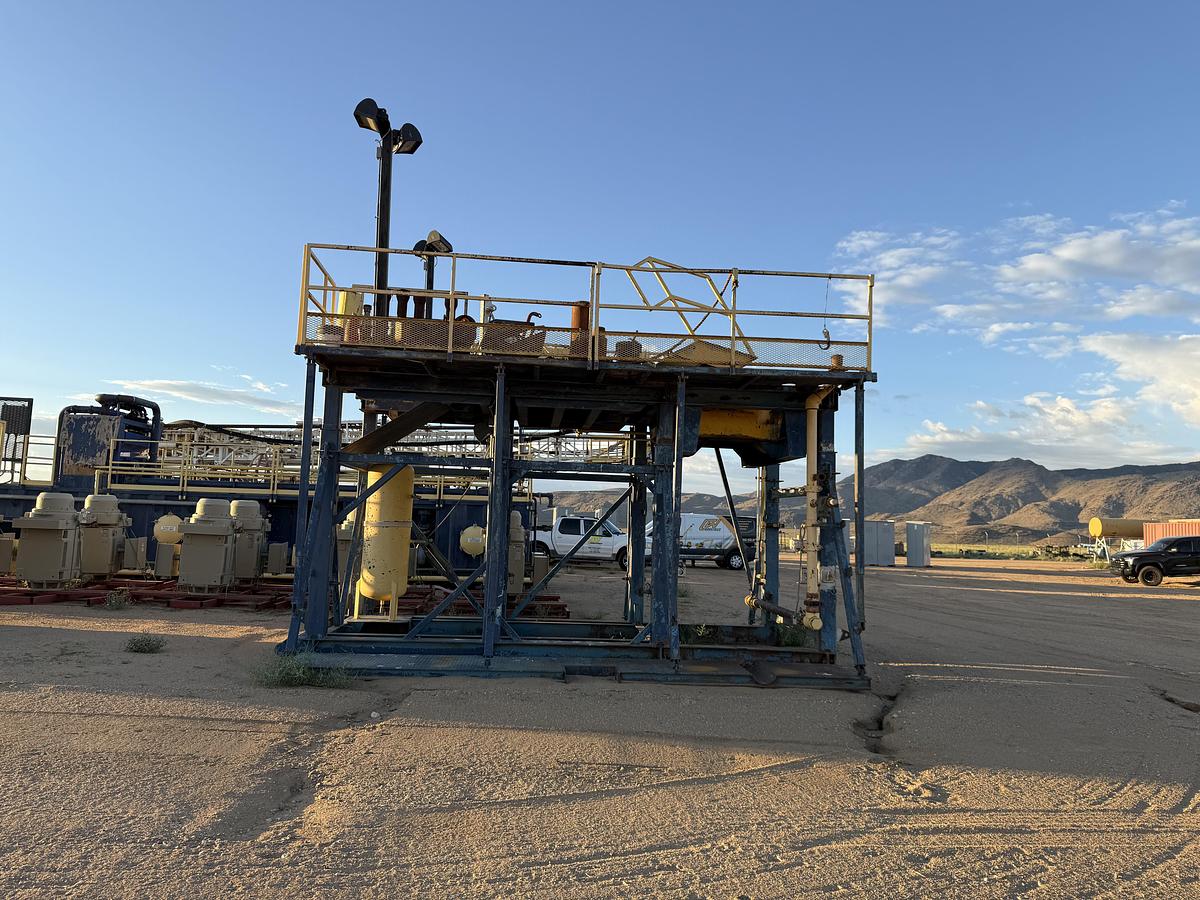

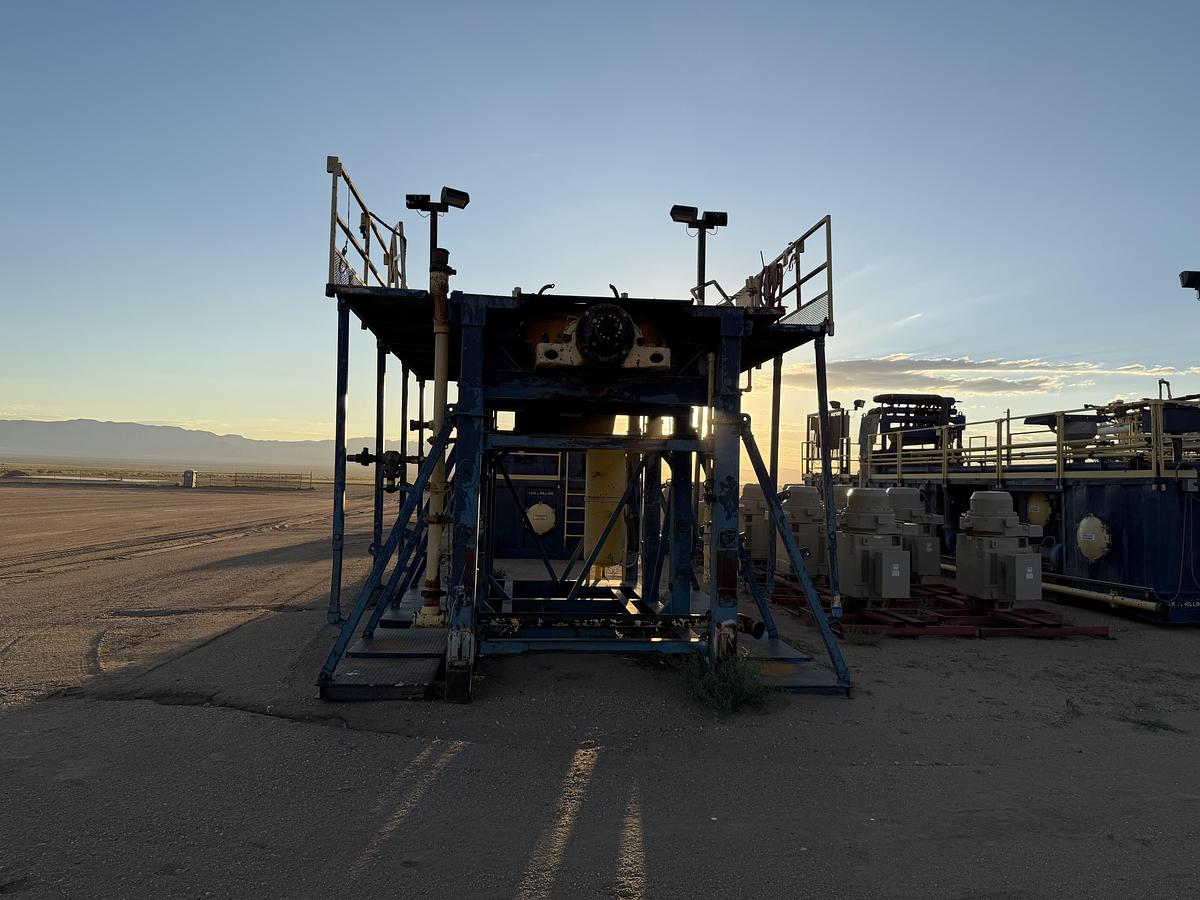

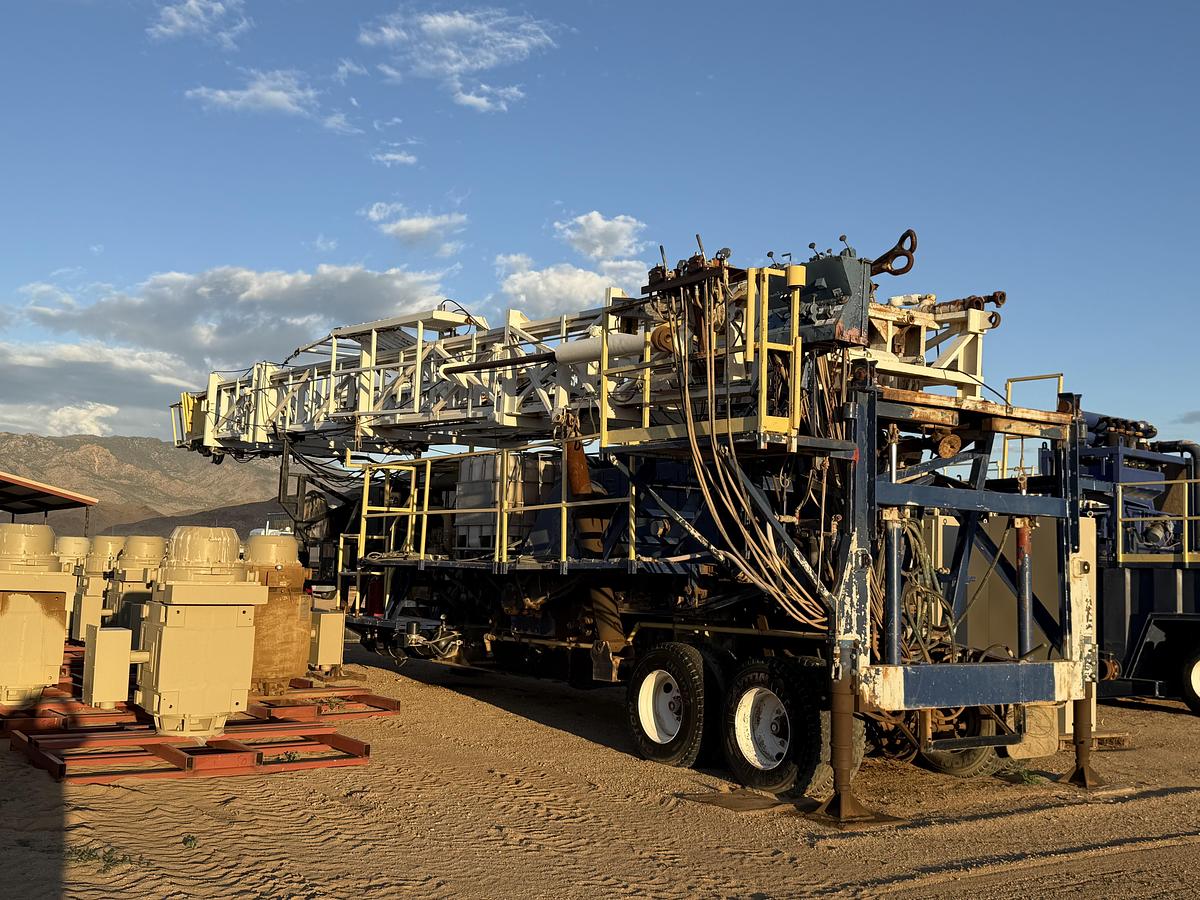

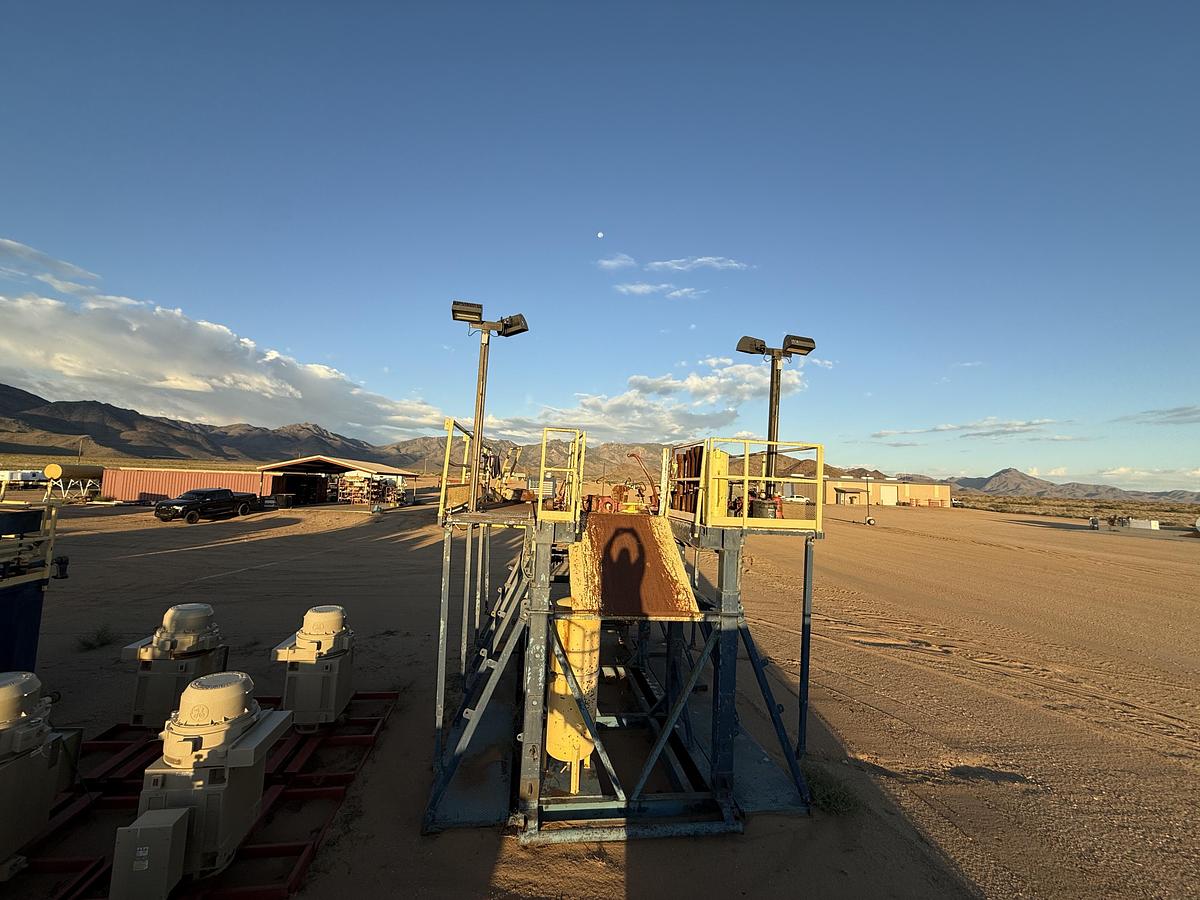

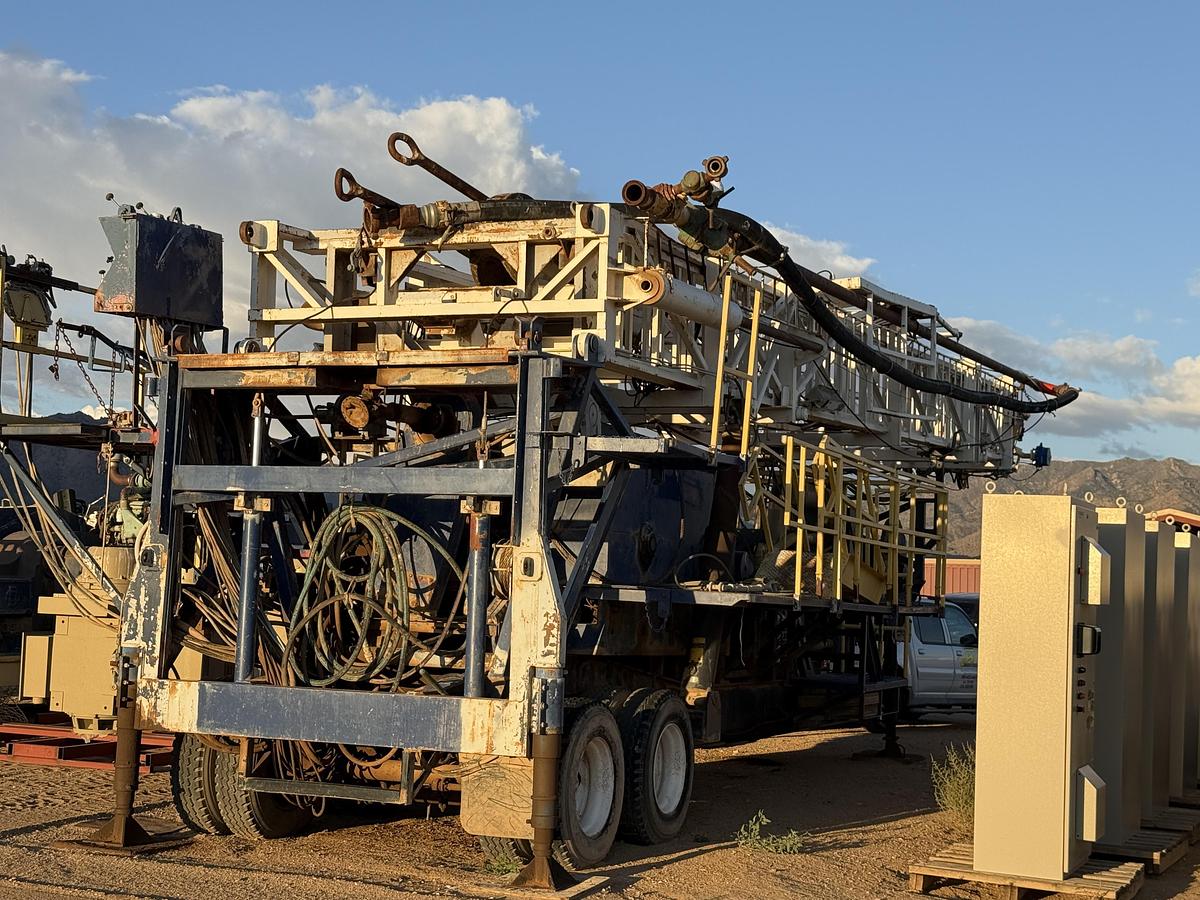

Hopper 102' X 260,000# Drilling Rig with Subbase

CAT IV Performed in 2017.

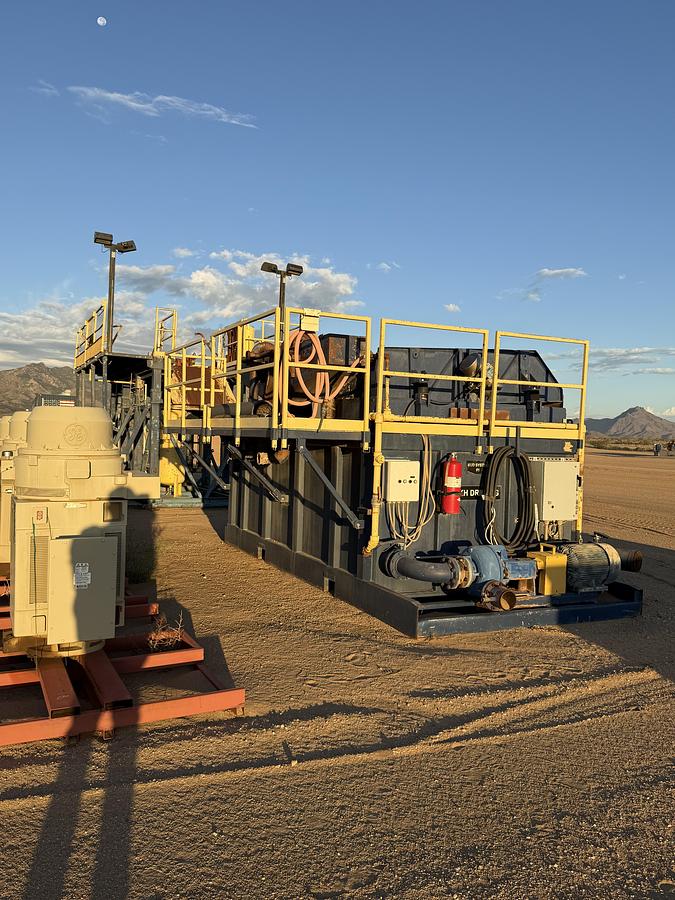

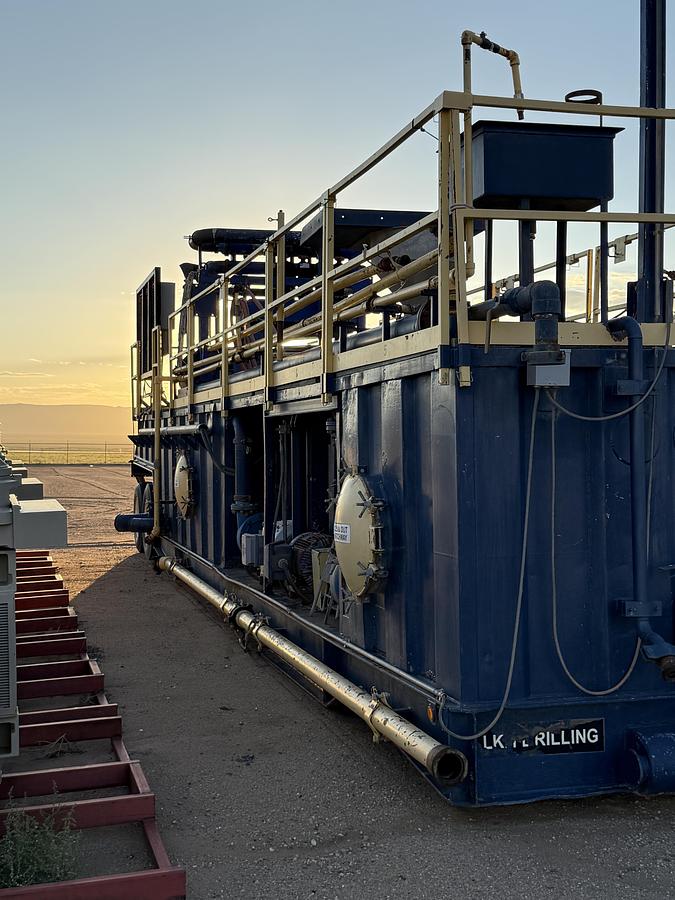

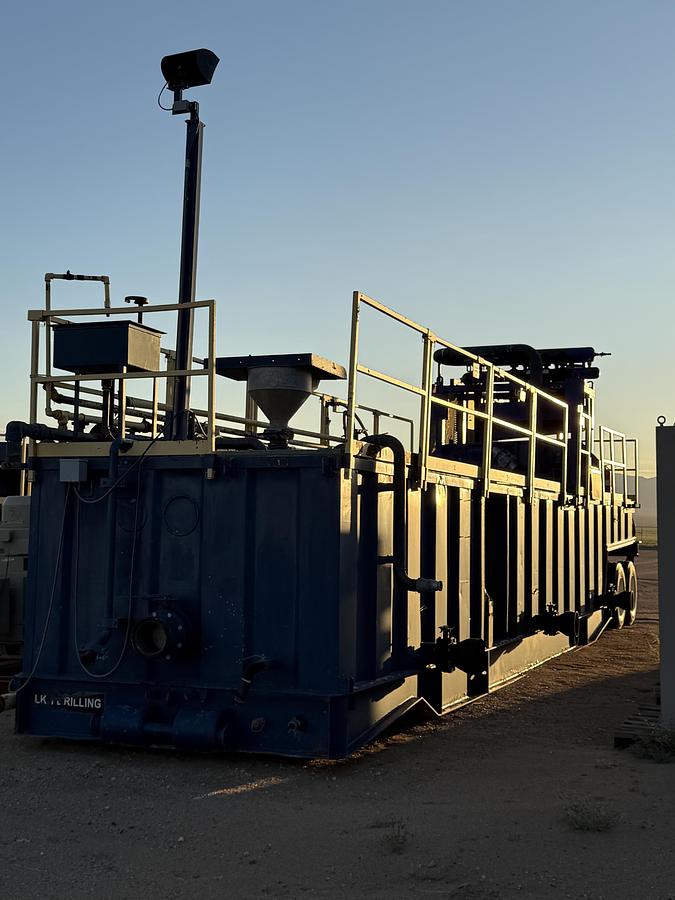

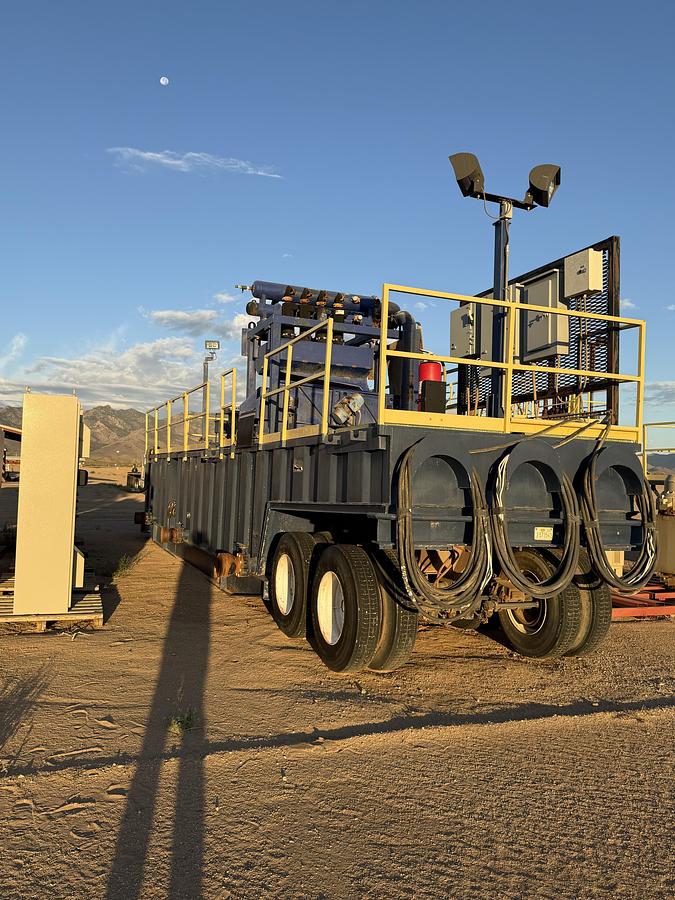

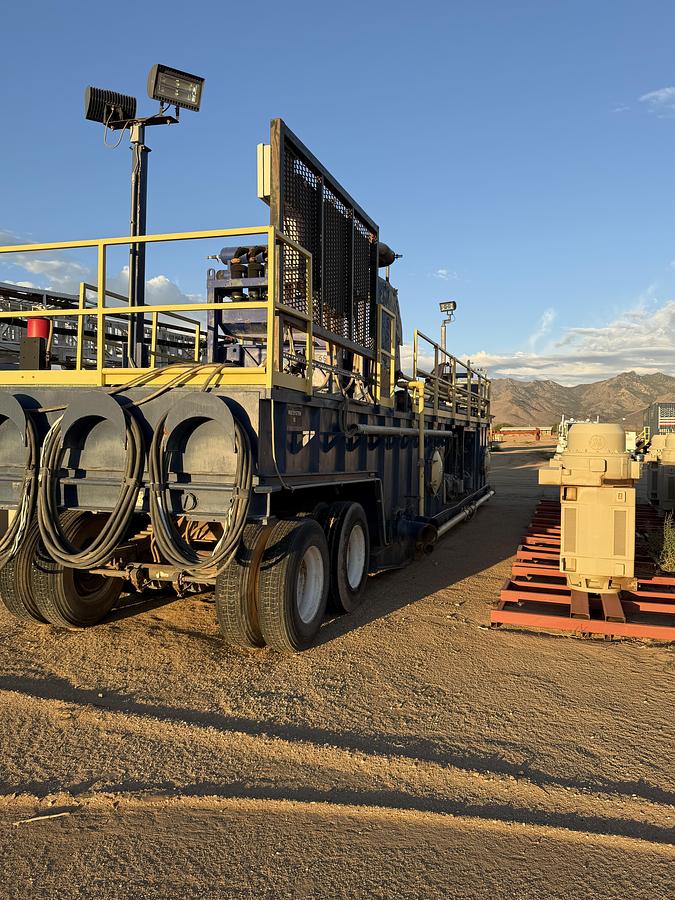

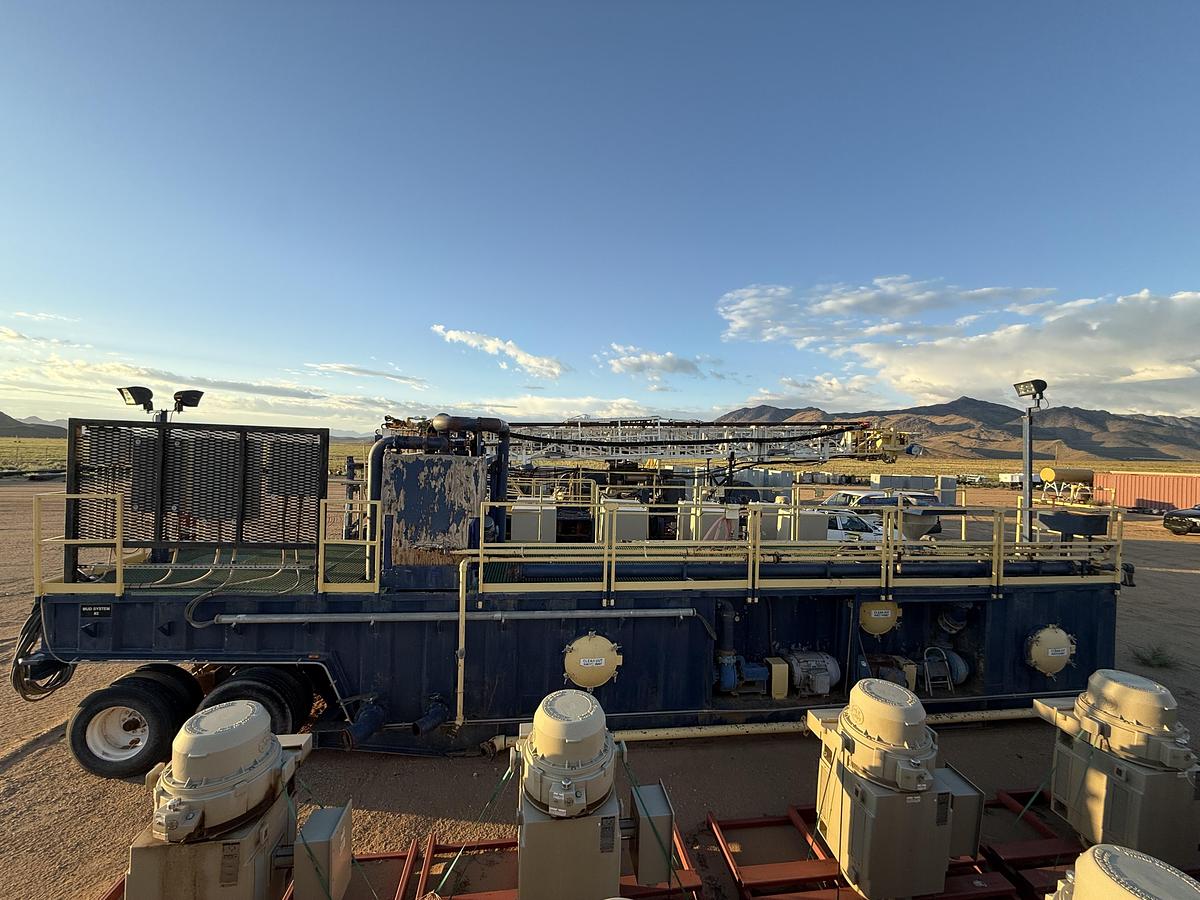

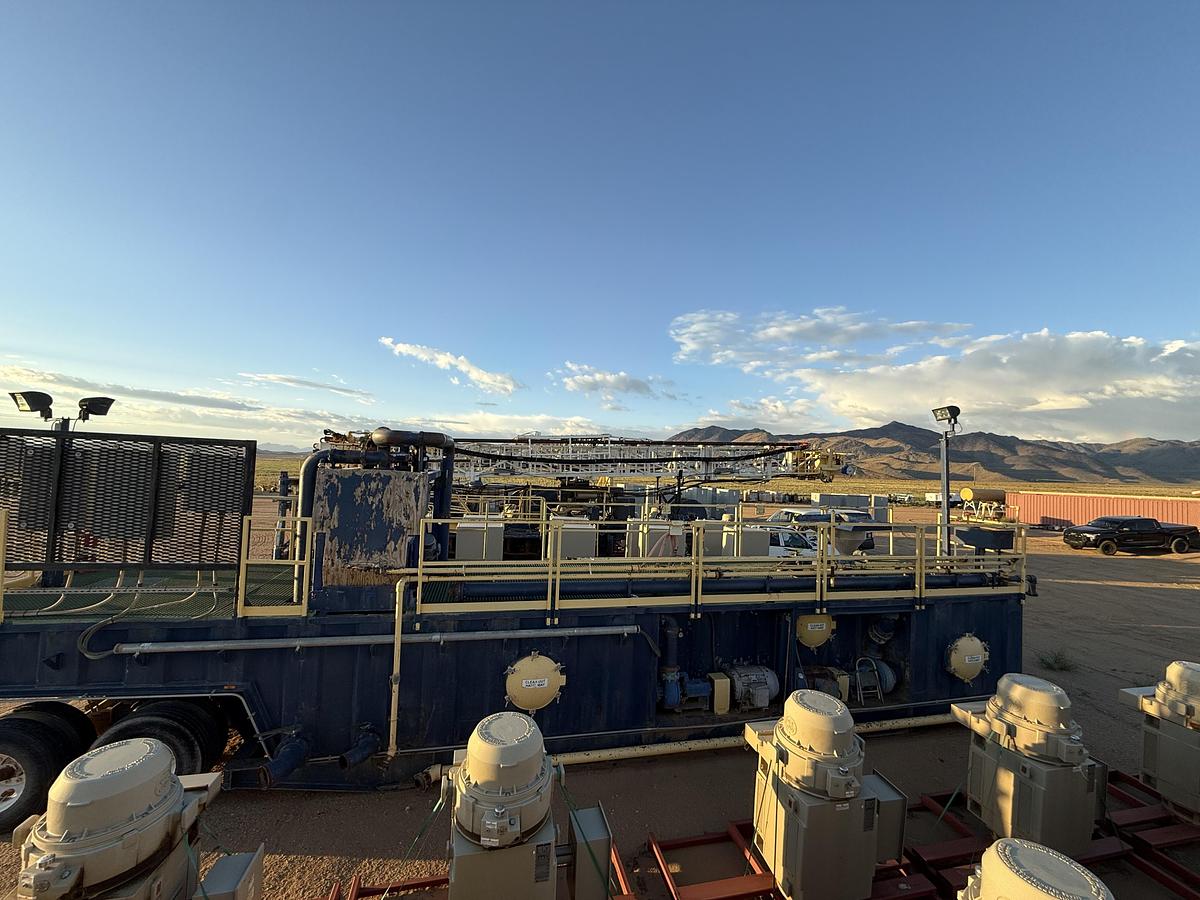

MUD PIT: TRAILER MOUNTED TANK EQUIPED WITH HYDRAULIC LANDING GEAR, TWO CENTRIFUGAL PUMPS, GUN LINES, MIXING LINES, WASH DOWN, ALL BUTTERFLY VALVES IN THE TANK HAVE CONTROLS FLUSH WITH DECK, HOPPER, MUD CLEANER, MUD DOCK, TWO BULKHEADS CREATING THREE SECTIONS.

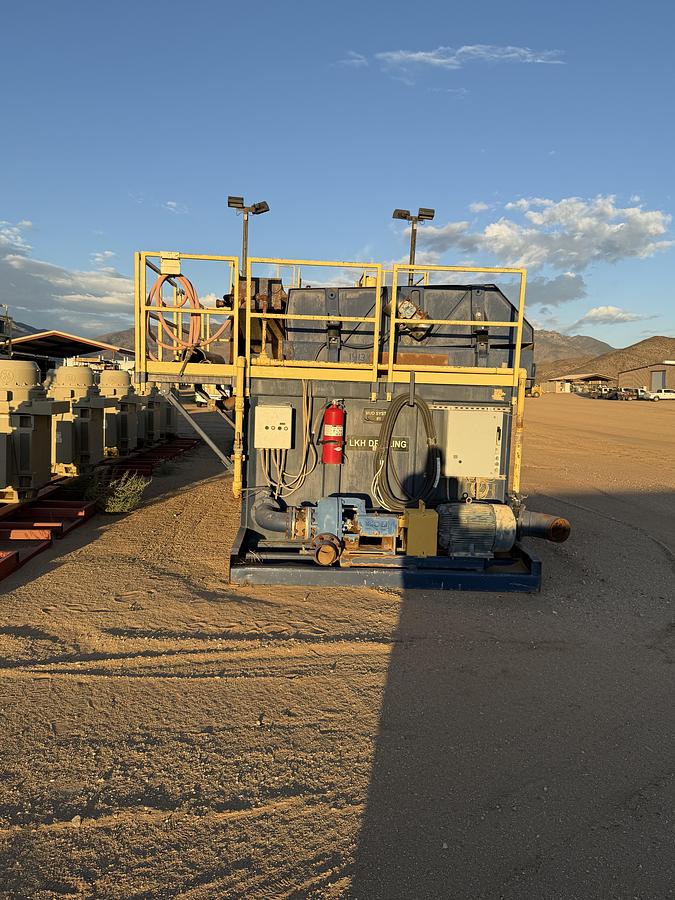

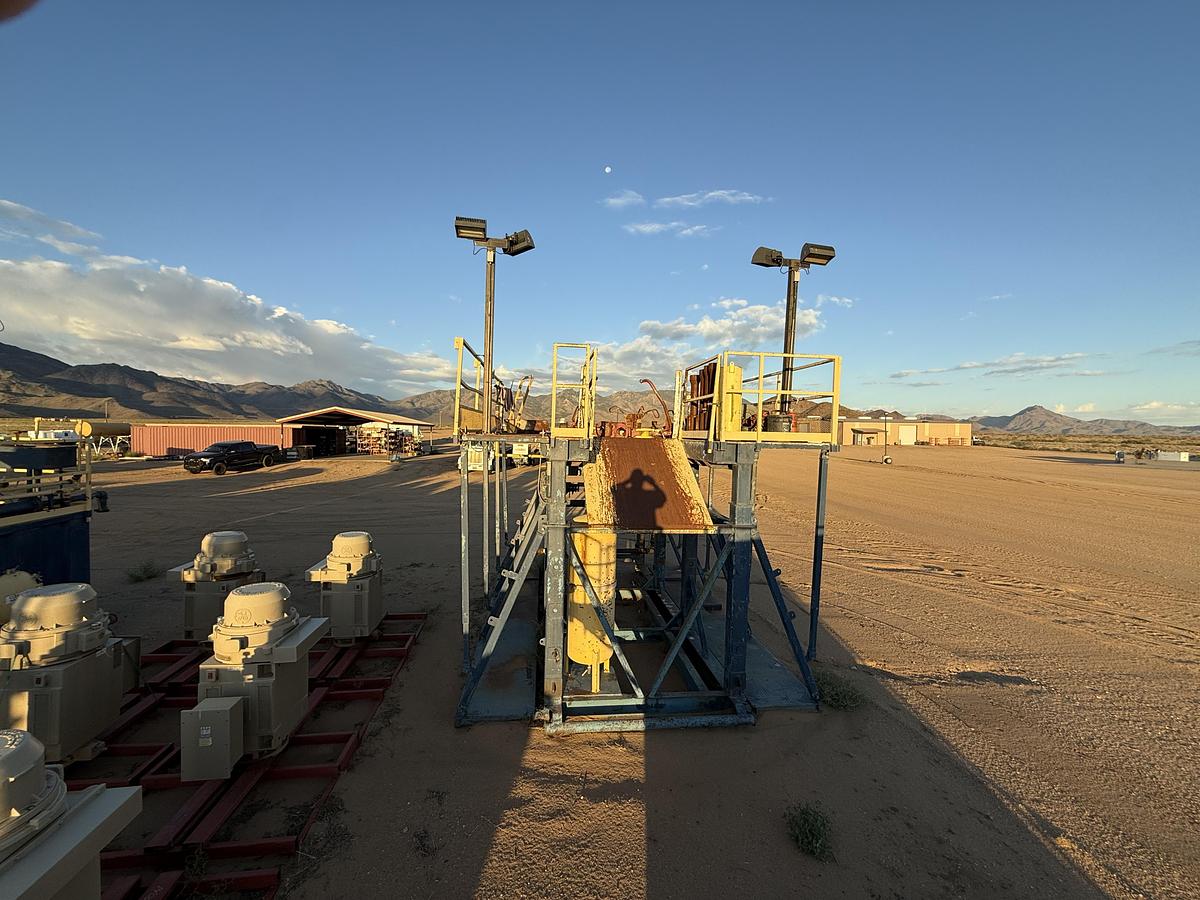

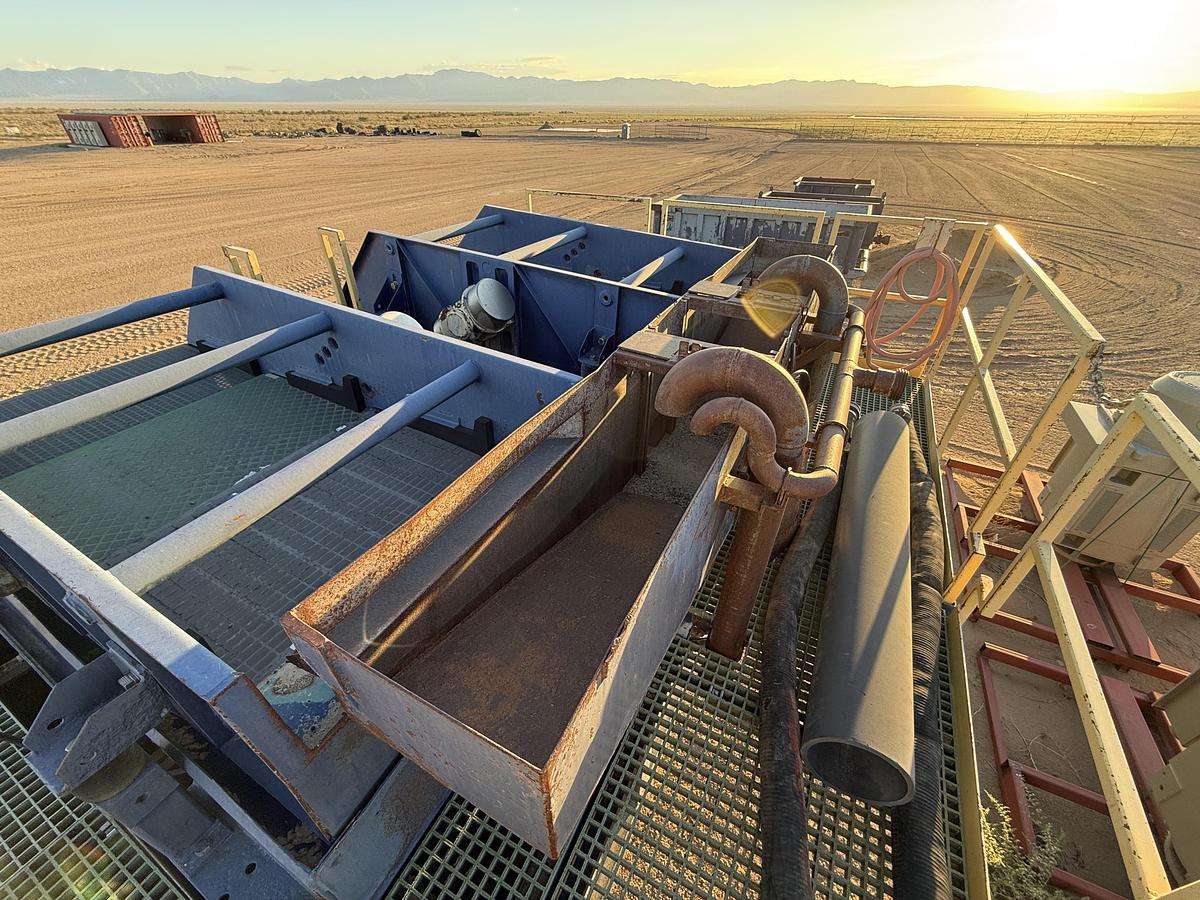

SHAKER PIT: SKID MOUNTED TANK WITH TWO SHAKERS, “T” BOX AND A CETRIFUGAL PUMP.

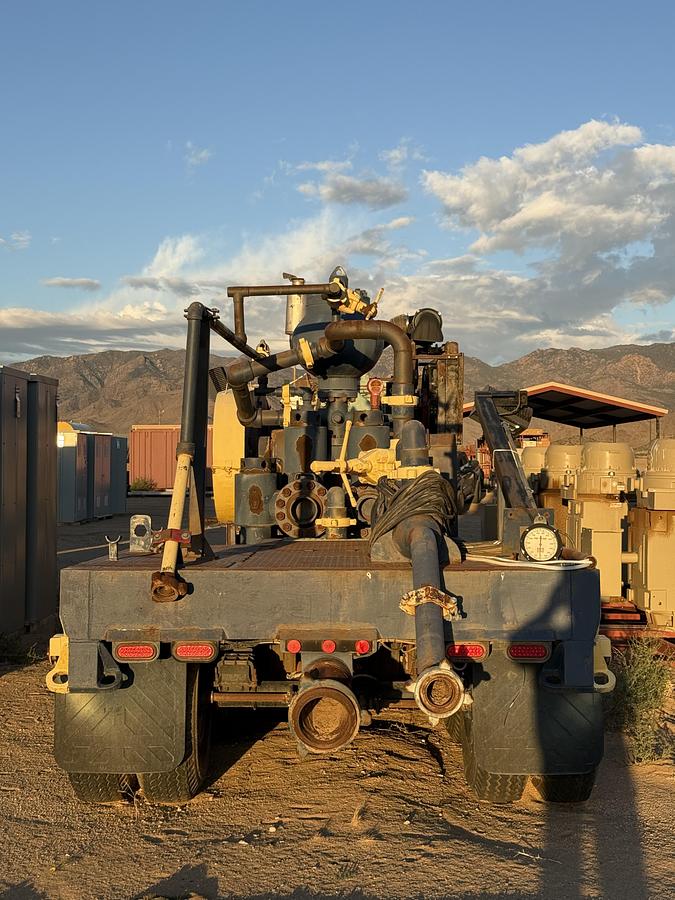

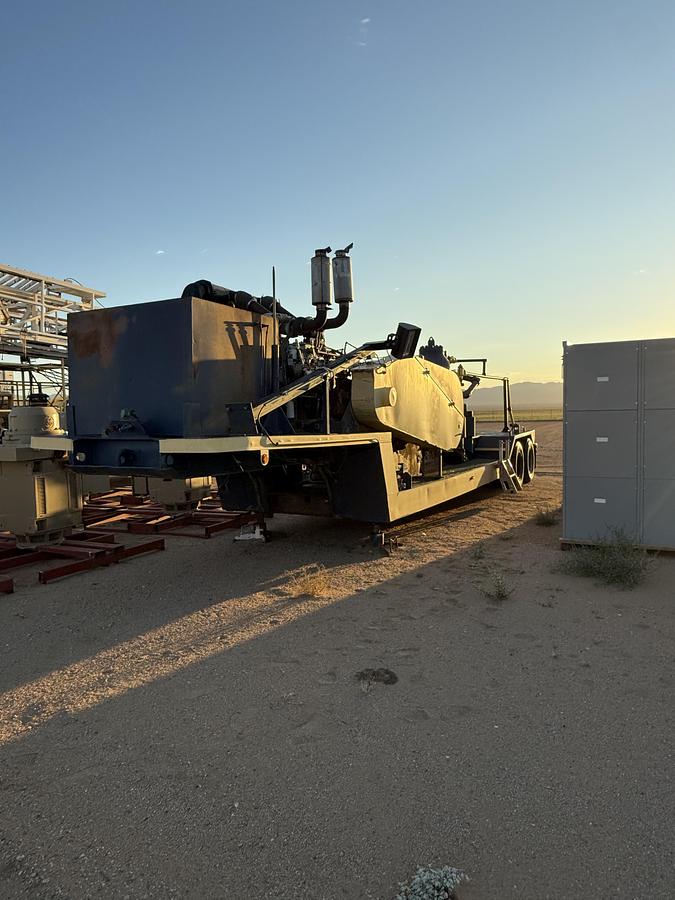

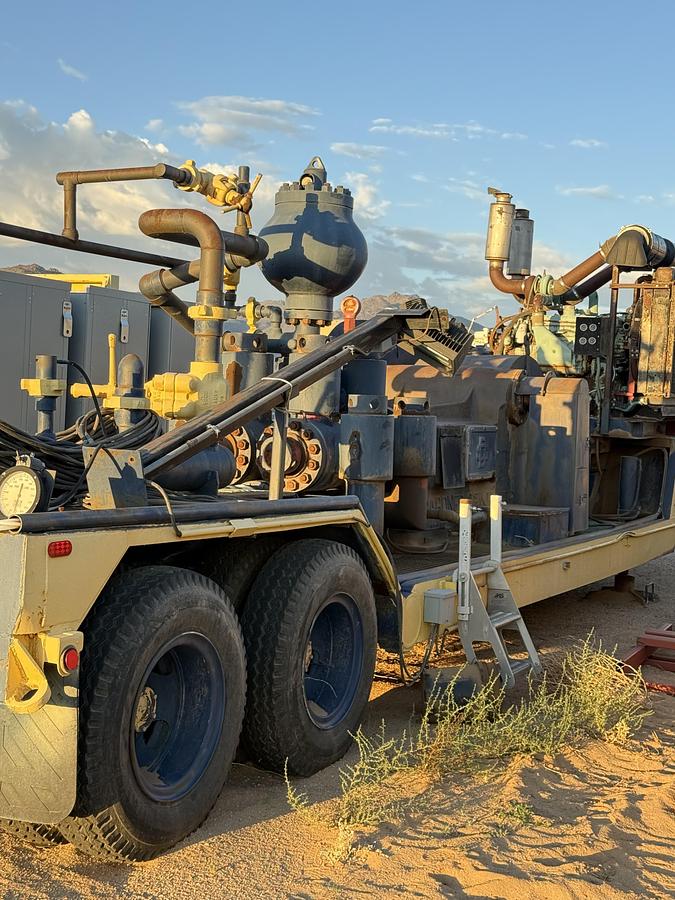

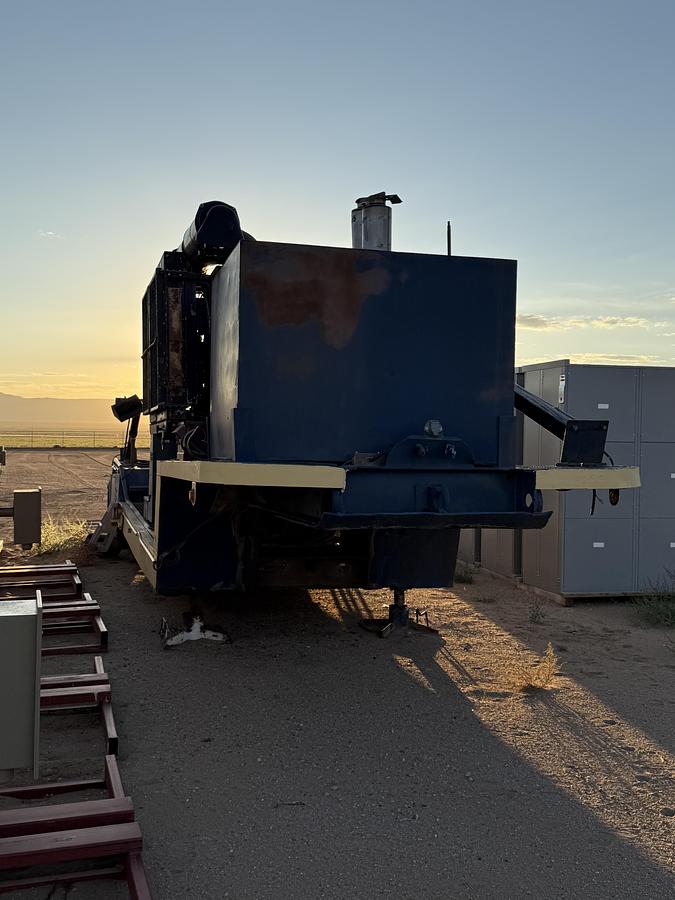

MUD PUMP: TRAILER MOUNTAINED GARDNER DENVER DUPLEX PUMP DRIVEN BY TWO DETRIOT DIESELS CONNECTED THROUGH A COMPOUND DRIVE.

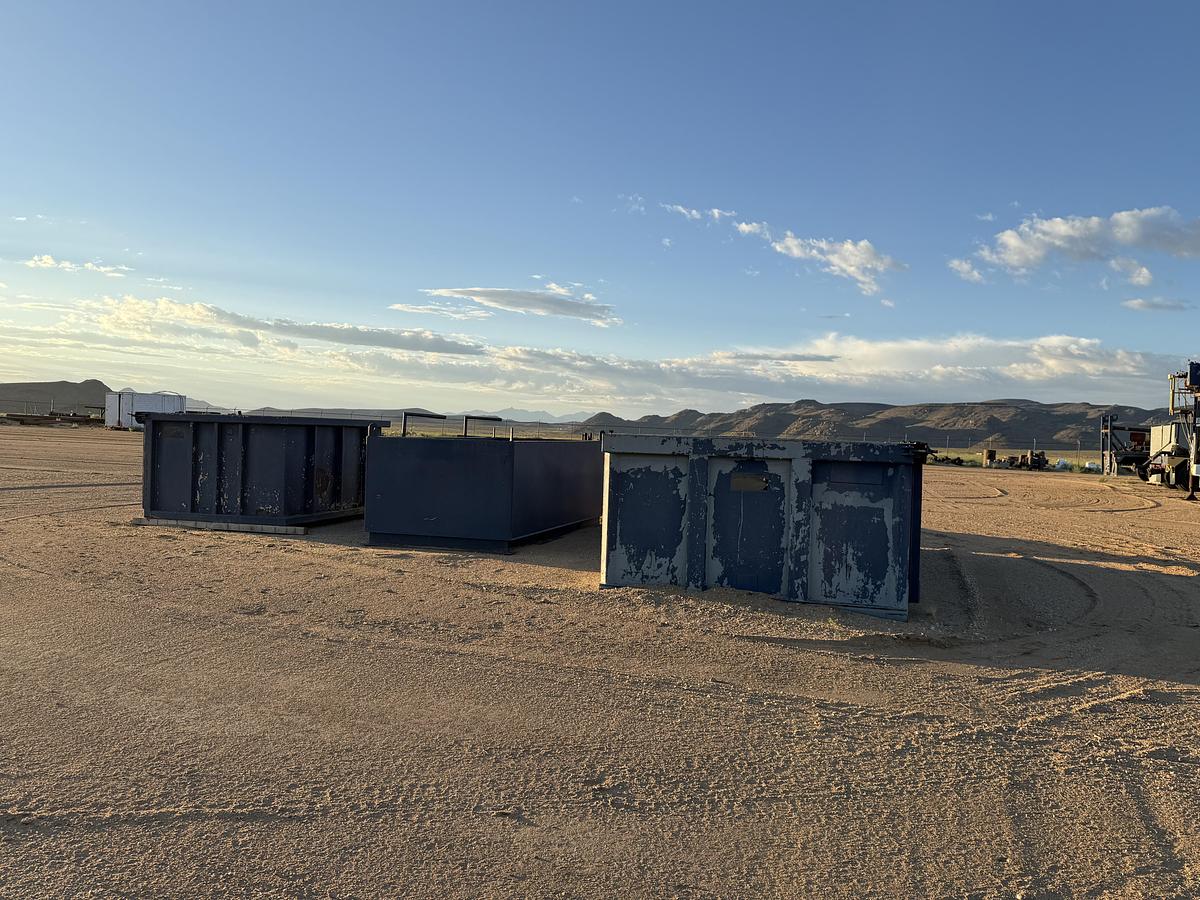

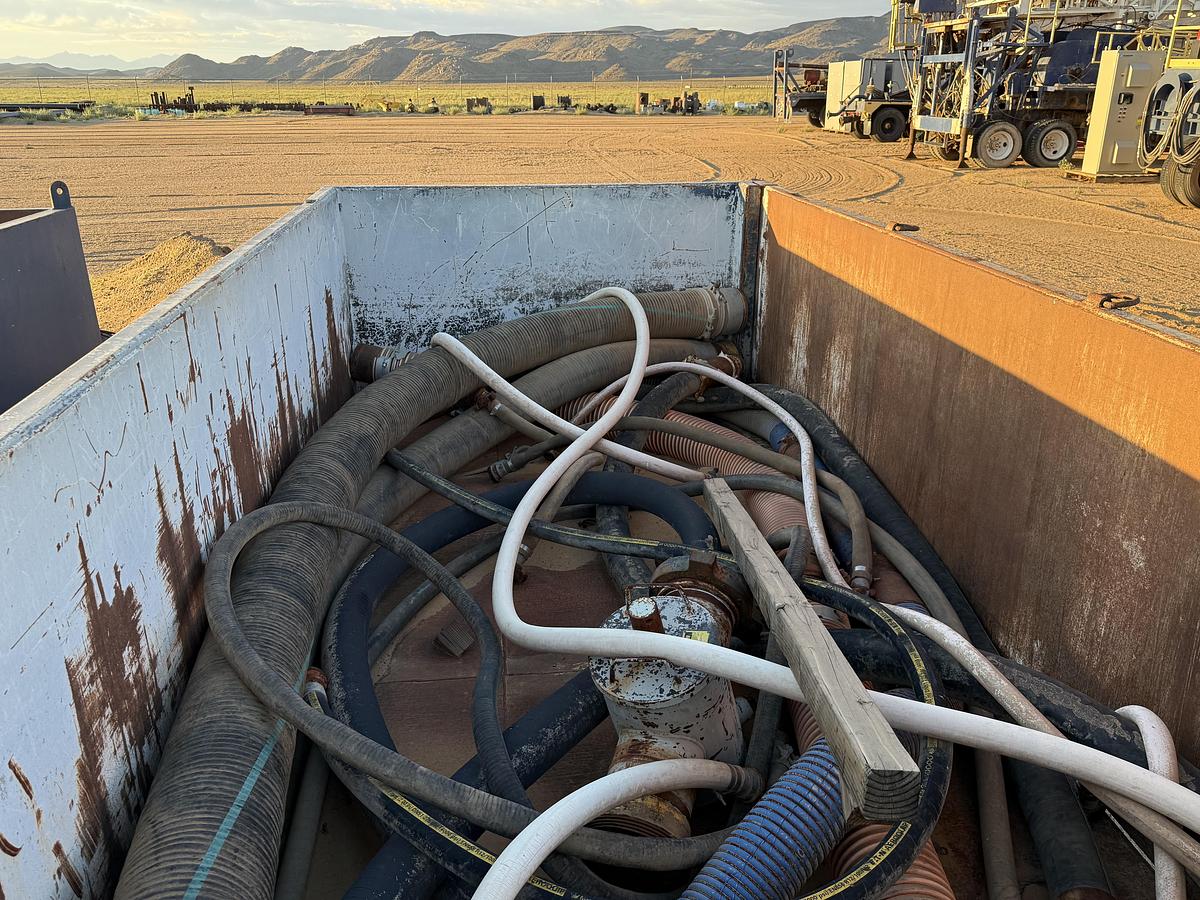

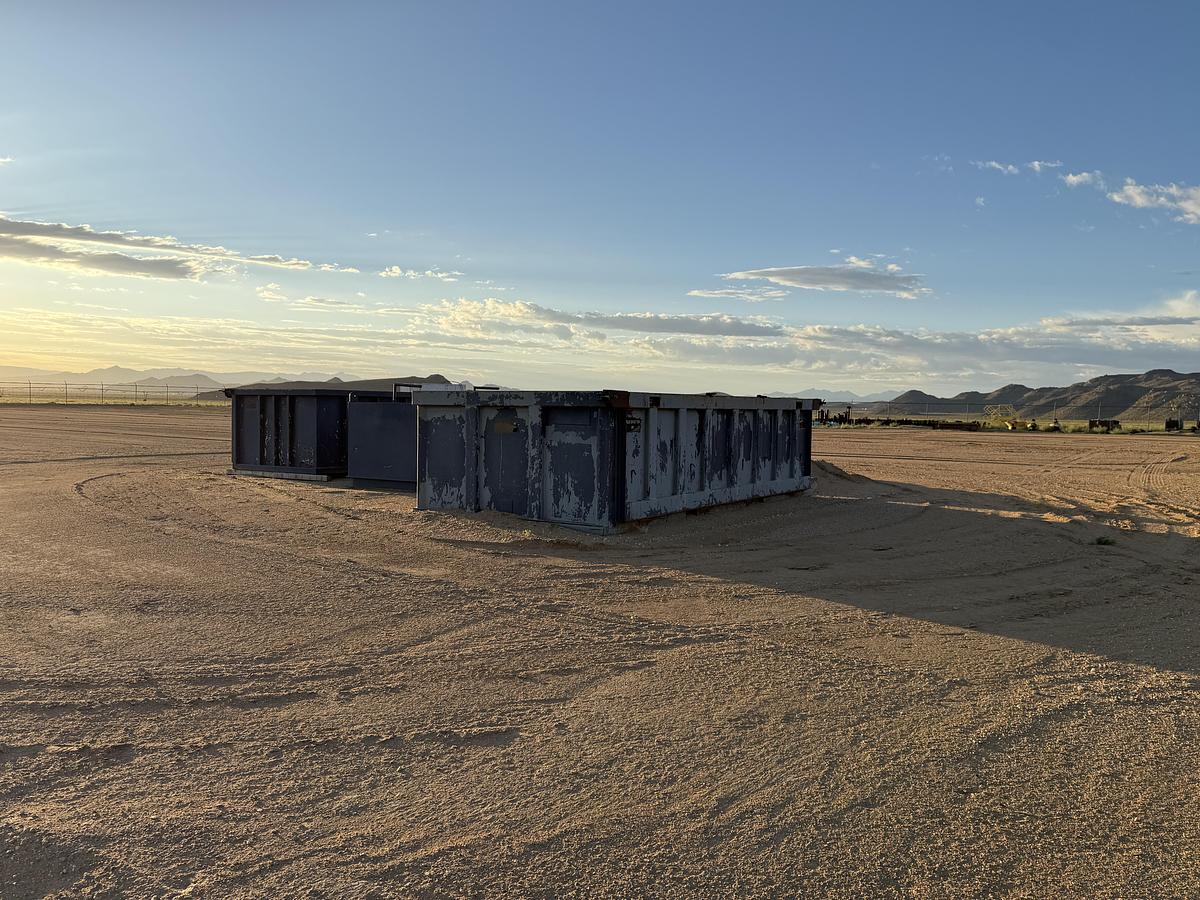

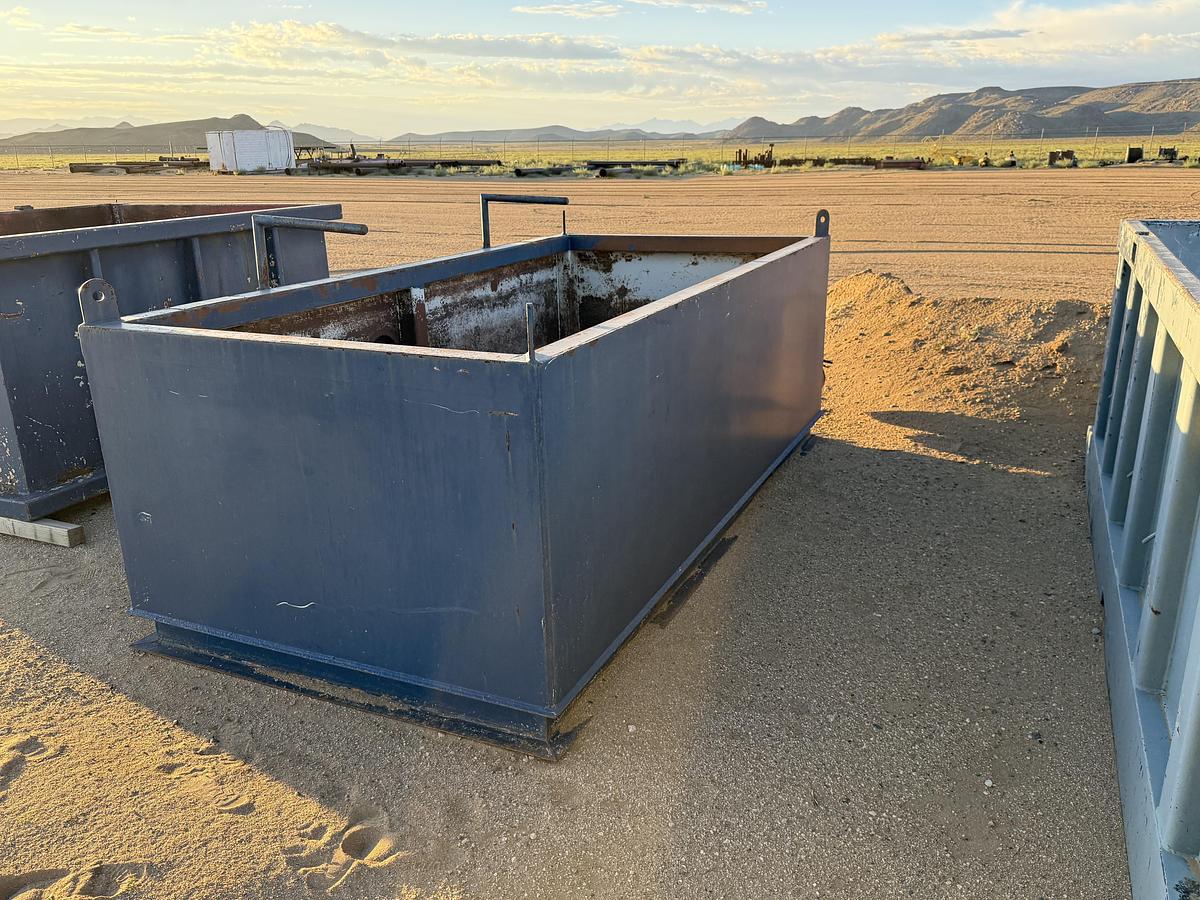

CUTTINGS BINS: THERE ARE THREE TANKS. ALL THREE ARE CLEAN, THE LARGEST HAS A FOLD DOWNSIDE; THERE IS NO GASKET ON THE FOLD DOWN DOOR AND THEREFORE IS NOT LIQUID TIGHT. THE LAGEST TANK HAS MULTIPLE HOSES AND A “ROCK BOX” STORED IN IT. THE SMALLEST TANK HAS TWO MUD PUPPIES AND SLIDES FOR THE SHAKERS AND MUD CLEANER STORED IN IT. THE HYDRAULIC HOSES TO THE MUD PUPPIES ARE IN POOR CONDITION.

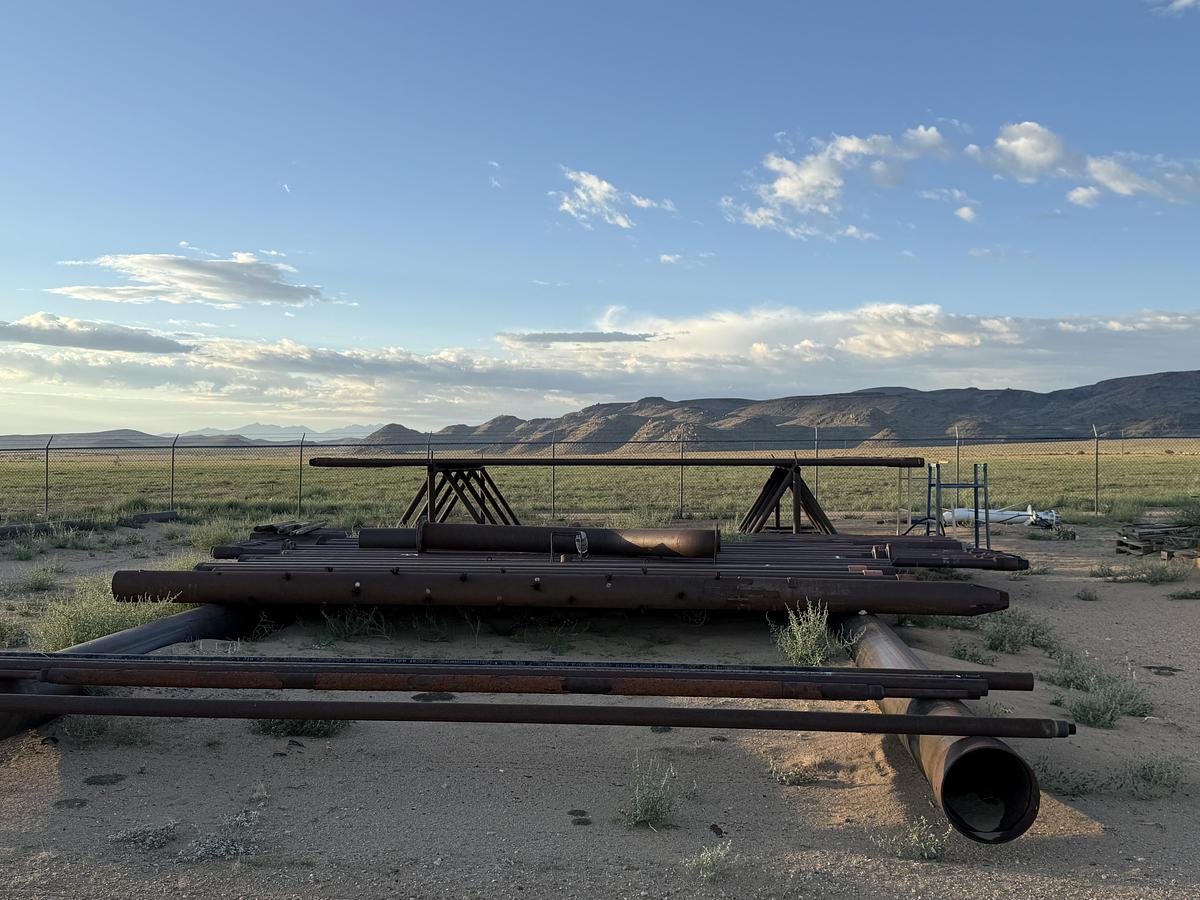

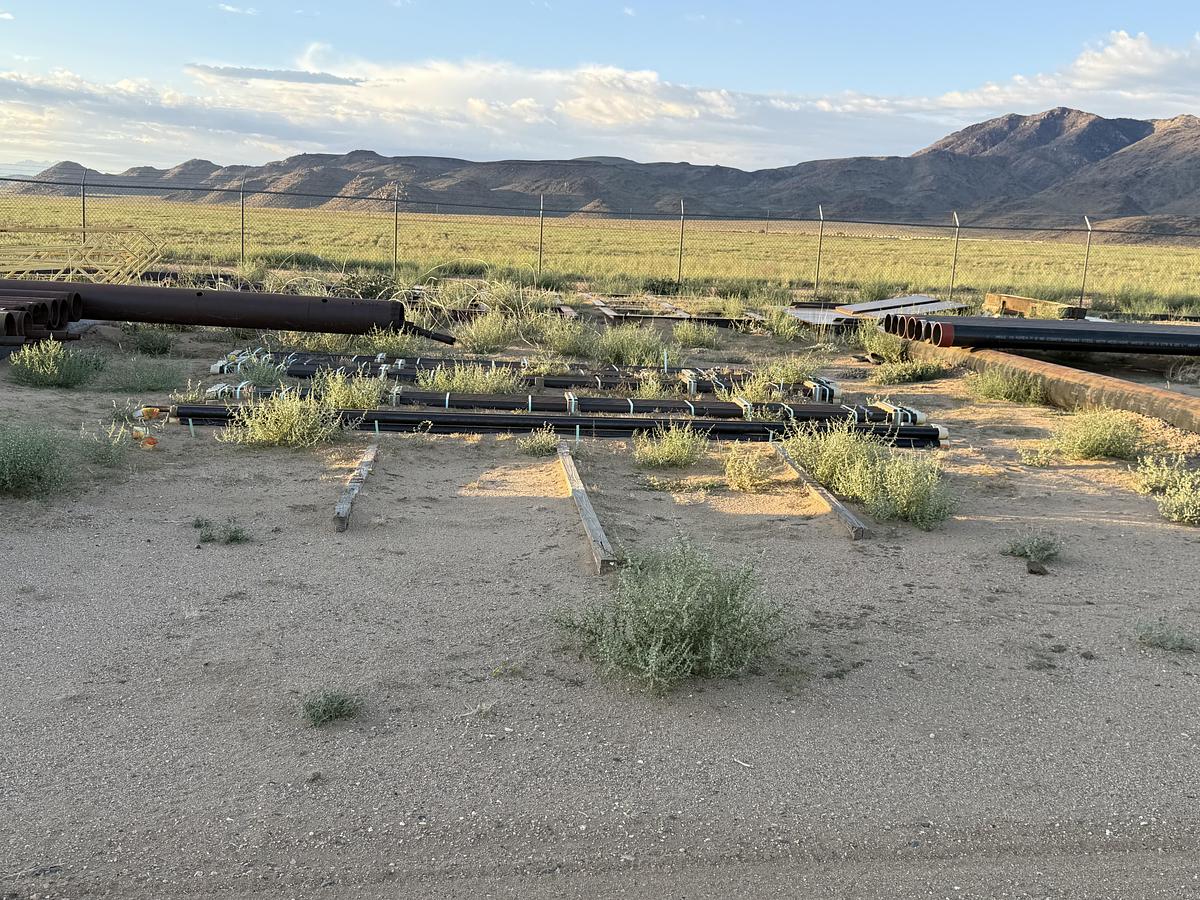

PIPE TRAILER; 45’ FLATBED TRAILER WITH SLIDING TANDEM AXLES, HEADBOARD WITH LAYDOWN LINE ATTACHED, RAISED ADJUSTABLE TAIL ROLLER, AND PIPE STAKES. TRAILER IS LOADED WITH APPOXIMATELY 900’ OF 4 ½’ DRILL PIPE, 5 ¼” HEX KELLY PIPE, KELLY BUSHING, MOUSE HOLE PIPE AND RAT HOLE PIPE.

45’ FLATBED TRAILER: 1984 AZTEC PRODUCTS, INC. 75,000# GVWR.

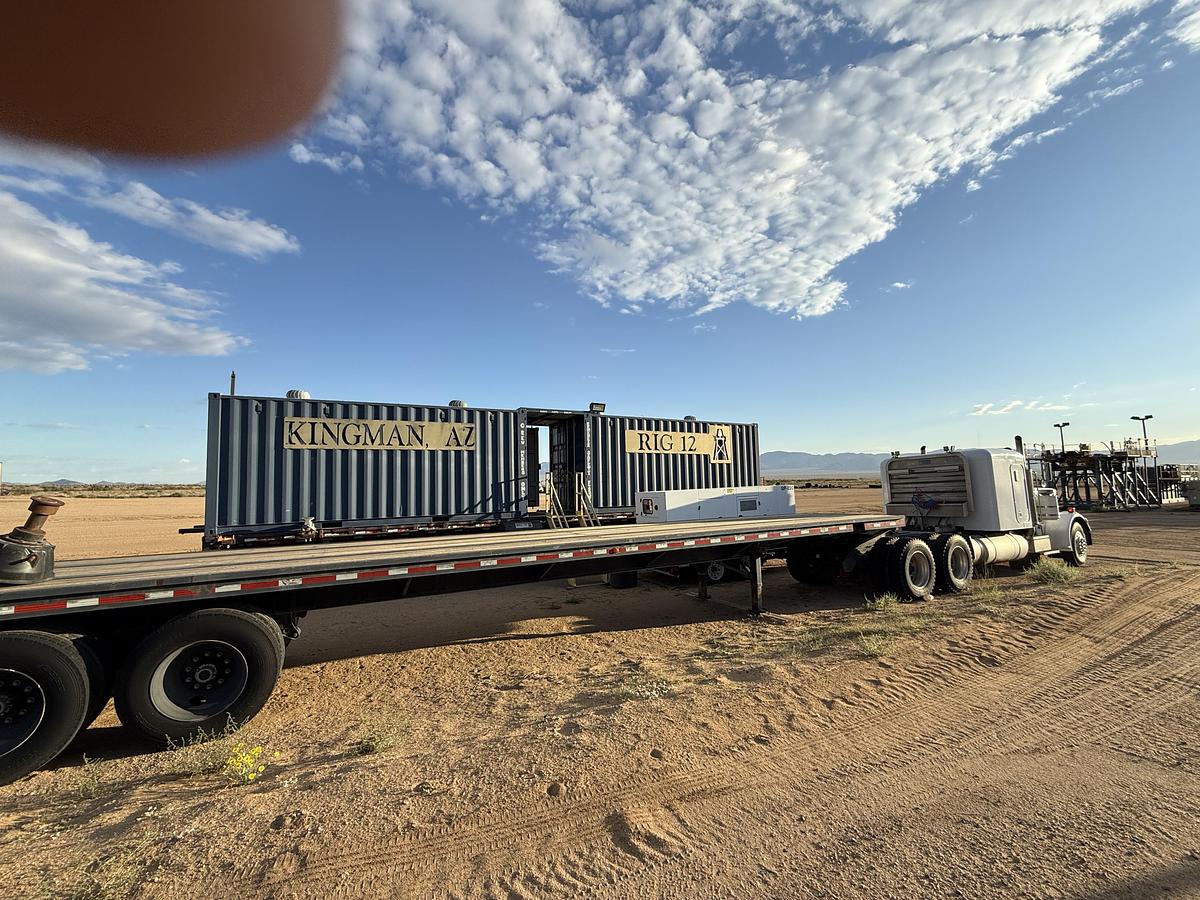

DOGHOUSE TRAILER:  1997 UTILITY TRAILER, 45’ FLATBED WITH SLIDING ALXLES. 80,000# GVWR. THE TRAILER HAS TWO 20’ SHIPPING CONTAINERS INSTALLED, ONE BEING USED AS A TOOL ROOM AND THE OTHER AS A DOGHOUSE. THE TRAILER IS ALSO EQUIPED WITH WORK LIGHTS, AN AIR CONDITIONER IN THE DOGHOUSE, A STAIRWAY TO ACCESS THE DECK, HOOKS FOR THE STORAGE OF HOSES AND CABLES, REMOVABLE PIPE VICE, REMOVABLE VICE AND A REMOVABLE BARBEQUE.

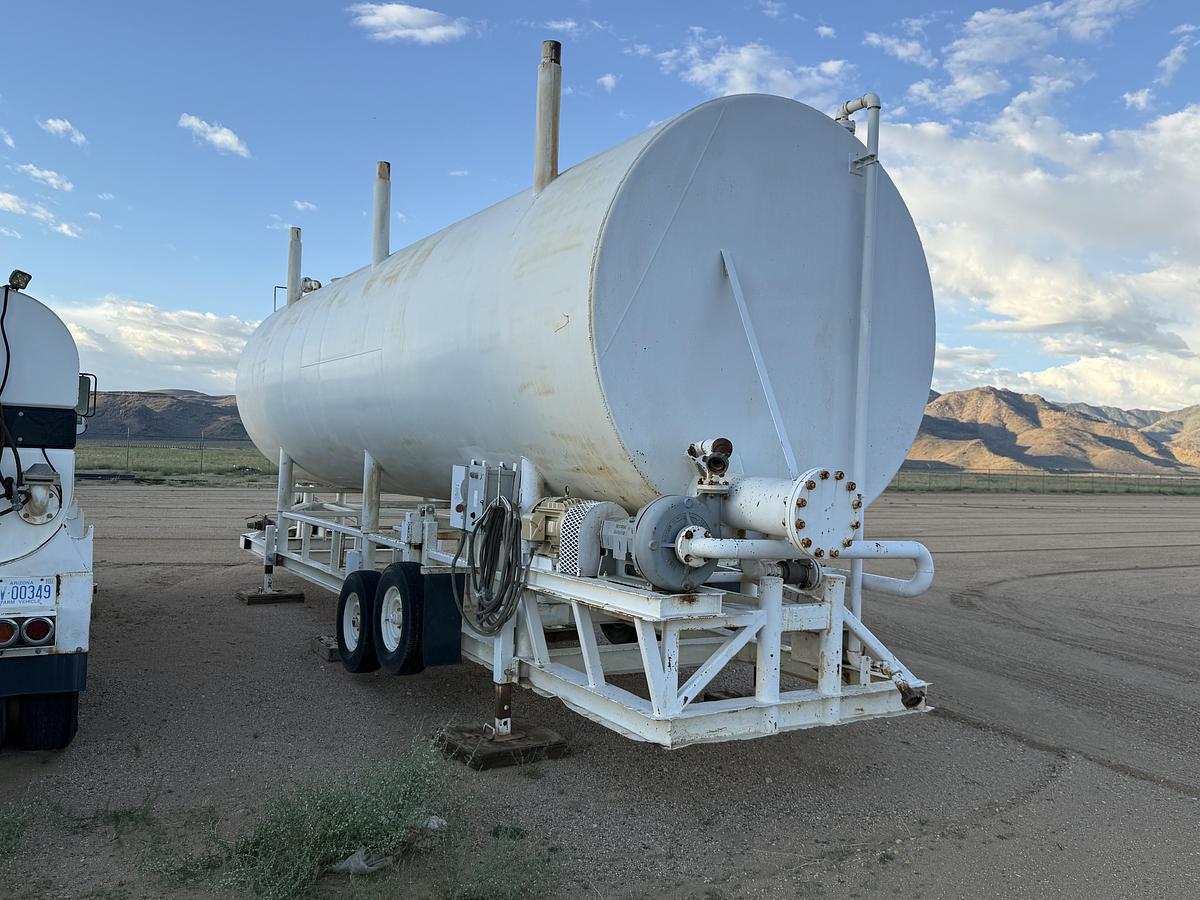

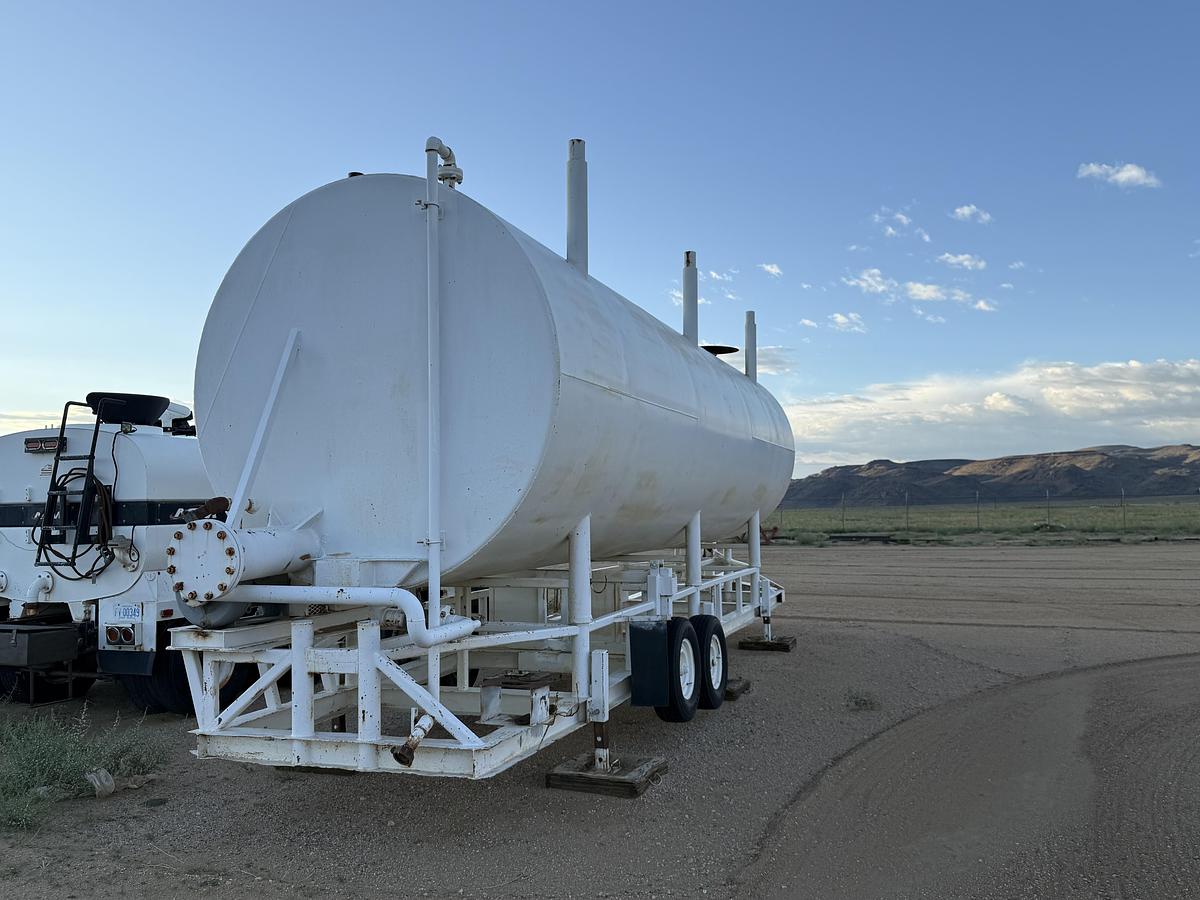

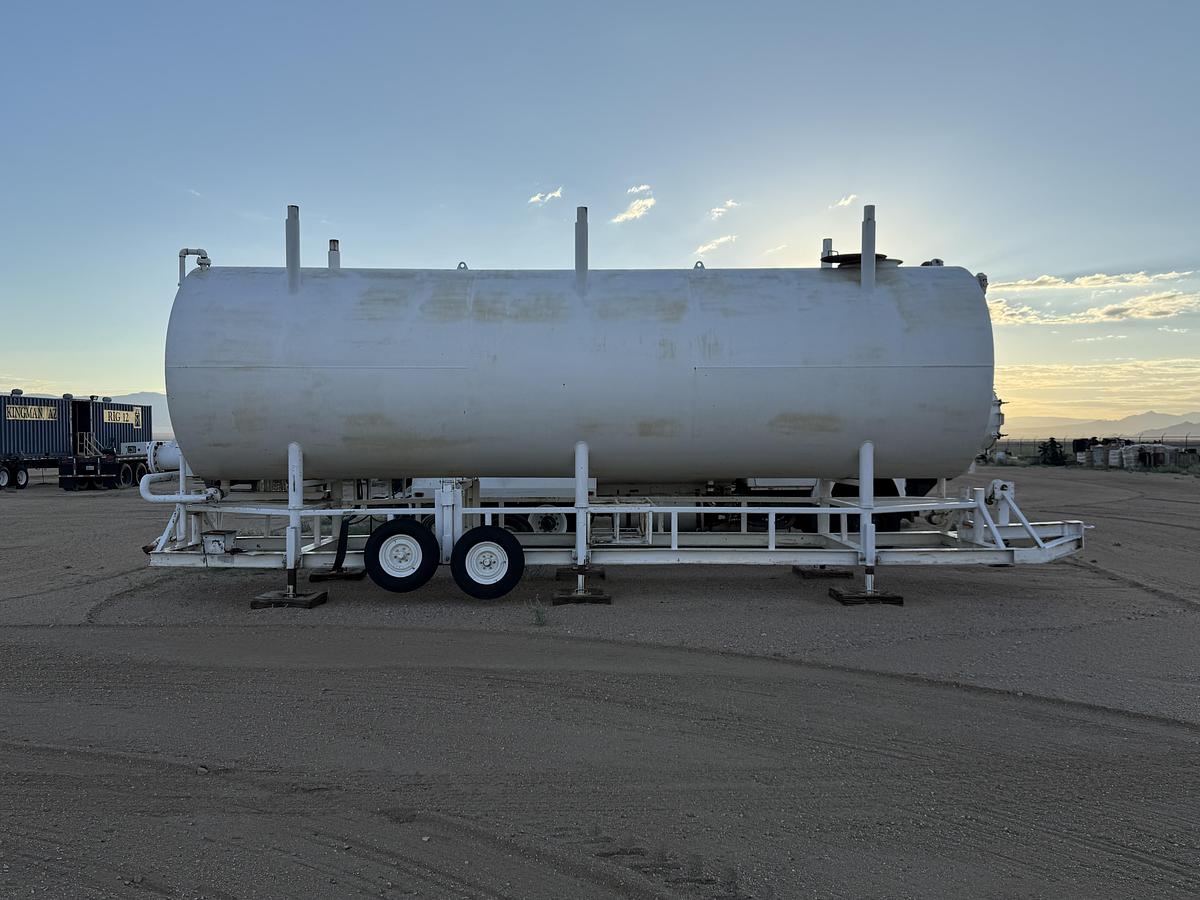

WATER TRAILER: APPROXIMATELY 10,000 GALLON WATER (8’ DIA X 28’ LONG), MOUNTED ON TWO AXLE TRAILER WITH NO BRAKES AND NO LIGHTS, TRAILER IS EQUIPED WITH A MISSION MAGNUM 2 X 3 CENTRIFUGAL TRANSFER PUMP AND 6 LEGS TO RAISE THE TANK AN ESTIMATED 8’.

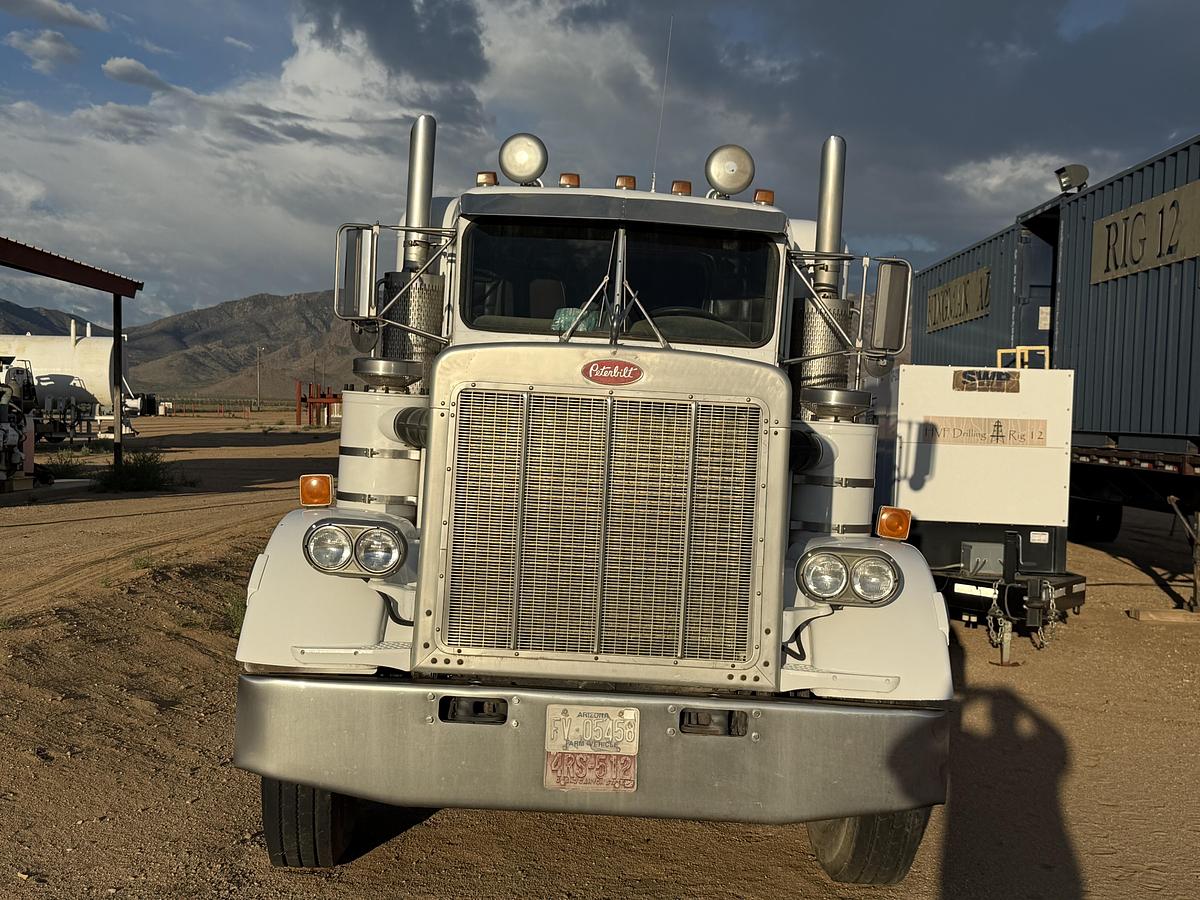

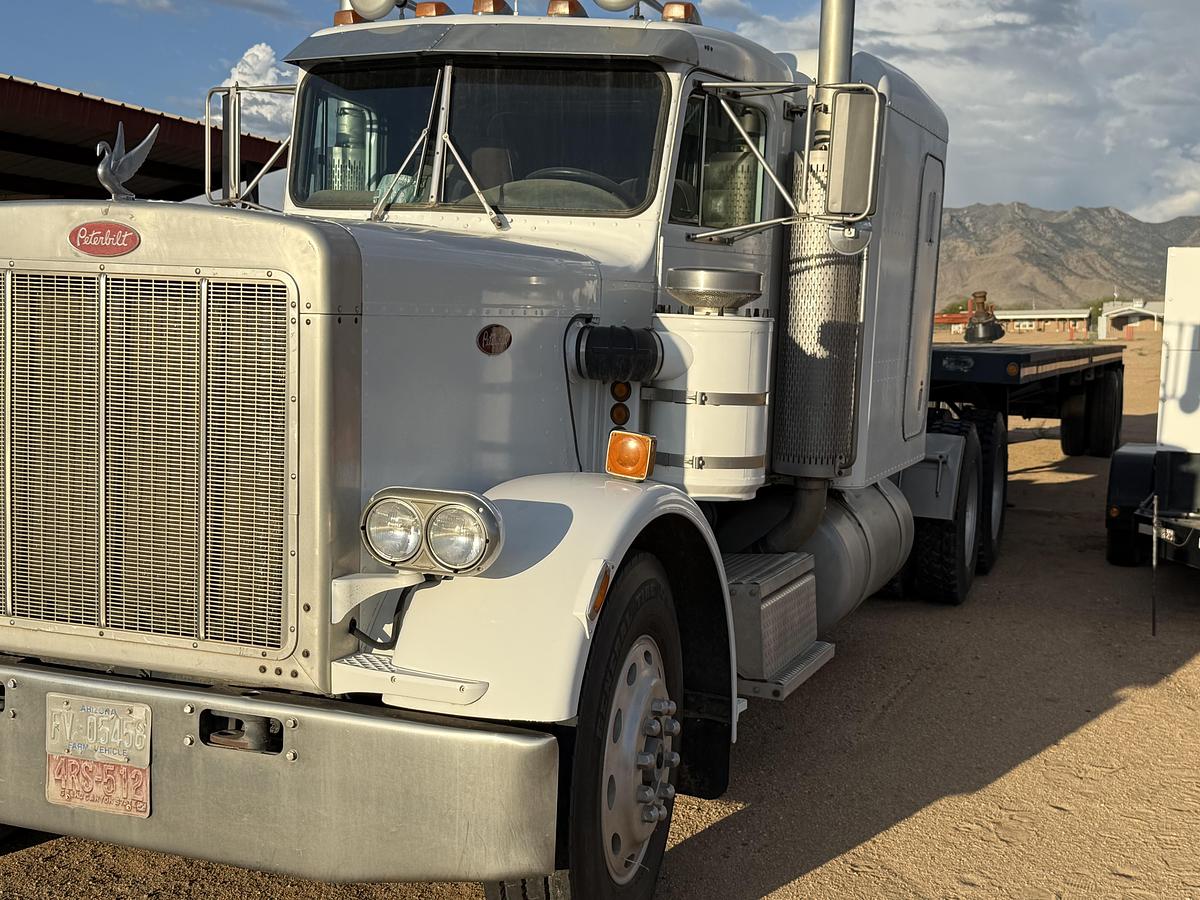

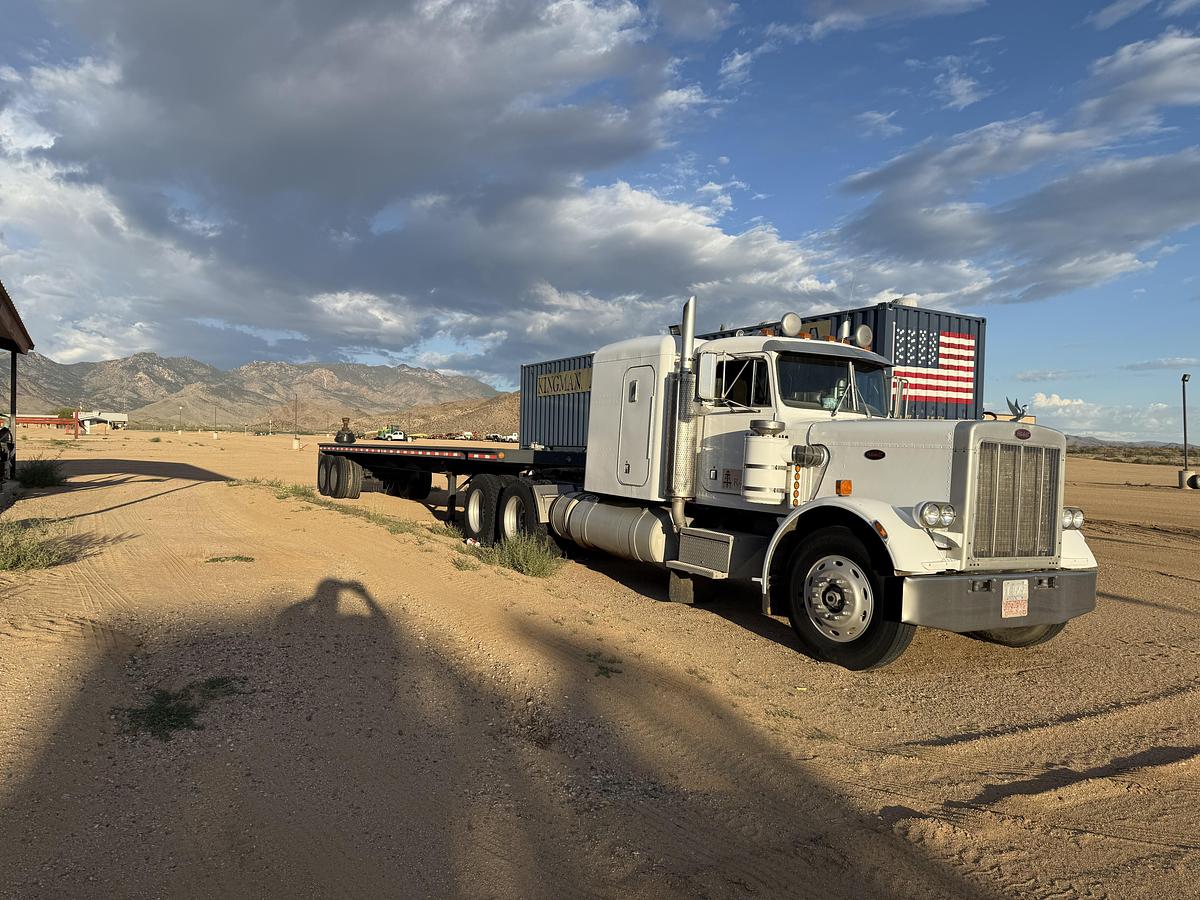

5^TH WHEEL TRACTOR; 1985 PETERBILT, 159,069 MILES, CAT 3406, WET KIT, 3 AXLE, AIR RIDE, SLEEPER CAB, RAMPED FRAME RAILS.

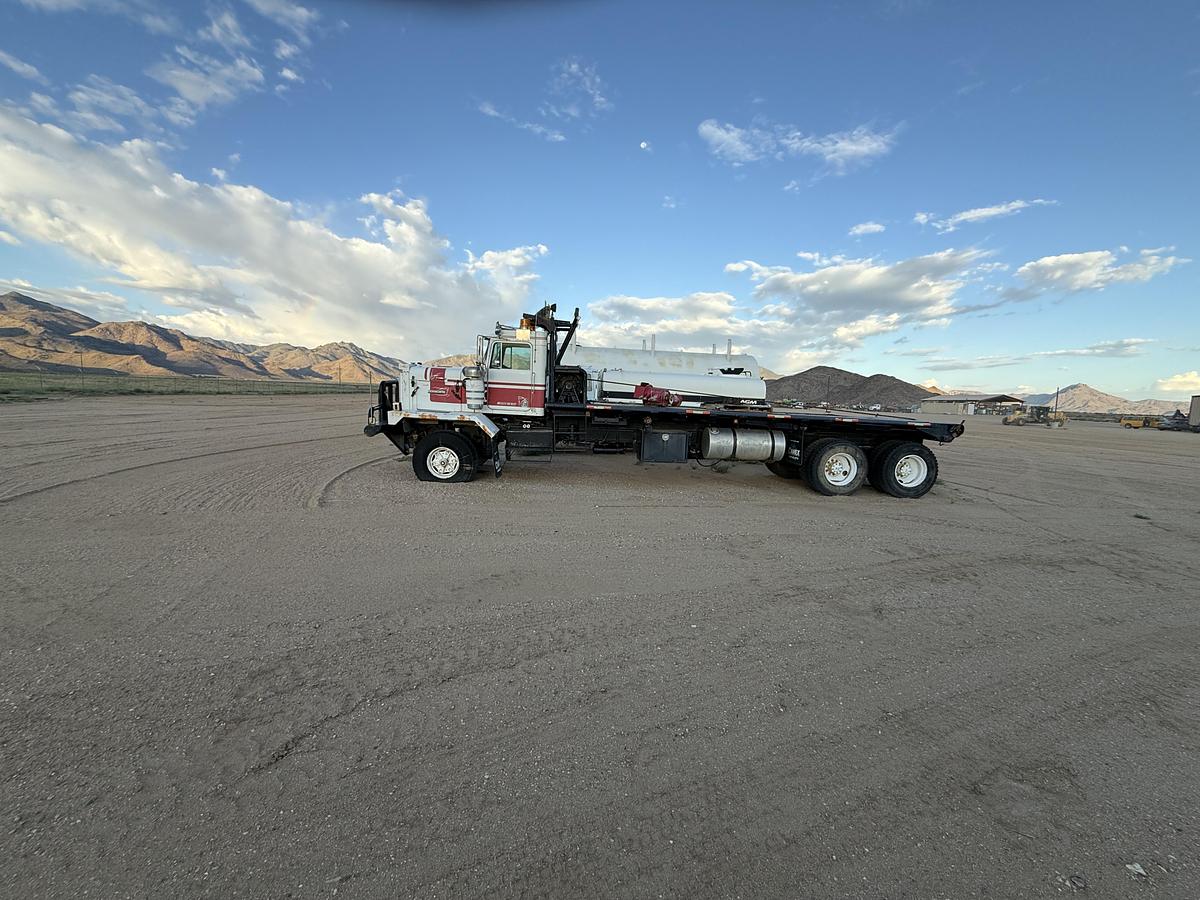

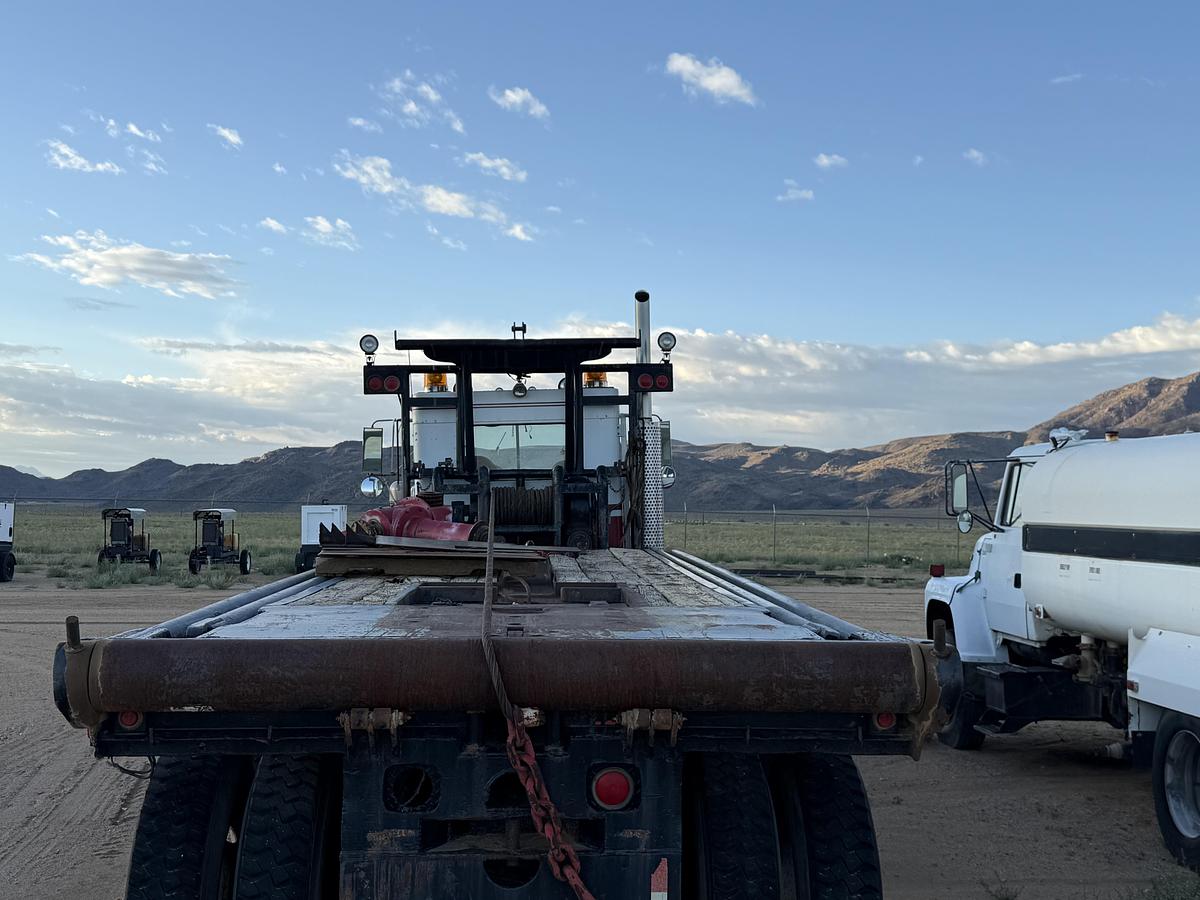

WINCH TRUCK: 1981 KENWORTH, FC500, CUMMINS NTC350 BC POWER, THREE AXLES, 9,213HOURS, 85, 927KILOMETERS. TWO BRAIDEN WINCHES, 24’ BED WITH A FLIP UP FIFTH WHEEL, GIN POLES AND A TAIL ROLL.

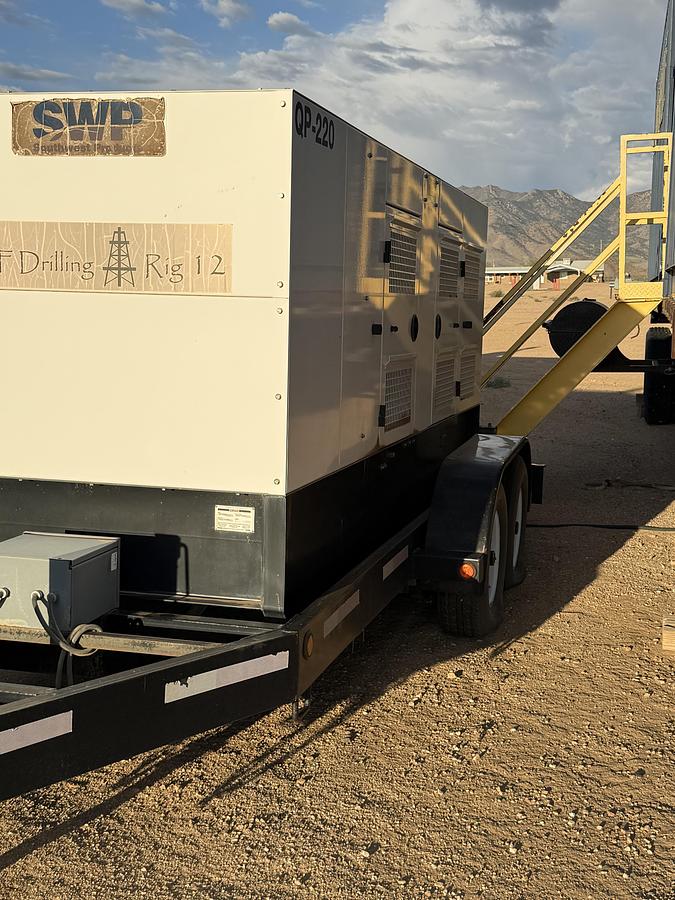

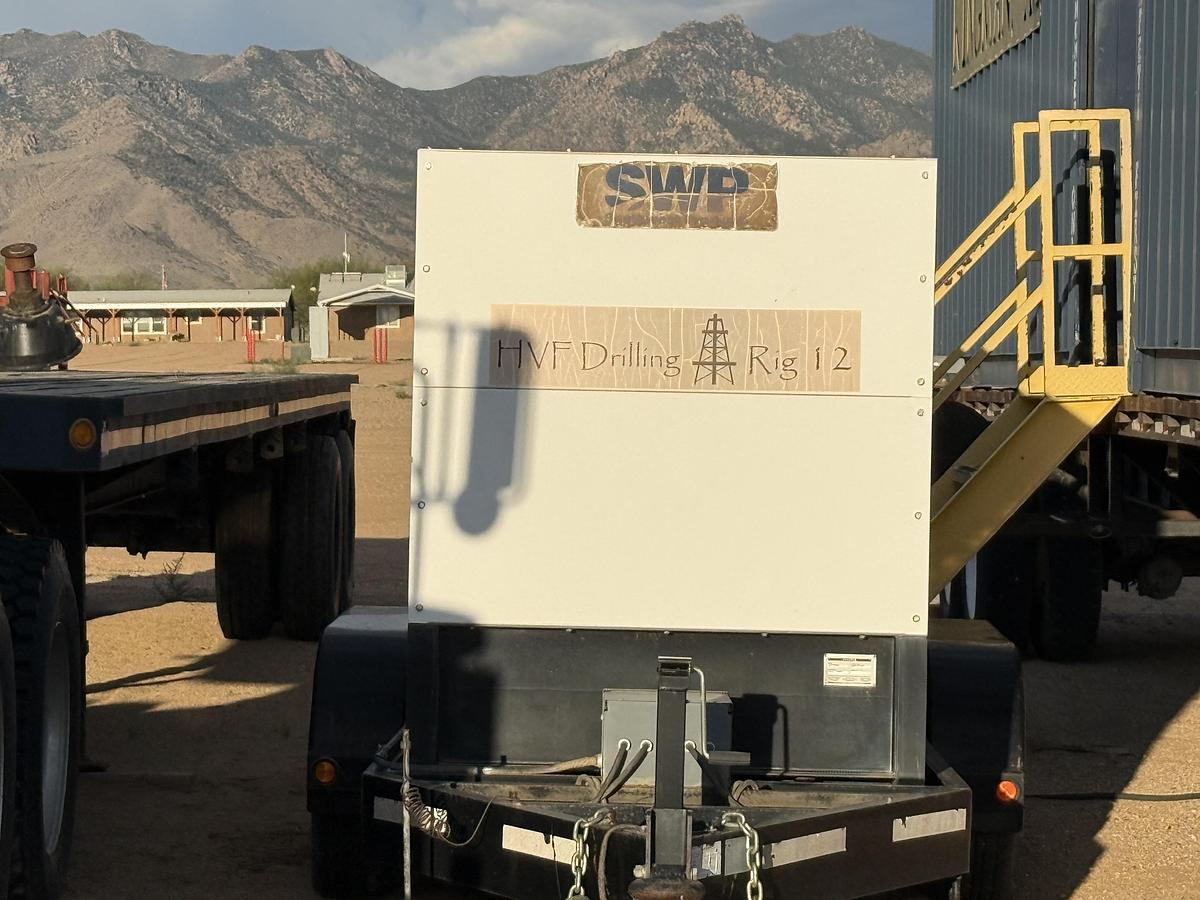

PORTABLE GENERATOR: 2015 ULTRAQUIP, QP-220. JOHN DEERE POWERED, 175KW, 218.75KVA, 607.9AMPS. 1-3 PHASE 120/240 VOLTS, 120/208 VOLTS, 277/480 VOLTS, 60HZ. 14,076 HOURS. TWO AXLE TRAILER.

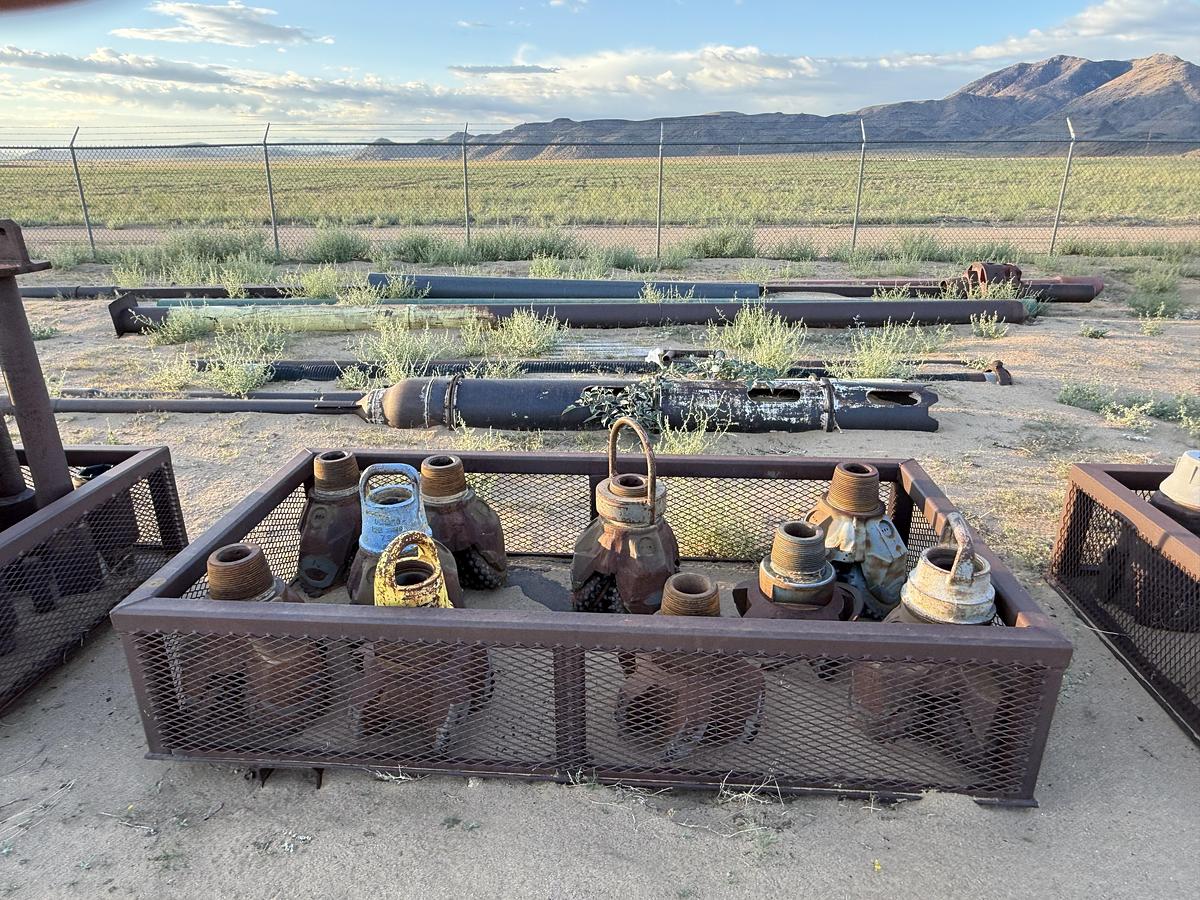

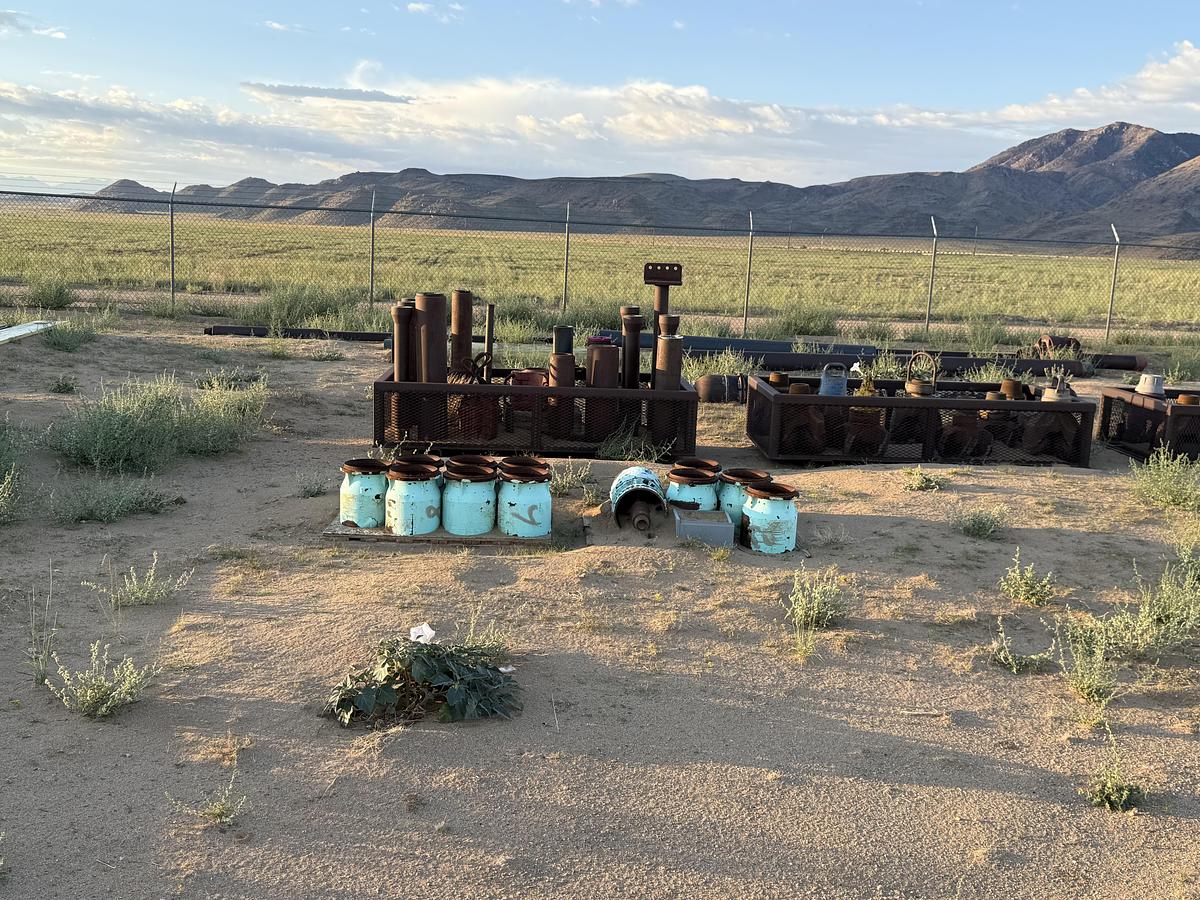

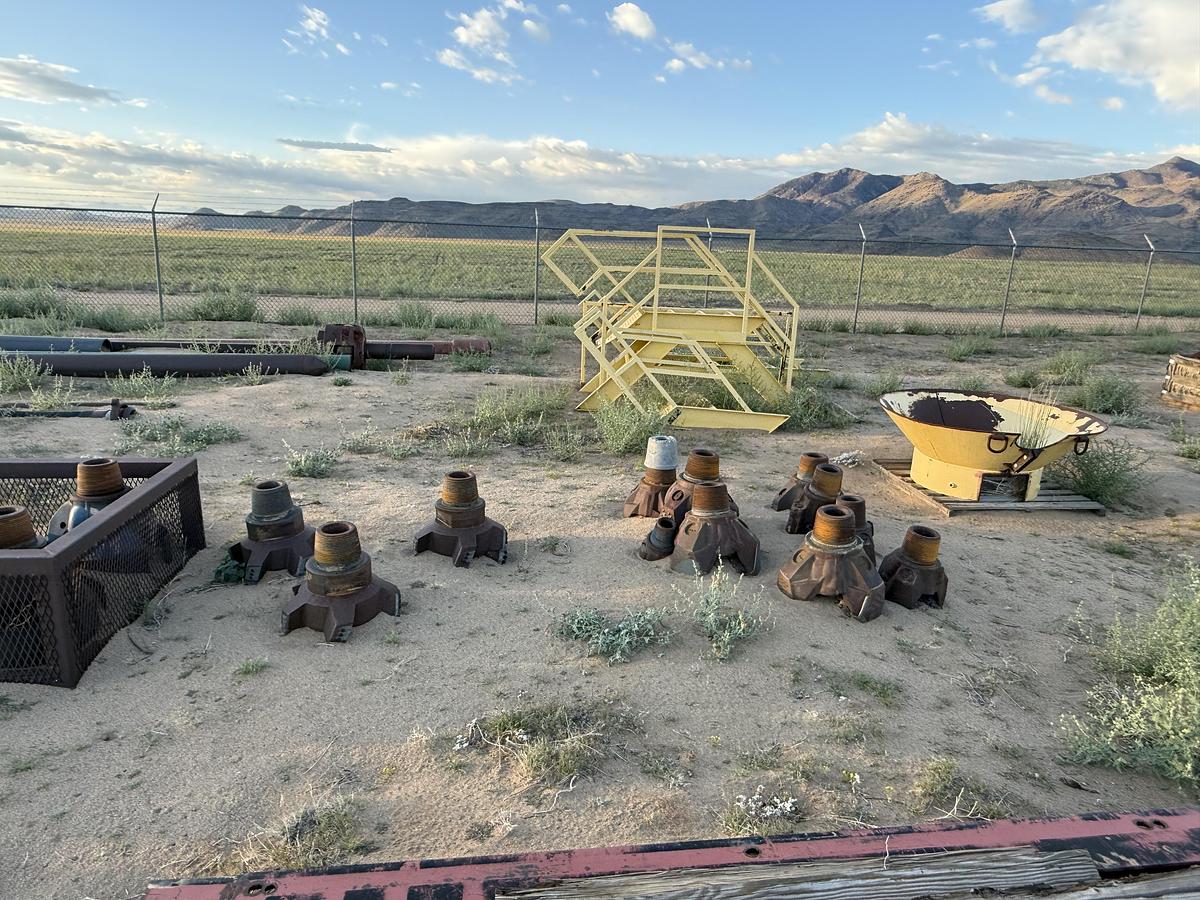

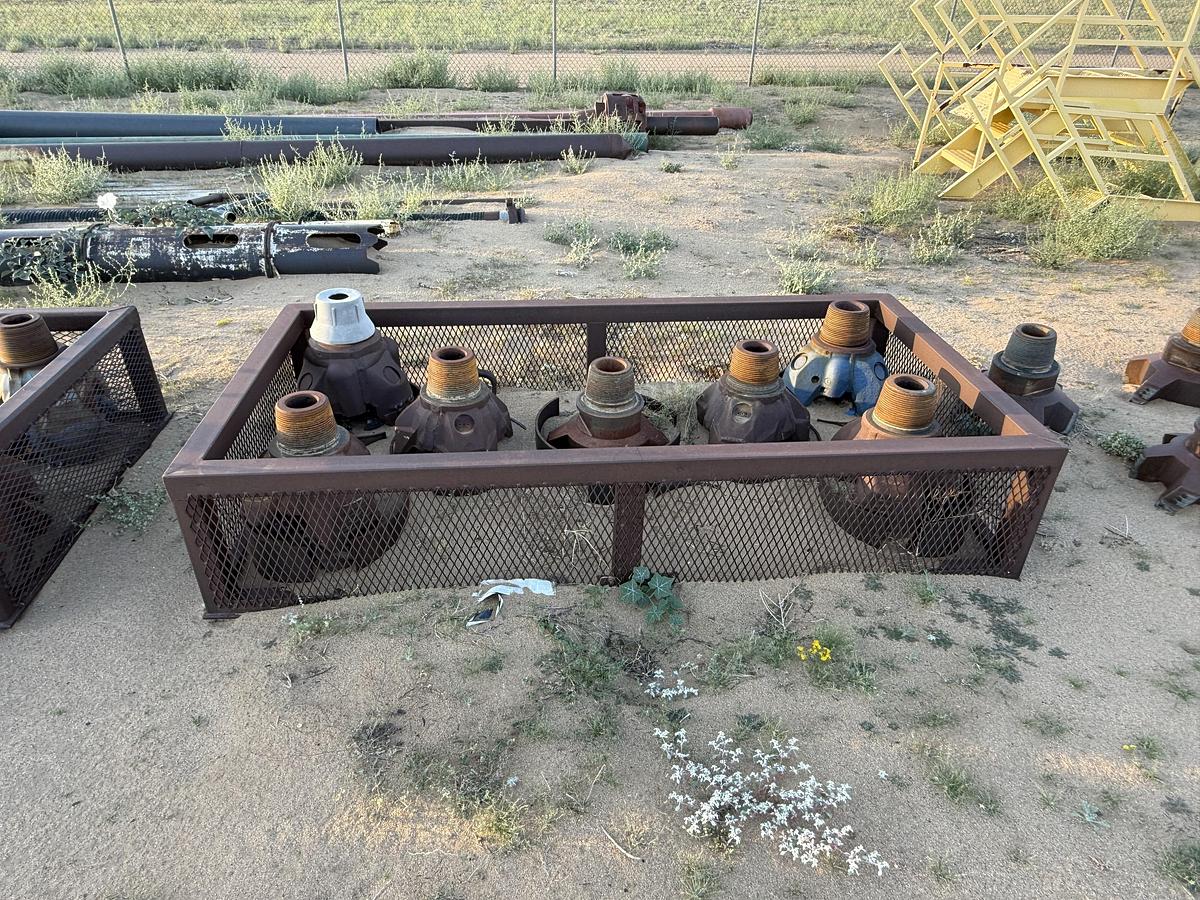

Drill Bits and Misc Tools

All Equipment is Subject to Prior Sale or Other Disposition.

Purchasing Party is responsible for verifying accuracy of information provided. All Items to be quoted in US currency.

All prices and availability are subject to change without notice and are subject to applicable sales tax.

Title to all goods listed remain with the seller until the purchase price is fully paid.

Equipment is purchased as is, where is, without warranty unless otherwise specified.

Use hours are estimate hours as of the date of this posting and are not guaranteed.

Equipment pictured may contain attachments and/or accessories not priced in this offer.

Sale subject to terms and conditions on final bill of sale.
