Lee C. Moore NATIONAL 1320 UE (2000 HP)

www.VIDAEQ.com

Last CAT IV: 2014

This Complete Rig Package has been well cared for and needs a new home.

Please see the DOCUMENTS section for the complete drilling rig package specification.

NATIONAL 1320 UE (2000 HP)

Rating: 2,000 HP

Hook load: 1,000,000 lbs @ 12 lines

Drilling Depth: 20,000 ft

Year of Refurbish: 2014

Last CAT IV: 2014

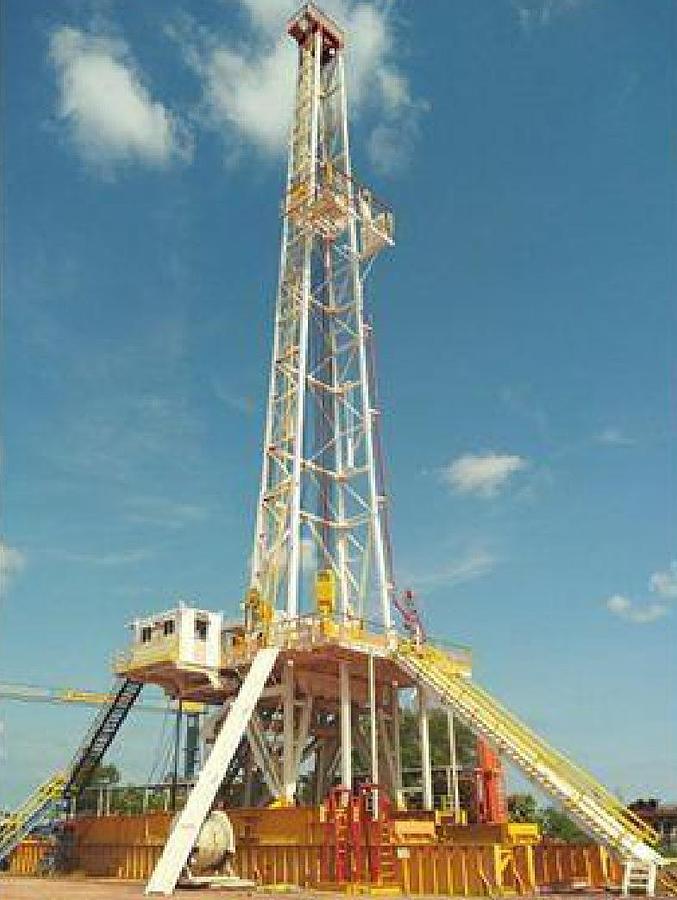

MAST

Type: Lee C. Moore Cantilever

Height: 147 ft

Base: 30 ft

N.G.C: 1,330,000 lbs.

Hook Load: 1,000,000 lbs.

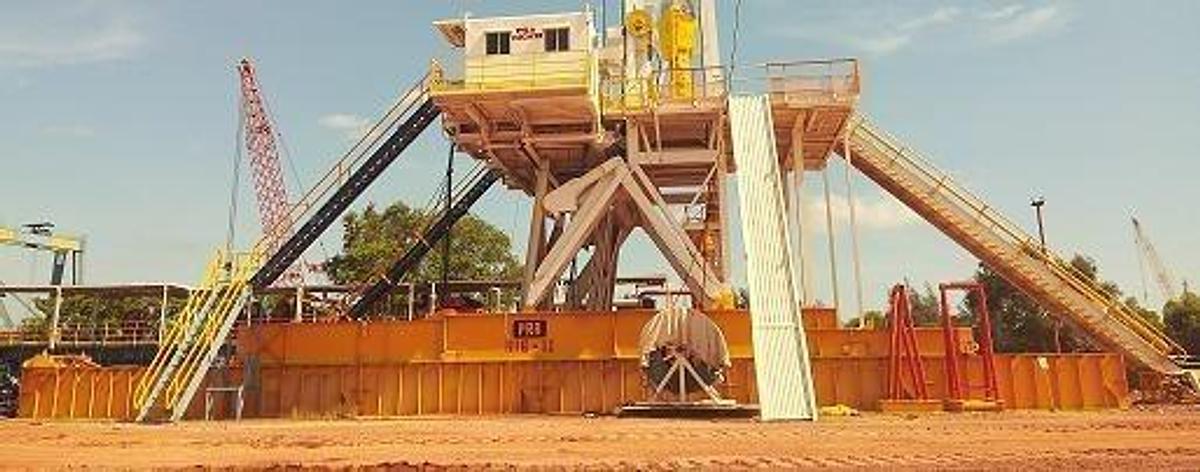

SUBSTRUCTURE

Type: Lee C. Moore Slingshot

Height: 25 ft + 5 subbase-skidding

Casing load: 1,000,000 lbs.

Setback: 600,000 lbs.

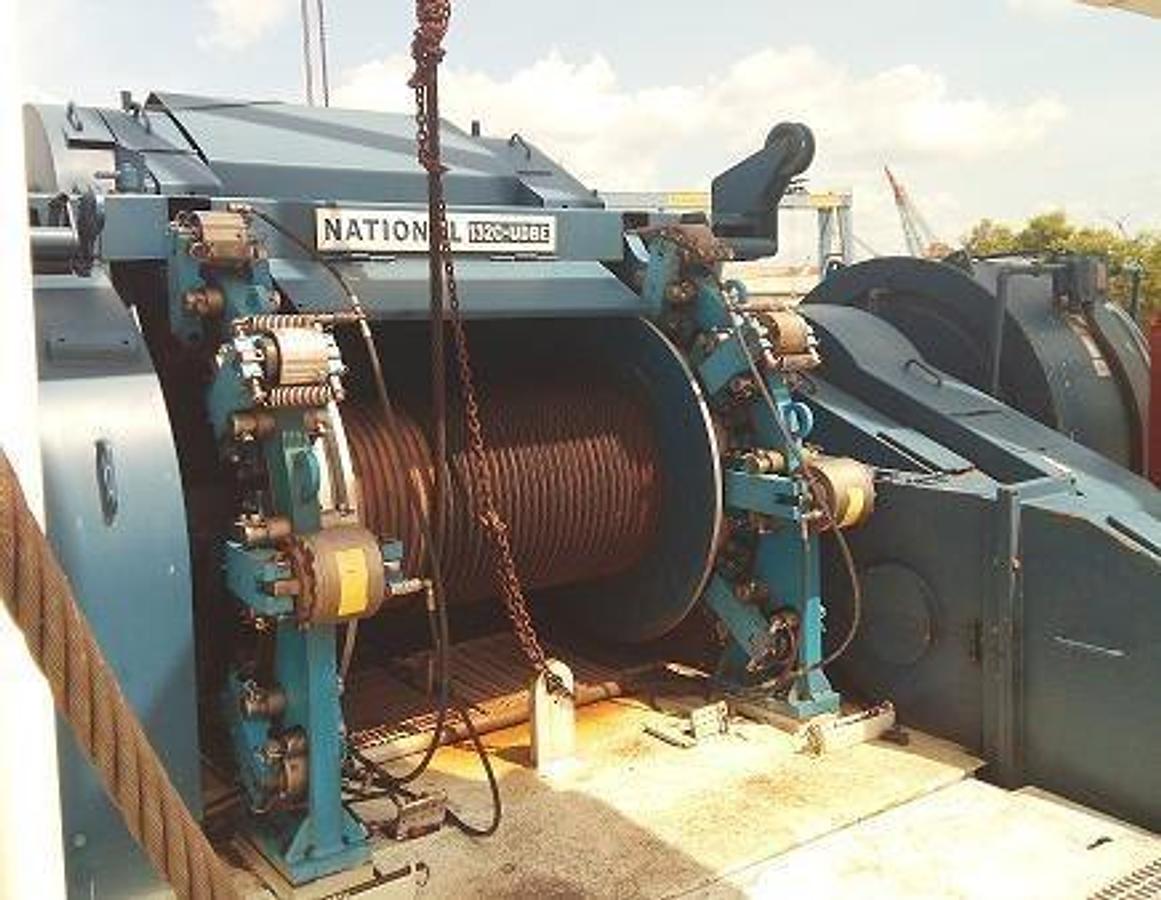

DRAWWORKS

Type: National 1320 UE

Horse power rating: 2,000 HP

Max line pull: 98,900 lbs.

Drilling Line Diameter: 1-1/2”

Auxiliary Brake: Elmagco Baylor 7040

Input Power: Two (2) GE752 Motos, Rated at 1000 HP Each

TOP DRIVE

Type: VARCO TDS-11-SA

Capacity: 1,000,000 lbs.

Torque: 37,500 ft. lbs.

ROTARY TABLE

Type: National D-375

Table opening: 37-1/2”

TRAVELING EQUIPMENT

Traveling Block: Continental EMSCO RA52-6

Capacity: 1,000,000 lbs.

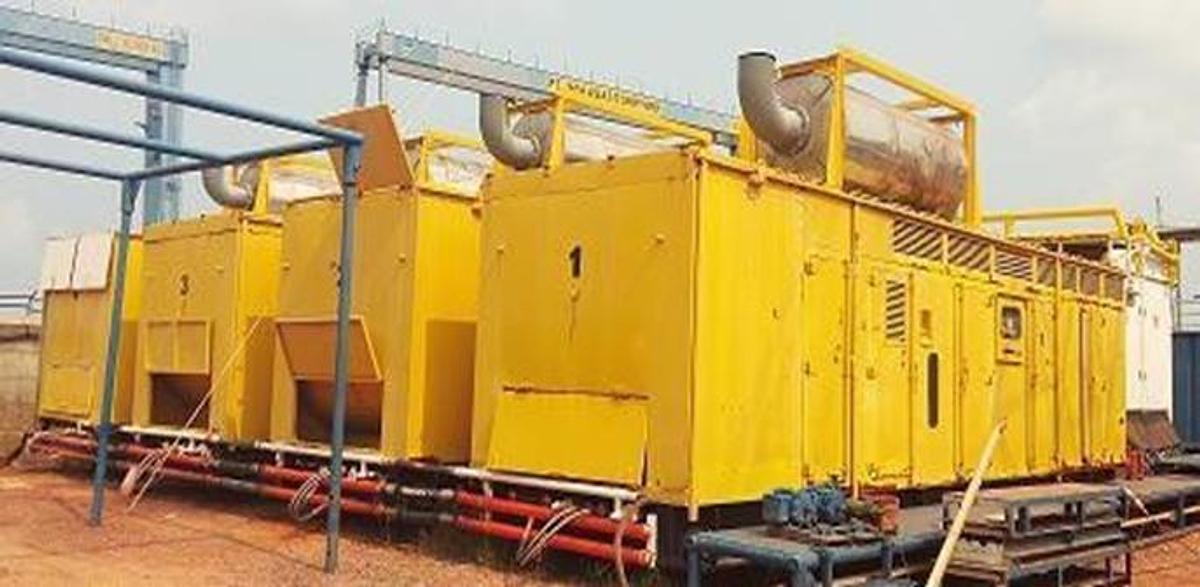

RIG POWER

Engine type: Caterpillar D399PC

Horsepower rating: 4 x 1,260 HP each

Generator type: KATO 1030

Generator Rating: 4 x 1,287 kVA

Voltage: 600/440, 60 Hz

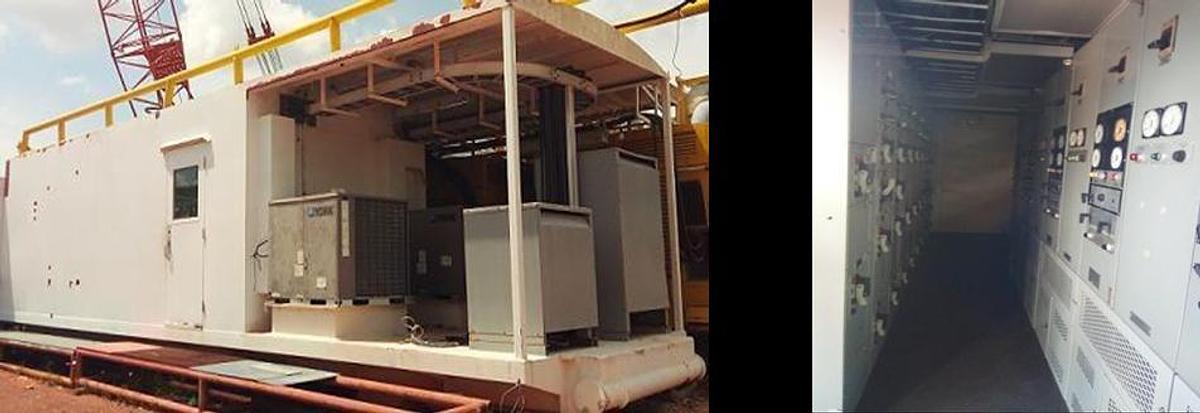

SCR Unit: Ross Hill 1201

MCC: 480 Volt

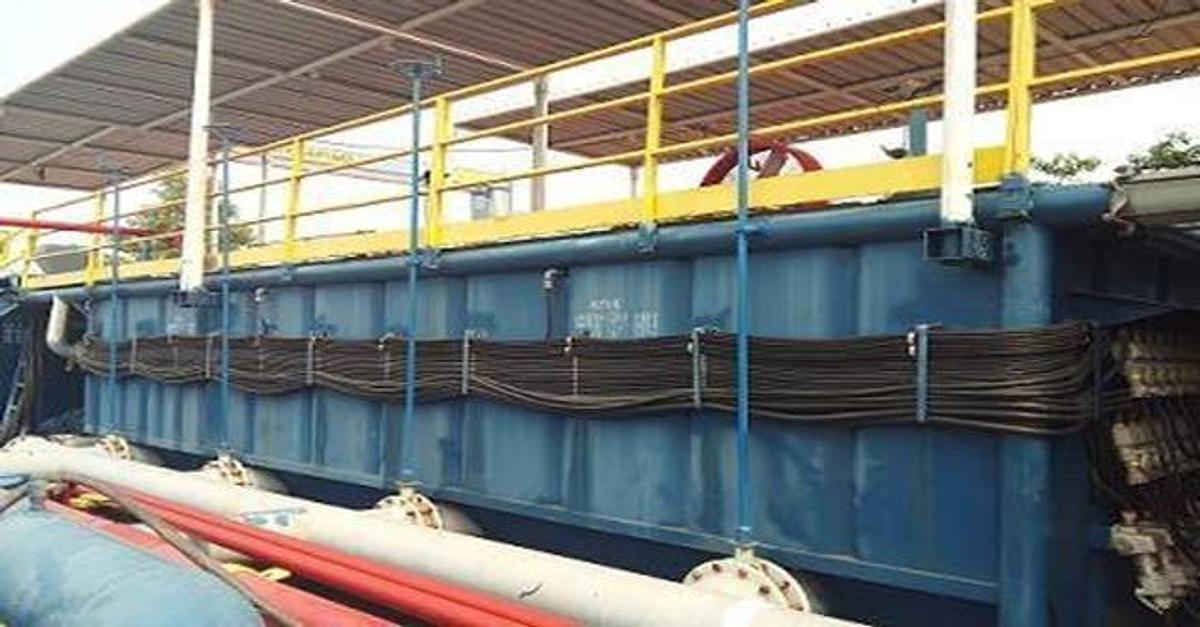

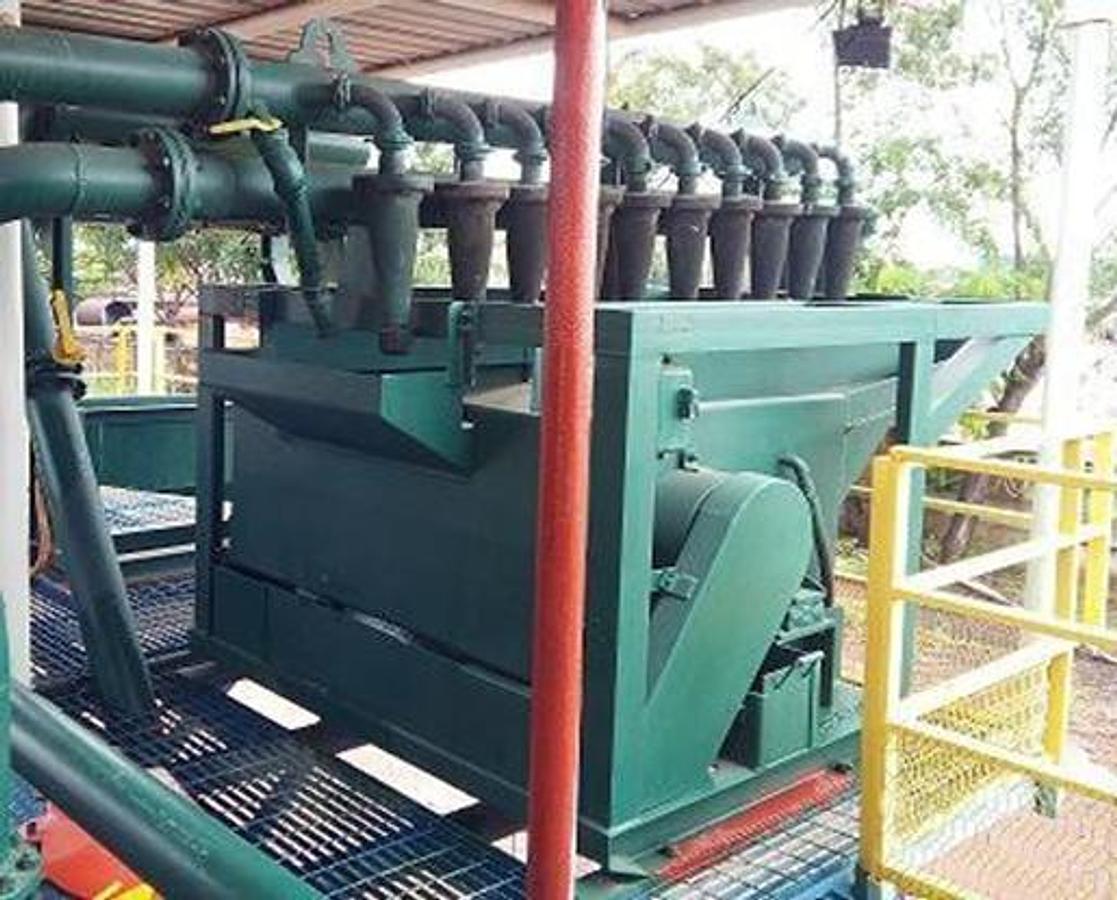

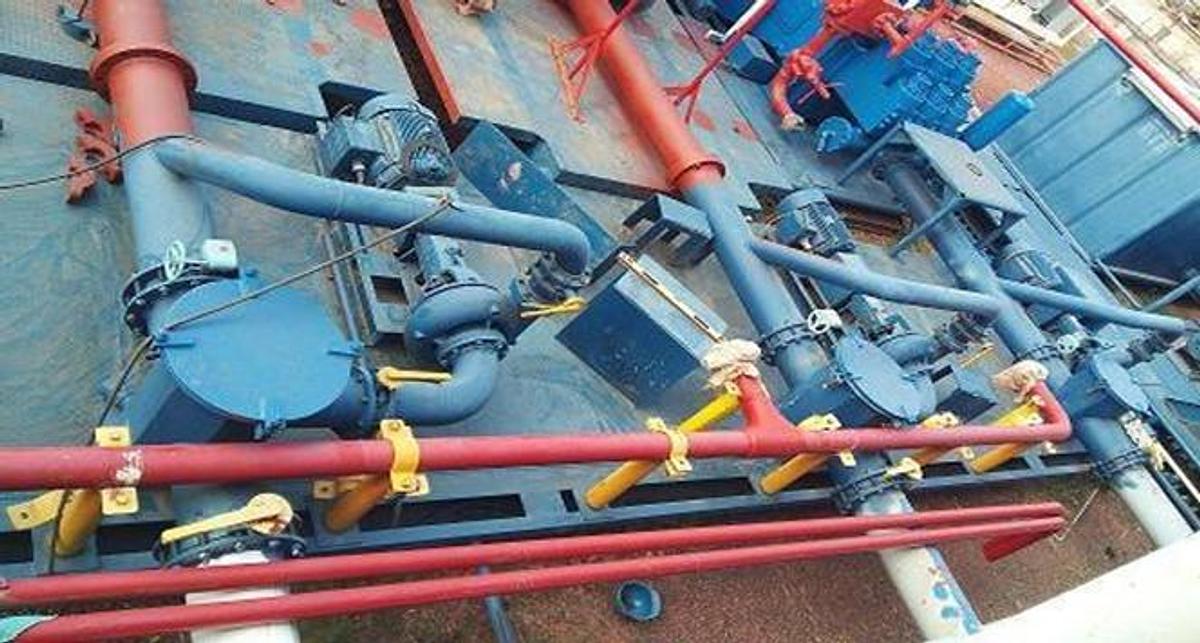

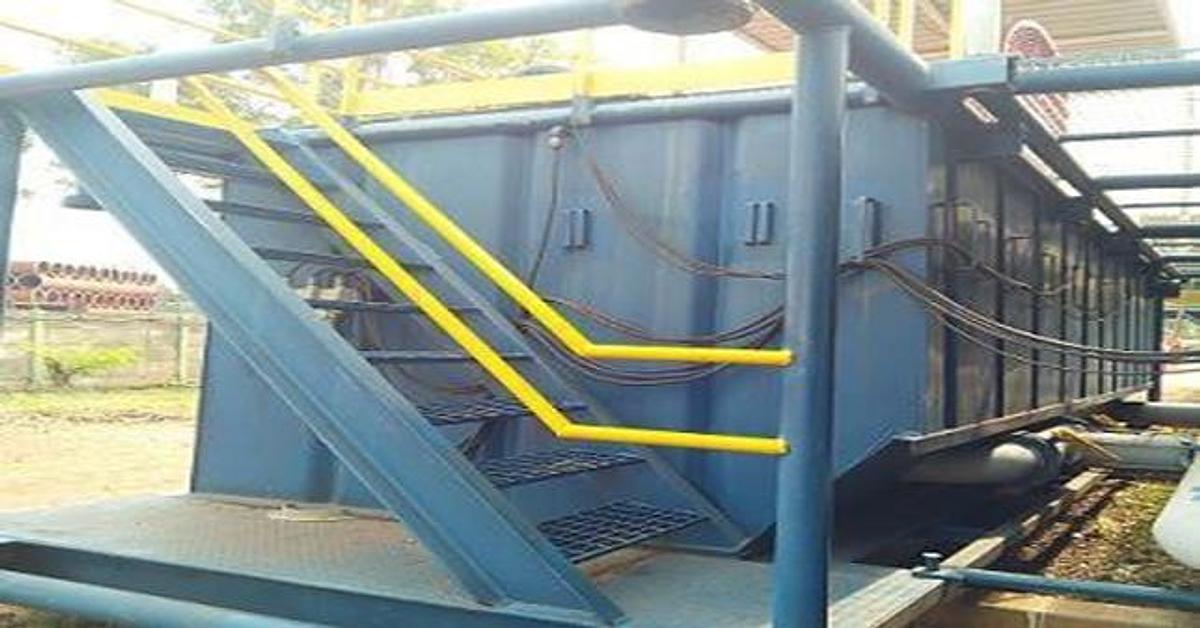

MUD SYSTEM

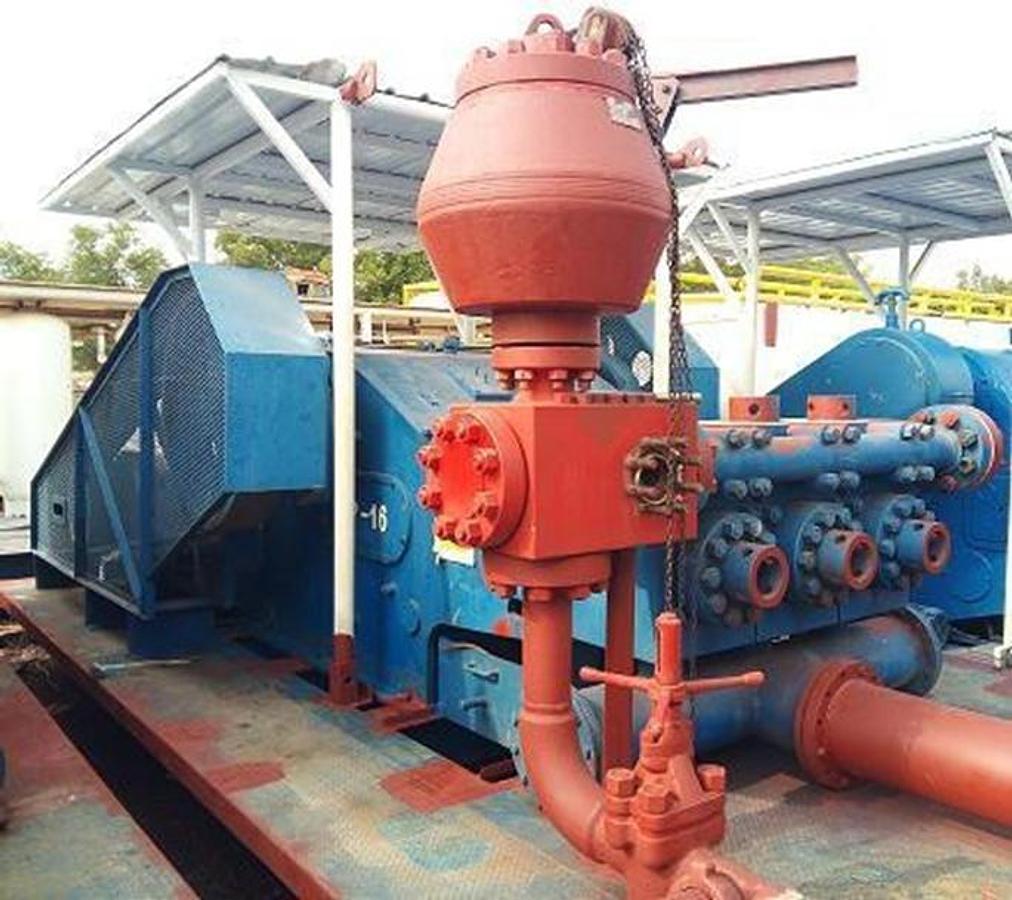

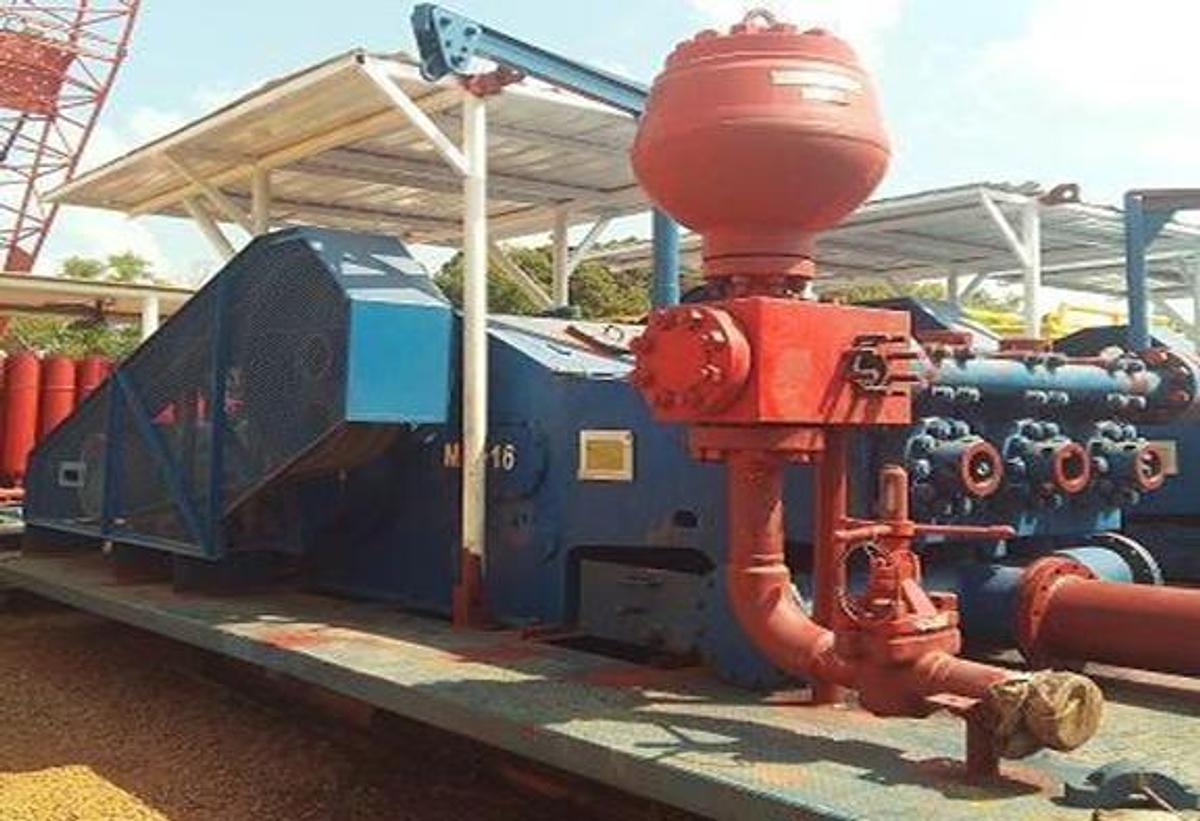

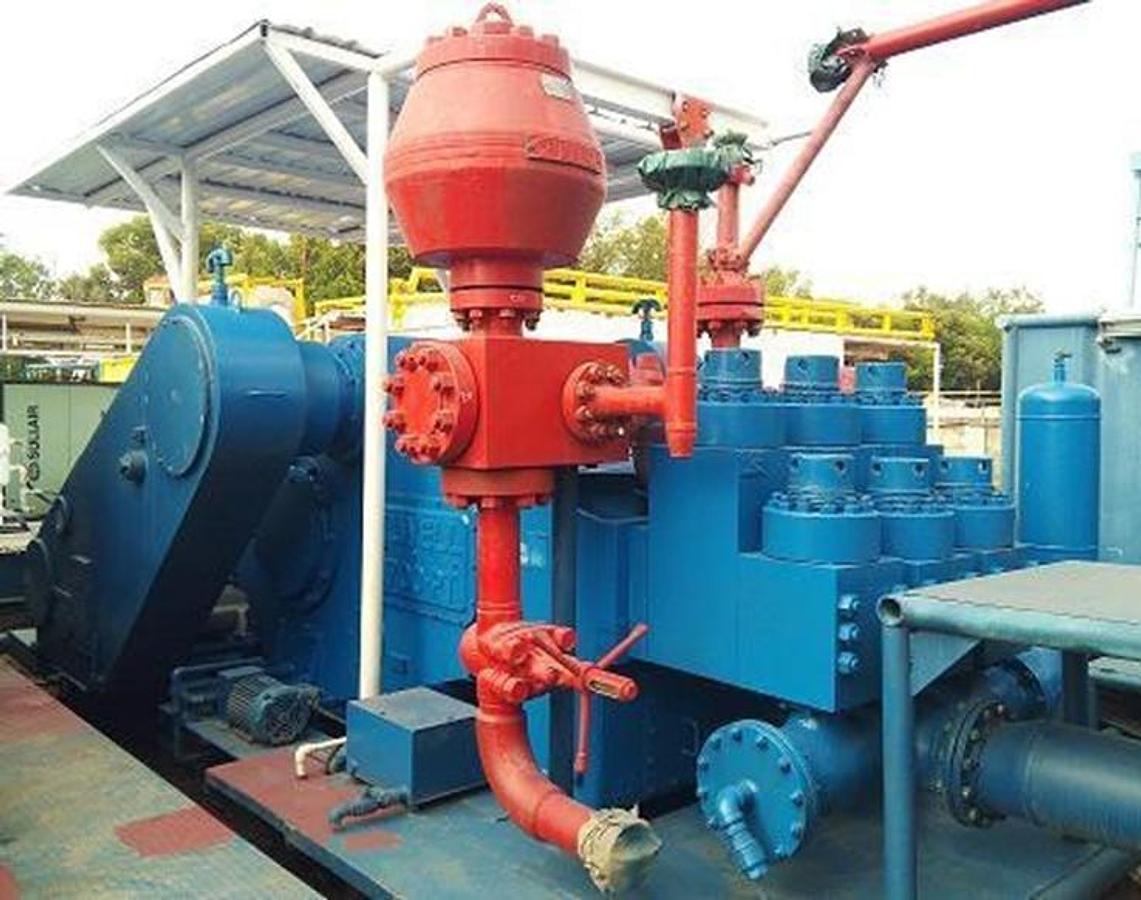

Pump Type: Weatherford MP 16

Horsepower rating: 2 x 1,600 HP

Pump type: National 1700P

Horsepower rating: 1 x 1,700 HP

Standpipe pressure: 5,000 psi

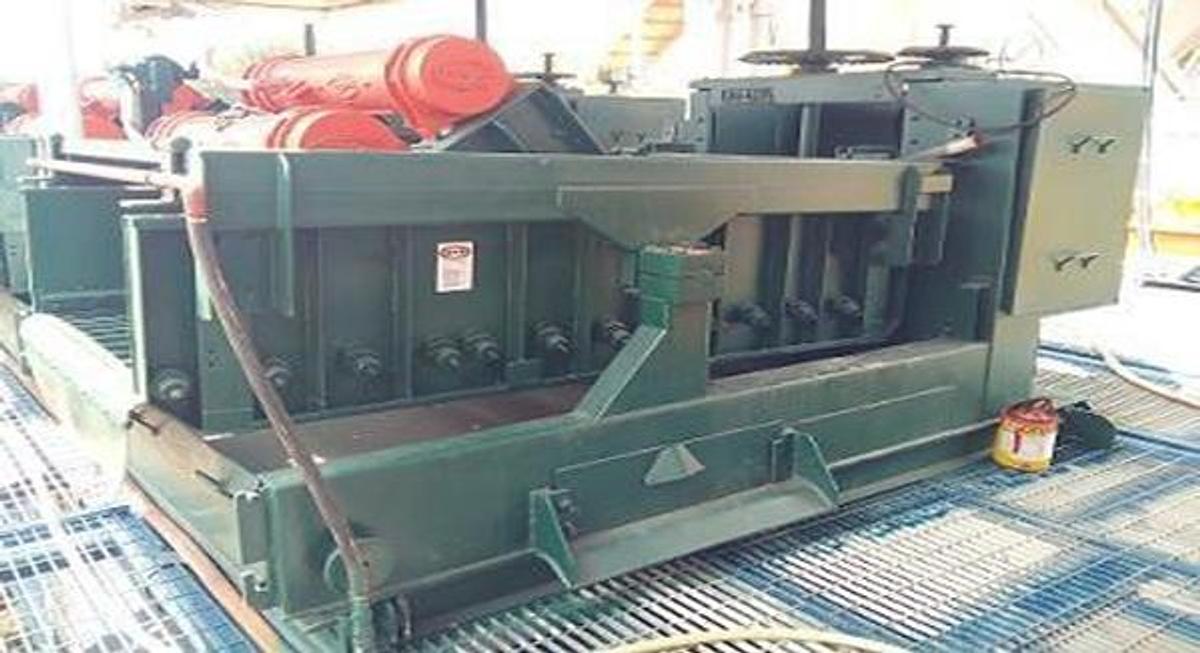

Shale Shaker Type: Derrick

Shale Shaker: 3 x Linear Motion

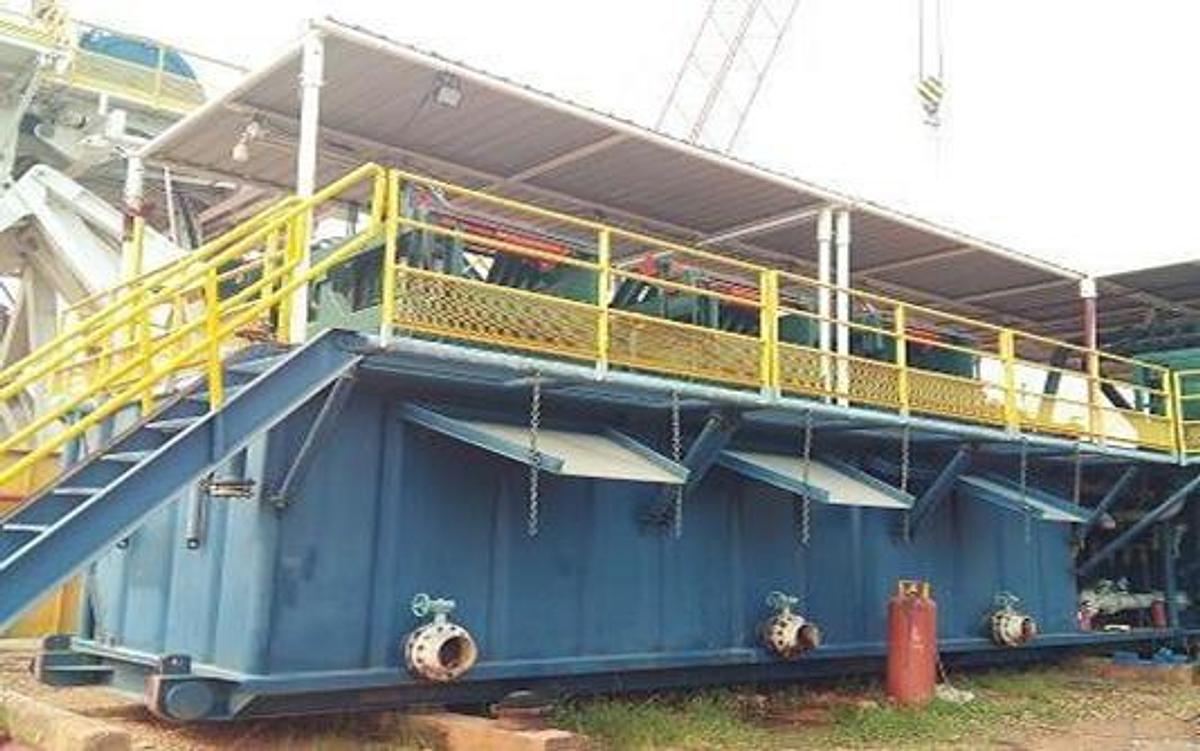

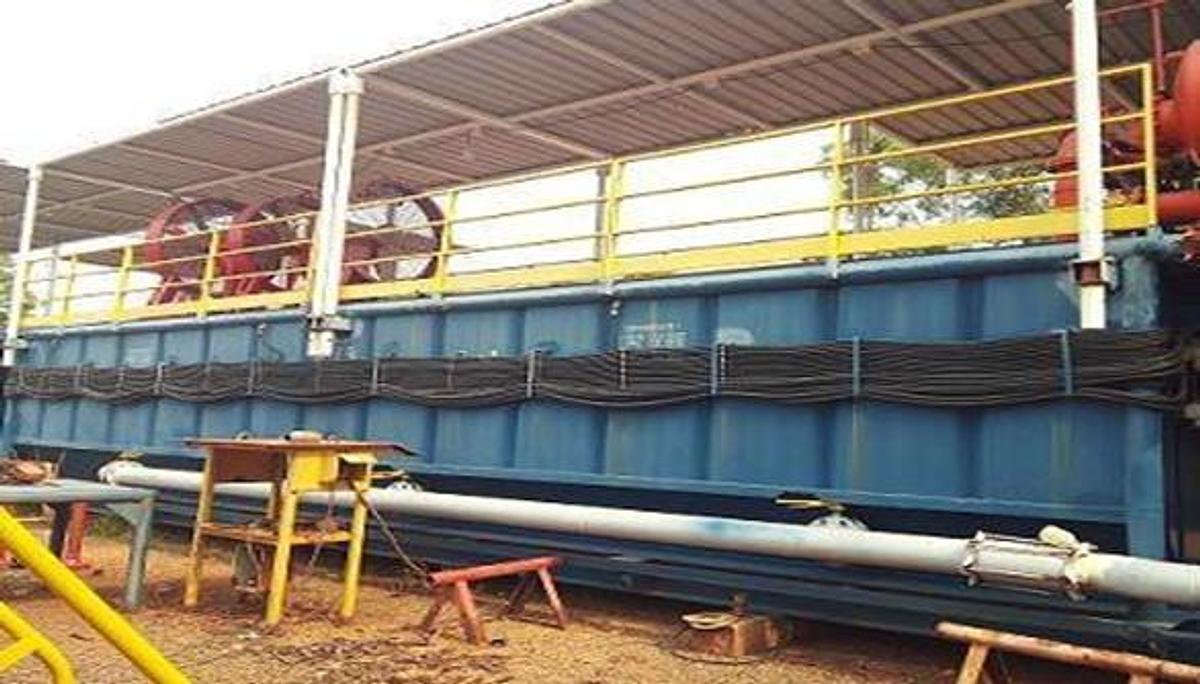

Active mud system: 1,800 bbl.

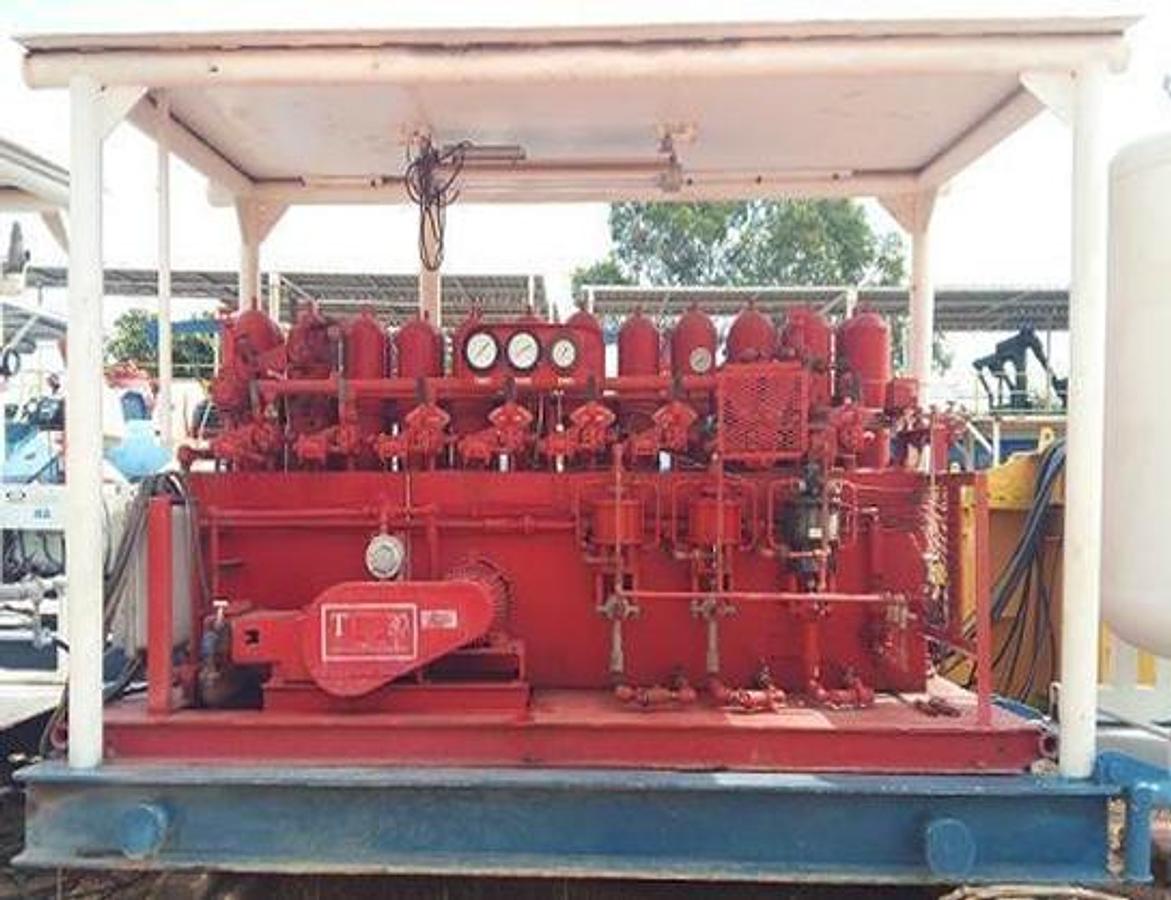

BOP EQUIPMENT:

Annular: 21-1/4” x 2,000 PSI

Double Ram: 12-5/8” x 5,000 PSI
