2006 NOV IDEAL 1500 HP Drilling Rig

www.vidaeq.com

NOV IDEAL 1500 HP WALKING RIG

YEAR of MANUFACTURE: 2006

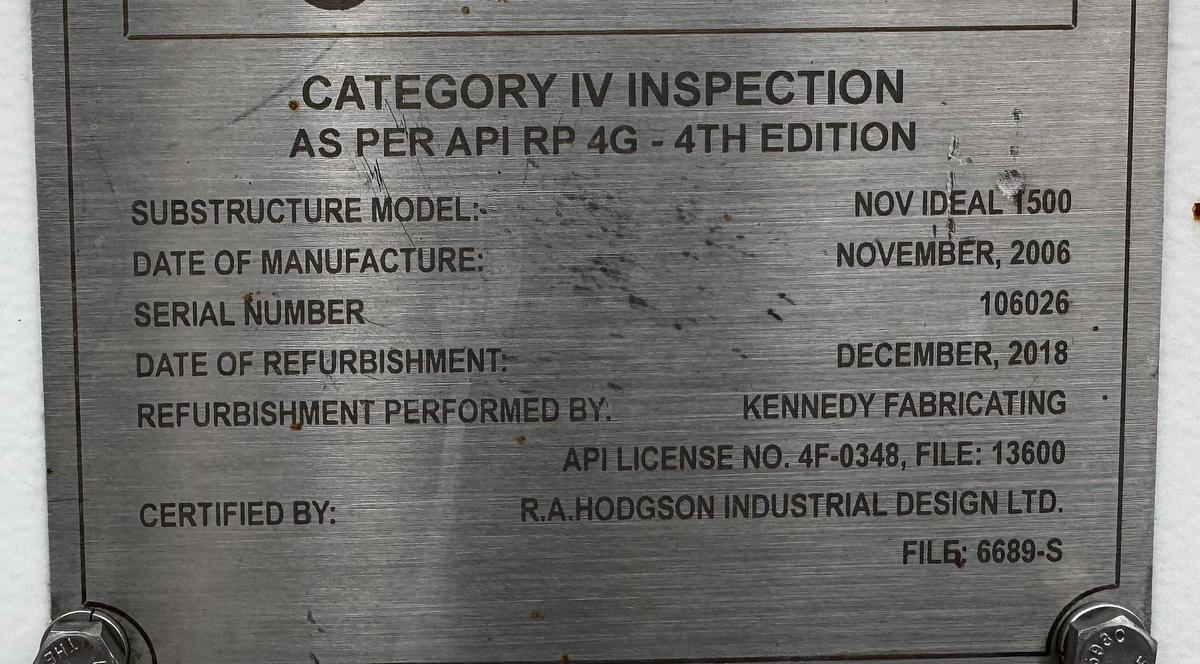

CAT IV, REFURBISHMENT and UPGRADE: 2018

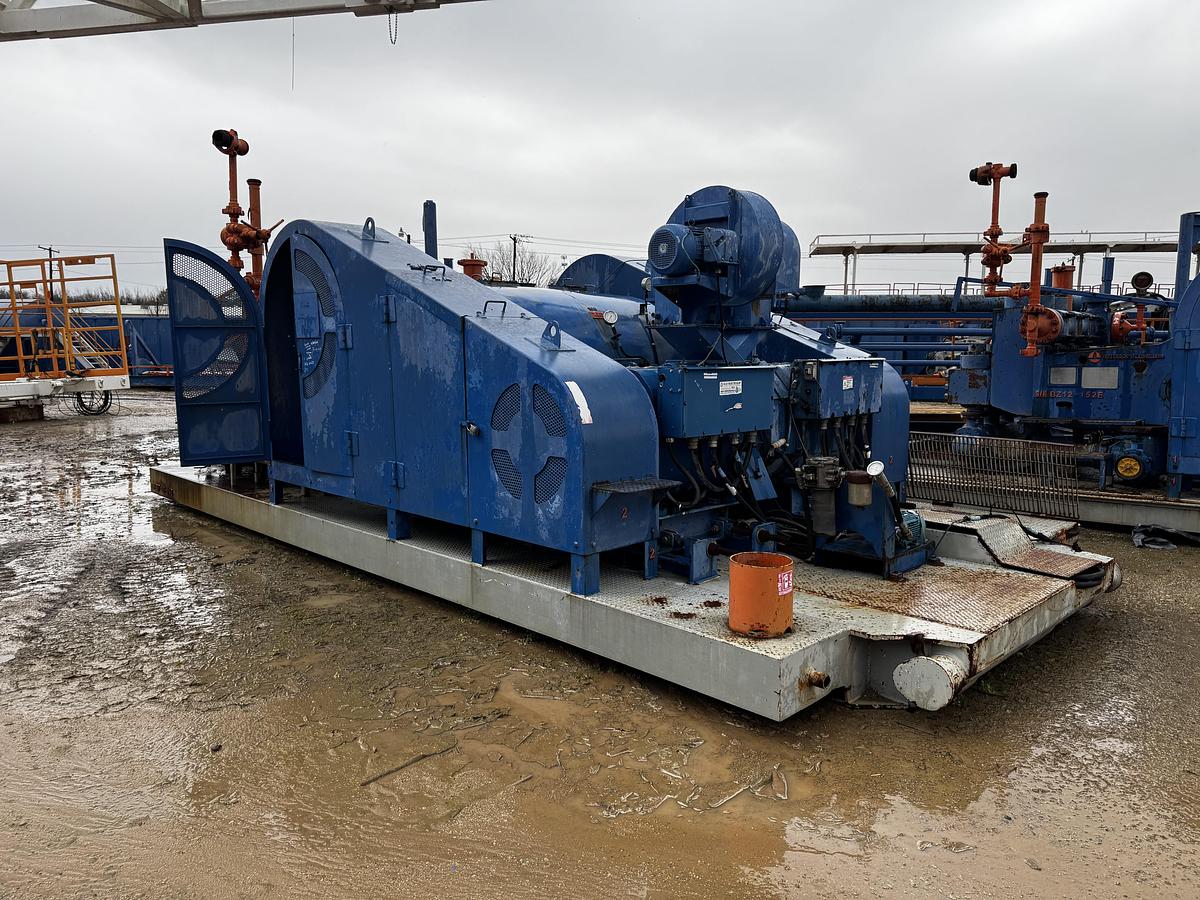

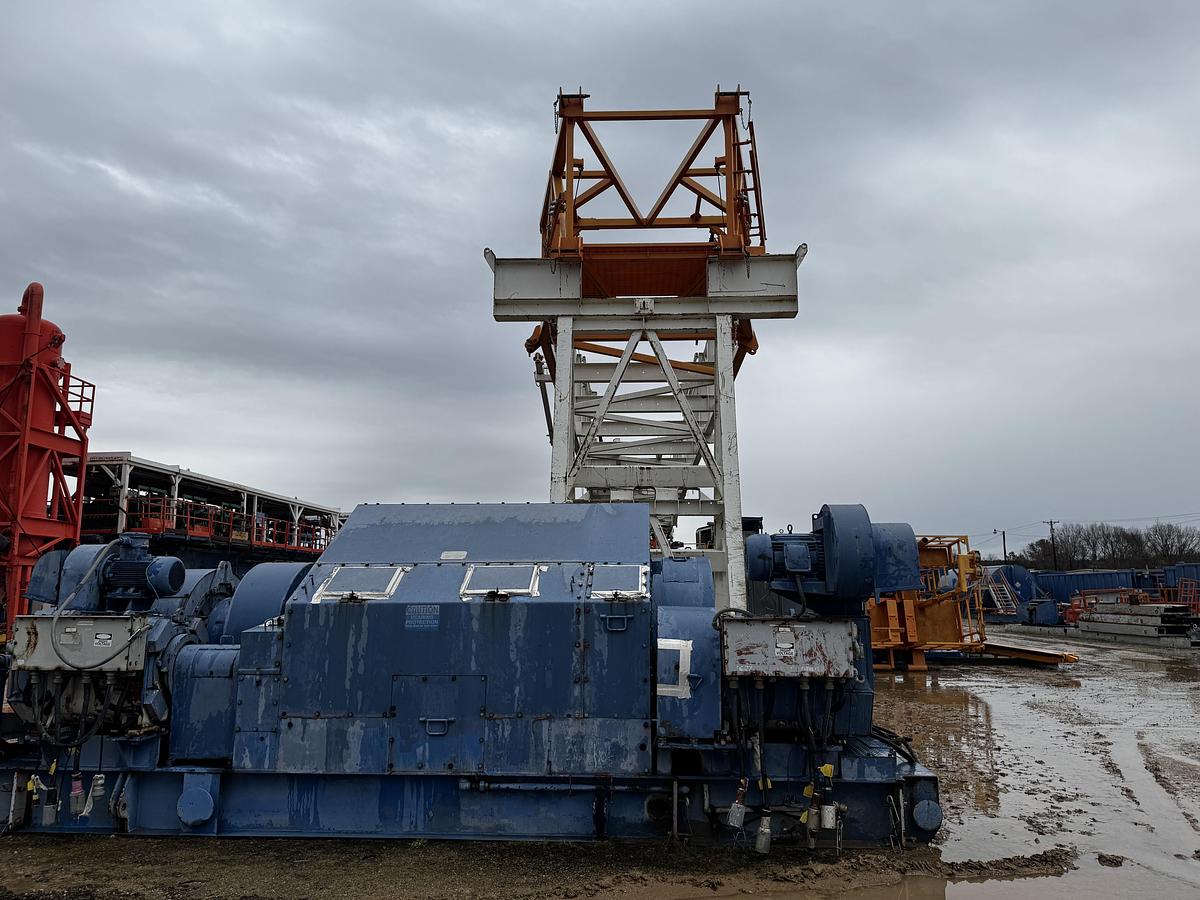

DRAWWORKS:

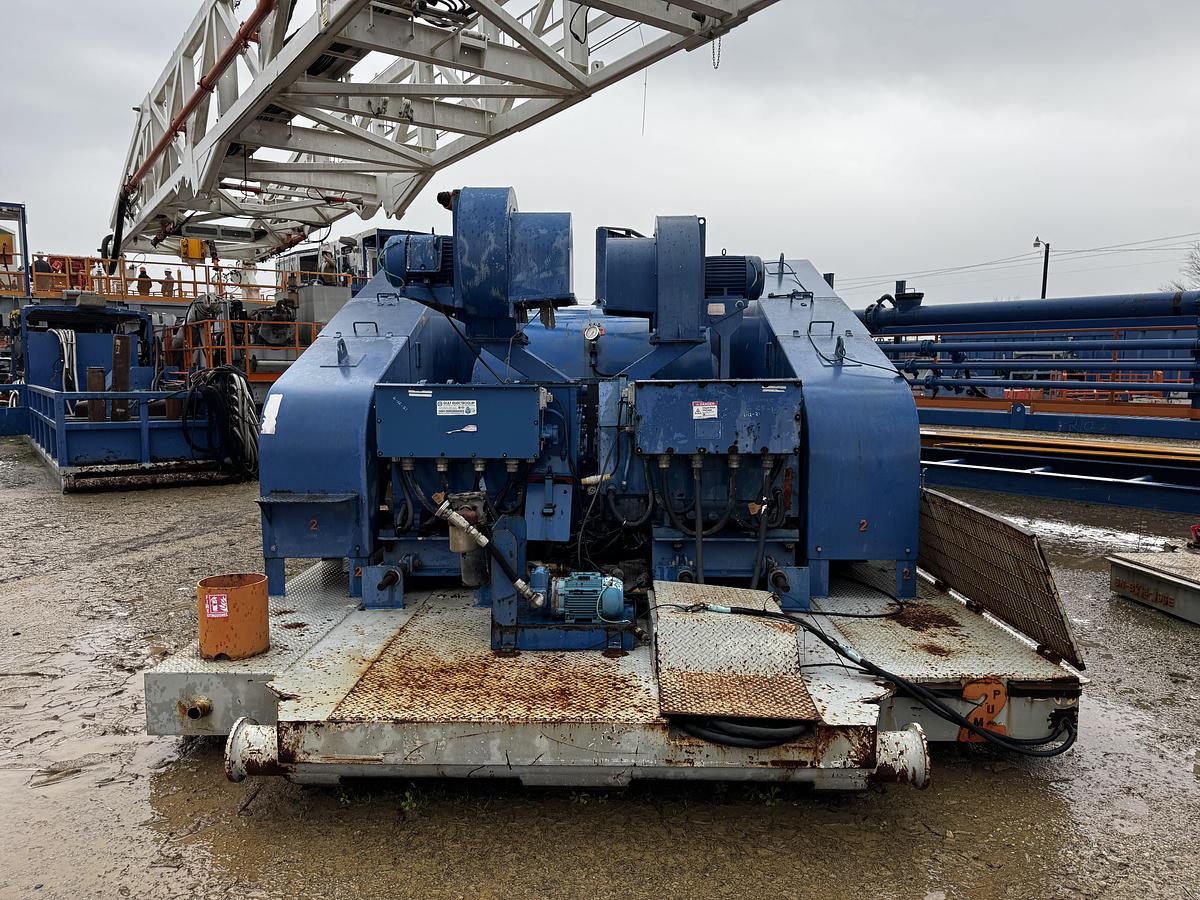

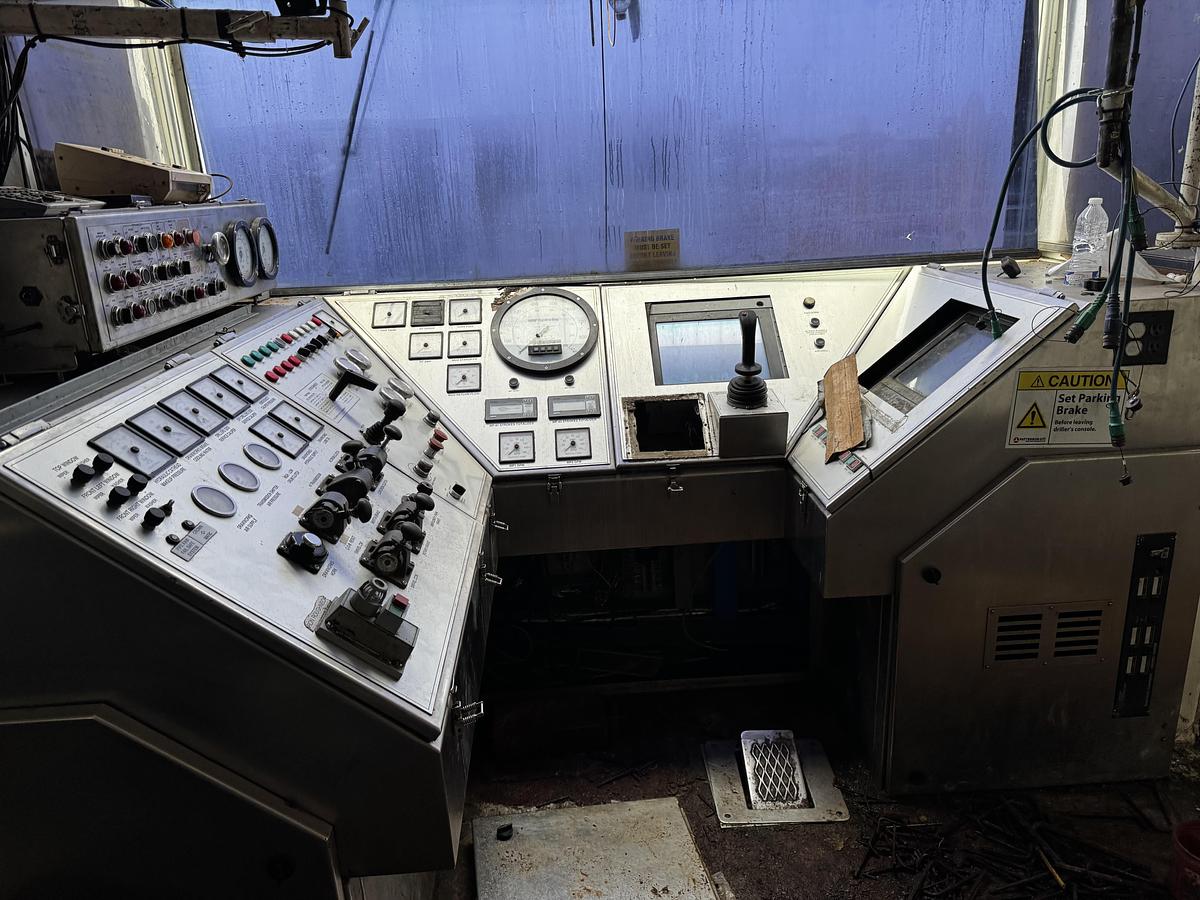

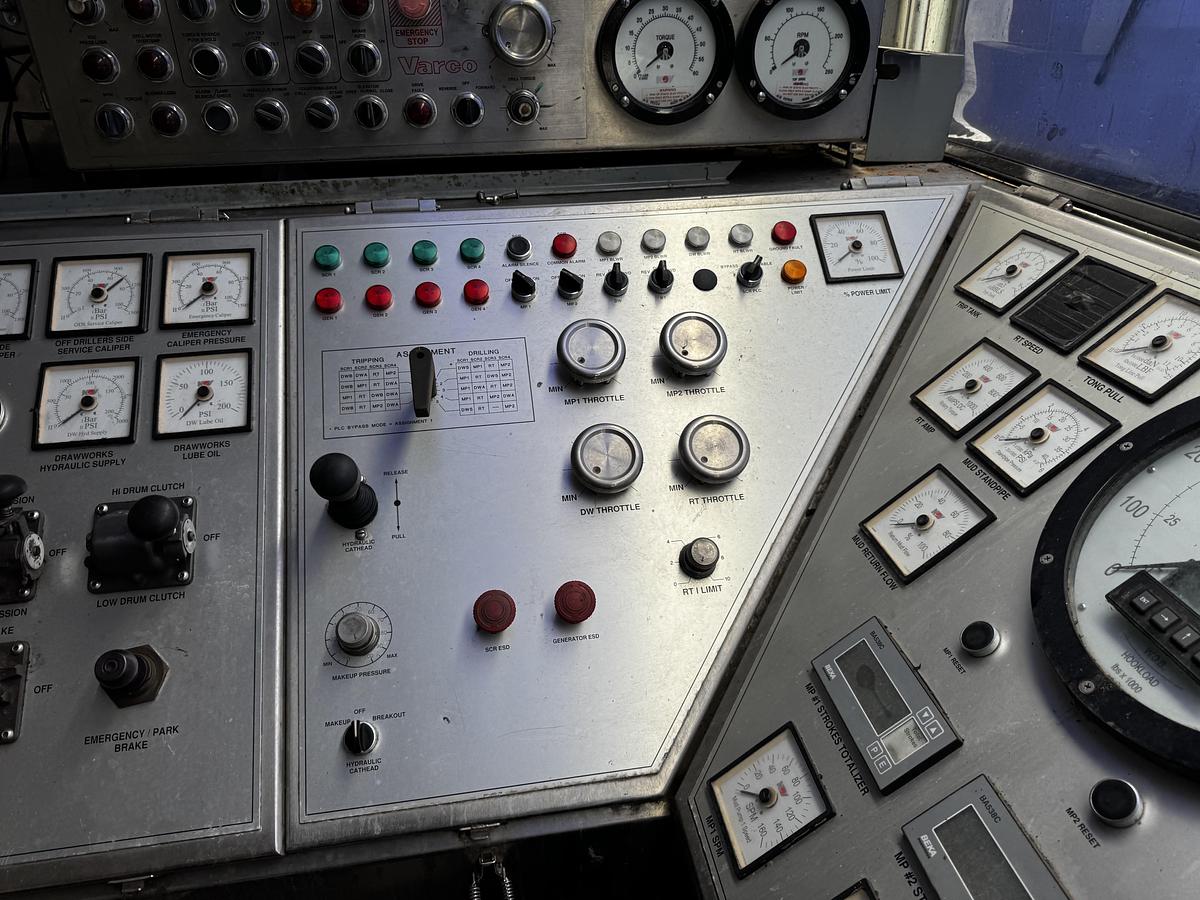

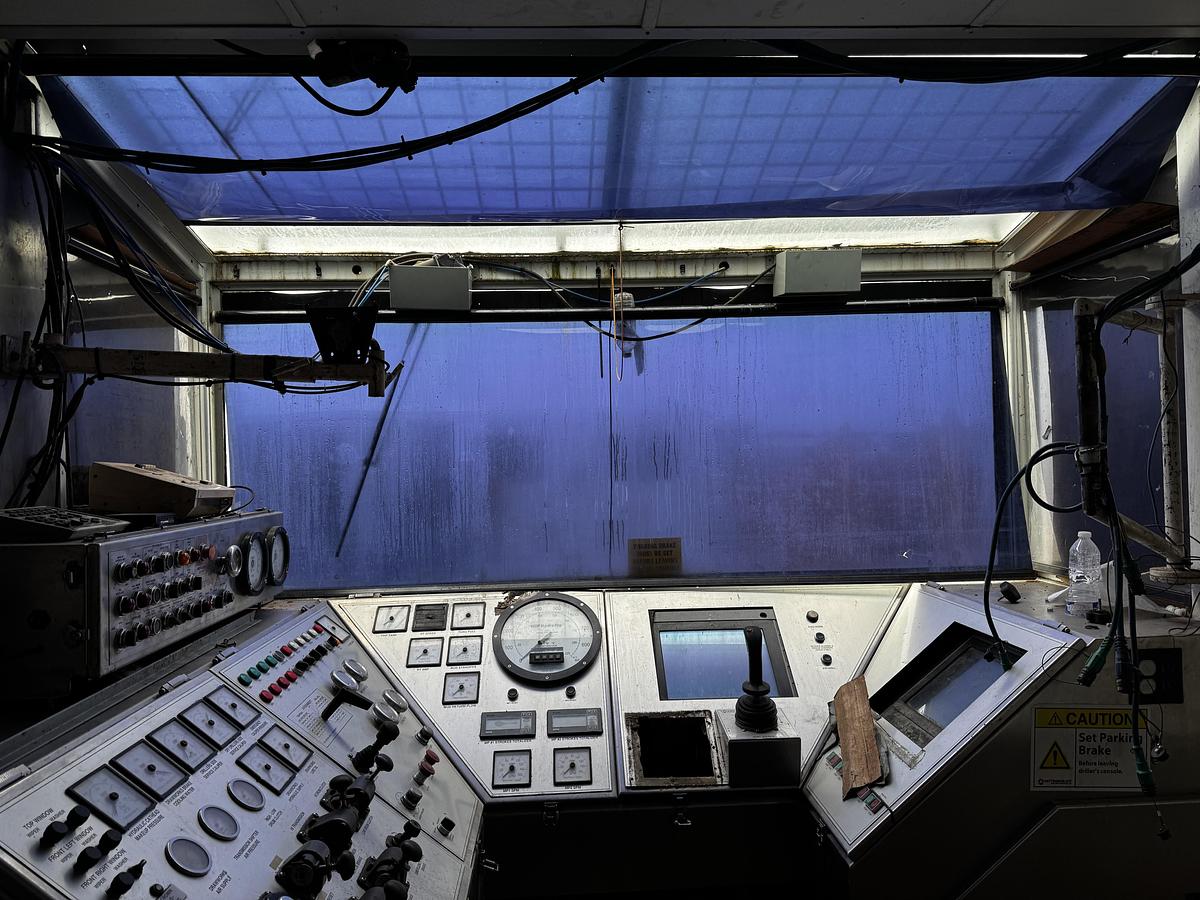

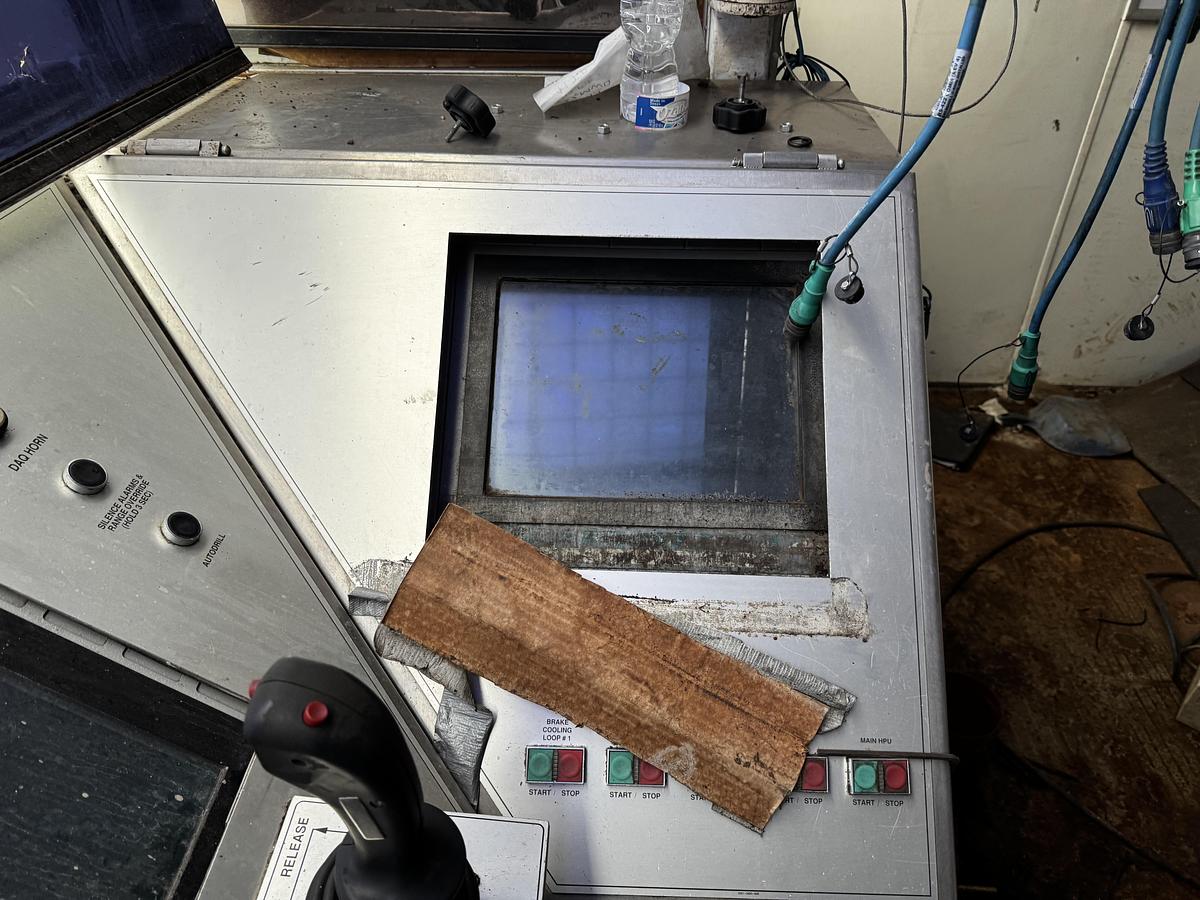

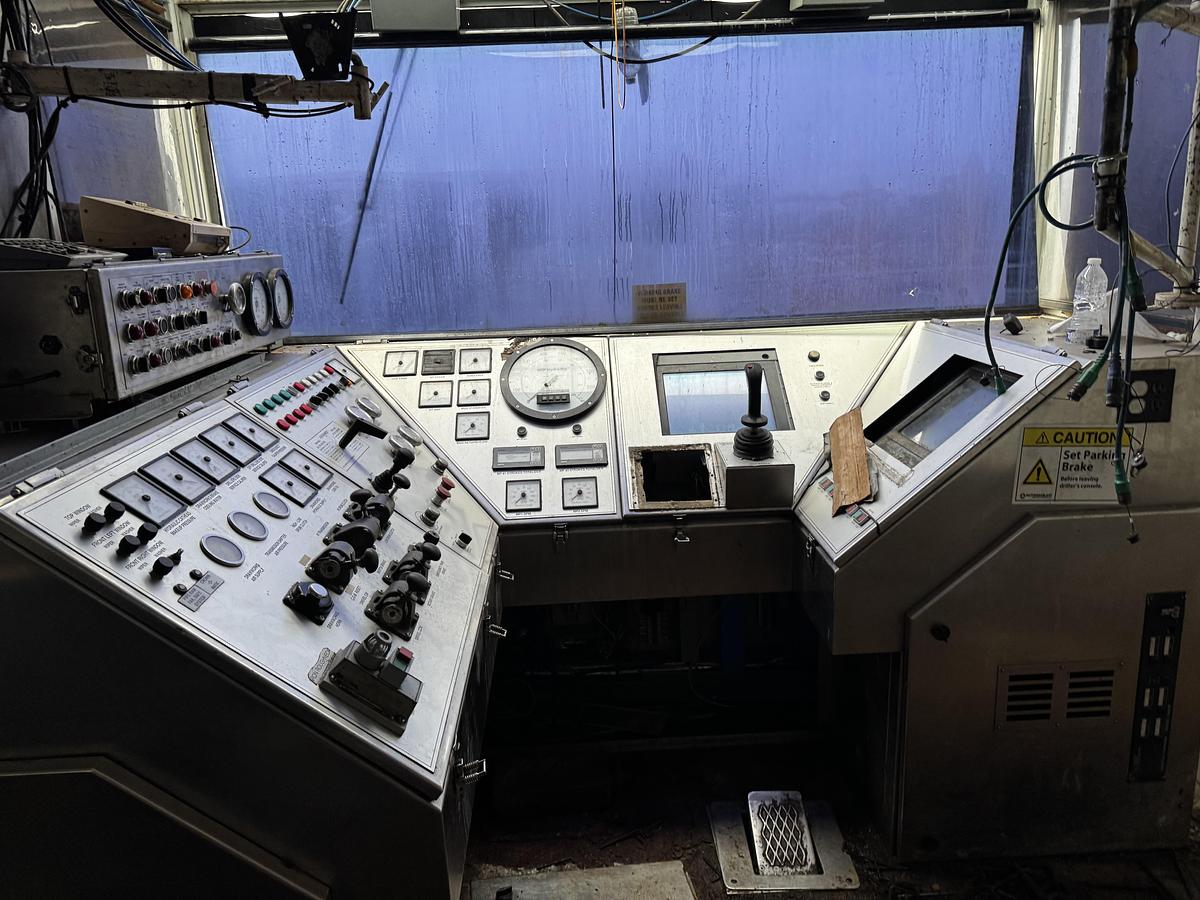

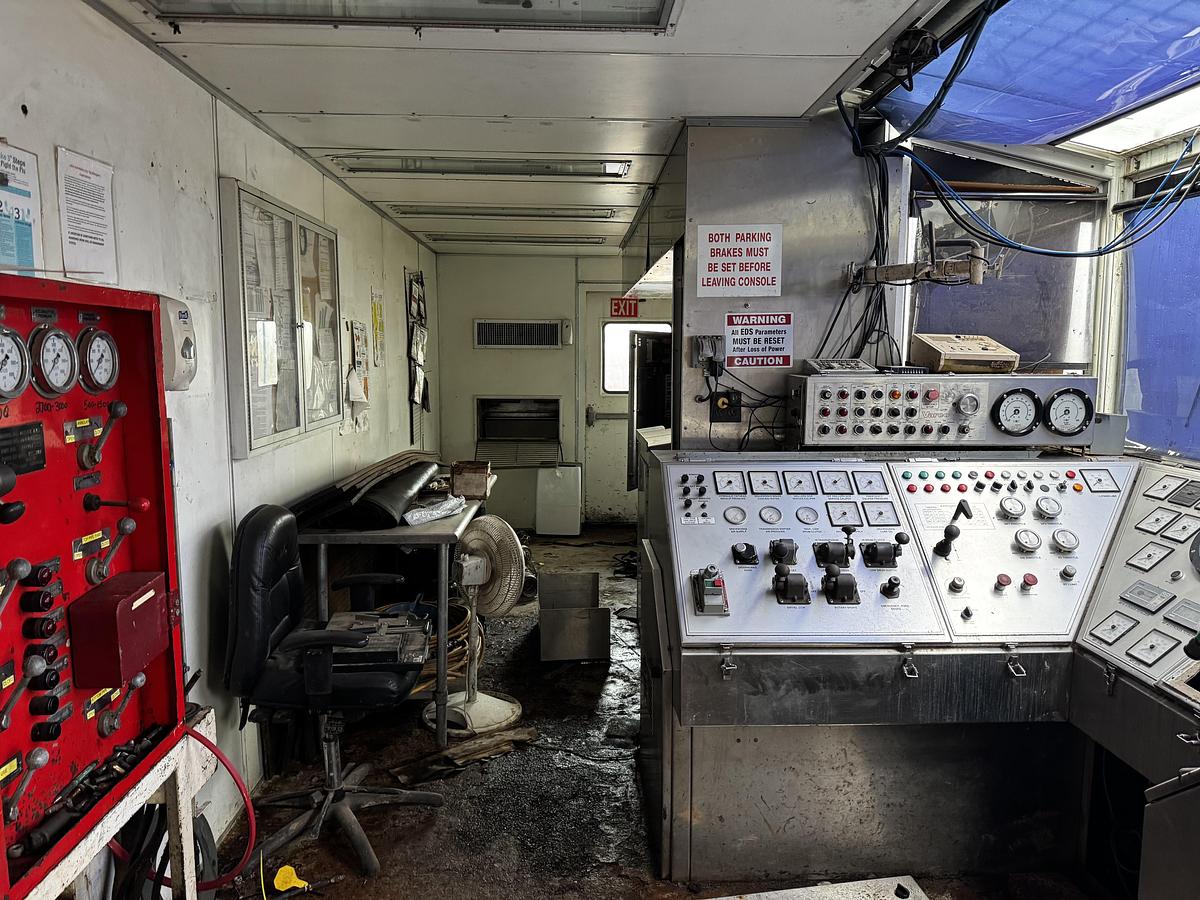

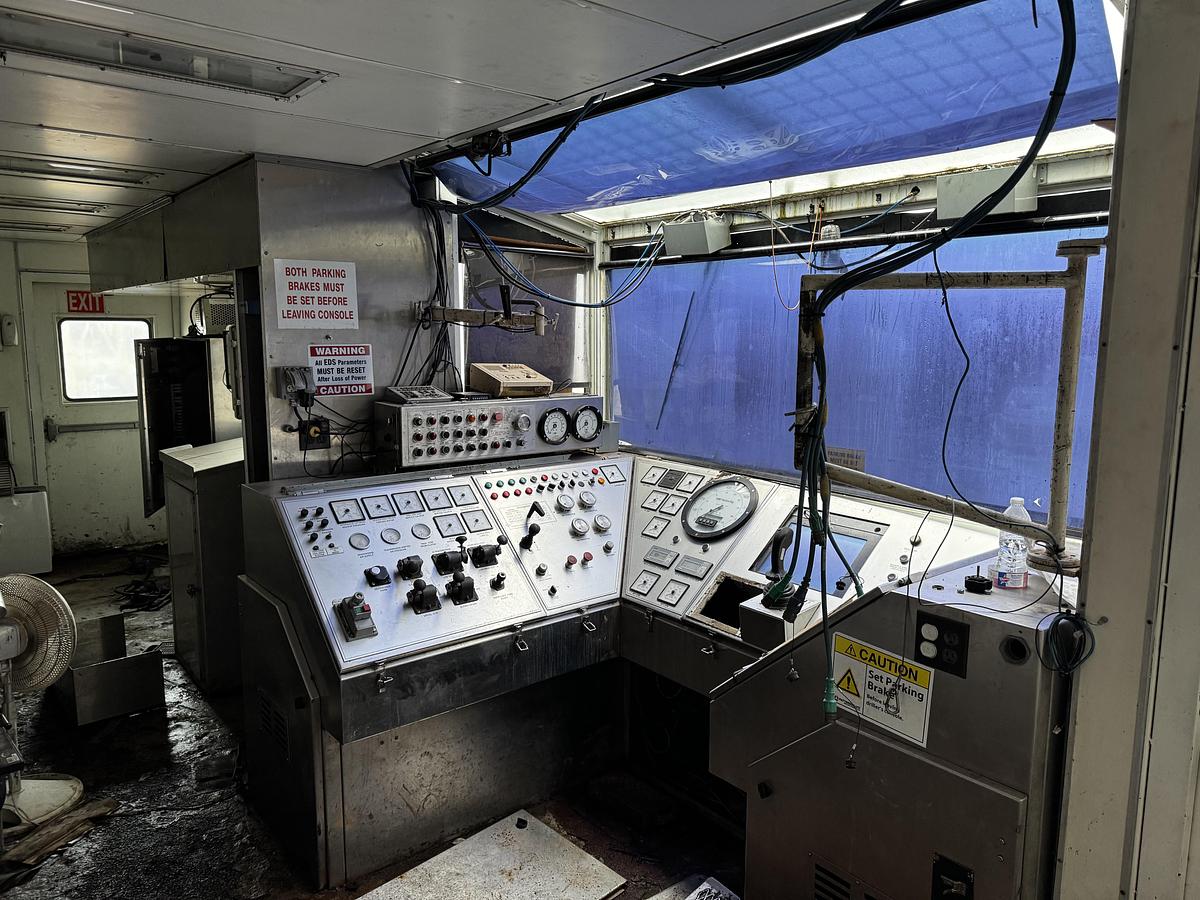

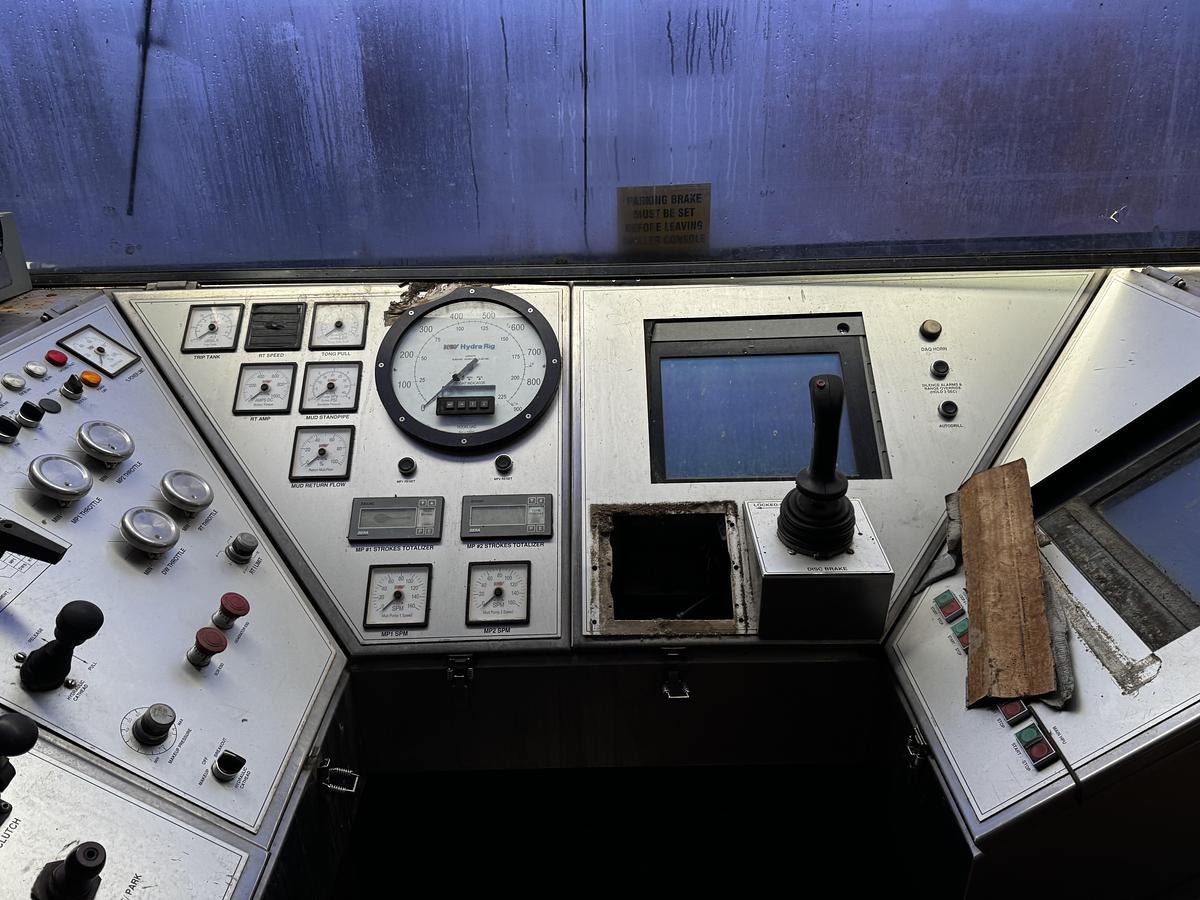

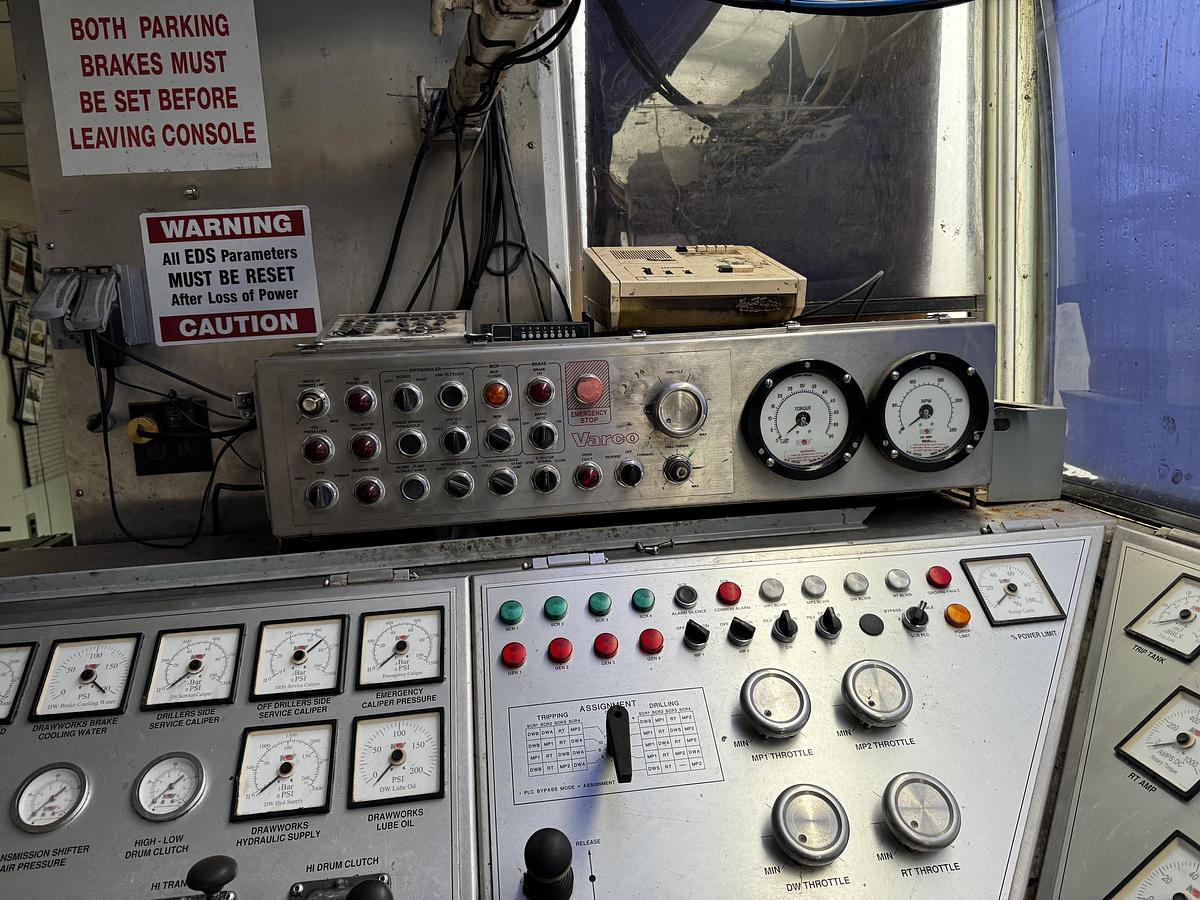

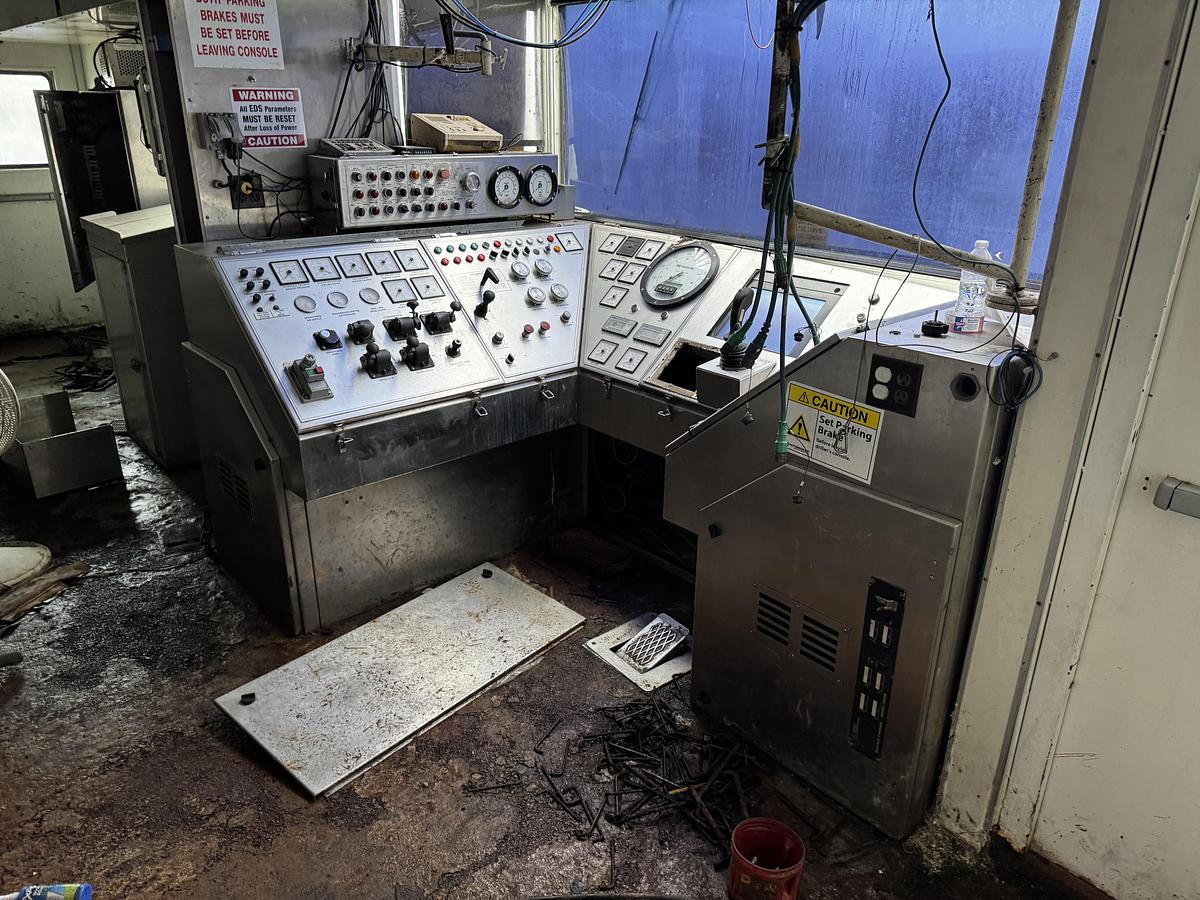

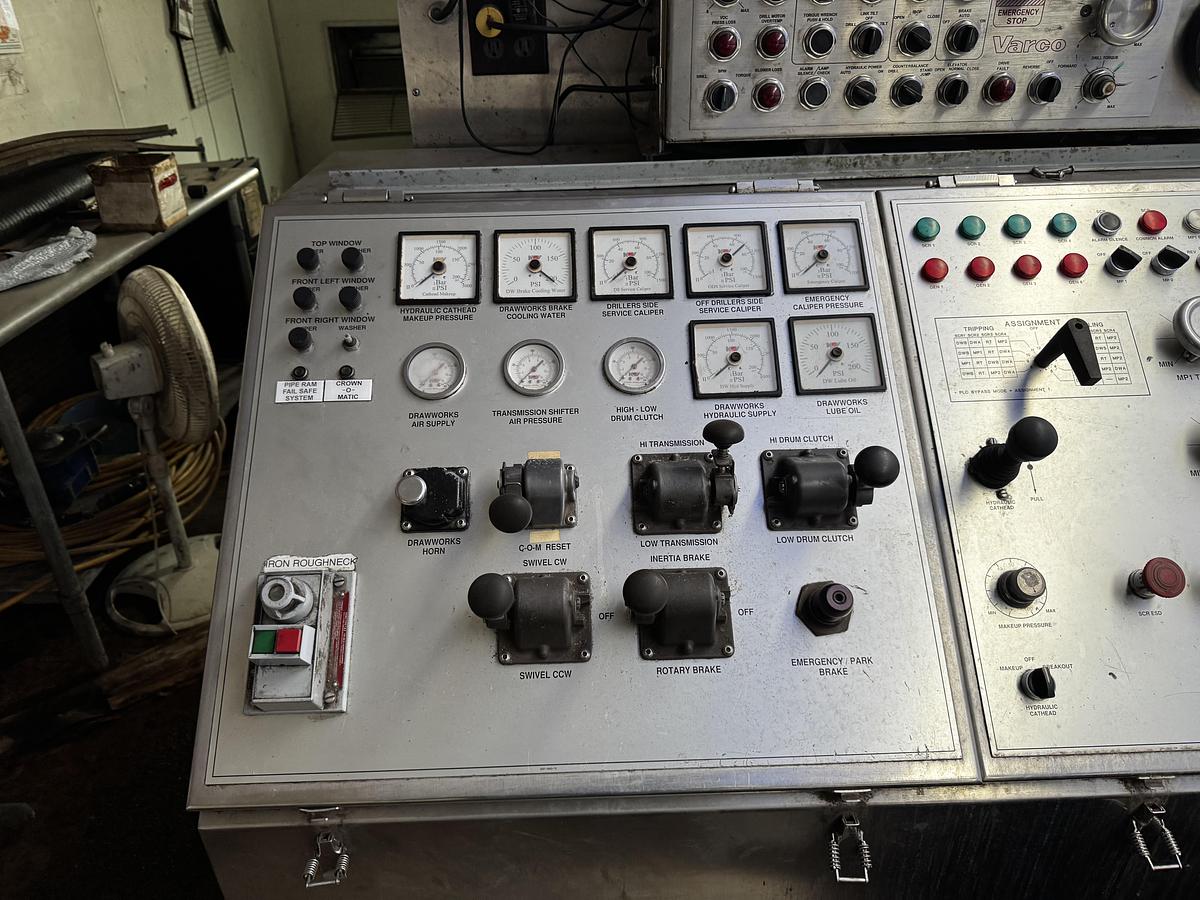

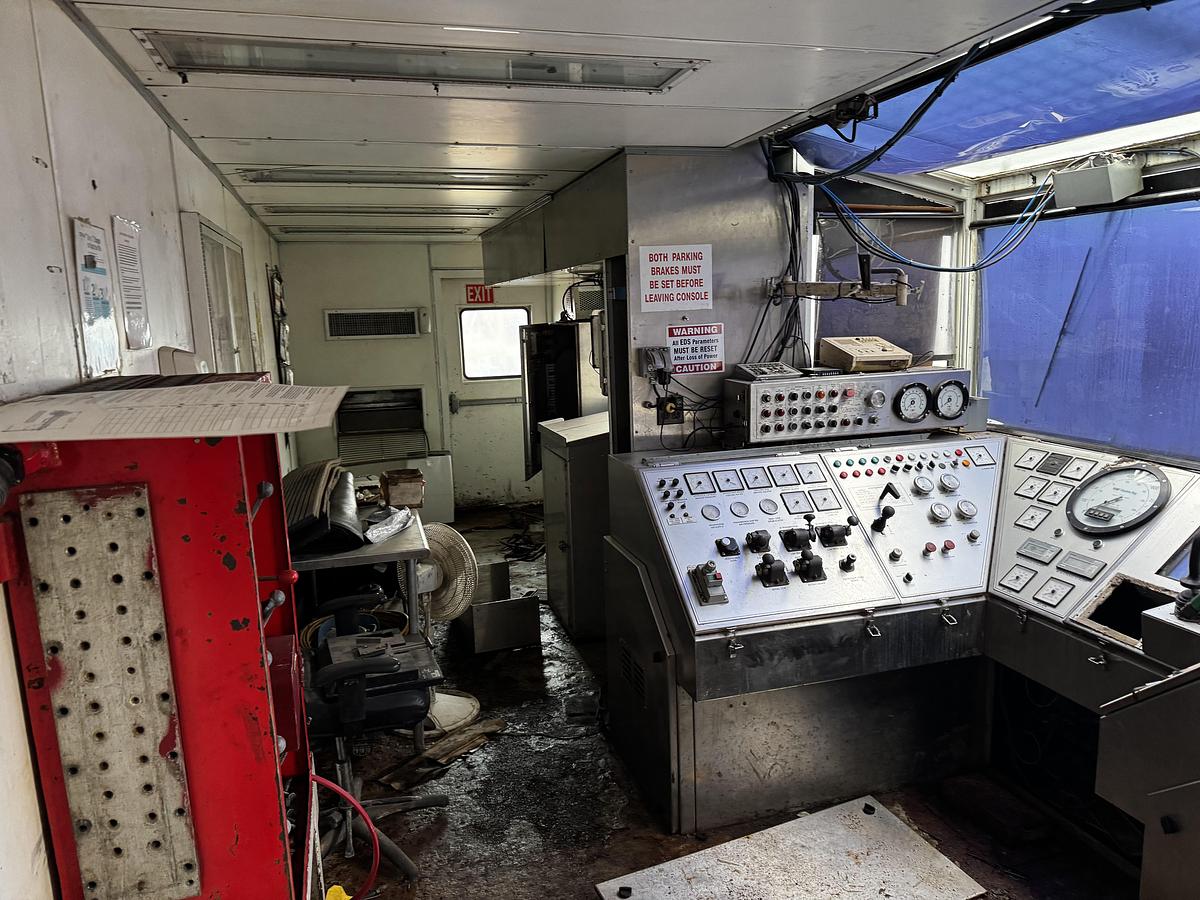

N.O.V. JC-50-D Drawworks, 1,500-HP, Maximum Grooved f/1-3/8” Drilling Line, w/BAYLOR DS50 Auxiliary Brake, N.O.V 2025A-MS Brake Cooling Package, p/b (2) Electric Traction Motors, Driller’s Controls

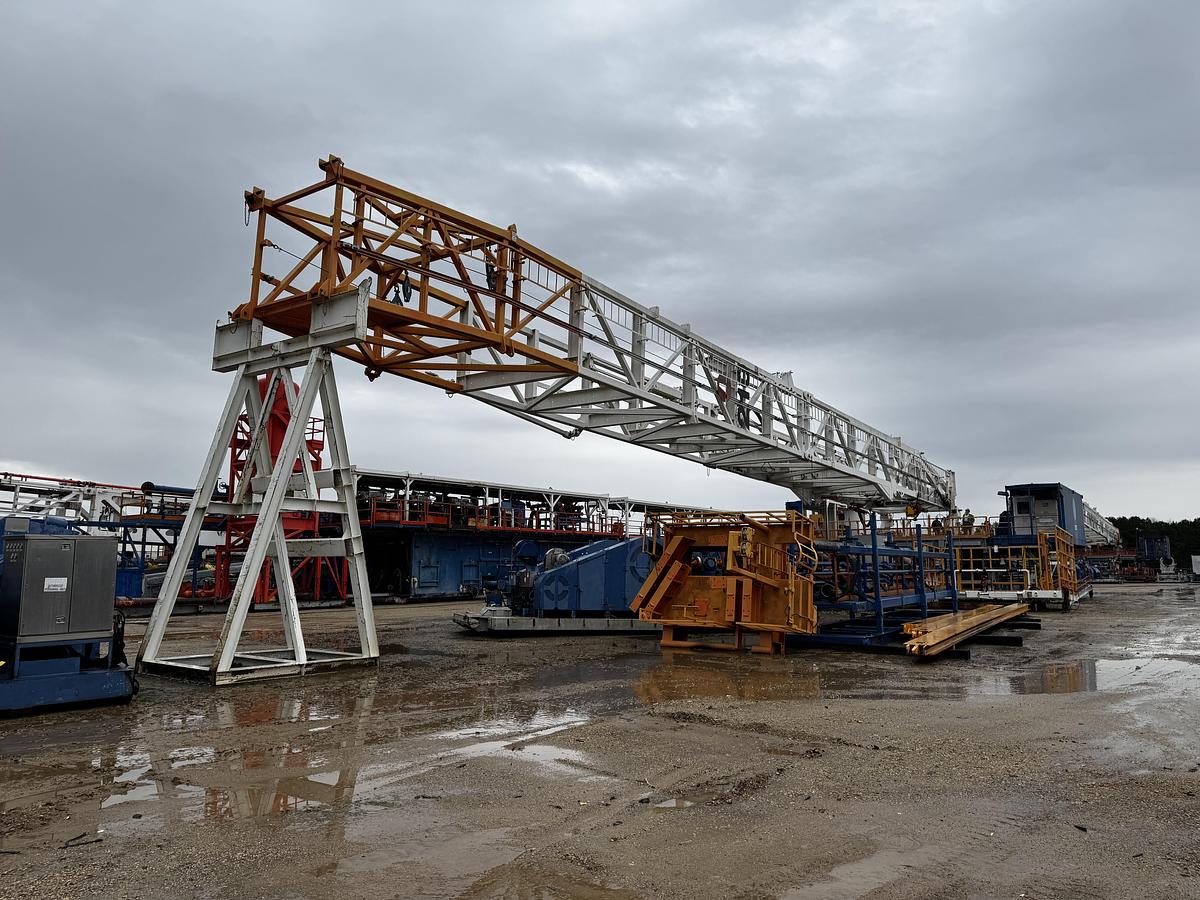

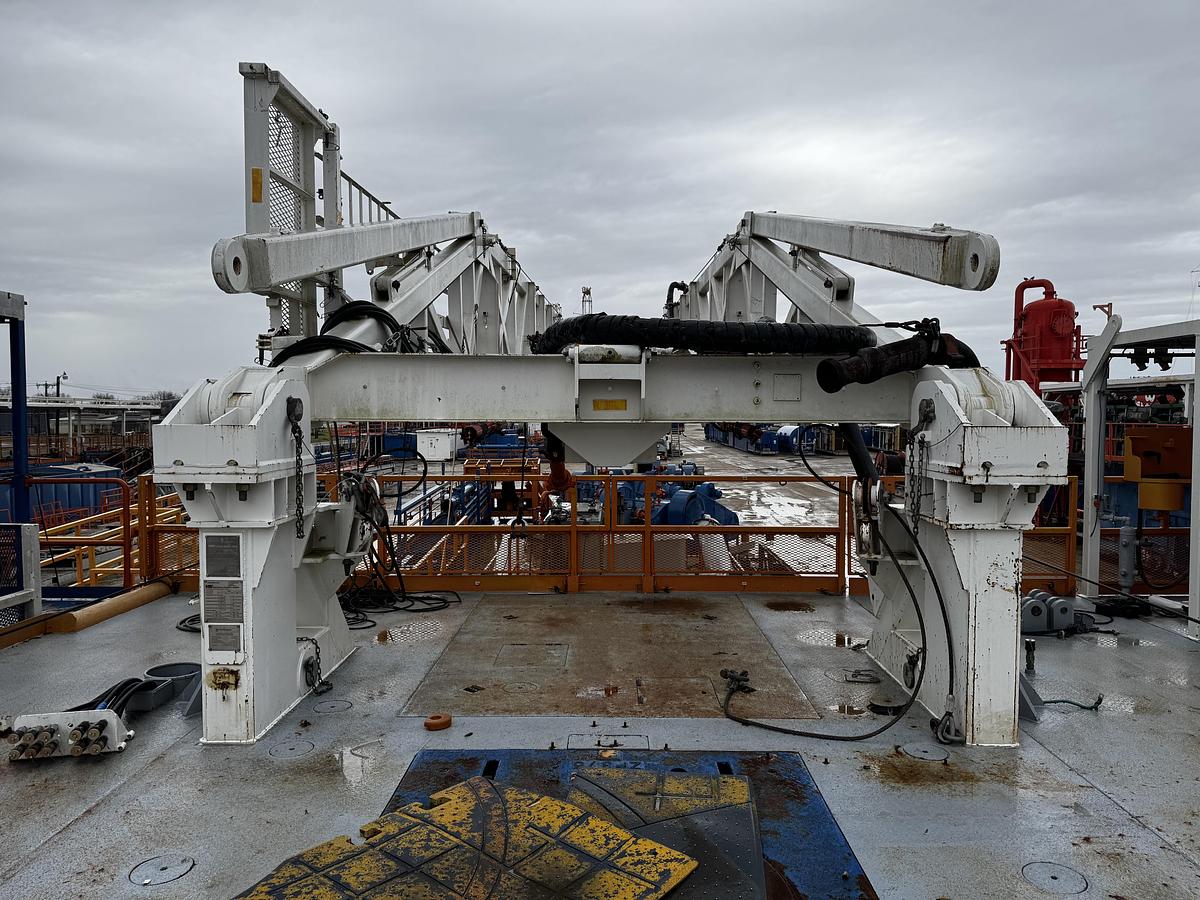

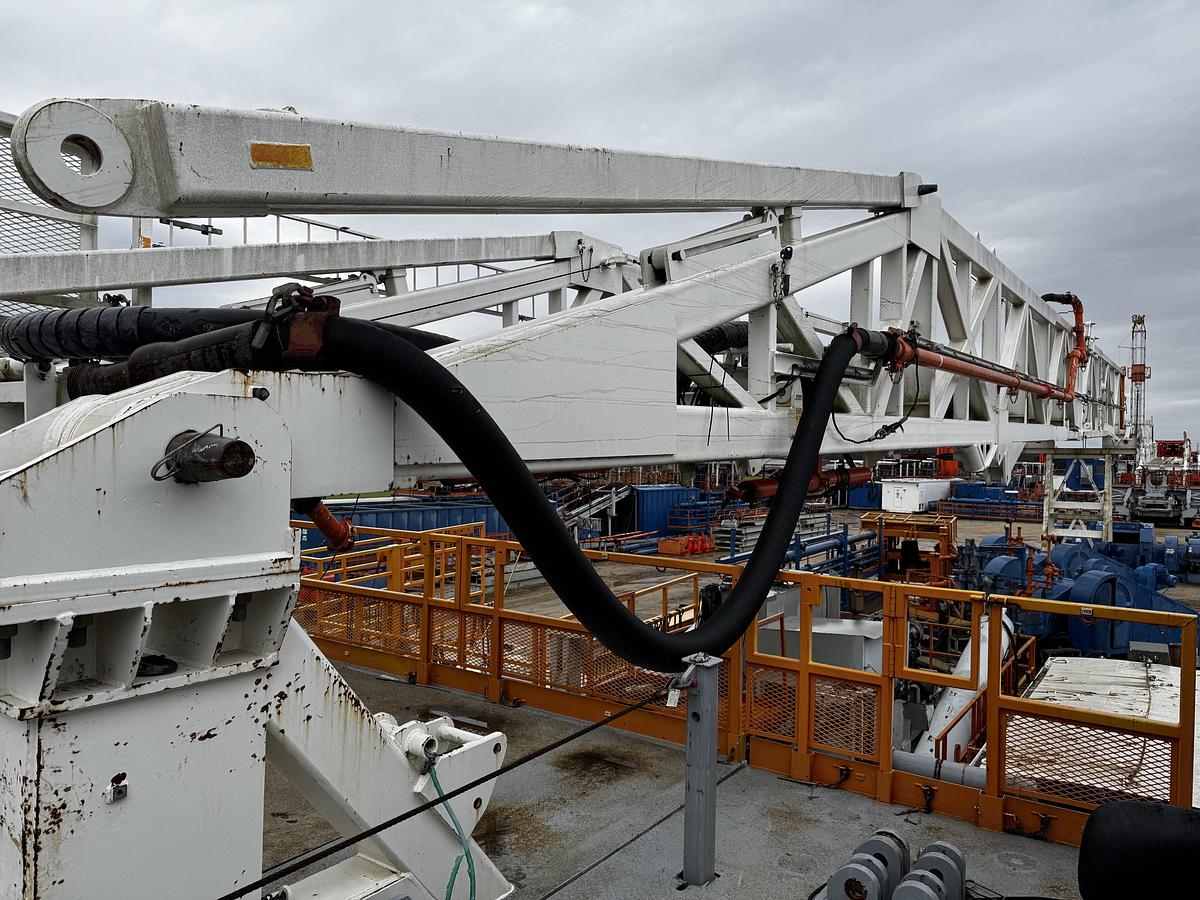

MAST:

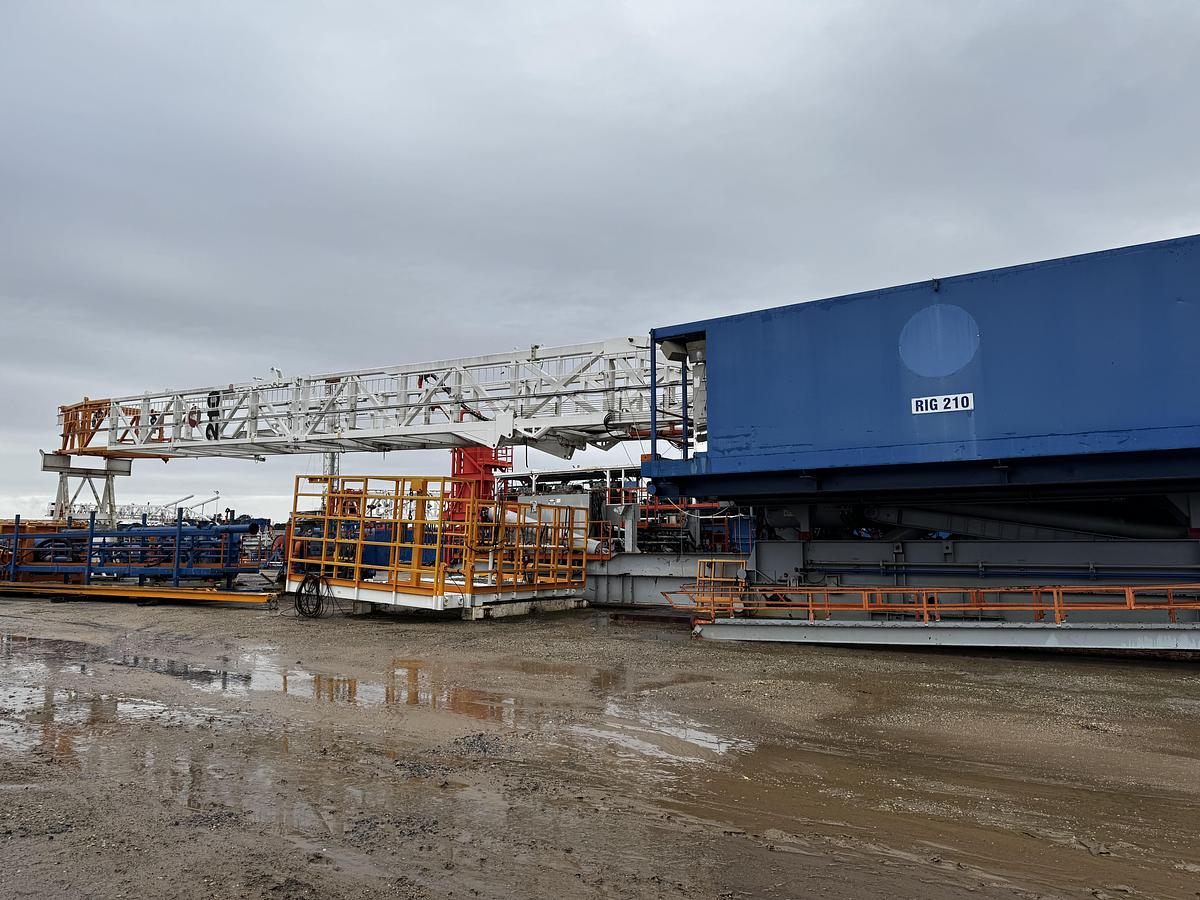

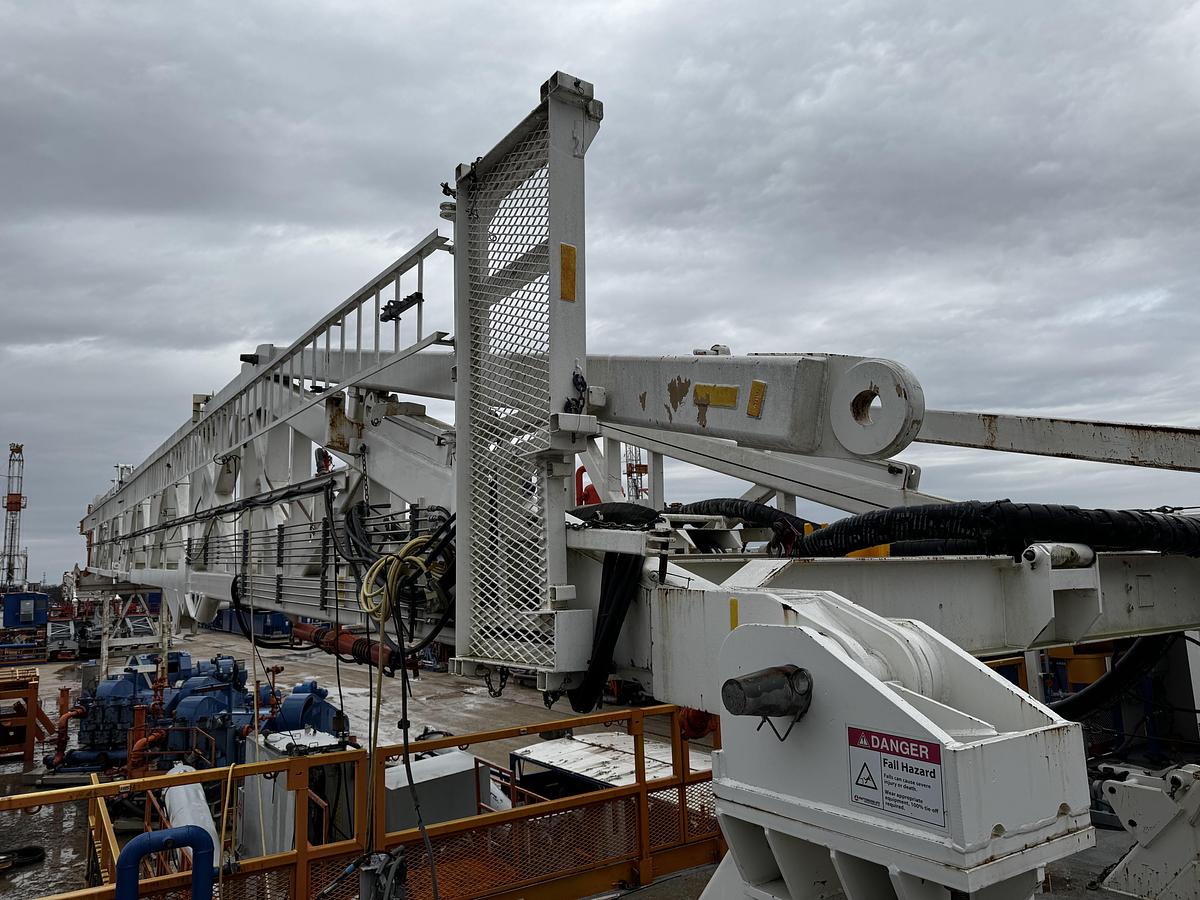

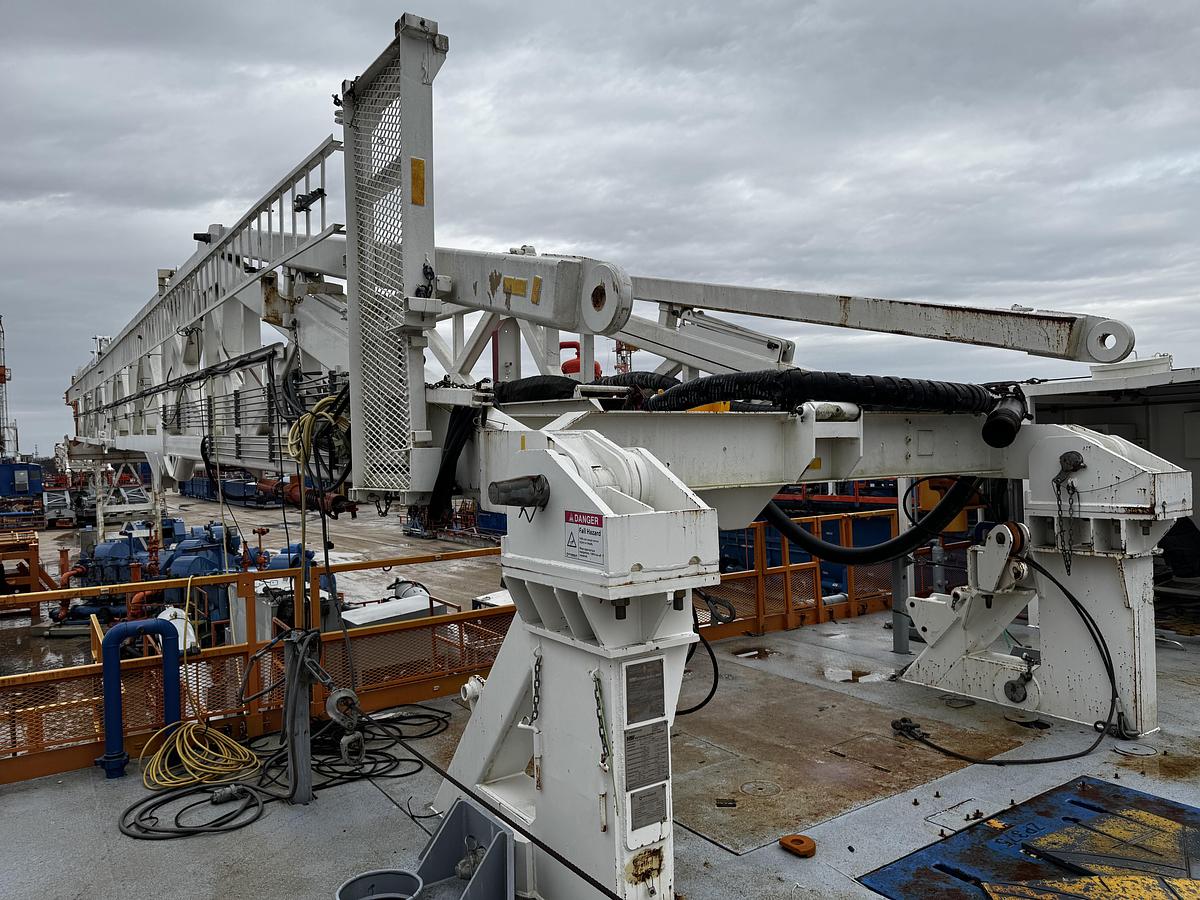

N.O.V. IDEAL, Two Section 142’H Hydraulic Raised Mast, 750,000# Capacity. Climb Assist, Fall Arrest

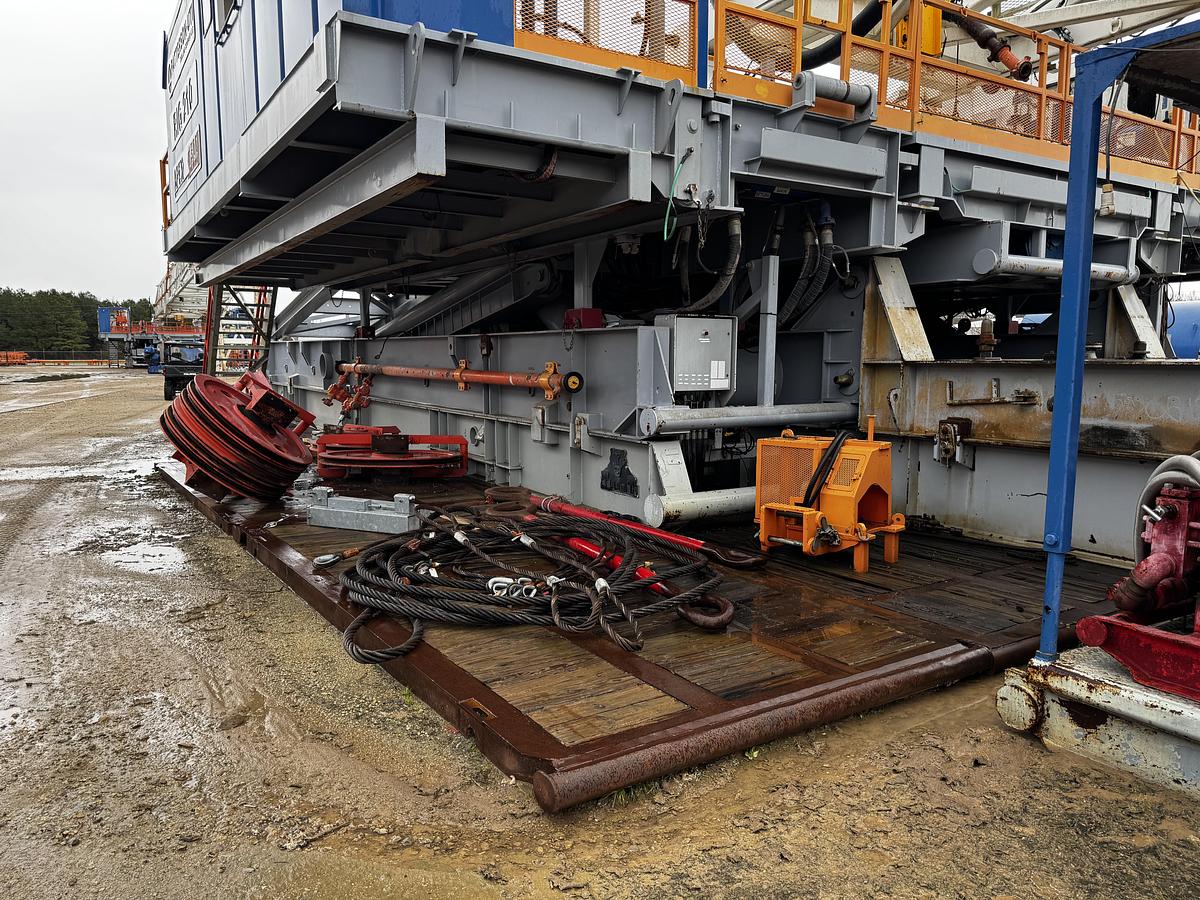

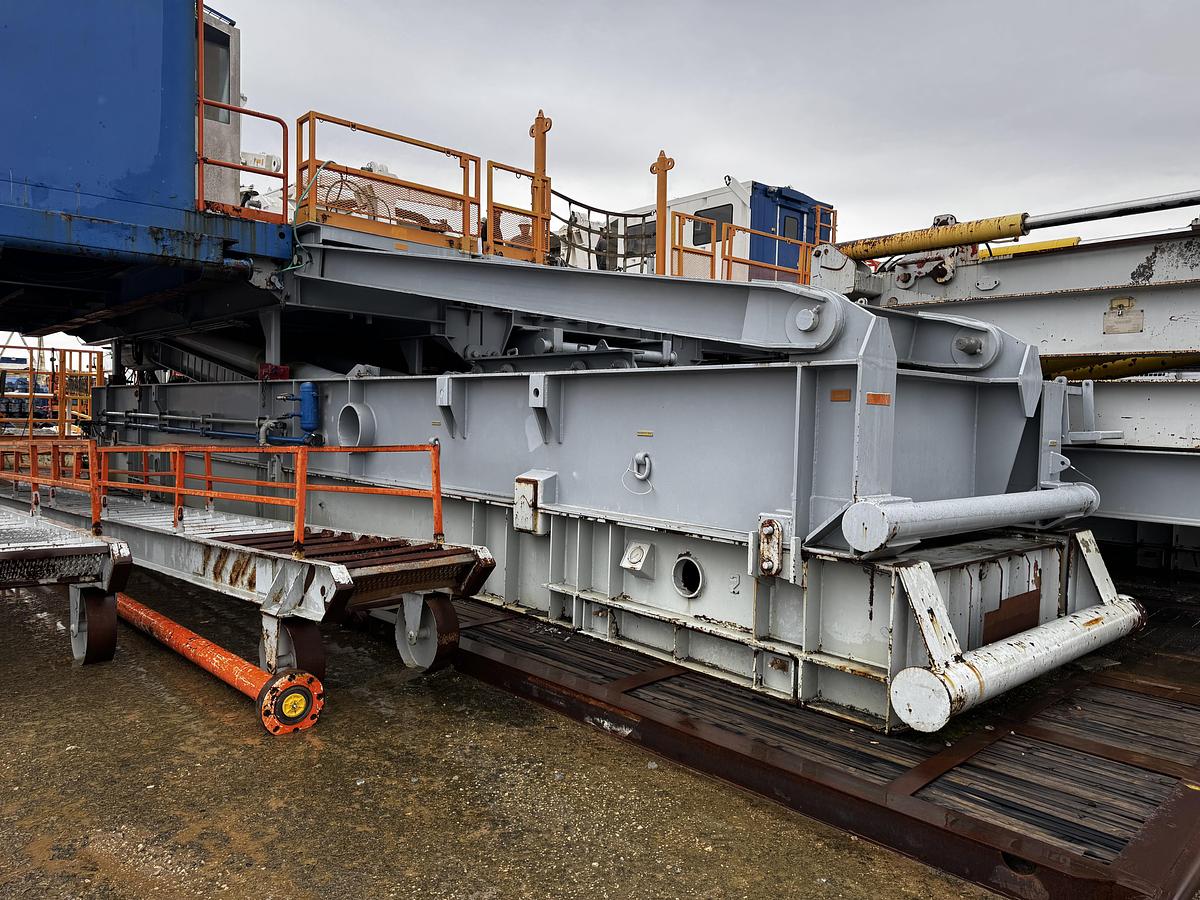

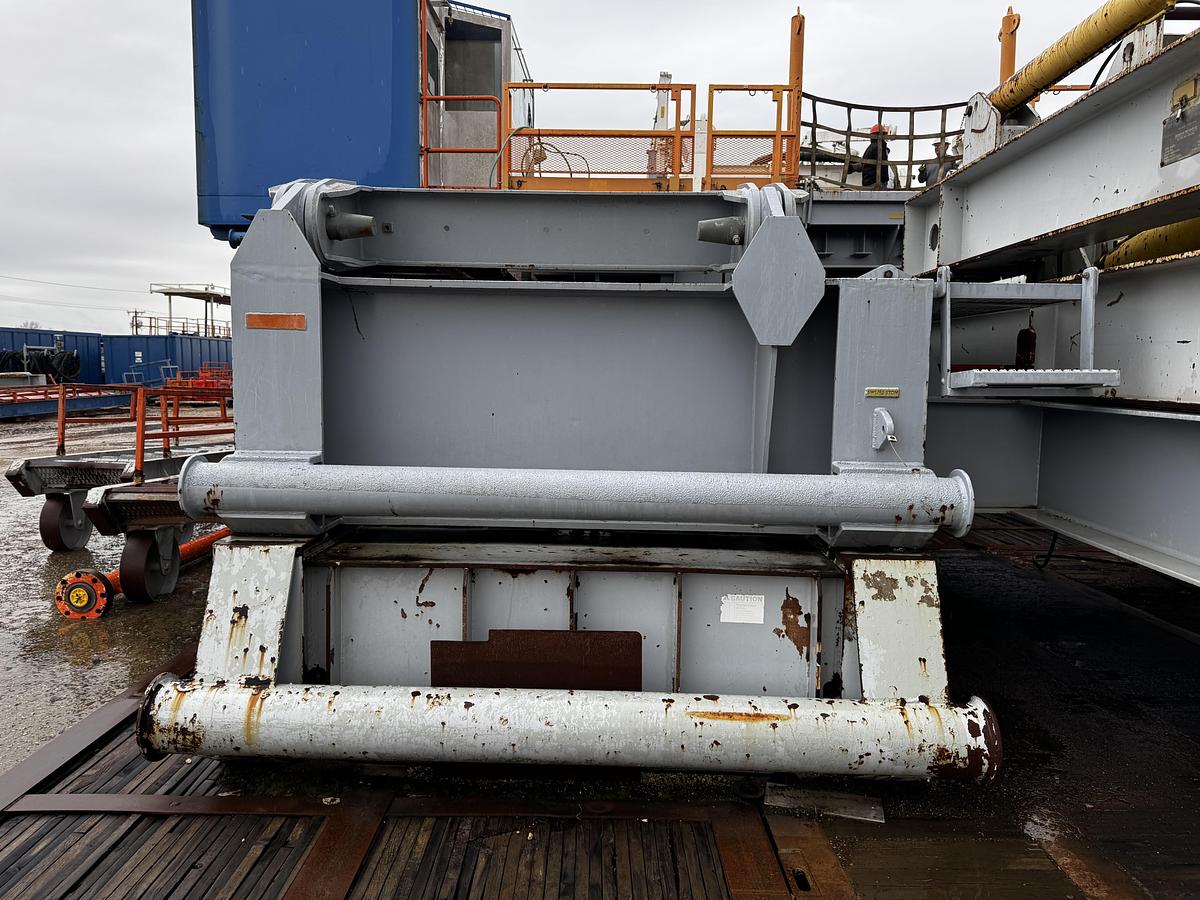

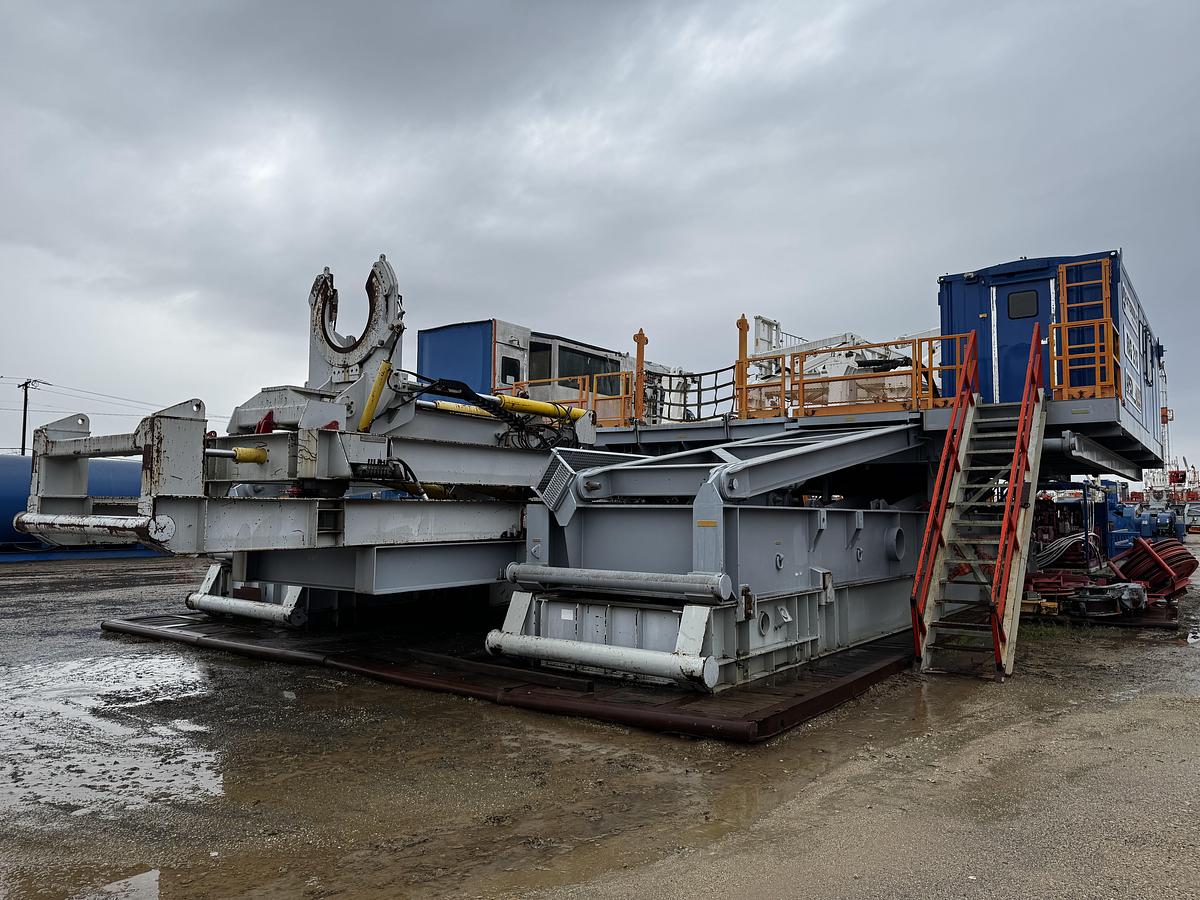

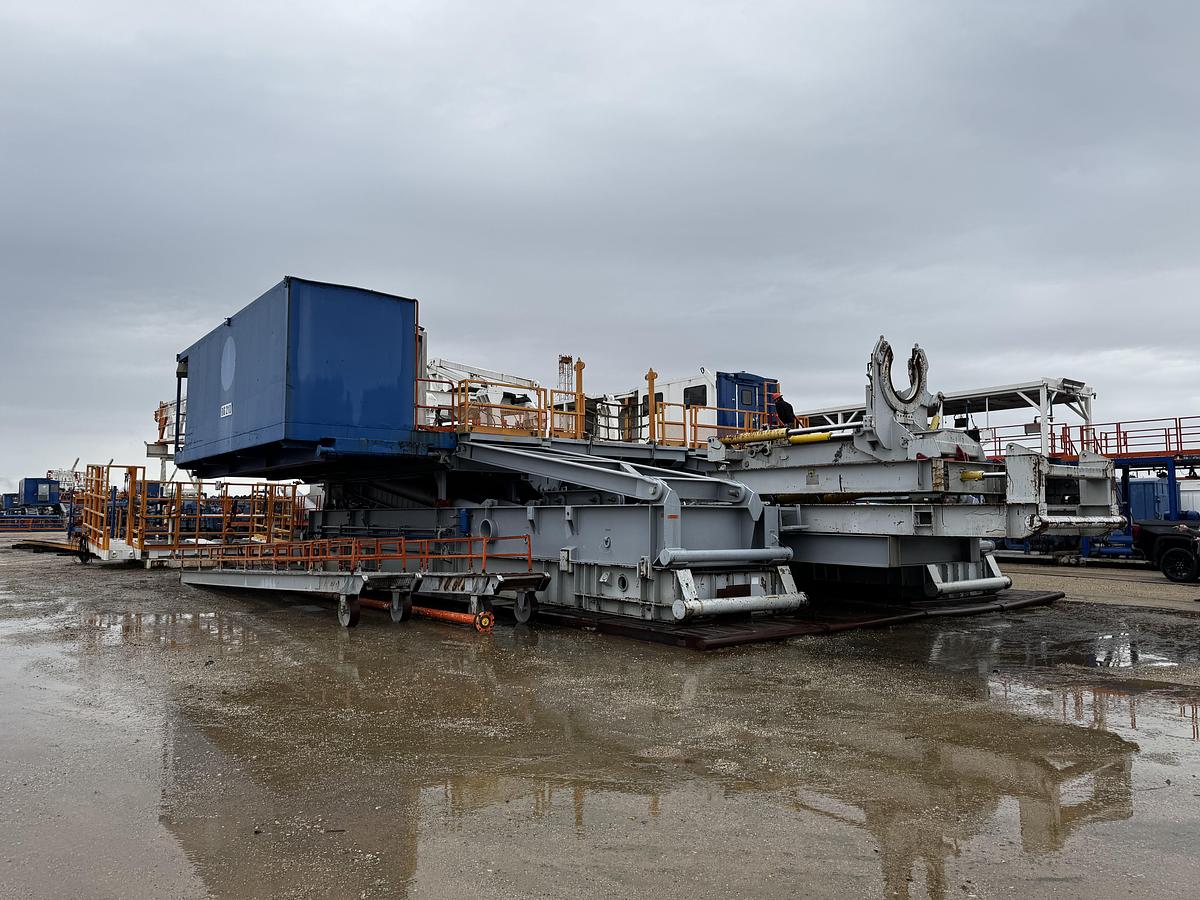

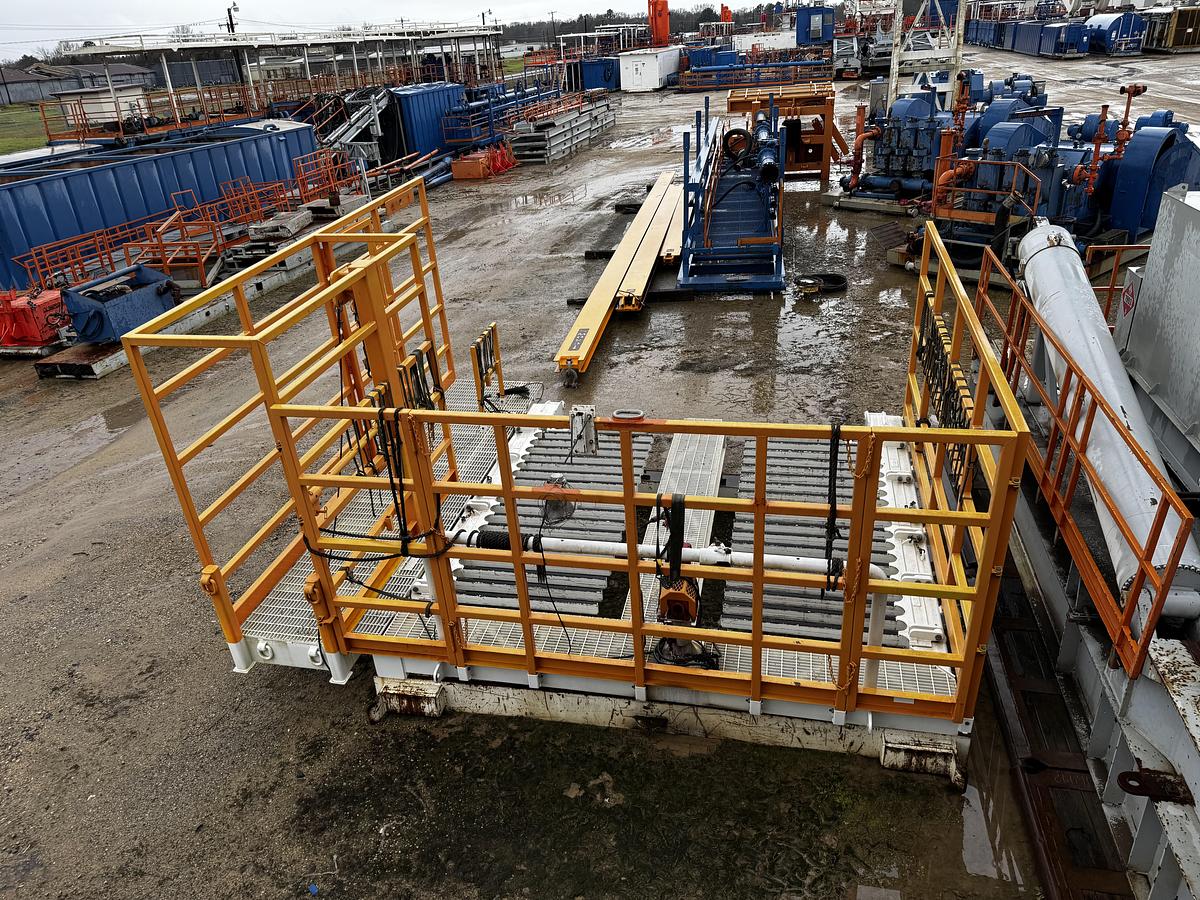

SUBSTRUCTURE:

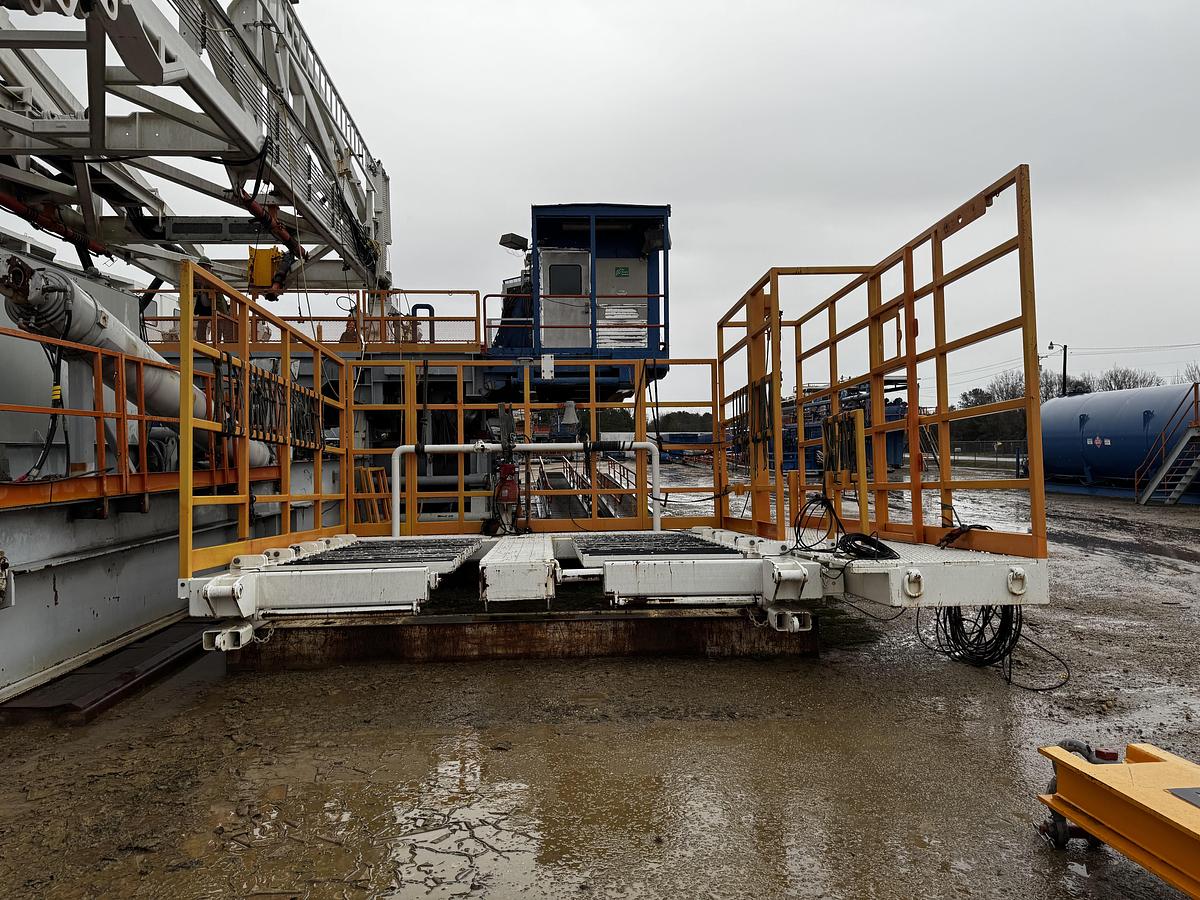

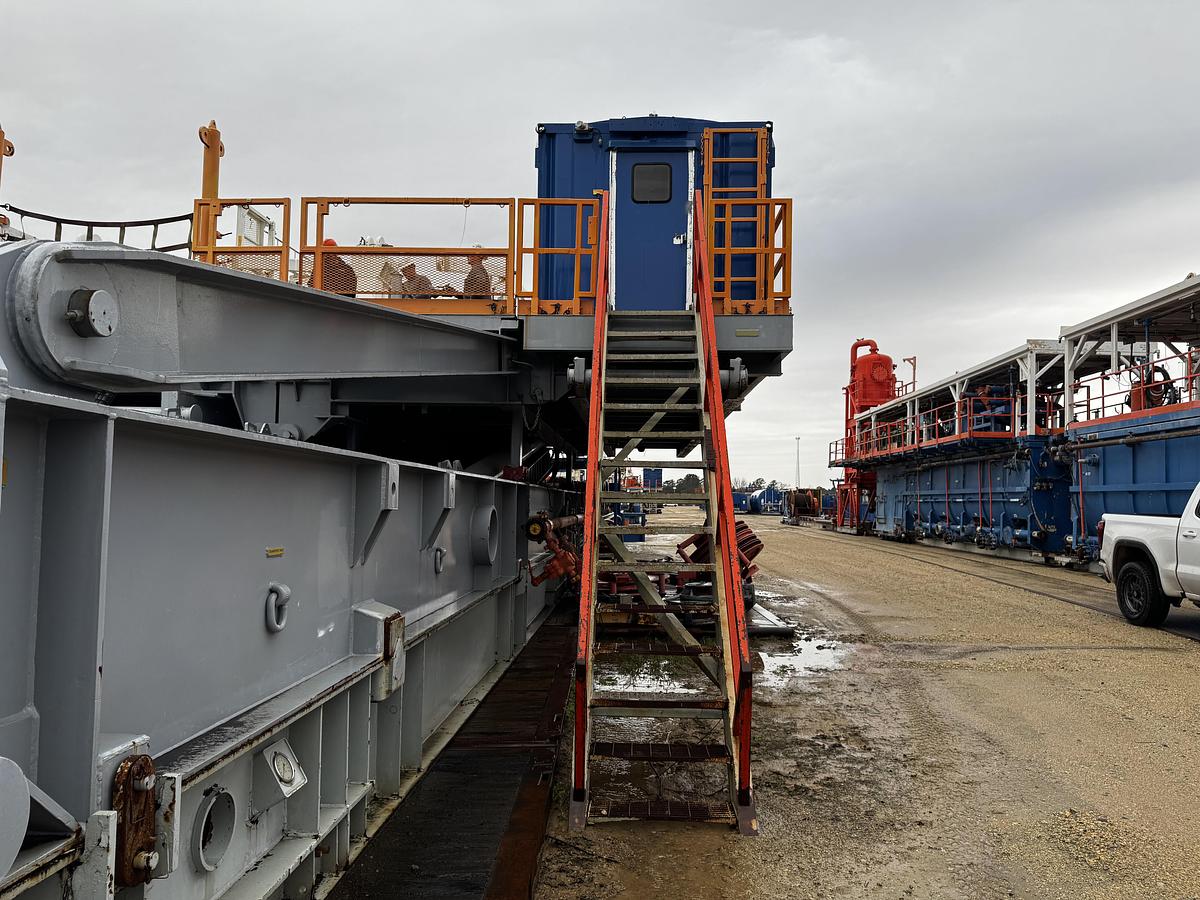

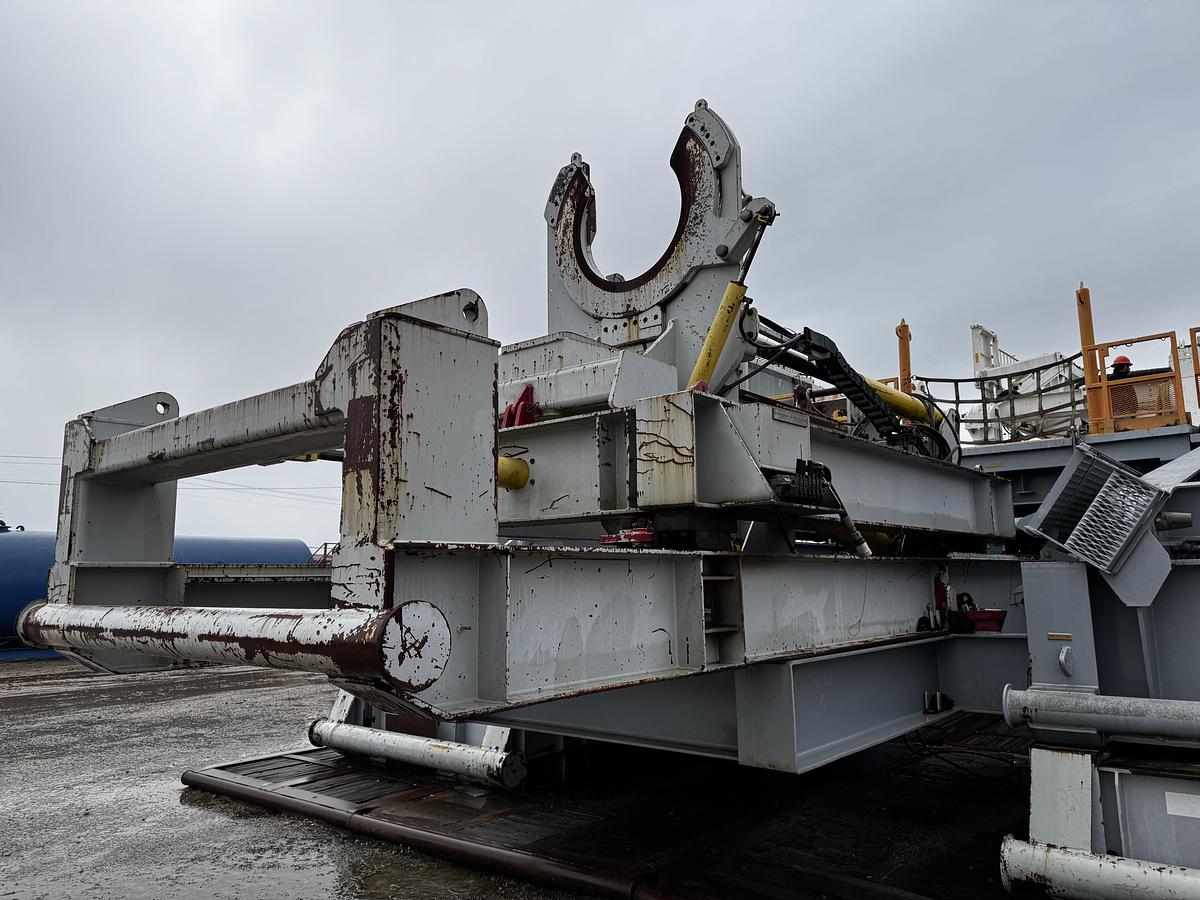

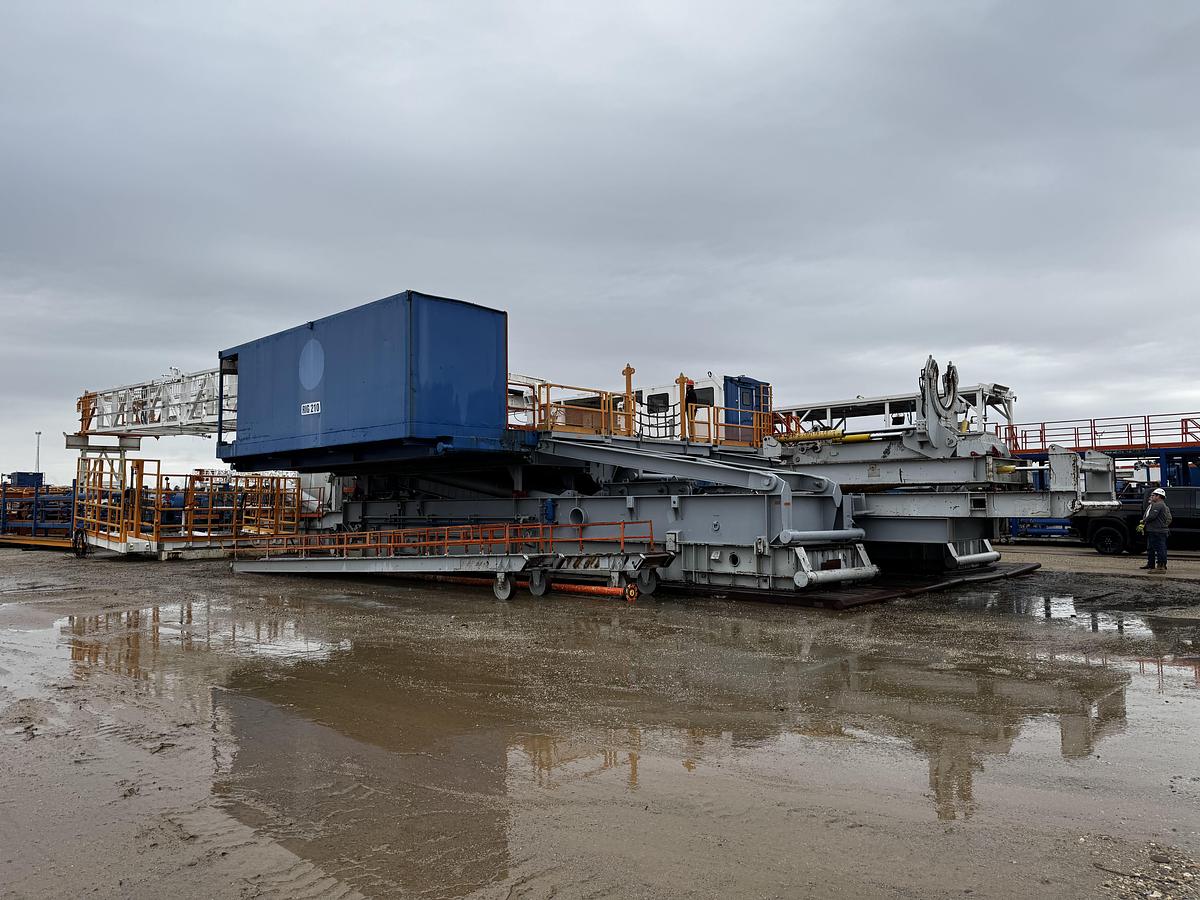

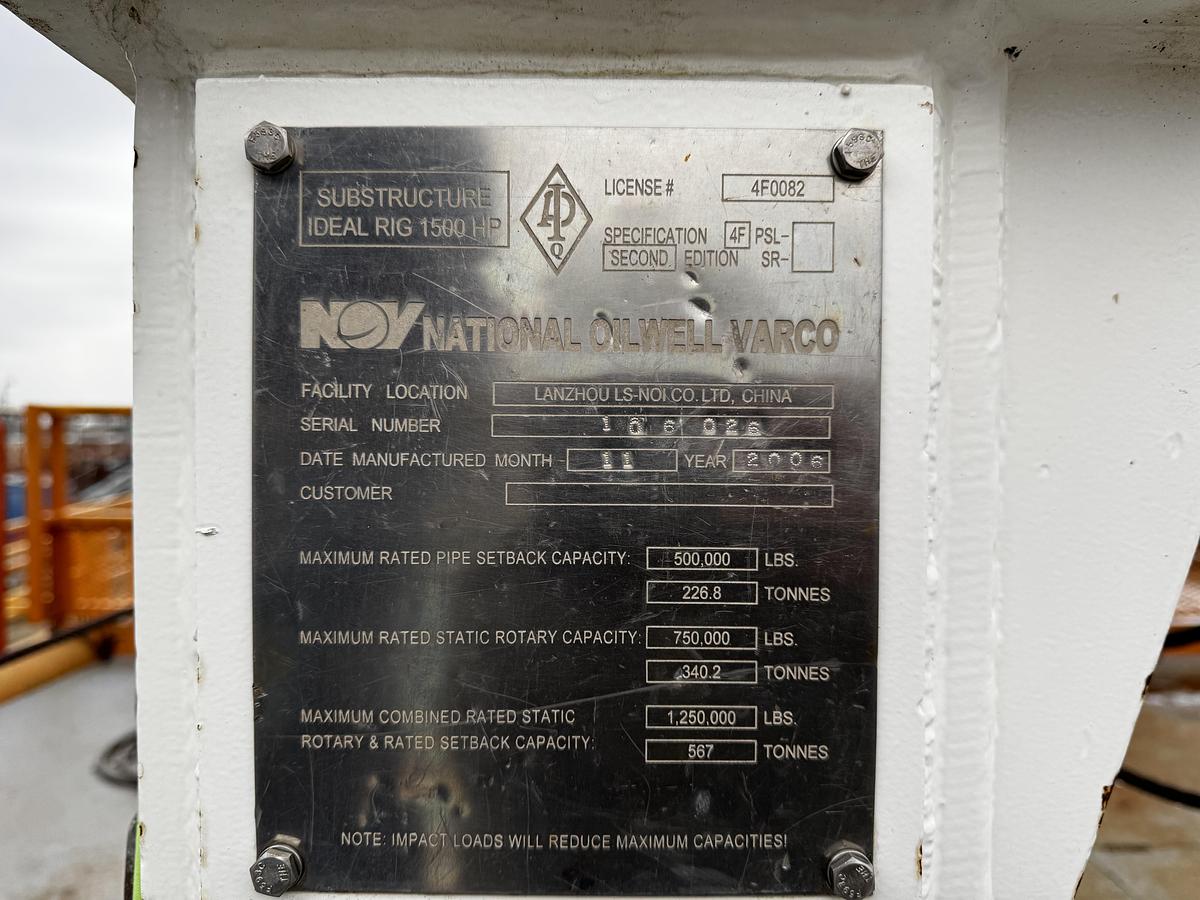

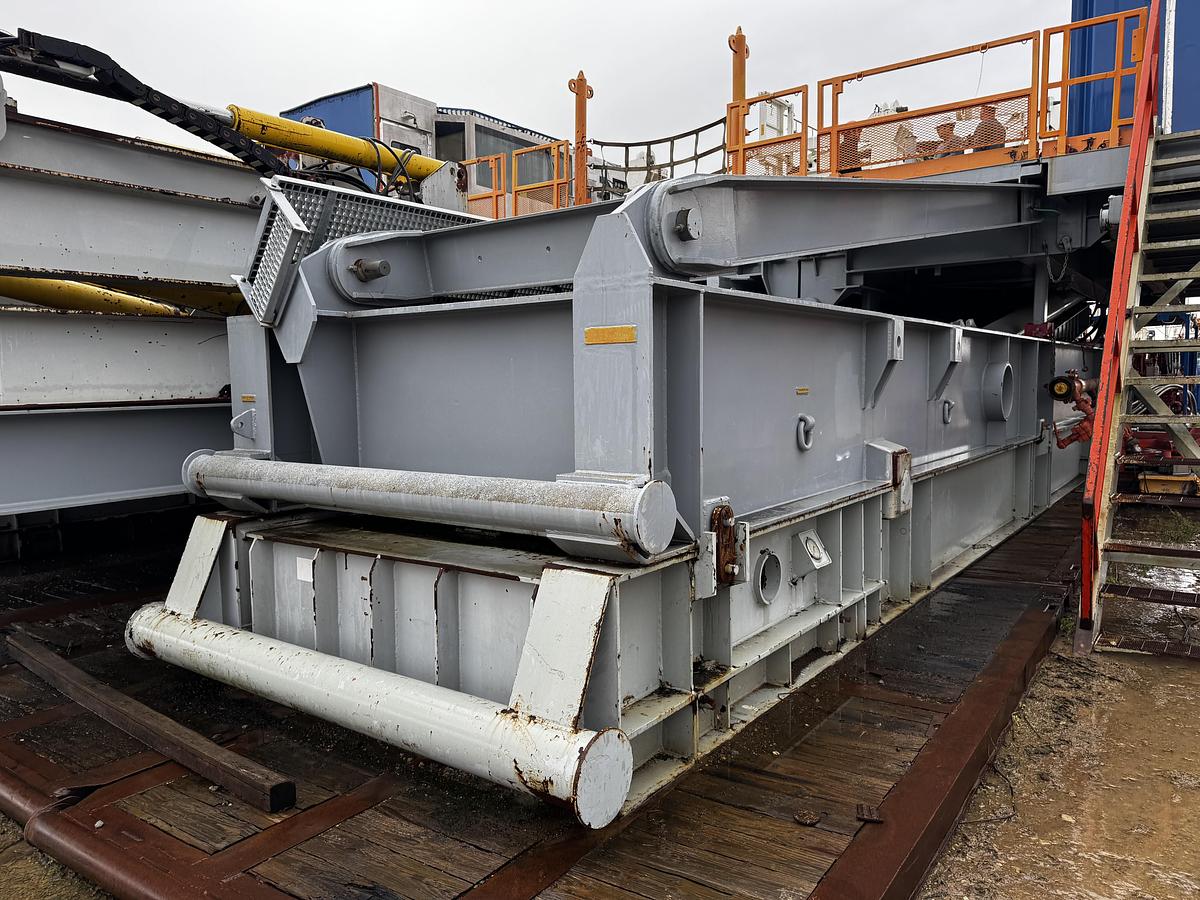

N.O.V. APEX 25’H Substructure, 750,000# Capacity, 500,000# Setback Capacity, w/Stairs, Safety Rails, Skidded

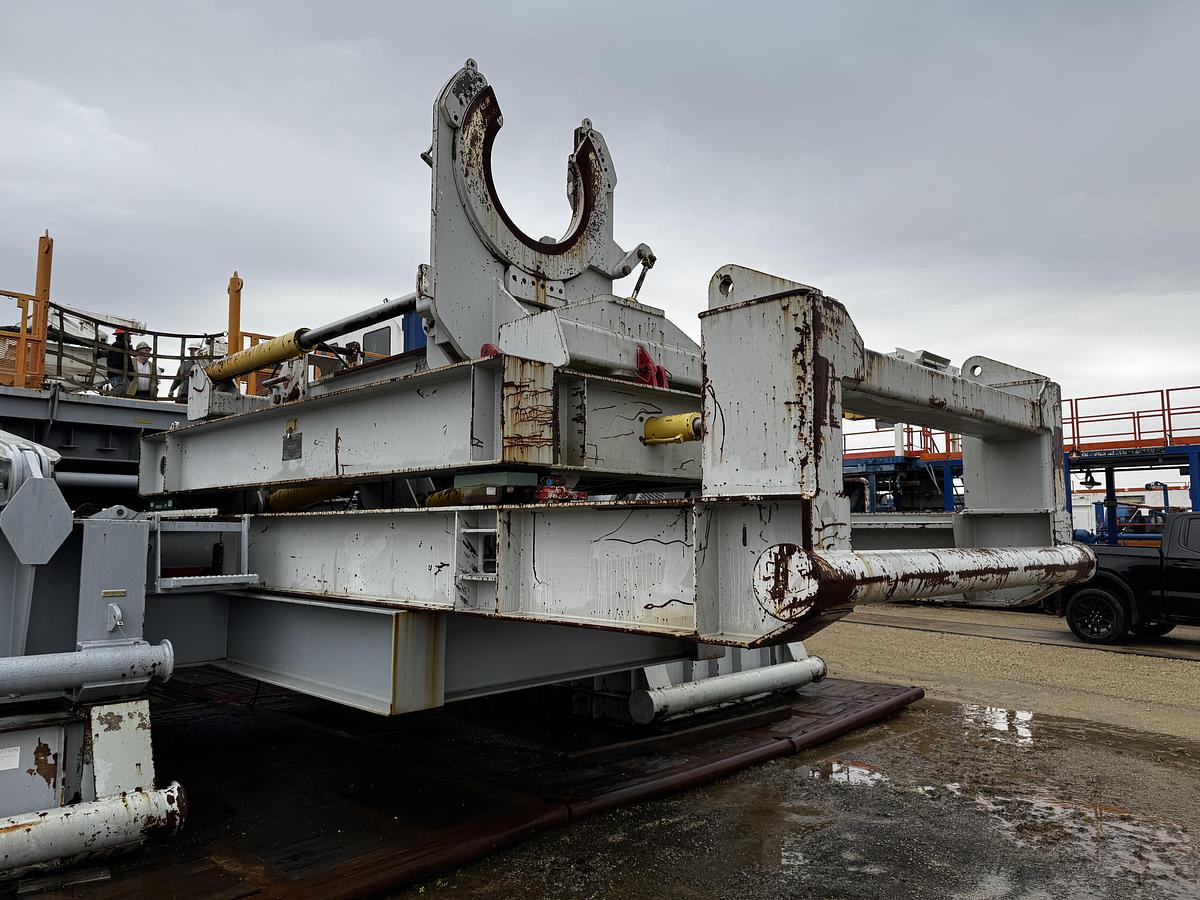

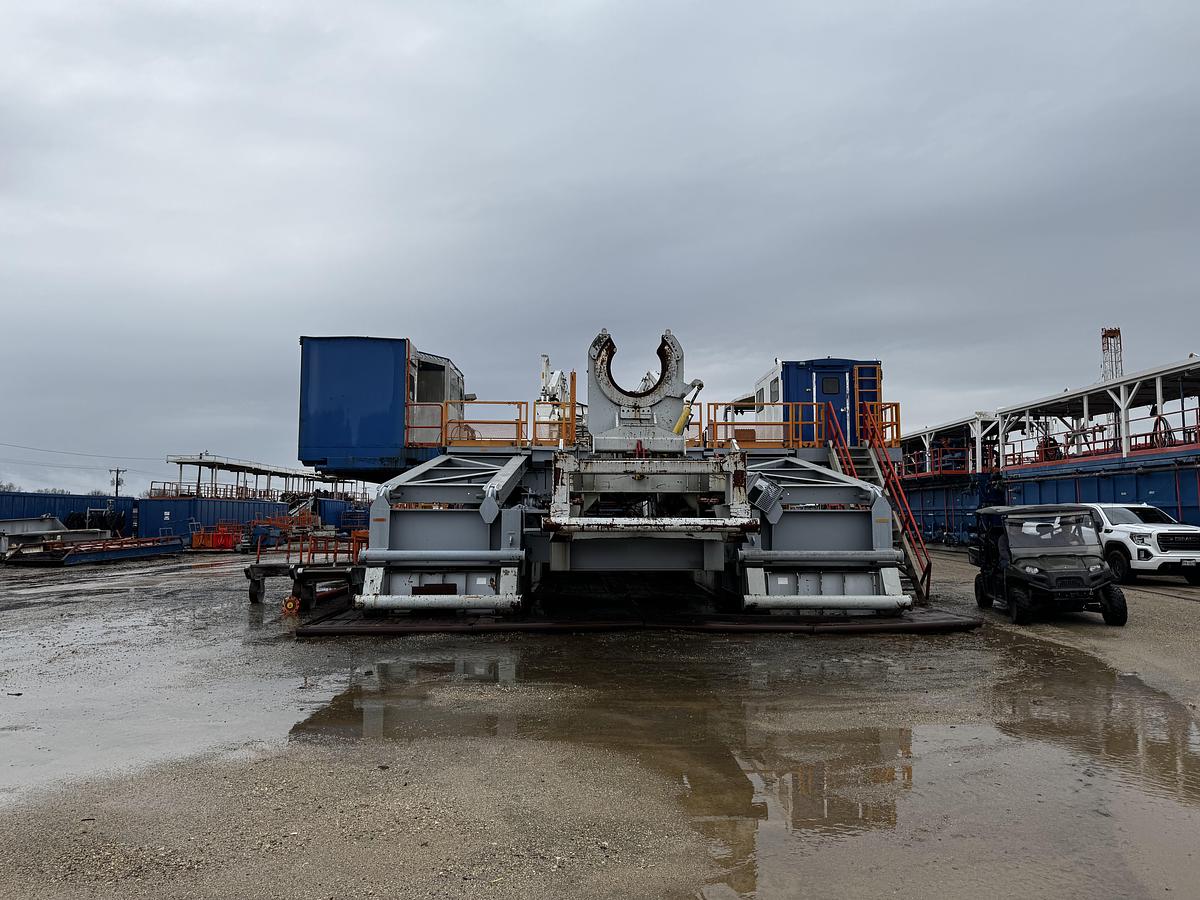

Columbia Industries Bi-Directional Rig Walking System,

RIG POWER:

(3) KATO 1204-KW Electric Generators, S/N-N/A, Each p/b CAT 3512-B Diesel Engine, 1,476-HP, w/Starter, Radiator, Gauges, Skidded

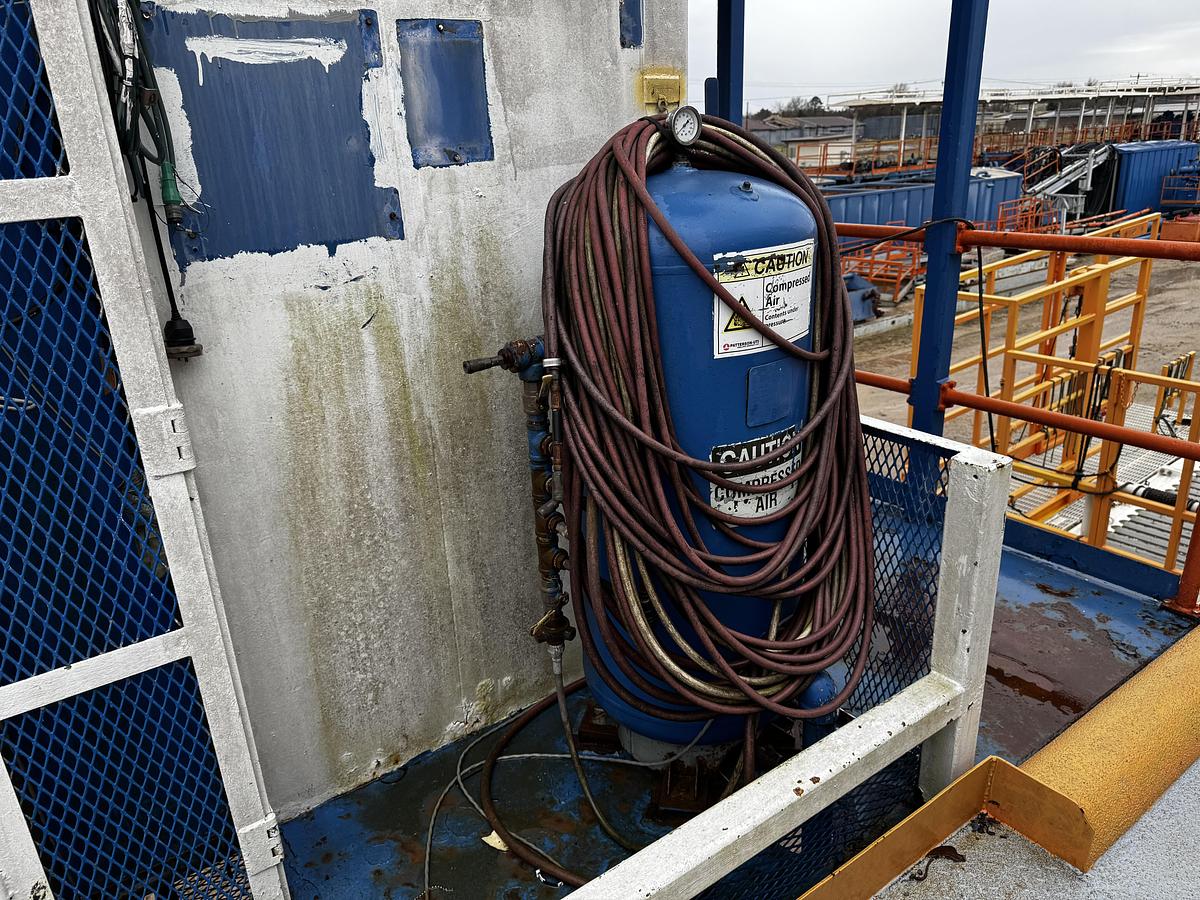

Rig Air Compressor, p/b Electric Motor

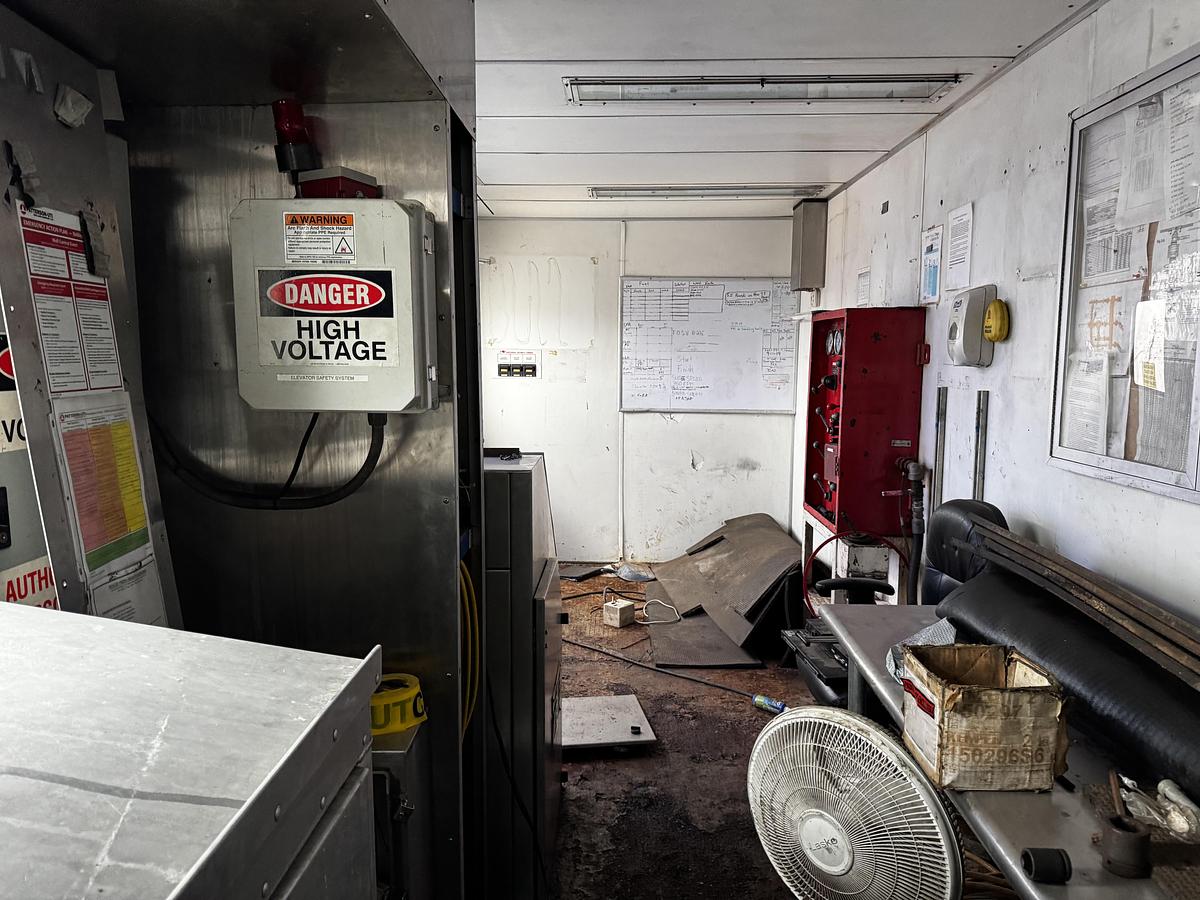

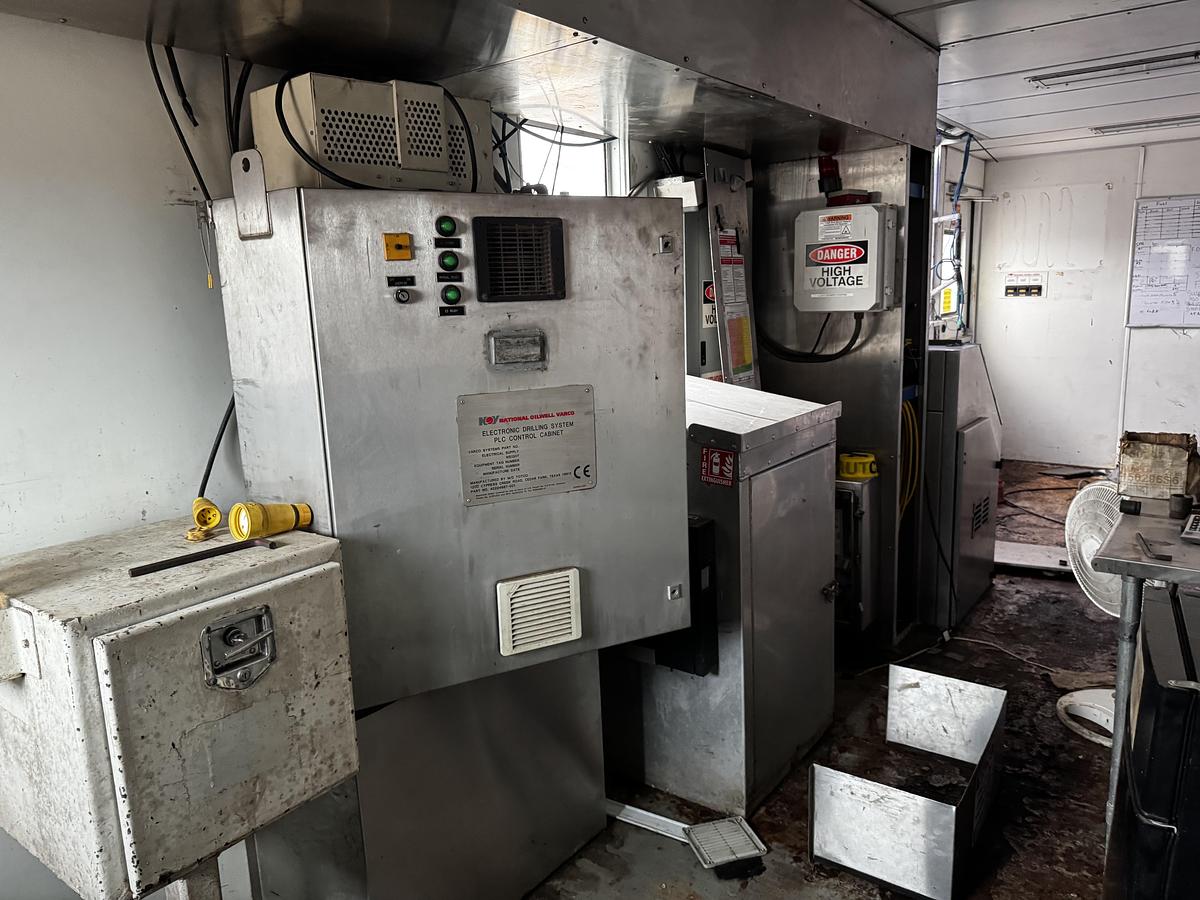

N.O.V. ROSS HILL SCR House, (3) Generator Bays, (4) SCR Bays, Skidded

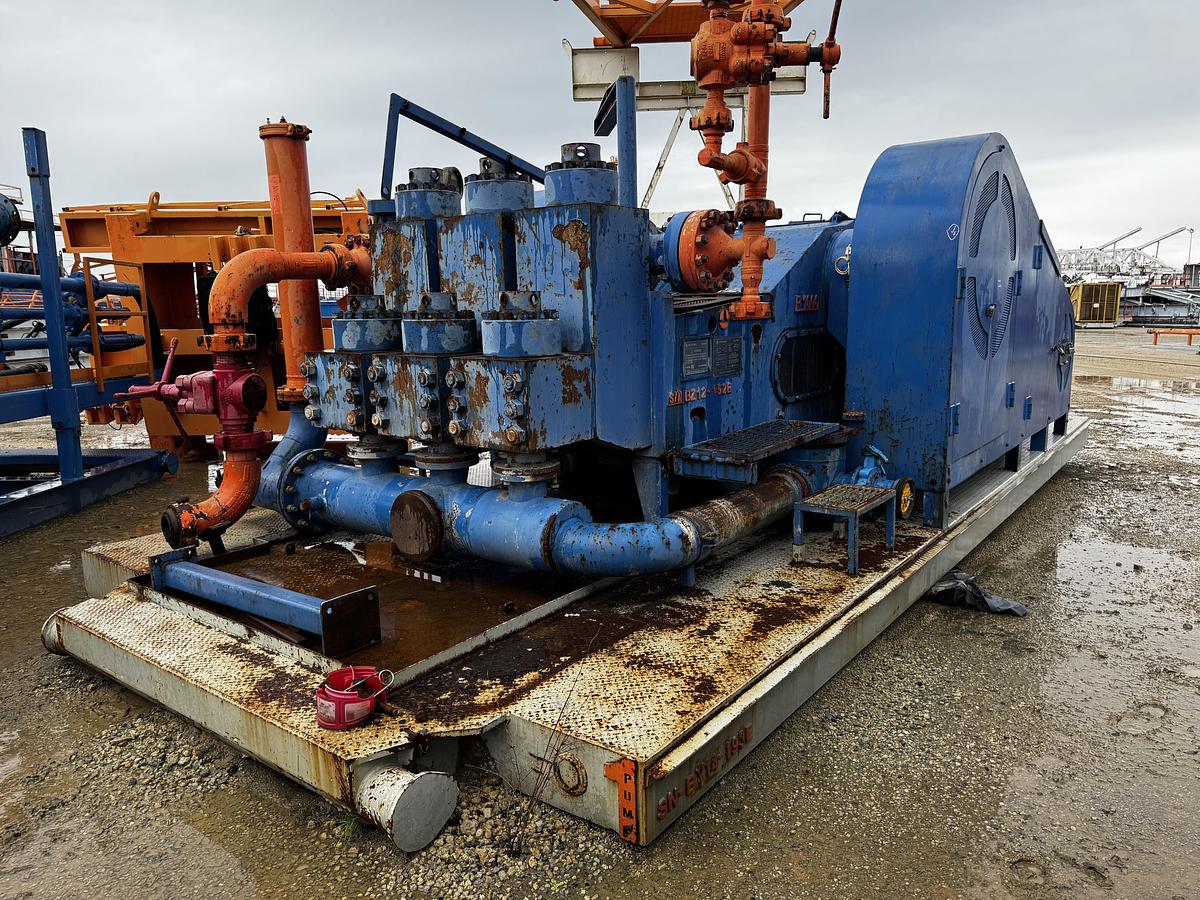

MUD PUMPS:

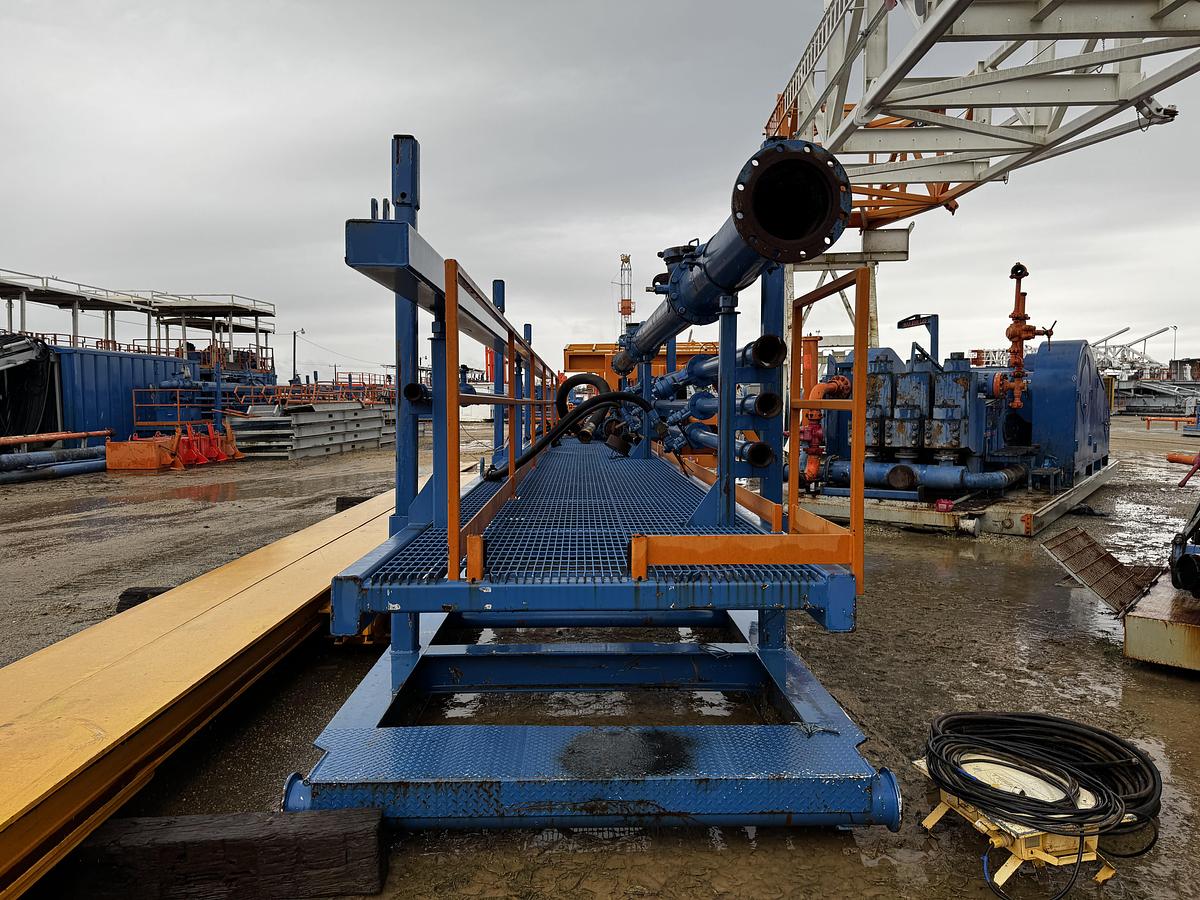

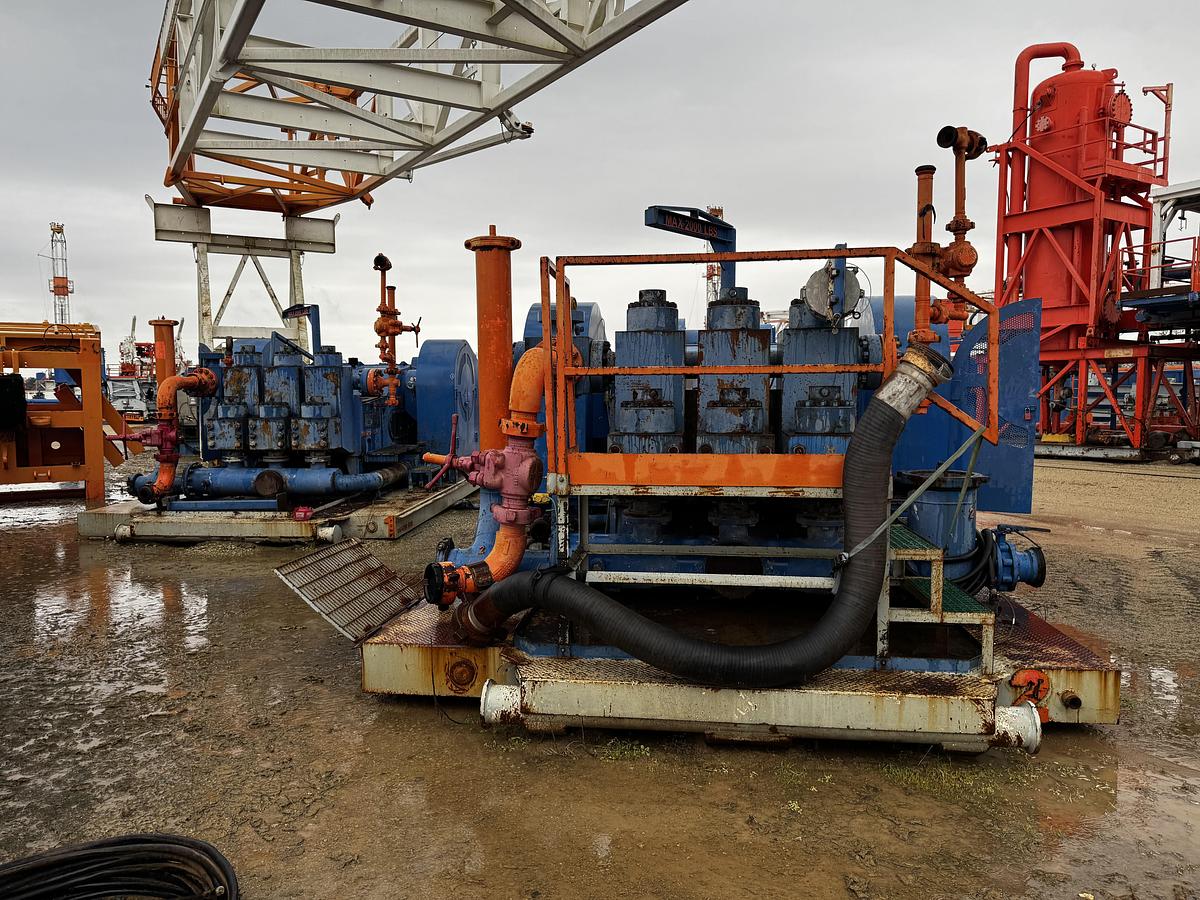

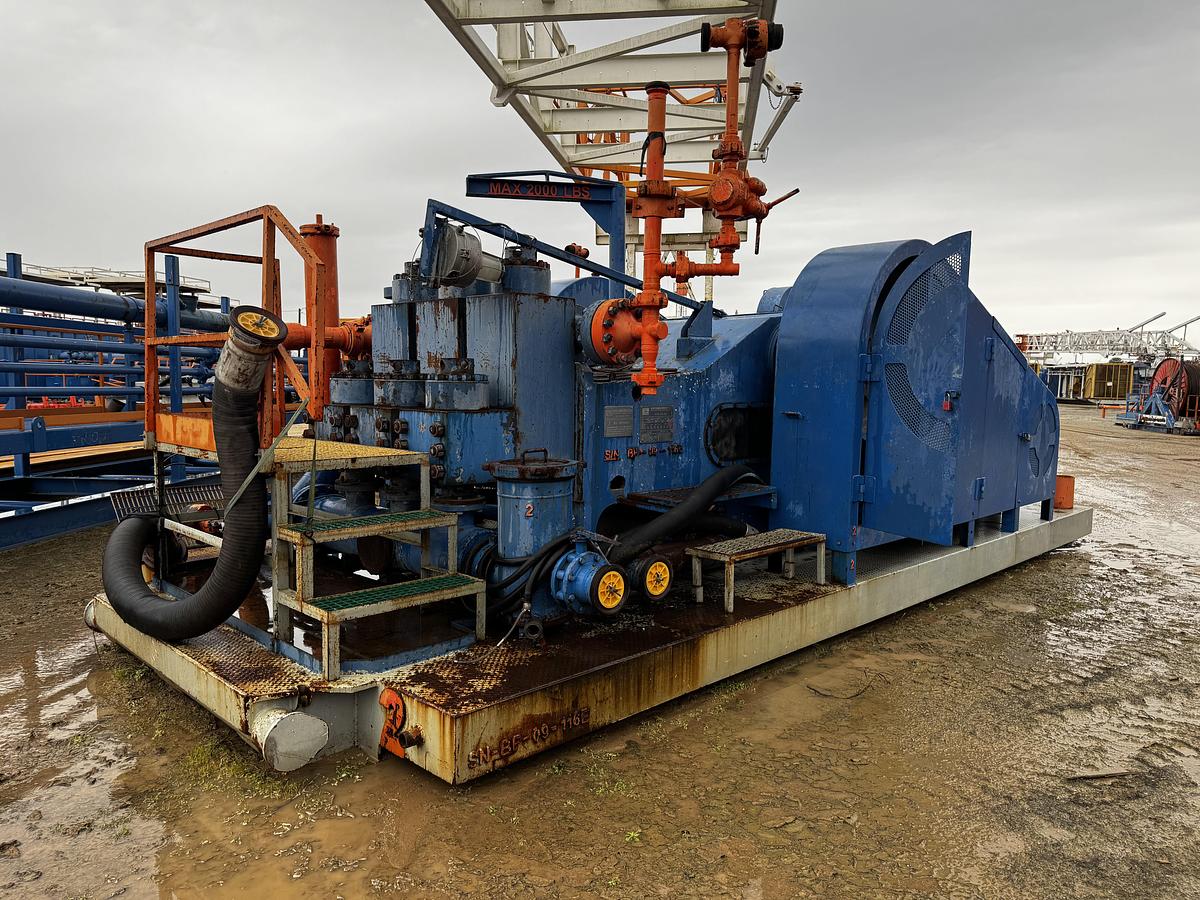

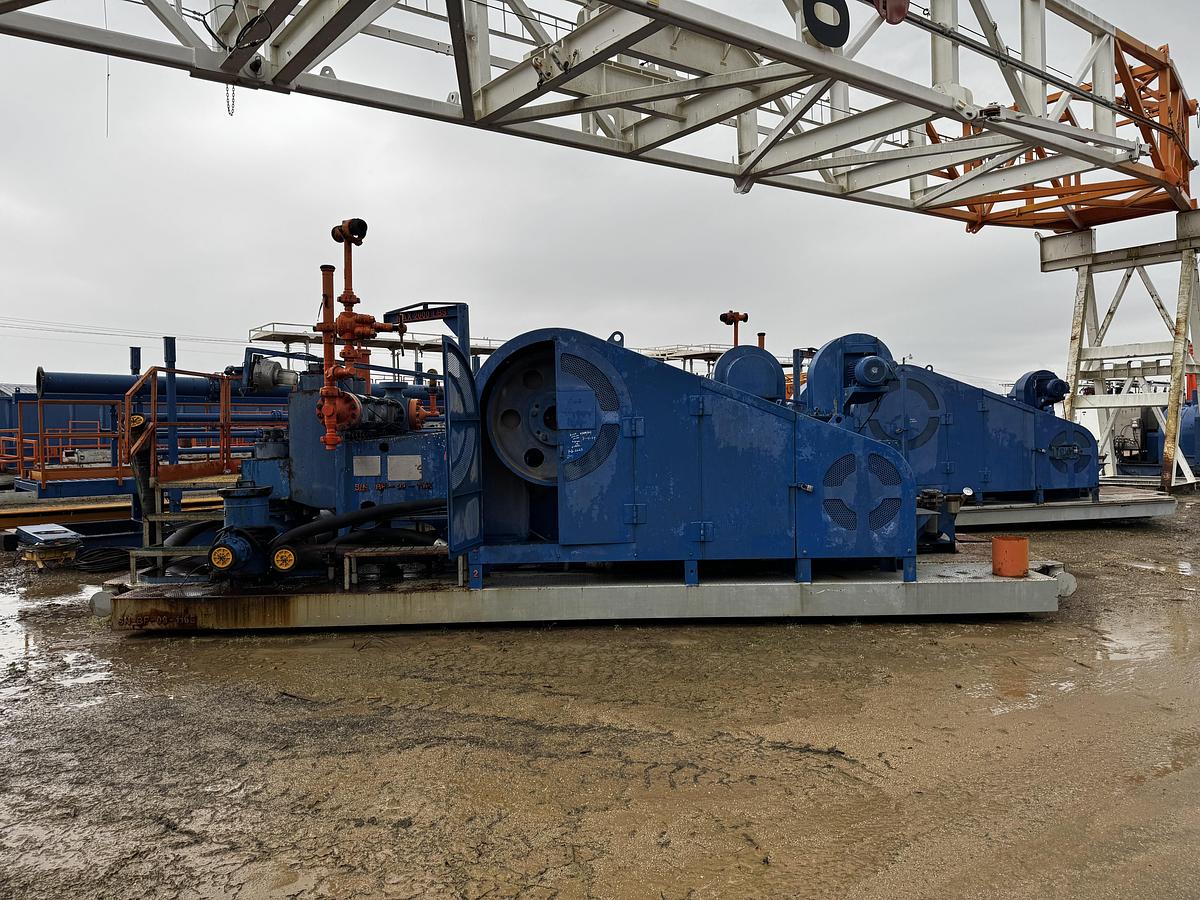

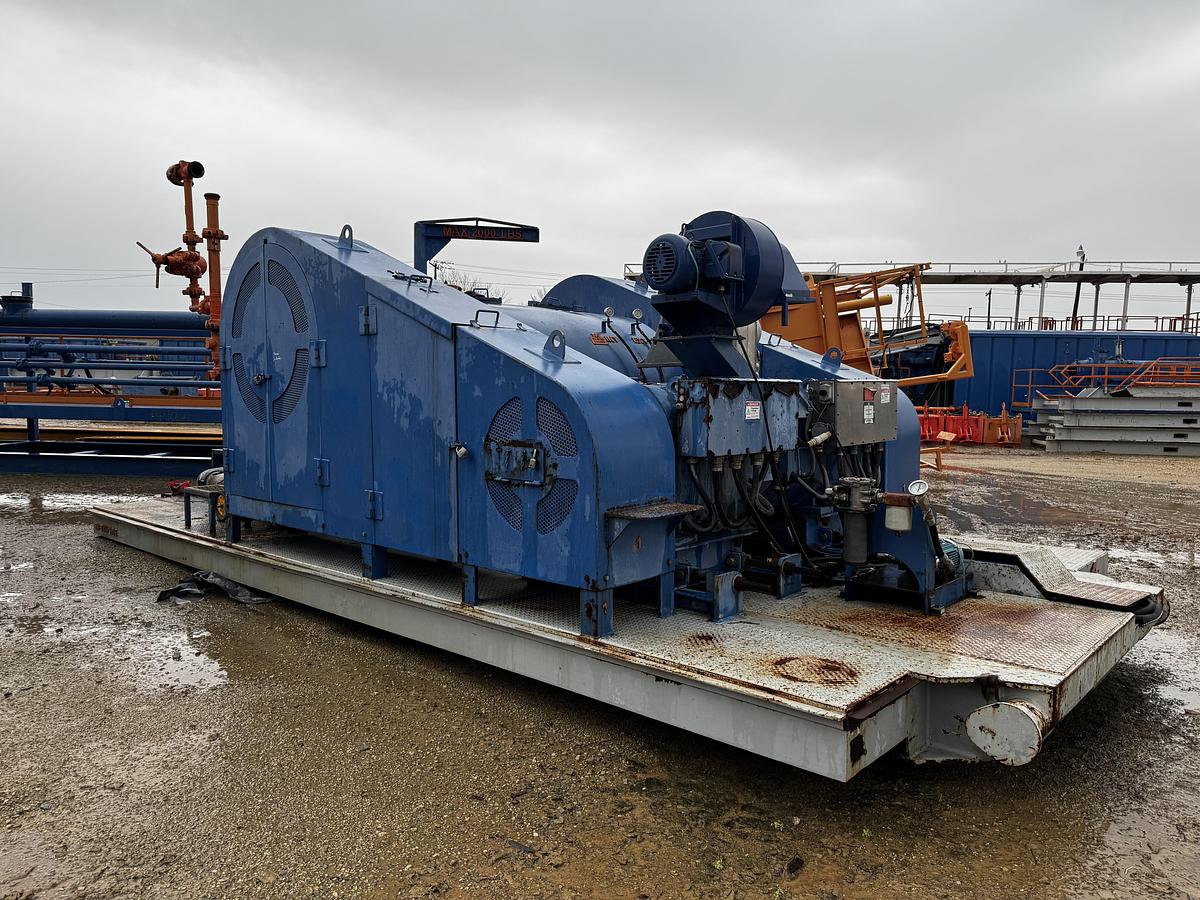

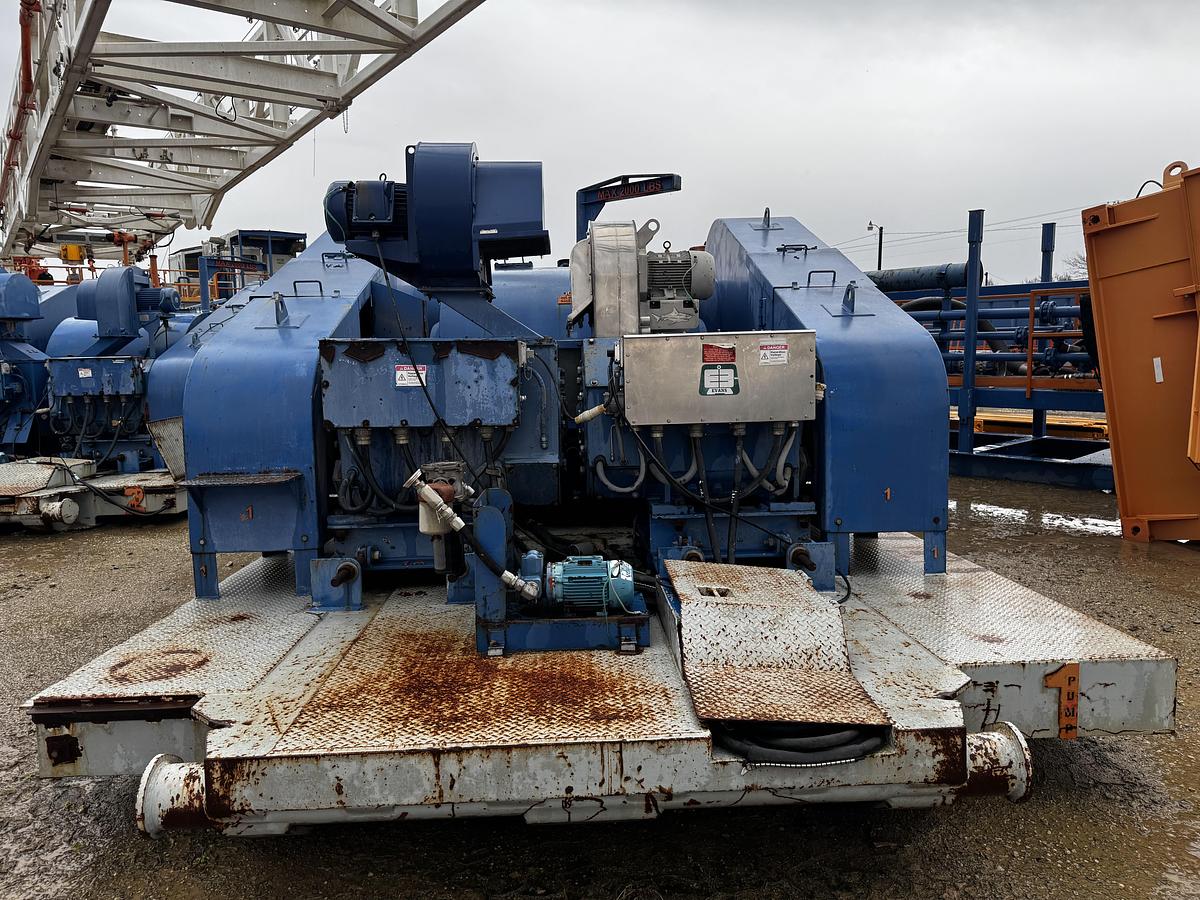

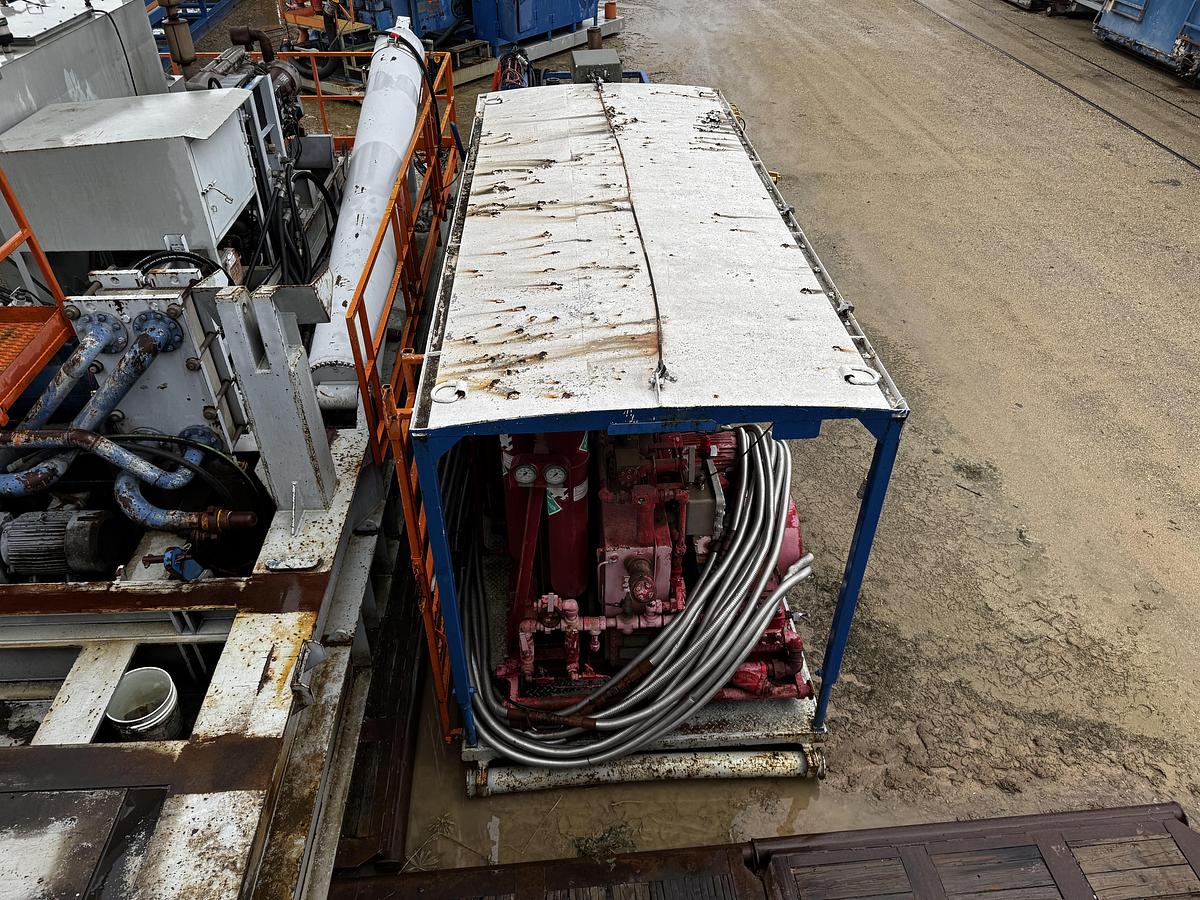

(2) Bomco Triplex Mud Pumps, 1,600-HP, w/Steel Fluid Ends, Suction & Discharge Manifolds, Pulsation Dampener, Pressure Relief Valve, 6” x 5” x 14” Centrifugal Charging Pump, Each p/b (2) YONGJI YZ08 Electric Traction Motors, Skidded

ROTATING, TRAVELING EQUIPMENT:

VARCO TDS-11 Top Drive System, 500-Ton Capacity

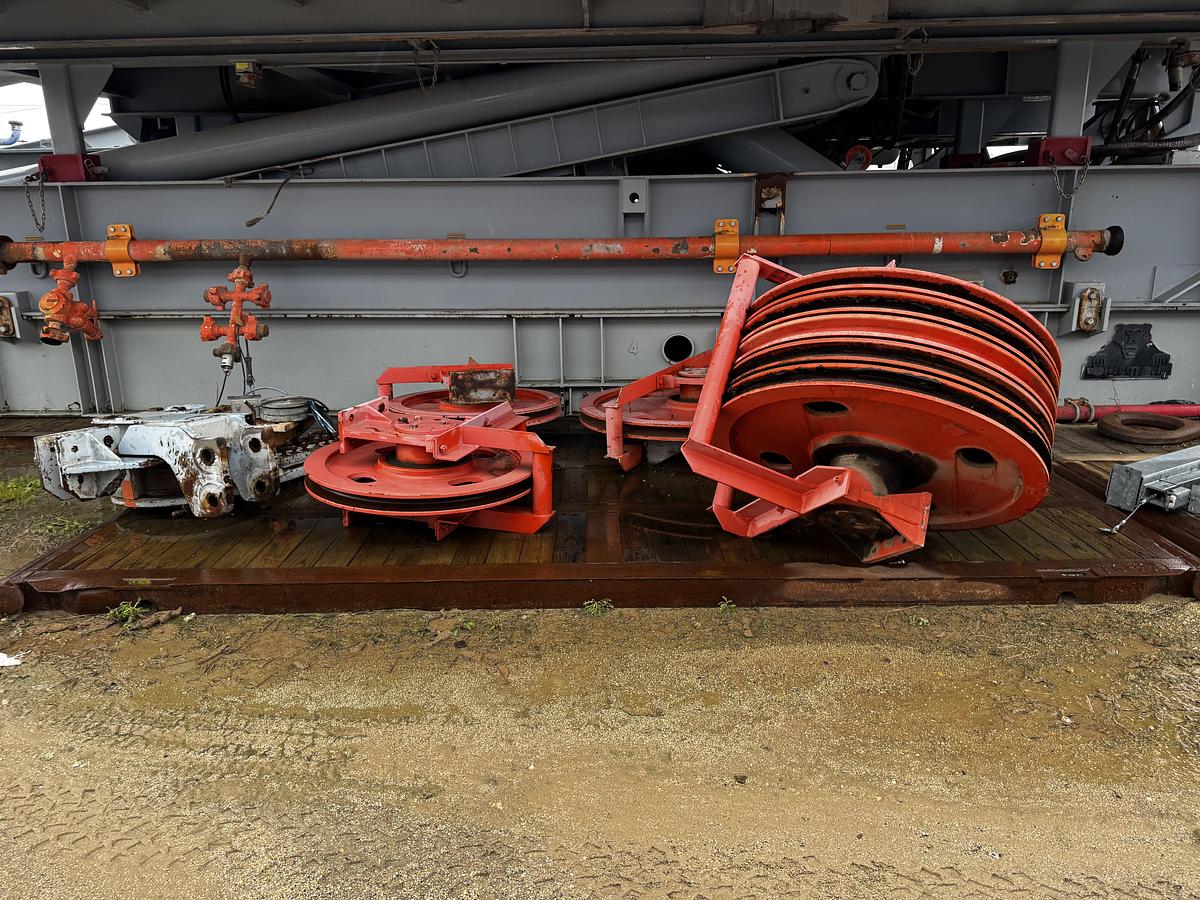

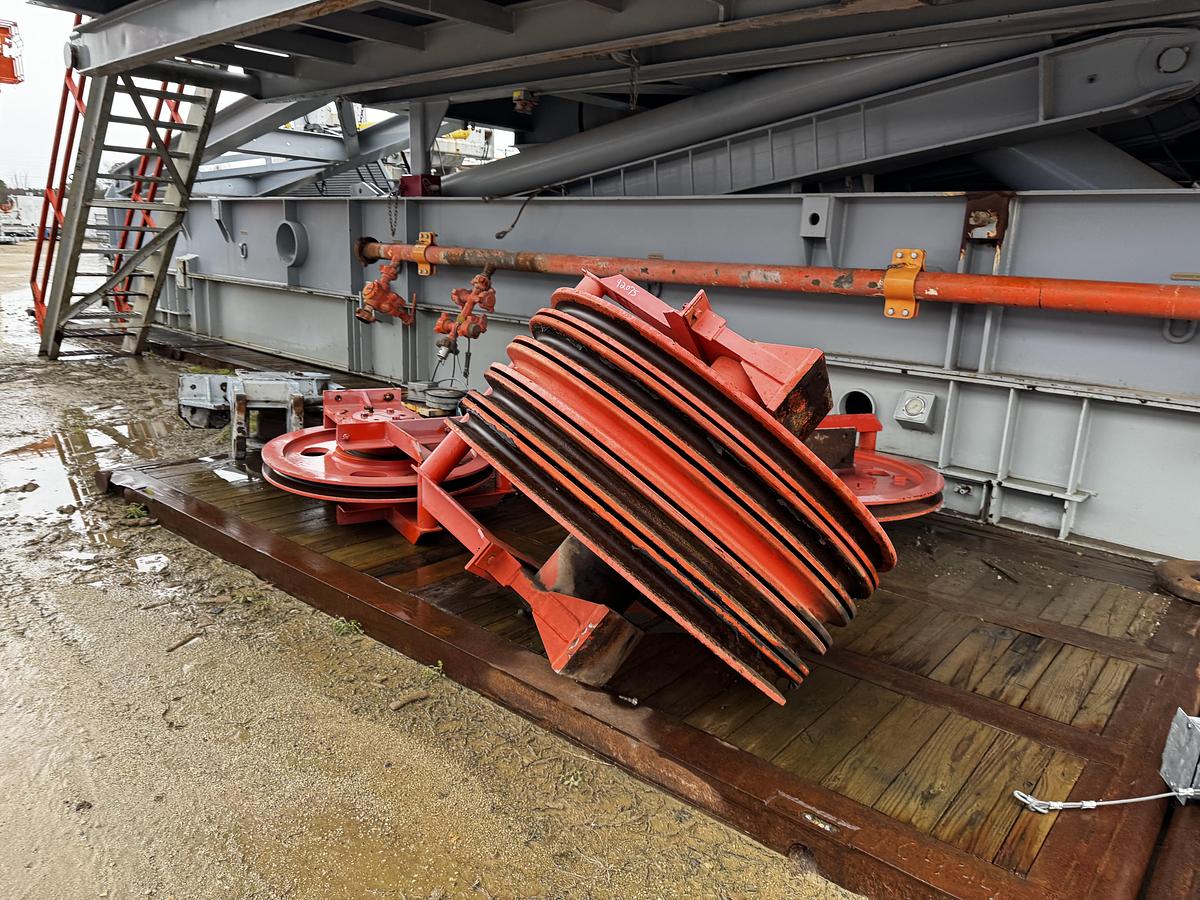

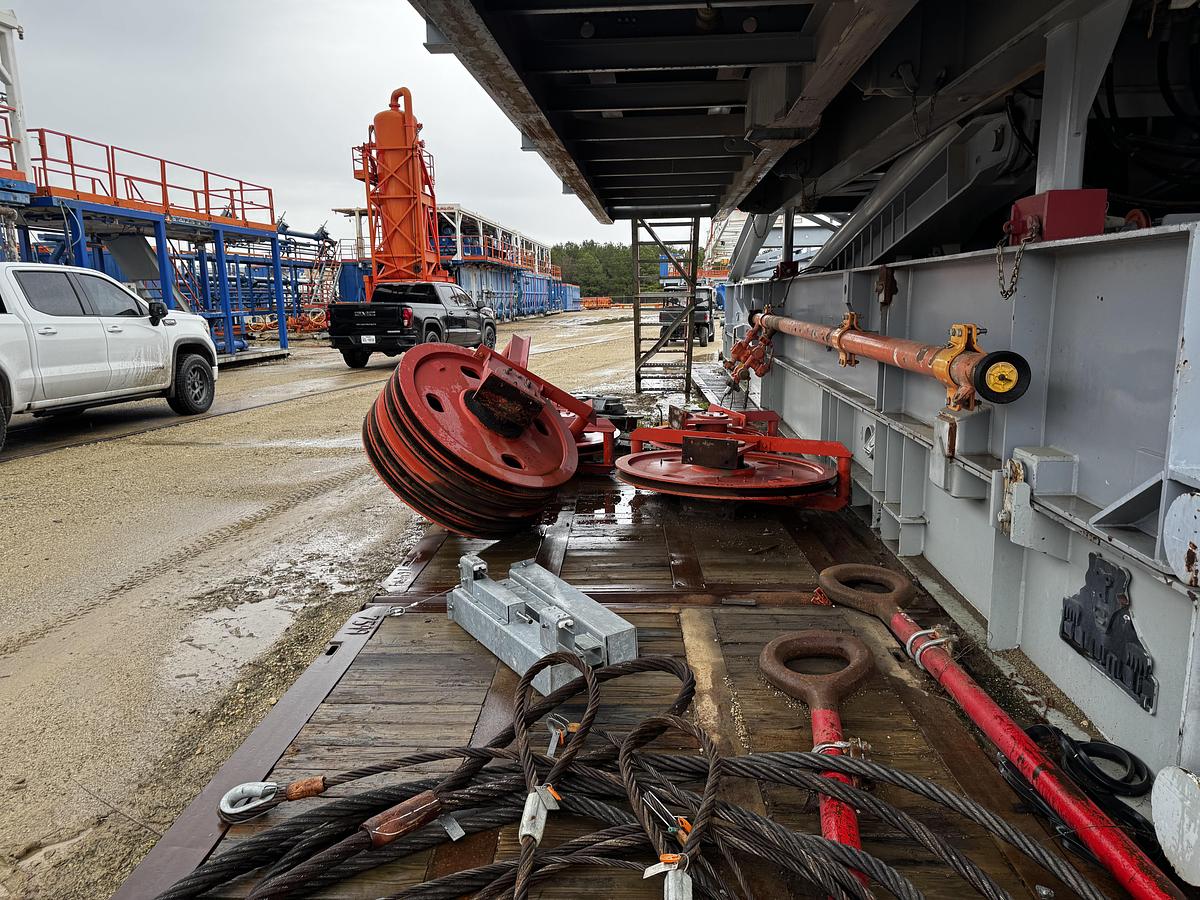

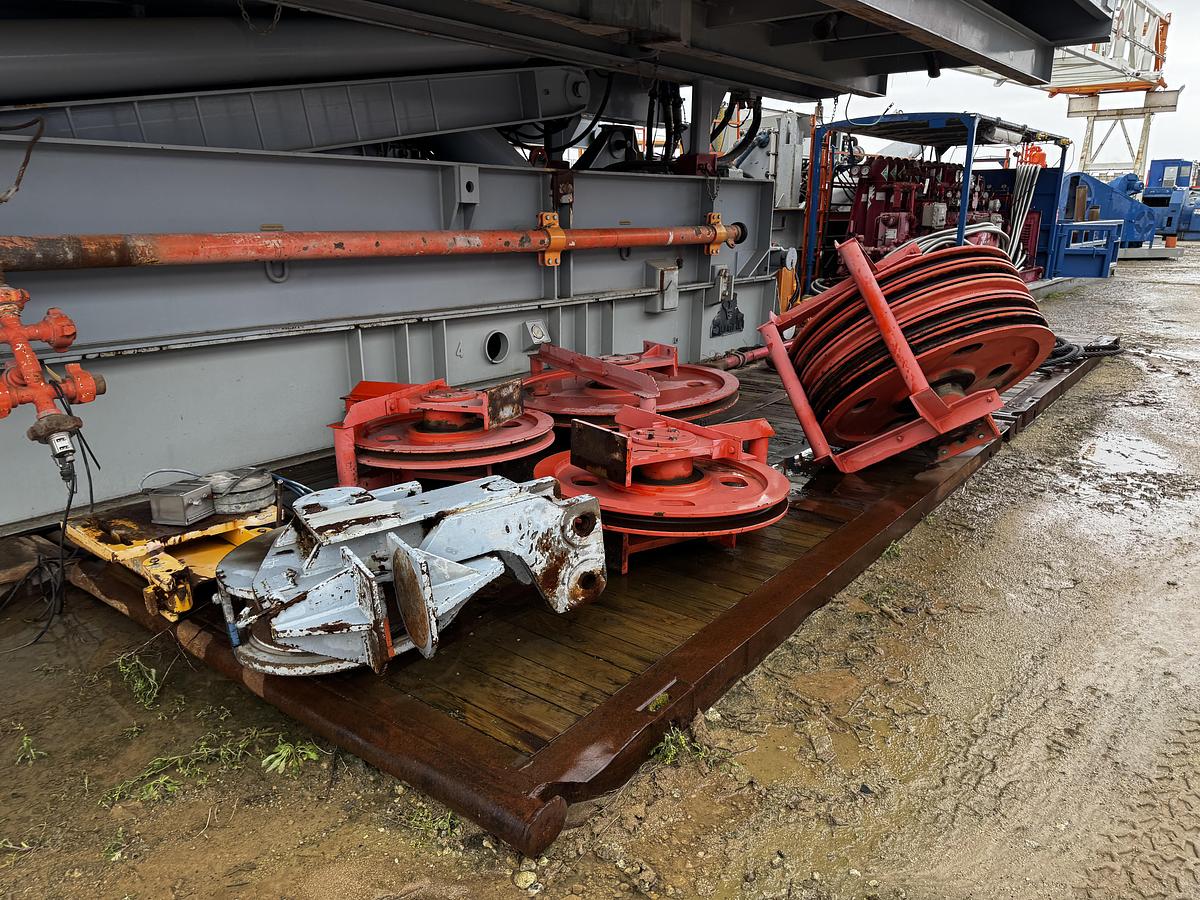

N.O.V. YC450 Traveling Block, 500-Ton Capacity w/(6) Sheaves, Grooved f/1-3/8” Line, N.O.V. DG450 Hook

N.O.V. SI-450-5 Rotary Swivel, 500-Ton Capacity

WELL CONTROL EQUIPMENT:

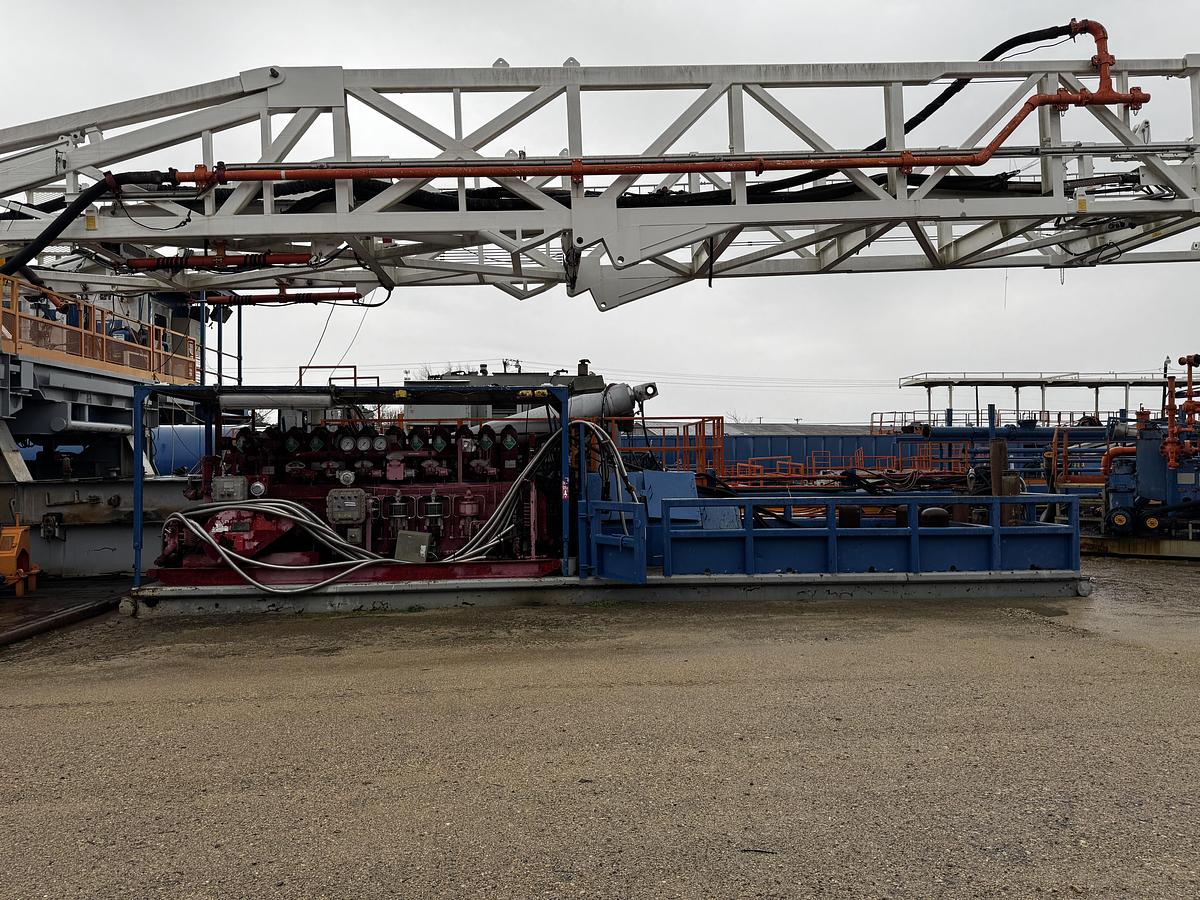

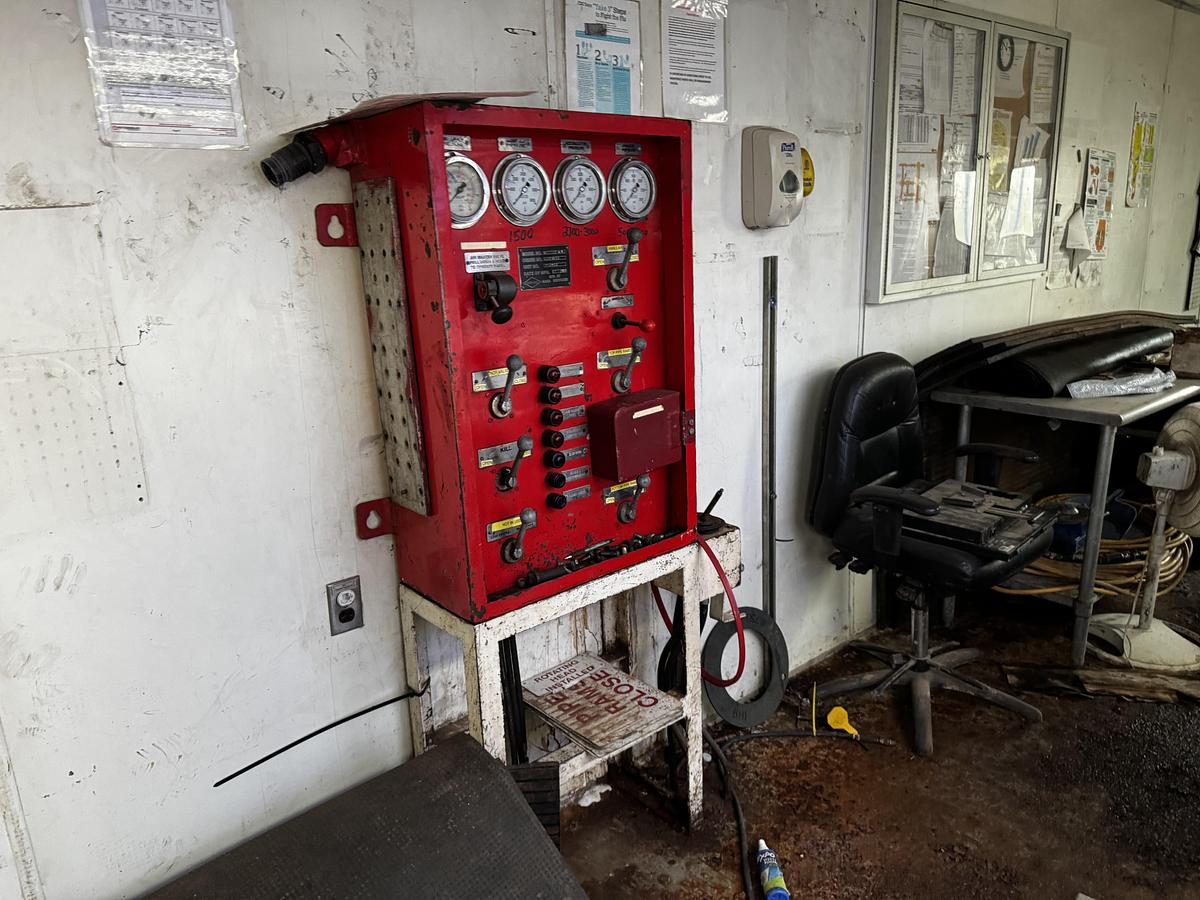

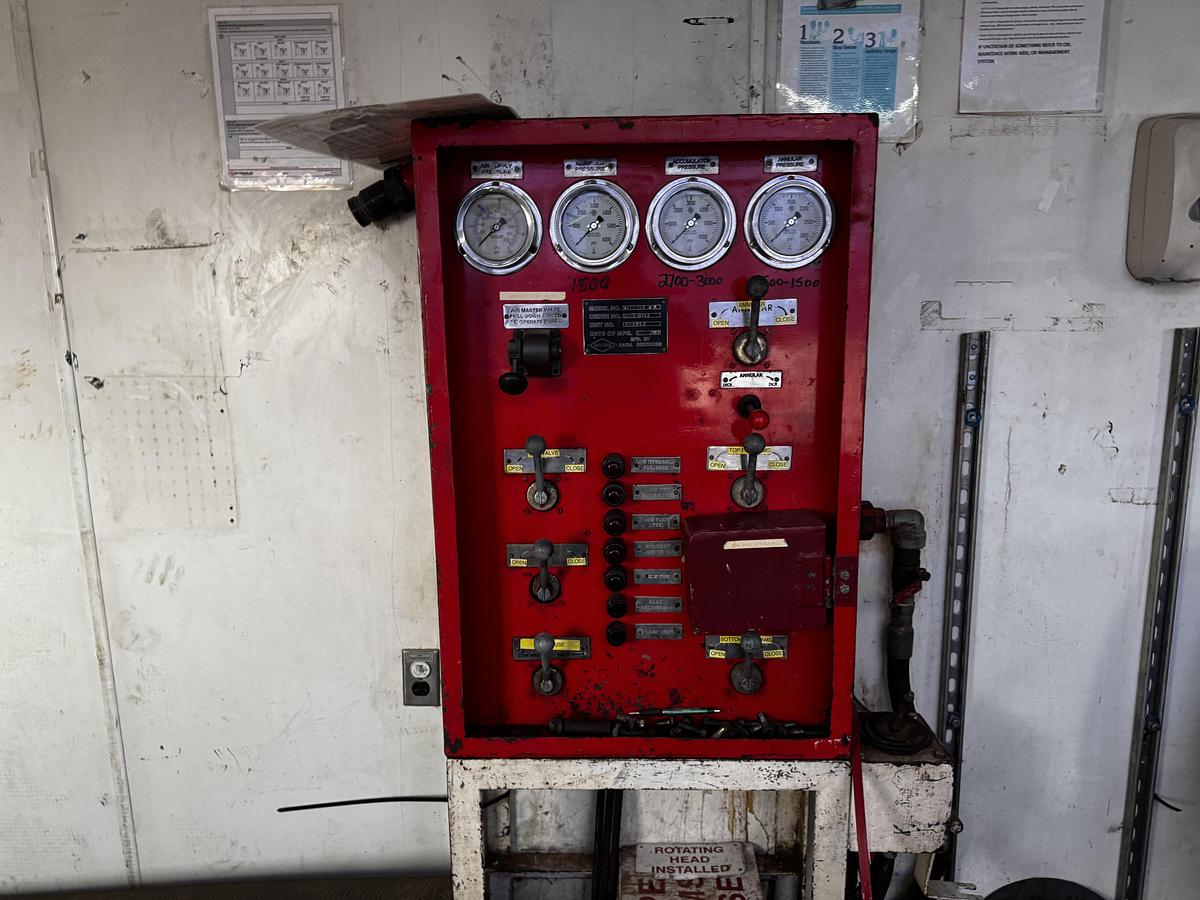

Koomey 7-Station, 220-Gallon Blowout Preventer Closing Unit

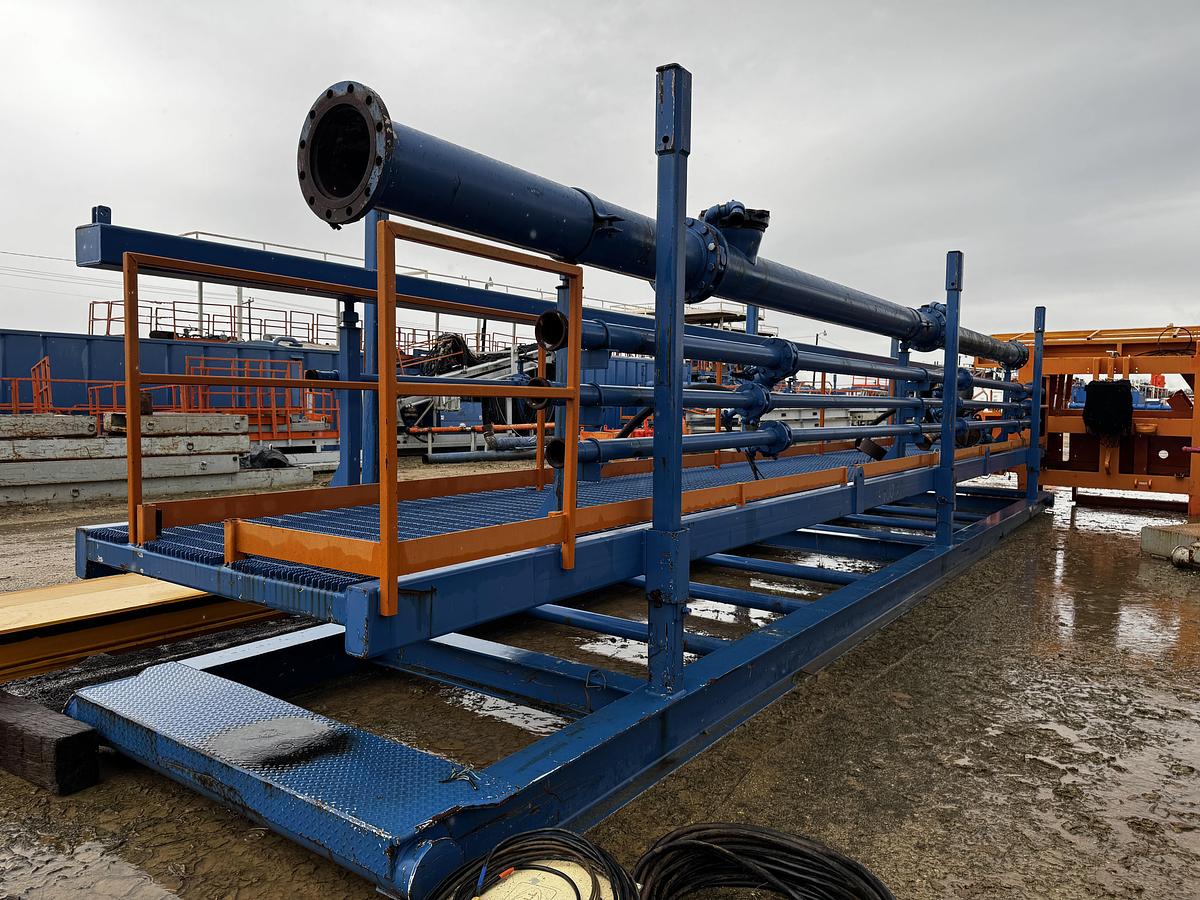

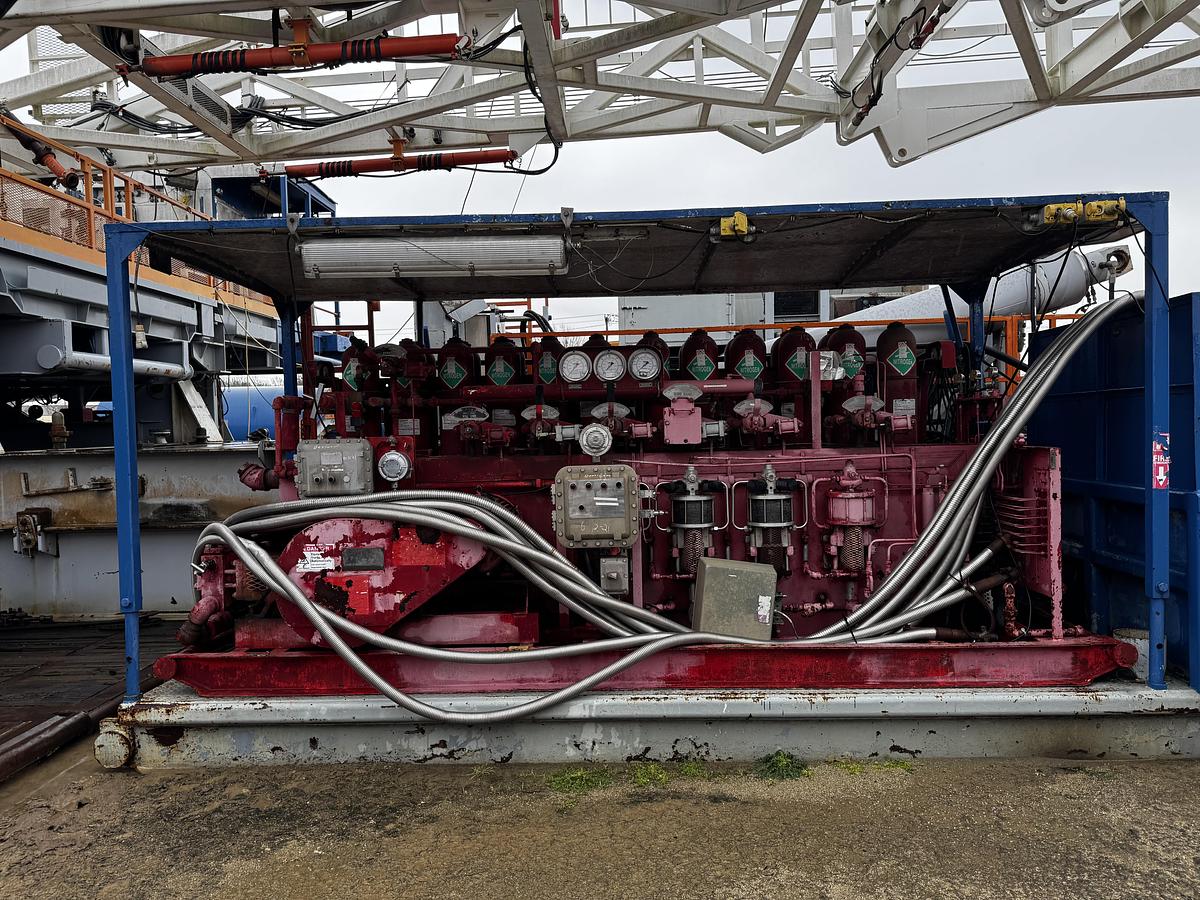

10,000# PSI Choke Manifold

MUD SYSTEM:

500-Barrel Capacity Mud Suction Tank, w/(5) Compartments, (3) Mud Agitators, Each p/b 10-HP Electric Motor, (2) 5” x 6” x 14” Vertical Mud Mixing Pumps, Each p/b 100-HP Electric Motor, Skidded

500-Barrel Capacity Mud Shaker Tank, w/(4) Compartments, (4) Mud Agitators, Each p/b 10-HP Electric Motor, Skidded

100-Barrel Capacity Trip Tank, w/(1) Compartment, w/2” x 3” x 13” Centrifugal Pump, p/b 25-HP Electric Motor, Skidded

(2) DERRICK FLC-514 Linear Motion Shale Shakers

N.O.V. Desander, w/(3) 10” Cones, w/6” x 8” x 14” Vertical Desander Pump, p/b 100-HP Electric Motor

Vertical Desilter, w/(20) 4” Cones, w/6” x 8” x 14” Vertical Desilter Pump, p/b 100-HP Electric Motor

WATER, FUEL TANKS:

400-Barrel Water Storage Tank, Skidded

400-Barrel Fuel Tank, Skidded

AUXILIARY EQUIPMENT:

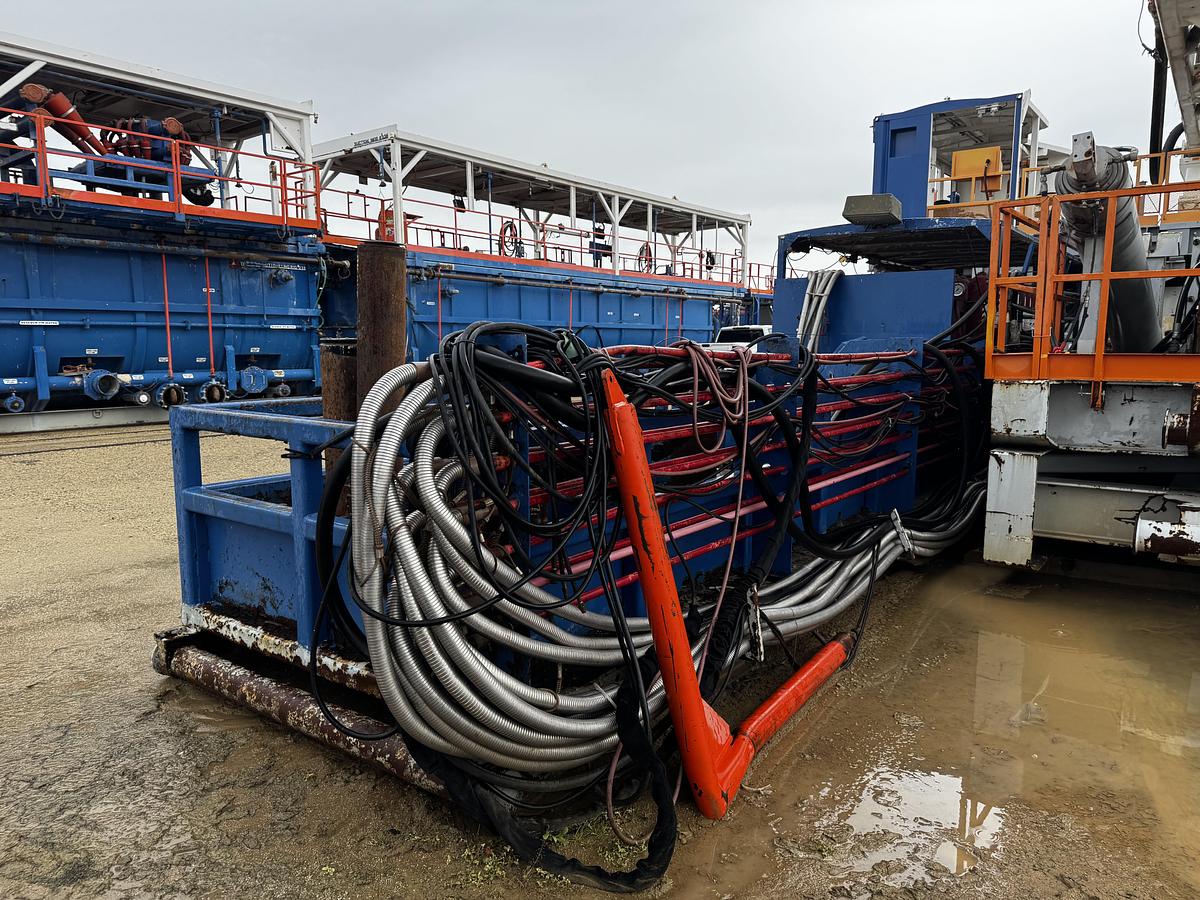

Rotary Hose, Vibrator Hoses

VARCO ST-80 Iron Roughneck, 80,000# Torque Capacity

1-3/8” Drilling Line, Spool, Hyd Operated

See DOCUMENTS section for complete recertification details and major equipment hour details.
