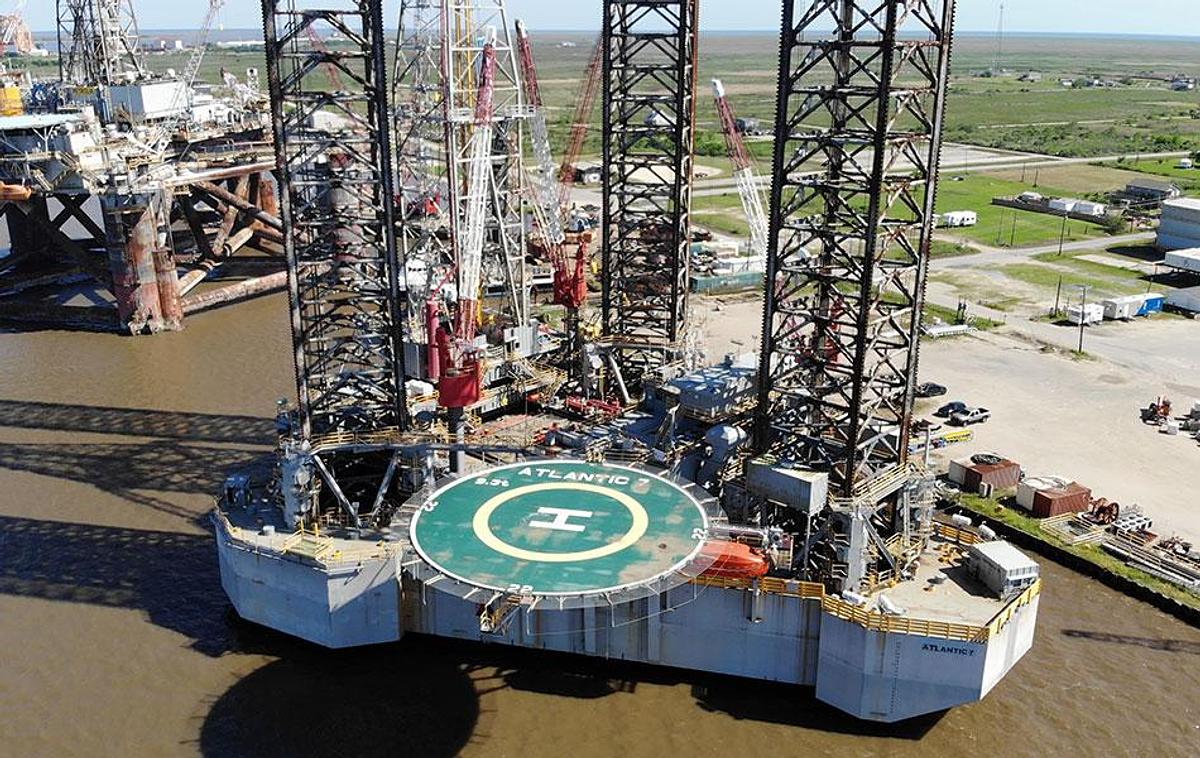

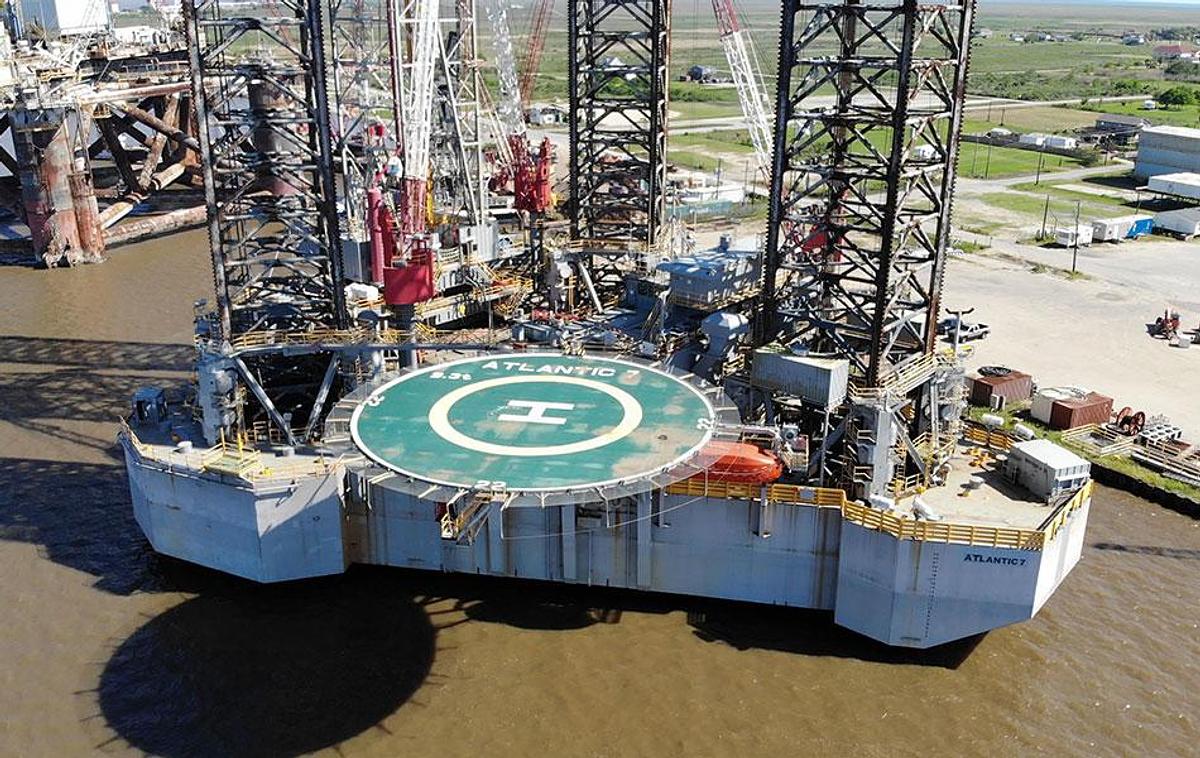

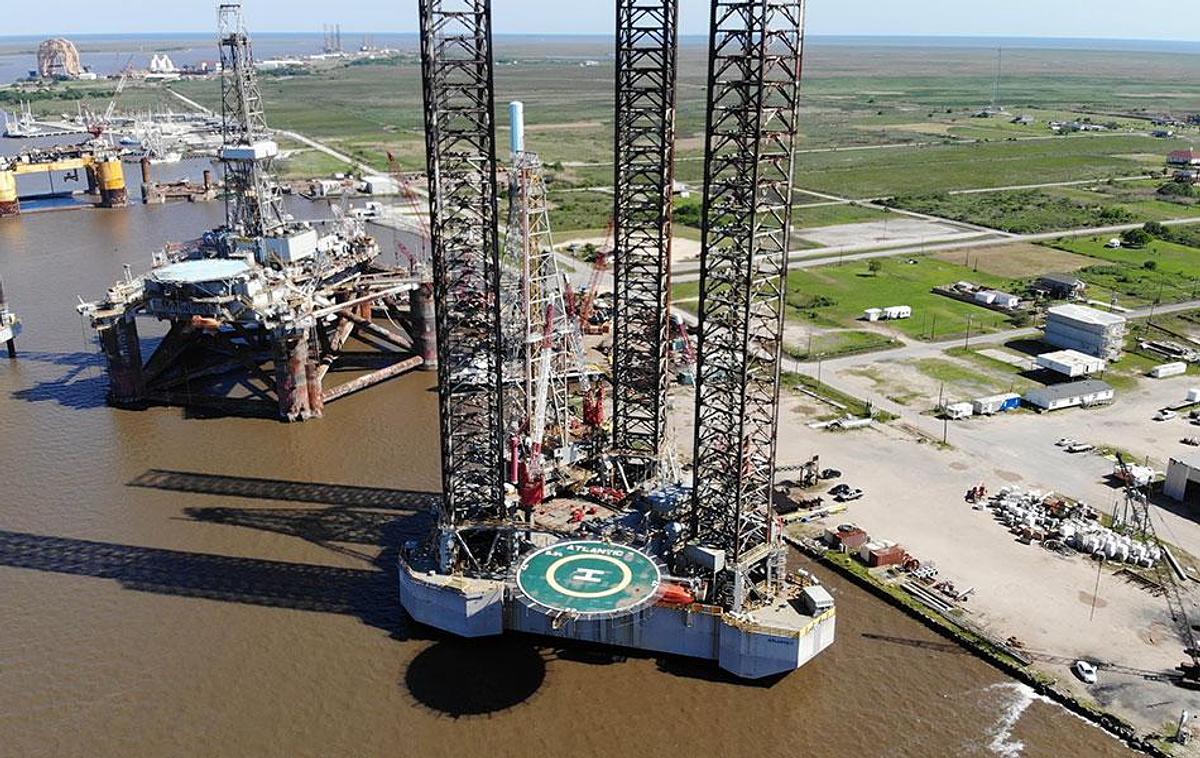

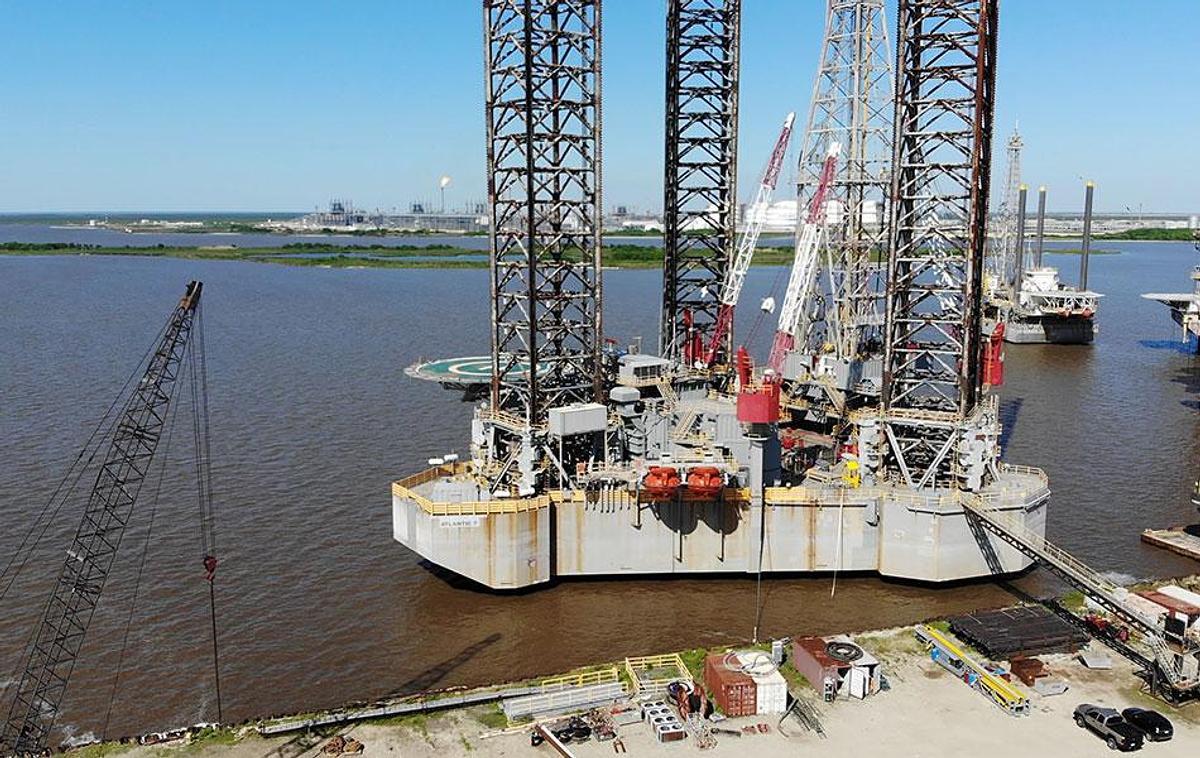

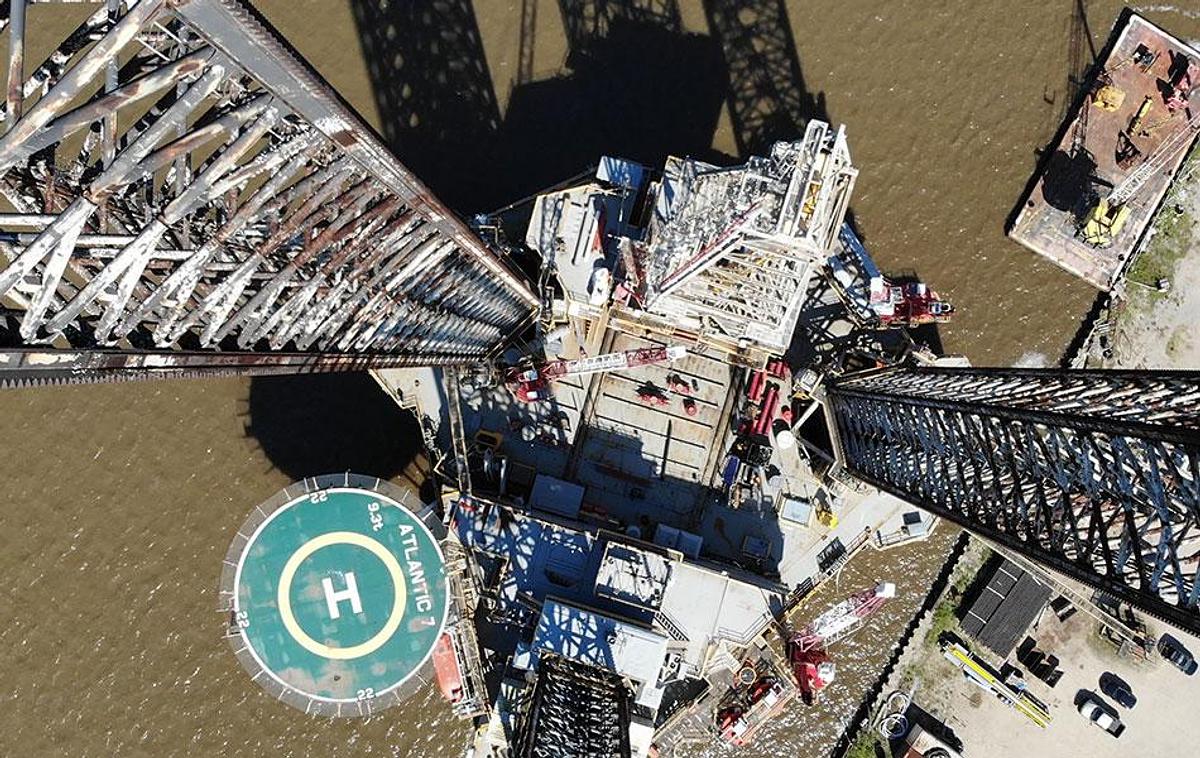

1976 LETOURNEAU TECHNOLOGIES 2000 HP Jack Up

www.vidaeq.com

2000 HP Slot Type Marathon LeTourneau Class 84 Jack Up

HISTORY

YEAR OF CONSTRUCTION: 1976

REFURBISHED AND UPGRADED: 2018

During its 2018 overhaul, drilling equipment and safety system were upgraded. Navigation systems, GMDSS and solids control equipment are new installed. Additionally, a completely new electrical high pressure cementing unit (with capacity to pump at 14 BPM and density range up to 22 ppg) was installed.

LAST INSPECTION (ABS) January 2019

Flag: Liberian

Design: Marathon LeTourneau Class 84 Jack Up Builder: Marathon LeTourneau, Shipyard Vicksburg, Mississippi, USA

Status: Expired 2024, ABS Class Certification

ABS Class Notations: A1, Mobile Offshore Drilling Unit (MODU)

TECHNICAL SPECIFICATIONS

MAIN DIMENSIONS

Length: 247’- 7”; Breadth: 227’-5”; Depth: 26’

Legs: 3 X 410’ Square Truss

Leg Spacing: Longitudinal leg centers 129’, transverse leg centers 142’

Spud cans: 46’ diameter X 24’ high

Slot dimensions: 41’ X 50’

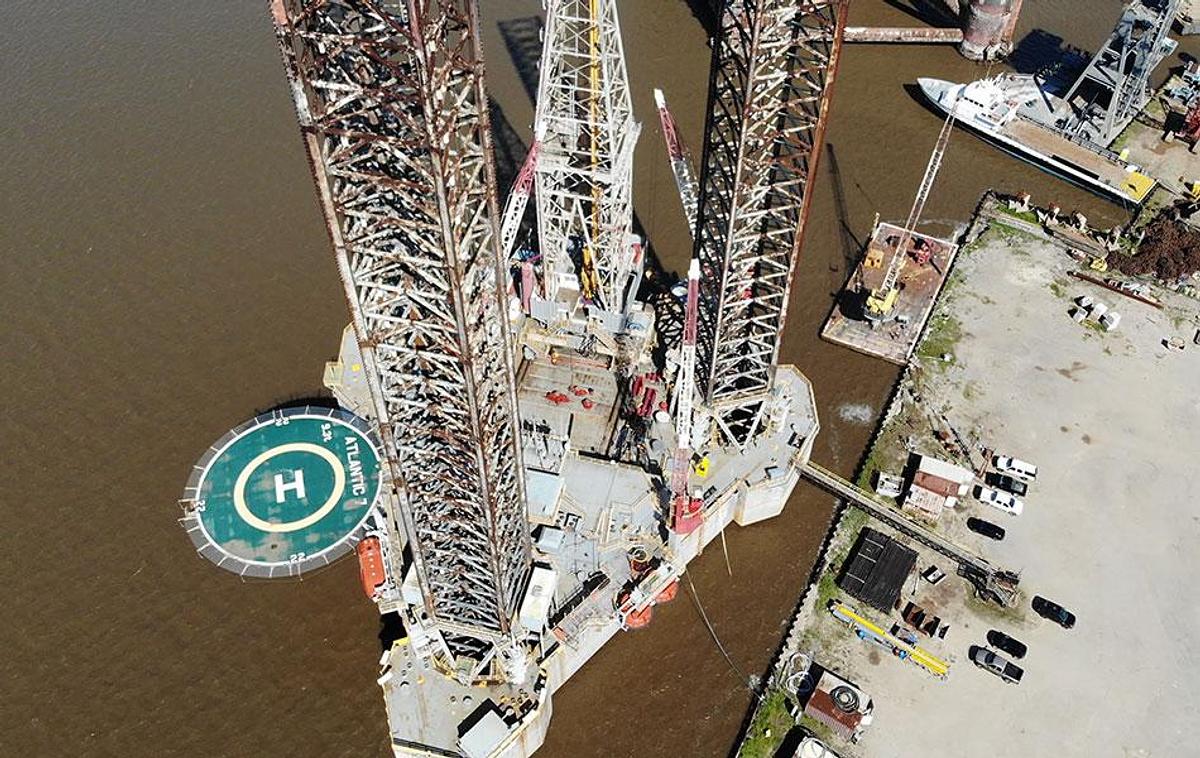

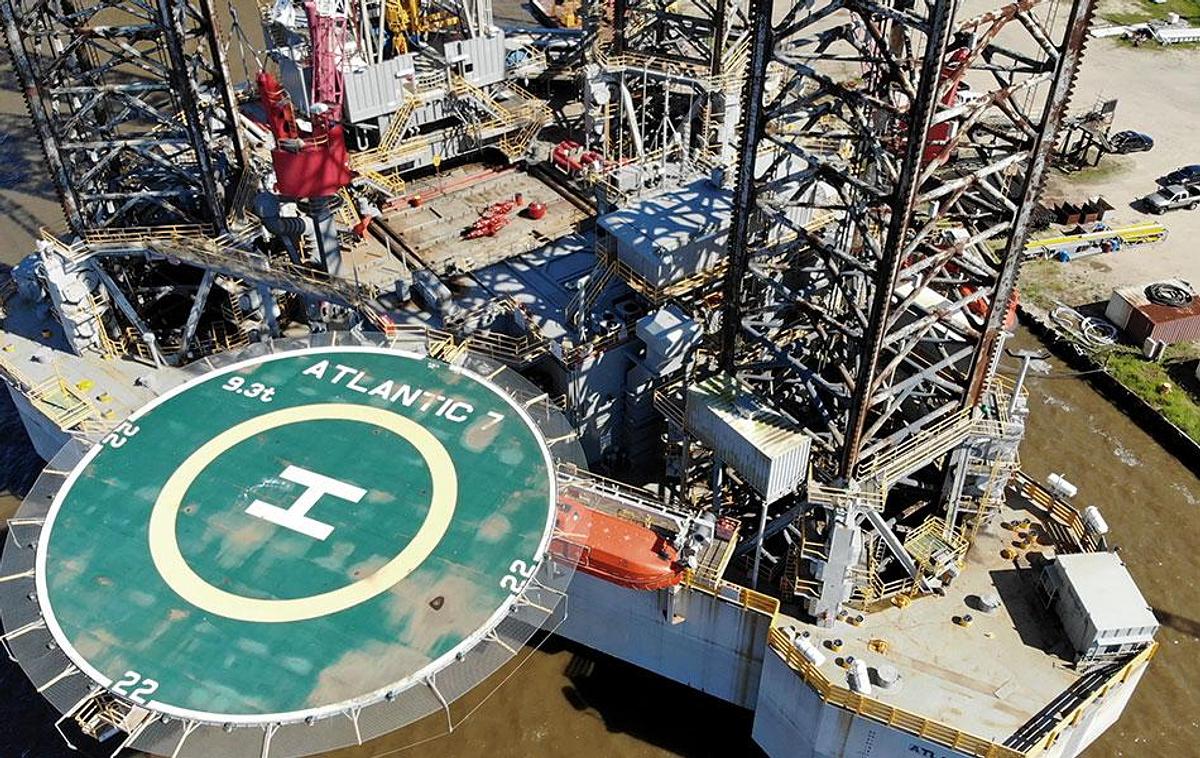

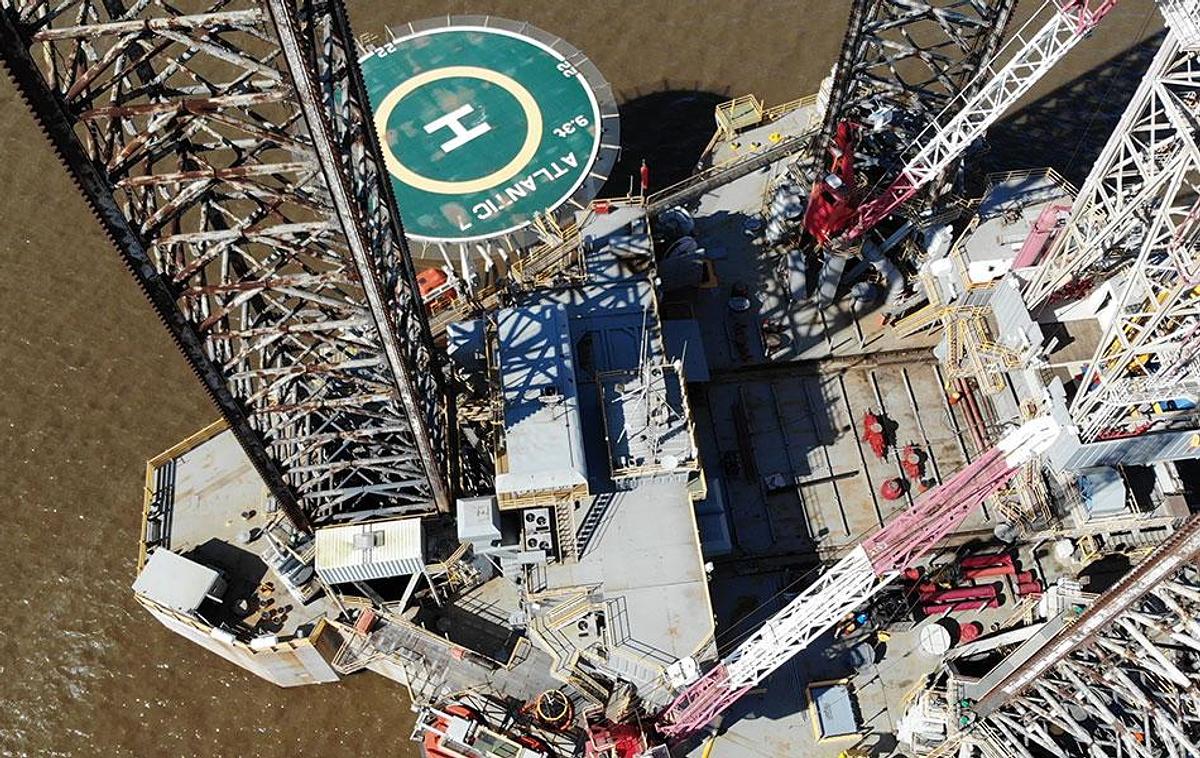

Helideck: S-61; Diameter 70’

OPERATIONAL PARAMETERS

Water Depth: 300’ (17’ – 300’)

Maximum Drilling Depth: 20,000’ with 5” D.P.

Available length below hull including 5’ margin Air Gap: 80’

Transit Speed: 5 knots

Survival Conditions-Criteria Design: 100 Knots; waves period: 13 sec; wave height: 44ft

Jacking and skidding system: Marathon LeTourneau AC electric rack and pinion. 90 ft/hr

DERRICK DRECO 170 ft x 30 ft x 30 ft x 1,500,000 lbs.

Cantilever Load: 1,310,000 lbs.

DRAWWORKS 1320 x UE 2000HP National Oilwell; wire 1 ½".

Electric brake: Model 7838 Baylor

ROTORY TABLE Model C-375 National Oilwell 37 ½", driven by 1 D79 EMD motor

TOP DRIVE Model TDS-4H Varco BJ 650 TON, with Pipe Handler model PH-85

TRAVELING BLOCK Continental Em 760H 650 TON

Crown Block: National OilWell 760FA

MUD PUMPS (2) National Oilwell modelo 12-P-160 Triplex - 5000 psi. Stand pipe 5 in x 5000 psi

MAIN POWER (3) EMD 16-645-E8 Engines 6600 HP, generators AB20-N6 x 1,575 kW 600 V

EMERGENCY POWER (1) Cat 3412-TA 719 HP Diesel engine

CHOKE and KILL MANMIFOLD 3-1/16" x 10,000 psi x 2 HCR & 2 manual

ADDITIONAL DRILLING EQUIPMENT

Control System: air/electric powered

Hydraulic Catwalk: Model C14, North

Rig Cementing Units: 2 electric triplex pumps. 15000 psi, 14 BPM

SOLIDS CONTROL EQUIPMENT

(4) MI SWACO Mongoose PRO Shale Shakers

(1) MI SWACO Mongoose PRO Mud Cleaner Desilter

(1) MI SWACO Degaser

(1) MI SWACO Rig Vaccum

CAPACITIES:

• Liquid Mud: 1,605 bbls

• Bulk Mud/ Cement: 6,240 cu.ft

• Sacks: 2,500 sacks

• Drill Water: 10,540 bbls

• Potable Water: 1,294 bbls

• Fuel Oil: 4,727 bbls

• Base Oil: 563 bbls

• Preload Tanks (include combination tanks): 15,542 kips

VESSEL ACCOMMODATIONS

• 88 berths; main offices, auxiliary offices; mess and galley, meeting room; recreation room and gym, medical office with observation room and bedroom with eight beds for quarantine cases

• Water Maker: Model NH75463+APC, FCI

• Sewage Treatment: Model RF 4000-M; Red Fox

SECURITY SYSTEMS

Communication and Navigation System GMDSS

Smoke and Heat detection System

CO2 Extinguishing System; Water Extinguishing System with Raw Water System.; Portable extinguishing equipment

Toxic Gas (H2S) and Combustible Gas (CH4) Detection System General Alarm System

Emergency Shutdown System

One Lifeboat (63 Man Cap.),

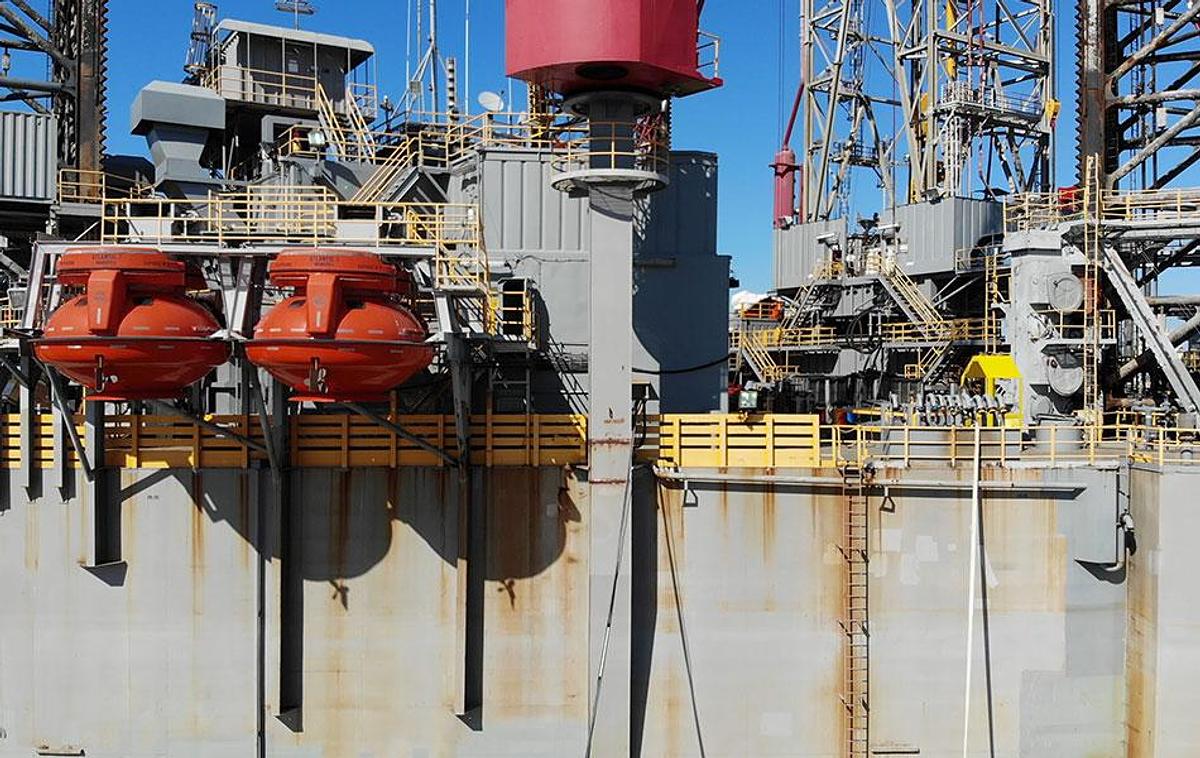

(2) two survival capsules (28 Man Cap. each)

(4) four Life rafts (25 Man Cap. each)

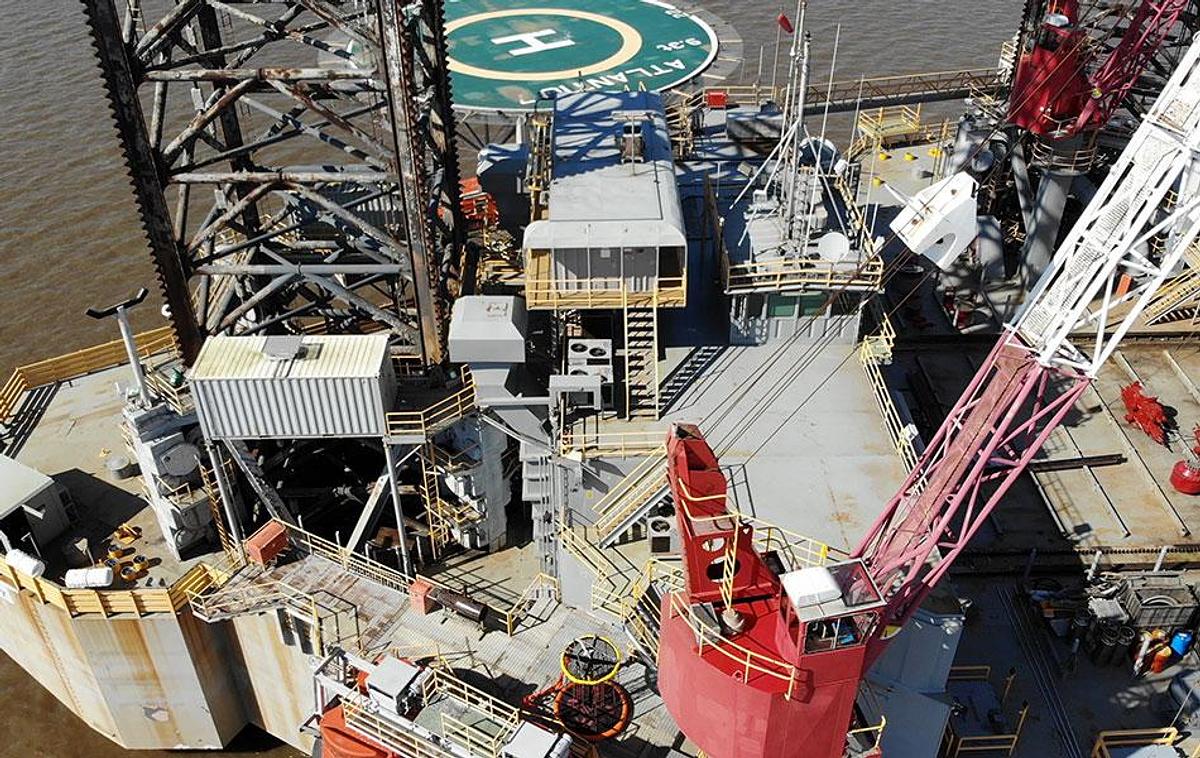

CRANES

• Model: PC-120AS Marathon LeTorneau; Boom: 2@ 120' Max. load 90,000 lbs

• Model: PC-120AS Marathon LeTorneau; Boom: 1@ 100' Max. load 90,000 lbs

See DOCUMENTS section for complete specification sheet, pictures and details.
