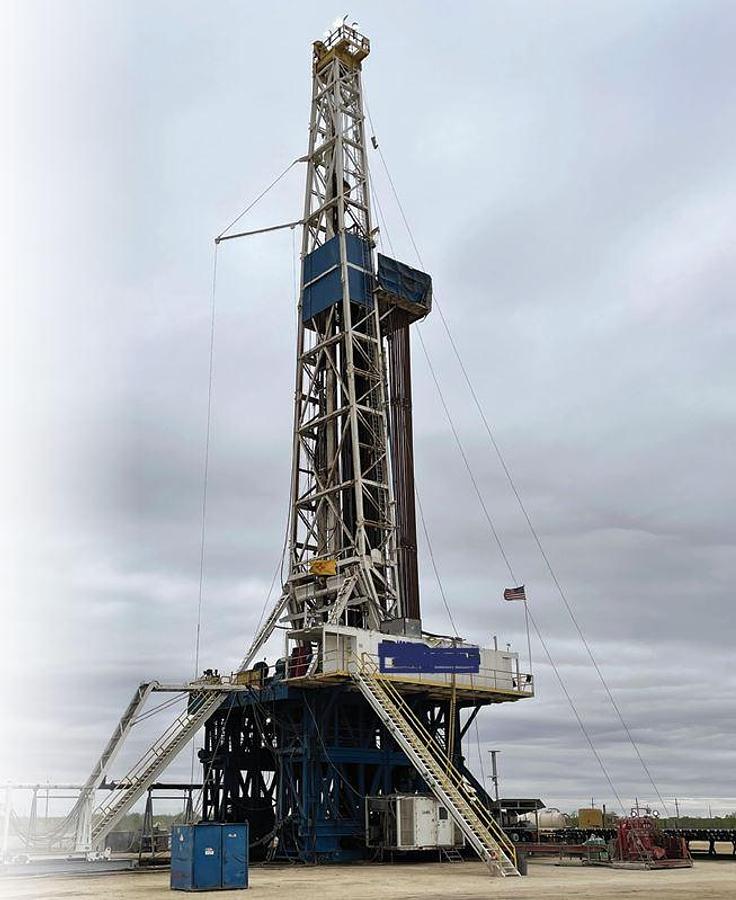

2018 Oil Works Inc. 1500 HP

www.vidaeq.com

Take a look at the following 1,500 HP Drilling Rig Package's that we have available!

We have 2 drilling rig packages available for sale.

Year of manufacture: Rig 2 in 2018 SEE DOCUMENTS SECTION FOR SPECIFICATION SHEET

Approximately 6 years remaining to CAT IV.

This rig has only been in the yard for 30 days.

Year of Manufacture: Rig 8 in 2014 SEE DOCUMENTS SECTION FOR SPECIFICATION SHEET

CAT IV is near expiration and will require a new CAT IV

This rig is currently working.

RIG 2 DRILLING RIG SPECIFICATIONS

DRAWWORKS

National P-110UE Input Power: 1,500 hp

Main Brake: 1,500 hp Baylor Break 6032 (Dynomatic)

Aux Parking Brakes: OWI band brake system

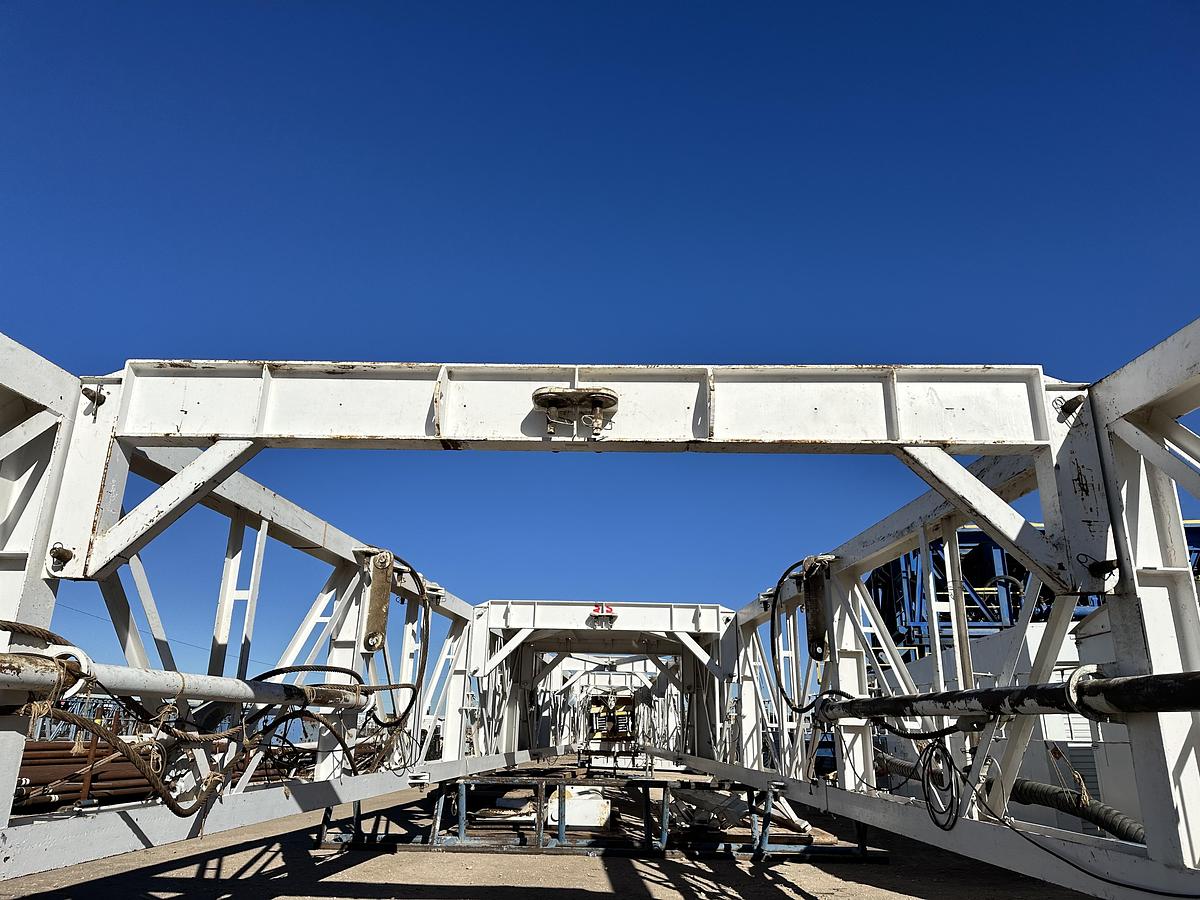

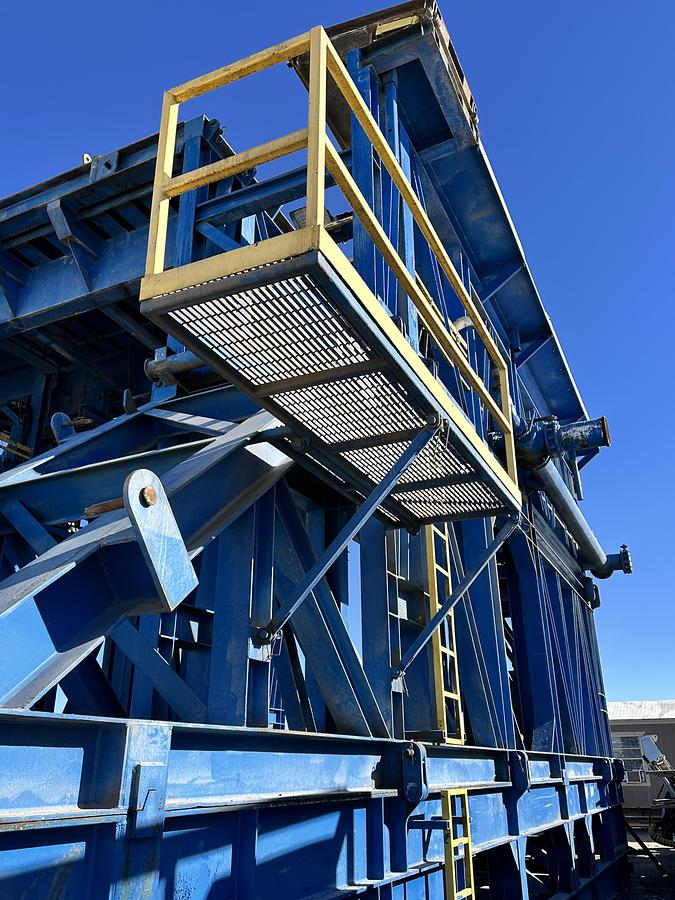

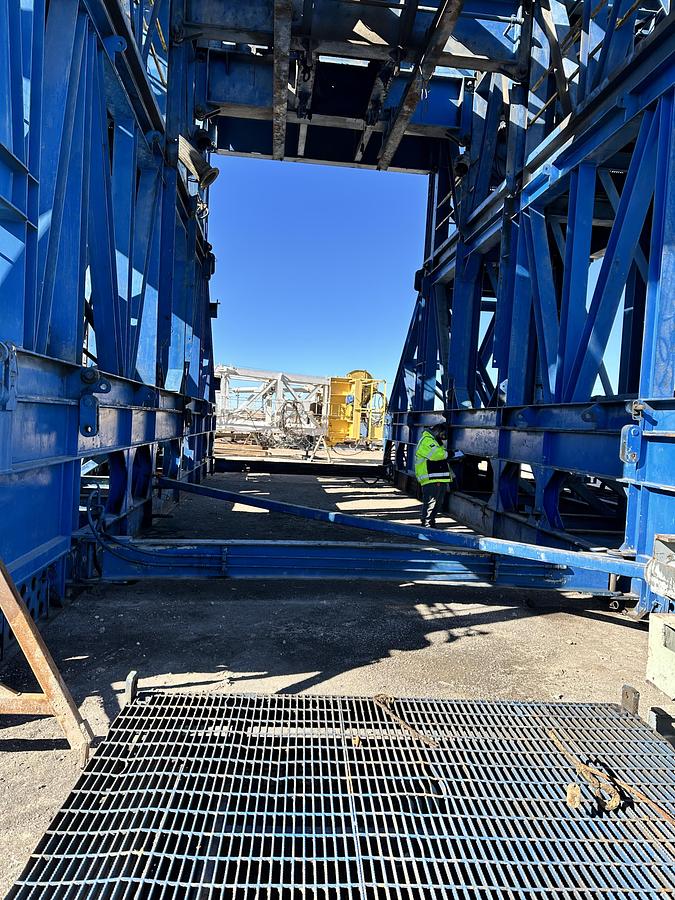

SUBSTRUCTURE

OWI Box on Box

Floor Height: 28’

Clear Height (beneath rotary beams): 23’

Rotary Capacity: 1,000,000 lbs.

Max Pipe Setback: 750,000 lbs.

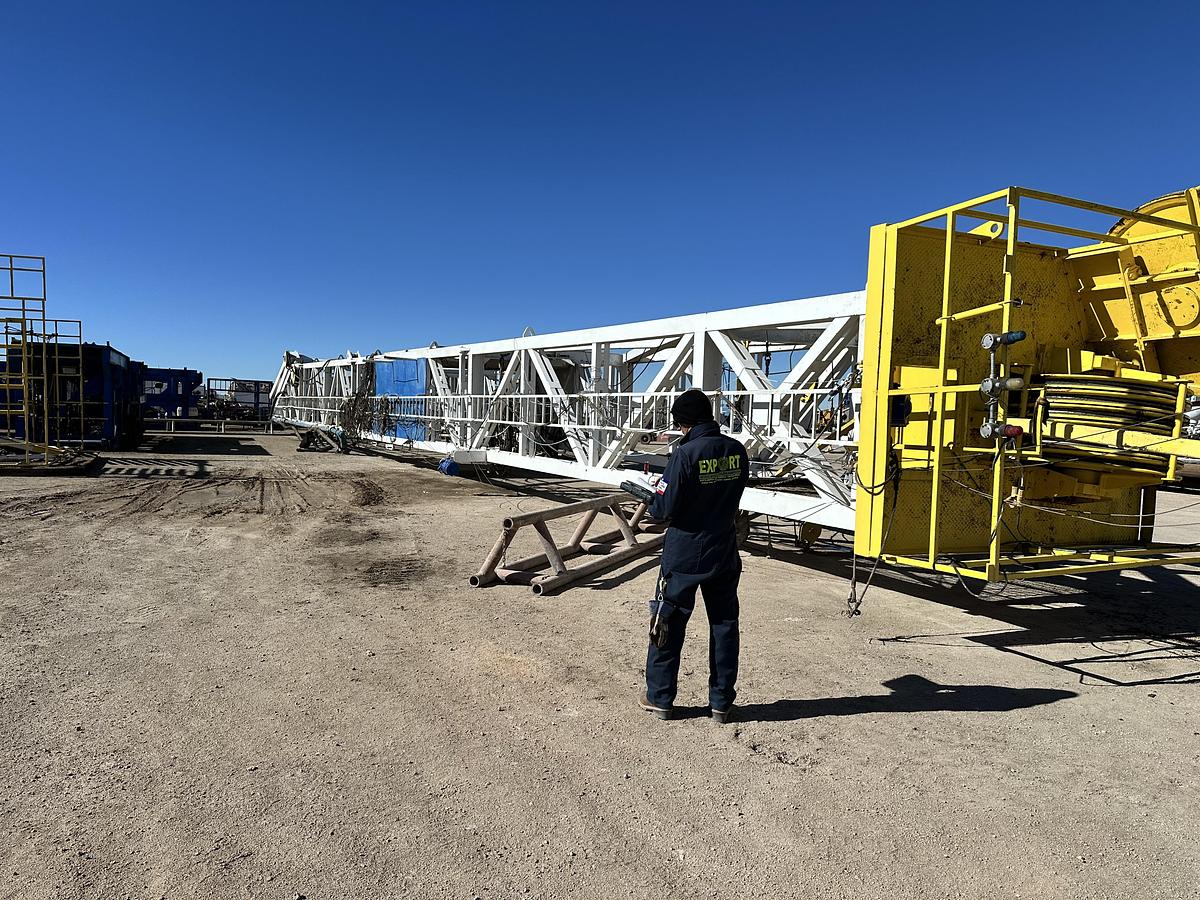

MAST

142’ OWI

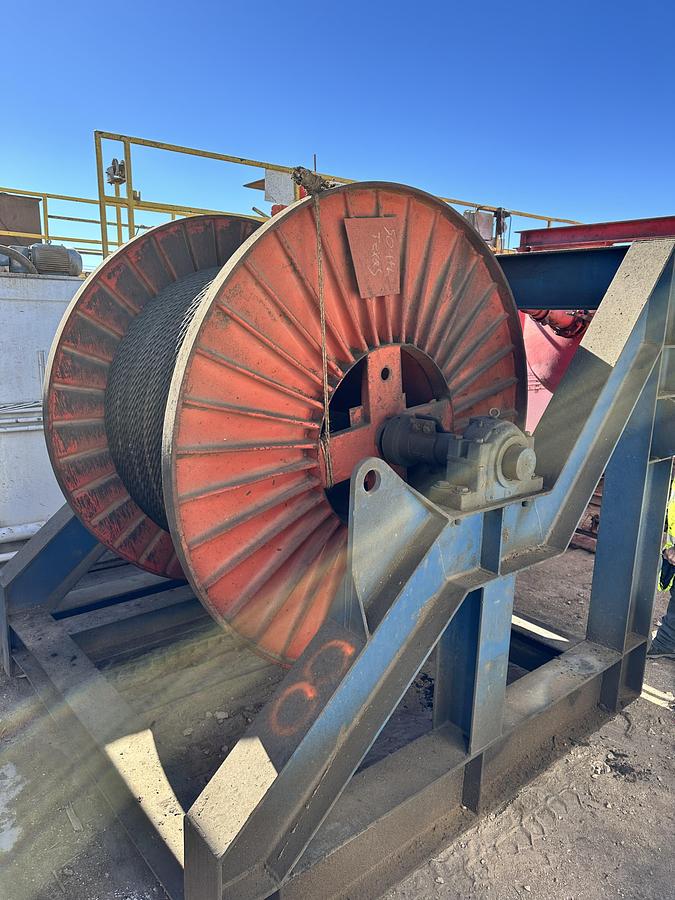

Drill Line: 1-3/8”

Racking Capacity: 22,000’ of 5 ” DP

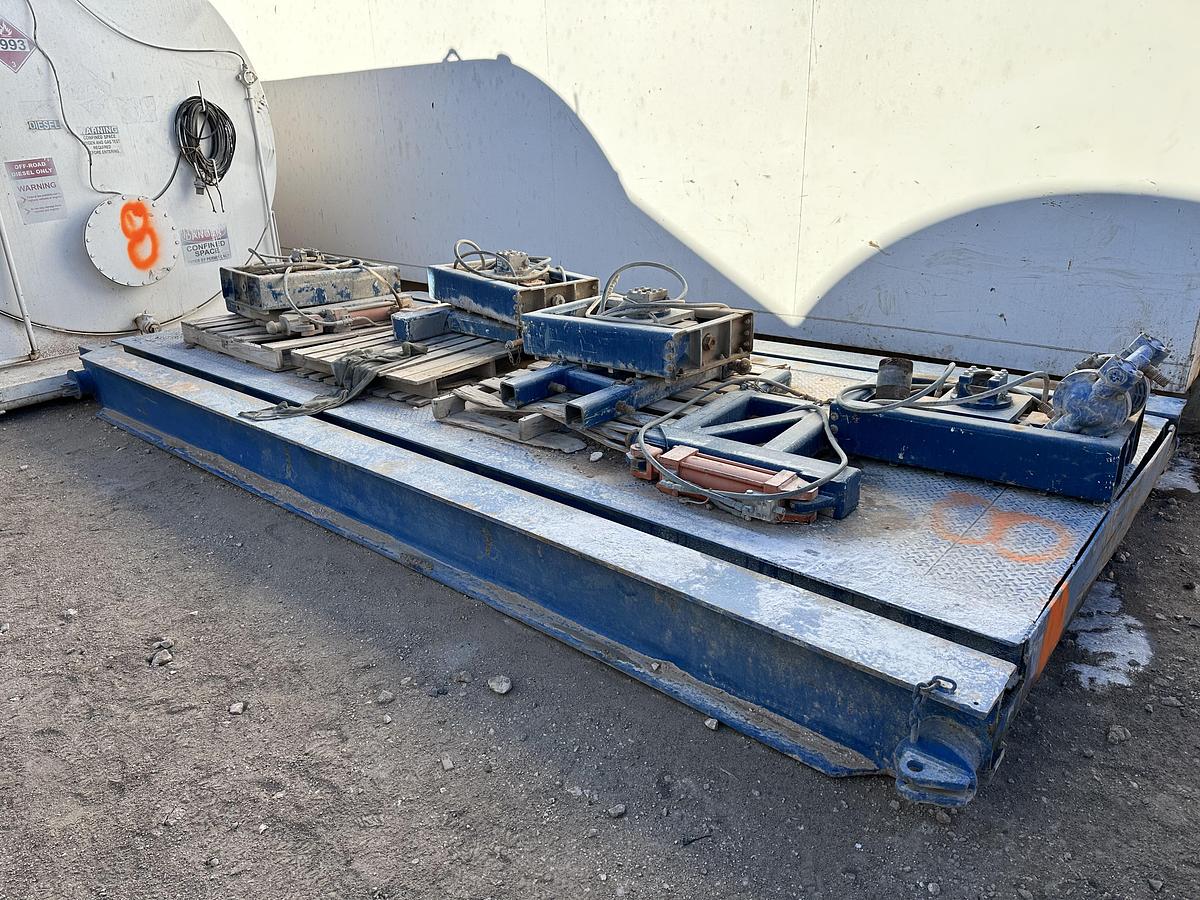

WALKING SYSTEM

OWI Stealth Stompers

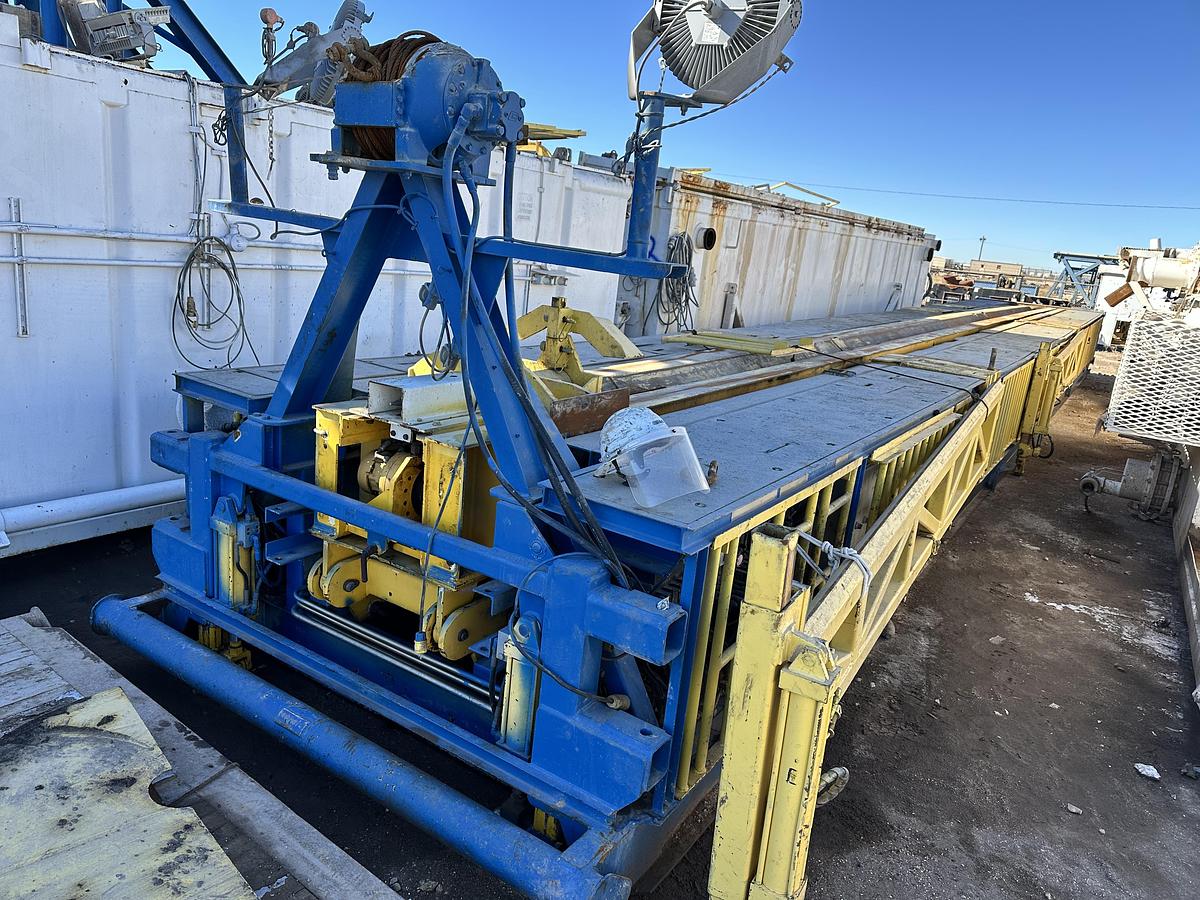

HYDRAULIC CATWALK

Forum Pipe Wrangler

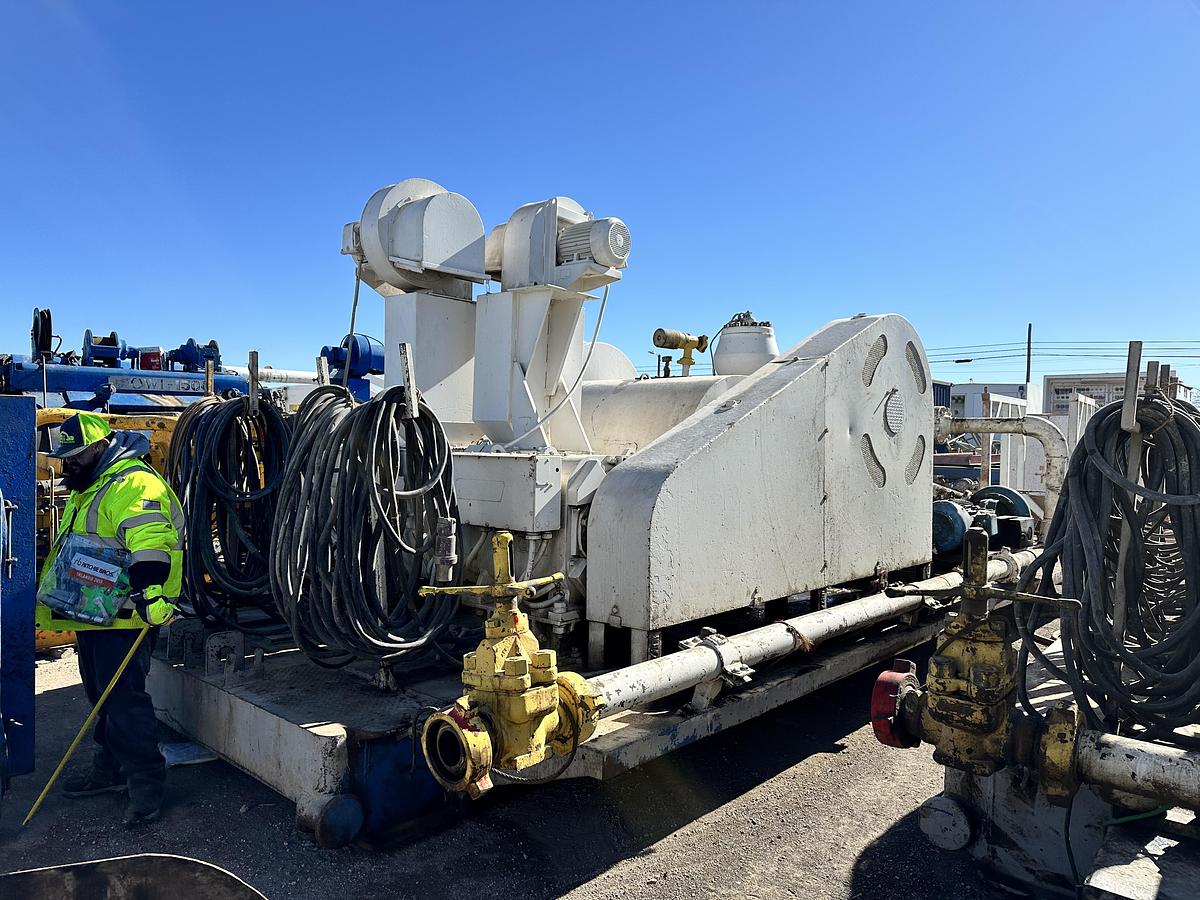

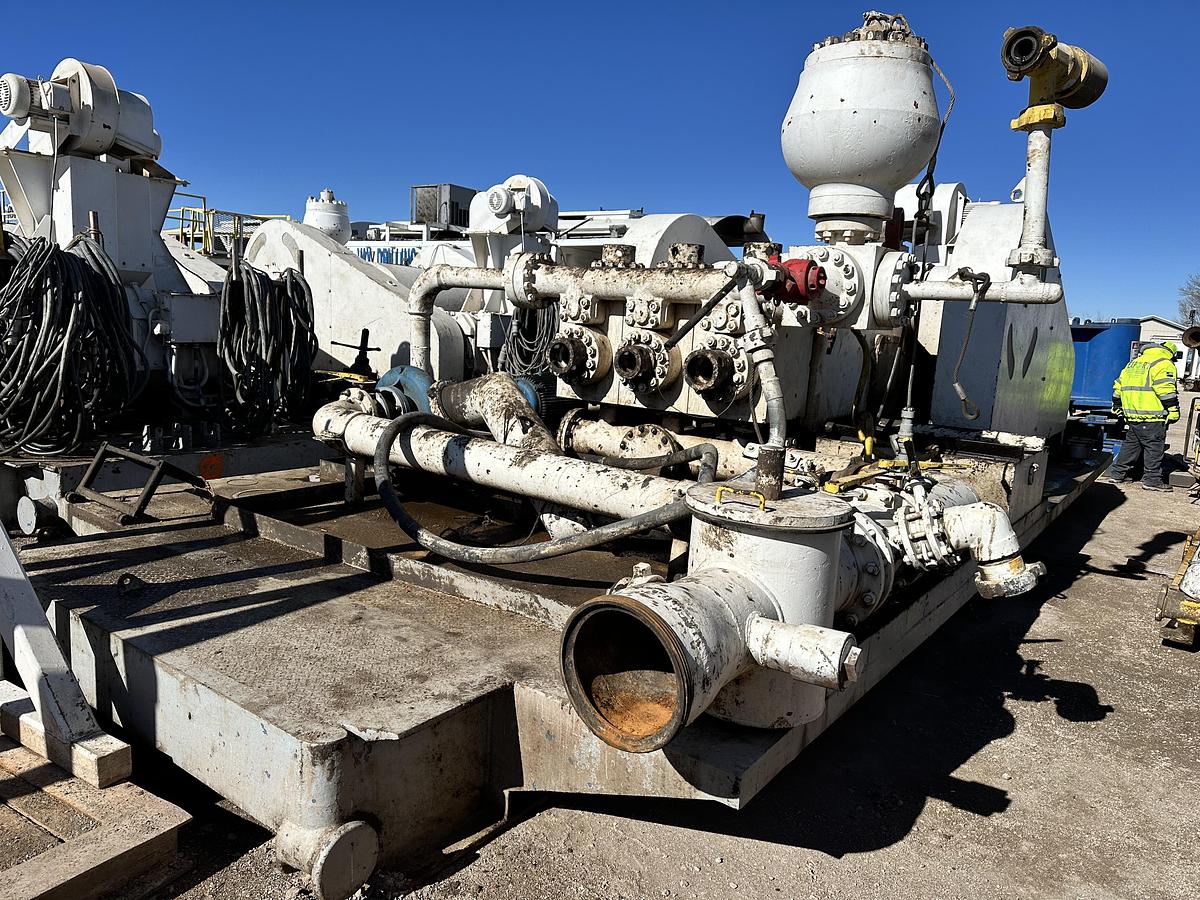

MUD PUMP #1

Gardner Denver PZ-11

Stroke: 11”

Input Power: (1) 1,600

Pressure Rating: 7,500 psi (51.7 MPa)

MUD PUMP #2

Gardner Denver PZ-11

Stroke: 11”

Input Power: (1) 1,600

Pressure Rating: 7,500 psi (51.7 MPa)

MUD PUMP #3

Gardner Denver PZ-11

Stroke: 11”

Input Power: (1) 1,600

Pressure Rating: 7,500 psi (51.7 MPa)

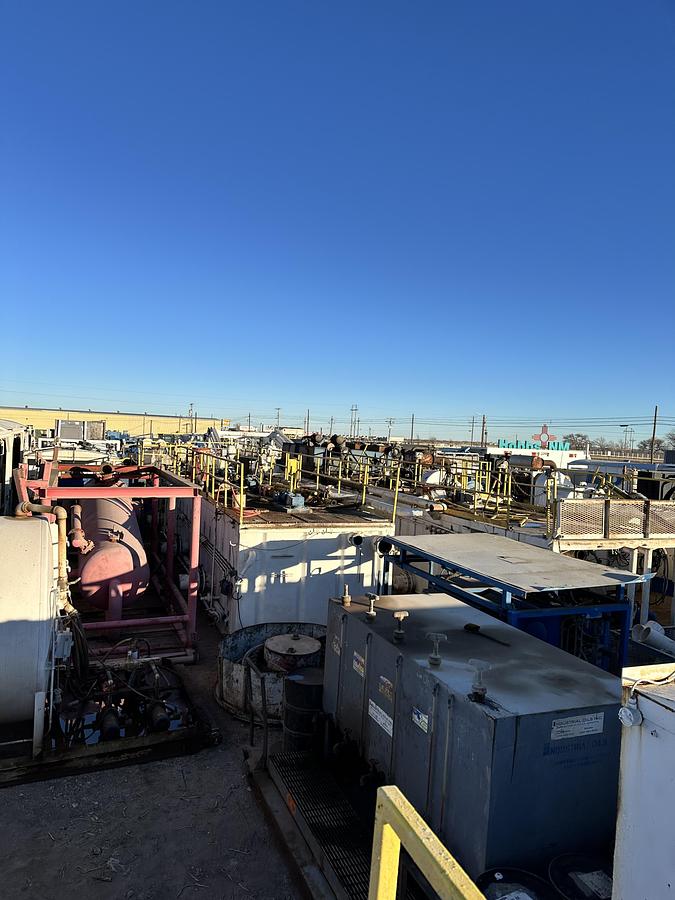

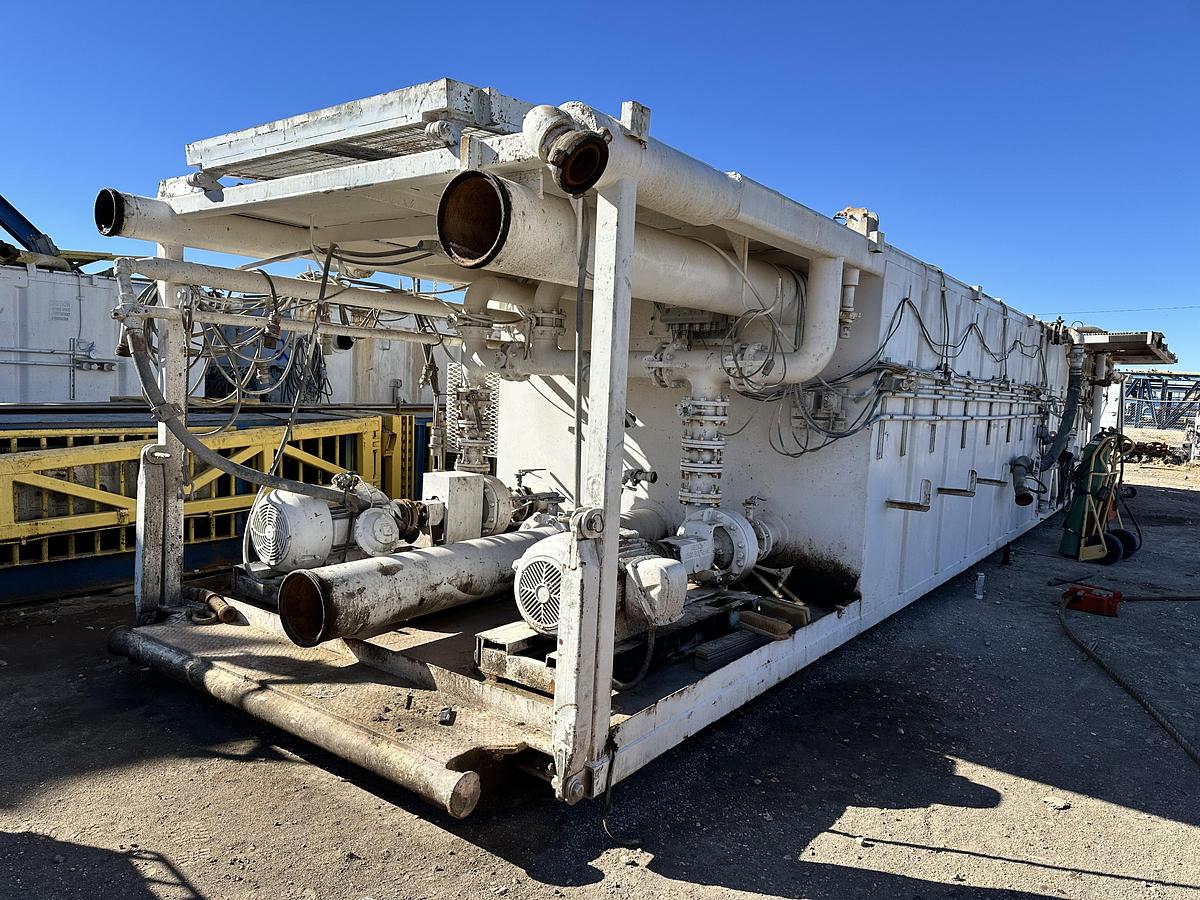

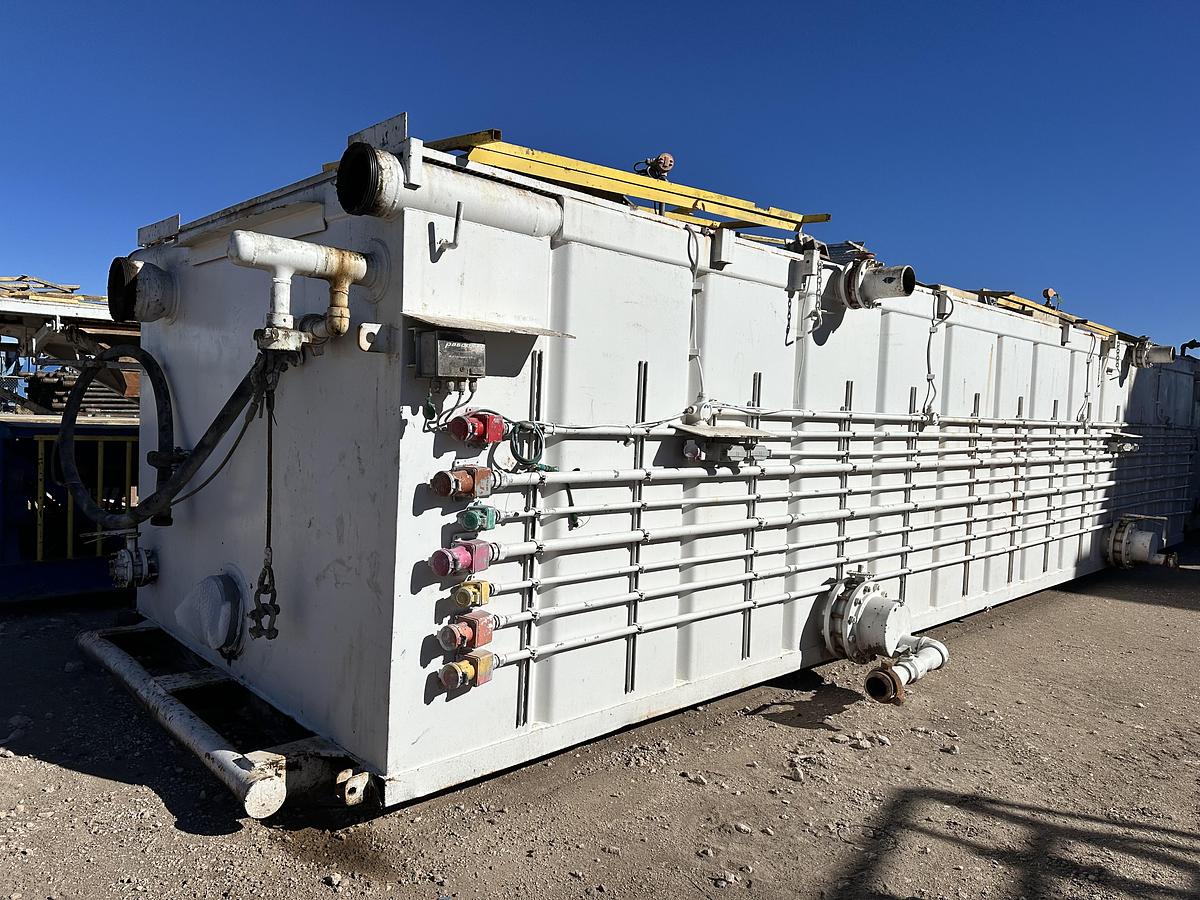

MUD TANKS

Three Tanks w/ 1,100 bbls total capacity

Shakers: (2x) Derrick Shale Shakers

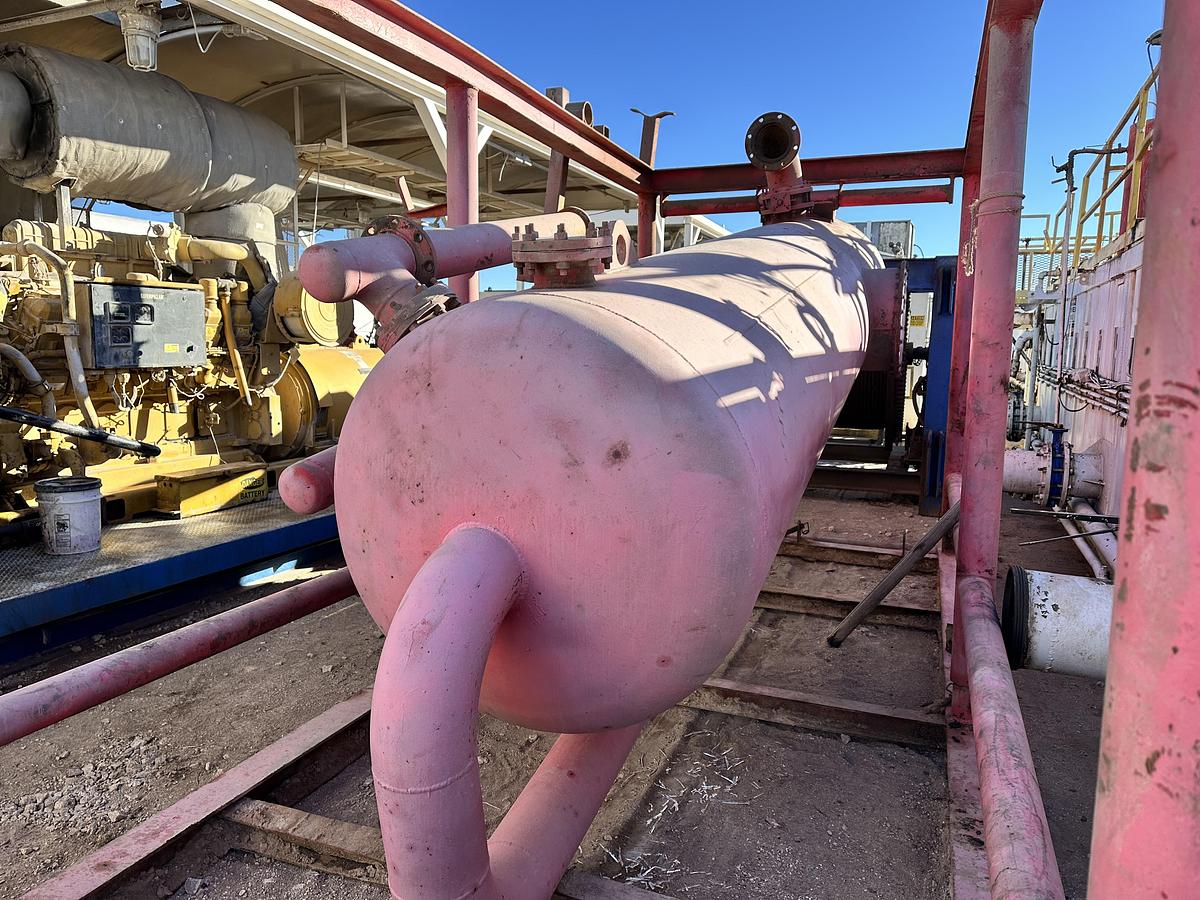

Mud Gas Separator: (x1) MI SWACO 48” (122cm) OD x 120” (305cm) tall

Trip Tanks: 80 bbls

BOP

13 5/8 Shaffer Annular 5,000psi

13 5/8 Cameron Type-U Double Ram 10,000psi

13 5/8 Cameron Type -U Single 10,000psi

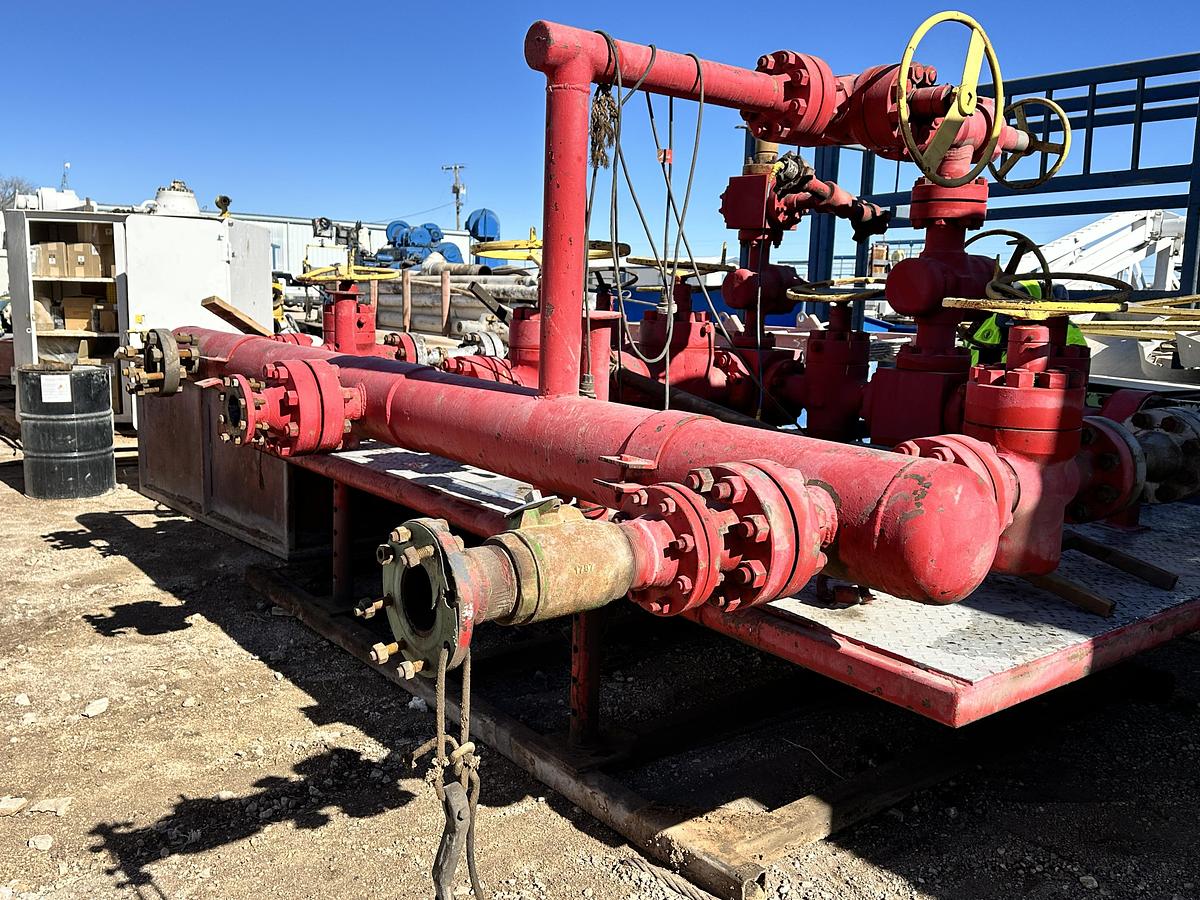

MANIFOLD

Total Oil eld 4 1/16 HCR with 4 1/16 x 2 1/16 wings 10000

Manual Chokes

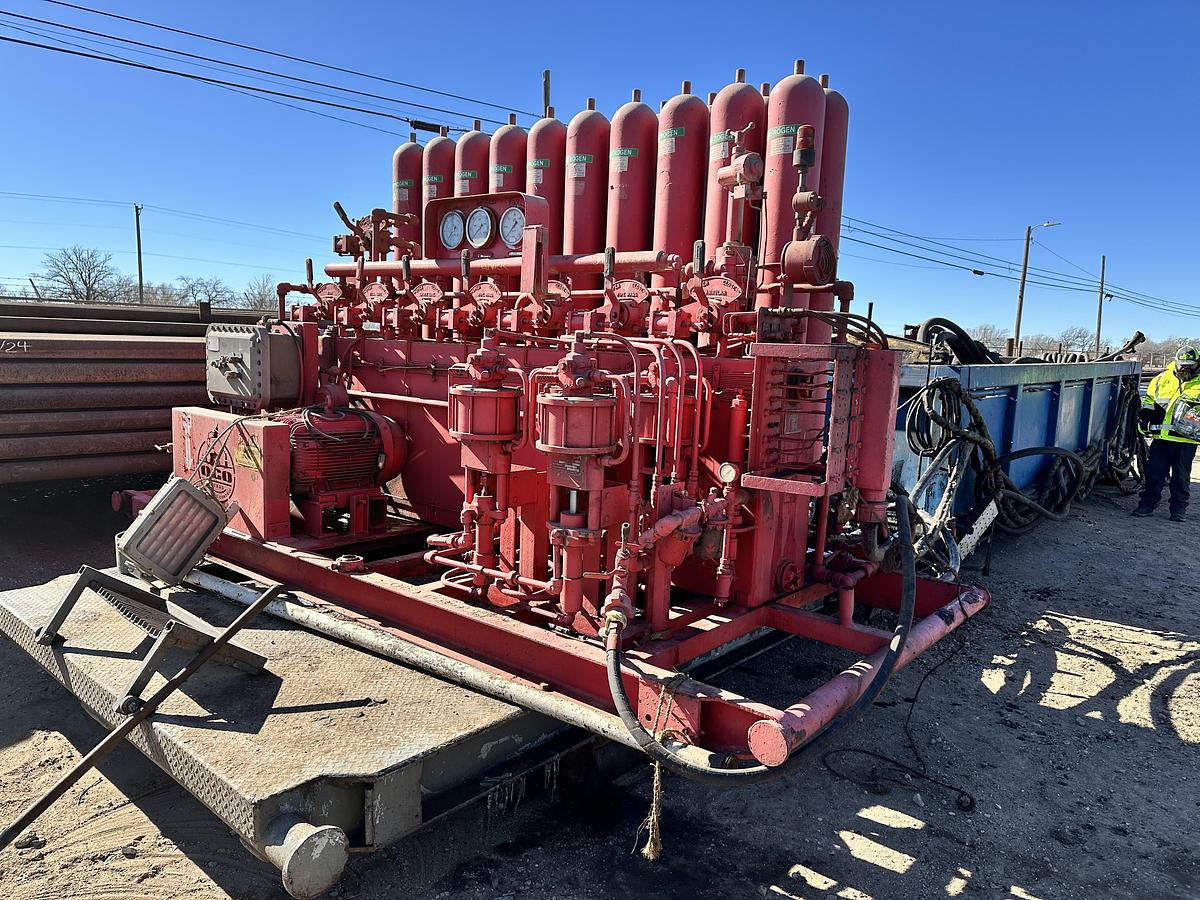

ACCUMULATOR

Scarbrough 400 Gallons 7stations, (x4) pneumatic pumps and (x1) electric triplex pump

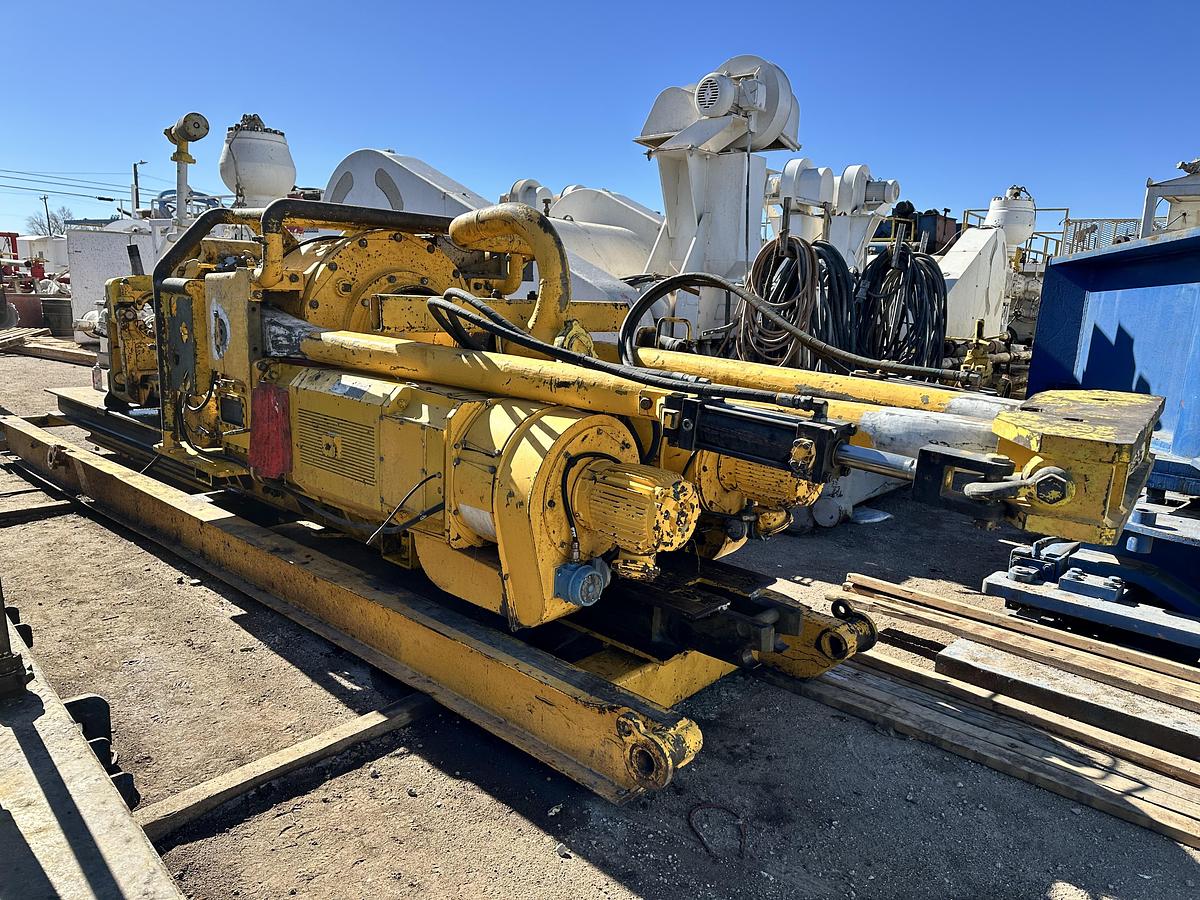

TOP DRIVE

CanRig 1250 AC 500 Ton Max Speed: 225 rpm

Continuous Drill Torque: 65,300 ft-lbs.

Max Torque (Make/Break): 95,000/ 128,800 ft-lbs.

(2) 400 hp AC induction motor & drive system w/ PLC

Integral 525 ton big shorty 5x42 block assembly

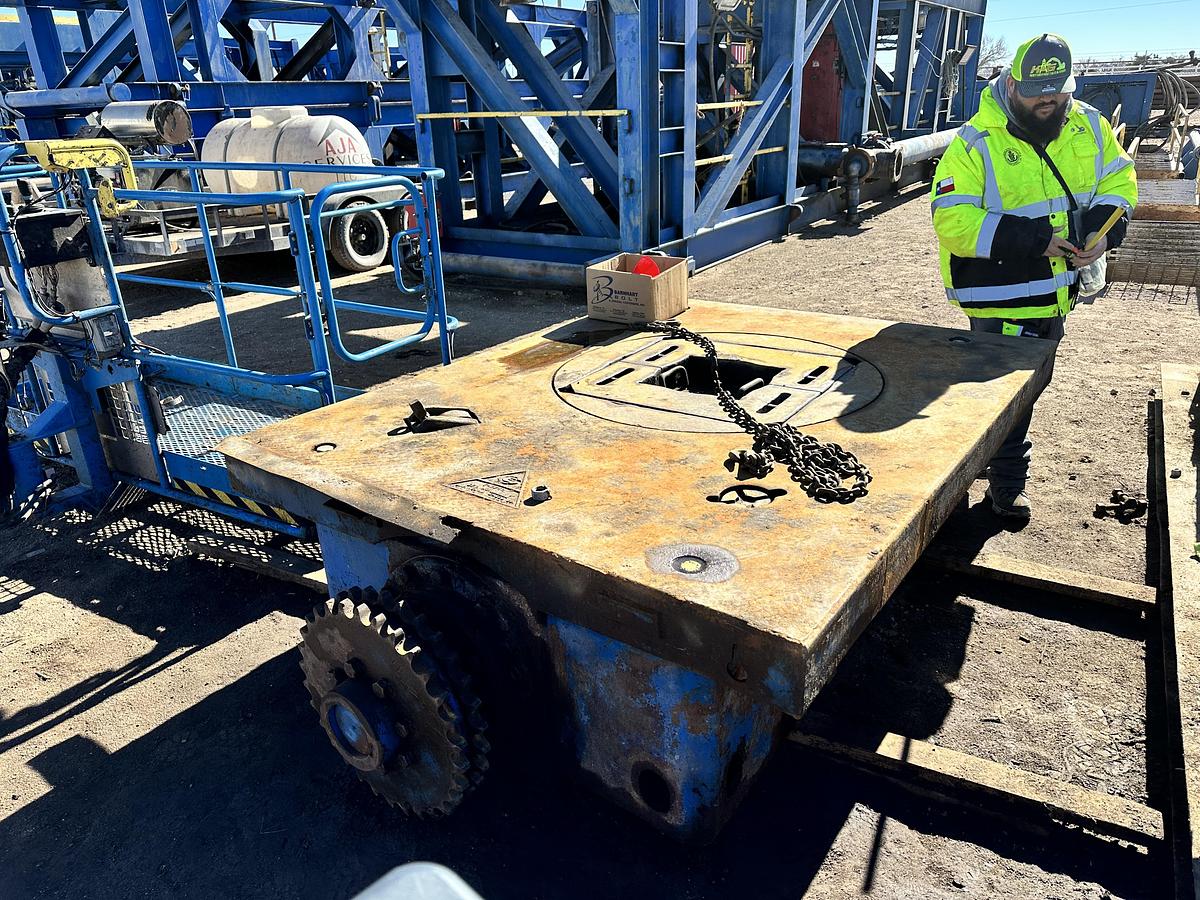

ROTARY TABLE

Gardner Denver 27.5

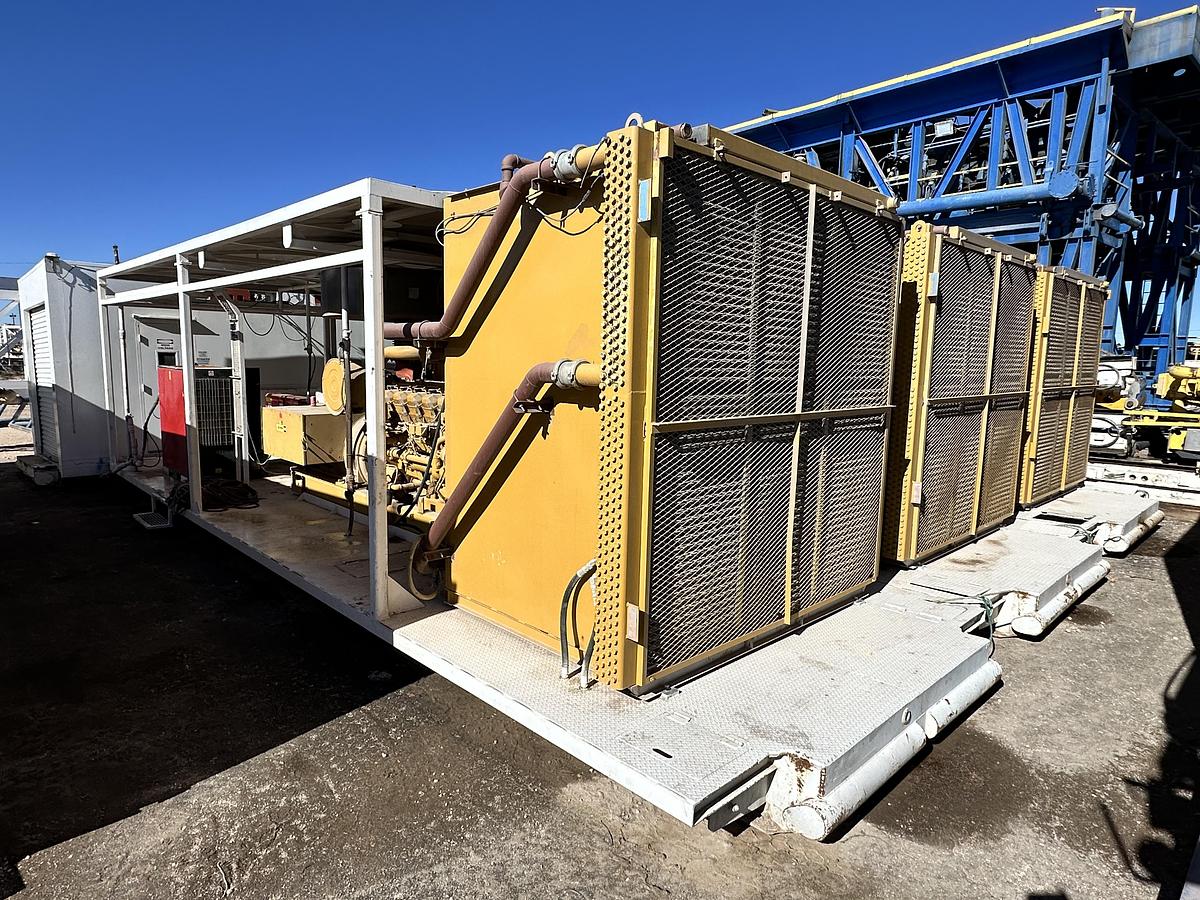

POWER SYSTEM

(3) 3512 Caterpillar

Max hp 1500

Max Torque 4580

Max RPM 1200

1365 KW x 3

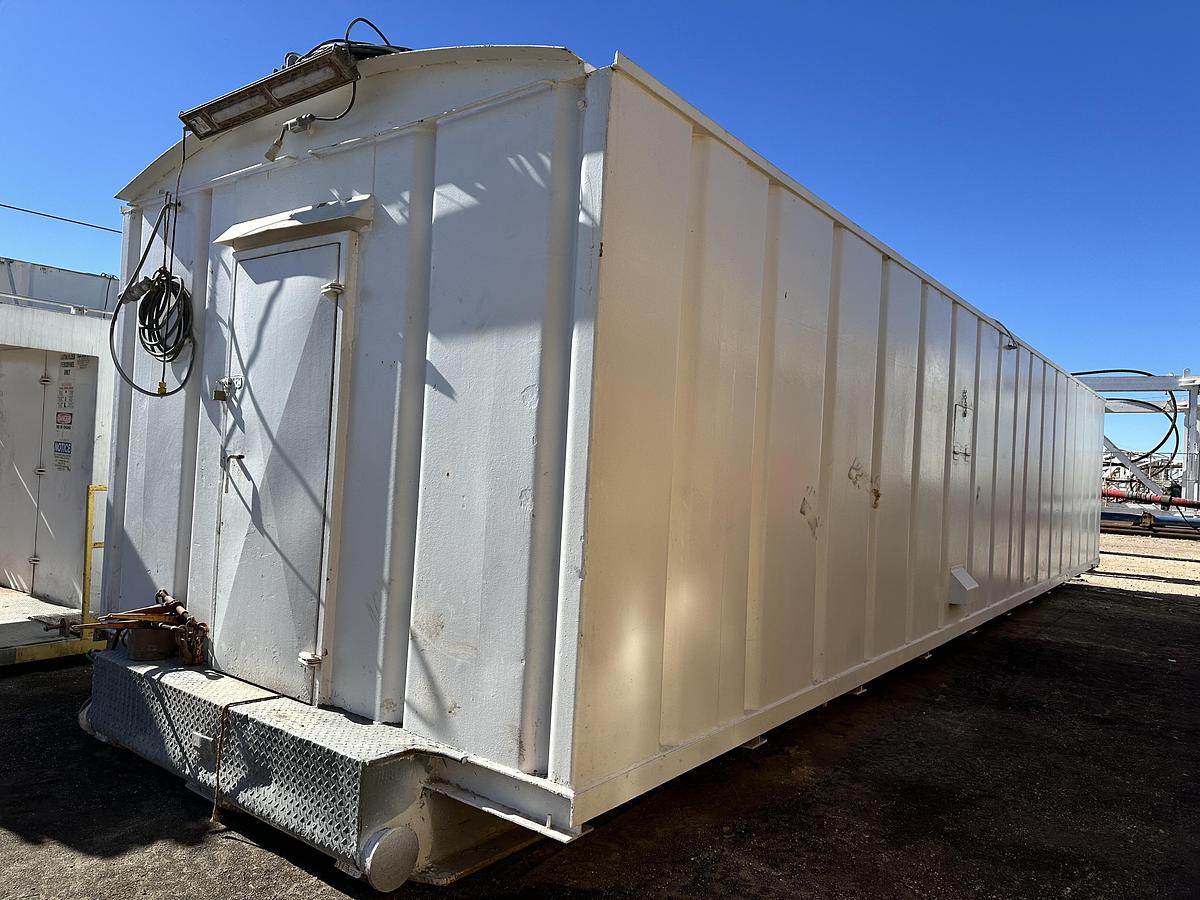

SCR House

Armoron 3X4 with Auto Start, Auto Sync, and 3 Pump Capacity

Hydraulic CatWalk

Forum Pipewrangler

Miscellaneous

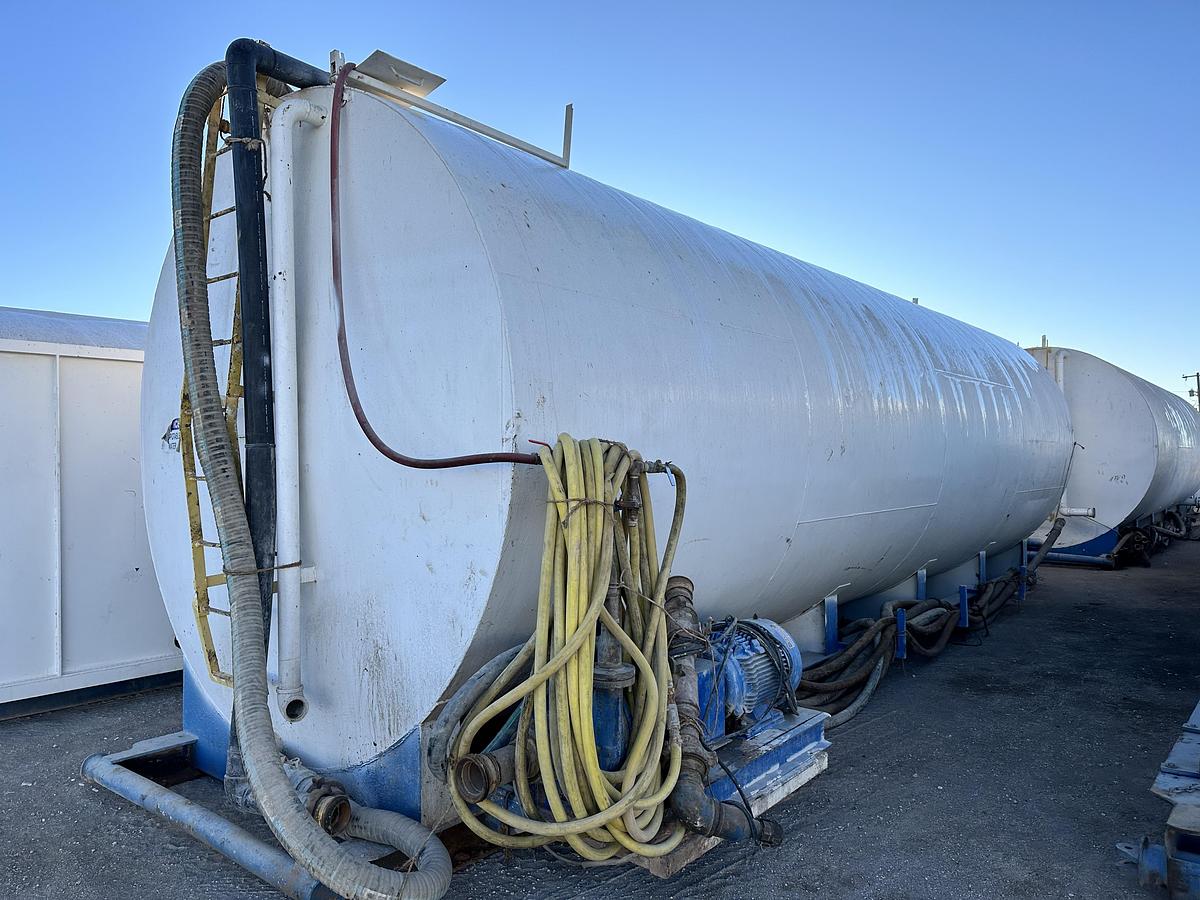

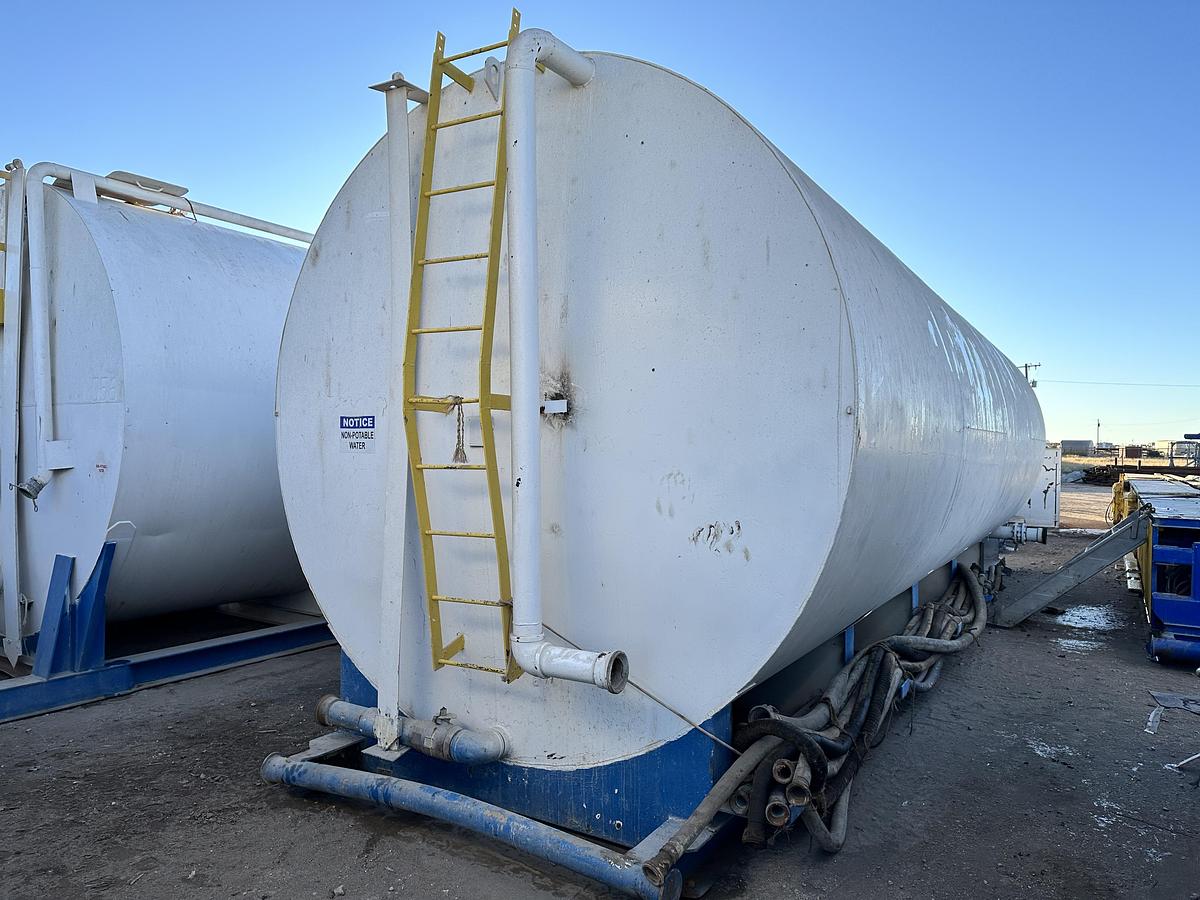

Water Tank: 1,000 bbls Fuel Tank: 12,000 Gals

Screw Compressor - None at this time

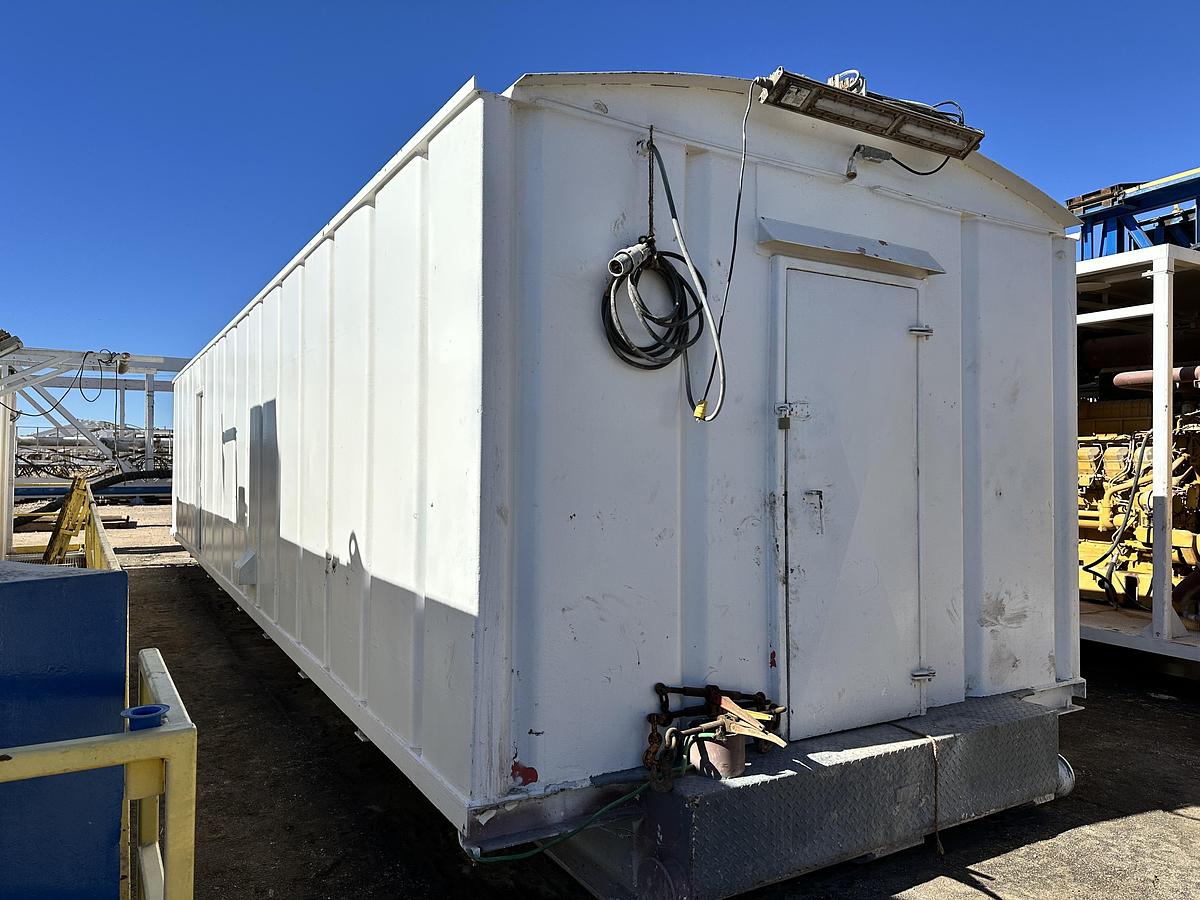

TOOL / STORAGE / CAMP

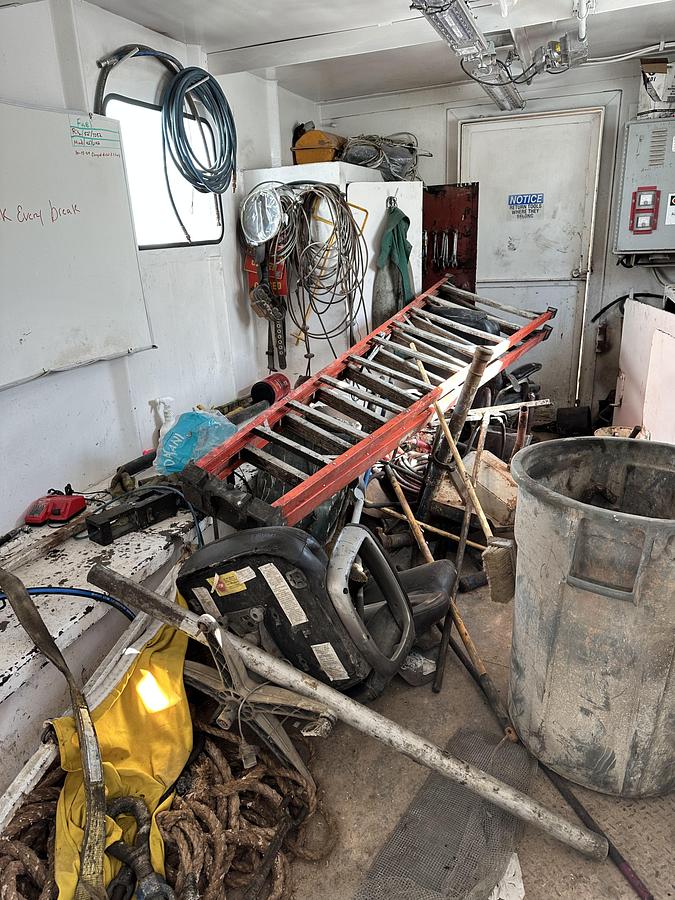

Parts Storage Room and Tool House Room

Rig Manager Trailer: One 14’ x 62’ Mobil Home

See DOCUMENTS section for complete recertification details and major equipment hour details.

Contact:

Greg Diaz

832-766-7293

Sales@kandgequipment.com

Jose Lozano

jlozano@vidabem.us

800 957 2391

www.vidaeq.com

Subject to prior sale and or other disposition.
