2013 Huada LW 530 Decanter Centrifuge 21 x 83

2013 Huada LW 530 Decanter Centrifuge 21 x 83

Contact us for price

Financing Available
Apply for credit

Location:Midland, TX

Available quantity:5

orCall +18009572391

Description

www.VIDAEQ.com


For drill solids removal, high-speed separation, barite recovery, system de-weighting, and ultrafines removal.



Applications:

For drill solids removal, high-speed separation, barite recovery, system de-weighting, and ultrafines removal.



Optimizing drilling fluids:

The 2183 Decanter Centrifuge is a key component in a top-quality solids control process. This unit efficiently removes most of the fine particles that traditional solids control equipment cannot catch. Built for heavy-duty jobs, the 2183 Decanter Centrifuge handles large amounts of feed solids as well as being able to cope with abrasive and coarse particles.



Take advantage of the 2183 Decanter Centrifuge technology

Torque control

Greater solids recovery

Higher G-Force

Increased centrate clarity

More efficient particle separation

Specially designed bowl geometry

Various power pack designs to suit the operation

Reduced waste volumes

A 360-degree solids outlet completes the concept



Principle of operation

2183 Decanter Centrifuge features a slender cylindrical/conical bowl with a relatively large length/diameter ratio. The screw conveyor, which is fitted inside the bowl, enables the continuous removal of separated solids.


History:

Modifications:

-Screw on tiles removed and replaced with industry standard tiles

-Main motor removed and replaced with NEW 125HP XP T Frame Motor

-Back motor removed and replaced with NEW 30hp XP T Frame Motor

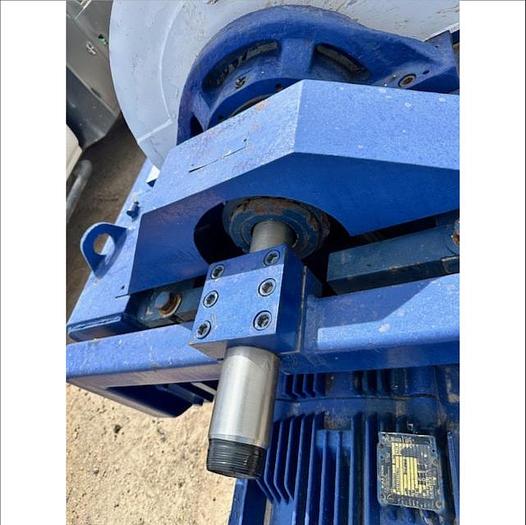

-Back Drive motor installed in-line and direct coupled

-TB woods coupling 10J utilized

-Gearbox removed and replaced with Rev Tech P90 95:1 two stage planetary

-Gear flange modified to accept the P90 gearbox

-New spline shaft made to mate to LW530 spline hub and P90 involuted spline

-Dam plates removed and adjustable eccentric installed

-2018 Modifications started and completed



Technical data

Maximum hydraulic flow rate*: 100 m3/h (440 GPM)

Max Speed with: (1,800 kg/m3 wet solids) 3,300 rpm (2,900 G) (2,500 kg/m3 wet solids) 2,800 rpm (2,100 G) 3,650 rpm

Maximum speed: 3,650 rpm

Centrifugal force: up to 3,574 G

Differential speed range: 2-40 rpm

Solids capacity: up to 12 ton/h (26,000 lbs / h)



Main power: 90 kW (125 Hp)

Back Drive: 15 kW (20 Hp)

Gearbox: P-90 (95:1 Ratio)

Dry weight decanter unit: 5,000 kg (11,000 lbs)

Operating weight: 5,500 kg (11,110 lbs)





* The operating flow rate depends on the individual properties of the feed and the separation result required.

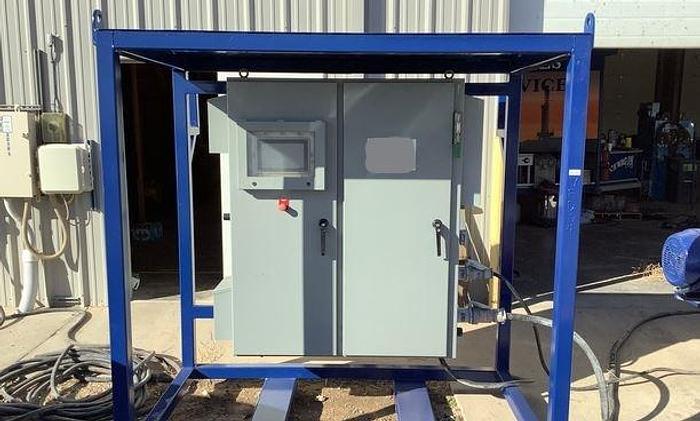

Includes Control Panel, Feed Pump and Stand.


Specifications can be found below in the DOCUMENTS section.


Please contact us for further detail and pricing.


Thank you!


Subject to prior sale and/or other disposition.

All Items to be quoted in US currency. All prices and availability are subject to change without notice and are subject to applicable sales tax. Title to all goods listed remain with the seller until the purchase price is fully paid. Equipment is purchased as is, where is, without warranty unless otherwise specified. Use hours are estimate hours as of the date of this posting and are not guaranteed. Equipment pictured may contain attachments and/or accessories not priced in this offer. Sale subject to terms and conditions on final bill of sale.


Contact:

Jose Lozano

jlozano@vidabem.us

661 303 3190

800 957 2391

www.vidaeq.com

Specifications

ManufacturerHuada LW 530 Decanter Centrifuge
Model21 x 83
Year2013
ConditionUsed
Stock Number00486
