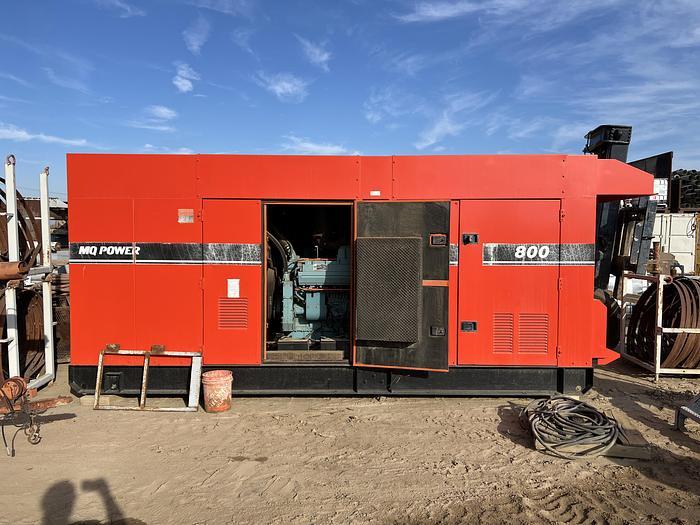

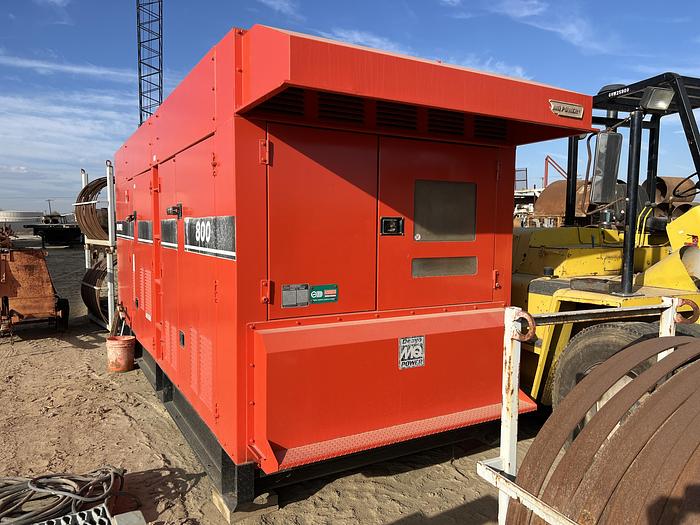

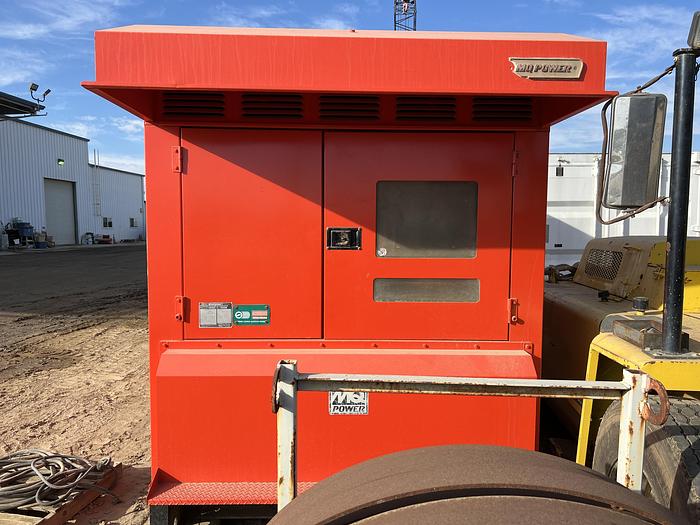

2009 MQ Power DCA800SSK Generator

2009 MQ Power DCA800SSK Generator

Contact us for price

Financing Available
Apply for credit

Location:California

Available quantity:1

orCall +18009572391

Description

www.VIDAEQ.com

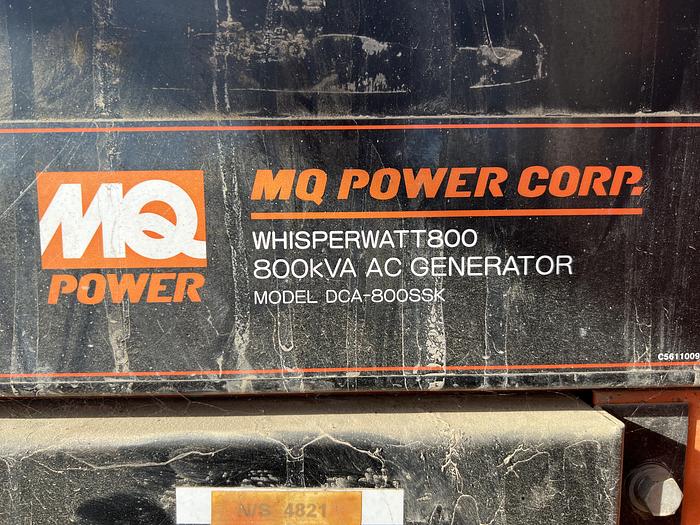

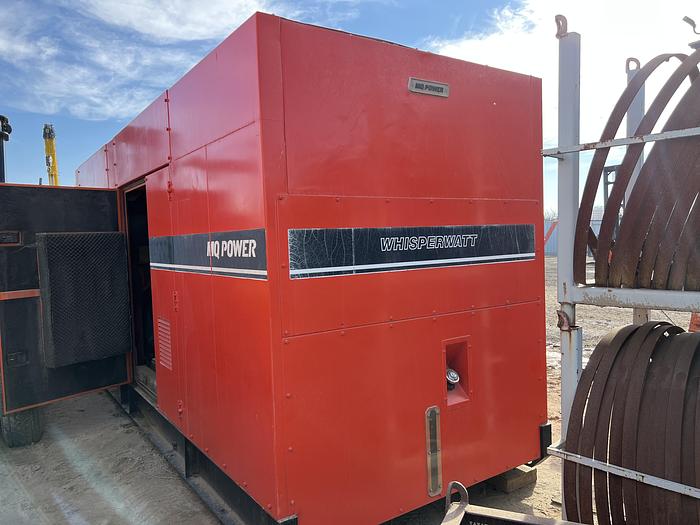

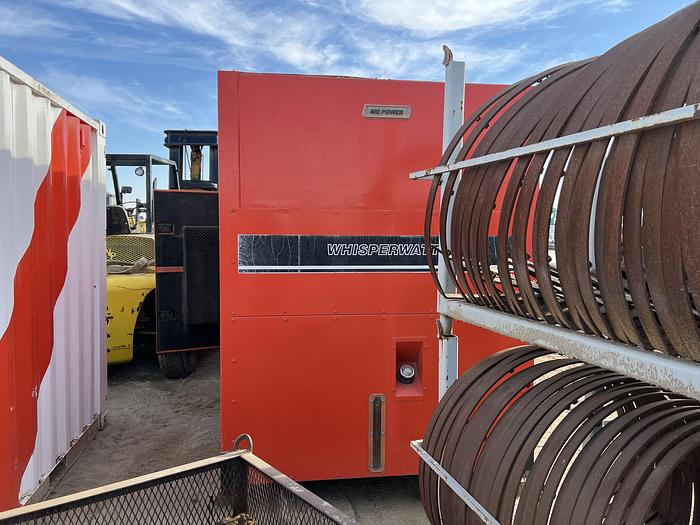

🔥 MQ Power WhisperWatt™ 800 Generator

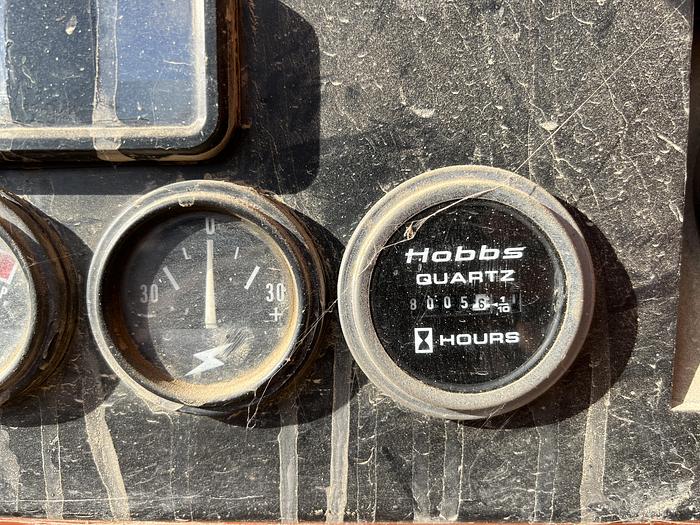

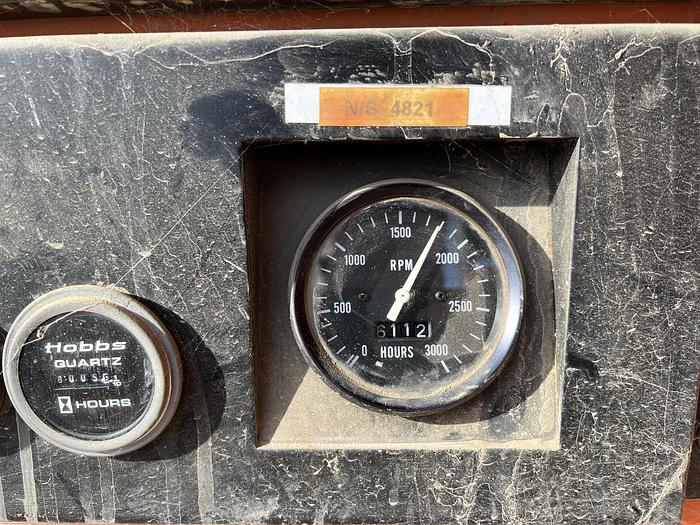

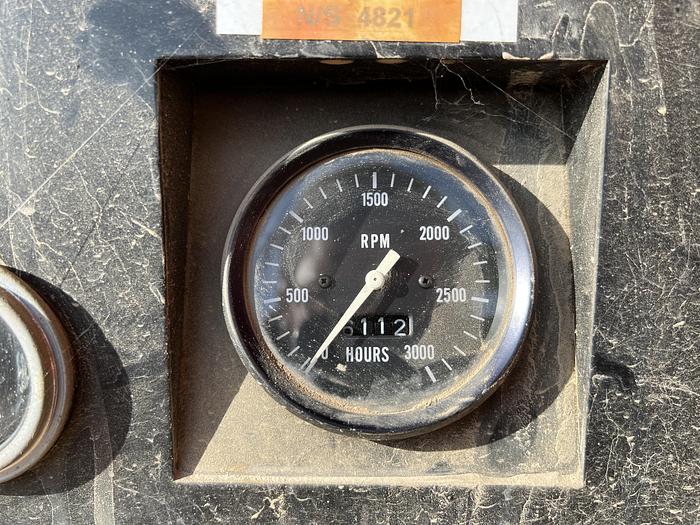

USED CONDITION. 14,100 HOURS


The complete specification sheet is located in the DOCUMENTS section below.


Contact for additional details or to schedule an inspection:

Jose Lozano

jlozano@vidabem.us

+1 661 303 3190

www.vidaeq.com


WhisperWattâ„¢ 800

Prime Rating: 640 kW (800 kVA)

Standby Rating: 704 kW (880 kVA)

60 Hertz


Specifications


Generator Specifications

Design Revolving field, self-ventilated, drip-proof, Single bearing

No. of Poles 4-pole

Excitation Brushless with AVR

Standby Output 704 KW (880 KVA)

Prime Output 640 KW (800 KVA) Generator

RPM 1800

Voltage — 3Ø 208, 220, 240, 416, 440, 480V Reconnectable

Voltage — 1Ø 120, 127, 139, 240, 254, 277V Adjustable

Armature Connection Star with neutral

Voltage Regulation (No load to full load) ±0.5%

Power Factor 0.8 Frequency 60 Hz

Frequency Regulation: No Load to Full Load Isochronous under varying loads from no load to 100% rated load

Frequency Regulation: Steady State ±0.25% of mean value for constant loads from no load to full load

Insulation Class F

Sound Level dB(A) Full load at 23 feet 73

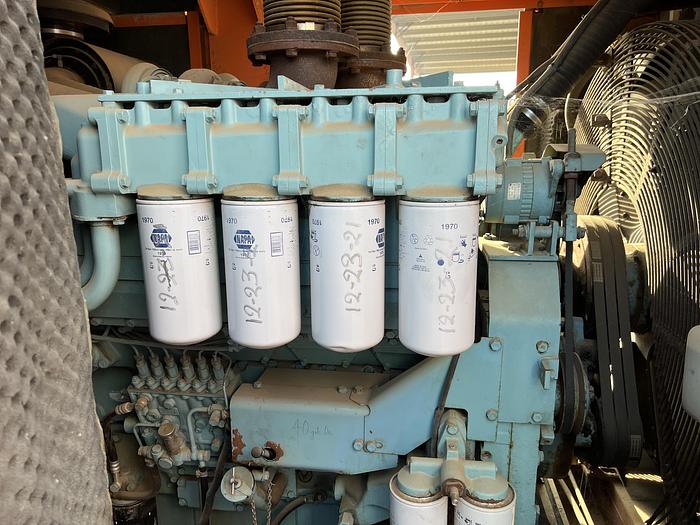

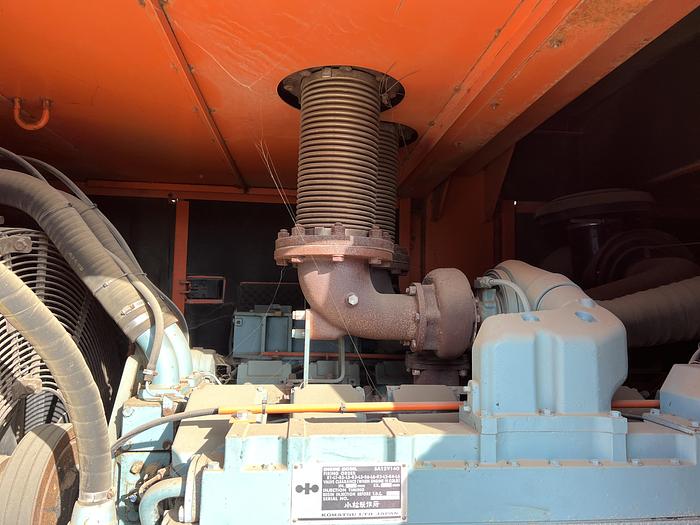

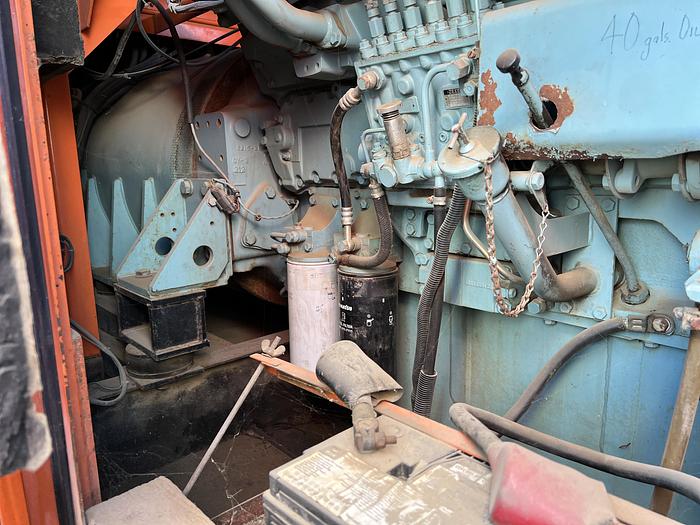

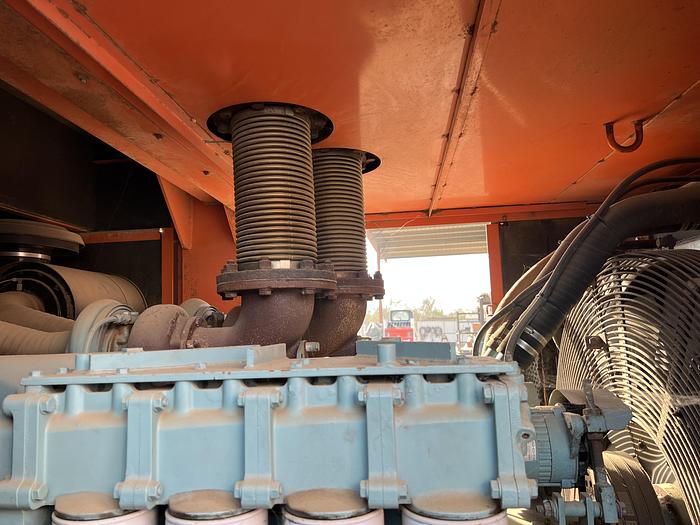

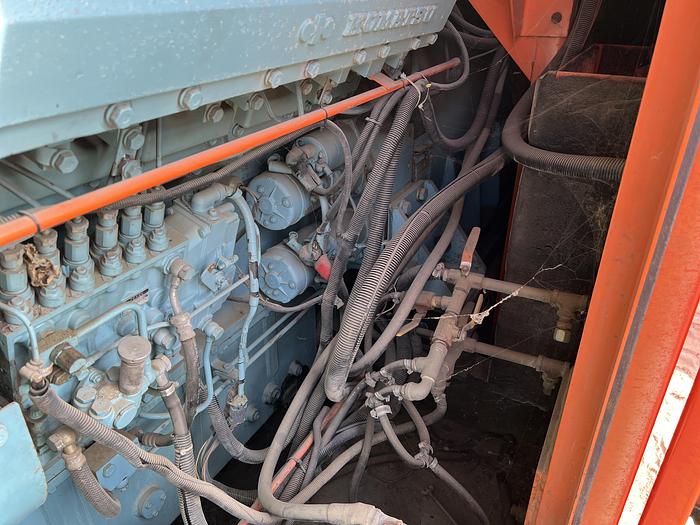

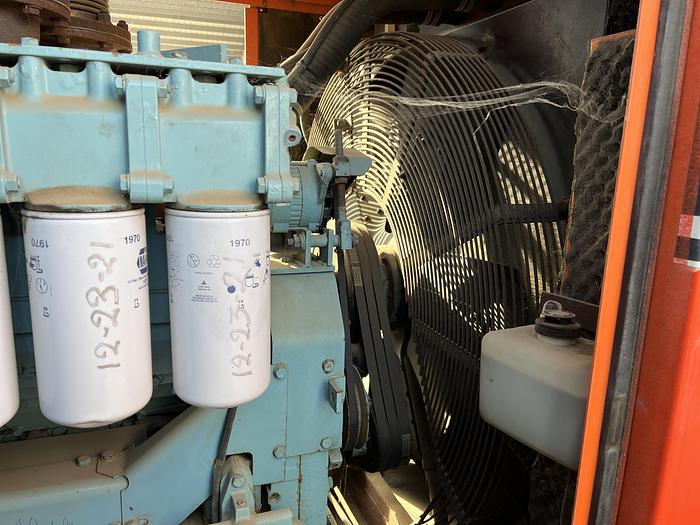

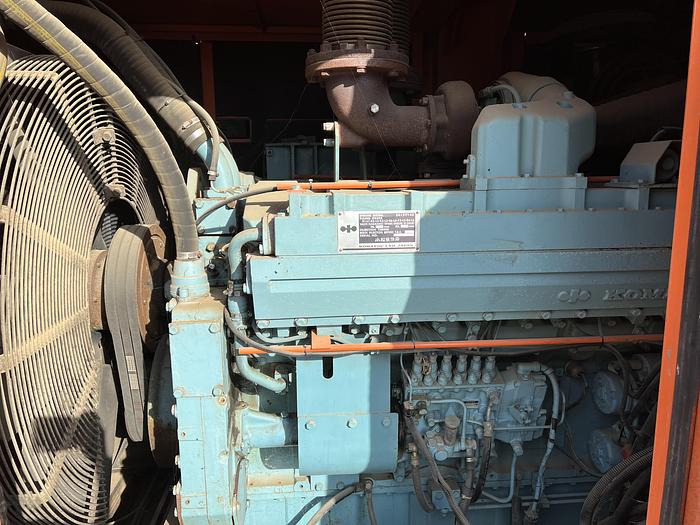

Engine Specifications

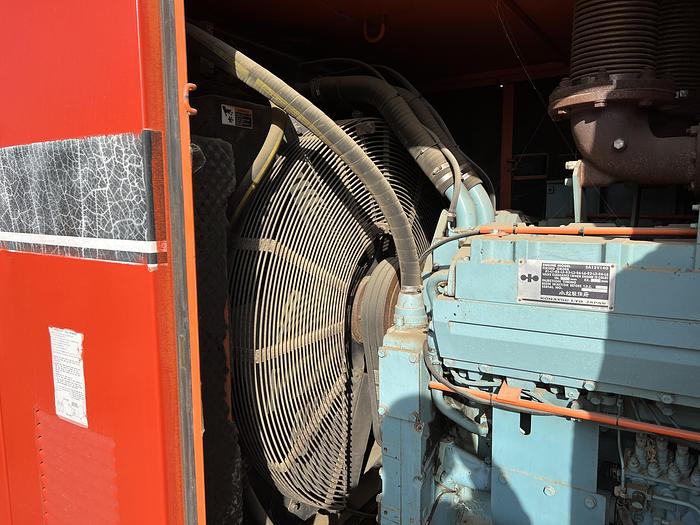

Make / Model Komatsu / SAA6D170E-3

Emissions EPA Tier 2 Certified

Starting System Electric

Design 4-cycle, water-cooled Direct Injection, Turbocharged, Air-to-air Intercooled

Displacement 23150 cc

No. cylinders 6

Bore x Stroke (mm) 170 x 170

Gross Engine Power Output 1220 hp (909.7 kW)

BMEP 361 psi (2487 kPa)

Piston Speed 2008 ft./min. (10.2 m/s)

Compression Ratio 16.1 : 1

Engine Speed 1800 rpm

Overspeed Limit 2100 rpm

Oil capacity gallons (liters) 37.2 (141.0)

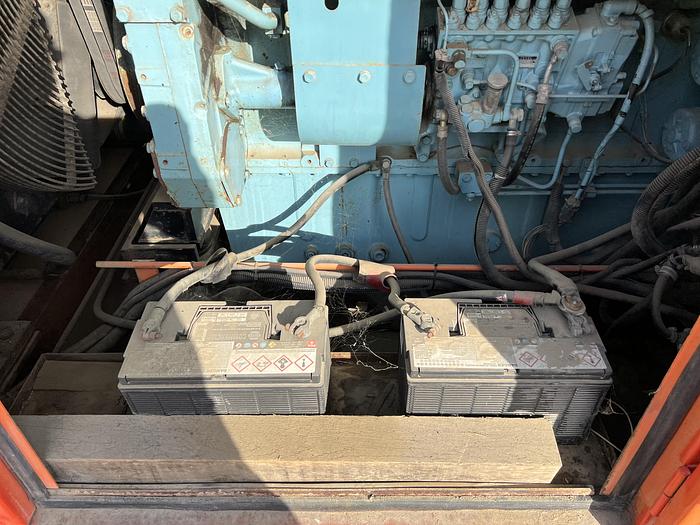

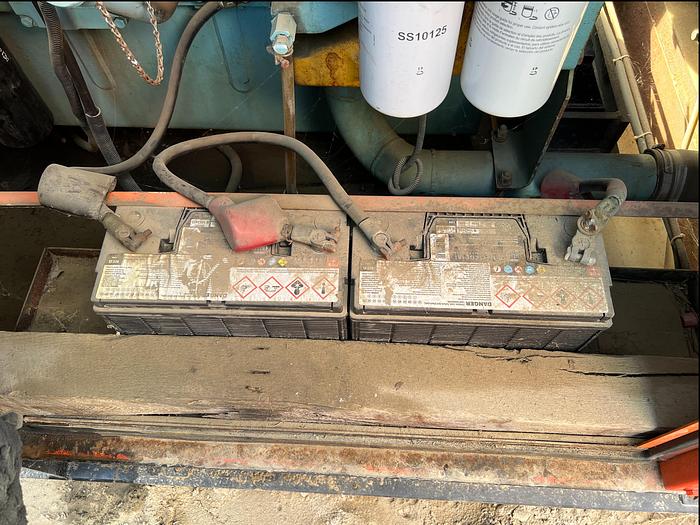

Battery 12V 200 Ah x 4 (24V system)


The complete specification sheet is located in the DOCUMENTS section below.


Please contact us for further details and pricing.


Thank you!


Subject to prior sale and/or other disposition.

All Items to be quoted in US currency. All prices and availability are subject to change without notice and are subject to applicable sales tax. Title to all goods listed remain with the seller until the purchase price is fully paid. Equipment is purchased as is, where is, without warranty unless otherwise specified. Use hours are estimate hours as of the date of this posting and are not guaranteed. Equipment pictured may contain attachments and/or accessories not priced in this offer. Sale subject to terms and conditions on final bill of sale.


Contact for additional details or to schedule an inspection:

Jose Lozano

jlozano@vidabem.us

+1 661 303 3190

www.vidaeq.com

Specifications

ManufacturerMQ Power
ModelDCA800SSK
Year2009
ConditionUsed
Serial Number1339299
Stock Number00449
