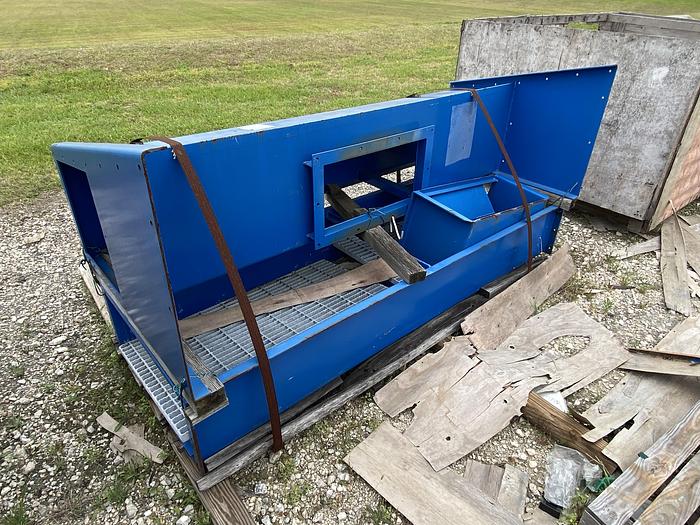

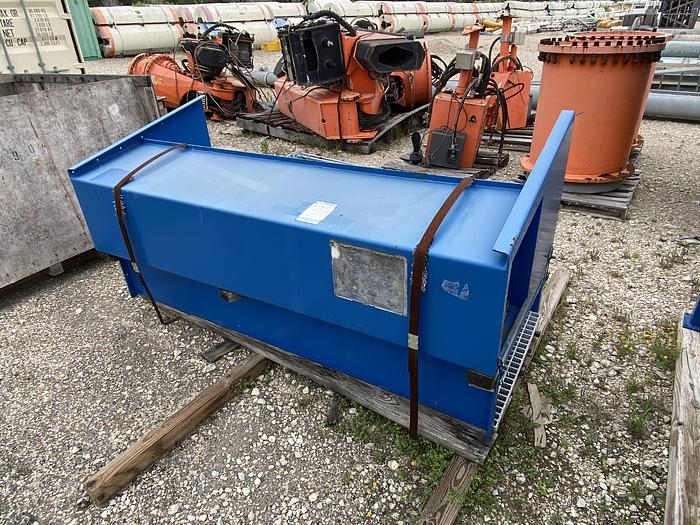

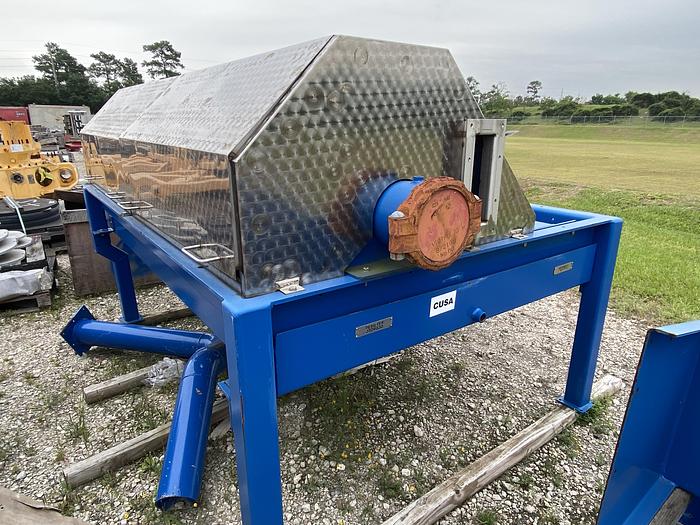

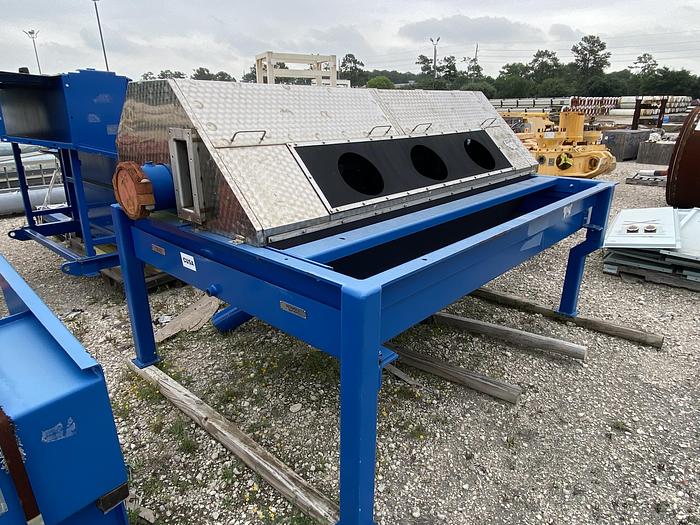

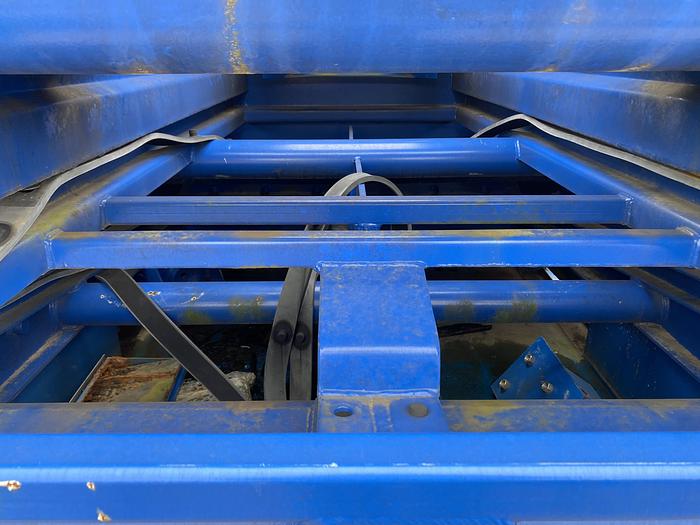

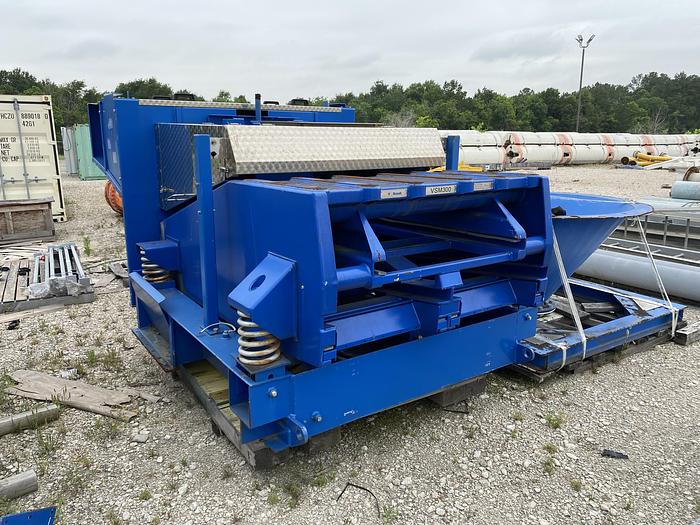

2007 BRANDT VSM 300 Shale Shaker (CE Stamped)

No longer available

2007 BRANDT VSM 300 Shale Shaker (CE Stamped)

Financing Available
Apply for credit

Available quantity: 1

Houston, TX

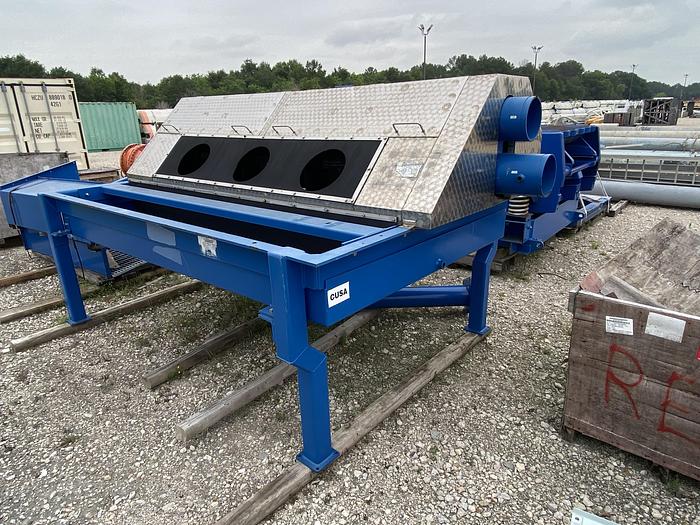

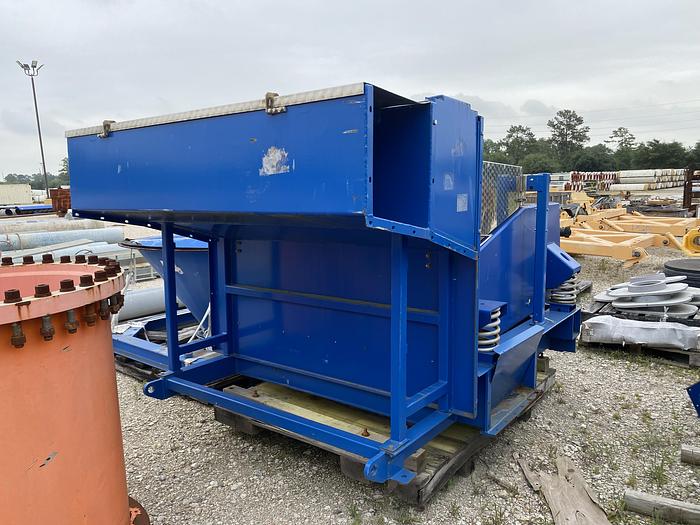

VSM 300 Shale Shaker

(CE Certified)


Seller Notes:

SN: 300999

YOM: 2007

Electric Vibrators have been removed.

Both have never been in service.

NOTE: Buyer will be responsible for any inspection, maintenance, repair, refurbish that may be required. Controls are not included with any of these shakers. You will need to supply your own electrical controls and pneumatic controls for the screen clamping system.

VSM 300’s use of integral secondary drying technology demonstrates a commitment to delivering cost-effective, environmentally responsible solutions to the oil industry. The VSM 300 is an extremely simple machine to operate, maintenance is minimal, and screen changing is carried out in 2 to 3 minutes by one operator.

Supplied in modular form, the VSM 300 can be assembled on-site to produce multiple units, thereby reducing installation time and costs. The proven shallow header tank system provides equal flow distribution across the shakers, even when multiple units are installed. The VSM 300 can also be retrofitted to VSM 100™ skids. This significantly reduces installation costs on rigs on which VSM 100 shakers are already installed.


  • Balanced elliptical motion
  • Effective removal of sticky, hydrated clays
  • Adjustable G-force
  • Adjustments in G-force (4, 6, or 8 G’s) to adapt to changes in drilling conditions
  • Integrated scalping deck (three screens)
  • Reduces the need for (and subsequent costs and weight of) upstream scalping shakers and/or gumbo equipment
  • 20.5 ft2 (1.9 m2) of screen area
  • Primary deck angled at 7° incline (four screens)
  • Excellent solids conveyance and liquid/solids separation, even when reactive formations are encountered
  • Keeps the mud pool volume small, which helps to increase screen life
  • 26.3 ft2 (2.4 m2) of screen area
  • Integrated drying deck (two screens; optional)
  • Reduces mud losses by creating a dry solids discharge
  • Provides 3.0 ft2 (0.3 m2) of screen area
  • Pneumoseal clamping system
  • Screens are properly secured to the basket for quick and easy screen changes
  • Variable frequency drive (VFD) control
  • Soft-starting fingertip adjustments of motor speed and matching of G-force to operating conditions

A brochure of the VSM 300 can be found in the Documents section.

All Items to be quoted in US currency. All prices and availability are subject to change without notice and are subject to applicable sales tax. Title to all goods listed remain with the seller until the purchase price is fully paid. Equipment is purchased as is, where is, without warranty unless otherwise specified. Use hours are estimate hours as of the date of this posting and are not guaranteed. Equipment pictured may contain attachments and/or accessories not priced in this offer. Sale subject to terms and conditions on final bill of sale.

Contact us:

Jose Lozano


+1 661 303 3190


(shaker, shale shaker, mud separation, particle separation, rock shaker, NOV)

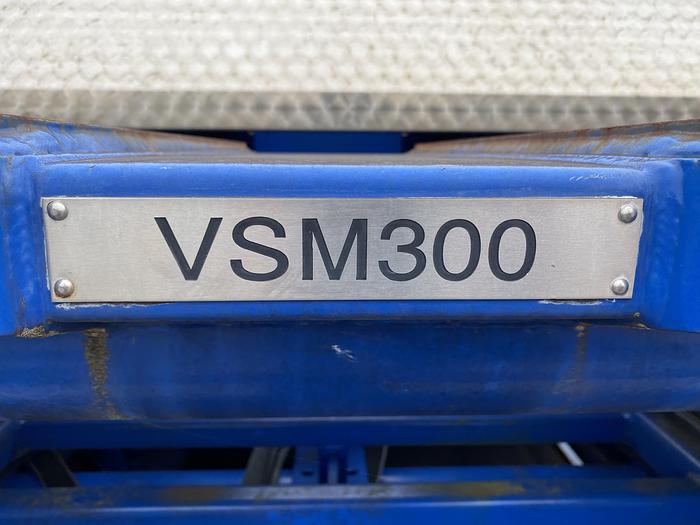

ModelVSM 300 Shale Shaker (CE Stamped)
Serial Number300999
Stock Number00367
Dimensions108.4 in L x 73.6 in W x 59.3 in H (2754 mm x 1870 mm x 1505 mm)
Weir Height39 in (991 mm)
Weight5370 lb (2436 kg)
Total Screening Area49.40 ft² (4.6 m²
Motor Power(2) 4 hp (3 kW)
