2014 Kemtron Technologies Centrifuge (1000 GPM)

2014 Kemtron Technologies Centrifuge (1000 GPM)

Contact us for price

Financing Available
Apply for credit
orCall +18009572391

Description

www.VIDAEQ.com

🔥 2014 KEMTRON Dual Centrifuge Trailer


Processing Capacity: 1000 GPM


This Dual Centrifuge trailer was manufactured by Kemtron Technologies in 2014. This unit completed 2 projects and was put into storage in 2017. This trailer has not been in the field since 2017.


Due to the short service time these centrifuges are in really good condition, showing little to no wear.


Each Centrifuge has an independent VFD controlled feed pump, dedicated polymer mix tank and polymer feed pump.


The centrifuge main driver, back drive and feed pump are all controlled by a SIMENS SIMATIC PANEL Touch Screen. The Polymer feed pump speed is adjusted by a rheostat located on the panel door. Additionally the solids discard screw conveyor is turned on via the HMI touch screen.

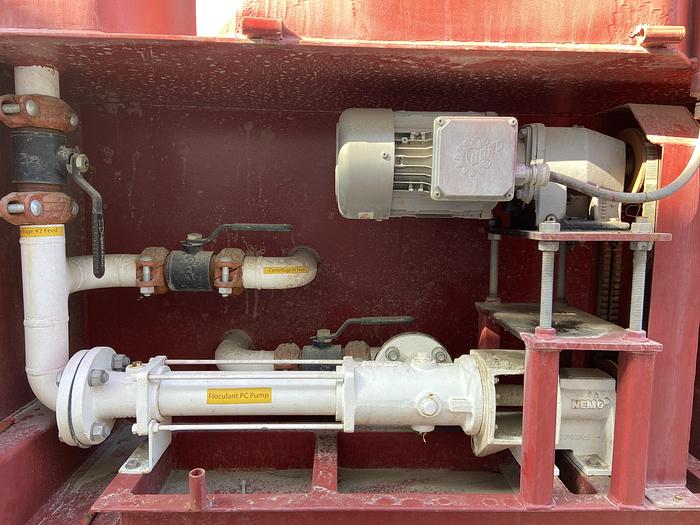

There are 2 polymer mix tanks, each polymer mix tank has 2 dedicated agitators and 1 dedicated polymer feed pump per compartment. Should a polymer feed pump fail while in service, each polymer feed pump can be used to feed either centrifuge. The main fluid compartments are equipped with 2 mud mix agitators that help in maintaining a homogenous feed to the centrifuges.


Inspection Notes:

Overall condition: Good

Rotating Assembly Wear and Tear: Minimal

Leaks Identified: Polymer Feed Pump 1 needs vic rubber gasket replaced.

Paint: Sun Faded due to sitting outdoors

Test: Centrifuges hydro tested at full speed. Feed pump speed increased and decreased. Polymer Feed pumps hydro tested. Polymer mixers, Agitators, Screw Conveyors and Lights all turned on an off.


Most Recent Equipment Service Date: 6/8/2022 and 6/9/2022


Hydro test Date: 6/10/2022

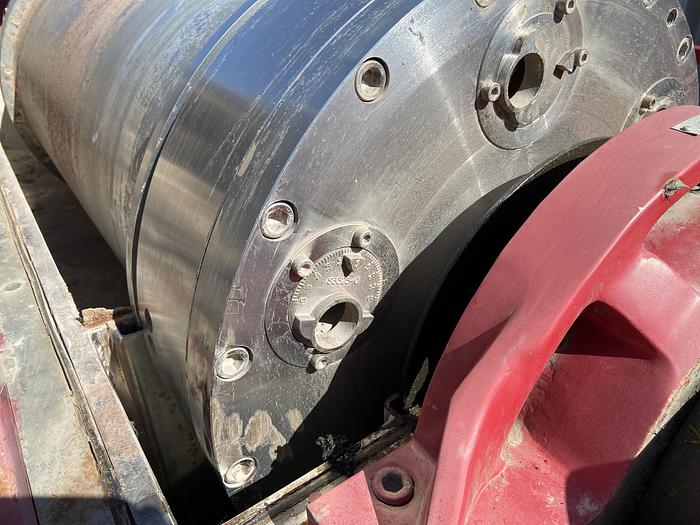

Centrifuge Details x 2:

Bowl Diameter: 20"

Bowl Length: 83.5"

Main Drive HP: 120

Back Drive HP: 30

Feed Pump HP: 25

Max G Force: 2,327

Max Bowl RPM: 2800

Hydraulic Capacity GPM: 500

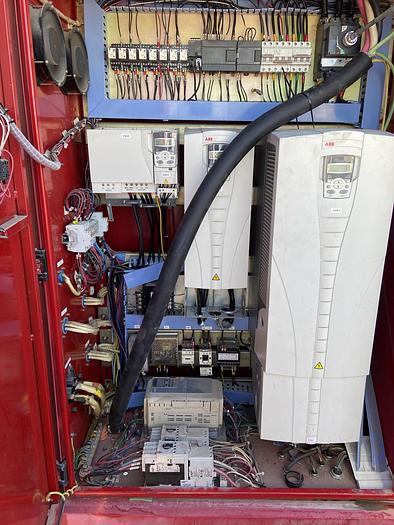

VFD Control Panels x 2:

Drives ABB

Touch Screen

Agitator On/Off

Lights On/Off

Polymer Mixers On/Off

Polymer Pump Controls On/Off and rheostat

Transfer Pump On/Off

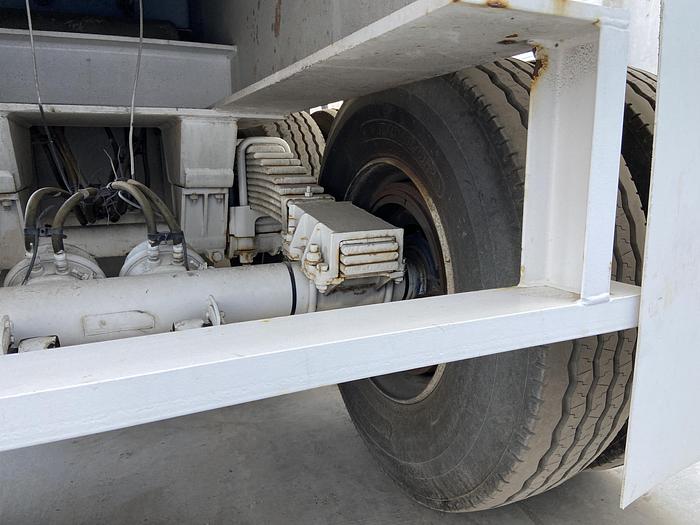

Trailer Dimensions:

Length: 56' 3"

Width: 8' 4"

Height: 12'


Centrigufe Feed Pump x 2

Gorman Rupp T4

25 HP


Transfer Pump X 1

Centrifugal Pump 4x3x13

25 HP


PIT Agitators X 2

2 each

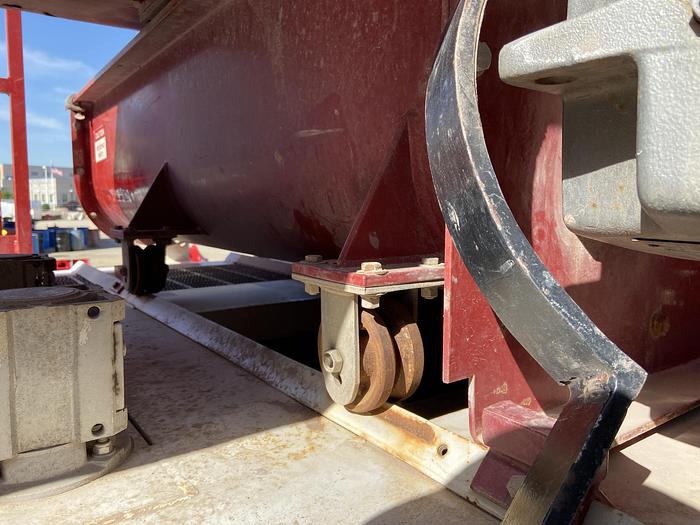

Solids Discard Augers x 2

10 HP

12" Wide


Hydraulic Lifting System

Independent gasoline engine with HPU.

Hydraulic lifting jacks x 2




All Items to be quoted in US currency. All prices and availability are subject to change without

notice and are subject to applicable sales tax. Title to all goods listed remain with the seller until

the purchase price is fully paid. Equipment is purchased as is, where is, without warranty unless

otherwise specified. Use hours are estimate hours as of the date of this posting and are not

guaranteed. Equipment pictured may contain attachments and/or accessories not priced in this

offer. Sale subject to terms and conditions on final bill of sale.


Contact us:

Jose Lozano

jlozano@vidabem.us

800 957 2391

www.vidaeq.com

Specifications

ManufacturerKemtron Technologies
ModelCentrifuge
Year2014
ConditionUsed
Stock Number00196
