2014 Elgin TANGO 500

Description
TANGO 500 Mud Cleaning System.

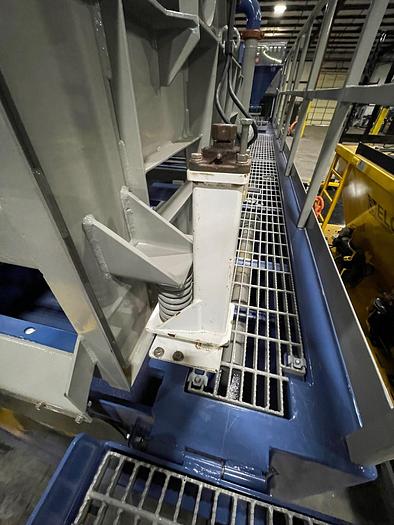

The Tango 500HD2 embodies all the features Elgin reclaimers are known for. Our approach is simple. To create the most effective system on the market while keeping the operator in mind. Capable of processing 500 gallons per minute (32 lps) of drilling fluid, the Tango 500HD2 unit is a high performing recycling system with a compact user-friendly design that is 15% lighter in weight than previous versions. With a total tank capacity of 2,900 gallons, independent 3 x 2 centrifugal pumps, 6-panel linear motion Hyper-G™ shaker, single-point leveling jack design, Firestone™ Marsh Mellow single-piece vibration isolation system, and six 5” desilter hydrocyclone manifold capable of cleaning fluid down to 30 microns, the Tango 500HD2 is built to last and perform.

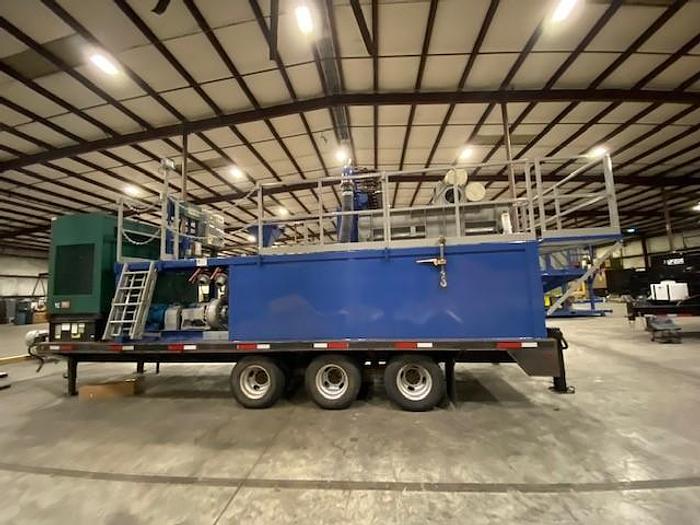

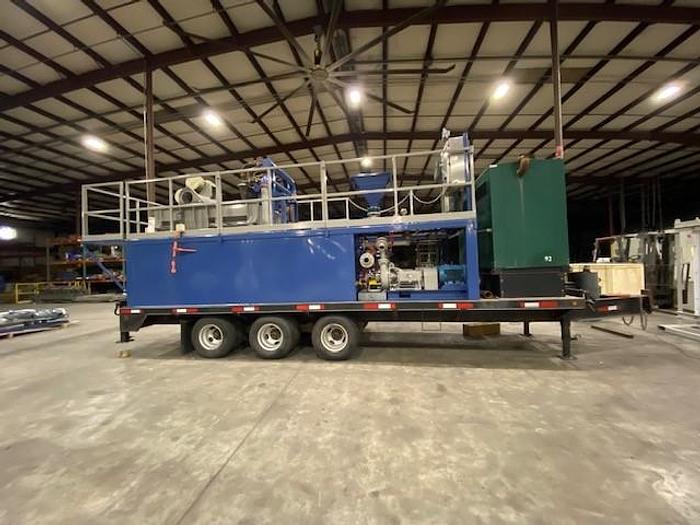

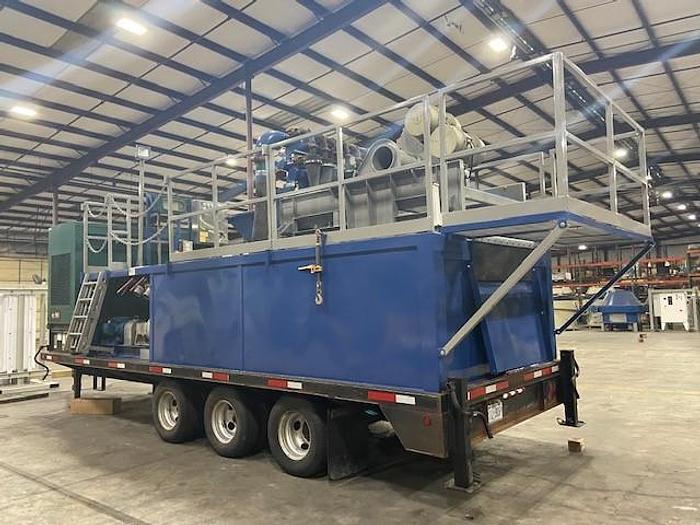

Trailer mounted systems feature a heavy-duty tripple-axel configuration, for efficient unit placement at the job site, with new fold out / walk up ladder and increased working deck space. Combine all this with a cost saving, low fuel consuming, 60kw generator package, the Tango 500HD2™ packaged fluid reclaimer the perfect solution for your solids control needs.
Cleaning Capacity 500 GPM
Everything on the unit has been rebuilt 4/23/21(except for the trailer and generator). Equipment has been in storage since completion of rebuild. The tank was completely removed, sand blasted, painted and has a phenolic liner on the inside, all plumbing has been repaired or replaced. The mud cleaner was completely rebuilt, all centrifugal pumps have been rebuilt. See detailed rebuild sheet in the DOCUMENTS section.
Tango 500

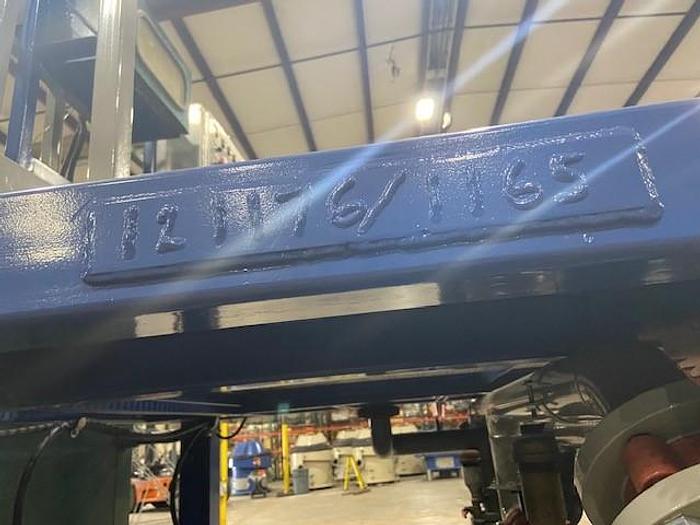

Serial # 121176/ 1165 Tango 500

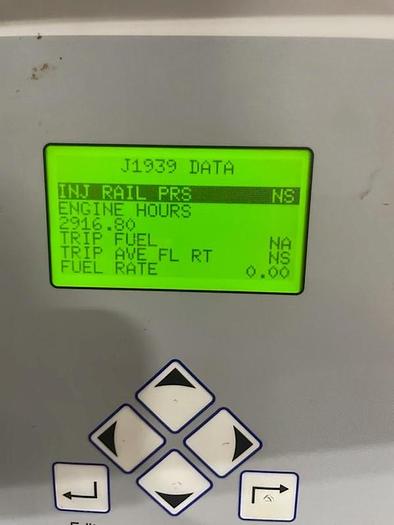

Hours: 2916
Remove Tank From Trailer
- Cut old welds and prep surface for painted tank
Weld Tank to Trailer
- Weld new painted Tank to Trailer
Pipe Repairs On Tango 500
- Remove old pipe couplings Prep and weld new Couplings
Hand Rail Repairs
- Remove old stubs for handrails and add new ones
Electrical Install
- Remove old Electrical and Replace with New cables and clamps
Assembly all Painted parts
- Remove all old parts and assembly newly painted parts

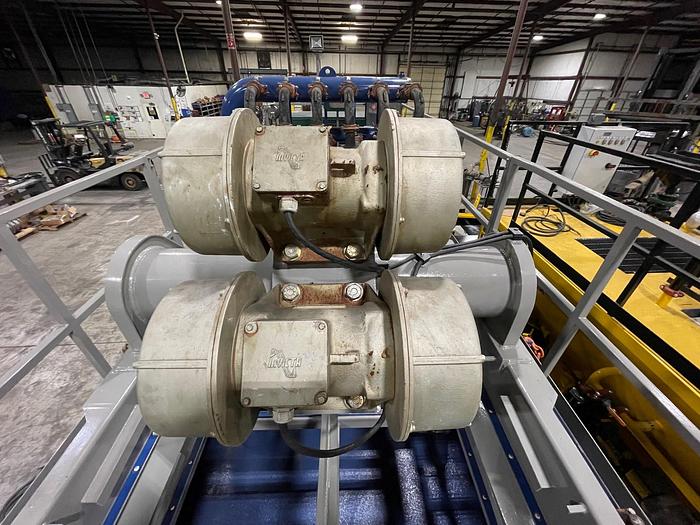

Shaker Rebuild/Mud Cleaner
- Remove all old parts and assembly new parts, includes sandblast and repaint

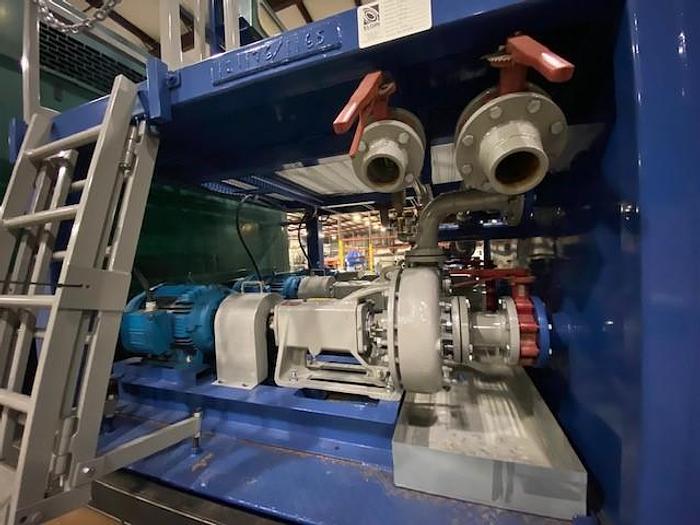

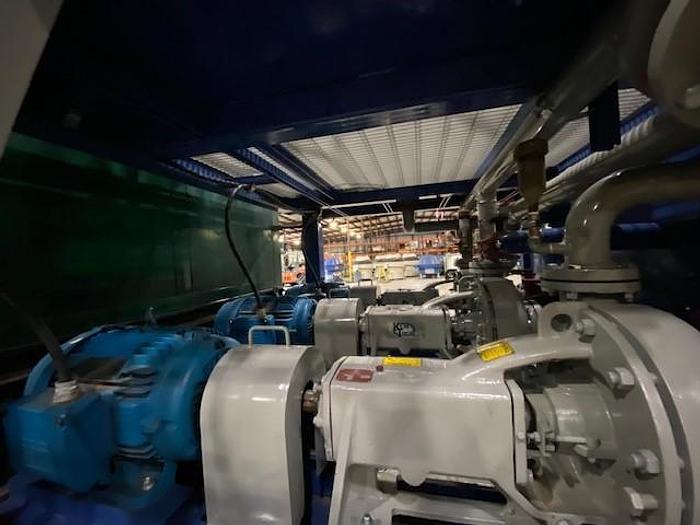

Centrifugal Pump Repairs
- Remove all old parts and assembly with new parts, includes sandblast and repaint
This unit ready for delivery in a few days from time of order.
ITEM NO. DESCRIPTION

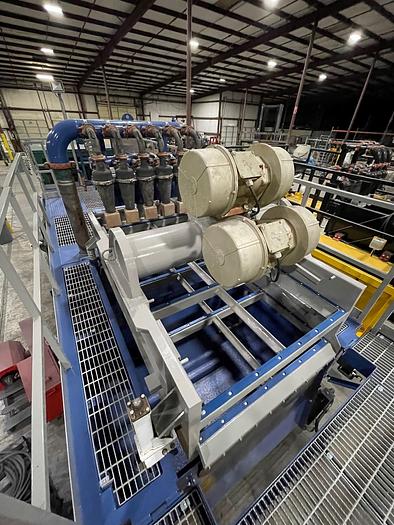

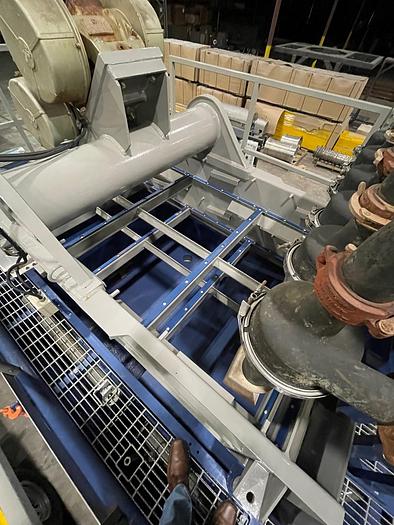

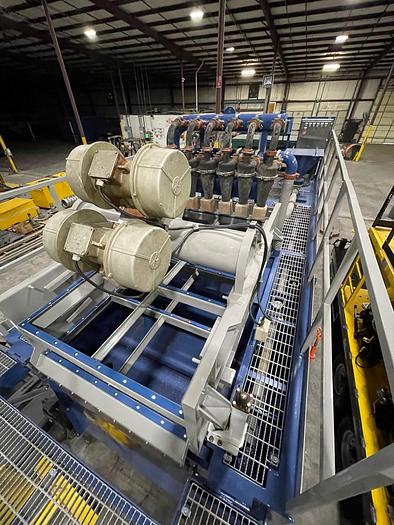

1 (6) PANEL DUAL DECK SHAKER ASSEMBLY

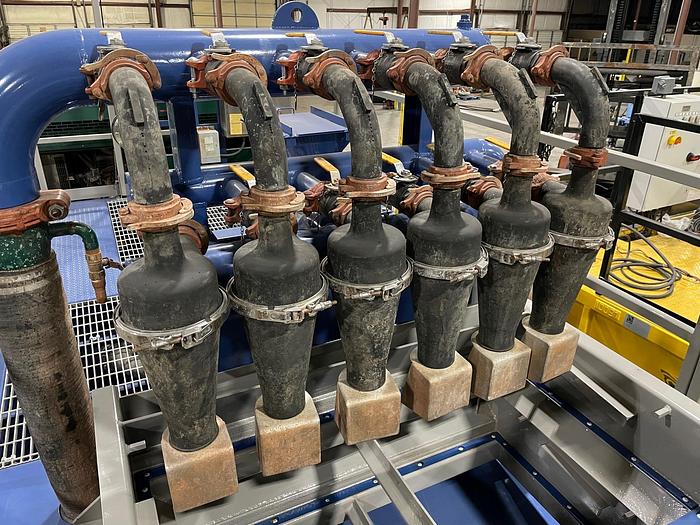

2 (6) DESILTER ASSEMBLY, 5"
3 (1) 4" HOPPER ASSEMBLY
4 (1) 60 KW GENSET INCLUDED
5 (1) LOW-BOY EQUIPMENT TRAILER -3 AXLE
6 (1) 2,900 GALLON TANK
7 (3) CENTRIFUGAL PUMP ASSEMBLY, 250 SERIES, 2 X 3 X 13, 15HP MOTOR
8 (1) CONTROL PANEL
9 HANDRAILS CATWALK AND GRATING
10 UPGRADE INCLUDED: 24,000 LBS RATED TRIPPLE-AXEL TRAILER with JACKS
DIMENSIONS:
Length: 26'
Width: 8.5'
Height: 13'
WEIGHT:
21,500 LBS
(Trailer Unit with Genset)
Please contact us for further detail and pricing.
Thank you
Subject to prior sale and/or other disposition.
All Items to be quoted in US currency. All prices and availability are subject to change without
notice and are subject to applicable sales tax. Title to all goods listed remain with the seller until
the purchase price is fully paid. Equipment is purchased as is, where is, without warranty unless
otherwise specified. Use hours are estimate hours as of the date of this posting and are not
guaranteed. Equipment pictured may contain attachments and/or accessories not priced in this
offer. Sale subject to terms and conditions on final bill of sale.
Contact:
Jose Lozano
1-800-957-2391
(Solids Control, Shaker, Mud Tank, Desander, Desilter, Solids Separation)
Specifications
Manufacturer | Elgin |
Model | TANGO 500 |
Year | 2014 |
Condition | Refurbished |
Serial Number | 121176/ 1165 |
Stock Number | 00190 |
