Continental EMSCO FB-1600

Continental EMSCO FB-1600

Contact us for price

Financing Available
Apply for credit
orCall 1-800-957-2391

Description

www.VIDAEQ.com

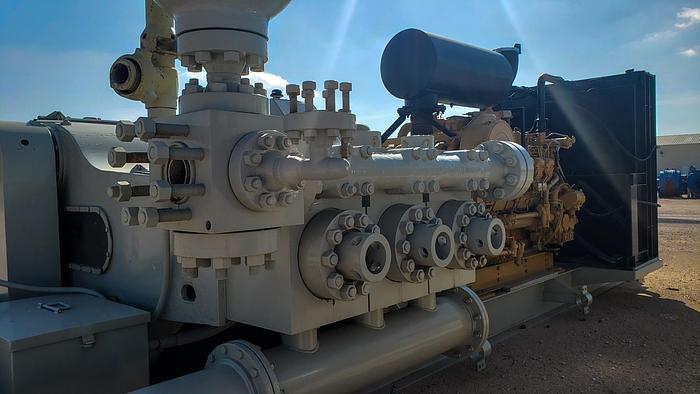

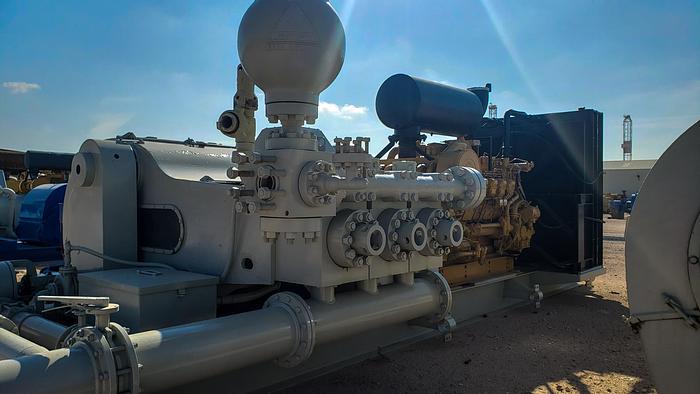

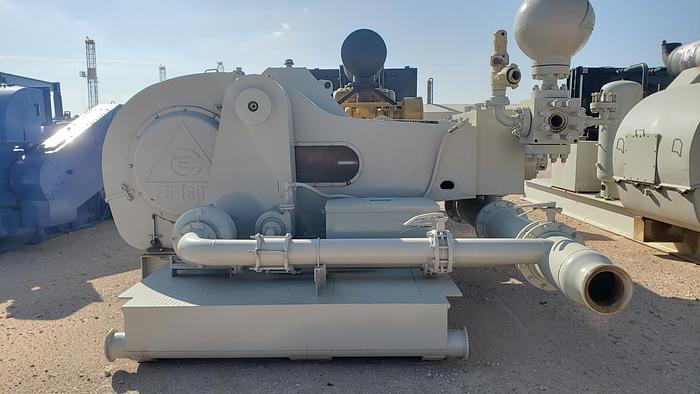

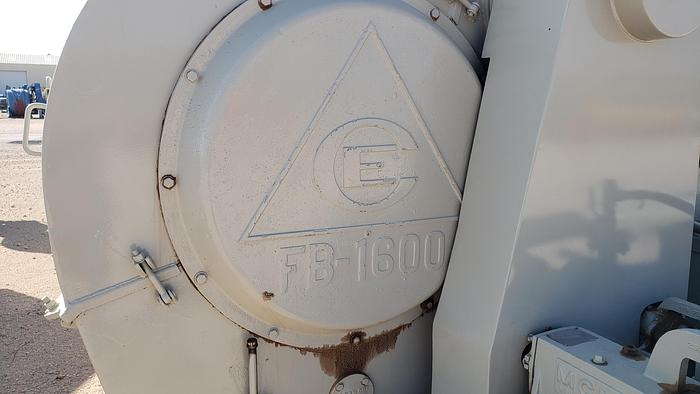

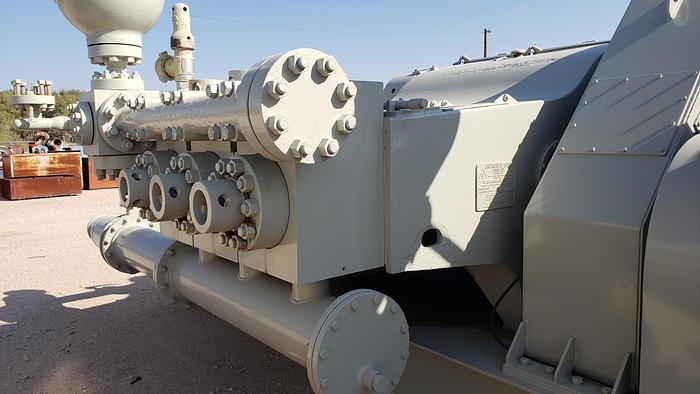

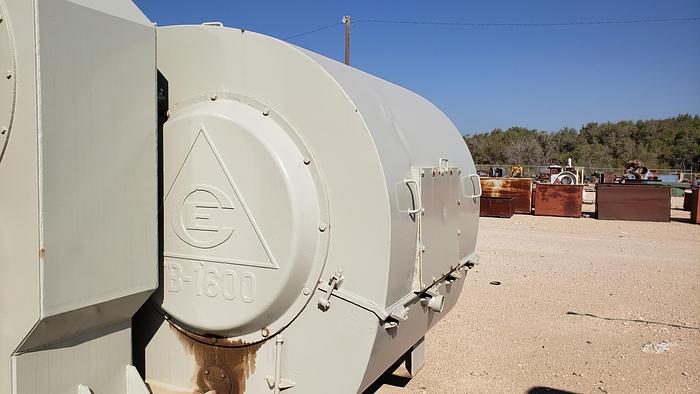

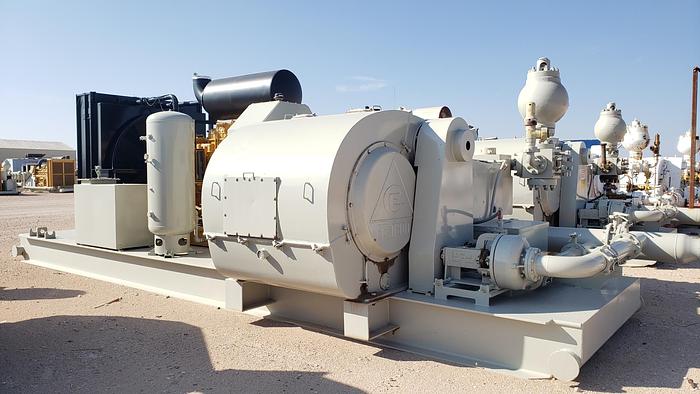

Continental Emsco Triplex Mud Pump


This equipment is fully operational as it sit's.

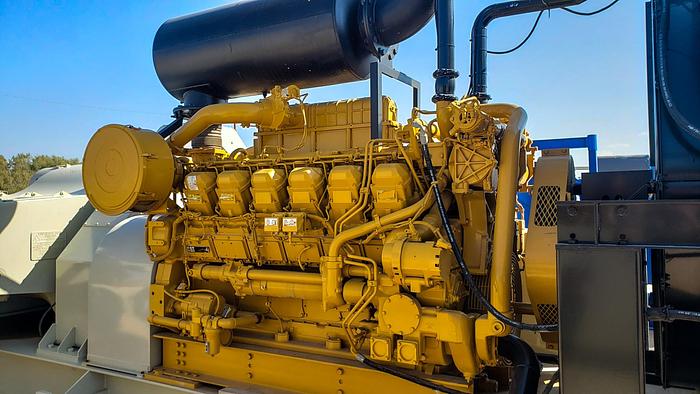

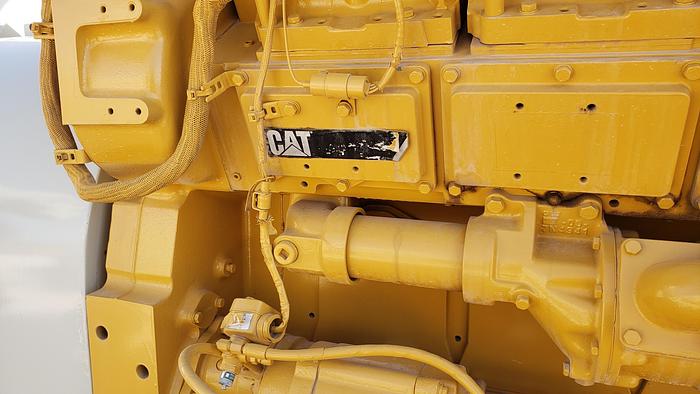

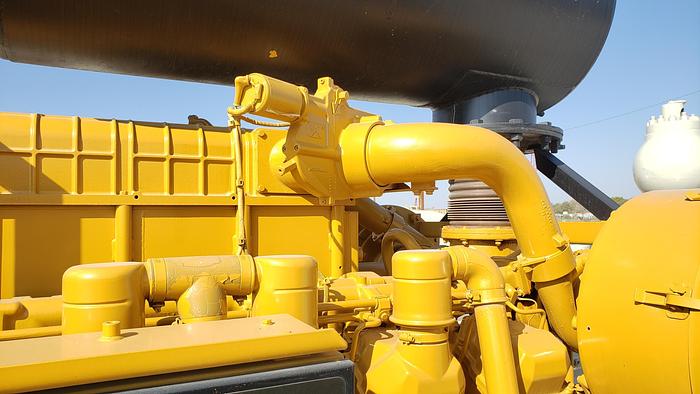

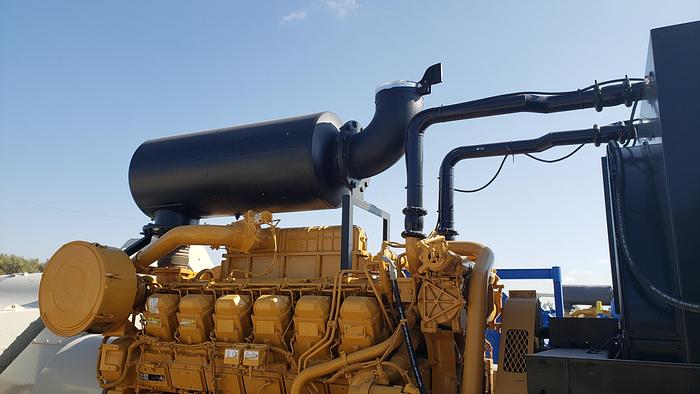

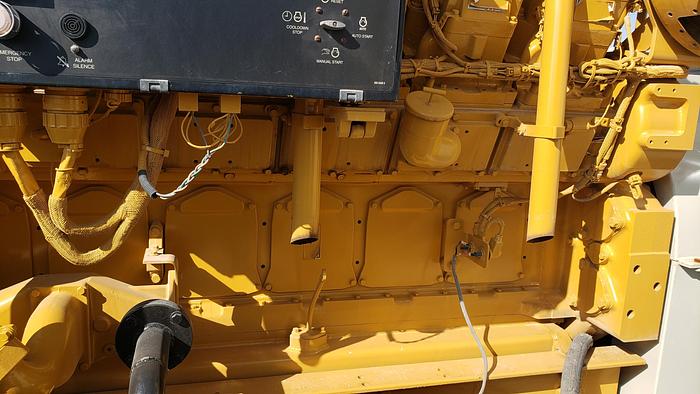

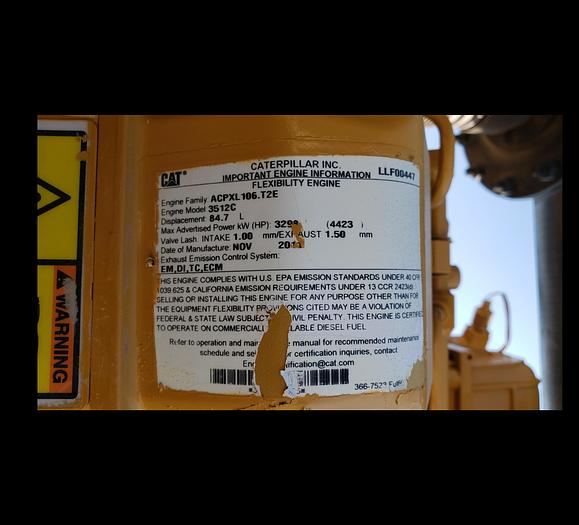

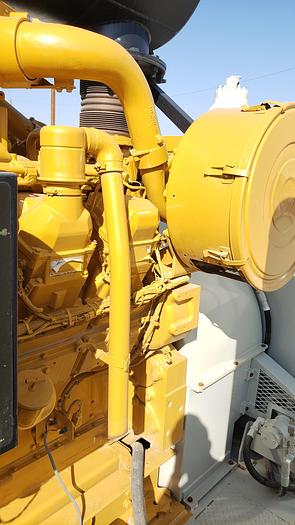

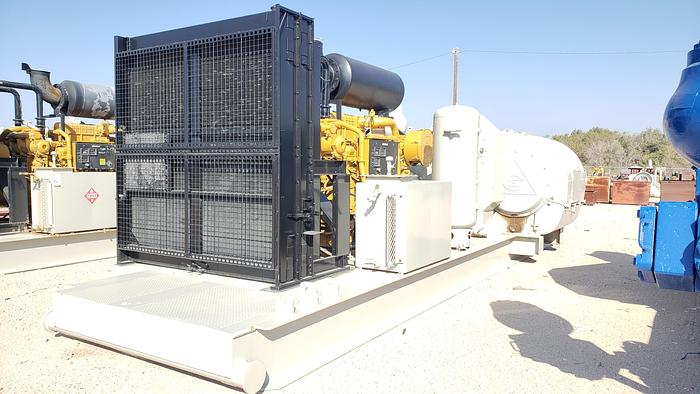

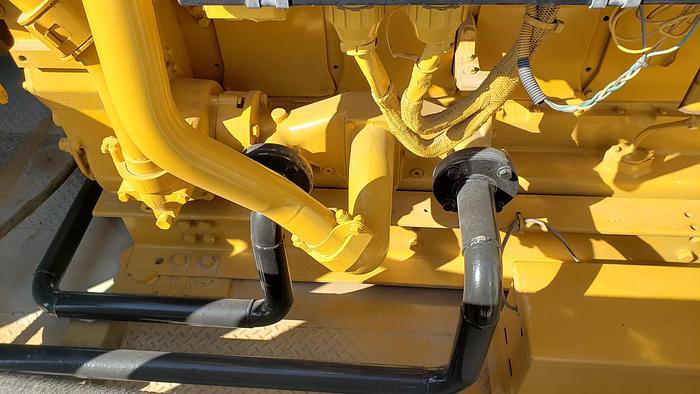

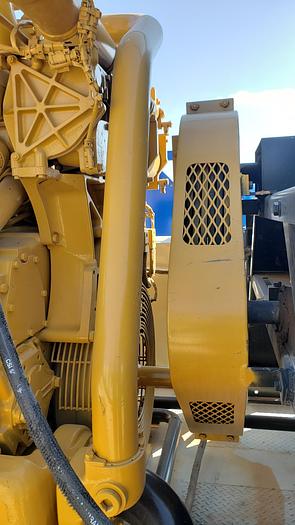

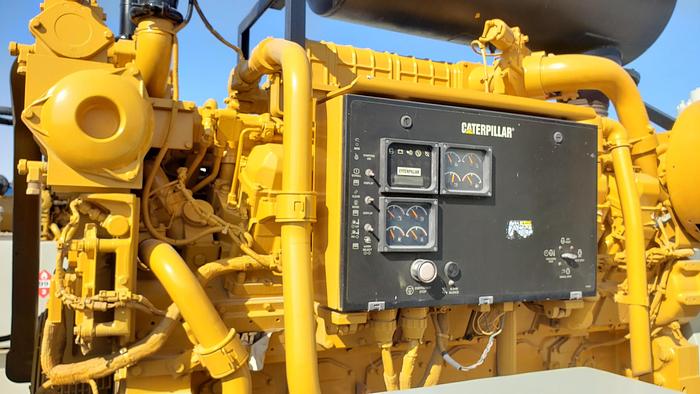

Engine and Pump can be completely rebuilt upon your request for an additional cost. Powered by a Caterpillar 3512C Engine. This unit is mounted on a three runner oil field type skid.

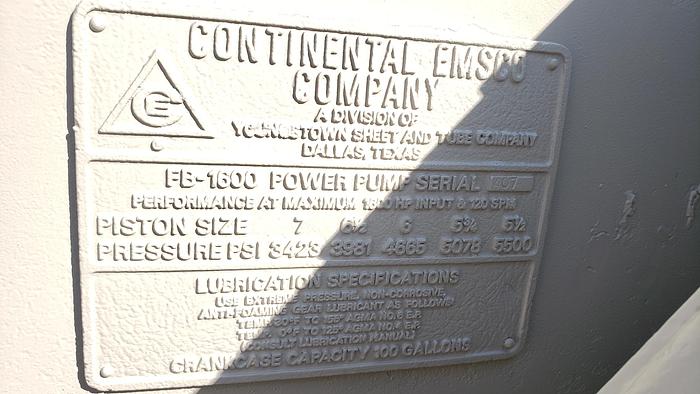

Performance at Maximum HP Input 1600 HP Input @120 SPM


We have multiple packages available, all of them in Great Condition and Field Ready!


Features ⬇️

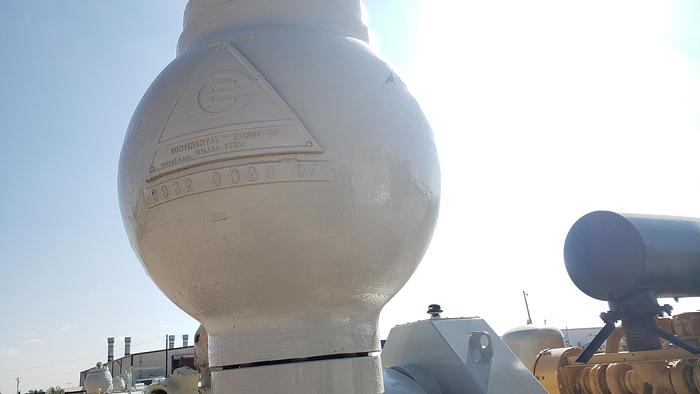

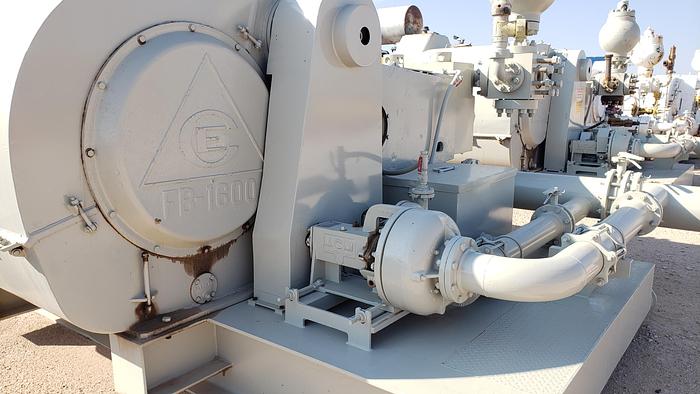

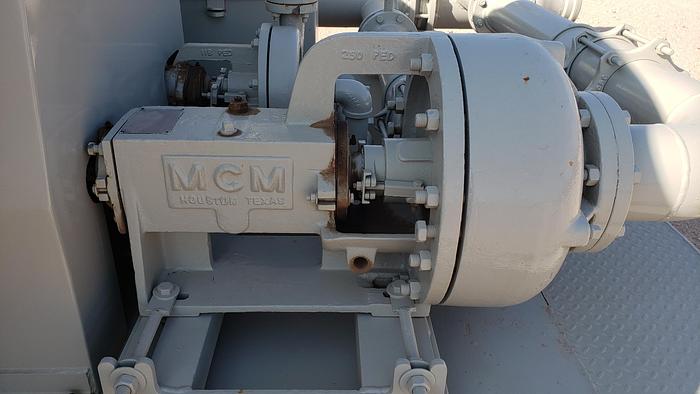

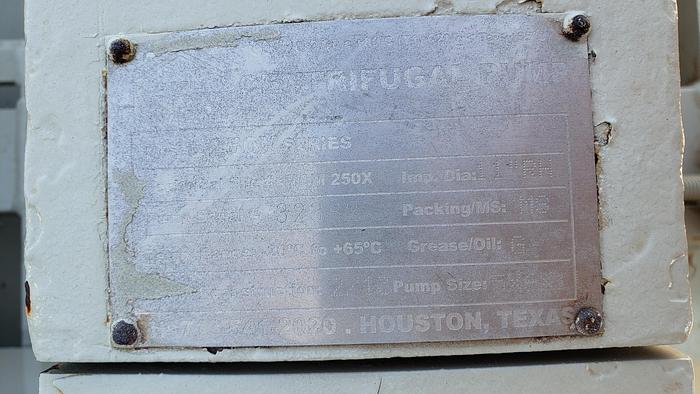

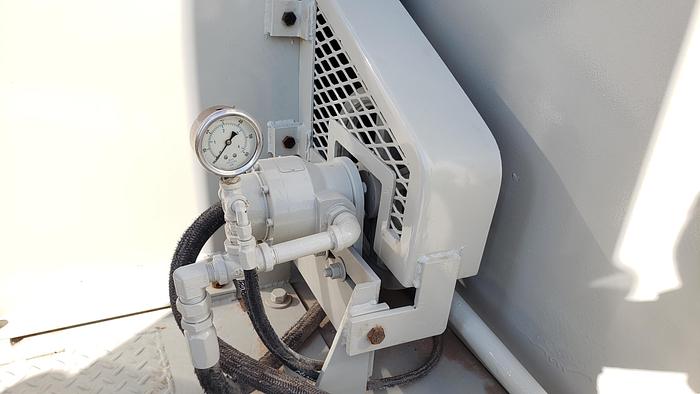

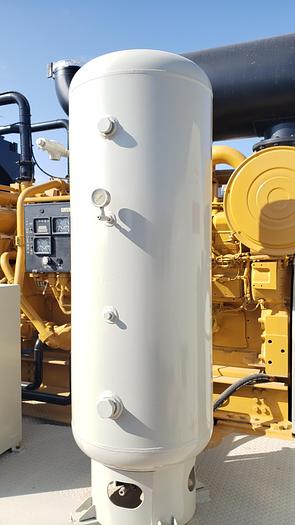

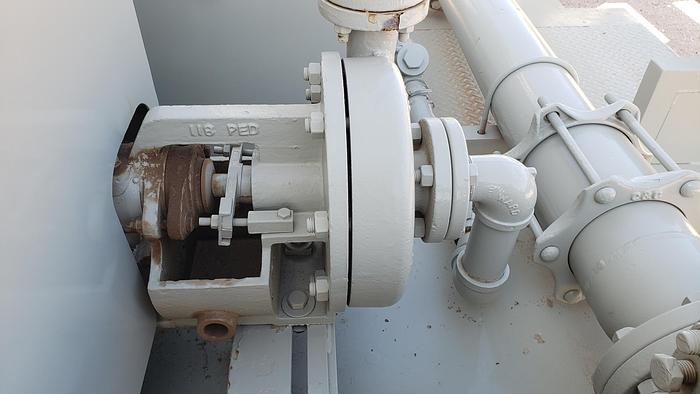

(1) Chain drive assembly (includes drive sprocket, bull sprocket, hubs, lay shaft, bearing housings, bearings, seals, air clutch, clutch drum, clutch support, drive chain, oil tight chain case), (1) 5,000 psi discharge strainer cross (1) 5,000 psi pulsation dampener (1) 3” 5,000 psi shear relief valve (1) 2” 0-6,000 psi mud pressure gauge (1) pinion driven 250 Series 5x6 charge pump (1) pinion driven liner wash system with 1x1-1/2 pump (1) air volume tank (1) diesel day tank (1) New set of fluid end expendables (Plungers, Valve's, Seats, Springs and Liners) Note: 8" Stroke Note: Will accept a 5-1/2"" to 7" Plunger Dimensions: Length= 28' Long Width= 13' Height= 10' Weight: 85,000 LBS Estimate


With each package we will perform the following inspections and maintenance prior to shipping.


Engine full service and inspection including:

  • Oil change
  • Pump End Full Service and Inspection Including a new set of, liners, plungers, valves, seats and springs that we will install.
  • Gear End Full Service and Inspection including oil change



Packages will be ran for 24 hours to ensure no issues with engines,

Pumps will be pressured up to 2,000 - 3,000 psi to ensure no issues with pumps.



(pz8, pz-8, pz7, pz-7, pump, high pressure, mud pump, frac pump,triplex, tri-plex, duplex, du-plex)

Purchasing Party is responsible for verifying accuracy of information provided. All Equipment is Subject to Prior Sale or Other Disposition. All Items to be quoted in US currency. All prices and availability are subject to change without notice and are subject to applicable sales tax. All Equipment is Subject to Prior Sale or Other Disposition. Title to all goods listed remain with the seller until the purchase price is fully paid. Equipment is purchased as is, where is, without warranty unless otherwise specified. Use hours are estimate hours as of the date of this posting and are not guaranteed. Equipment pictured may contain attachments and/or accessories not priced in this offer. Sale subject to terms and conditions on final bill of sale. Contact us: Jose Lozano jlozano@vidabem.us 800 957 2391 www.vidaeq.com Visit us on LinkedIn https://www.linkedin.com/company/vida-eq

Specifications

ManufacturerContinental EMSCO
ModelFB-1600
ConditionUsed
Stock Number00052
Horse Power1,600
EngineCaterpillar 3512C
