2011 Vortex Fluid Systems Inc. Orbital 3000

No longer available

2011 Vortex Fluid Systems Inc. Orbital 3000

Financing Available
Apply for credit

Texas

Description

www.VIDAEQ.com

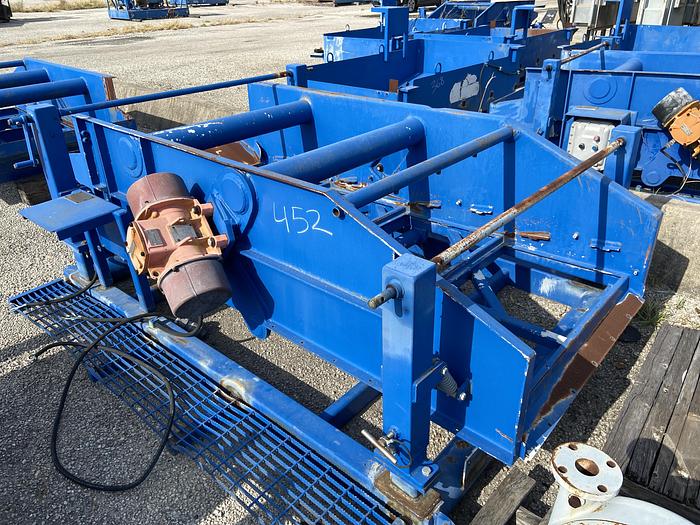

đź’Ą ORBITAL 3000 DRYING SHAKER WITH WALKWAYS



👉 USED AS-IS and WHERE IS



DESCRIPTION

The ORBITAL® 3000 Drying Shaker with walkways is a four panel shaker with extended feed section, mounted on an open frame base with personel walkways


BENEFITS IN PROCESSING CUTTINGS

One advantage of the VFSI drying shaker is in processing cuttings. Competitor units have stationary sections which funnel cuttings to the shaker. These areas commonly plug up, must be cleared, and can cause a mess. The VFSI Orbital 3000 Drying shaker features an extended section and are vibrated onto the screen eliminating cuttings holdup.


PERFORMANCE

The screen area of the Orbital 3000 Drying Shaker has 30 ft2 with 6 g’s of acceleration. The combination of screen surface area, high g’s, and screen motion make the Orbital 3000 one of the best performing machines in the industry. The Orbital 3000 shakers use progressive elliptical motion for extended screen life and excellent conveyance.


GRATED WALKWAYS

The grated walkways on each side of the unit keep the operator out of the mud and provide a convenient height to change screens and monitor performance.


FEATURES

ORBITAL® shakers have many beneficial features.


ACCELERATION: 6 g’s (standard) to 7.5 g’s (optional)

SCREEN AREA: 30 ft2 of screening area

MOTION: eliptical motion

SCREEN LIFE: ORBITAL® shakers have exceptional screen life

SEAL WELDED: Fully seal welded baskets.

LOW MAINTENANCE: Ultra low maintenance design

LOW NOISE: 70 db standing 3ft from discharge 10

ABRASION PERTECTION: two layers of powder coat

SCREEN SEALS: patent pending screen seals are as easy to change as a set of screens

VIBRATORS: vibrators are one of the most overbuilt electrically and mechanically in the industry

MANUFACTURING: Made in USA



SPECIFICATIONS


NAME: Orbital 3000 Sump Drying Shaker

SCREEN AREA: 30 ft[2.8 m]

“G” FORCE: 6 g’s (standard), 7.5 g’s (optional)

MOTION: Progressive Eliptical

DIMENSION (L x W x H): 116Ă—100-1/2Ă—40-1/4in (295x255x102cm)

WEIGHT: 3200lb [1455 kg]

FEED HEIGHT: 25-3/8in [65cm] (standard) – adjustable

ADJUSTMENT ANGLE: 0 to 8 degrees

ANGLE CHANGE TYPE: hand crank (standard) or center wheel (optional)

SCREEN TYPE: pretension

SCREEN NUMBER: 4 screens

SCREEN SIZE: 48 x 24 in [112 x 61 cm]

MOTORS: Italvebras, 1200 or 1800 rpm, 50 or 60 hz

MOTOR TYPE: explosion roof

ELECTRICAL BOX TYPE: explosion roof



Please contact us for further detail and pricing.


Thank you


Subject to prior sale and or other disposition.


All Items to be quoted in US currency. All prices and availability are subject to change without

notice and are subject to applicable sales tax. Title to all goods listed remain with the seller until

the purchase price is fully paid. Equipment is purchased as is, where is, without warranty unless

otherwise specified. Use hours are estimate hours as of the date of this posting and are not

guaranteed. Equipment pictured may contain attachments and/or accessories not priced in this

offer. Sale subject to terms and conditions on final bill of sale.


Contact:

Jose Lozano

jlozano@vidabem.us

1-800-957-2391

www.vidaeq.com


(Shaker, centrifuge, decanter, 2 phase, two phase, three phase, 3 phase)


Specifications

ManufacturerVortex Fluid Systems Inc.
ModelOrbital 3000
Year2011
ConditionUsed
Serial Number452
Stock Number00136
MANUFACTURINGMade in USA
SCREEN AREA30 ft2of screening area
SCREEN NUMBER4 screens
SCREEN TYPEpretension
ADJUSTMENT ANGLE0 to 8 degrees
WEIGHT3200lb [1455 kg]
DIMENSION (L x W x H)116Ă—100-1/2Ă—40-1/4in (295x255x102cm)
ELECTRICAL BOX TYPEexplosion roof
MOTIONeliptical motion
MOTOR TYPEexplosion roof
