2011 Vortex Fluid Systems Inc. Orbital 3000
2011 Vortex Fluid Systems Inc. Orbital 3000
Texas
Description
đź’Ą ORBITAL 3000 DRYING SHAKER WITH WALKWAYS
👉 USED AS-IS and WHERE IS
DESCRIPTION

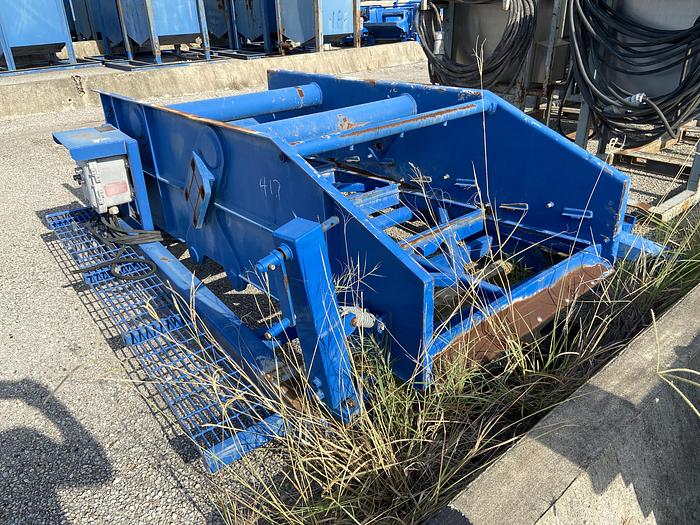

The ORBITAL® 3000 Drying Shaker with walkways is a four panel shaker with extended feed section, mounted on an open frame base with personel walkways
BENEFITS IN PROCESSING CUTTINGS
One advantage of the VFSI drying shaker is in processing cuttings. Competitor units have stationary sections which funnel cuttings to the shaker. These areas commonly plug up, must be cleared, and can cause a mess. The VFSI Orbital 3000 Drying shaker features an extended section and are vibrated onto the screen eliminating cuttings holdup.
PERFORMANCE
The screen area of the Orbital 3000 Drying Shaker has 30 ft2 with 6 g’s of acceleration. The combination of screen surface area, high g’s, and screen motion make the Orbital 3000 one of the best performing machines in the industry. The Orbital 3000 shakers use progressive elliptical motion for extended screen life and excellent conveyance.
GRATED WALKWAYS
The grated walkways on each side of the unit keep the operator out of the mud and provide a convenient height to change screens and monitor performance.
FEATURES
ORBITAL® shakers have many beneficial features.
ACCELERATION: 6 g’s (standard) to 7.5 g’s (optional)
SCREEN AREA: 30 ft2 of screening area
MOTION: eliptical motion
SCREEN LIFE: ORBITAL® shakers have exceptional screen life
SEAL WELDED: Fully seal welded baskets.
LOW MAINTENANCE: Ultra low maintenance design
LOW NOISE: 70 db standing 3ft from discharge 10
ABRASION PERTECTION: two layers of powder coat
SCREEN SEALS: patent pending screen seals are as easy to change as a set of screens
VIBRATORS: vibrators are one of the most overbuilt electrically and mechanically in the industry
MANUFACTURING: Made in USA
SPECIFICATIONS
NAME: Orbital 3000 Sump Drying Shaker
SCREEN AREA: 30 ft2 [2.8 m2 ]
“G” FORCE: 6 g’s (standard), 7.5 g’s (optional)
MOTION: Progressive Eliptical
DIMENSION (L x W x H): 116Ă—100-1/2Ă—40-1/4in (295x255x102cm)
WEIGHT: 3200lb [1455 kg]
FEED HEIGHT: 25-3/8in [65cm] (standard) – adjustable
ADJUSTMENT ANGLE: 0 to 8 degrees
ANGLE CHANGE TYPE: hand crank (standard) or center wheel (optional)
SCREEN TYPE: pretension
SCREEN NUMBER: 4 screens
SCREEN SIZE: 48 x 24 in [112 x 61 cm]
MOTORS: Italvebras, 1200 or 1800 rpm, 50 or 60 hz
MOTOR TYPE: explosion roof
ELECTRICAL BOX TYPE: explosion roof
Please contact us for further detail and pricing.
Thank you
Subject to prior sale and or other disposition.
All Items to be quoted in US currency. All prices and availability are subject to change without
notice and are subject to applicable sales tax. Title to all goods listed remain with the seller until
the purchase price is fully paid. Equipment is purchased as is, where is, without warranty unless
otherwise specified. Use hours are estimate hours as of the date of this posting and are not
guaranteed. Equipment pictured may contain attachments and/or accessories not priced in this
offer. Sale subject to terms and conditions on final bill of sale.
Contact:
Jose Lozano
1-800-957-2391
(Shaker, centrifuge, decanter, 2 phase, two phase, three phase, 3 phase)
Specifications
Manufacturer | Vortex Fluid Systems Inc. |
Model | Orbital 3000 |
Year | 2011 |
Condition | Used |
Serial Number | 417 |
Stock Number | 00134 |
MANUFACTURING | Made in USA |
SCREEN AREA | 30 ft2of screening area |
SCREEN NUMBER | 4 screens |
SCREEN TYPE | pretension |
ADJUSTMENT ANGLE | 0 to 8 degrees |
WEIGHT | 3200lb [1455 kg] |
DIMENSION (L x W x H) | 116Ă—100-1/2Ă—40-1/4in (295x255x102cm) |
ELECTRICAL BOX TYPE | explosion roof |
MOTION | eliptical motion |
MOTOR TYPE | explosion roof |
